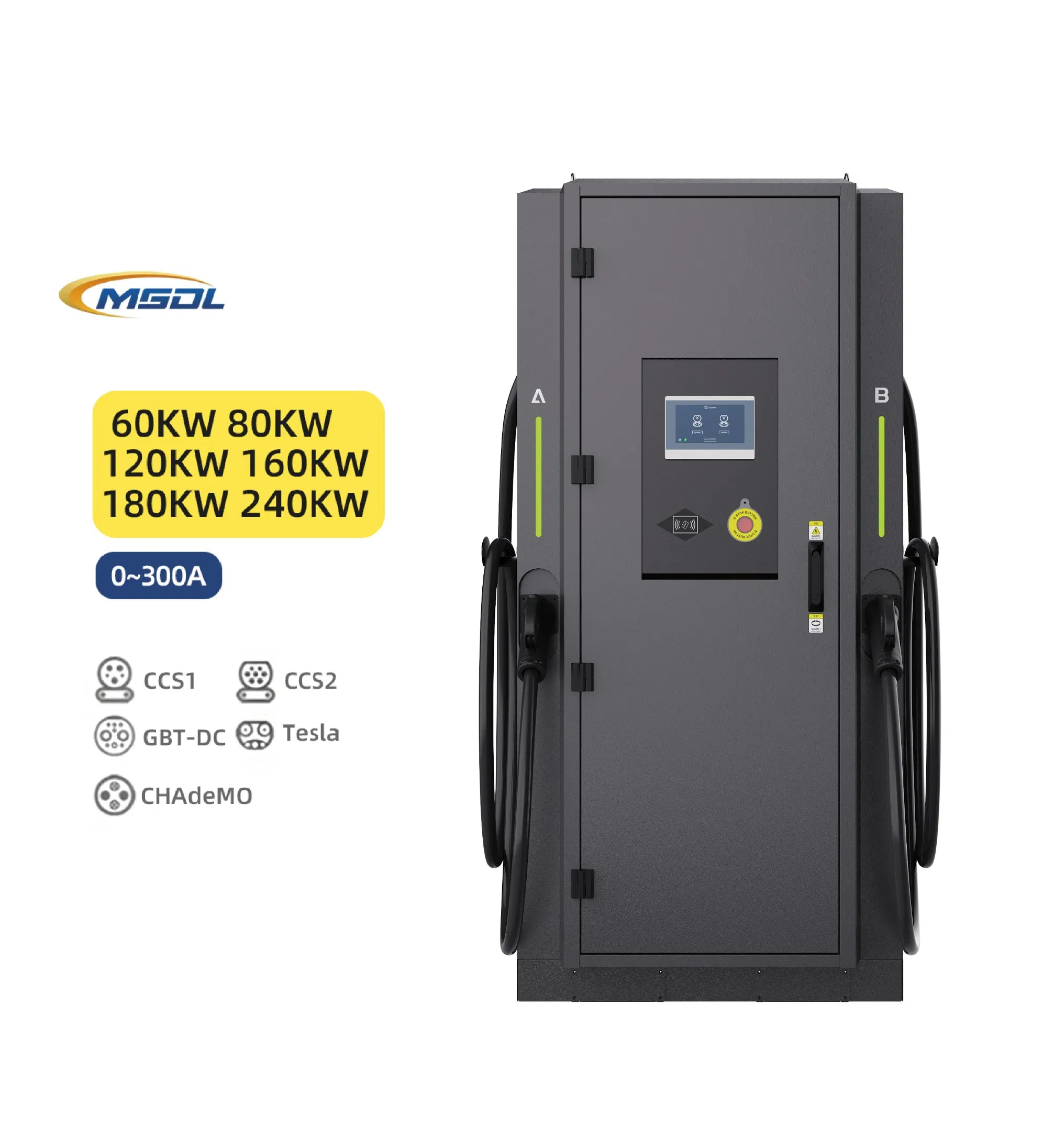

Powerful DC EV Charger Charging Station with 5-7m Cable for Fast Charging

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Specifications
Model:MS08A-10A
Rated Power:240-480kW
Input Voltage:400VAC / 480VAC
Output Voltage:200 - 1000VDC
Protection:IP54 / IK10
Weight:440kg
DC EV Charger Station
Fast Charging Technology
🚀 Product Overview
240kW-480kW High-Power Commercial/Heavy-Duty Truck Charging Station

Our next-generation ultra-high-performance DC charging station is designed to meet the growing demand for efficient and reliable infrastructure in the commercial vehicle sector. It serves as a core power engine driving green transformation in logistics, engineering, and specialized operations.

  • Functional Aesthetics: Bold, steady design with rugged industrial character for any facility.
  • Modular Architecture: Standard 12 high-efficiency power module slots for robust performance.
  • Extreme Scalability: Power capacity expands smoothly up to 480kW to protect long-term investment.
  • Dual-Gun Technology: Efficiently supports heavy-duty transportation and specialized high-demand operations.
📊 Technical Parameters
Appearance & Structure
Dimensions (L x D x H)900mm x 700mm x 1900mm
Weight440kg
Cable Length5m-7m
ConnectorsGBT, CCS2, CCS1, CHAdeMO, NACS
Electrical Indicators
Input Frequency50/60Hz
Output Current1-600A
EfficiencyPeak efficiency ≥ 96%
Power Factor> 0.99
Communication ProtocolOCPP, YKC, and other operating platforms
Functional Design
Display7’’ LCD with touch screen
Access ControlRFID: ISO/IEC 14443A/B (POS Optional)
CoolingAir Cooled
Environmental & Safety
Operating Temperature-30°C to 75°C
Altitude< 2000m
Safety ProtectionOvervoltage, Lightning, Overcurrent, Leakage, Waterproof
📸 Product Details Gallery
Product detail 1
Product detail 2

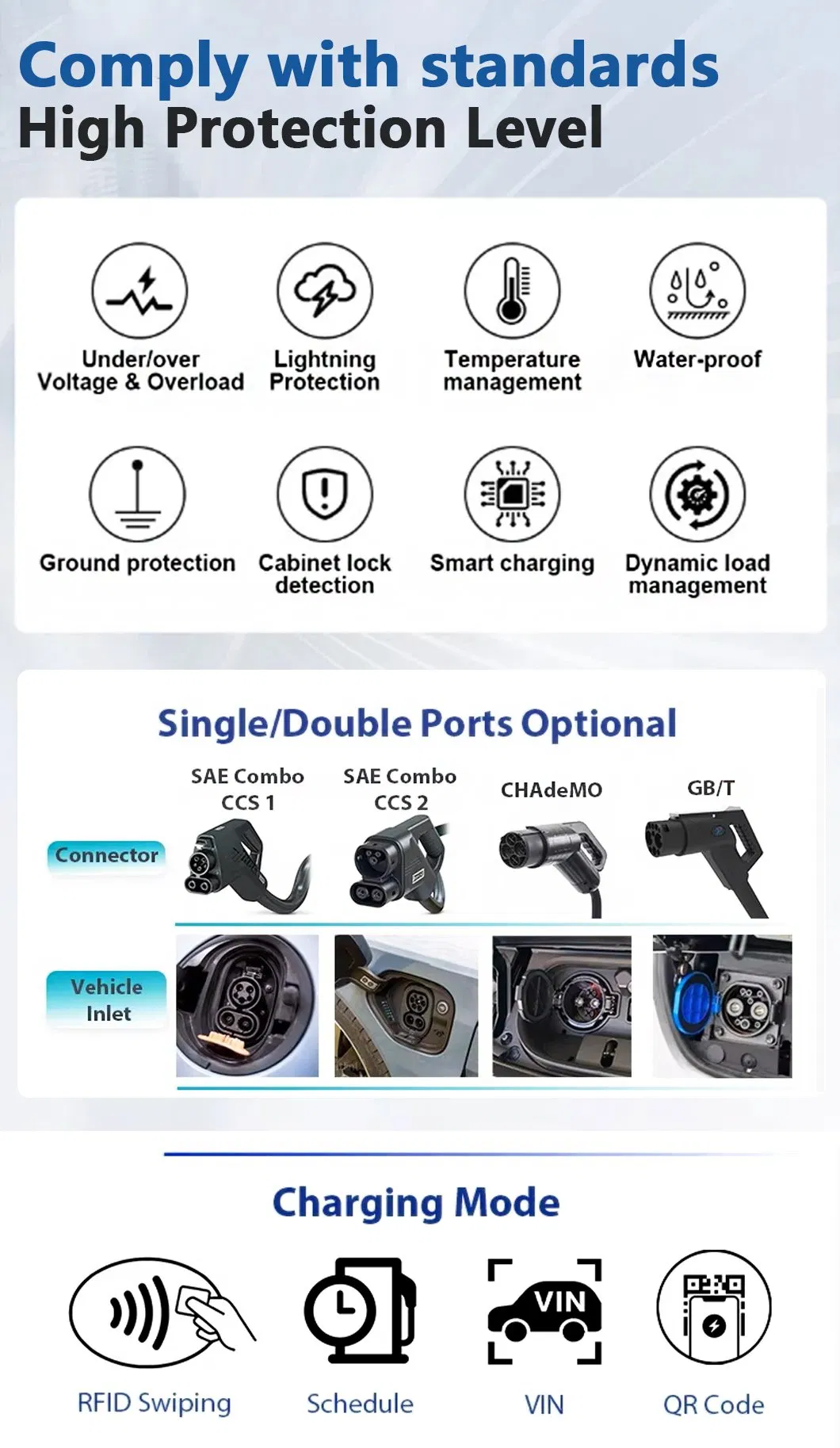

Product detail 3
Product detail 4
Product detail 5

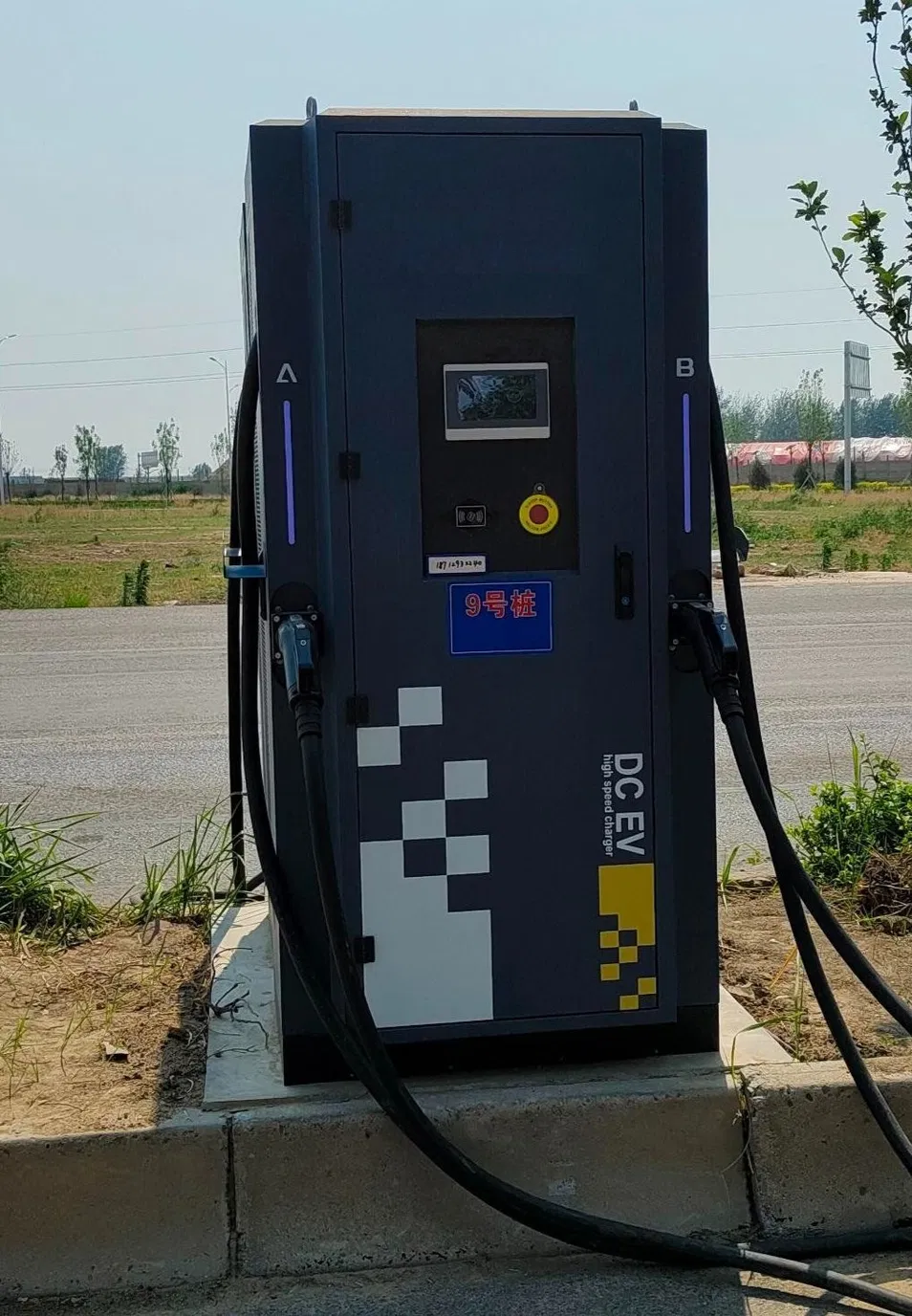

Product detail 6

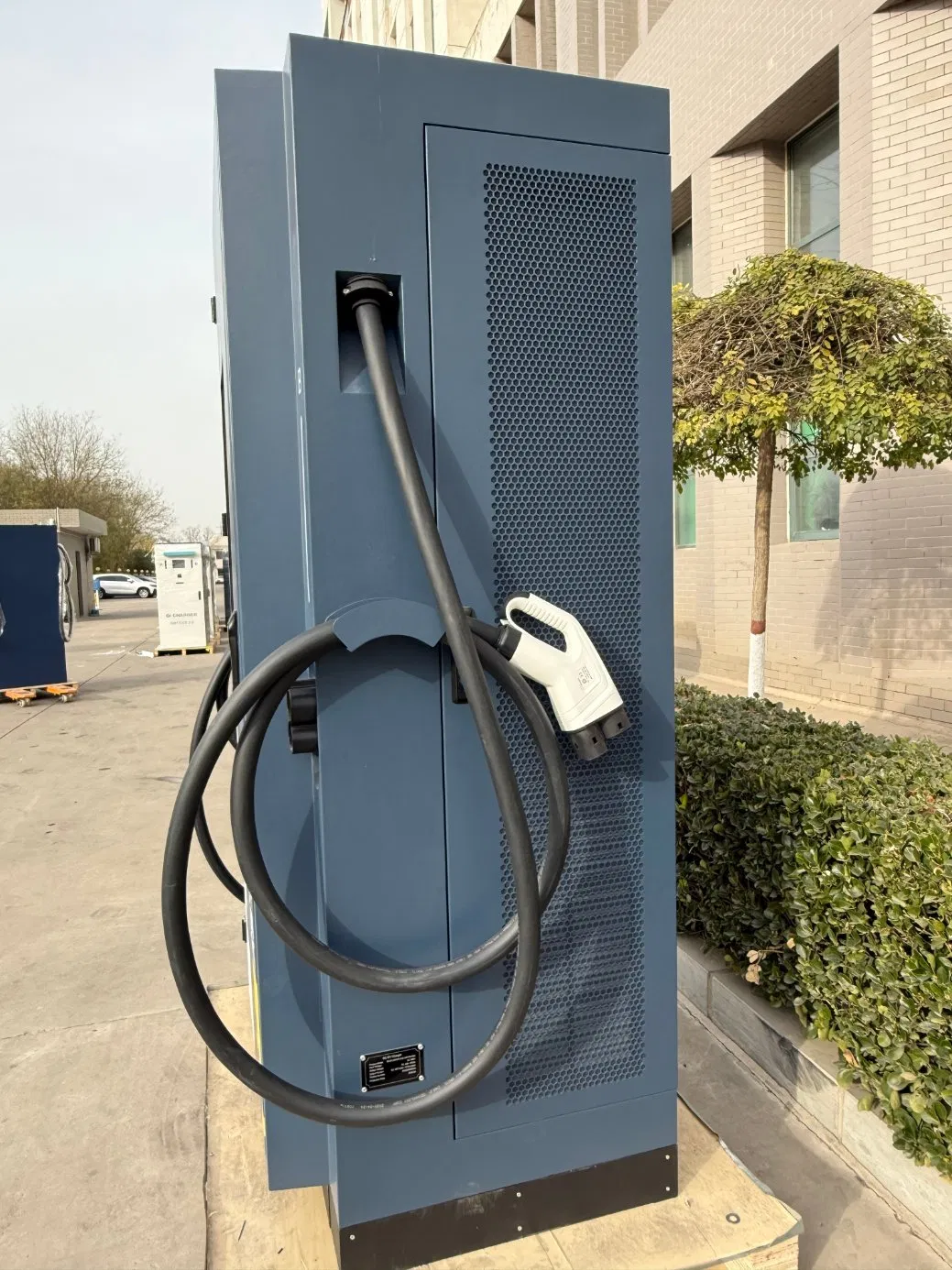

Product detail 7

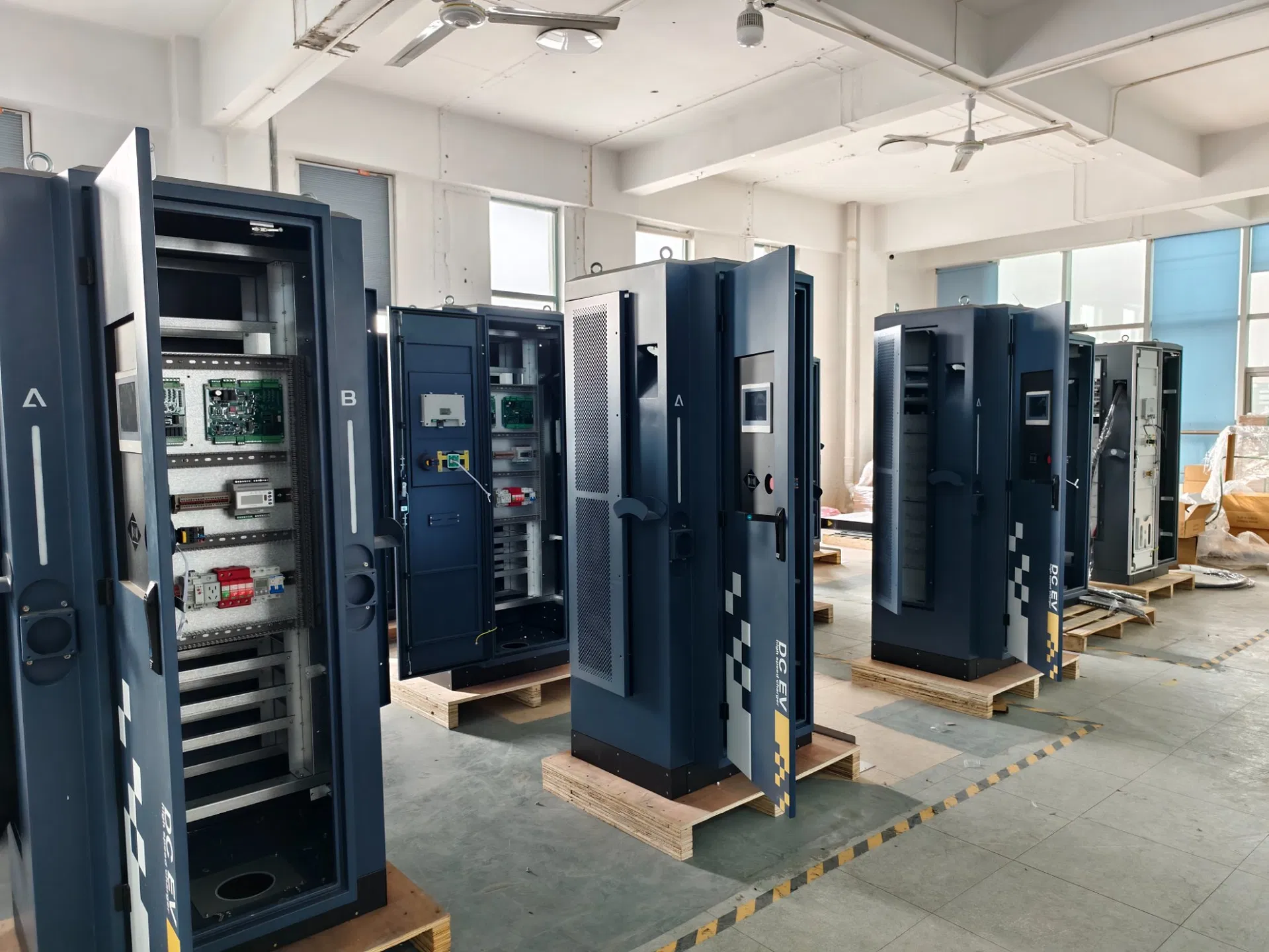

Product detail 8
📦 Packaging & Delivery
Package Size:120.00cm * 95.00cm * 200.00cm
Gross Weight:570.000kg
Packaging Type:Wooden Case
❓ Frequently Asked Questions
Q1: What is the maximum power output of this charging station? A: The station features a modular design that can scale from 240kW up to a maximum of 480kW, making it ideal for heavy-duty electric trucks and commercial fleets.

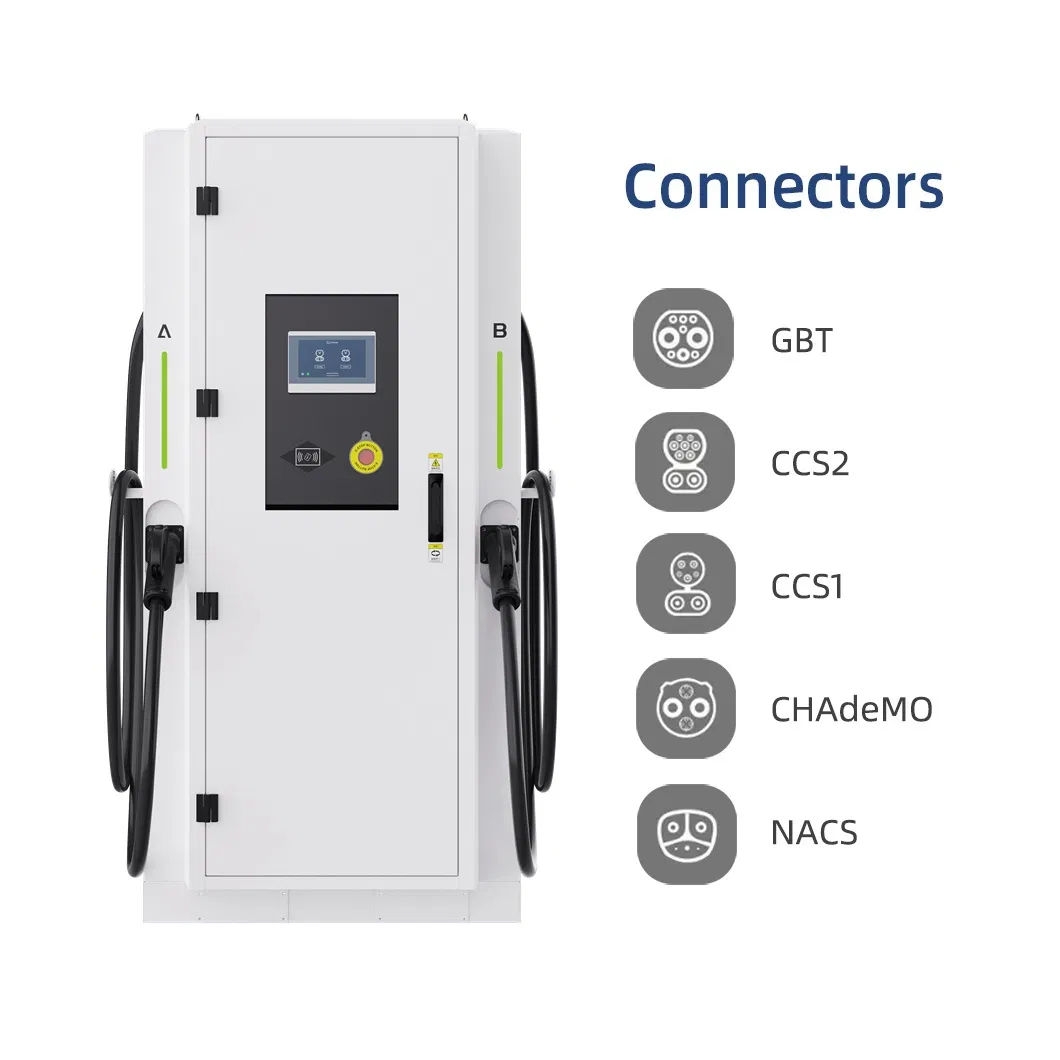

Q2: Which electric vehicle connectors are supported? A: It supports all major global standards including GBT, CCS2, CCS1, CHAdeMO, and NACS.
Q3: Is the charging station suitable for outdoor use in extreme weather? A: Yes, it is rated IP54 and IK10 for ingress and impact protection, with an operating temperature range of -30°C to 75°C.
Q4: How can users start a charging session? A: Users can start charging via RFID card authentication, mobile remote operation/App, or optional credit card payment (POS machine).
Q5: What safety protections are included? A: The system includes overvoltage, lightning, overcurrent, leakage, and waterproof protection, along with a dedicated emergency stop button.
Q6: What is the efficiency rating of the power conversion? A: The station achieves a peak efficiency of ≥ 96% with a power factor of greater than 0.99, ensuring minimal energy loss.
