📋 Basic Information
Model NO.
RFID Disc Tag - 04
Frequency
LF(125kHz) or HF (13.56MHz)
Dimension
Dia.13mm to 50mm
Operating Temp
-30ºC to +60ºC
Production Capacity
10000 Pieces Per Day
📦 Packaging & Delivery
Package Size
20.00cm * 20.00cm * 20.00cm
🔍 Product Description

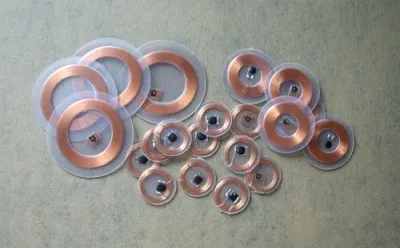

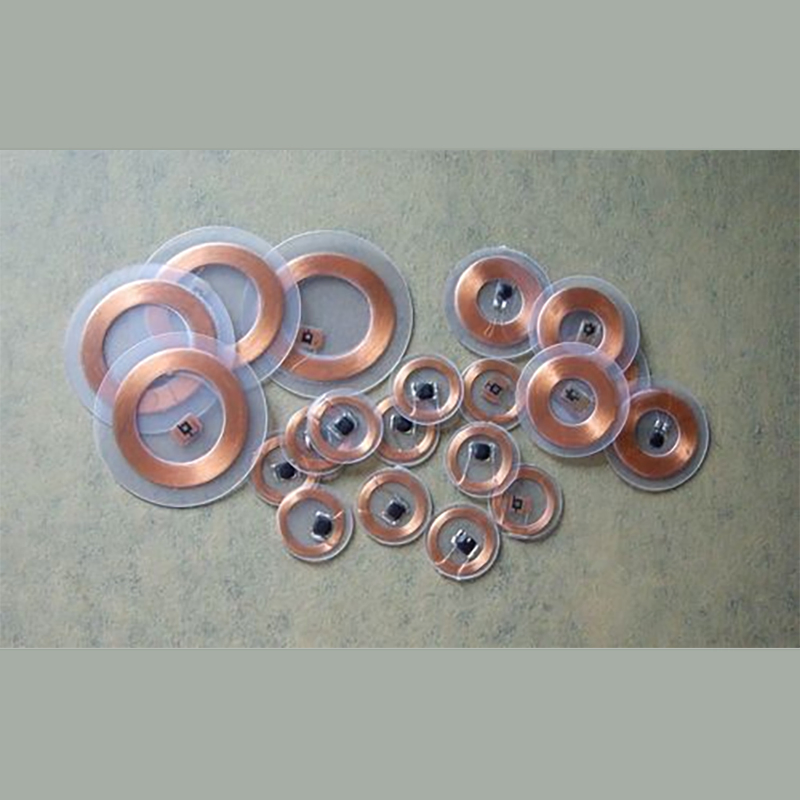

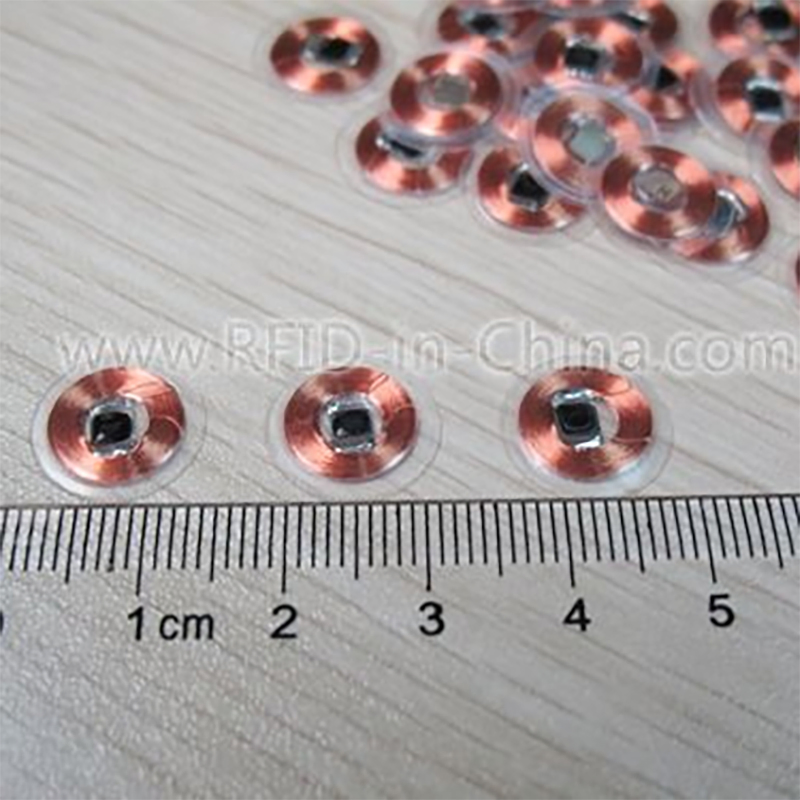

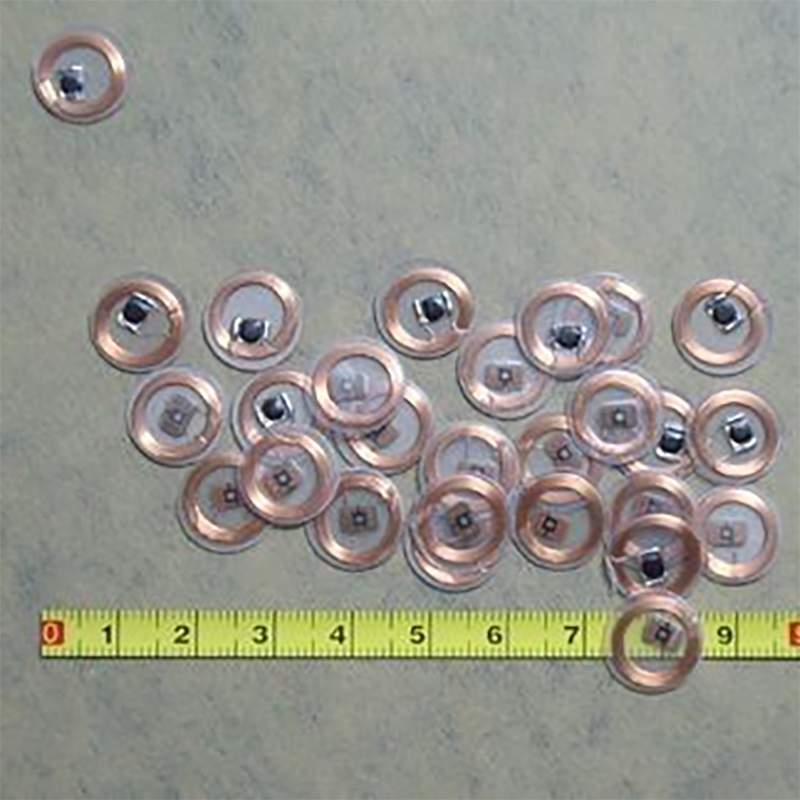

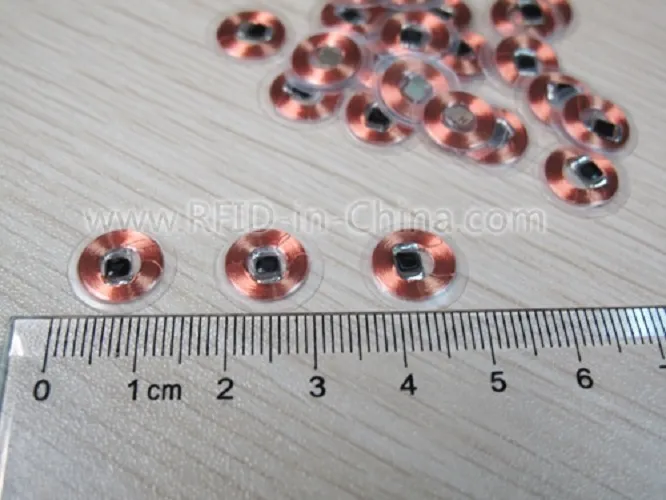

This new kind of 125kHz RFID Disc tag has received a user-friendly upgrade. Designed in an adhesive form, it can be easily integrated into various projects with low cost. The RFID Disc Clarity Tag is an advanced radio frequency identification product that provides an excellent item tracking and management experience. With advanced technology design, it offers exceptional reading distance and stability, ensuring efficient and accurate recognition in diverse environments.
The storage capacity is extremely large, with each tag featuring a unique identifier for storing significant item information. It supports fast read and write speeds and batch recognition, which significantly improves inventory management and logistics efficiency. Additionally, high-level data security makes it difficult to counterfeit or tamper with, ensuring the integrity of item information.
Key Technical Specifications:
- Type: Contactless Read & Write
- Frequency: LF(125MHz) or HF(13.56MHz)
- LF Chips: EM4001, TK4100, Hitag-S
- HF Chips: S50 1K, S70 4K, I-CODE
- Data Maintenance: >50 years
- Memory: 100K+ write cycles
- LF Range: 5~7 cm (Max 50cm)
- HF Range: 5~12 cm (Max 80cm)
❓ Frequently Asked Questions
What frequencies are supported by the RFID Disc Tag?
The tag supports both Low Frequency (LF 125kHz) and High Frequency (HF 13.56MHz), depending on your specific requirements and chip selection.
Is this RFID tag adhesive?
Yes, the RFID Disc Clarity Tag is designed in an adhesive form, making it easy to attach to various items for tracking and management.
What is the typical read range for these tags?
For LF versions, the range is typically 5-7cm (up to 50cm with special readers). For HF versions, it is 5-12cm (up to 80cm with special readers).
How long can the data be maintained on the chip?
The data maintenance life is over 50 years, and the memory can be wiped and rewritten more than 100,000 times.
What materials are used for the tag construction?
The tags are manufactured using high-quality PET and PVC materials, ensuring durability and performance in various environments.
Can the size of the tag be customized?
Yes, while standard diameters range from 13mm to 50mm, we can design and develop tags in different sizes and shapes to meet specific project requirements.
