LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell
LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell
LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell
LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell
LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell
1 / 5
LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell
LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell
LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell
LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell
LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell

LCD Touch Keypad IP68 Tuya APP Smart WiFi Waterproof Standalone Biometric Fingerprint RFID Door Access Control with Metal Shell

Customization: Available
Voice Service: Without Voice Service
Clock: Without Clock
Send Inquiry

Product Description

Basic Specifications

Model NO.
ZDAC-T4FWL-WiFi
Color
Silver
Screen
Color Screen
Communication
Wiegand 26 & WiFi
Fingerprint Capacity
300 (System supports up to 10000)
Card Capacity
10000
Card Type
125kHz Em ID Card
Waterproof
IP68
Voltage
DC12V
Material
Metal Case, Anti-Vandal

Product Overview

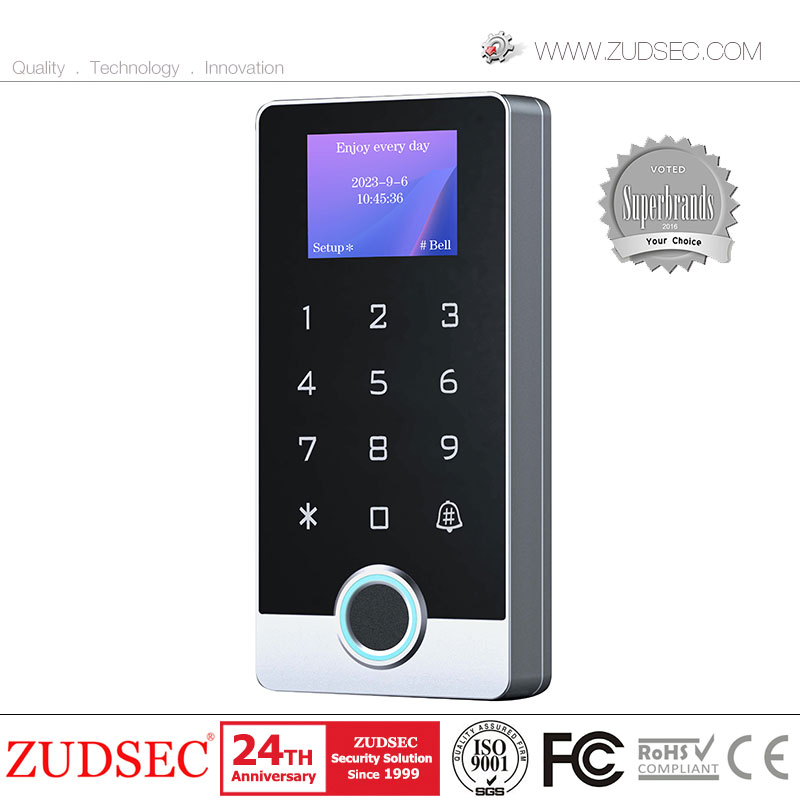

LCD Touch Keypad IP68 Smart WiFi Waterproof Biometric Access Control

This next-generation multifunctional standalone access control system adopts a powerful 32-bit ARM core microprocessor for stable and reliable performance. Featuring an LCD screen with voice functions and a touch keypad encased in a durable metal anti-vandal shell, it supports both reader and standalone modes. It is ideal for high-security environments including offices, residential communities, villas, banks, and more.

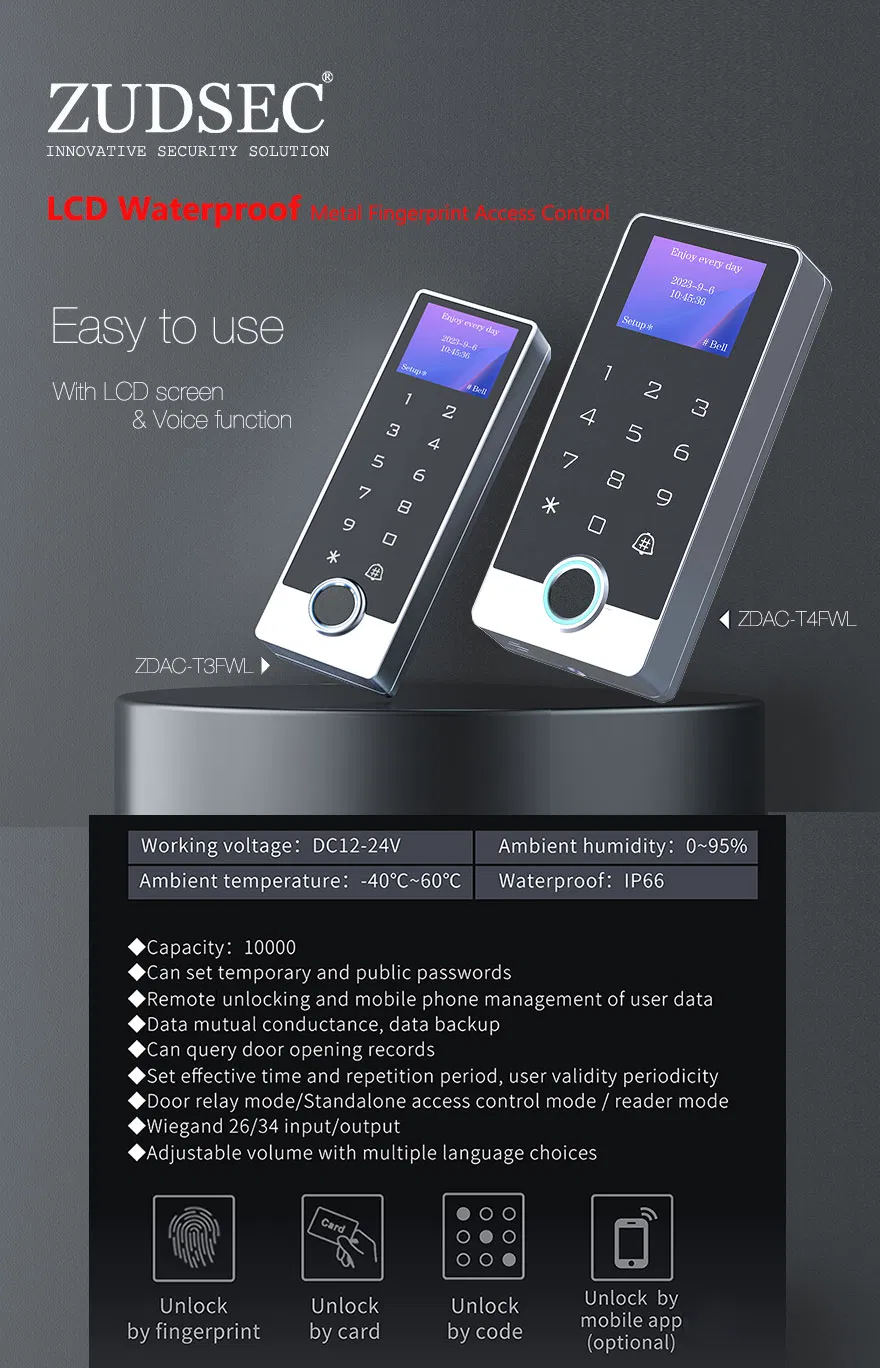

Smart Access Control Display

Key Features

  • Full message LCD menu and voice function for easy configuration
  • Capacitive Touch Keypad for Fingerprint, ID card, and PIN access
  • High Capacity: 300 Fingerprints and 10,000 RFID users
  • Dual Interface: Wiegand 26 output and input
  • Slave Reader Mode: Can connect to other controllers
  • Anti-vandal metal shell with IP68 waterproof rating
  • Short circuit protection for lock output current
  • Universal compatibility with HID, Mifare, or EM readers
  • Ultra-fast recognition speed: < 0.1 seconds

Technical Parameters

Access WaysFingerprint, Card, Code, Mobile App (Optional)
Card Type125KHz EM or 13.56MHz Mifare Card
KeypadCapacitive Touch Keypad
Operating VoltageDC12-24V
Operating Current≤100mA (Standby ≤60mA)
Temperature-40ºC to 60ºC
Humidity0% - 95% (Non-condensing)
Unlock SignalRelay Output (NO, NC, COM)

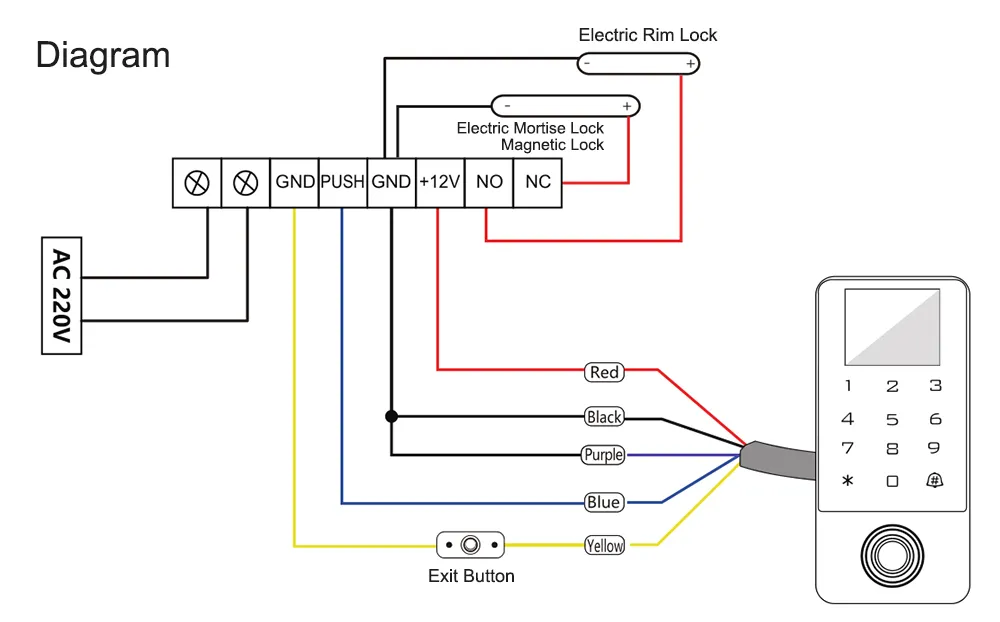

Technical Specifications Diagram

Related Access Solutions

Related Product 1
Related Product 2
Related Product 3
Related Product 4
Related Product 5
Related Product 6
Related Product 7
Related Product 8

Frequently Asked Questions

Q1: Can this access control be installed outdoors? A: Yes, it features an IP68 waterproof rating and a durable metal anti-vandal shell, making it suitable for outdoor environments.
Q2: Does it support mobile phone application control? A: Yes, the WiFi version is compatible with mobile apps like Tuya for remote management.
Q3: How many users can be registered in the system? A: The device supports up to 10,000 RFID card users and up to 300 fingerprint users.
Q4: What is the recognition speed for fingerprints? A: Thanks to its 32-bit microprocessor, it offers a very high searching speed of less than 0.1 seconds.
Q5: What power supply is required for this unit? A: The device operates on a standard DC 12V-24V power supply.
Q6: Does it have a voice-guided menu? A: Yes, it features an LCD menu and voice functions for easy setup and daily operation.
