Product Description

Basic Information

Model NO.

PCBA for RFID

Layers

Multilayer

Base Material

FR-4

Certification

RoHS, CCC, ISO, UL Reach

Condition

New

Quality Test

Aoi, 100% E-Test

Board Thickness

±5%

Origin

China

PCBA Capabilities

Item	Abilities
Turnkey Service	PCB Design + PCB FAB + Components Sourcing + PCB Assembly + Package
Value-Added Services	BOM Analysis, Conformal Coating, IC Programming, Wire Harness & Cable Assembly, Box Building
Assembly Details	5 SMT + 2 DIP (Dust and anti-static lines)
Technical Support	Free DFM/A check, BOM analysis
Standards	IPC-A-600H, IPC-A-610F, J-STD-001F
MOQ	1 piece

PCB Parameters

Parameter	Specifications
Material	FR4 (140Tg, 170Tg, 180Tg), Metal Core, Polyimide, Rogers, Taconic etc
Layer Count	1-40 Layers
Surface Finishes	Bare Copper, HASL Lead-free, ENIG, ENEPIG, Gold Fingers, OSP, IAg, ISn
Copper Thickness	0.5-20oz
Min Hole Size	0.15mm
Min Trace Width	2mil/2mil

Manufacturing Excellence

Providing contract electronics design and manufacturing services since 2008, we are focused on delivering high-quality products and comprehensive technical support.

In over 15 years, we have successfully delivered 5,000+ projects for over 2,000 SMEs globally.

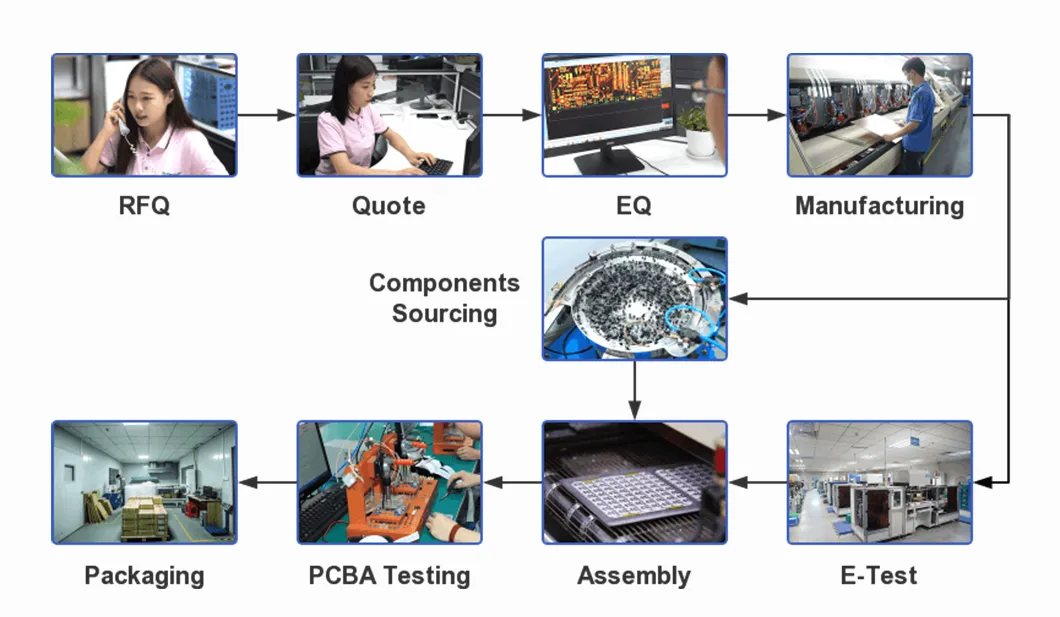

Process & Quality Control

ISO-9001:2018 & ISO14001 Standards
IPC-610-D Class 2 Quality Standards
Full AOI & X-Ray Inspection for BGA
ERP material and process management
FAI (First Article Inspection) for every batch

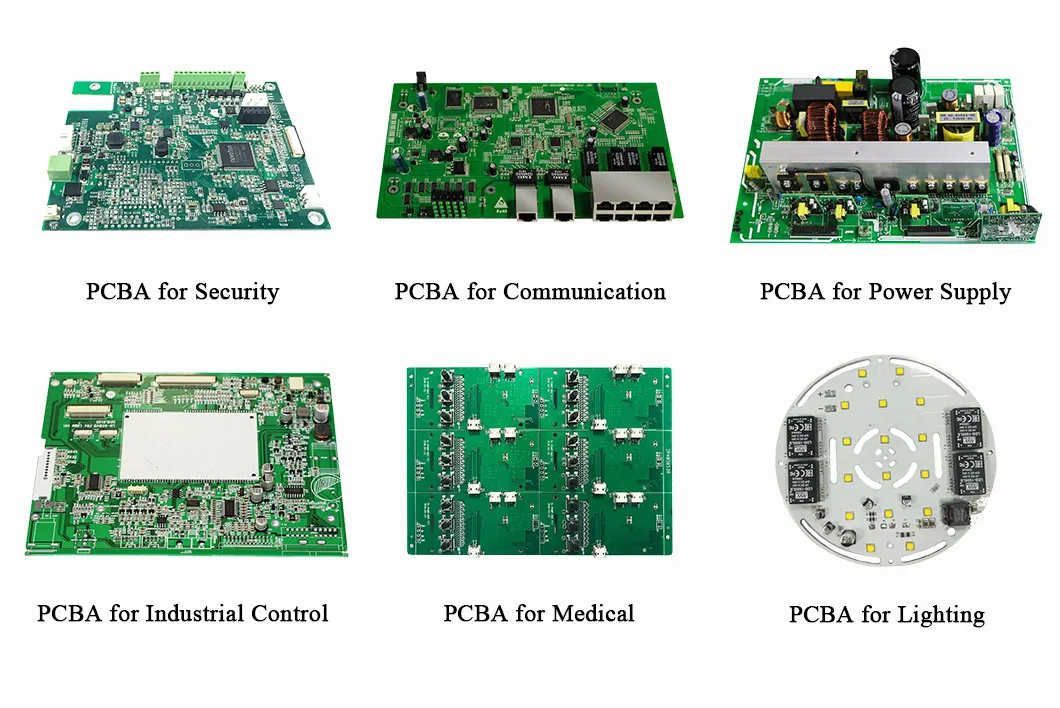

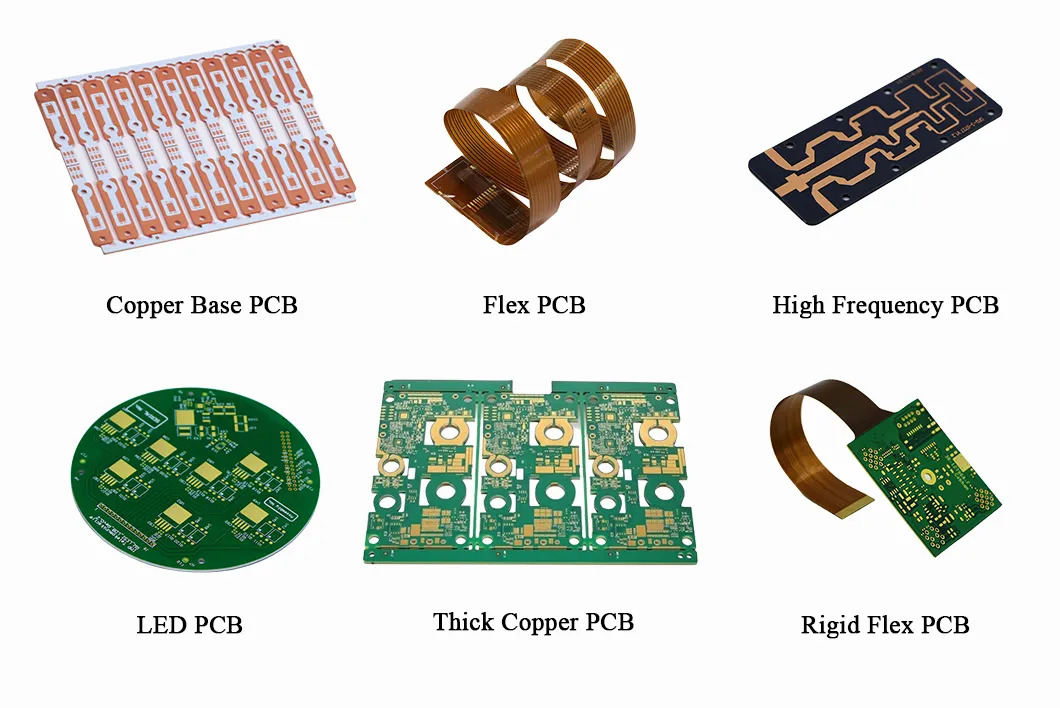

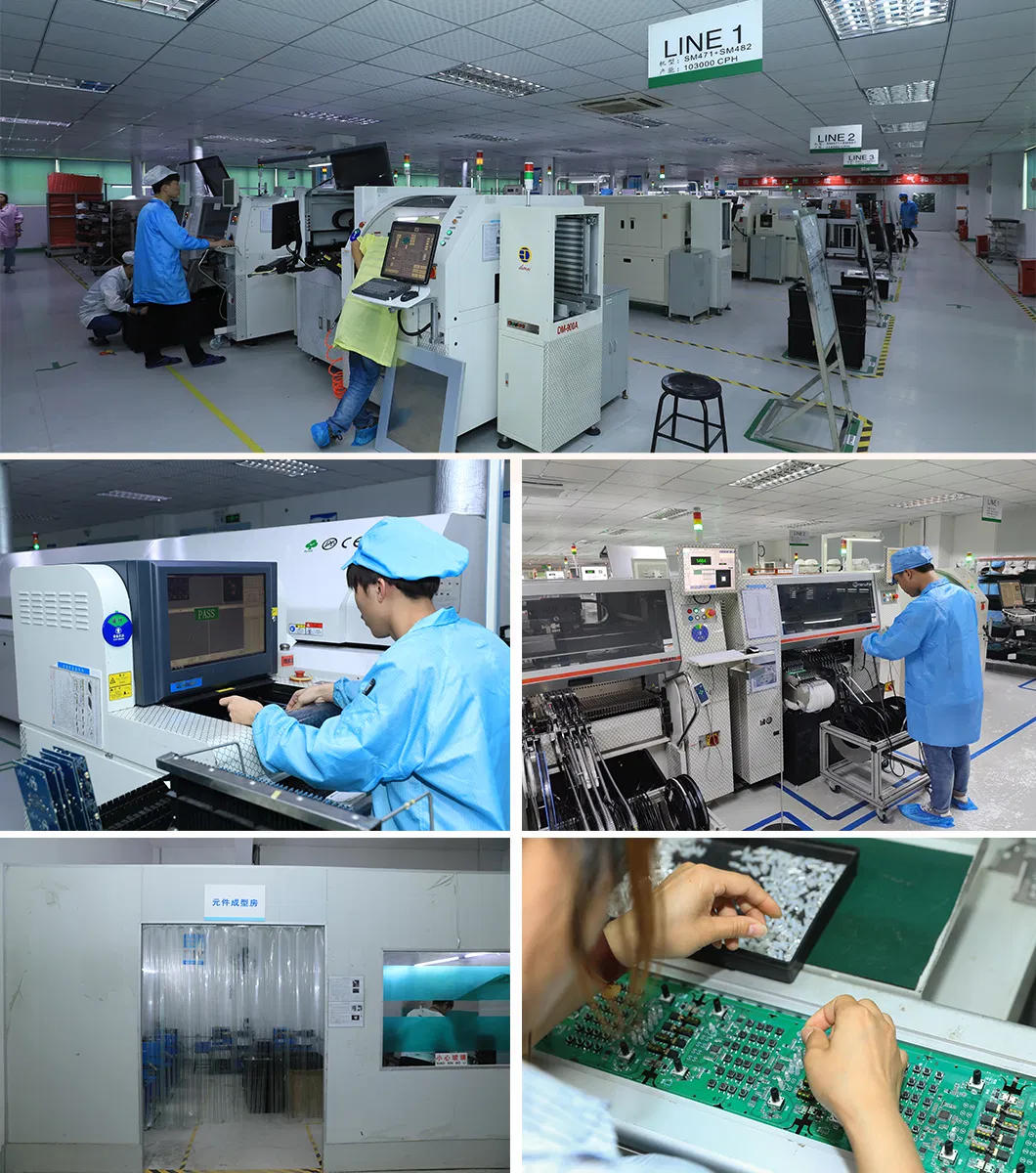

Showcase

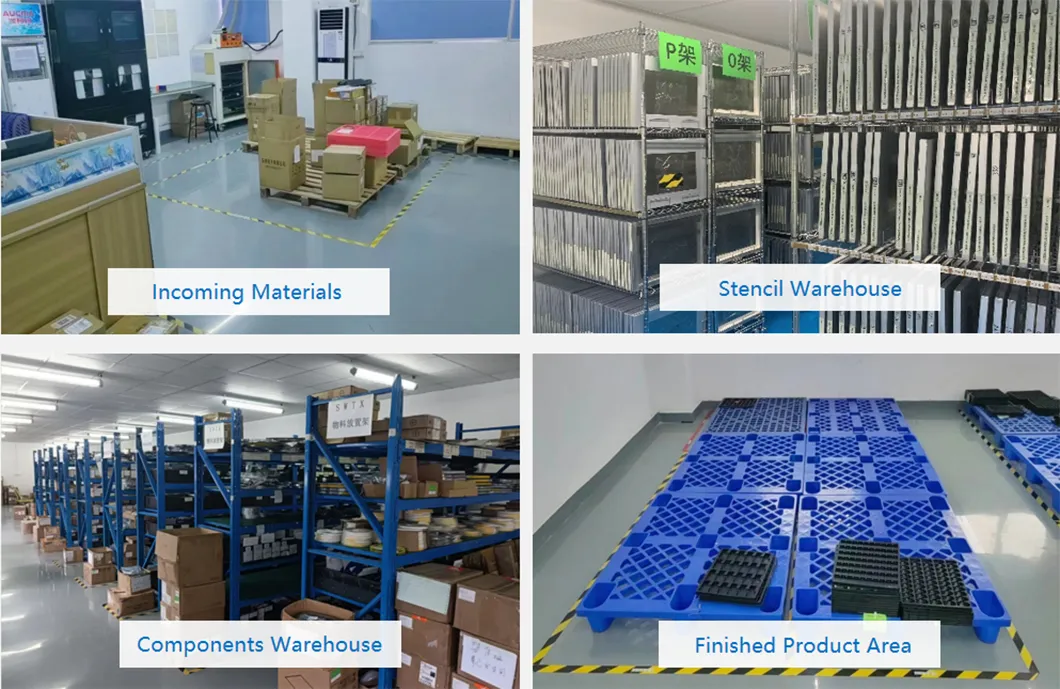

Material & Warehouse Management

Material Brands	ShengYi, NanYa, ITEQ, Ventec, etc
Key Inspections	Brand Verification, Material Certificate, Appearance Check, Dimension Sample Checking

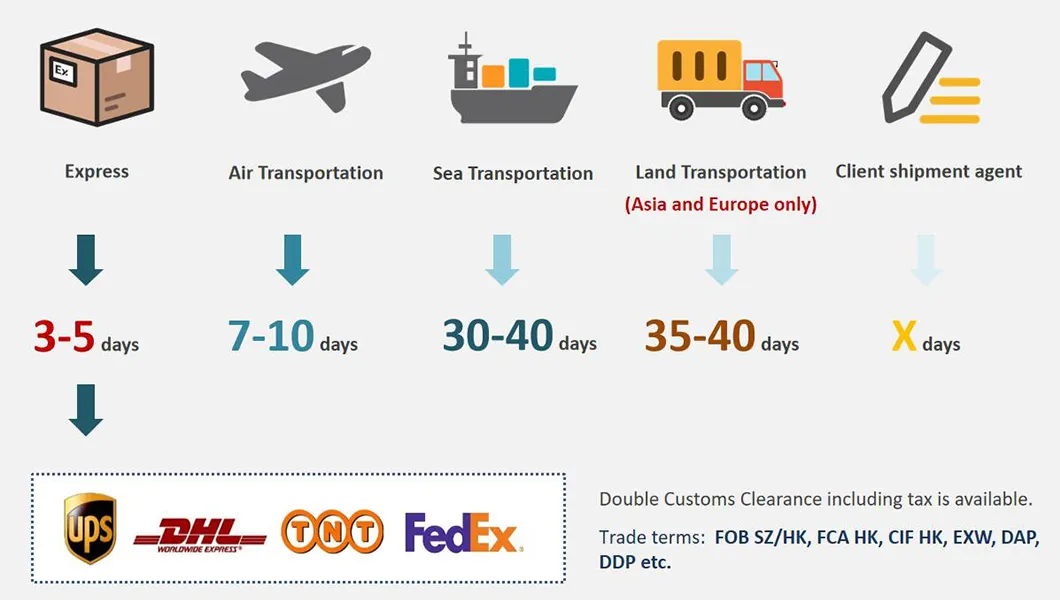

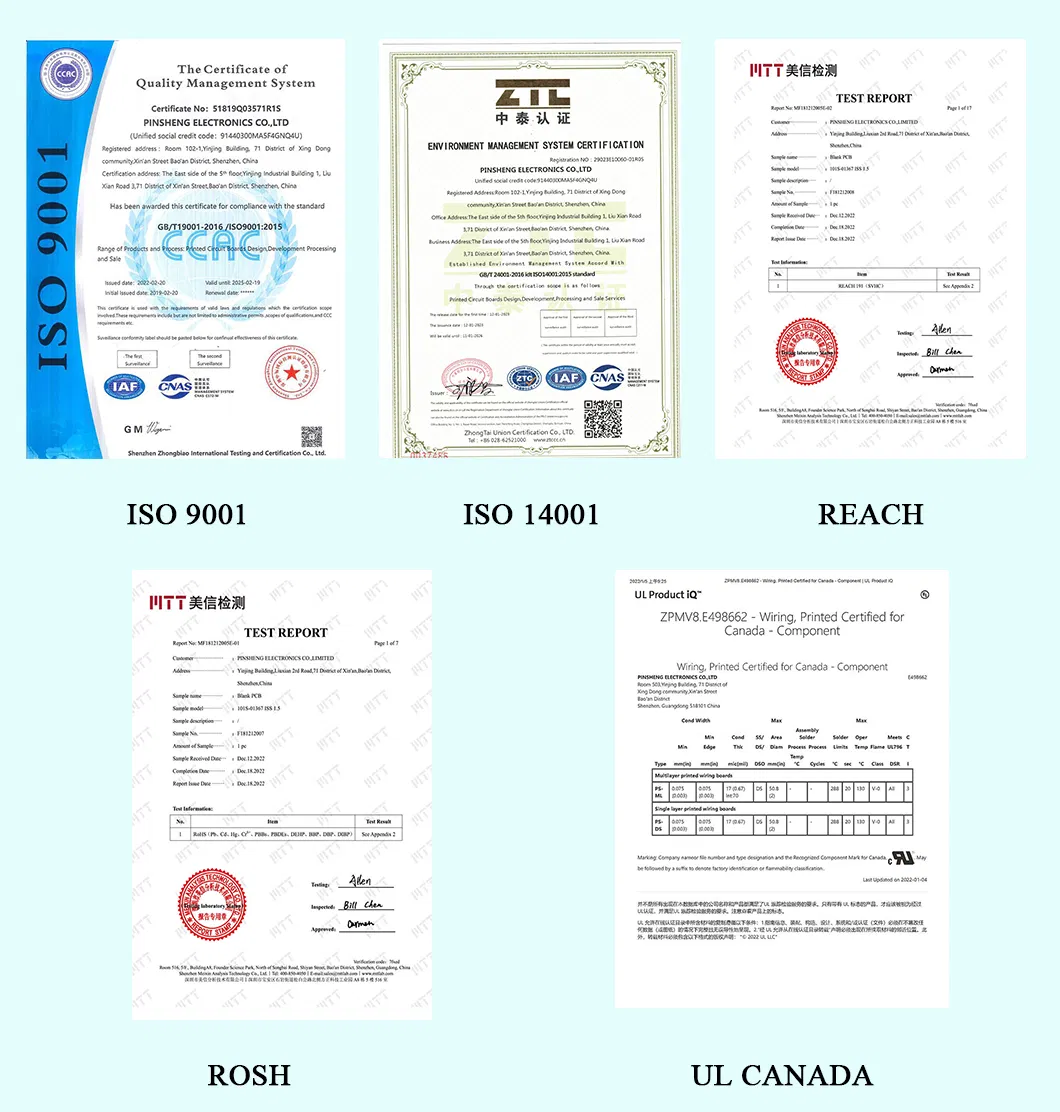

Certifications & Shipping

Frequently Asked Questions

What is your monthly capacity for PCB assembly?

We achieve 140 million points monthly from SMT and 300K pieces from DIP.

How do you ensure quality control during assembly?

We fully comply with ISO requirements and follow a strict Quality Management Manual for order, production, and process management, including corrective and preventive measures.

Can you source components if assembly is not required?

Yes, please provide your BOM. We will analyze the sources, provide classified packaging with labels, and ship them to you.

What test methods do you provide?

All boards undergo AOI, X-ray (for BGA), circuit testing, and functional testing as a standard requirement.

What is the typical lead time?

For small batches, it takes 3-5 weeks. Mass production orders are typically scheduled 10-12 weeks before delivery to ensure material readiness.

How do you handle EOL (End of Life) materials?

We monitor supply deadlines and notify clients with alternative suggestions or help redesign the project if no exact matches are available.
