Quantum Charge
1 / 5

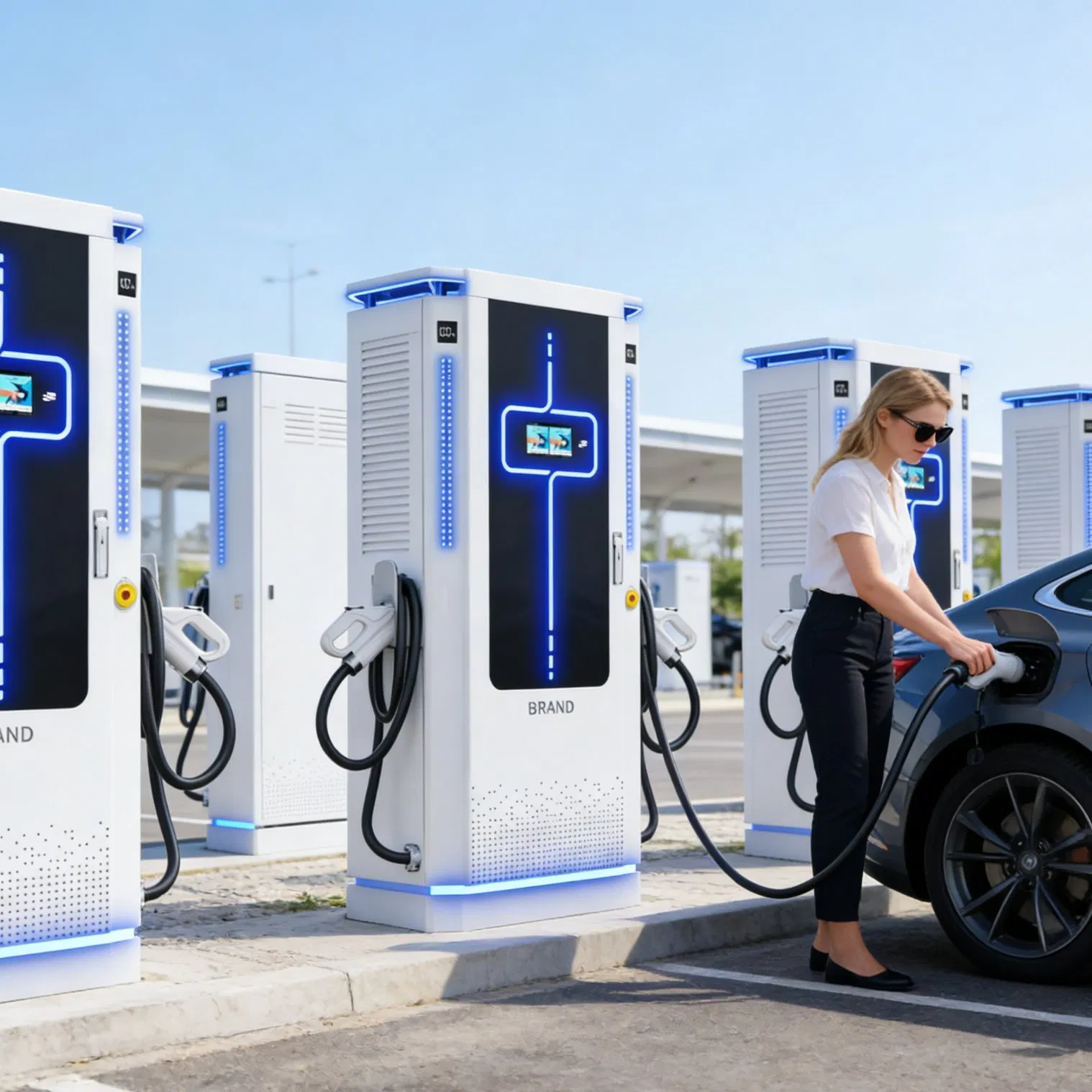

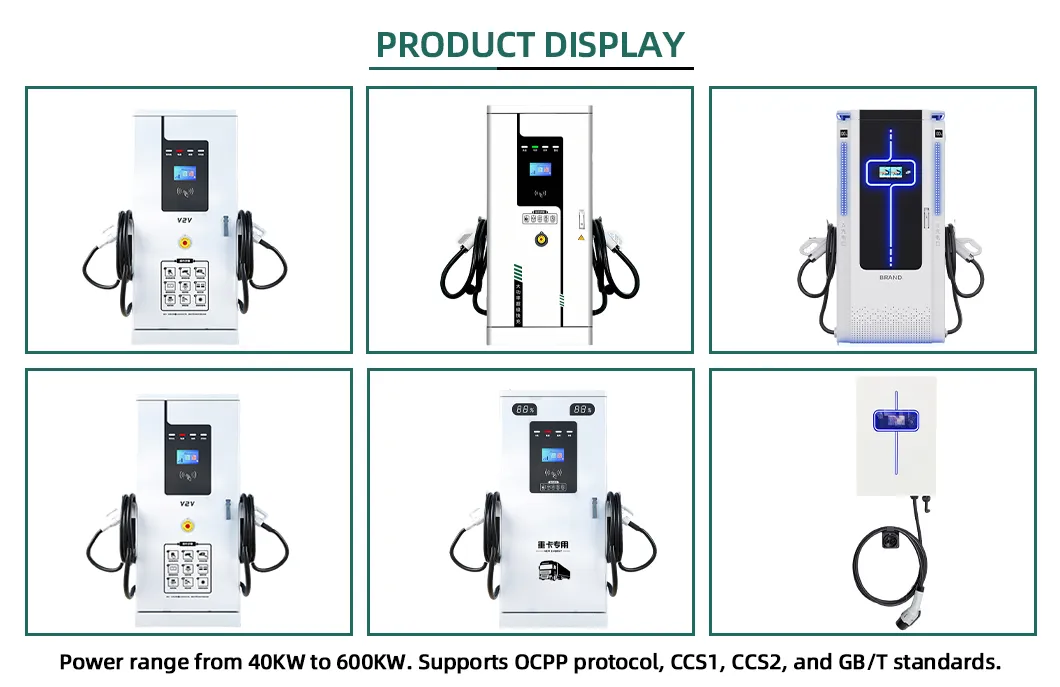

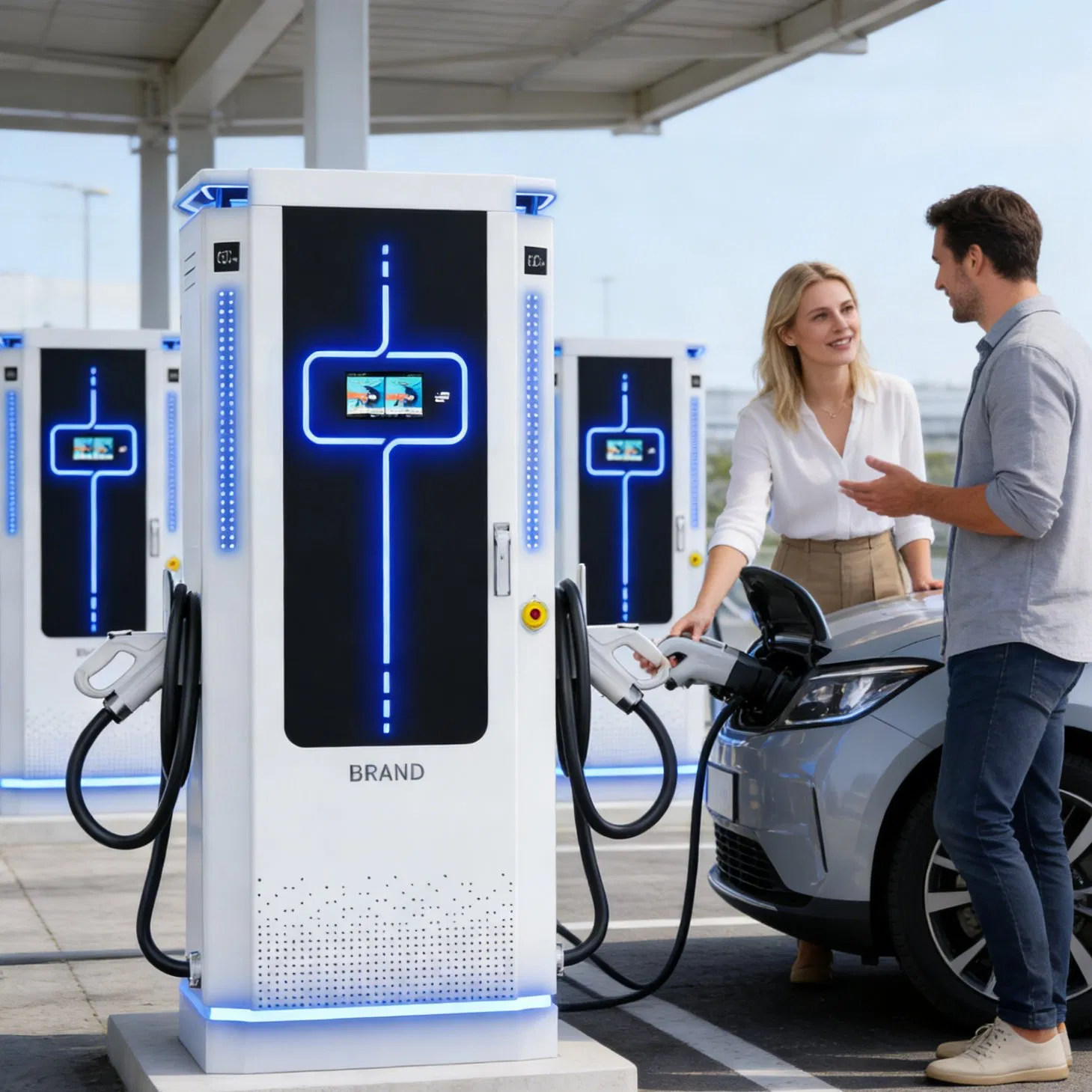

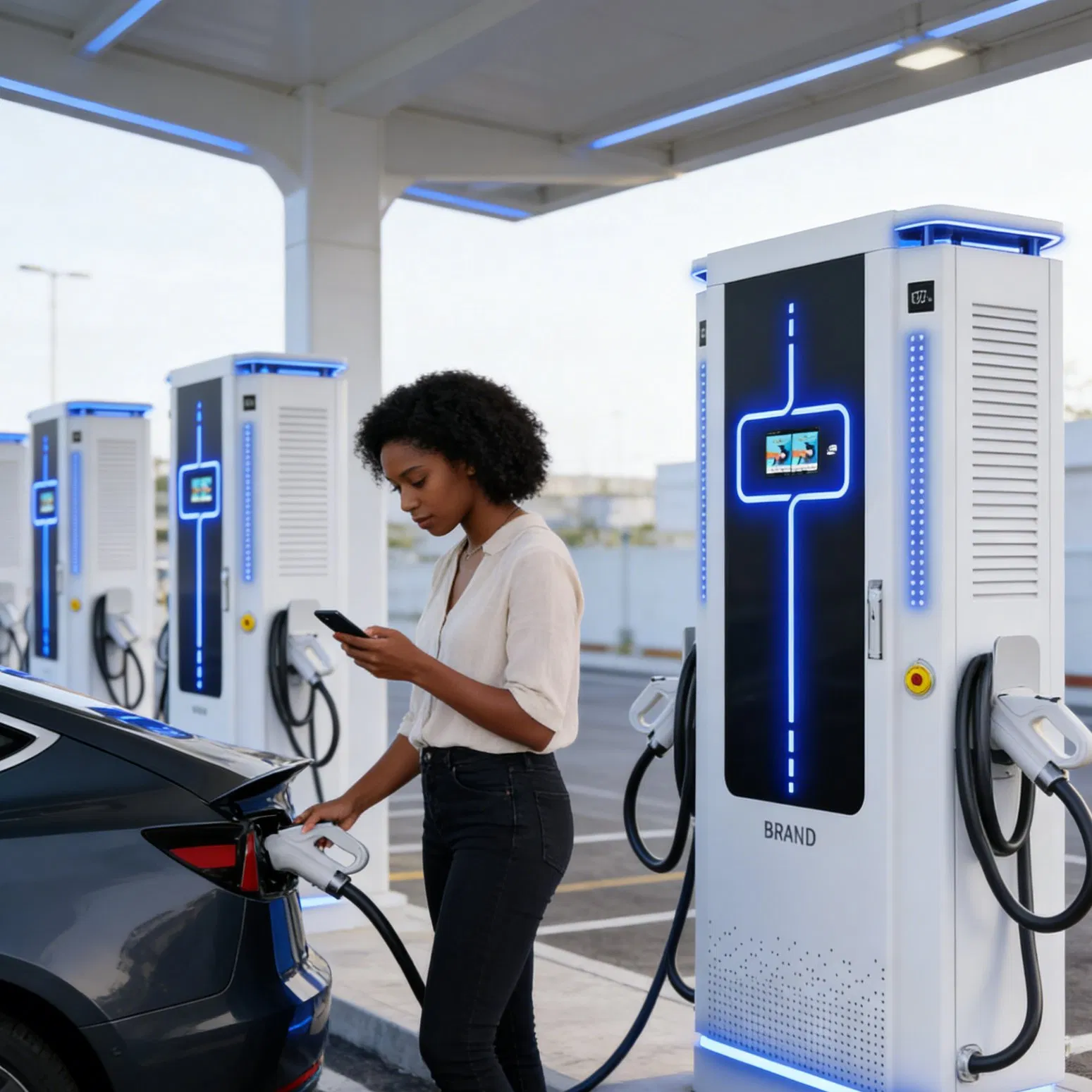

Power range from 40KW to 600KW. Supports OCPP protocol, CCS1, CCS2, and GB/T standards. Features IP54 waterproof rating, with a continuous adjustable voltage range of 50-1000V. Constant power voltage range is 200-1000V.

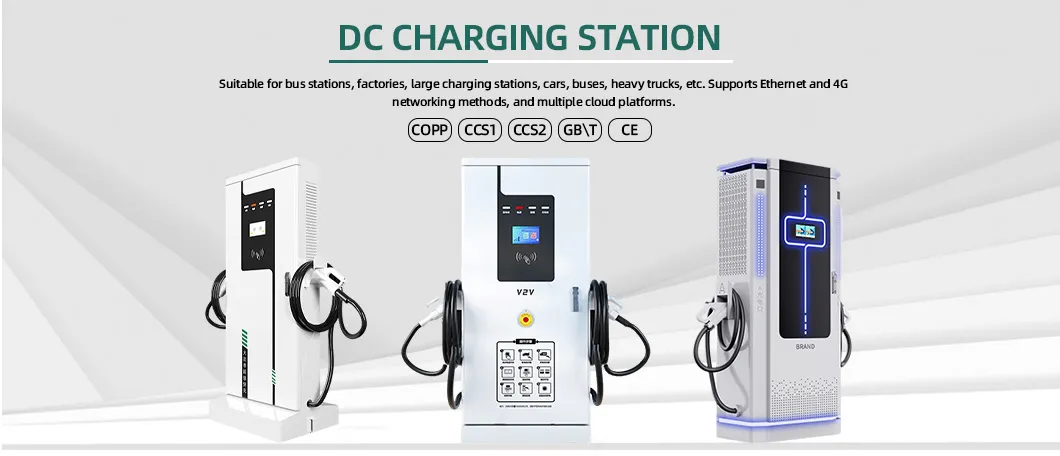

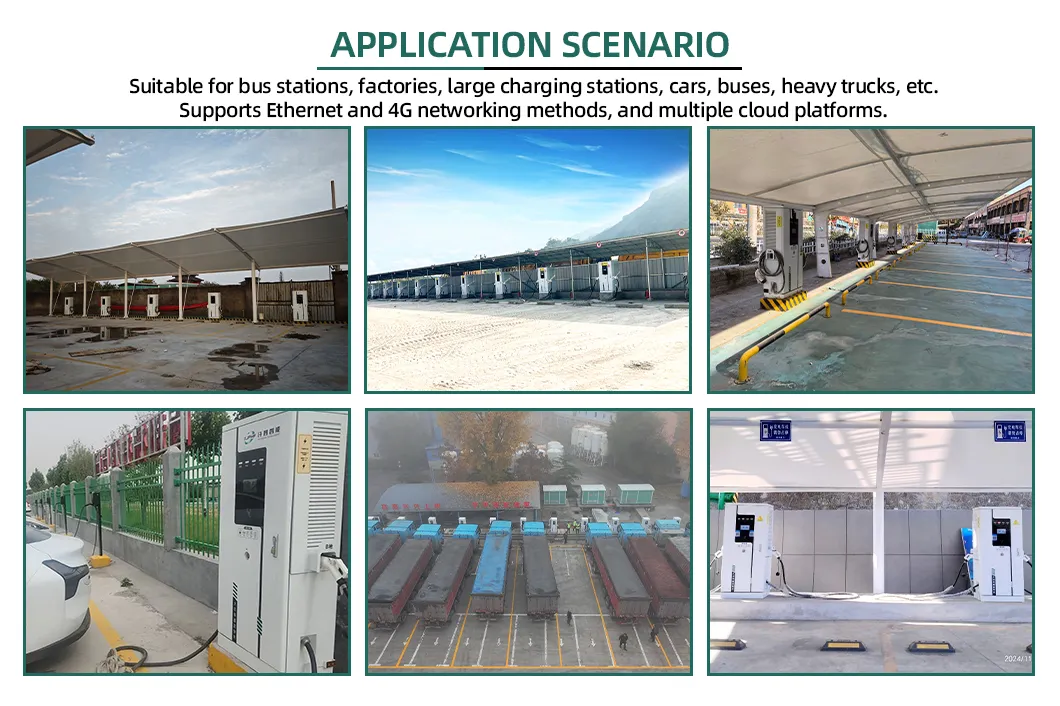

Supports simultaneous charging with two guns. Suitable for bus stations, factories, large charging stations, cars, buses, heavy trucks, etc. Supports Ethernet and 4G networking methods, and multiple cloud platforms. Includes gun temperature monitoring, short circuit, over-temperature, over-current, leakage, over/under-voltage protection, and lightning protection. The charging station has been debugged before leaving the factory. Users can directly power on and use it without any secondary debugging.

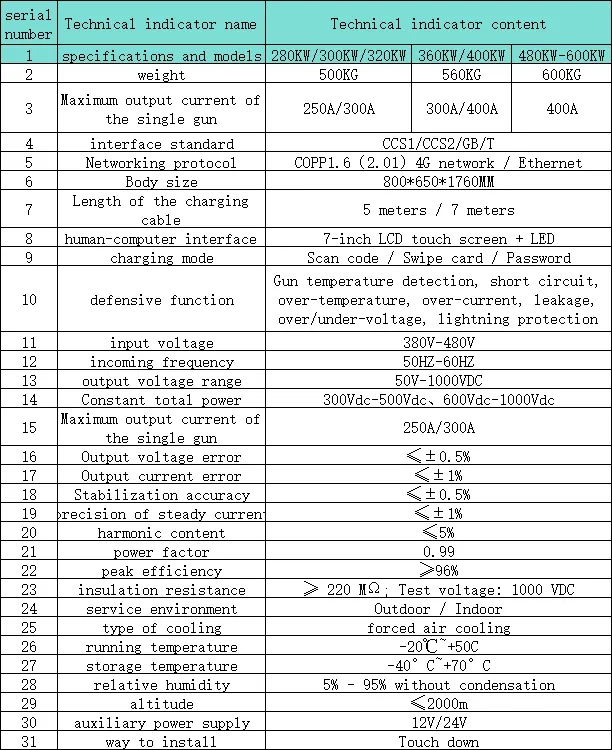

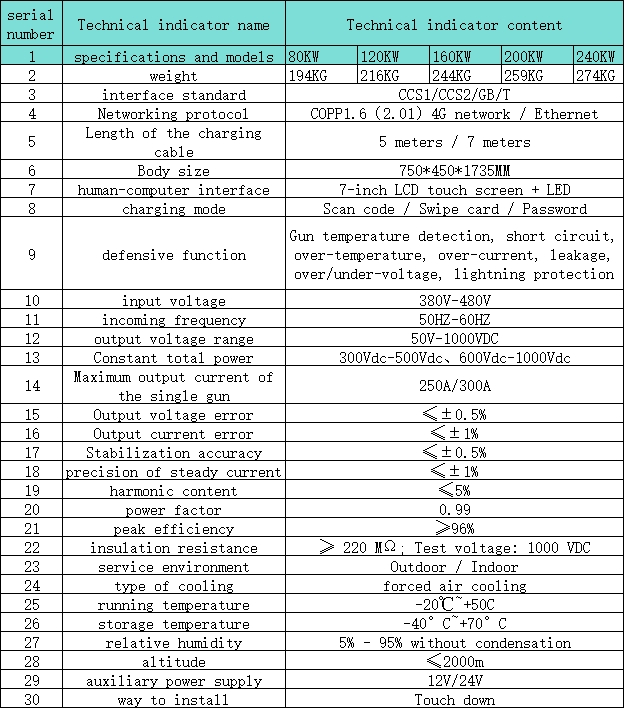

| Product Model | 40KW-600KW | Dimension | 750x410x1700(mm) |
| Rated Power | 40KW-600KW | Weight | 194KG-274KG |
| Design Standard | CCS1, CCS2, GB/T | Cable Length | 5 Meters |
| Protection | IP54 | Display | 7-inch LCD Touch Screen |
| Charging Mode | App, RFID, VIN, Password | Networking | 4G / Ethernet |
| Protection Functions | Temperature detection, short circuit, over-temp, over-current, leakage, over/under-voltage, lightning protection | ||

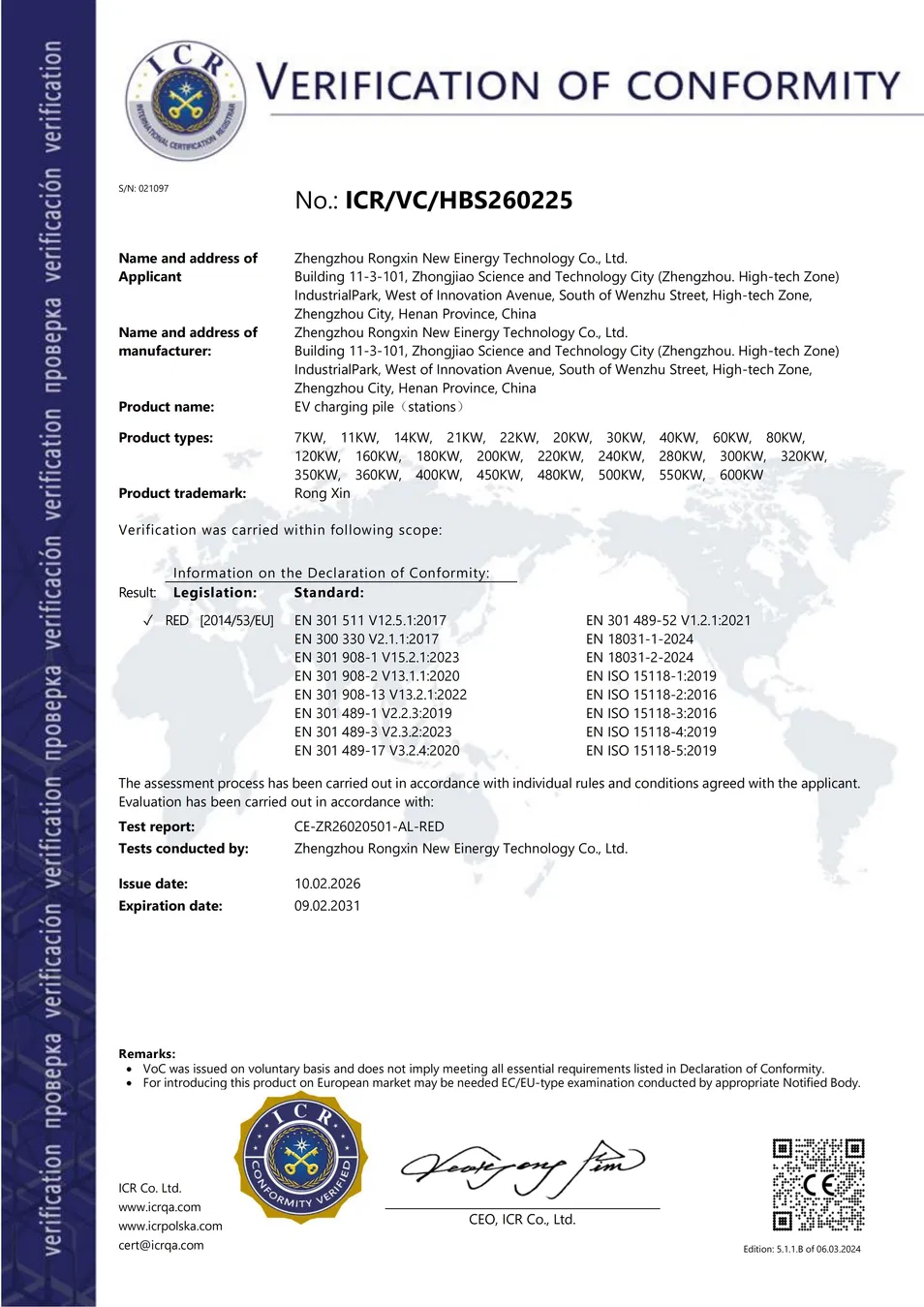

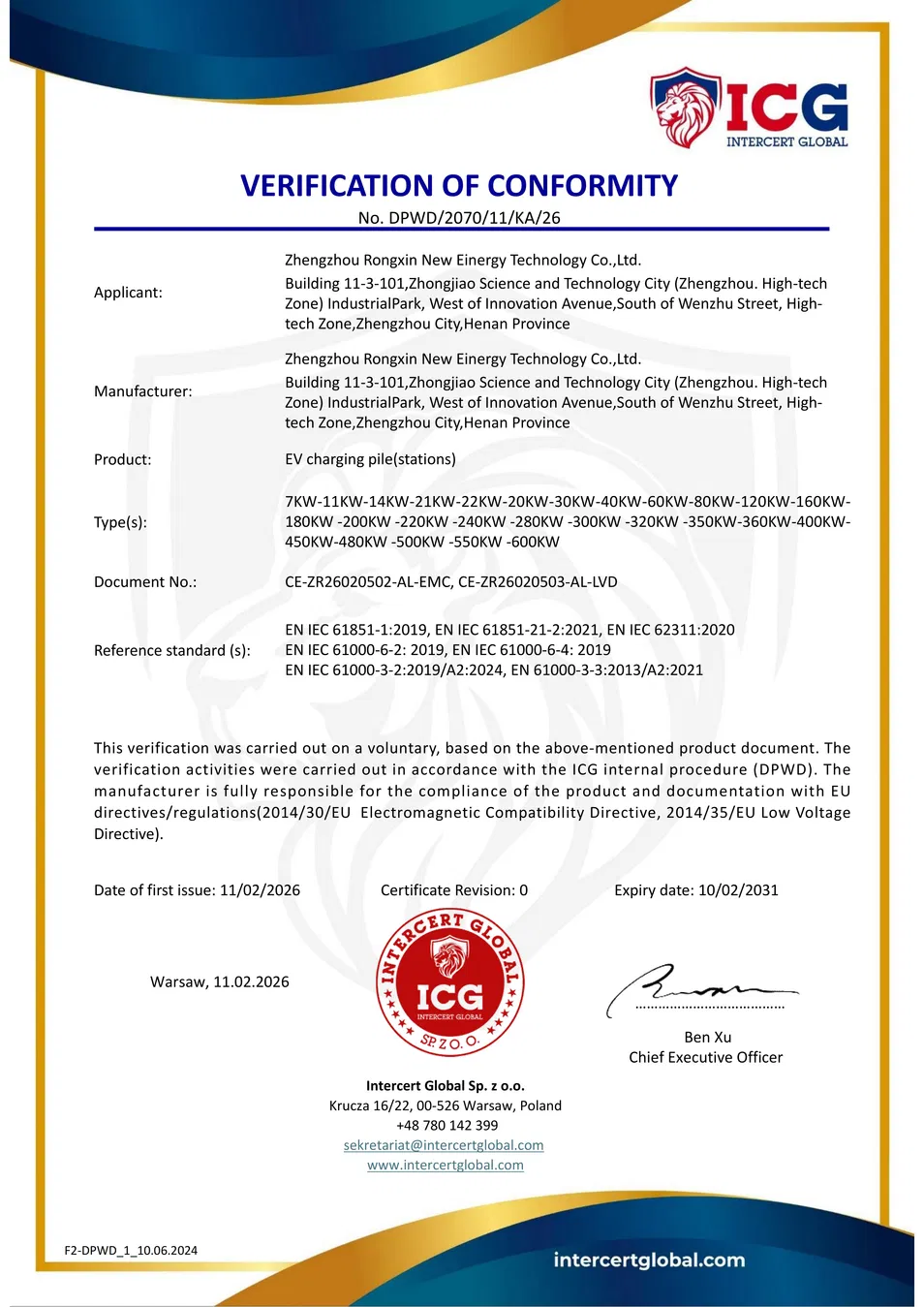

We are an AAA-rated credit enterprise, holding ISO certifications including ISO9001 and ISO14001. We possess numerous software copyrights and third-party inspection reports for our equipment. We actively participate in domestic and international exhibitions and have established partnerships with numerous renowned enterprises globally.
