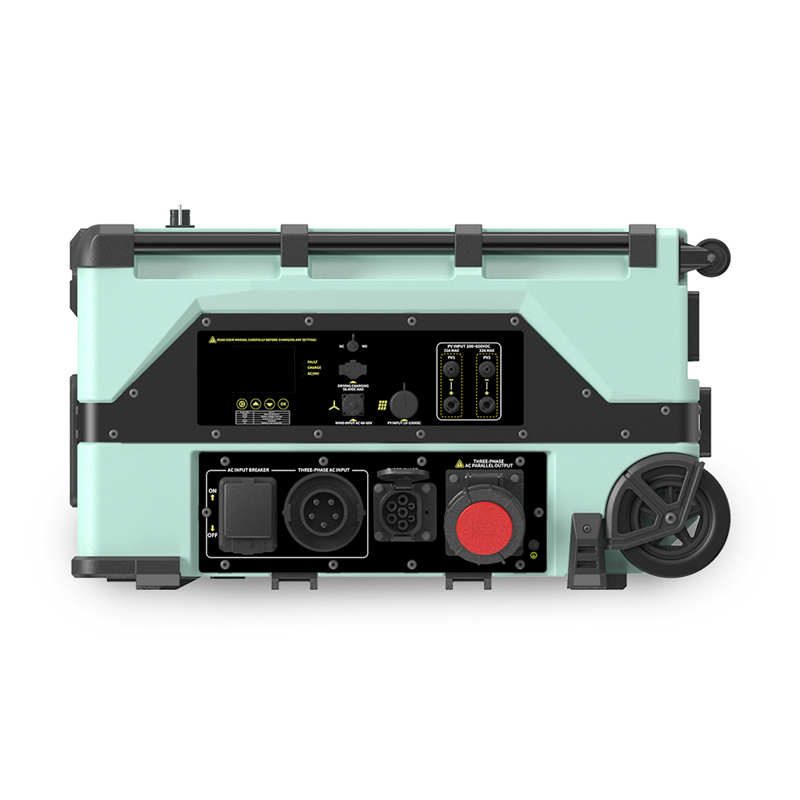

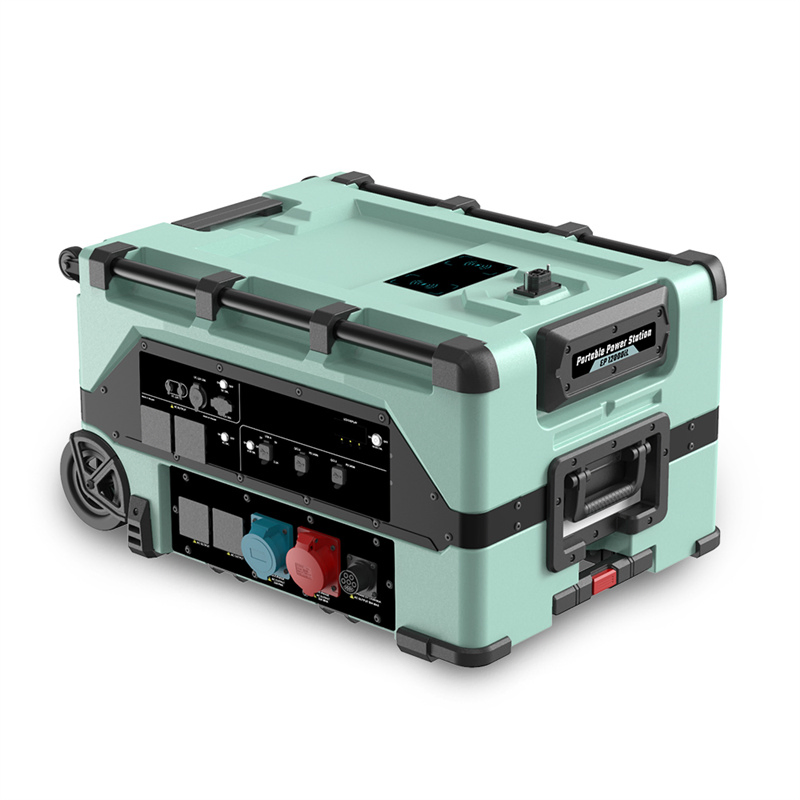

20kw off-Grid Solar Generator Home Energy Storage Solar System

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Information

Model NO.
EP12000iL
Cycle Life
3000
Nominal Capacity
7680wh
Multiple Charging
AC, Solar, EV Charger, Driving Charging, DC, Wind
Battery Expansion
Yes, Max 245kwh
Fast Charging
70mins Fully Charged
Inverter Type
Bi-Directional Inverter
Three-Phase Output
Yes
Portability
Drawbar & Wheels
Specification
840X670X490mm, 110kg

Product Advantages

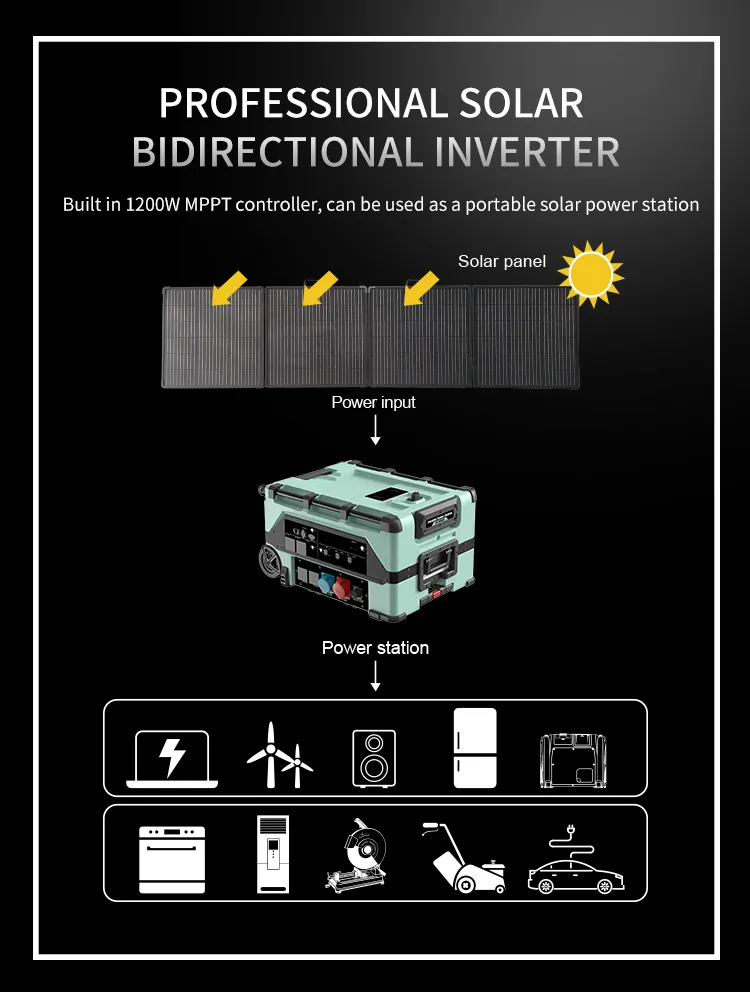

  • Built in 7680*2Wh high-power LiFePO4 battery with professional solar bidirectional inverter, support for 12kW output and 8.5kW charging.
  • Support continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.

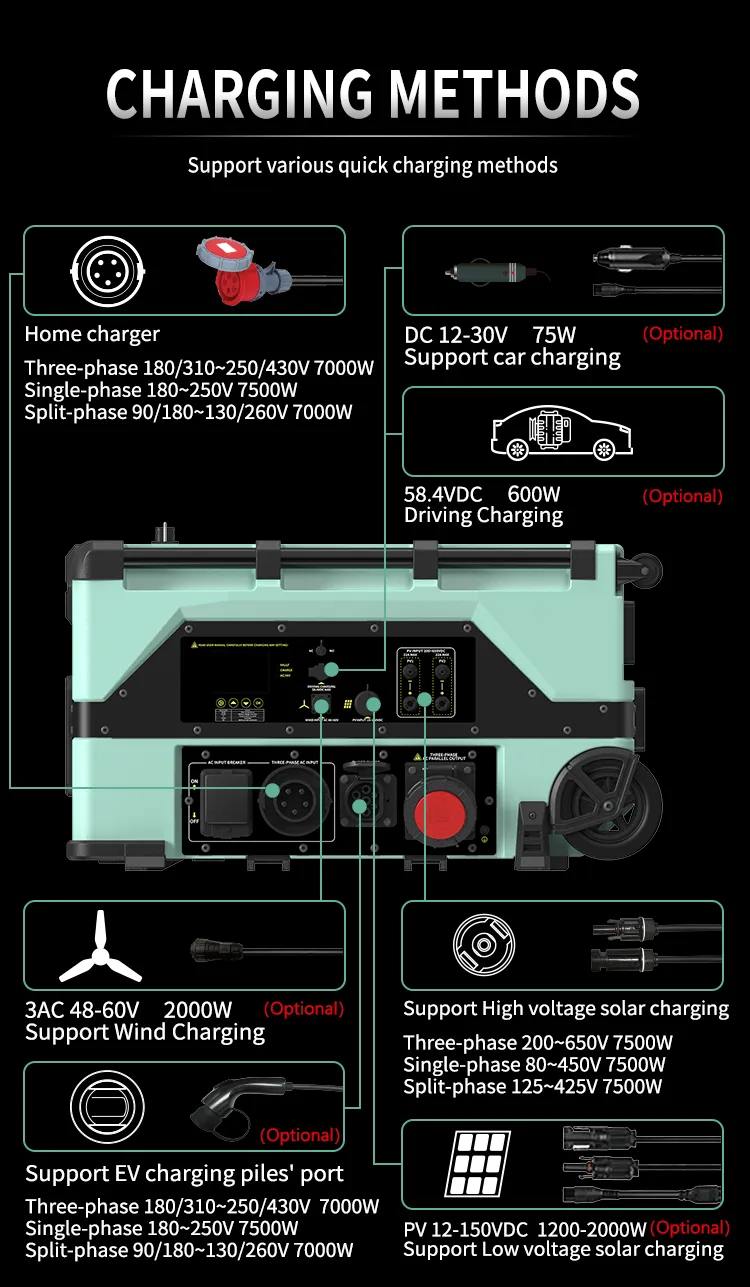

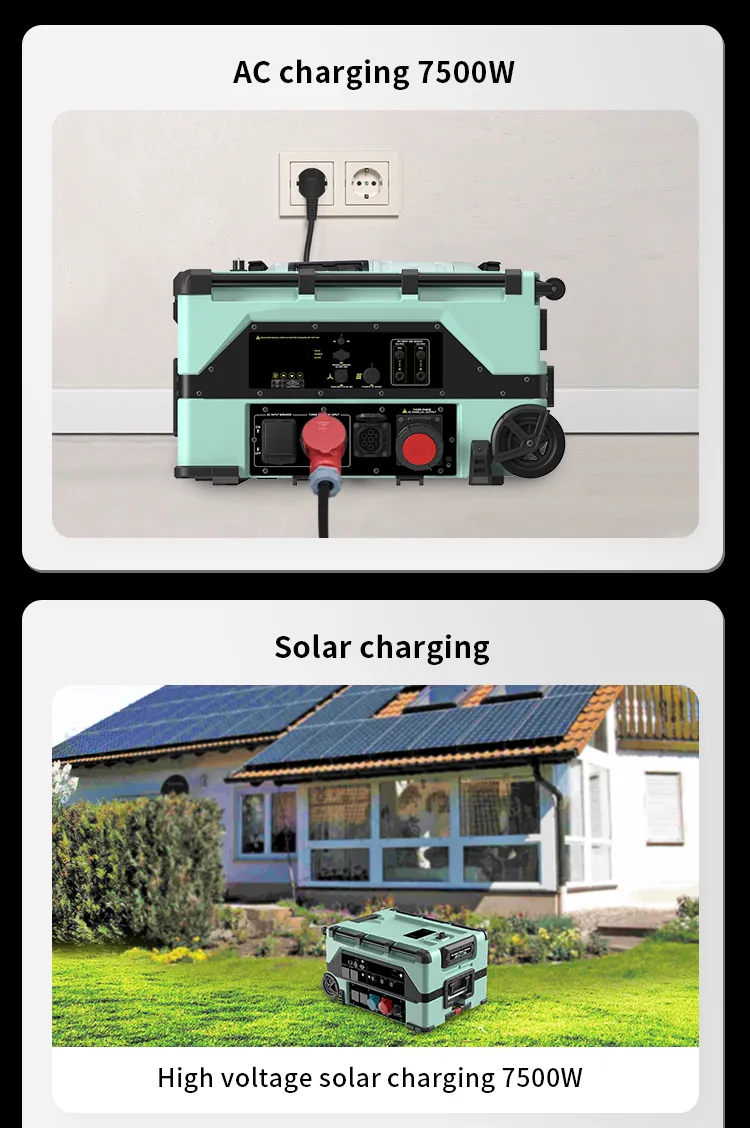

  • Multiple fast charging: utility, high-voltage solar, low-voltage solar, EV charger, driving car, AC generator and wind turbine.

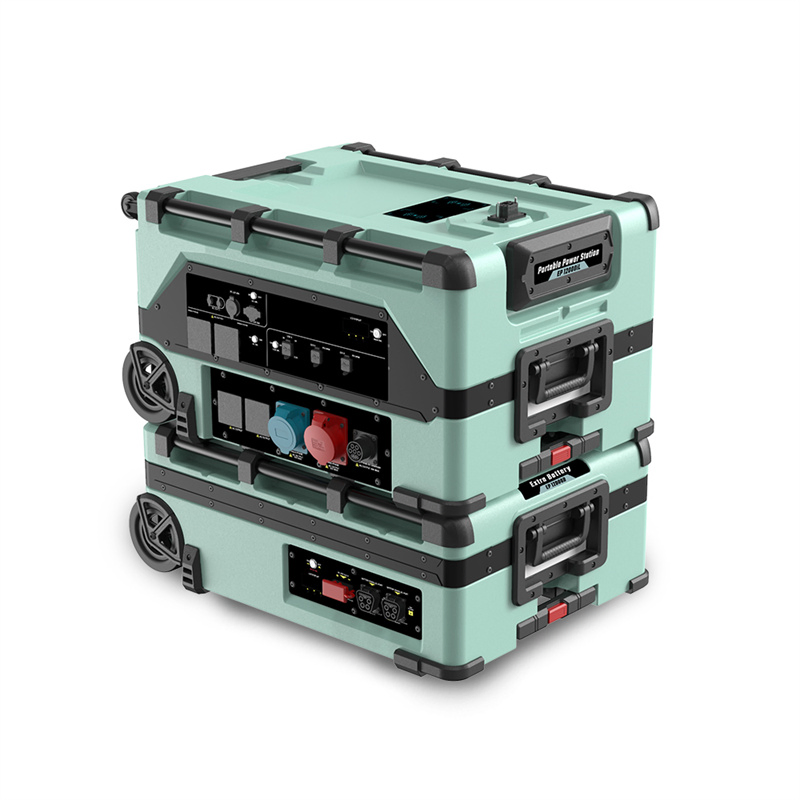

  • Expandable capacity: Up to 31 extra batteries can be stacked for a total of 245kWh.

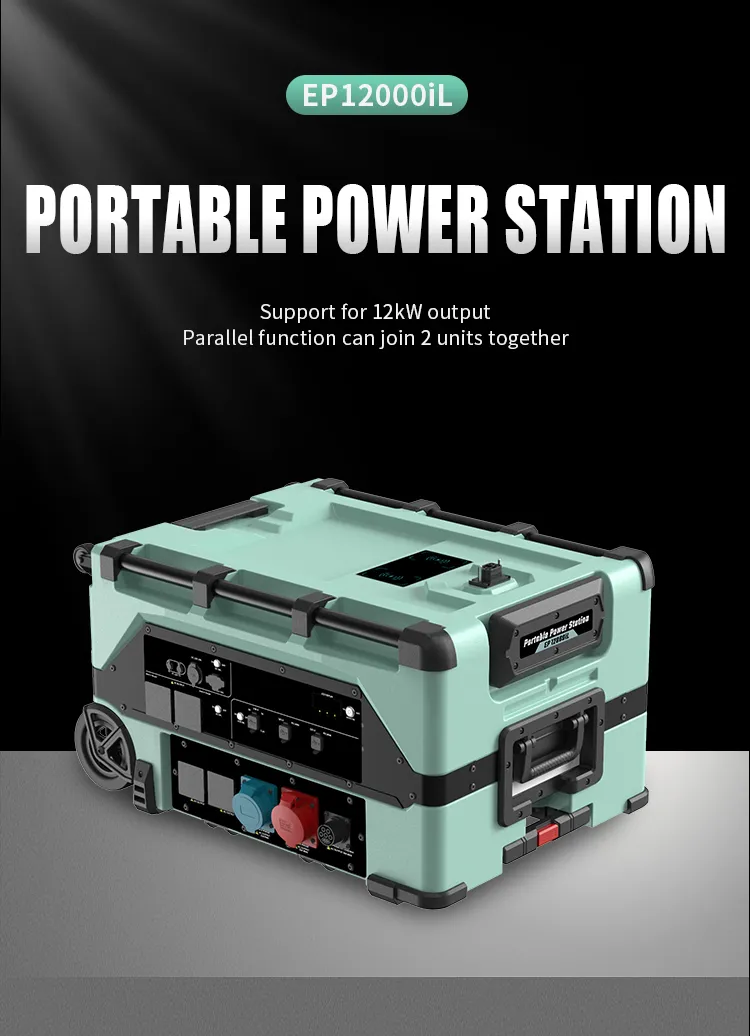

  • Stacked parallel technology allows 2 units to join for 24kW continuous output.
  • Built-in electric vehicle charger, capable of charging cars up to 22kW.
  • Versatile four-wheel chassis and large-diameter wheel design for easy transport.

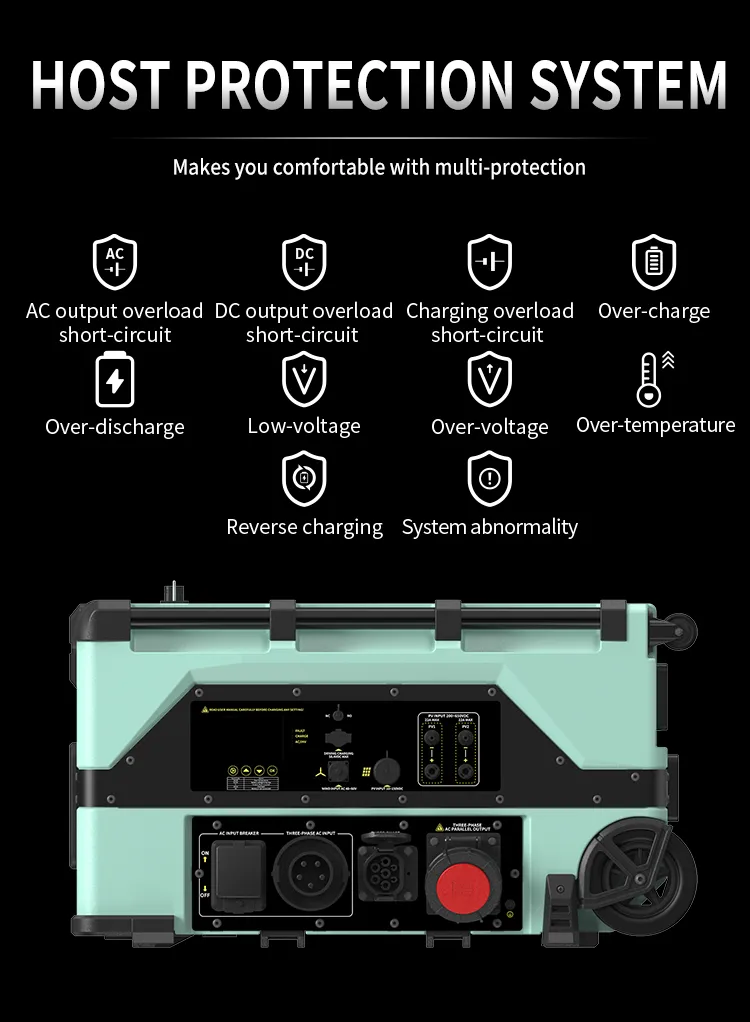

  • High protection grade: Unit IP53 and Battery Pack IP66.
  • Patented dual channel cooling system and V-0 level flame-retardant casing.
  • Intelligent control and monitoring via smartphone APP.

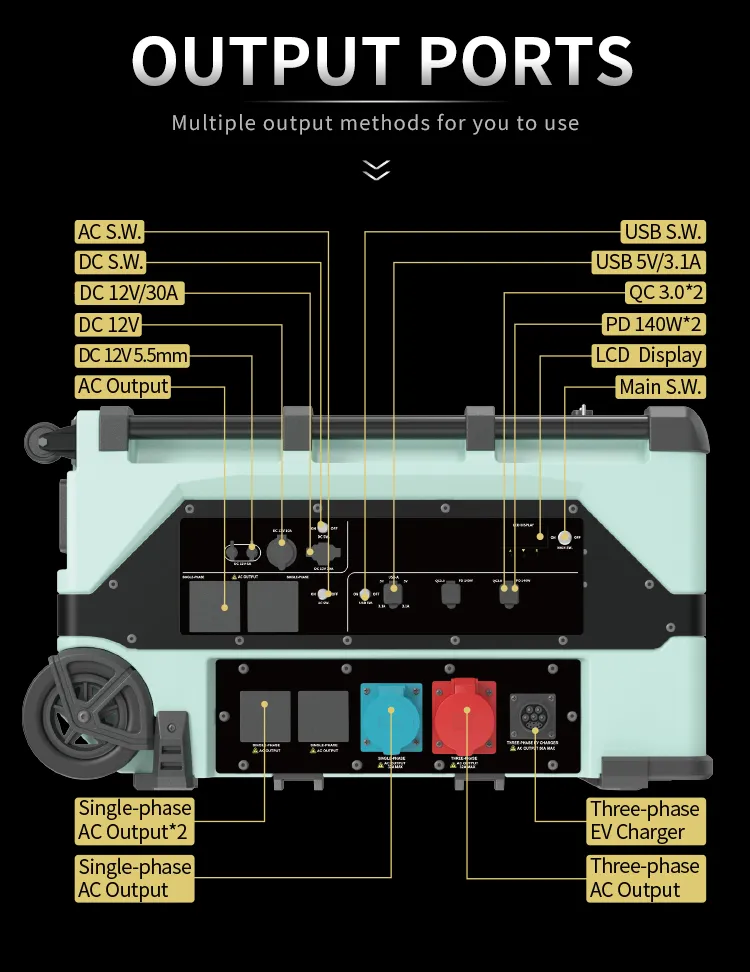

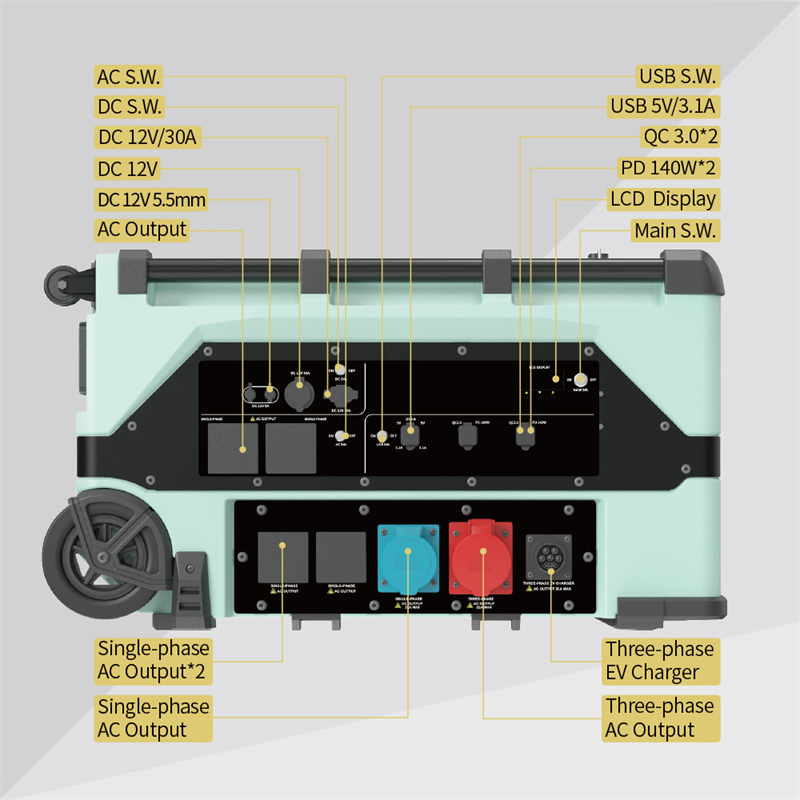

Output Specifications

Type Feature Specification
AC Output Rated Power 12000VA (Three-phase) / 11000VA (Single) / 10000VA (Split)
Peak Power 24000VA (Three-phase) / 22000VA (Single) / 20000VA (Split)
Waveform Pure-Sine Wave, THD < 3%
Frequency 50/60Hz
DC Output XT90 12V / 30A
Cigarette Lighter 12V / 10A
5521 Port 12V / 6A (x2)
USB Output USB Standard 5V / 3.1A (x2)
QC3.0 Up to 12V/1.5A (x2)
Type-C PD 140W (Up to 28V/5A) (x2)
Wireless Charging Pad 15W (x2)
📷

Detailed Product Gallery

🏢

About Our Technology

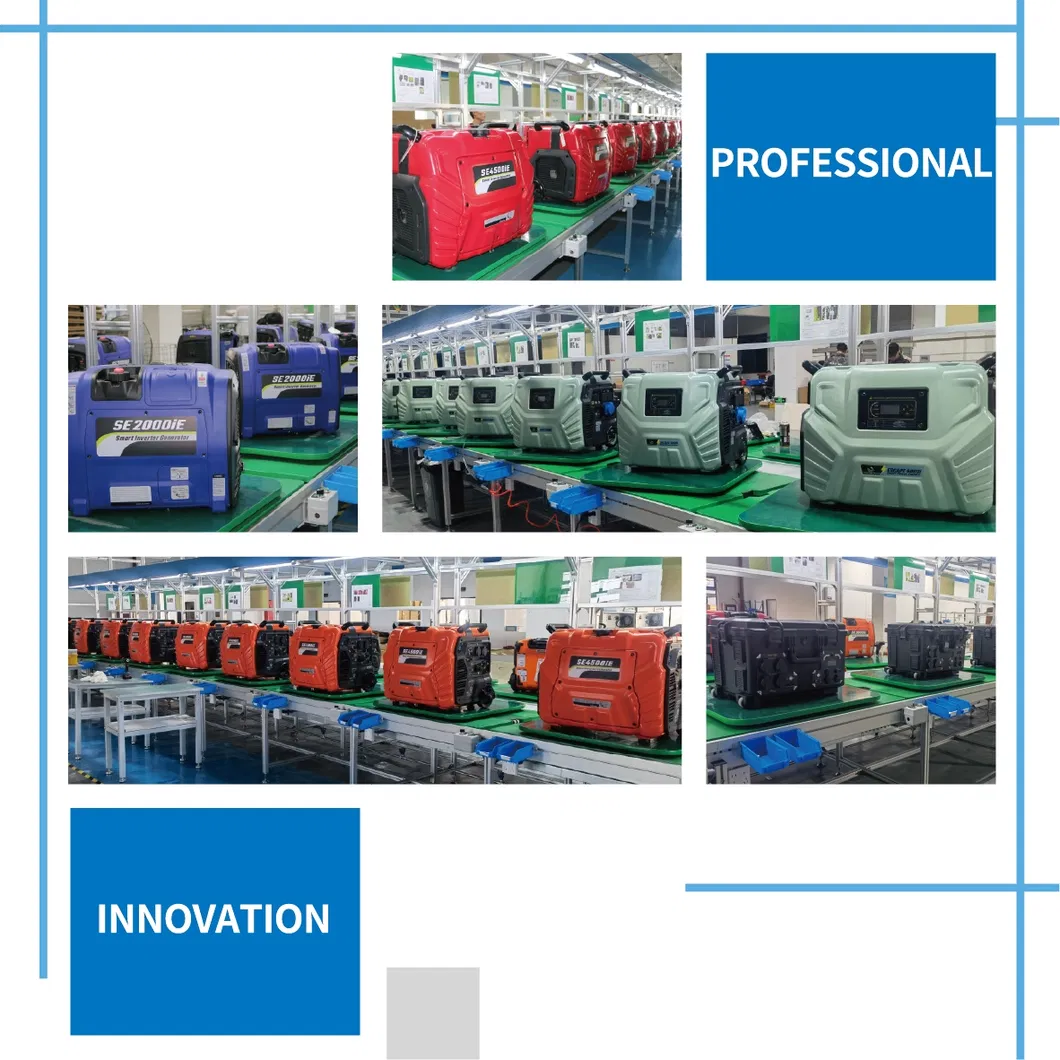

Founded in March 2015, we are a high-tech company integrated with research, manufacture, and sales. We provide products and services on inverter generators, Internet of Things, power equipment, automation equipment, and electrical products. Our focus is on independent research and development, possessing more than 70 critical patents which maintain our leading position in the industry.

We are devoted to research and development of intelligent electromechanical products. Our products have earned a strong reputation in Europe and North America for superior quality. We are committed to bringing innovative solutions and promoting excellence in manufacturing.

?

Frequently Asked Questions

What is the total expandable capacity of this system?
The system supports up to 31 extra battery units connected in parallel, allowing for a maximum total capacity of 245kWh.
How fast can the battery be fully charged?
Using high-power AC or solar charging methods, the internal battery can be fully charged in as little as 70 minutes.
Does the unit support charging electric vehicles (EV)?
Yes, it features a built-in electric vehicle charger that can provide up to 22kW of output to charge EVs.
What is the protection rating for outdoor use?
The main unit is rated at IP53 and the battery packs are rated at IP66, providing excellent protection against dust and water.
Can I monitor the system remotely?
Yes, the system supports intelligent smartphone APP control and monitoring for real-time data and management.
What types of AC output phases are supported?
It supports Three-phase (220-415V), Single-phase (220-240V), and Split-phase (100-240V) outputs.
