📊 Basic Information
Model NO.vrf vc pro-1111
TypeVrf Air Conditioner
Air Tube MaterialGalvanized Sheet
Corrosion DurabilityHigher
Operating Voltage380/400 VAC
Noise LevelLow
Application FieldsAerospace
MountingFloor Standing
Lifetime5~10 years
CertificationRoHS, ISO, CE, CCC
ConditionNew
Cooling Capacity25.2kw-90kw
Heating Capacity25.2kw-90kw
Compressors TypeDC Inverter
Refrigerant TypeR410A
Weight240-1380kg
Sound Level58-68dB(a)
OriginChina

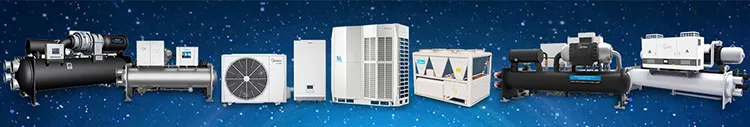

🏢 Introduction & Portfolio

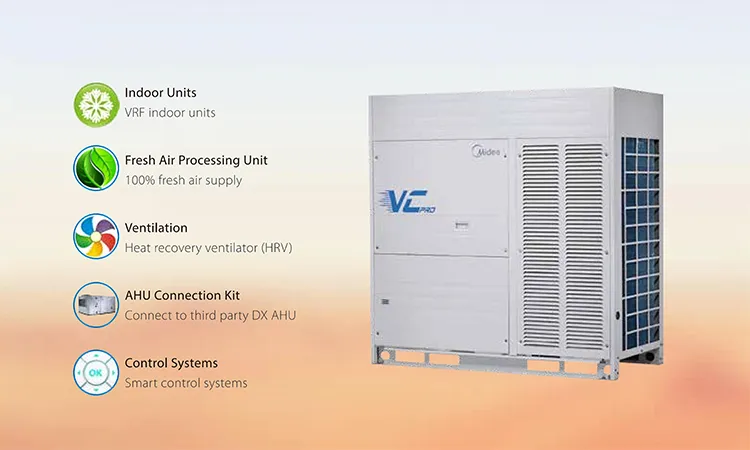

🌟 Products Show
🔍 Product Details

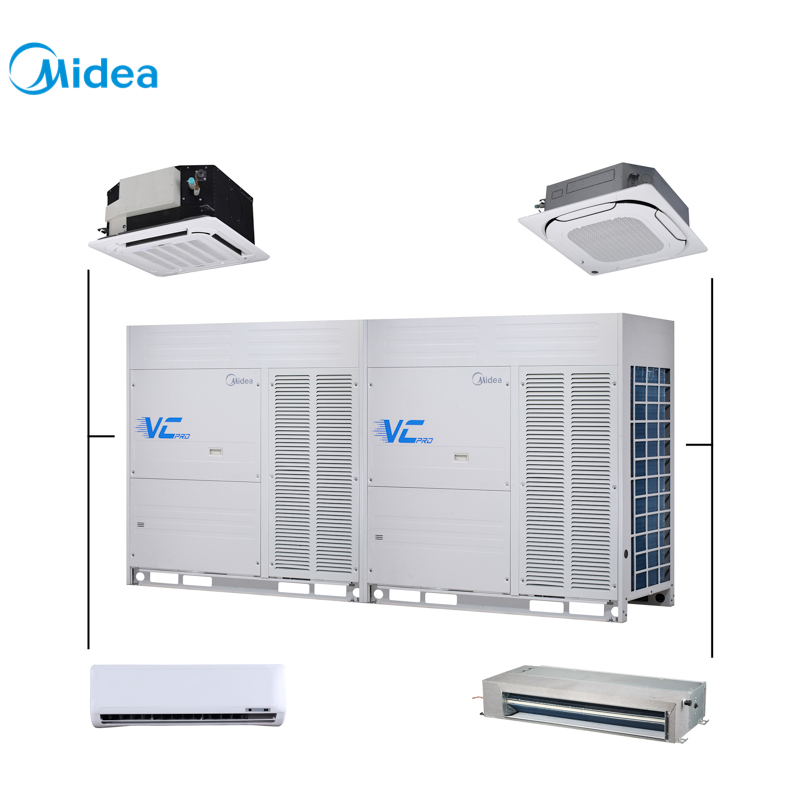

As the leading VRF product, V6 boasts substantial benefits such as the single capacity can be up to 90HP which is leading in HVAC industry; EVI compressor significantly increases heating and cooling capacity under extreme conditions, EMS realizes that evaporating temperature (in cooling) and condensing temperature (in heating) are automatically adjusted according to both indoor and outdoor temperature to maximize the comfort and energy efficiency. Besides, the intelligent control system adds more value to V6 product.
| Capacity | 8HP-90HP |
| Power supply | 220/3/50(60)V/Ph/Hz |
| Cooling | Capacity | 22.4KW-255KW (76.5-870.9kBtu/h) |
| Power input / EER | 5.25-82.53KW / 4.27-3.25kW/kW |
| Compressors | Type | DC inverter |
| Fan motors | Type | DC |
| Max. ESP | 20 default(Pa); 60 Customization Option |
| Refrigerant | Type | R410A |
| Airflow rate | 11000-25000 m3/h |
| Ambient temp | Cooling | -5 to 55ºC |
🚀 Product Advantages
🔹

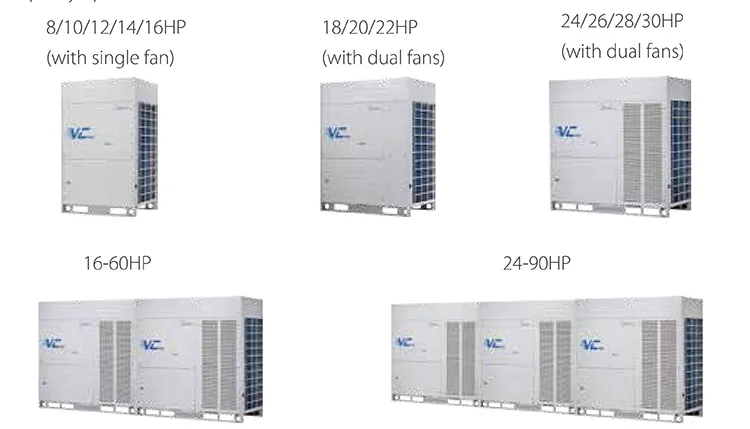

Wide Capacity Range: For single unit, the footprint is small and maximum capacity is up to 30HP. For combined units, maximum three 30HP units can be combined with capacity up to 90HP.
🔹

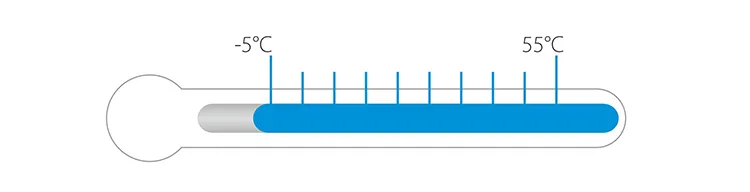

Wide Operation Range: The VC Pro VRF can operate stably in a wide ambient temperature range: from -5ºC to 55ºC in cooling mode.
🔹

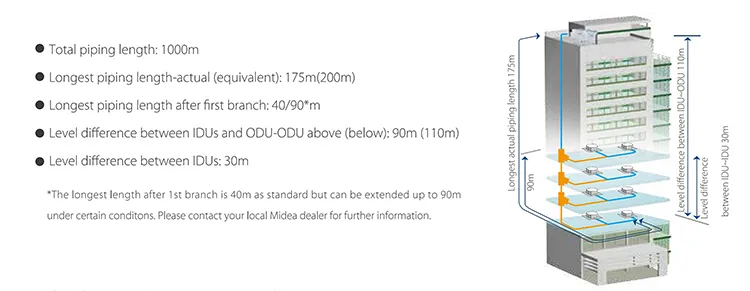

Long Piping Capability: Supports flexible installation for large-scale projects.
🔹

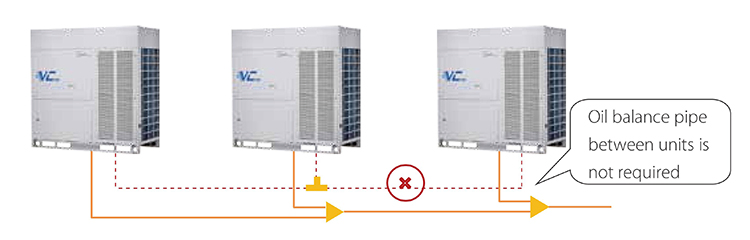

Advanced Oil Management: With the new system, there is no need of oil balance pipe.
🏗️ Projects Show
❓ Frequently Asked Questions
1. What is the maximum capacity of a single VRF unit?
The single unit capacity can reach up to 30HP, and multiple units can be combined to reach a maximum of 90HP.
2. Can this system work in extreme outdoor temperatures?
Yes, the VC Pro VRF system is designed to operate stably in cooling mode at ambient temperatures ranging from -5ºC to 55ºC.
3. What kind of compressor does the V6 series use?
It utilizes a high-efficiency DC Inverter EVI compressor, which significantly boosts performance under extreme conditions.
4. Does the installation require an oil balance pipe?
No, thanks to the advanced oil management system, an oil balance pipe is not required for this model.
5. What applications is this VRF system suitable for?

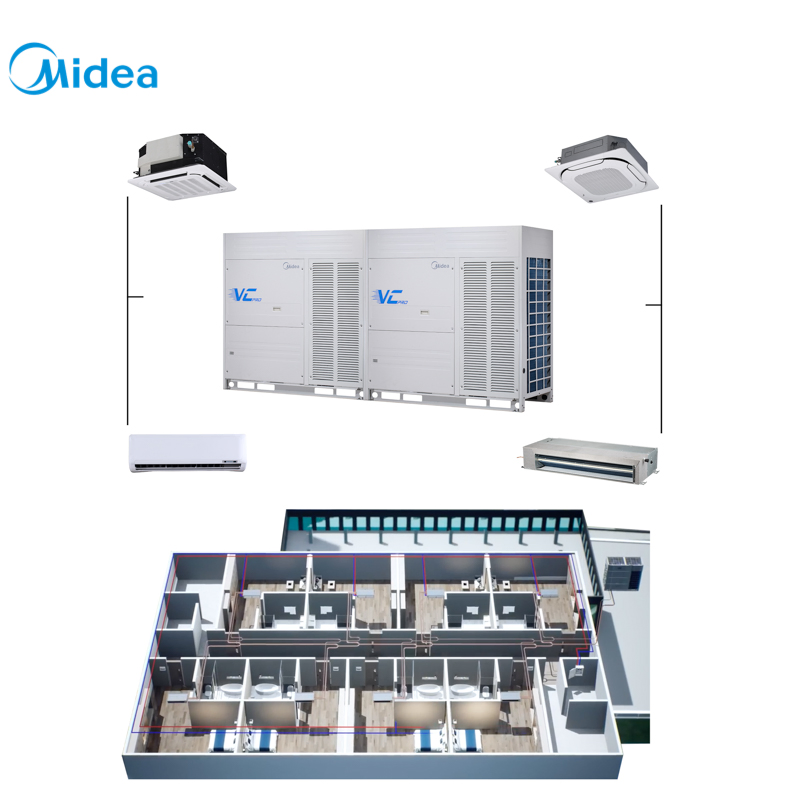

It is ideal for large-scale projects including hotels, villas, apartments, office buildings, and hospitals.
6. What certifications does the product have?
The product is fully certified with RoHS, ISO, CE, and CCC standards, ensuring global quality compliance.
