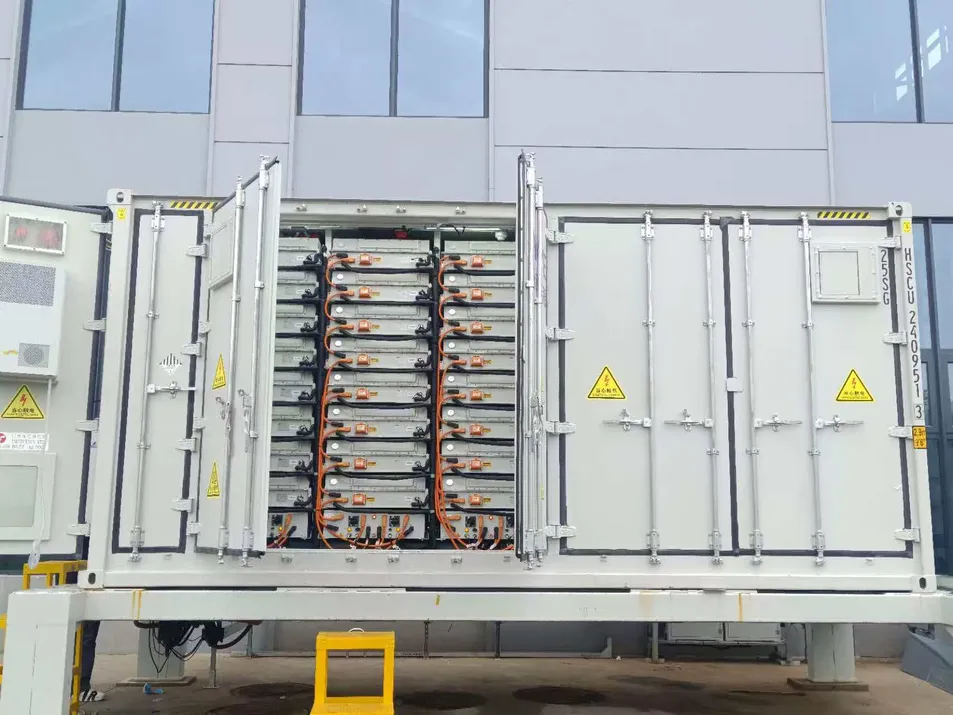

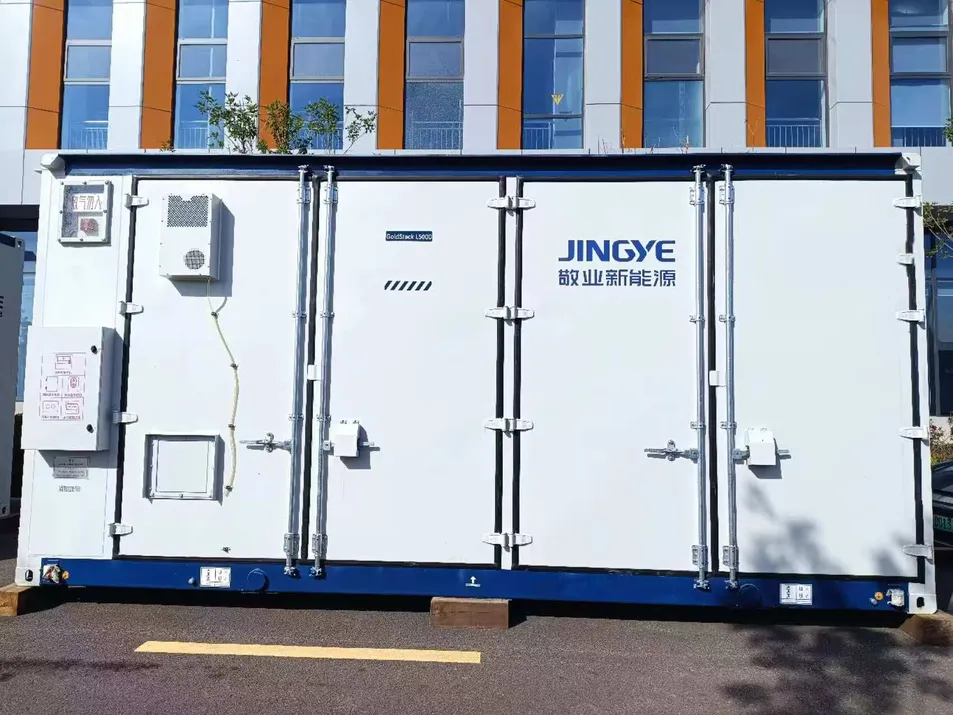

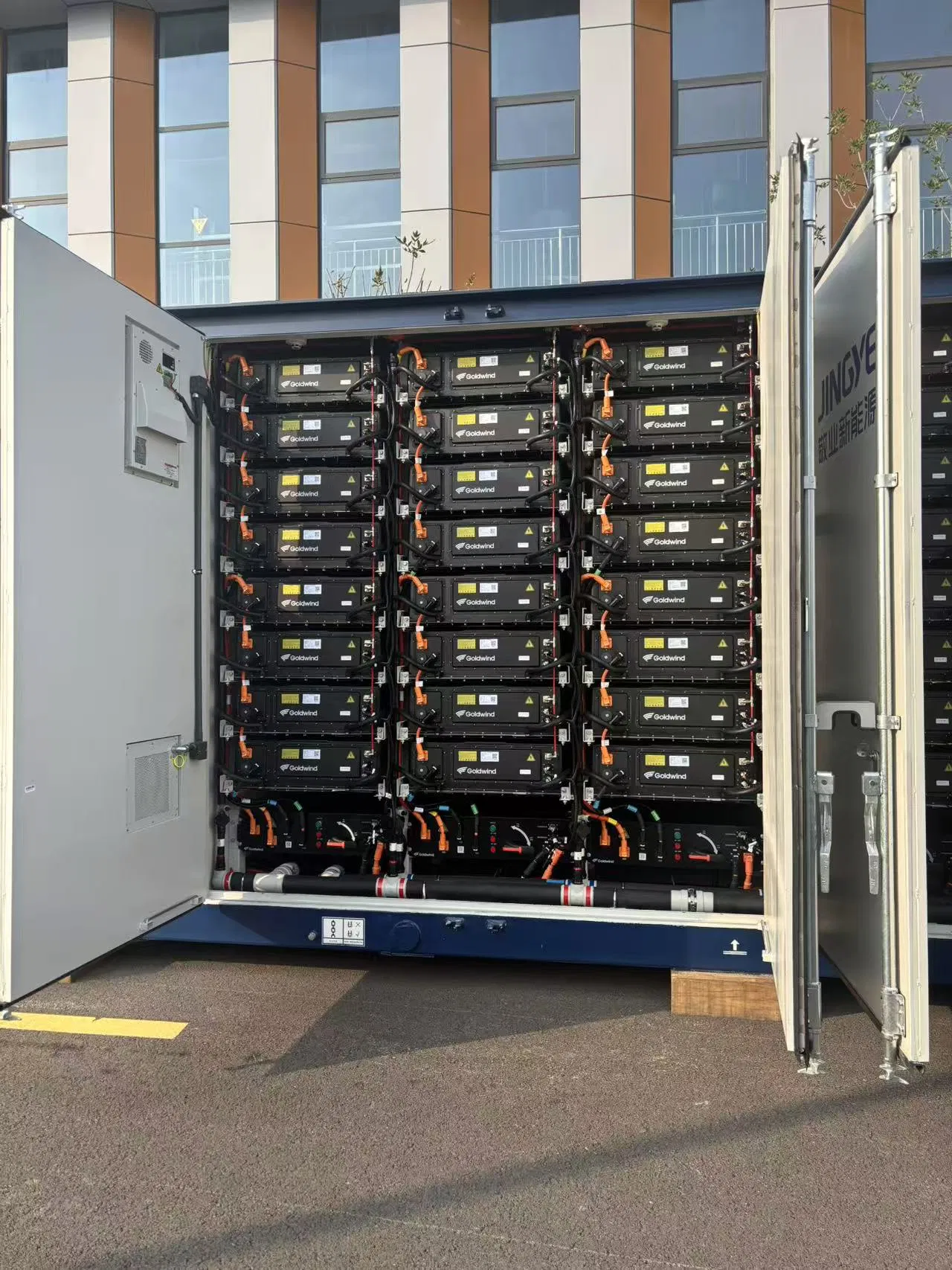

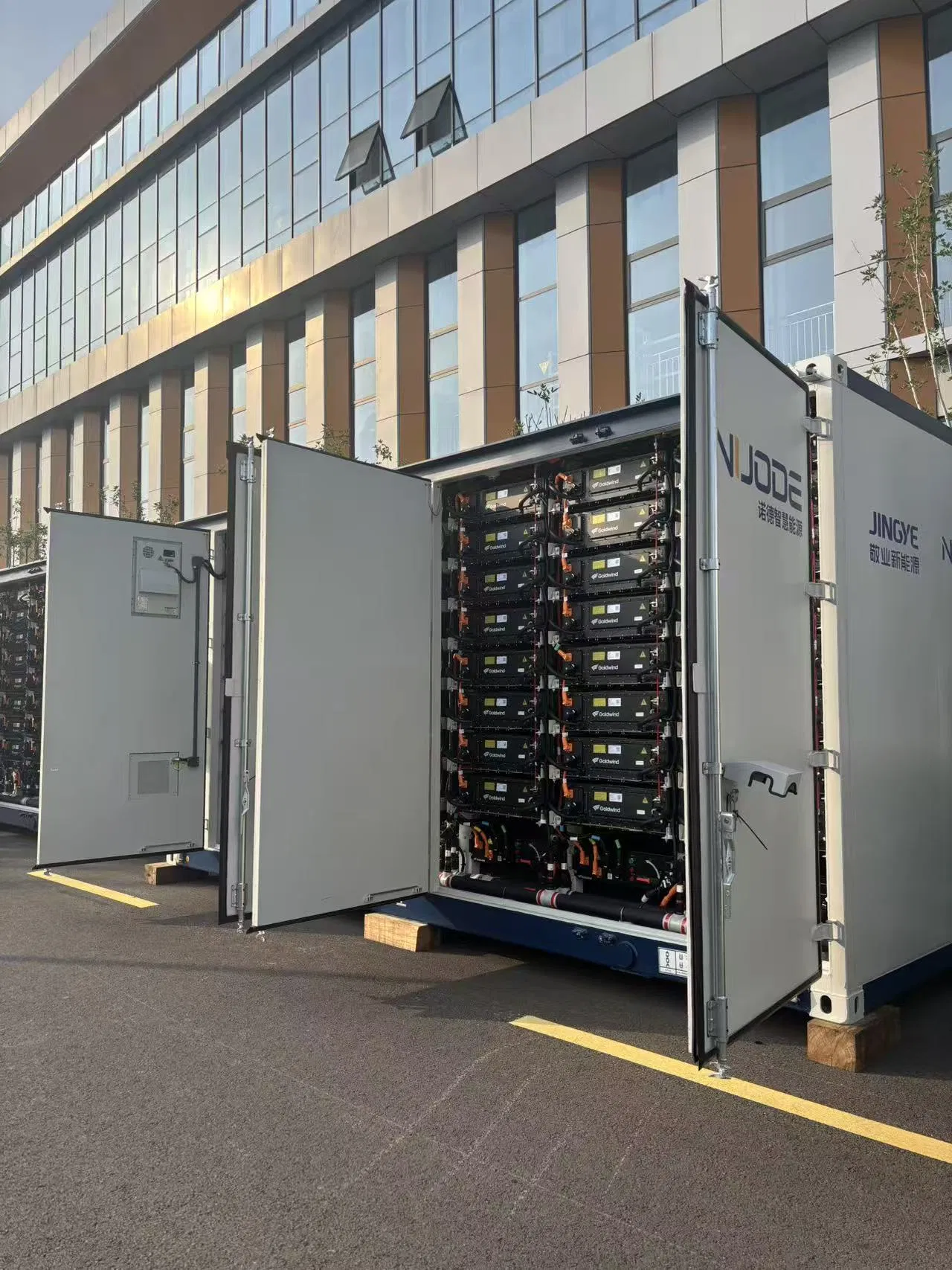

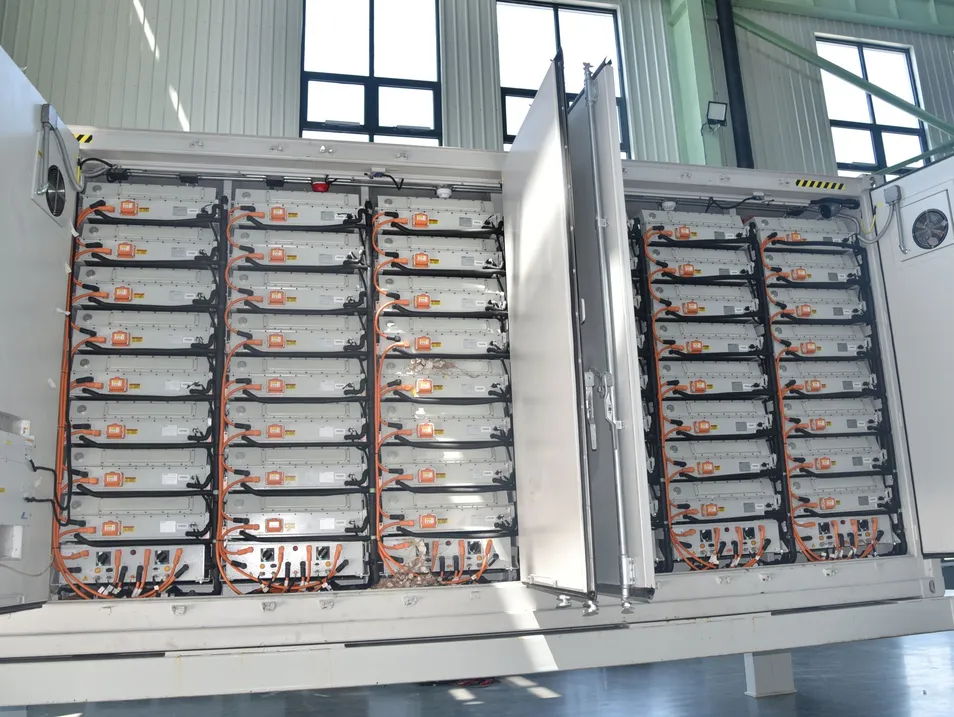

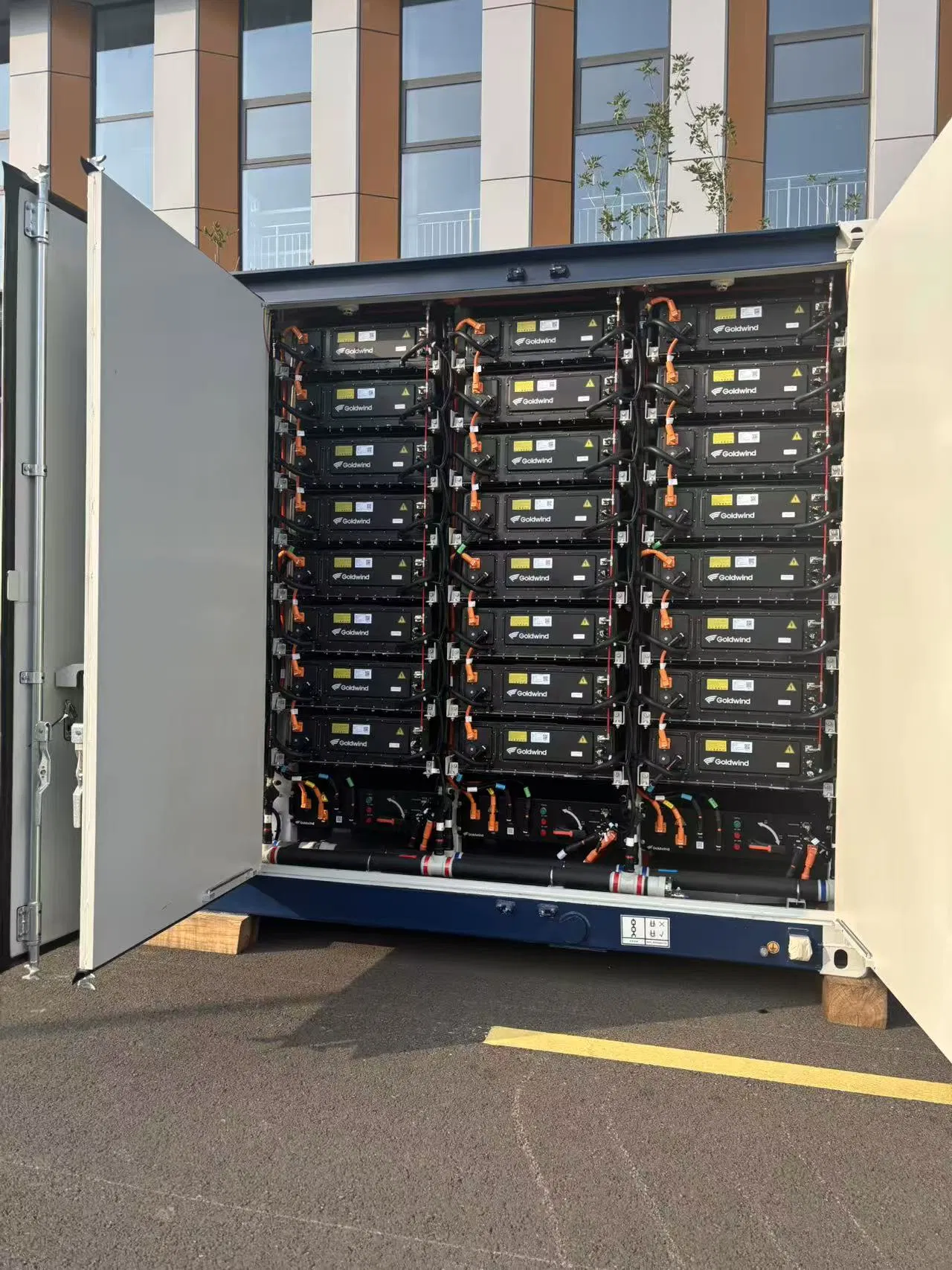

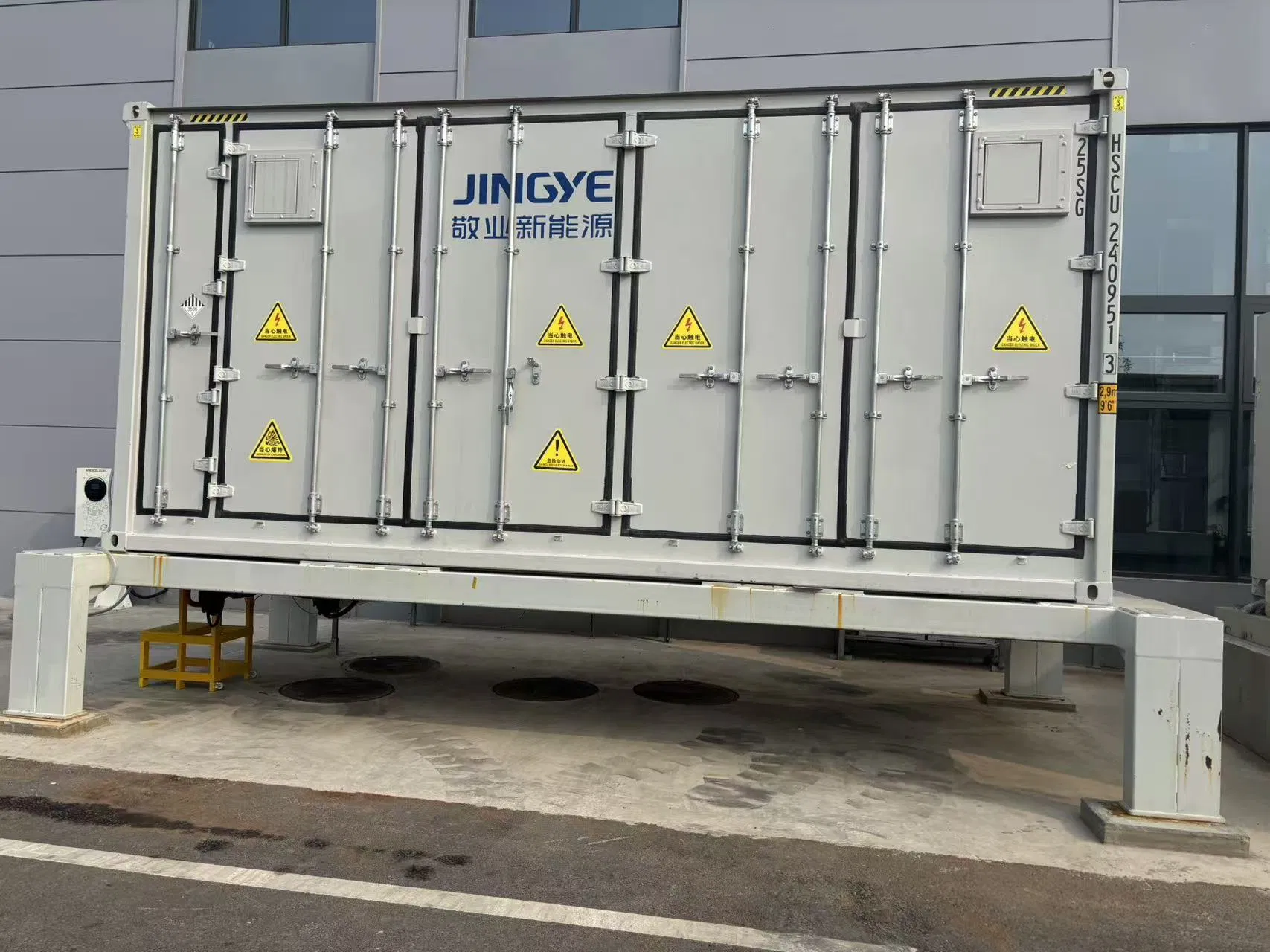

5015KWh Liquid Cooling energy storage system based on high-capacity 314Ah energy storage cells, consisting of a 104S long PACK, battery cluster units, battery management systems, fire protection systems, and environmental control systems. Integrated within a standard 20-foot container.
Battery Technology: High-efficiency, long-life lithium iron phosphate batteries.
Thermal Management: Intelligent liquid cooling ensuring 3℃ internal temperature difference.
Safety Protection: Three-level automatic fire extinguishing system (PACK, cluster, compartment).
Monitoring: Integrated temperature, humidity, smoke, and video monitoring.
Technical Specifications
Item
Specification
Configuration
12*(1P104S*4)
Rated Power
5MWh
Rated Voltage
1331.2VDC
Voltage Range
1164.8V -1497.6VDC
Work Temperature
-30℃ to 60℃
Dimensions
L6058 x W2438 x H2896mm
Weight
Approx. 43t
IP Rating
IP54
Communication
Ethernet, CAN, ModbusRTU

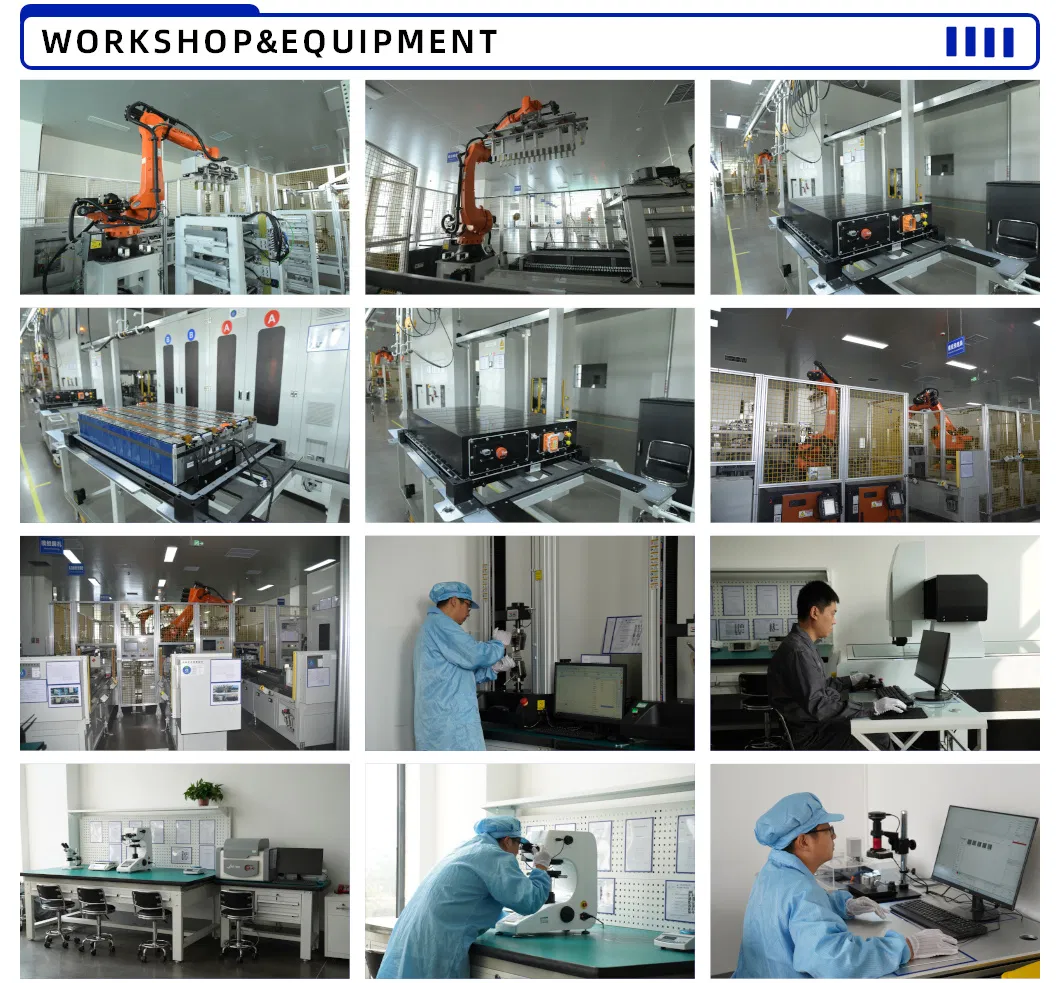

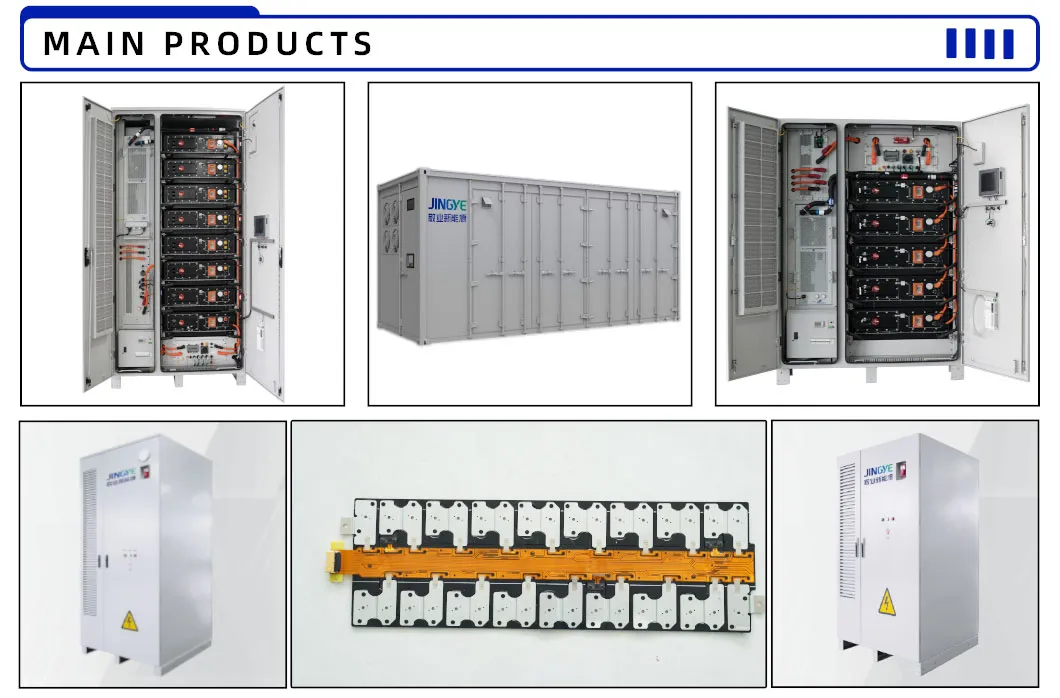

Main Products & Workshop
Advanced automated production lines with an annual capacity of 5 GWh for energy storage systems and 2.4 million pieces of CCS busbars. Products are widely utilized in smart grids, industrial and commercial energy storage, and green transportation.
Certifications & Global Presence
Frequently Asked Questions
Q1: What are the primary energy storage products available?
A: Our main offerings include 5MWh Energy Storage Containers, Commercial & Industrial Cabinets, CCS Integrated Busbars, and specialized Battery Packs.
Q2: Is customization supported for specific project requirements?
A: Yes, we offer flexible customization services for various process types and storage capacities.
Q3: How are production and delivery timelines managed?
A: With a comprehensive automated production line and proficient technical personnel, we ensure stable production and on-time global delivery.
Q4: How can customers obtain detailed technical quotations?
A: You can contact our support staff online directly via the website for prompt and detailed pricing information.
Q5: Is the company a direct manufacturer or a trading entity?
A: We are a formal source factory with standardized production processes, offering competitive pricing and quality control.
Q6: What are the benefits of the liquid cooling system?
A: The liquid cooling system provides high-precision temperature control, maintaining a narrow temperature difference (≤3℃) which significantly extends battery life and improves safety.
