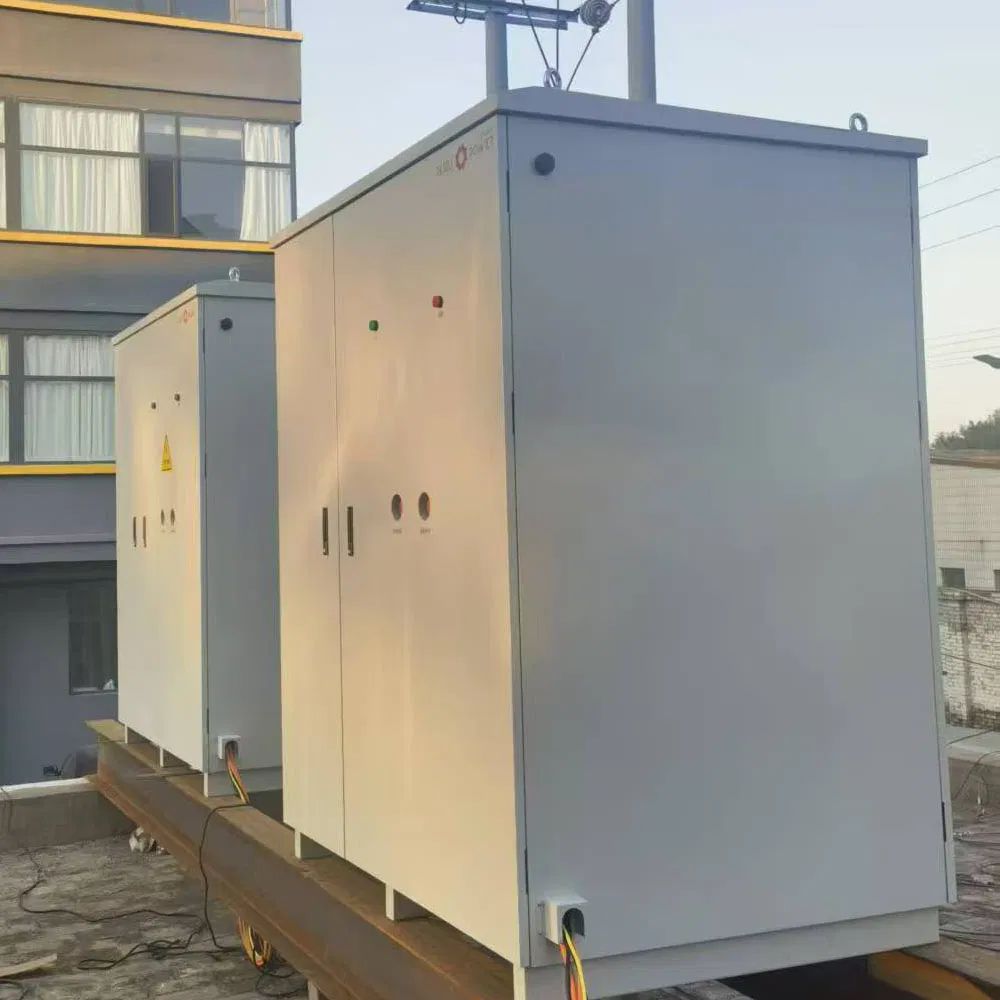

64kwh 128kwh 241kwh 16kwh Commercial Battery Storage LiFePO4 Solar Energy System All in One C & L Ess Cabinet

Still deciding? Get samples of $ !
Order Sample

Product Description

Overview
Model NO.
LDS003
Technical Support
Professional Technical Guidance
Solar Panels System
Ground Mount Solar System Off-Grid Home
Delivery Time
7 Days
Efficiency
99.8%
OEM Service
Acceptable
Rated Capacity
314ah
Interaction
Internet of Things + APP
Interface
Can/RS485
Protection Level
IP55
Corrosion Grade
C4 (C5 Optional)
Fire Rating
Aerosol
Working Temp.
25ºC ± 5ºC
Max Charge Temp.
0ºC - 55ºC
Cycle Life
> 6000 Times
Transport Package
Wooden Box
Packaging & Delivery
Package Size
154.50cm * 204.50cm * 143.50cm
Gross Weight
2350.000kg
Product Description
Product NameSolar-storage integrated machine
Cell typeLFP (LiFePO4)
Rated capacity314Ah
Rated energy128kWh
Rated voltage409.6VDC
Max charging voltage467.2VDC
Discharge cut-off339.2VDC
CommunicationCAN/RS485
Protection levelIP55
Fire protectionAerosol
Operating Temp.-20ºC - 60ºC (Discharge)
Dimensions1035 * 2045 * 1386mm
Weight1736kg
Detailed Photos

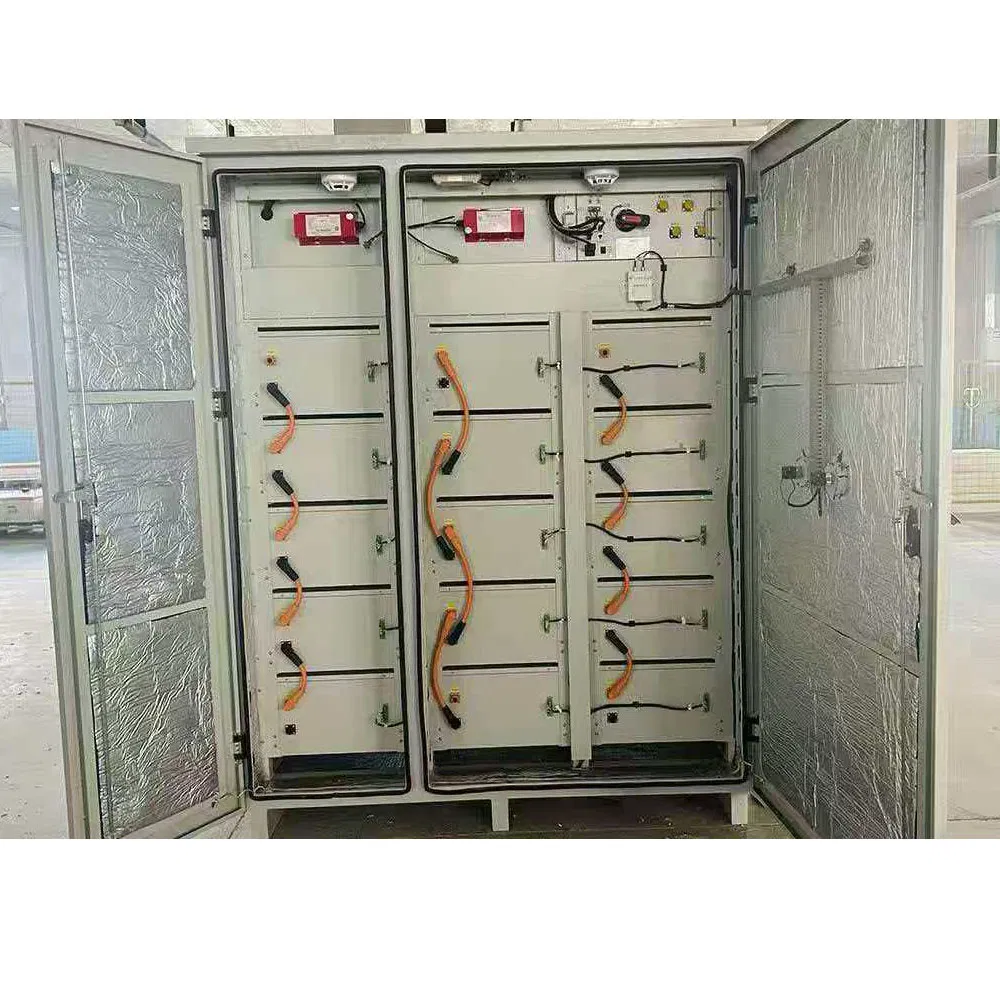

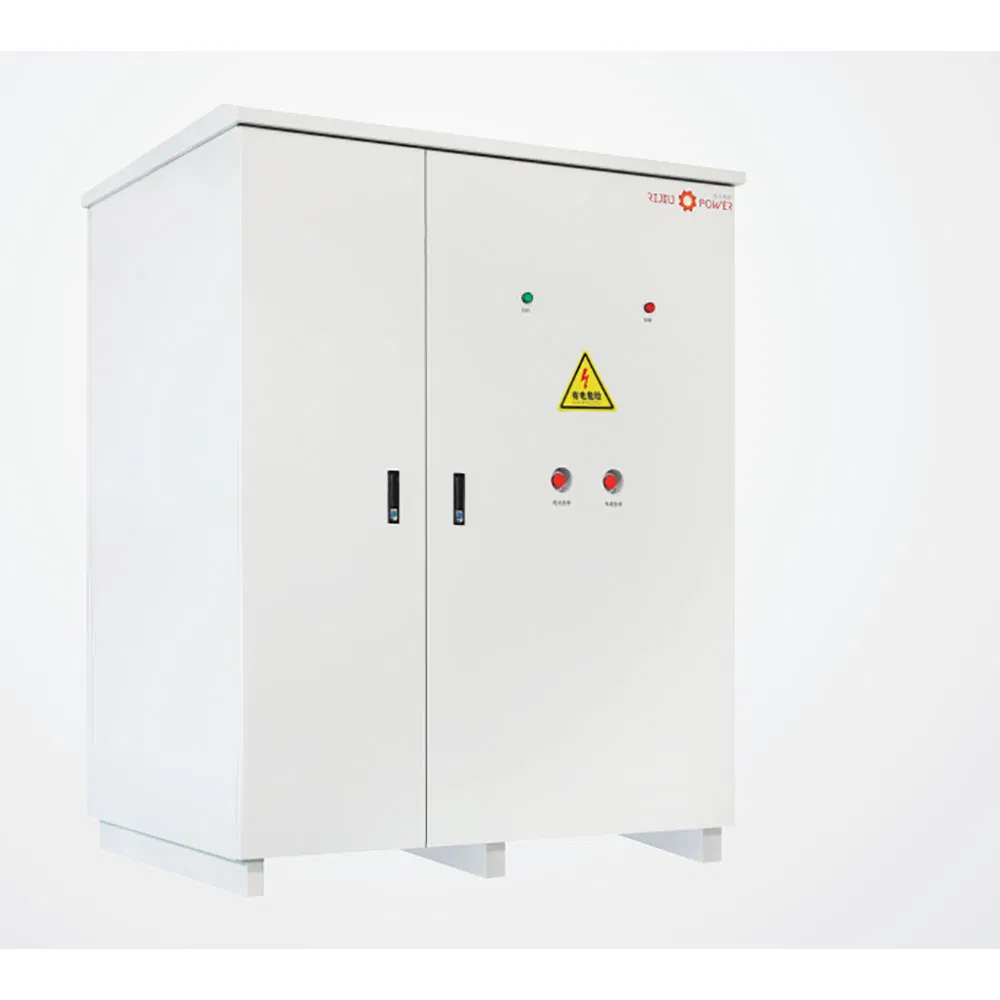

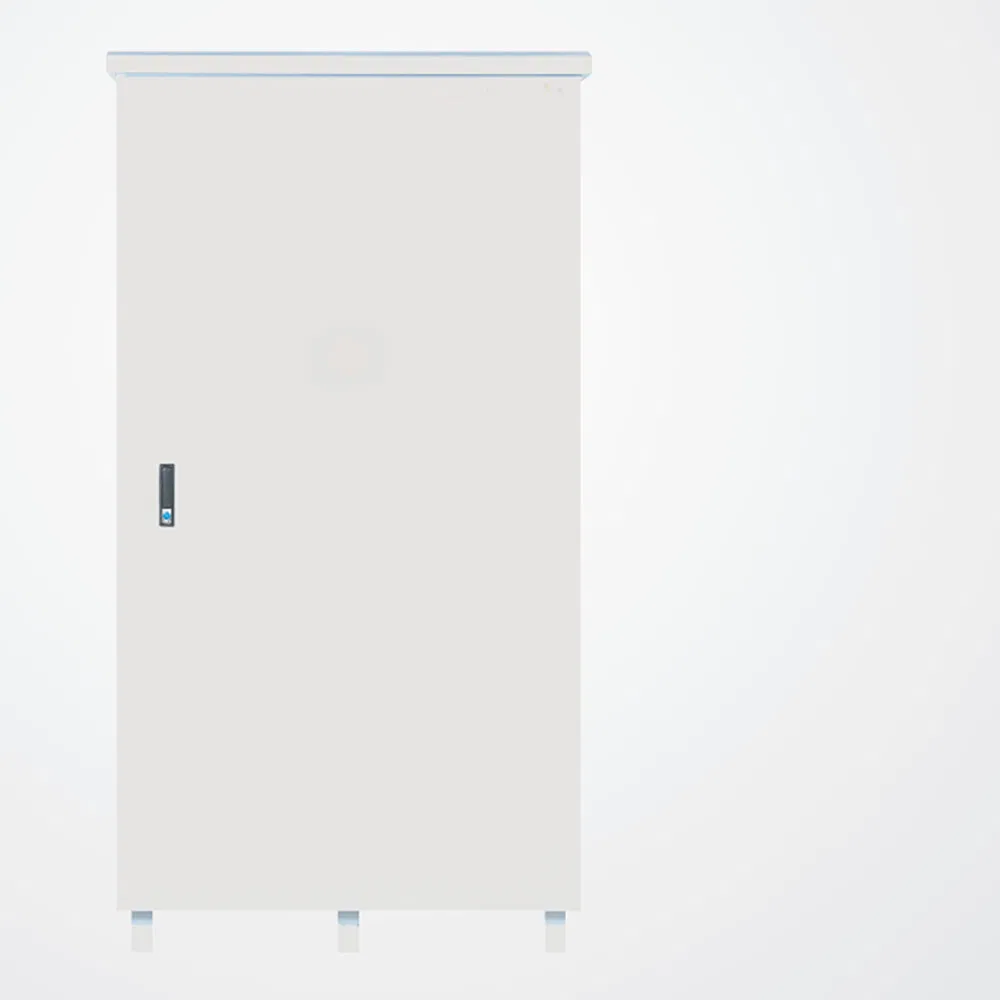

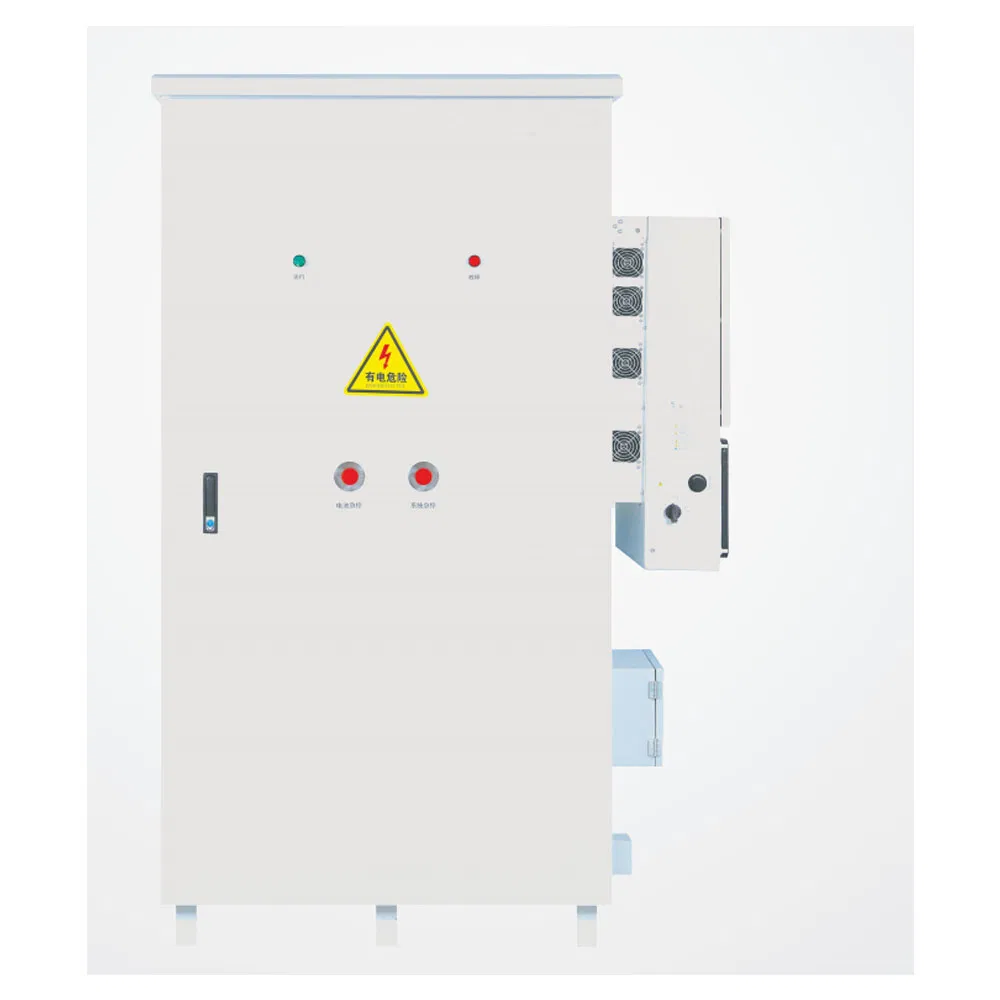

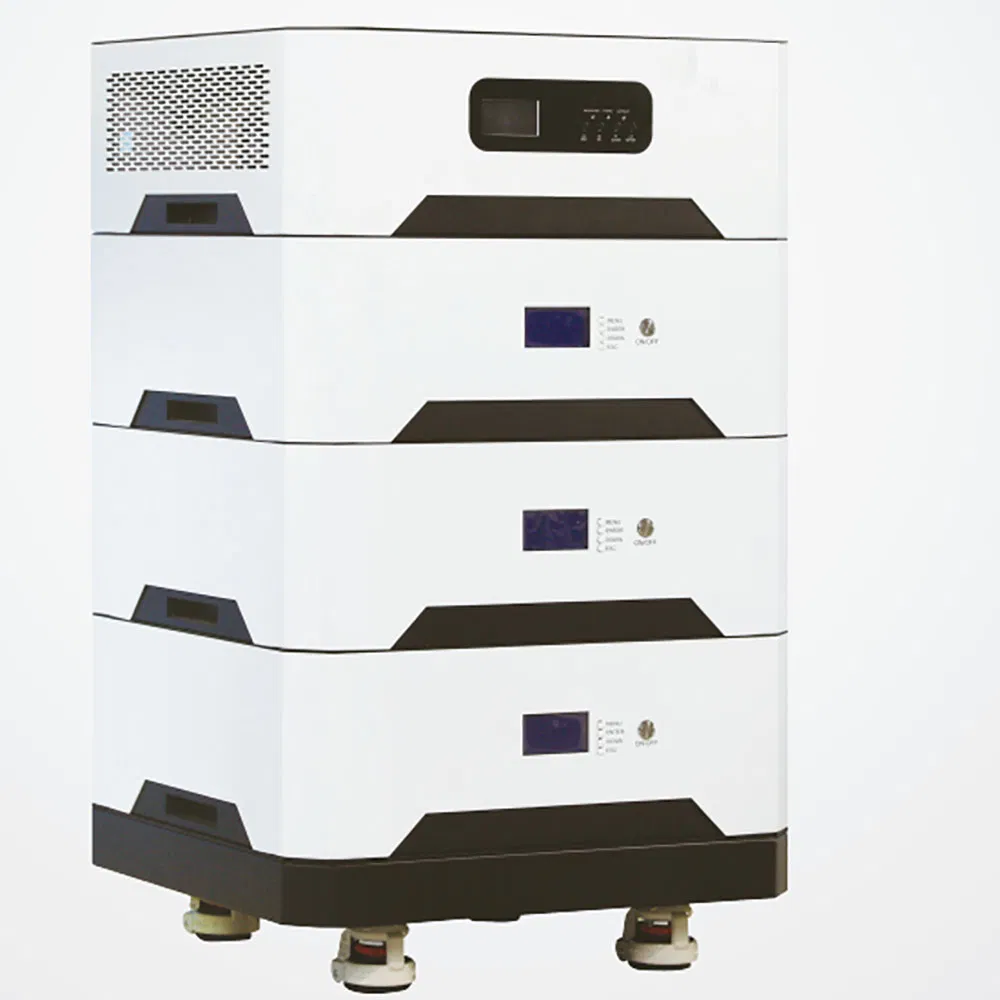

Battery Storage System Detail

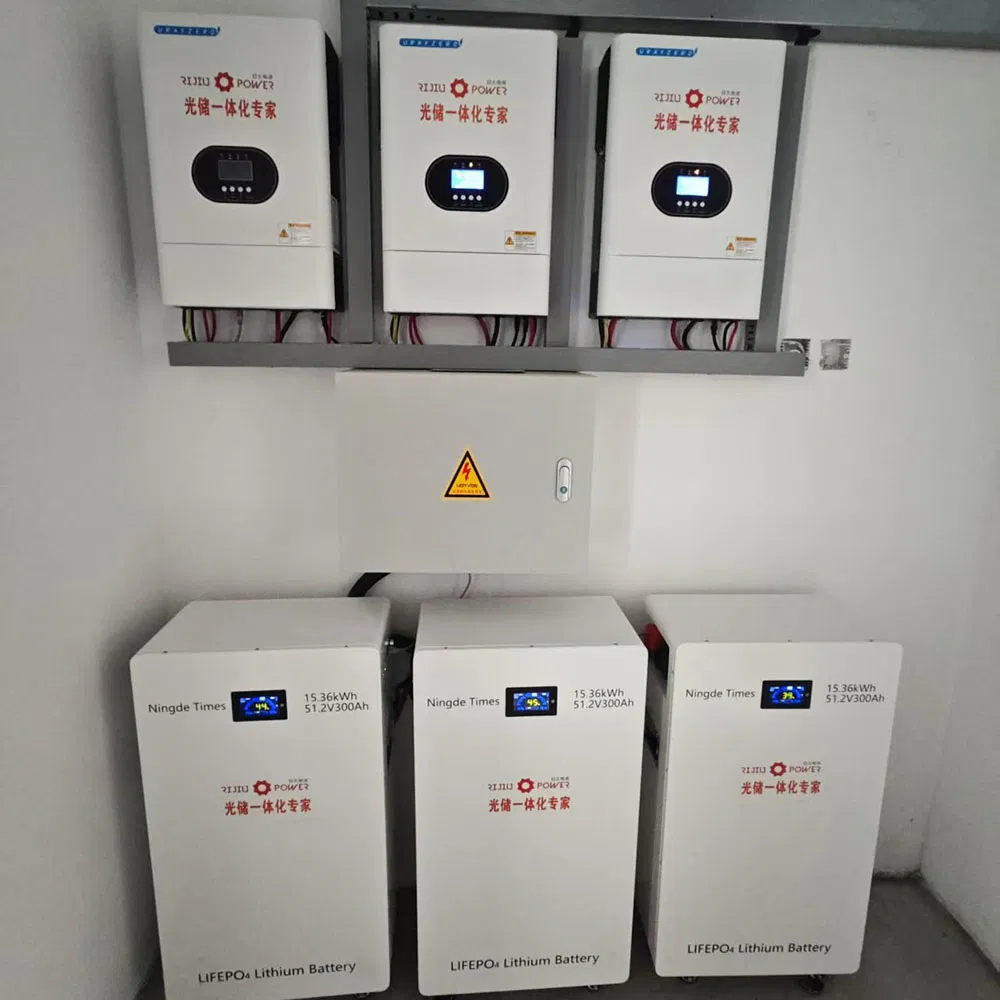

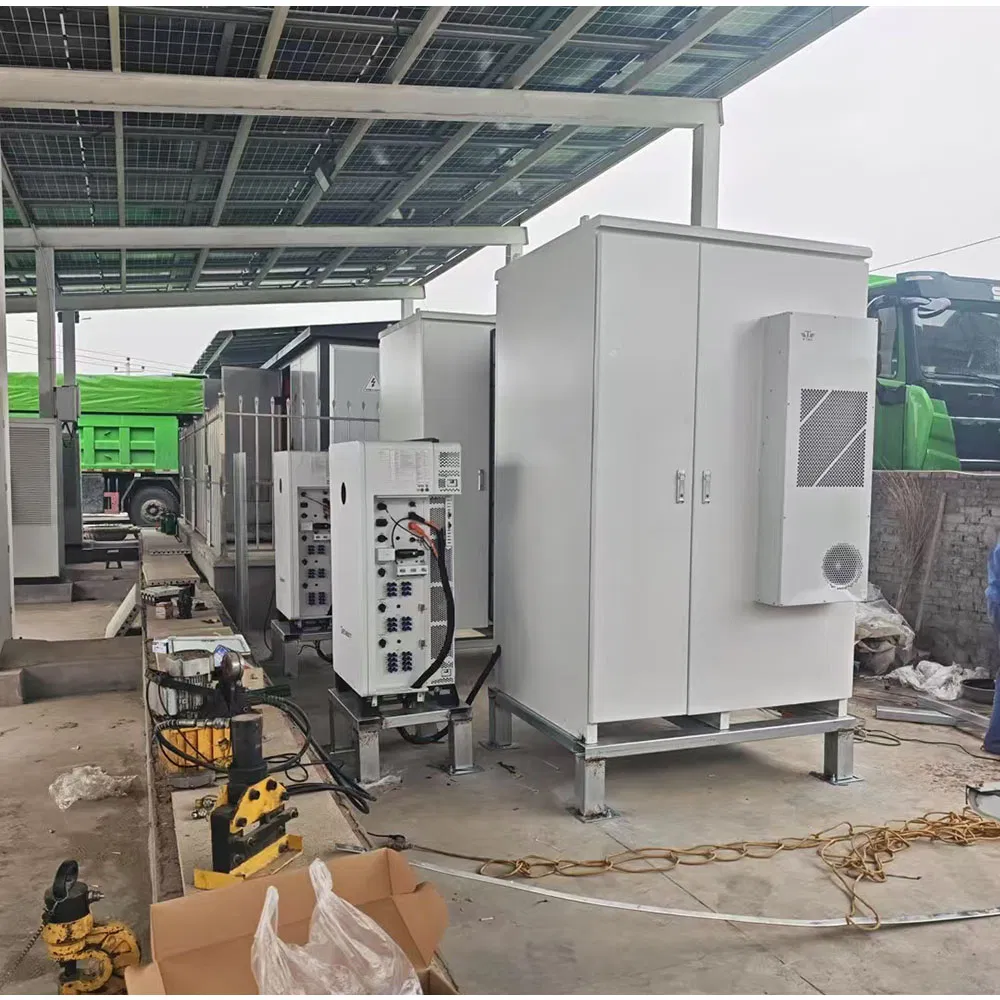

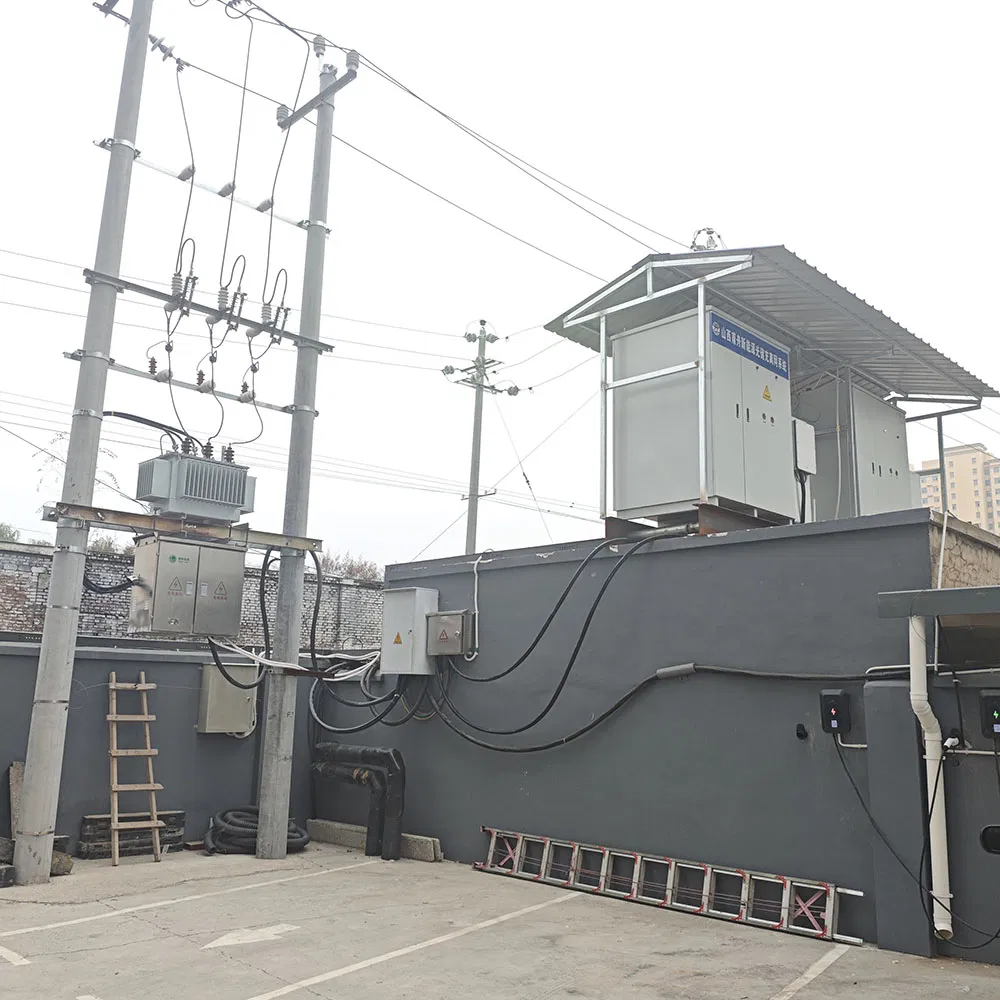

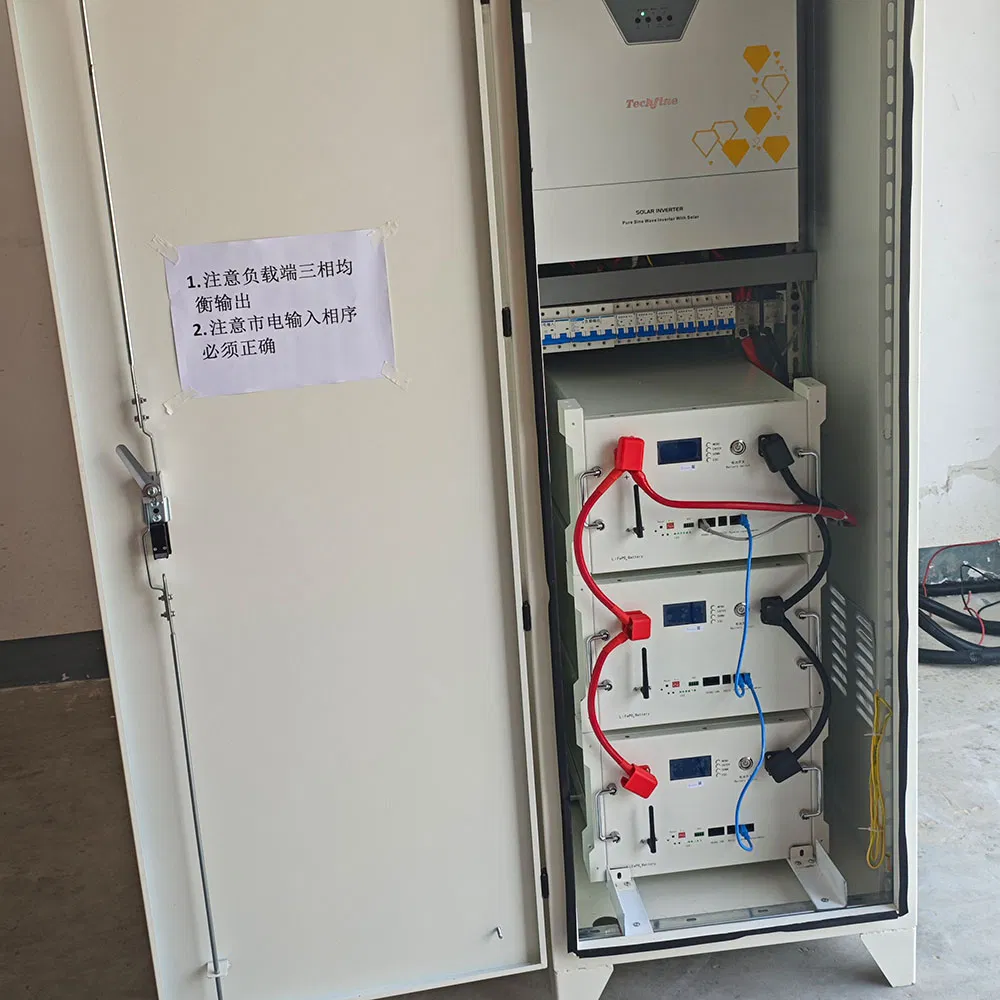

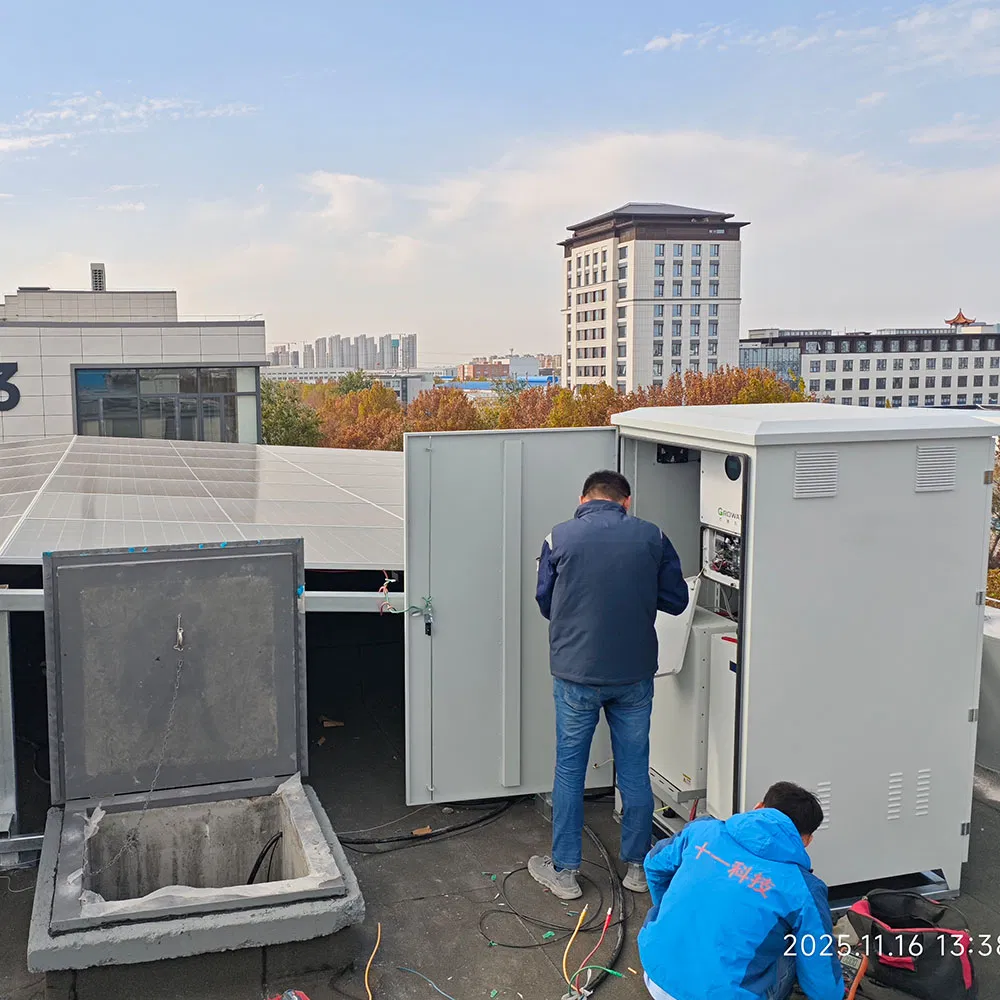

Installation Instructions
Diagram 1
Diagram 2
Manual Page

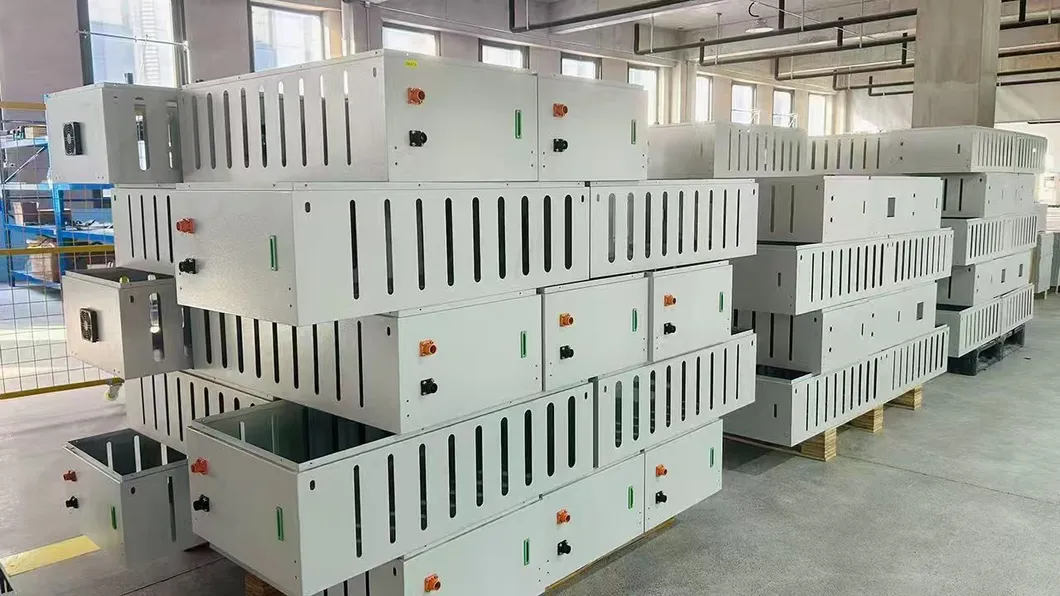

Technical Drawing 1
Technical Drawing 2

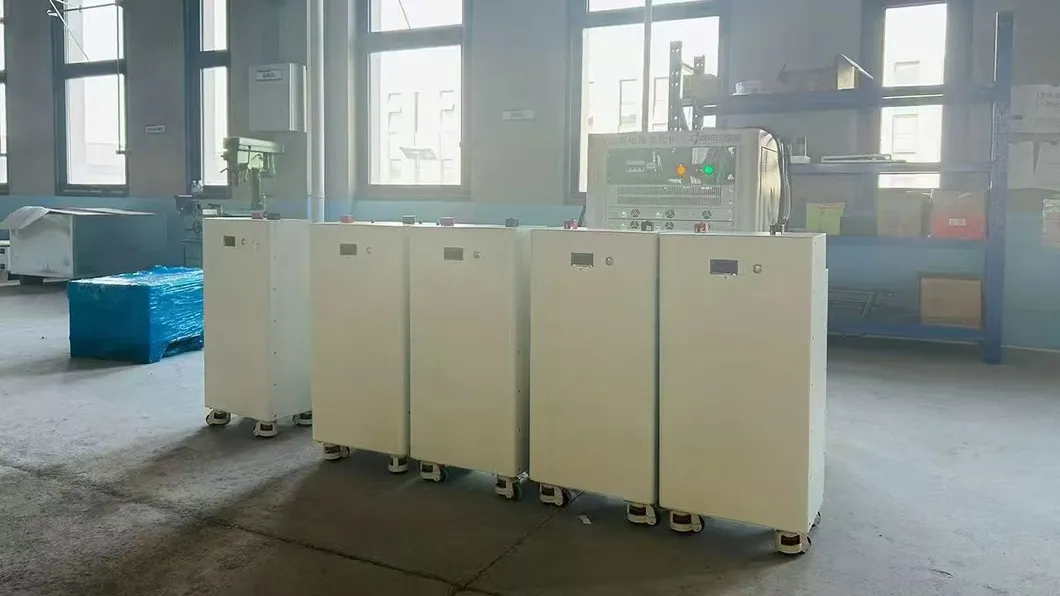

Technical Drawing 3
Company Profile

We stand as a professional and innovative manufacturer dedicated to providing comprehensive lithium battery solutions. We specialize in OEM and ODM services, transforming our clients' concepts into reliable, high-performance power products. Our core mission is to empower businesses and households with safe, efficient, and customizable energy storage systems, built on a foundation of technical expertise and a steadfast commitment to quality.

Our capabilities span the entire value chain of energy storage. We begin at the fundamental level, supplying a diverse range of high-quality battery cells, including cylindrical, lithium polymer (Li-Po), and LiFePO4. We then expertly integrate these cells into custom battery packs and modules, tailored to specific voltage, capacity, form factor, and application requirements.

Quality and reliability are embedded in every stage of our process, from rigorous raw material screening and automated precision manufacturing to exhaustive testing protocols. We ensure every product meets international safety and performance standards. Our partnership extends beyond delivery; we offer robust technical support, flexible warranty policies, and dedicated after-sales service.

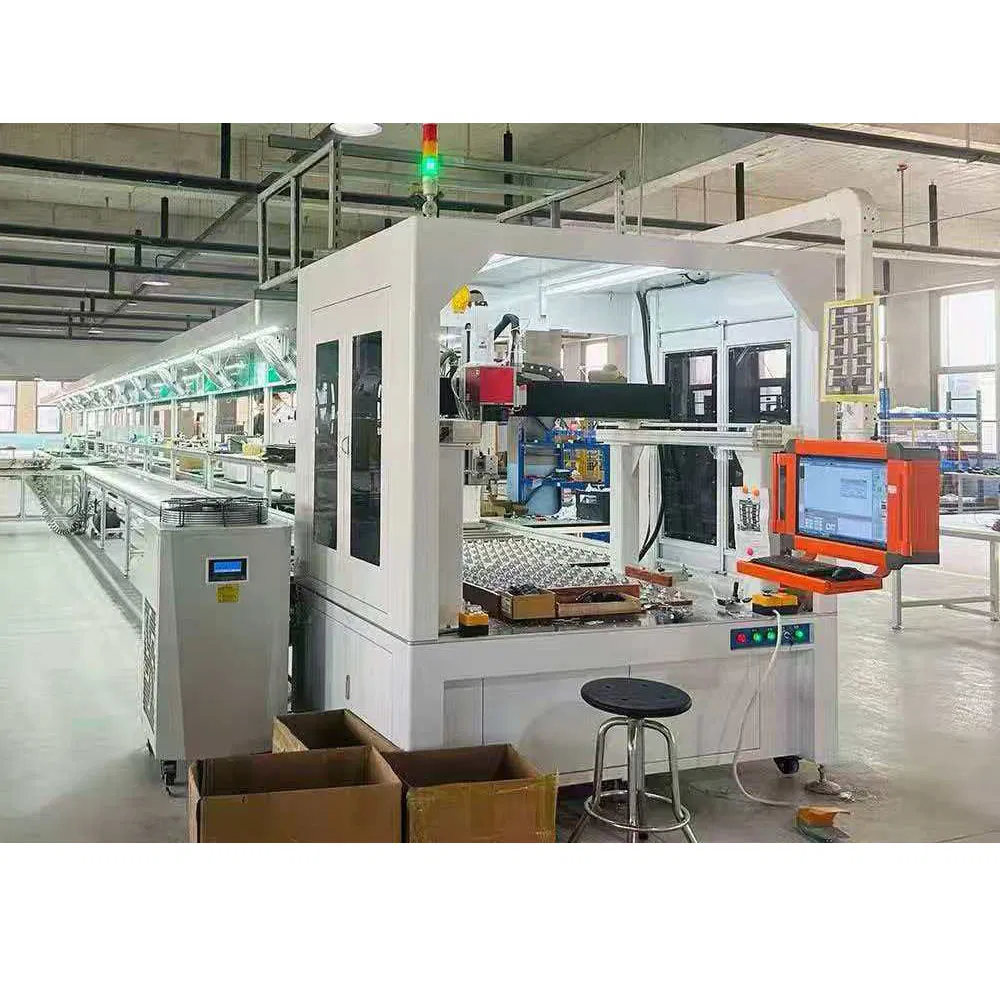

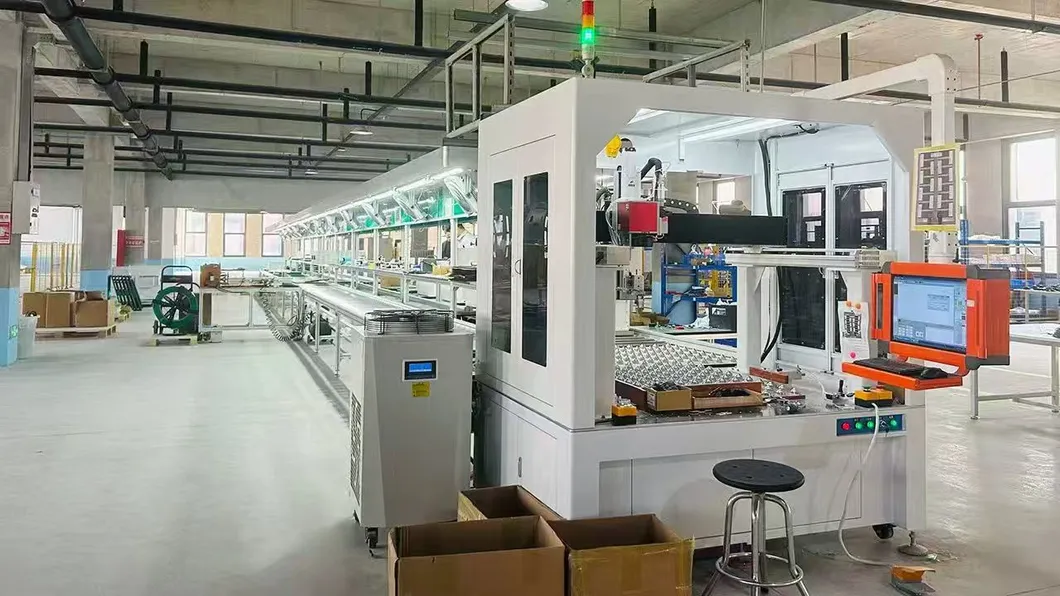

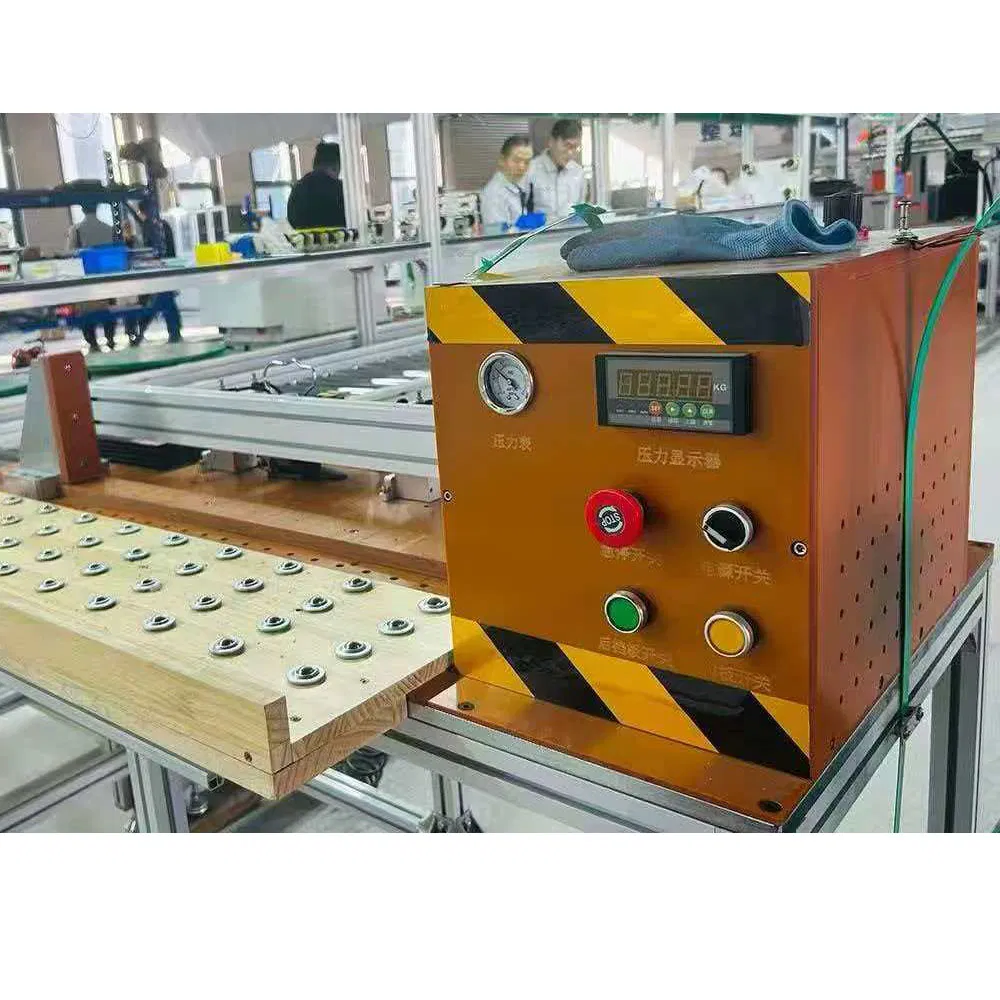

Factory Overview
FAQ
How does DC coupling optimize renewable energy use?
It allows for more captured solar energy to be stored directly with minimal losses. This ensures a greater portion of generated power is used on-site or dispatched to the grid, enhancing project sustainability.
What role does the Power Conversion System (PCS) play?
The PCS functions as a high-power, bidirectional inverter that converts DC from solar and batteries to AC. It streamlines infrastructure by replacing the need for separate solar and battery inverters.
What are the advantages of DC-coupled systems for large projects?
Key advantages include higher overall system efficiency, a simplified layout with fewer components, reduced balance of system (BOS) costs, and seamless integration for both on-grid and off-grid applications.
Why is DC coupling more efficient for battery storage?
It avoids multiple DC-AC-DC conversion steps. Solar energy can directly charge the batteries in DC form, reducing energy losses and maximizing ROI in large-scale applications.
What is the basic architecture of DC coupling?
It is a system architecture where solar panels and batteries are connected on the same Direct Current (DC) bus before being converted to Alternating Current (AC) by a single, centralized inverter.
What is the cycle life of these battery systems?
The systems are designed for high durability, offering a cycle life of more than 6000 times under standard operating conditions.
