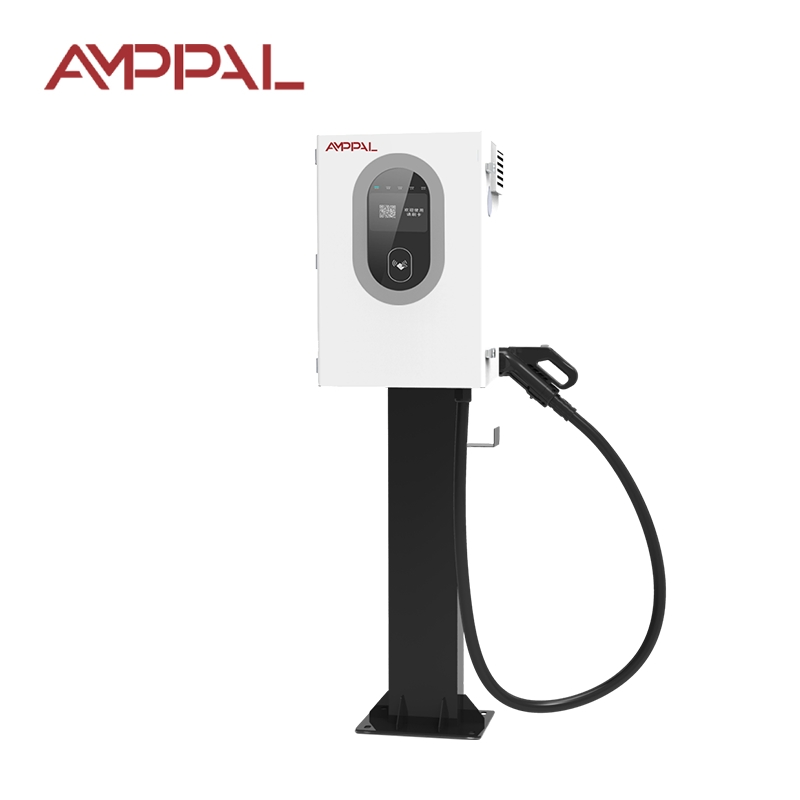

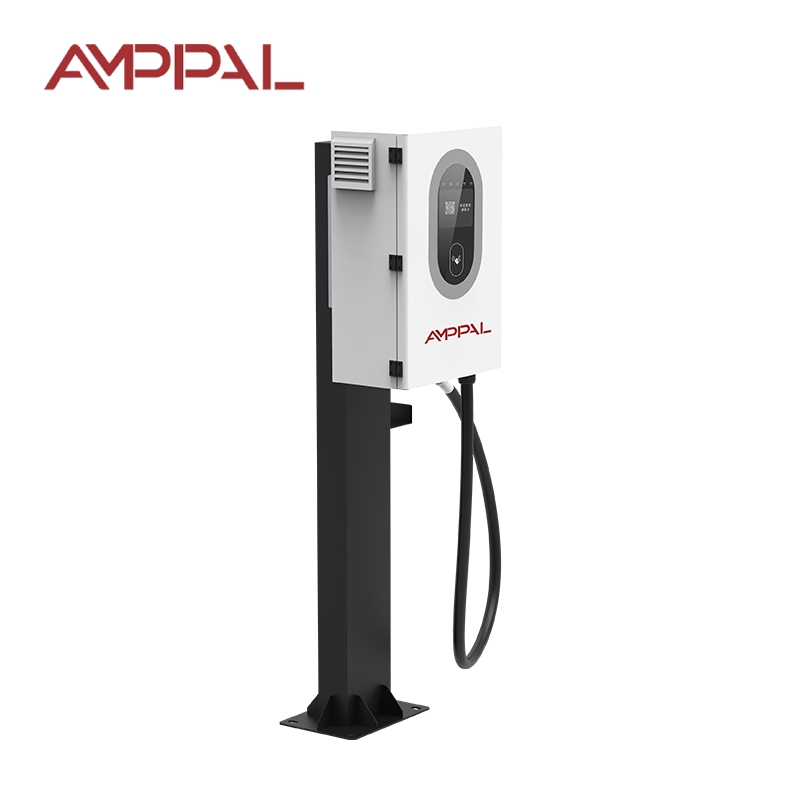

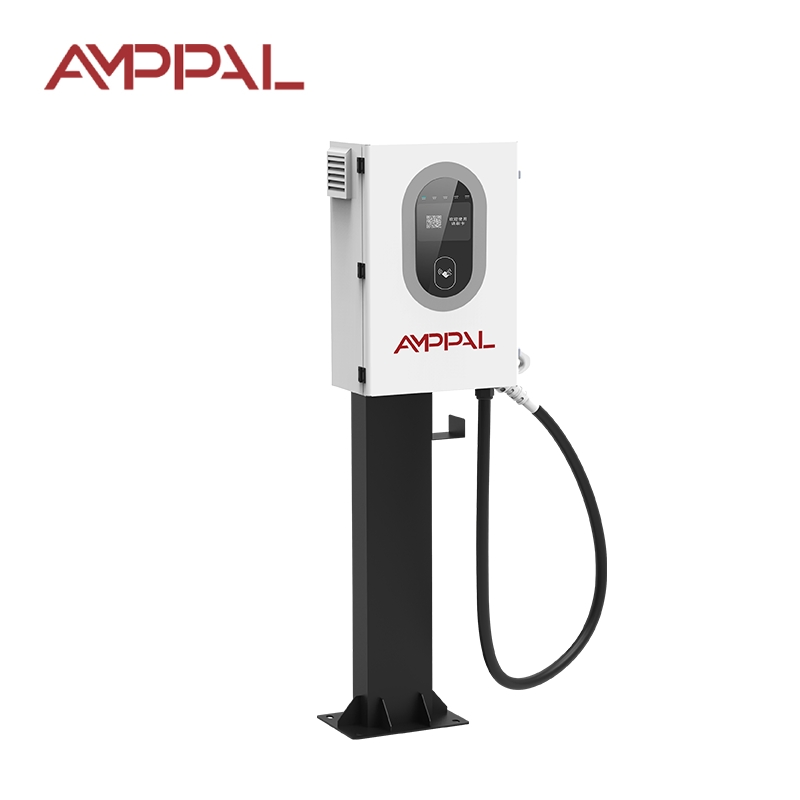

Amppal Commercial Fleet 40kw Charging Solution

1 / 5

Amppal Commercial Fleet 40kw Charging Solution

Customization:	Available
Connector Type:	CCS2
Installation:	Wall Mounted

Send Inquiry

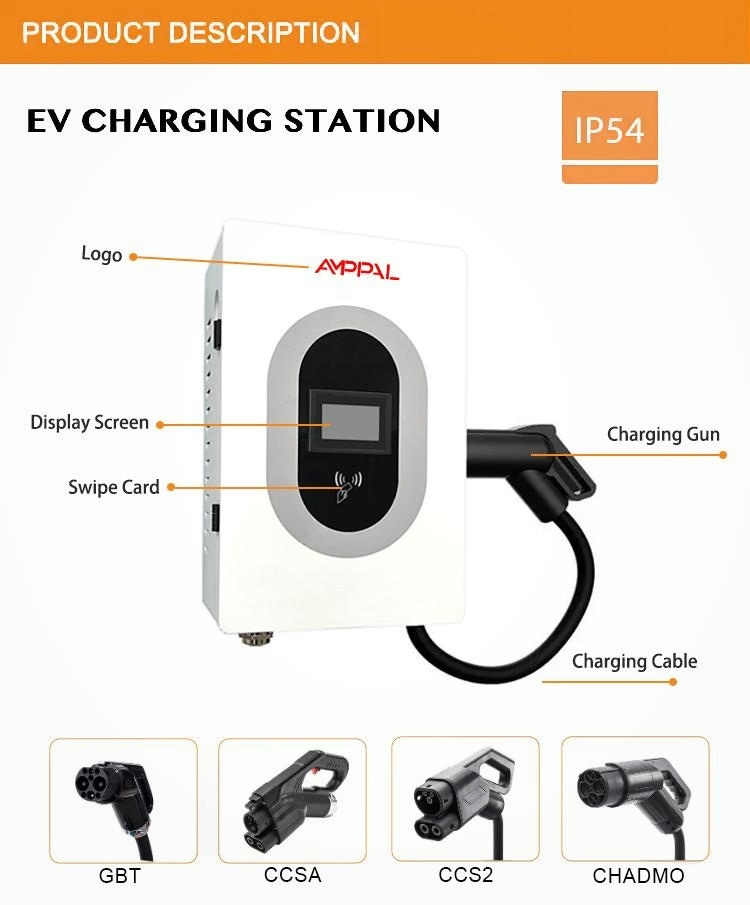

Product Description

■ Basic Information

Model NO.

AF-DC-020-B-A-O-2-H

Location

Private Use or Public Use

Charging Interfaces

One Pile with One Charge

Start Mode

RFID, Mobile Remote, Credit Card

Installation

Floor-Standing / Wall-Mounted

Type

Fast EV Charging Station

Certification

CCC, CE, TUV, RoHS

Warranty

24 Months

Rated Power

20kW / 30kW / 40kW

Input Voltage

AC380V±15%

Efficiency

95%

Protection Level

IP54

■ Product Overview

■ Technical Specifications

Parameter	20KW Specification	30KW Specification	40KW Specification
User Interface	7 inch LCD color display touch screen
Input Voltage	AC380V±20%
Output Voltage	200-750VDC (Up to 1000VDC optional)
Output Current	0-67A	0-100A	0-133A
Measurement Accuracy	Level 0.5
Power Factor	≥0.99 (50% load or more)
Working Elevation	<3000m
Noise Control	≤60dB

■ Safety & Protection Features

● Overvoltage / Undervoltage Protection

● Overload & Short Circuit Protection

● Grounding & Lightning Protection

● Insulation Monitoring Protection

● Over / Low Temperature Protection

● Emergency Stop & Leakage Protection

■ Frequently Asked Questions

Q1: What are your terms of payment?

A: We accept online fast payment and T/T.

Q2: Do you test all your chargers before shipping?

A: Yes, all major components are tested before assembly and each charger undergoes a full functional test before being shipped.

Q3: Can I order samples and what is the lead time?

A: Yes, samples are available. Production usually takes 7-10 days, followed by 7-10 days for express delivery.

Q4: How long does it take to fully charge a car?

A: Charging time = Battery Capacity (kWh) / Power (either OBC or Charger power, whichever is lower). For example, a 40kWh battery with a 7kW OBC and 22kW charger will take approximately 5.7 hours (40/7).

Q5: Are you a manufacturer or a trading company?

A: We are a professional manufacturer specializing in EV charging solutions.

Q6: What standards do your charging stations comply with?

A: Our products comply with GB\T 20234, GB/T 18487, GB/T 27930, and NB\T 33008 standards.
