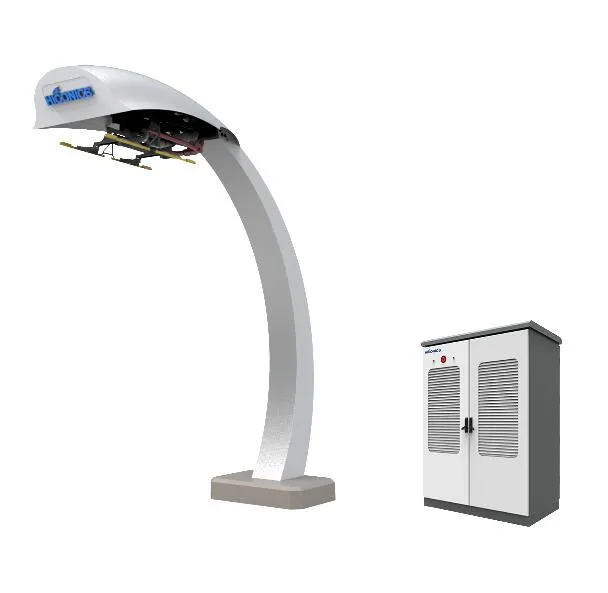

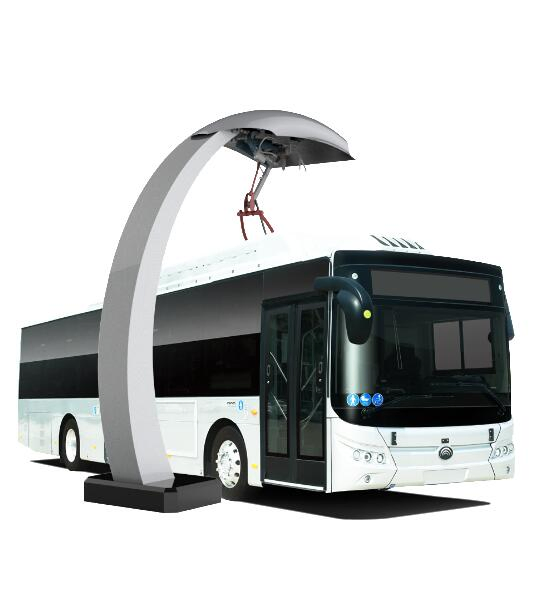

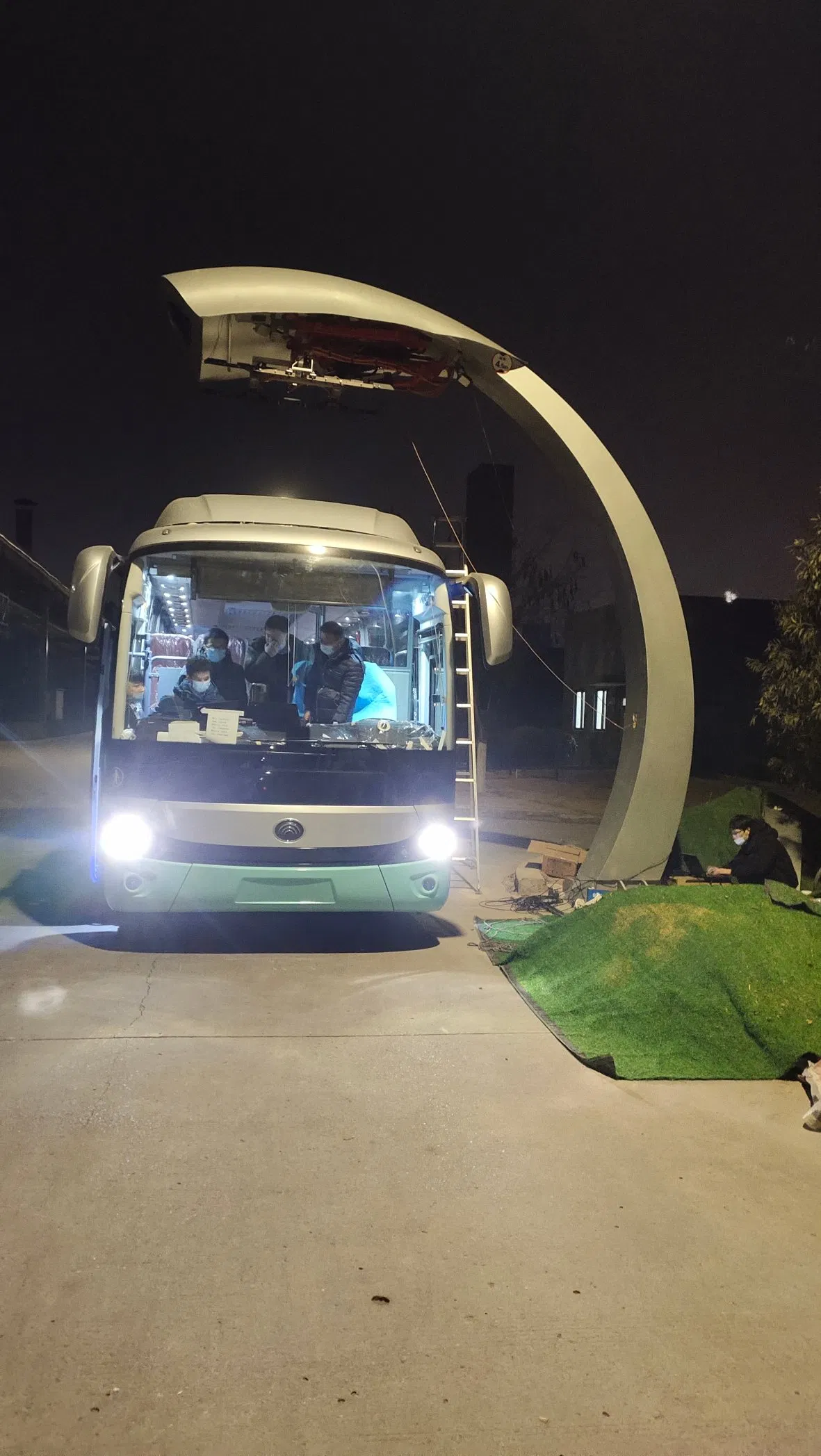

The split type pantograph system is a kind of high-power quick charging equipment developed for pure electric buses. The whole charging system is composed of "charging module cabinet + charging interface", which makes maintenance more convenient and enhances user experience.

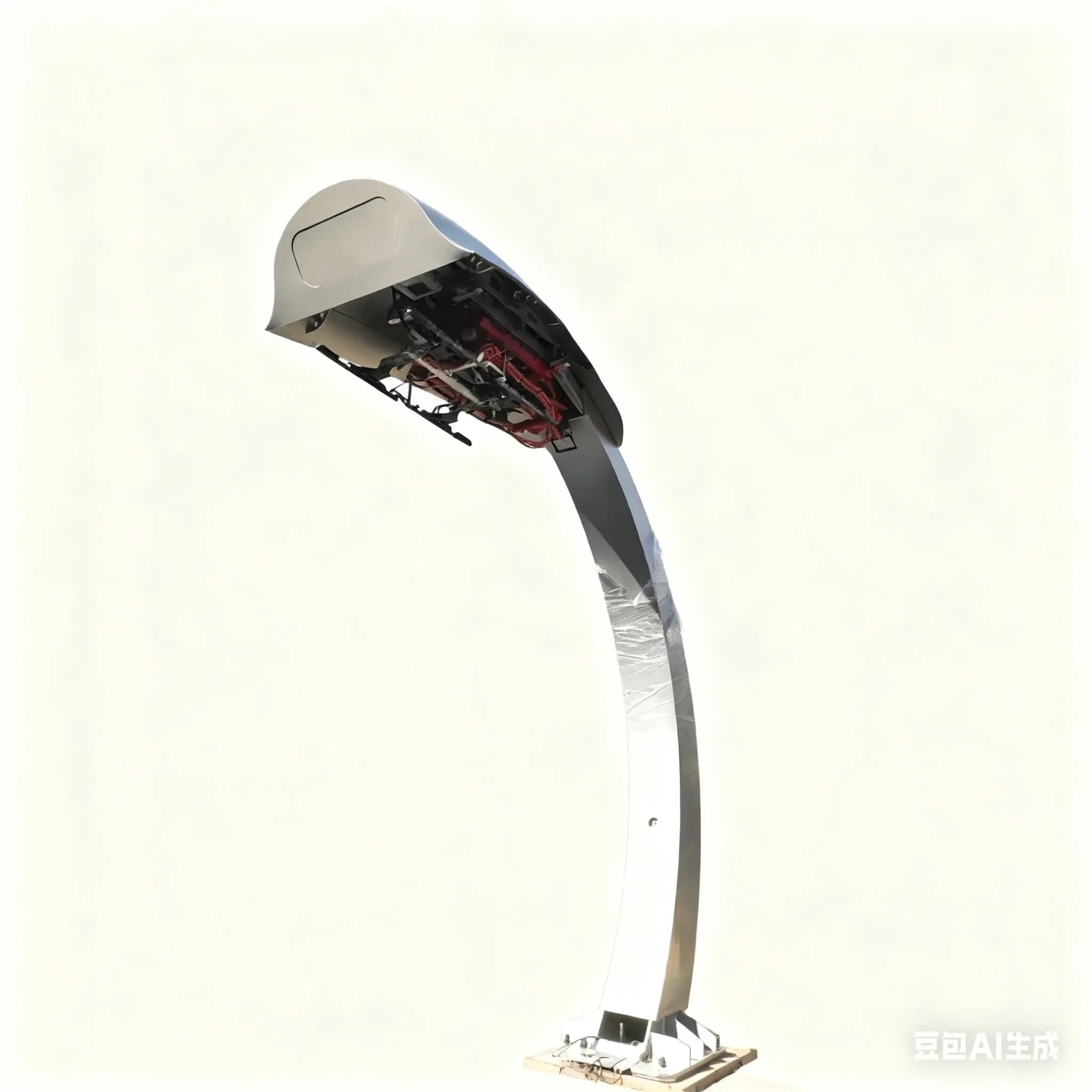

The pantograph adopts a streamline design for a fashionable appearance. The charging module cabinet is treated with galvanizing and multi-layer spraying, with mechanical characteristics exceeding IK10. With IP54 protection, the system is waterproof, dustproof, and anti-corrosion.
PLC carrier communication is adopted for accurate positioning and data interaction (ISO15118). Maximum output current can reach 800A to satisfy fast charging for bus and commuter systems.
Separates the power part and charging interface for easier installation. Includes imported high-quality electrical components for stability and a safe steel frame design.
Comprehensive protection: overvoltage, undervoltage, overcurrent, abnormal frequency, short circuit, emergency stop, leakage current, and lightning surge protection.
Available in falling and rising types. Supports both AC and DC input modes to provide a complete solution for electric bus systems.
| Item | Technical Requirements |
|---|---|
| Nominal Voltage | 400VAC±15% |
| Input Current (MAX) | 1100A |
| AC Input Mode | 3P+N+PE |
| Rated Output Voltage | 150~1000VDC |
| Rated Output Current | 0~800A |
| Efficiency | ≥0.95 (50% load or above) |
| IP Class | IP54 |
| Operation Temperature | -30ºC~+55ºC |
| Communication Protocol | OCPP 1.6 (JSON) Optional |
| Internet/Network | 4G, Ethernet, WIFI |

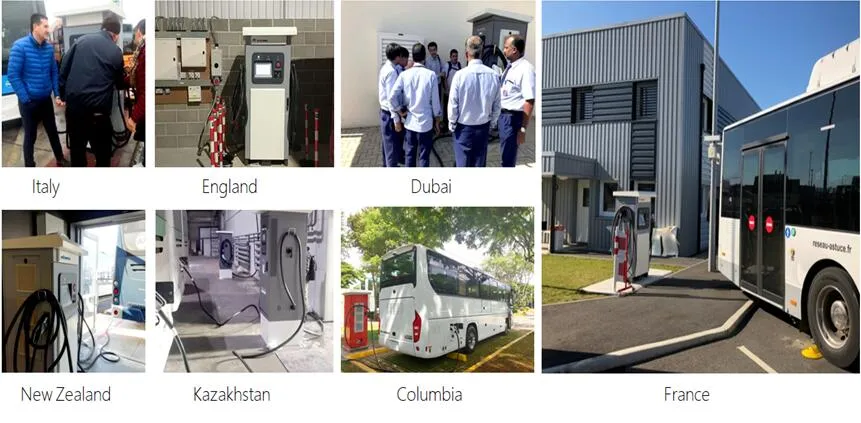

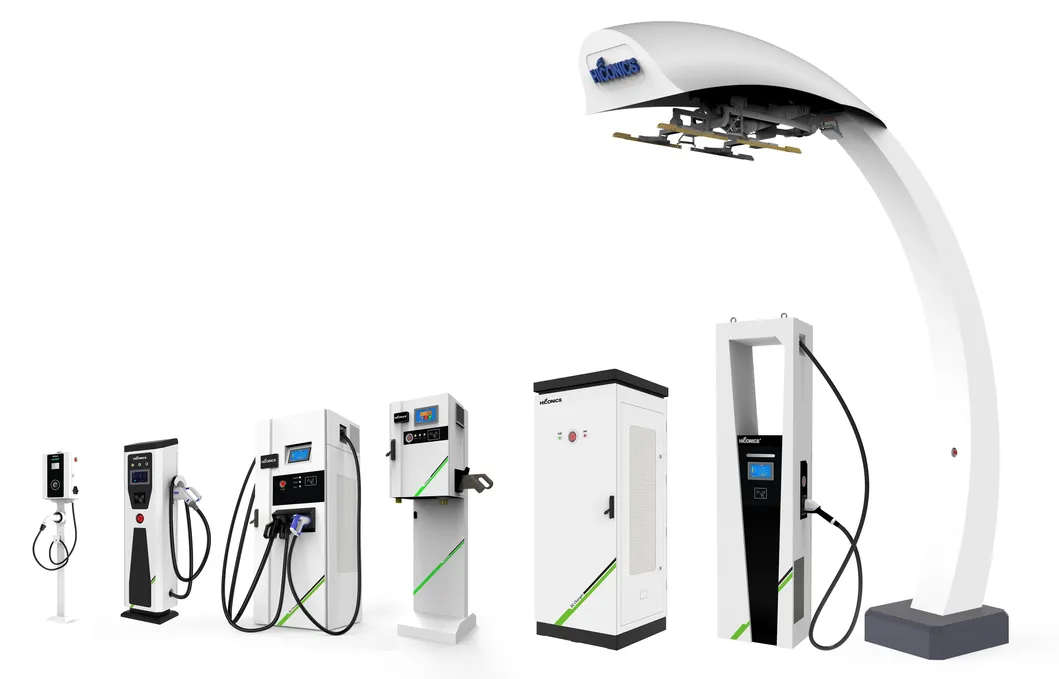

The EV chargers have been widely applied in over 200 cities and about 27 countries including England, France, Bulgaria, Australia, and Singapore. The system is designed for large parking lots and bus stations.
1. Detailed English manuals for construction and maintenance provided.
2. 24-hour online remote guidance for commissioning and problem-solving.
3. Free operation and maintenance training for customers.
4. Spare parts delivered within 5 working days during warranty.

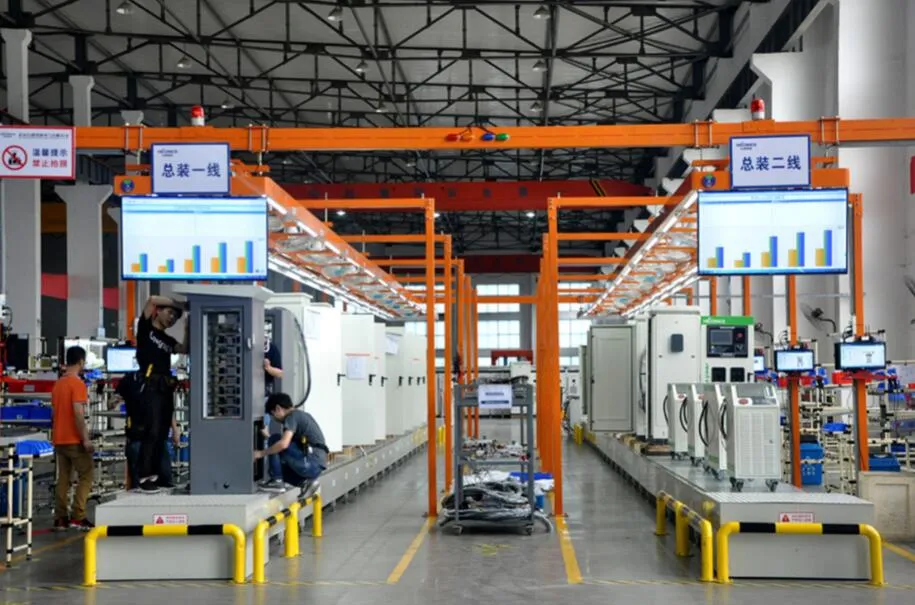

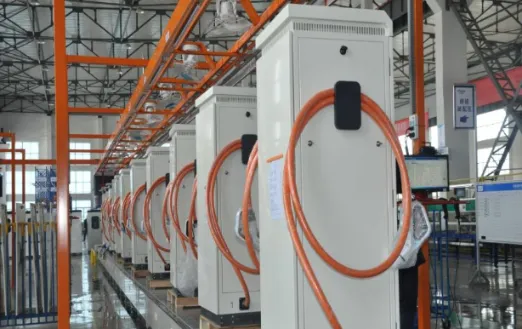

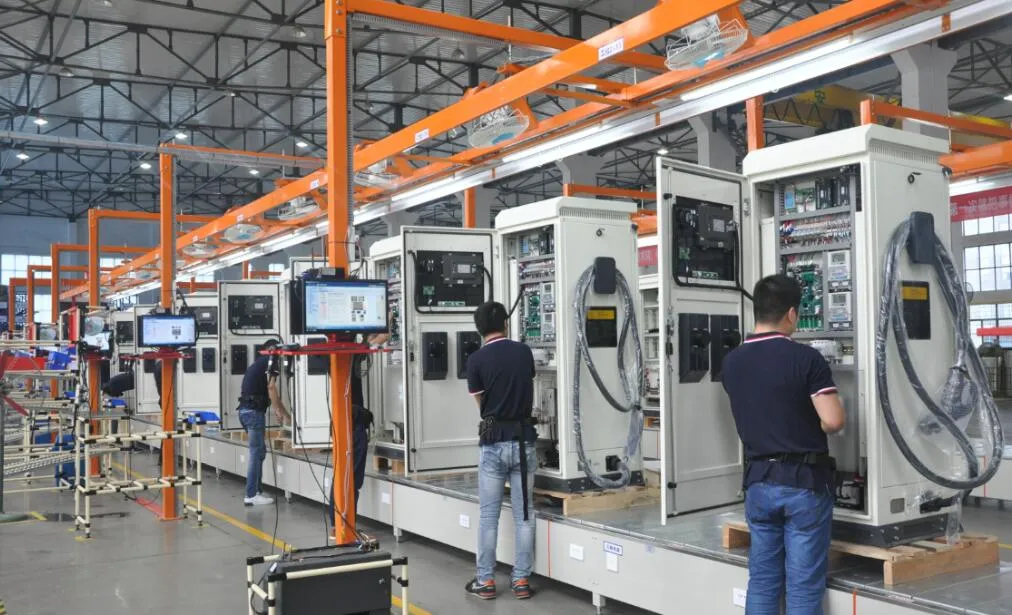

Equipped with advanced automatic assembly lines, debugging, and aging processes are operated with automation equipment. Data self-collection and self-diagnosis ensure every unit meets strict quality standards.
