Charging Interfaces:One Pile with Multiple Charges
Start Mode:RFID Authentic
Display:32" / 55"
Input Voltage:480/380Vac Three-phase or DC
Output Voltage:150-1000Vdc
Output Current:250/400/600A
Efficiency:≥95% (50%-100% load)
Network:Ethernet / WIFI / 4G
Protection Grade:IP 54
Operation Temp:-30ºC to +65ºC
Specification:950*780*2300mm
Packaging & Delivery
Package Size:95.00cm * 78.00cm * 230.00cm
Package Gross Weight:580.000kg
Transport Package:Wooden Case
Product Parameters
Category
Feature
Details (240kW Model)
Optional
Display
32" / 55"

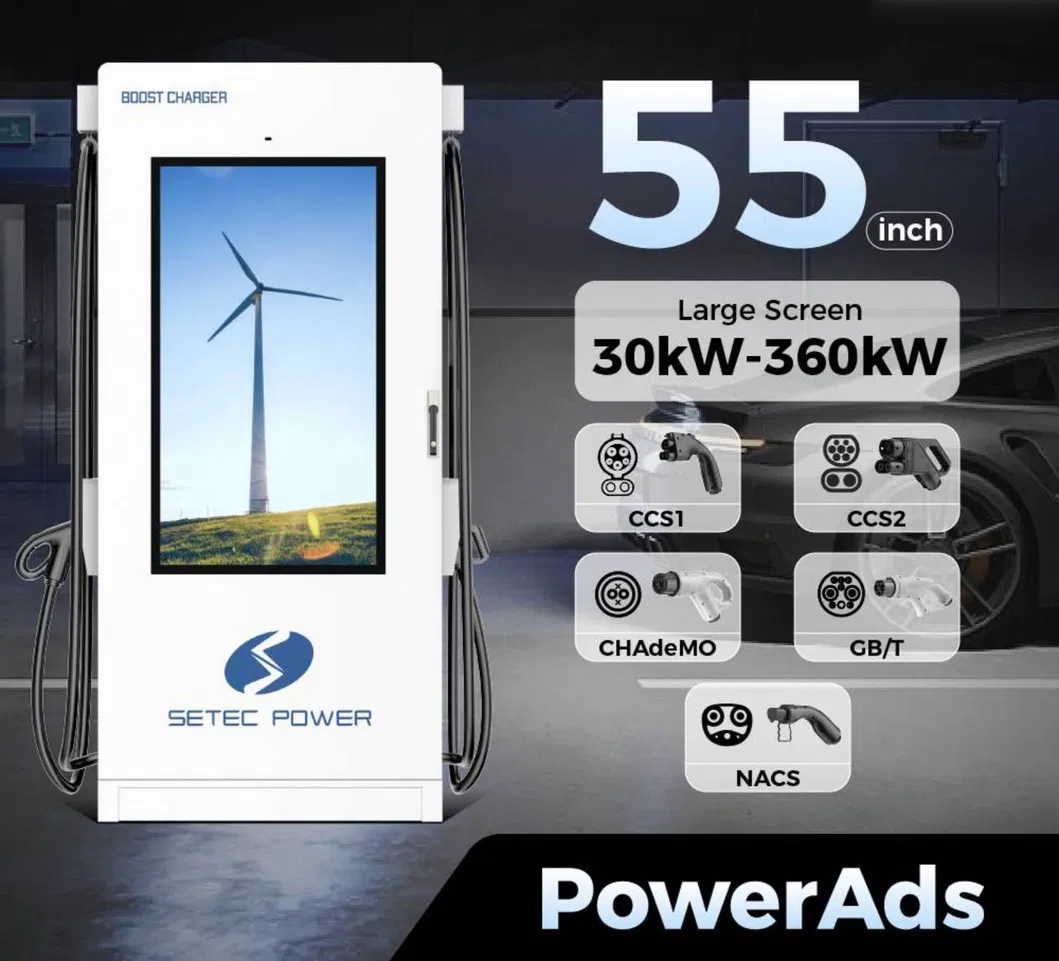

Adapters

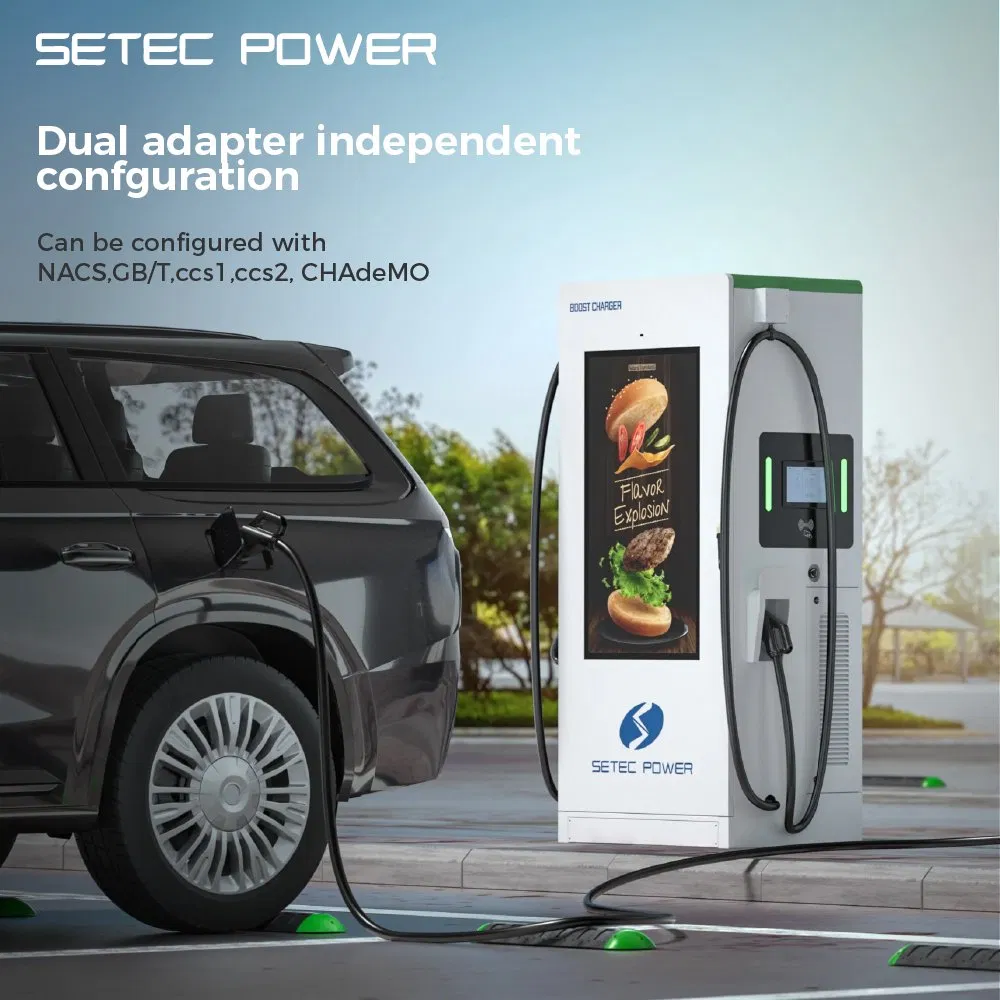

CCS1 / CCS2 / CHAdeMO / GB/T / NACS
Input Voltage
480/380Vac Three-phase or DC
Electrical Specs
Input Frequency
50/60Hz (±10%)
Output Voltage
150-1000Vdc
Output Current
250/400/600A
Configuration
Network
Ethernet / WIFI / 4G
Communication
OCPP 1.6 / OCPP 2.0 / TCP
Payment
RFID / POS / OCPP
Security
Protection

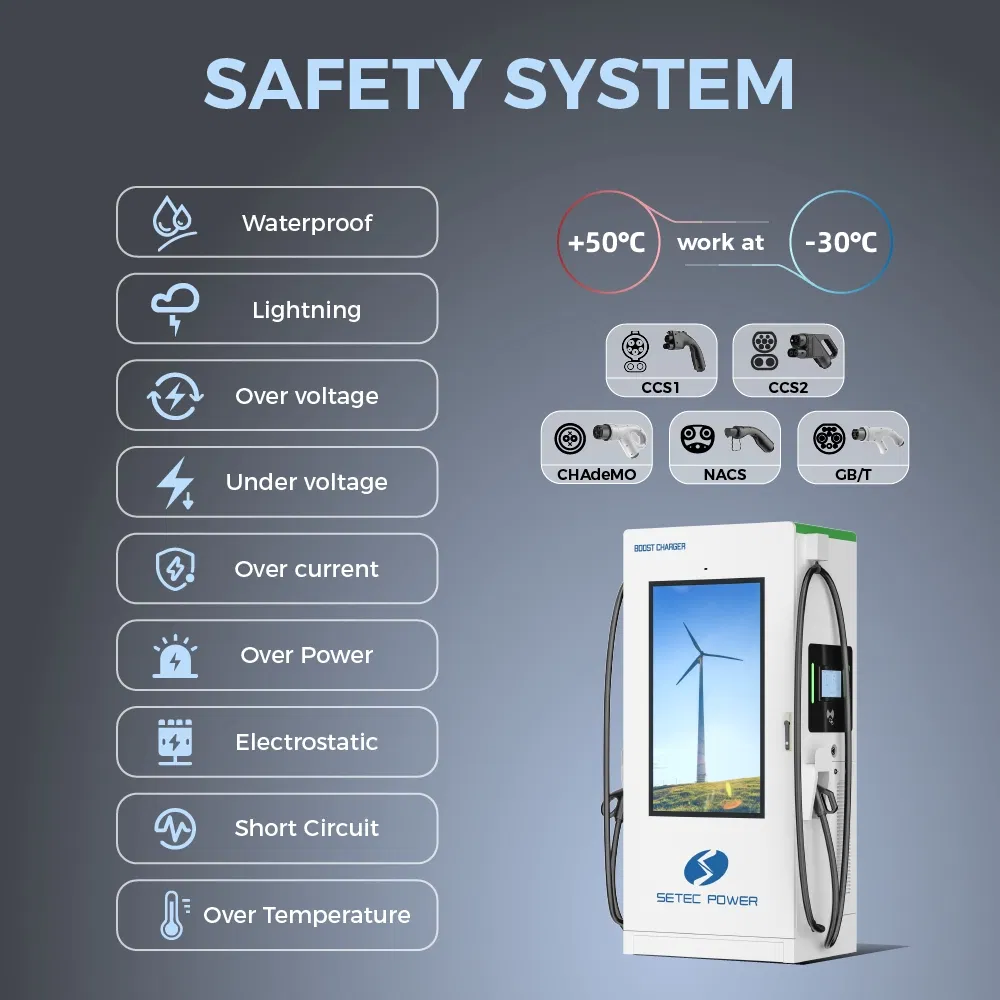

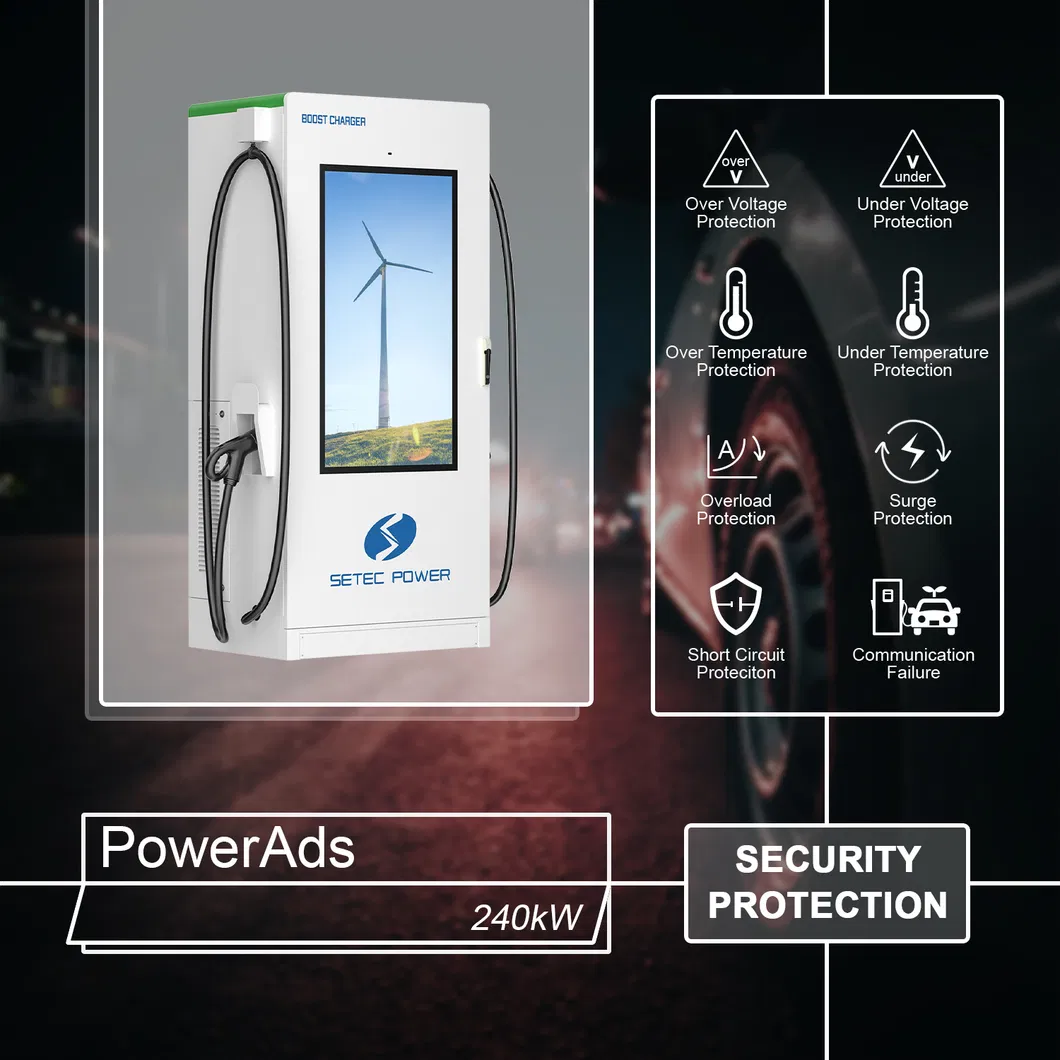

Over/Under Voltage, Overload, Short Circuit, Surge, Temp Protection
Product Description

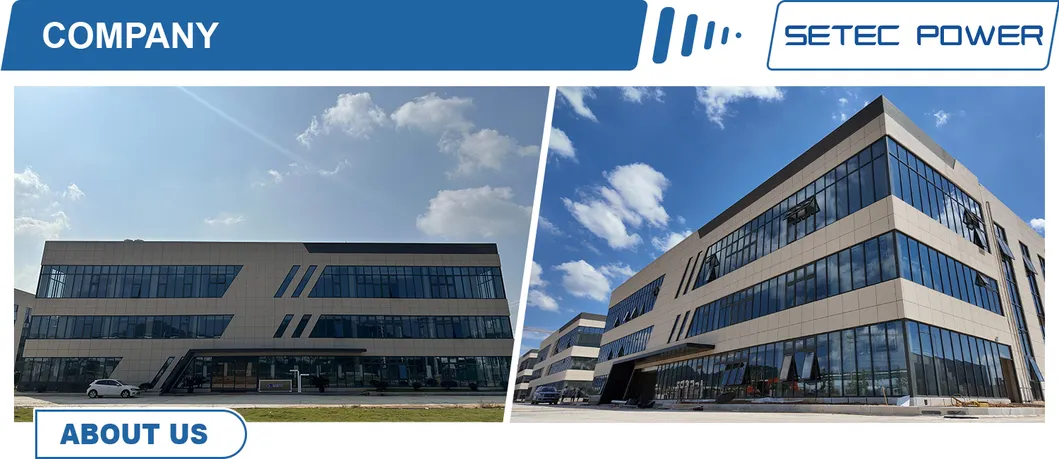

About the Manufacturer
Established in 2004, the company is one of the earliest enterprises dedicated to the research and development of electric vehicle charging stations and customized solutions for their construction and operation. The company is dedicated to creating innovative and high-quality products in the field of electric vehicle charging stations and plays a leading role in the sustainable development of the industry.

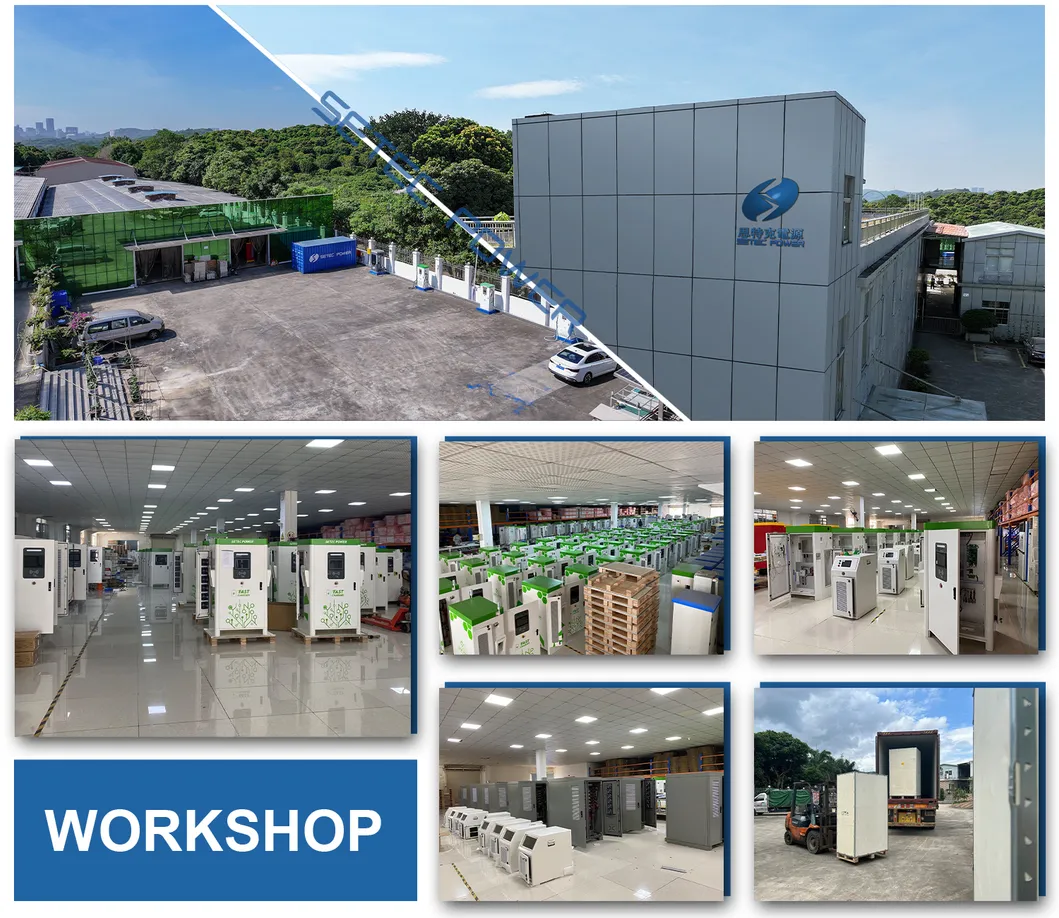

As an industry leader equipped with cutting-edge technology, with 80,000+ square meters of production and R&D facilities, the focus remains on the entire process of research, development, design, and production, obtaining numerous system certifications such as UL, CNAS, ISO14001, and ISO9001. Currently, products have been exported to over 120 countries and regions, including Europe, North America, the Middle East, Asia, and Africa.
Certificates & Exhibition
Frequently Asked Questions
What is the output voltage range of this DC charger?
The charger supports a wide output voltage range of 150Vdc to 1000Vdc, making it compatible with various electric vehicle battery systems.

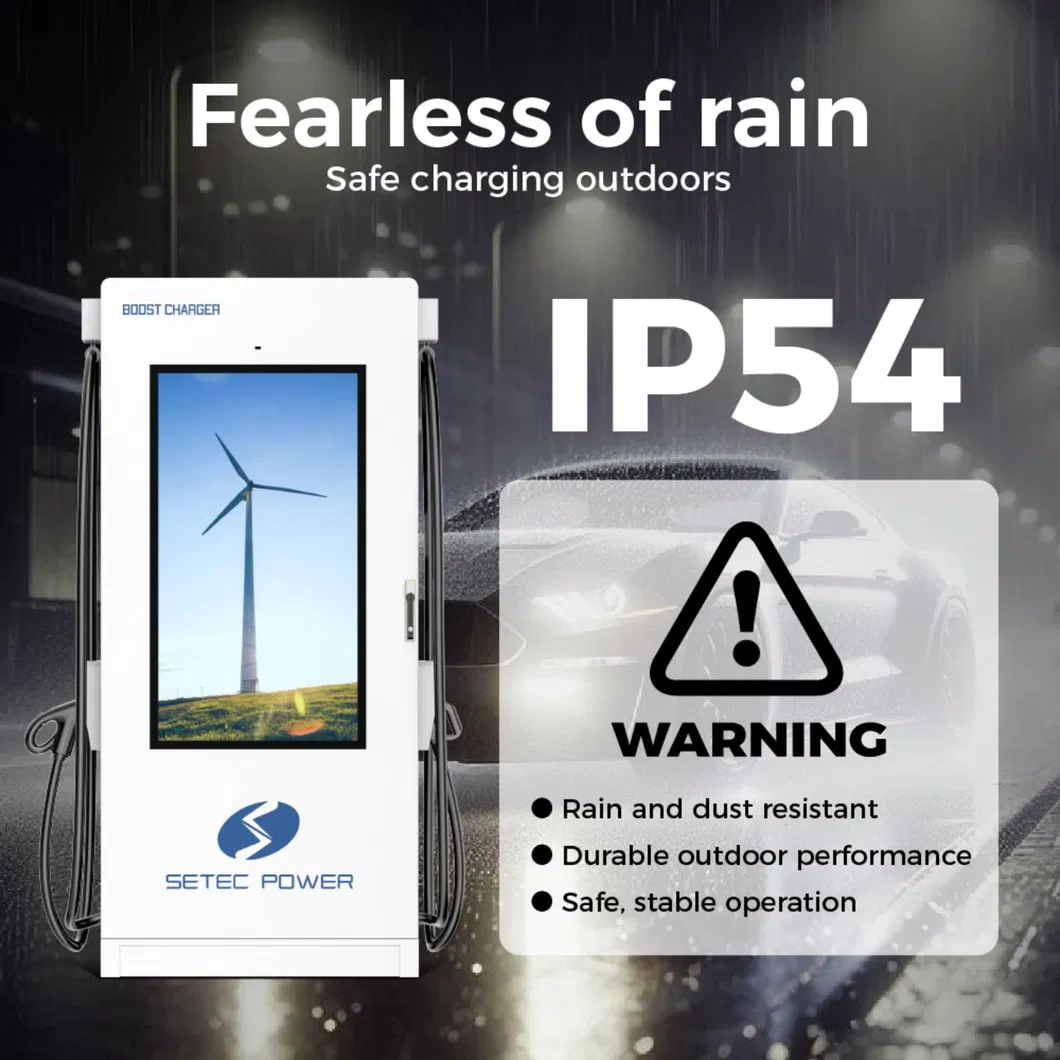

Is the charging station suitable for outdoor installation?
Yes, the station features an IP54 protection grade and is designed to operate in temperatures ranging from -30ºC to +65ºC.
Which communication protocols are supported?
It fully supports OCPP 1.6 and OCPP 2.0 protocols, as well as TCP communication for seamless network integration.
What are the available payment methods?
Users can pay via RFID cards, POS terminals, or through integrated OCPP-based mobile applications.
What is the efficiency of the power modules?
The charging station achieves an efficiency of ≥95% at 50% to 100% load, ensuring minimal energy loss during high-speed charging.

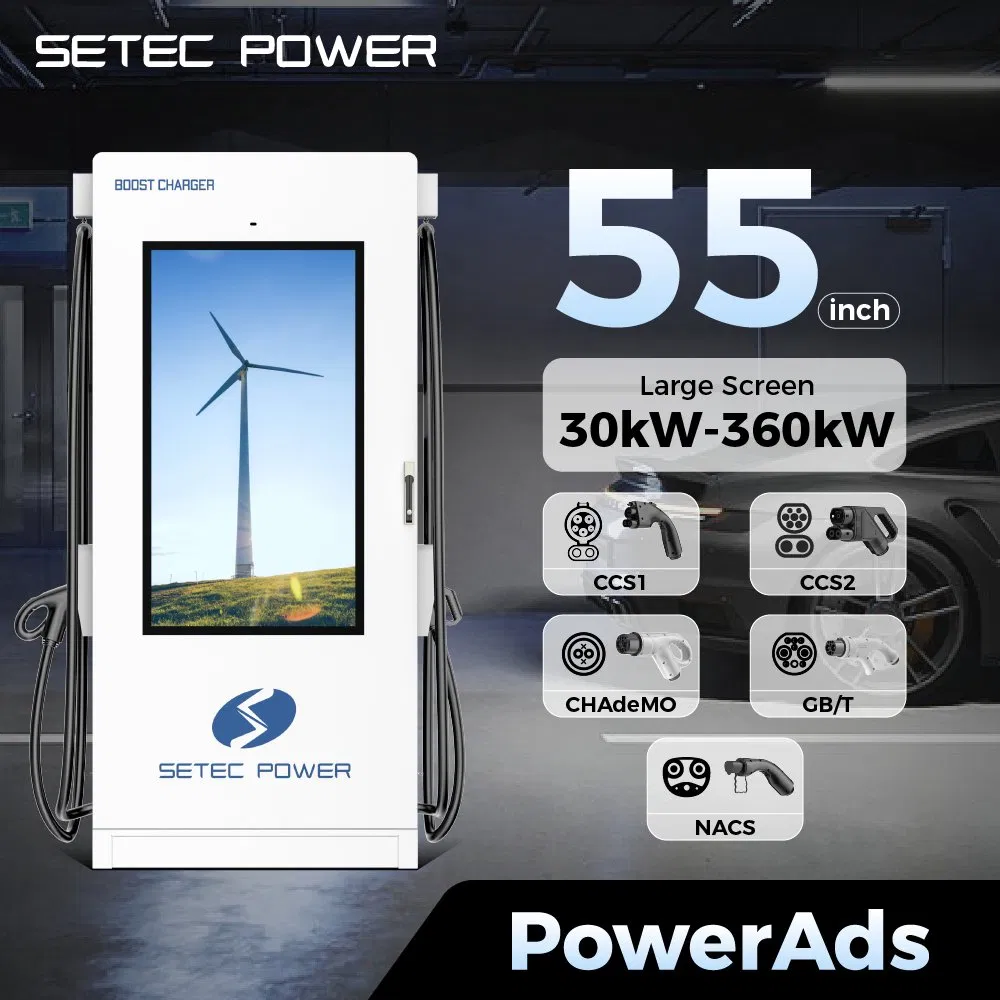

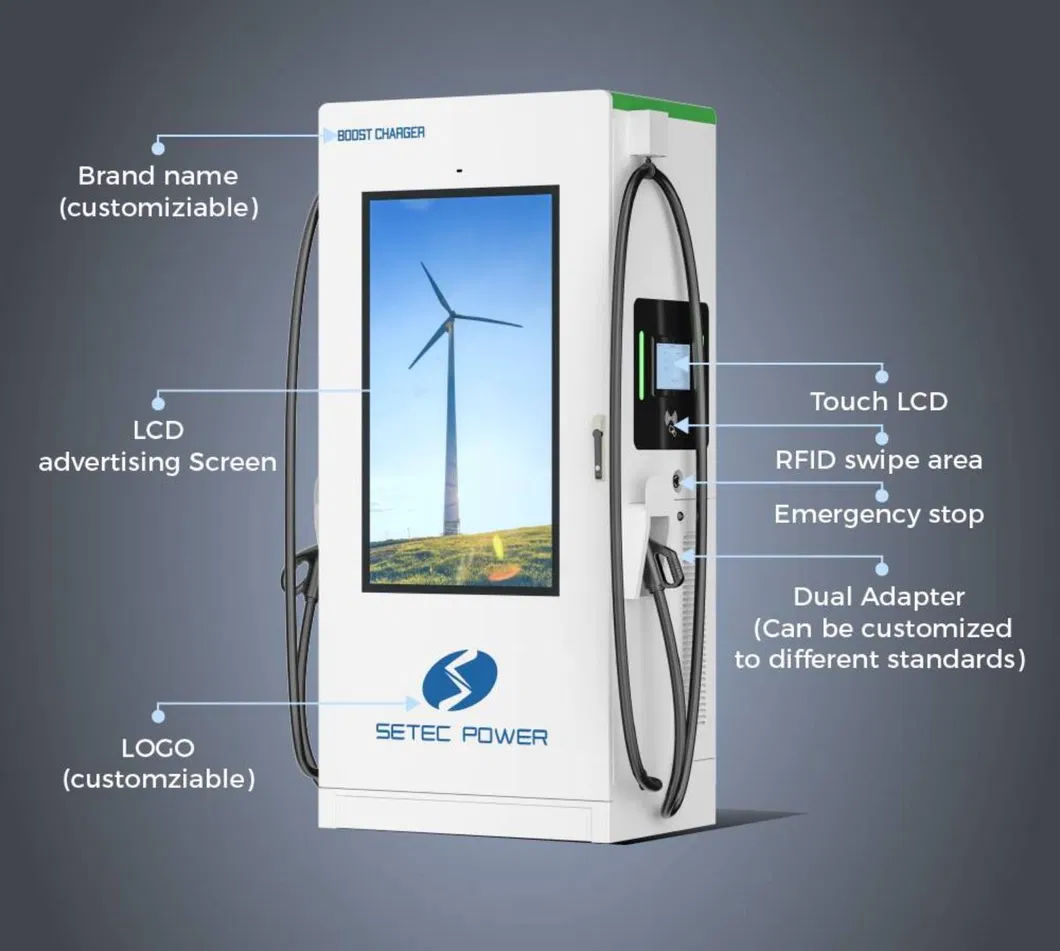

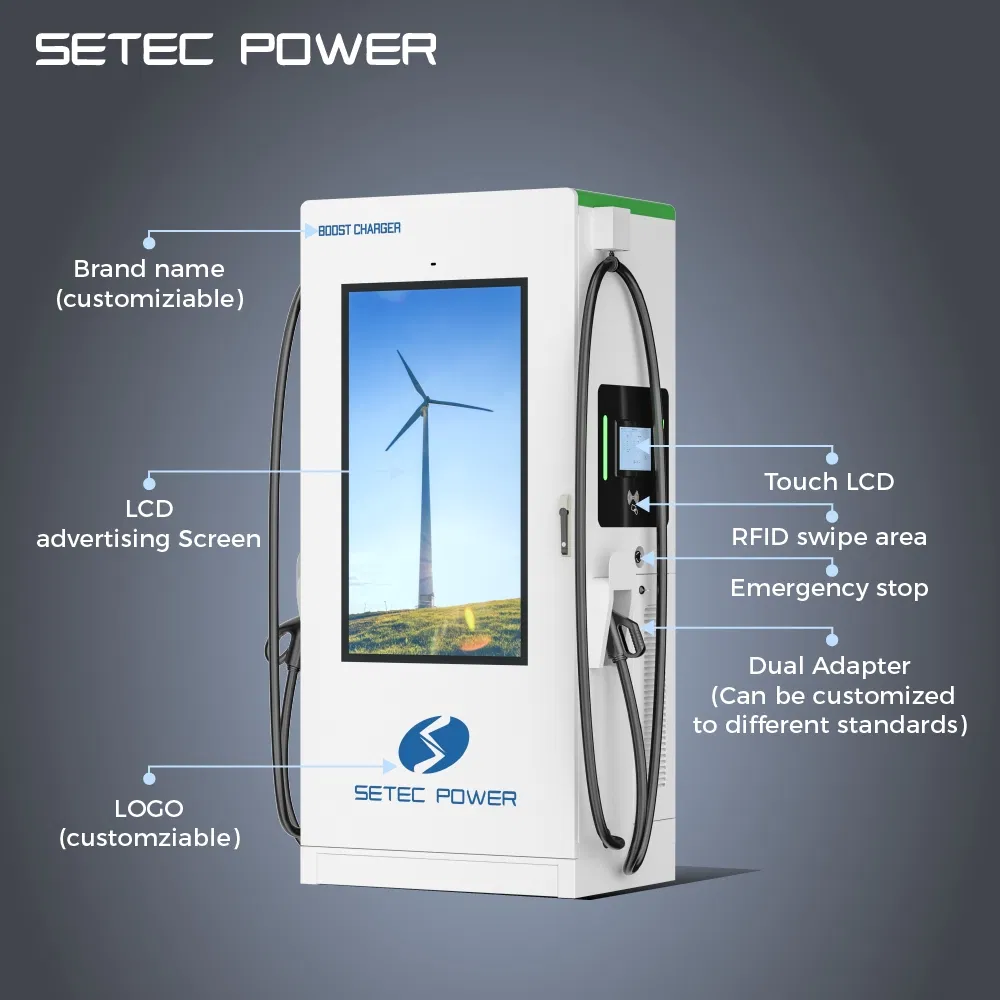

Does the station include an advertising screen?
Yes, it comes with options for a large 32" or 55" daylight-readable display, ideal for commercial advertising and user interaction.
