All-in-One LiFePO4 off Grid Solar System UPS 10kw Storage System
All-in-One LiFePO4 off Grid Solar System UPS 10kw Storage System
All-in-One LiFePO4 off Grid Solar System UPS 10kw Storage System
All-in-One LiFePO4 off Grid Solar System UPS 10kw Storage System
All-in-One LiFePO4 off Grid Solar System UPS 10kw Storage System
1 / 5
All-in-One LiFePO4 off Grid Solar System UPS 10kw Storage System
All-in-One LiFePO4 off Grid Solar System UPS 10kw Storage System
All-in-One LiFePO4 off Grid Solar System UPS 10kw Storage System
All-in-One LiFePO4 off Grid Solar System UPS 10kw Storage System
All-in-One LiFePO4 off Grid Solar System UPS 10kw Storage System

All-in-One LiFePO4 off Grid Solar System UPS 10kw Storage System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model No. EP12000iL
Cycle Life 3000 Cycles
Nominal Capacity 7680Wh
Charging Methods AC, Solar, EV Charger, Driving Charging, DC, Wind
Battery Expansion Yes, Max 245kWh
Super Fast Charging 70mins Fully Charged
Certificates CE, RoHS, IEC62619, UN38.8, MSDS
Inverter Type Bi-Directional Inverter
Product Advantages
⚡
Built in 7680Wh high-power LiFePO4 battery with professional solar bidirectional inverter, support for 12kW output and 8.5kW charging.
🔌
Support continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.
🔋
Up to 31 extra batteries can be stacked and connected for expansion, with a total capacity of 245kWh.
🚗
Built-in the electric vehicle charger, can replace charging stations to charge cars up to 22kW.
🛡️

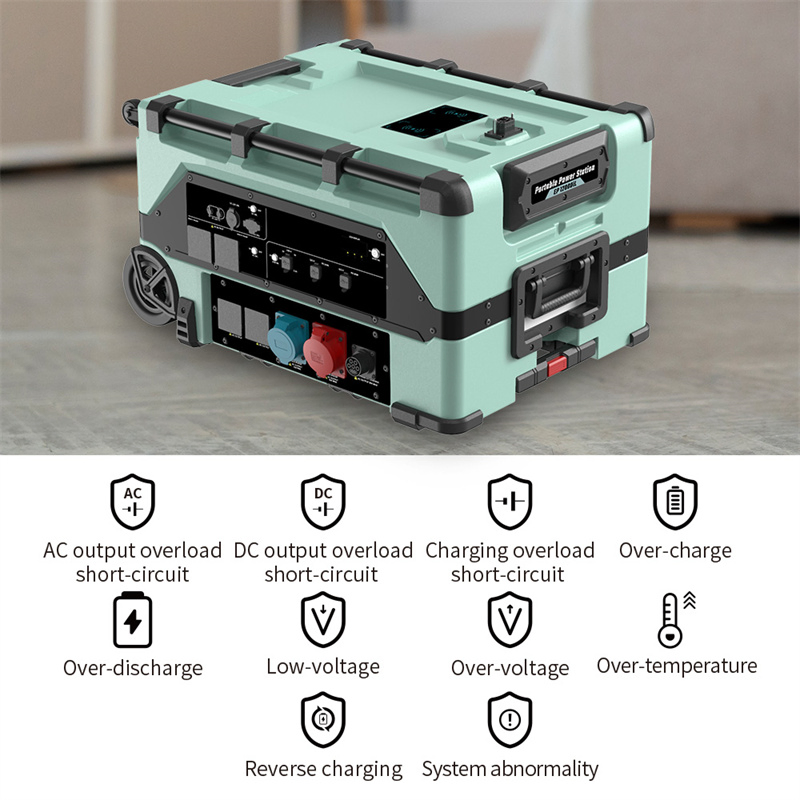

Unit IP53 and Battery Pack IP66 protection grade with V-0 level flame-retardant casing.
📱
Intelligent control and monitoring via smartphone APP.
Product Parameters

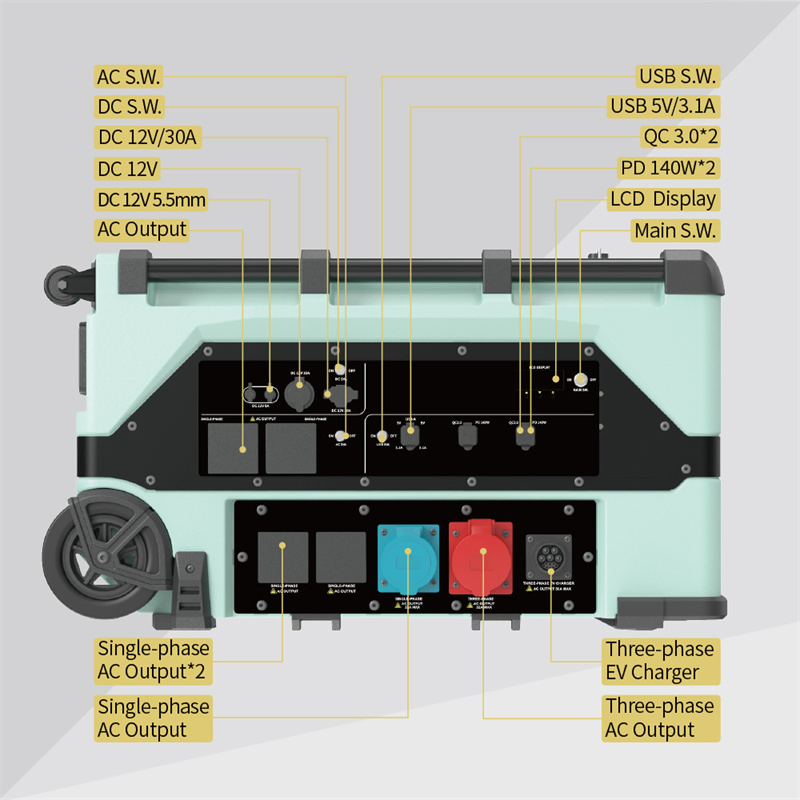

Output Category Specifications Details
AC Output Rated Power 12000VA (Three-phase) / 11000VA (Single-phase) / 10000VA (Split-phase)
AC Output Waveform Pure Sine Wave, THD < 3%
DC Output XT90 / Cigarette Port 12V/30A (XT90), 12V/10A (Cigarette)
USB Output Type-C PD 140W 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 28V/5A
USB Output QC3.0 5V/3.4A, 9V/2A, 12V/1.5A
Wireless Dual Charging 2 x 15W Wireless Output
Detailed Photos

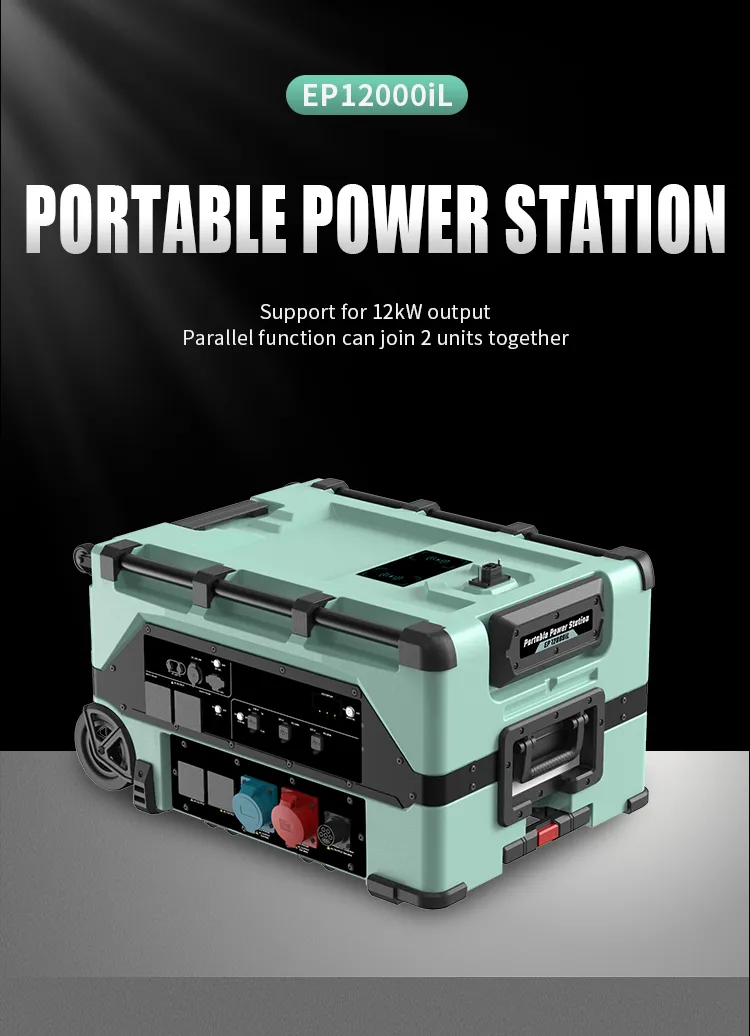

Detailed View 1

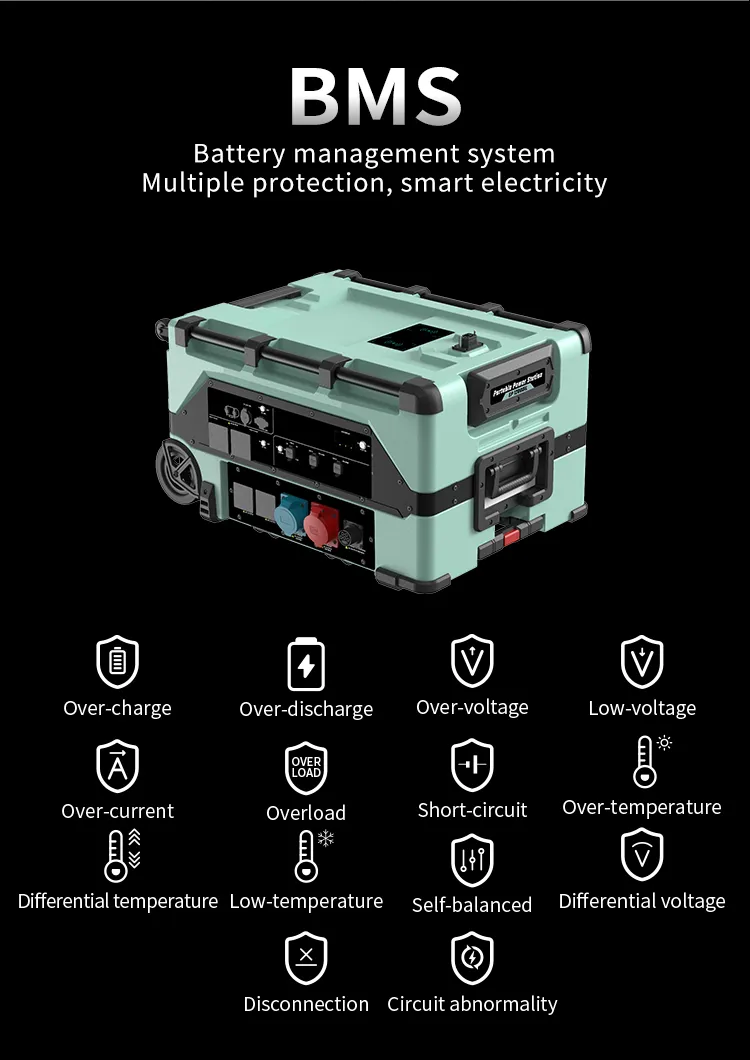

Detailed View 2

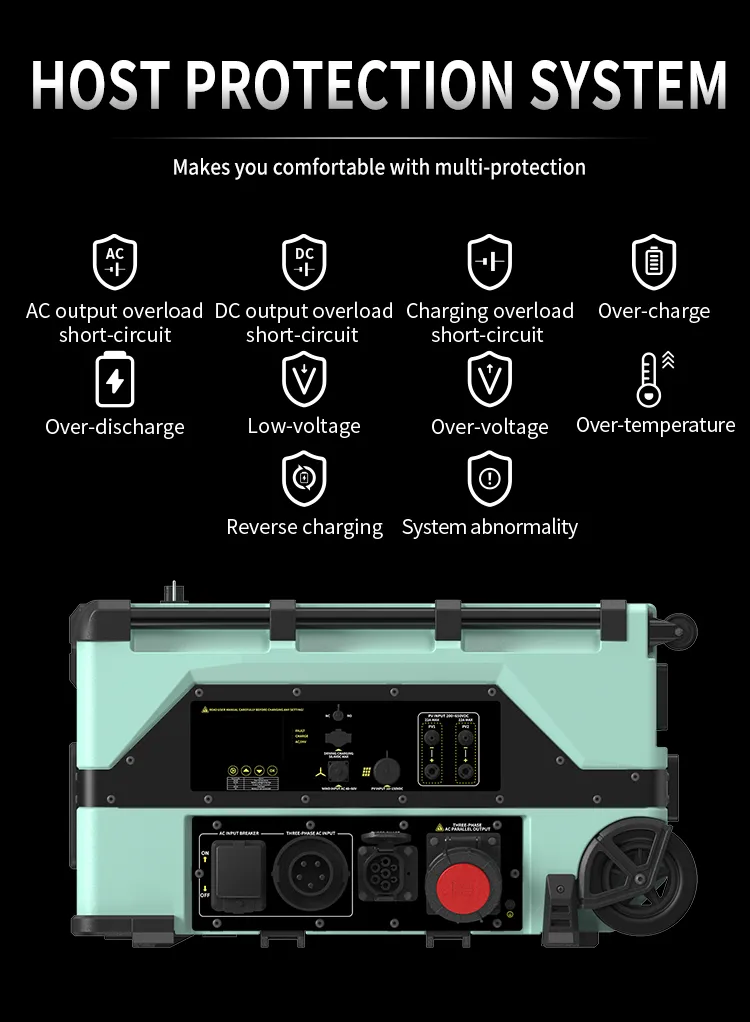

Detailed View 3

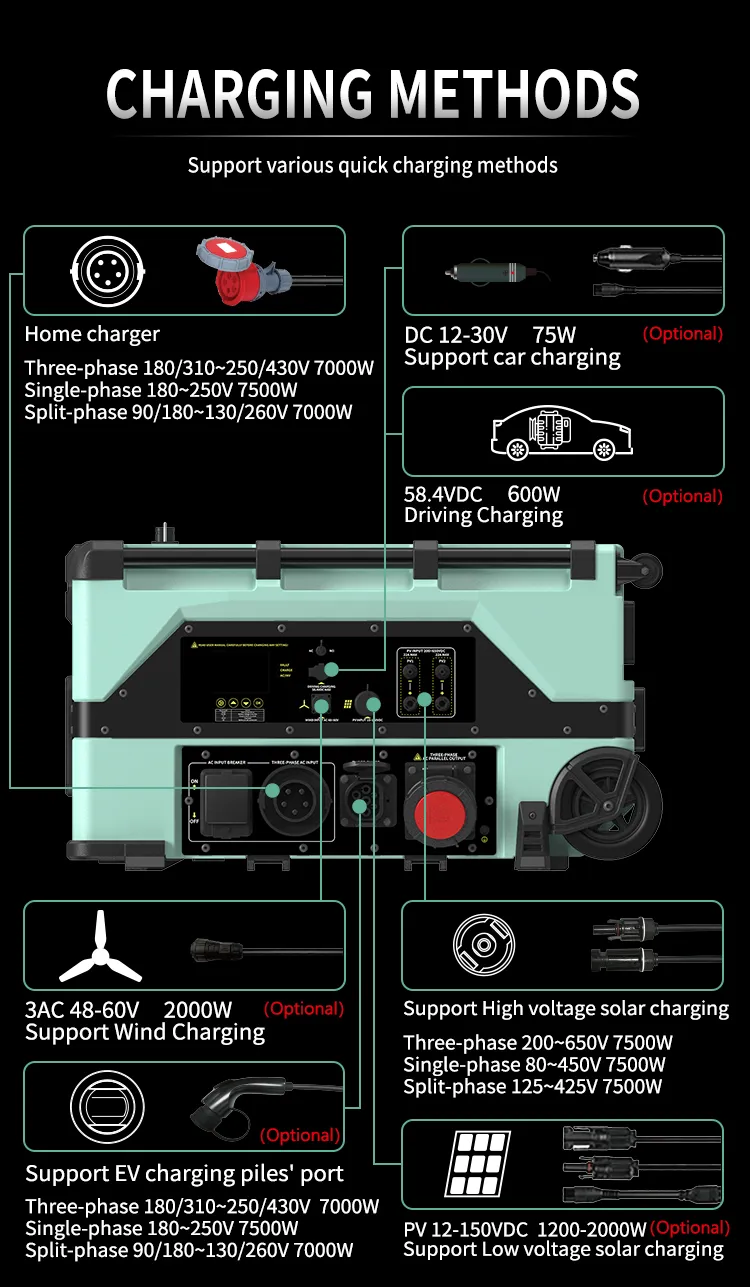

Detailed View 4

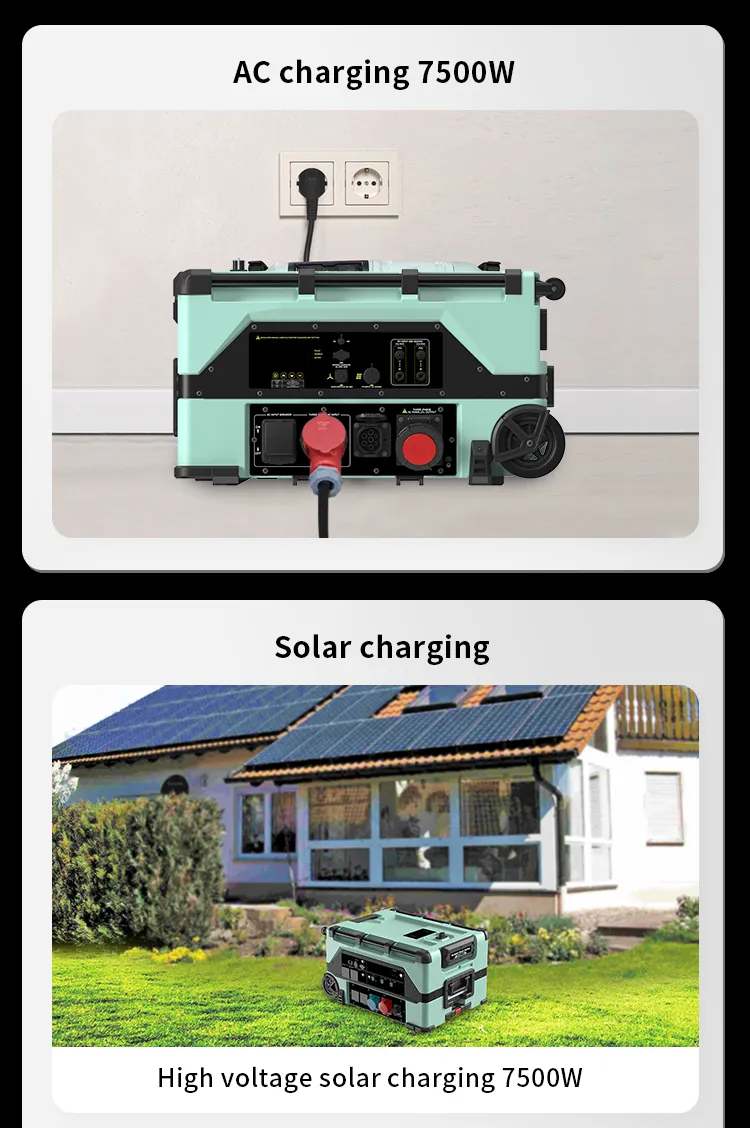

Detailed View 5

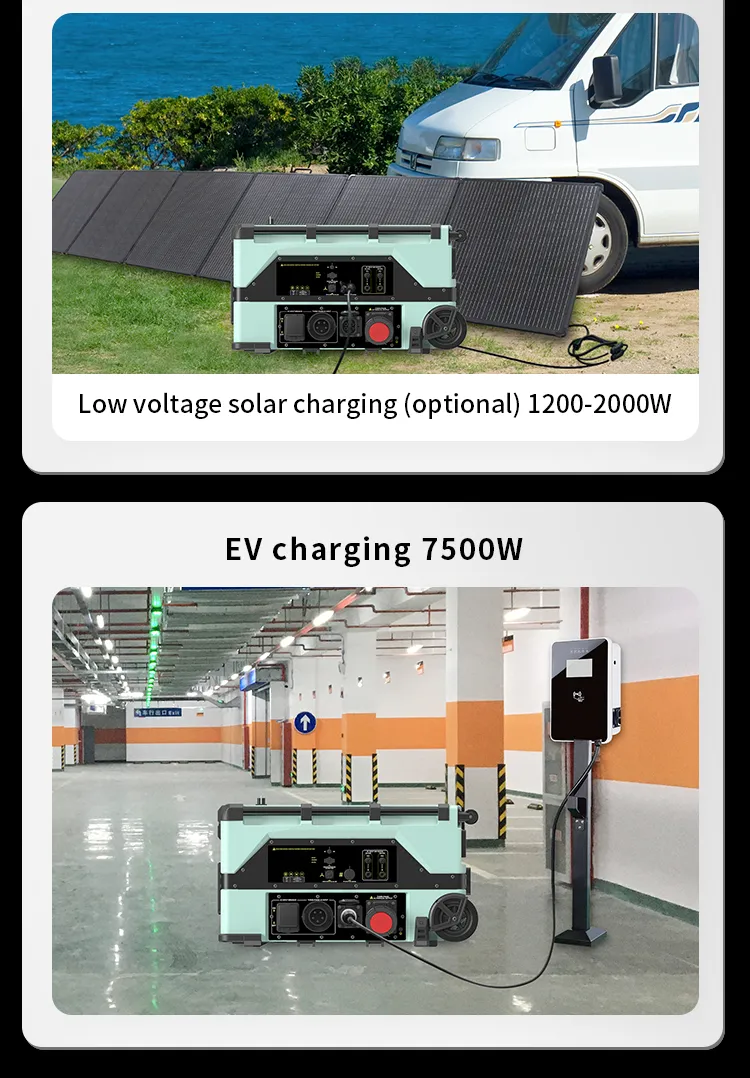

Detailed View 6

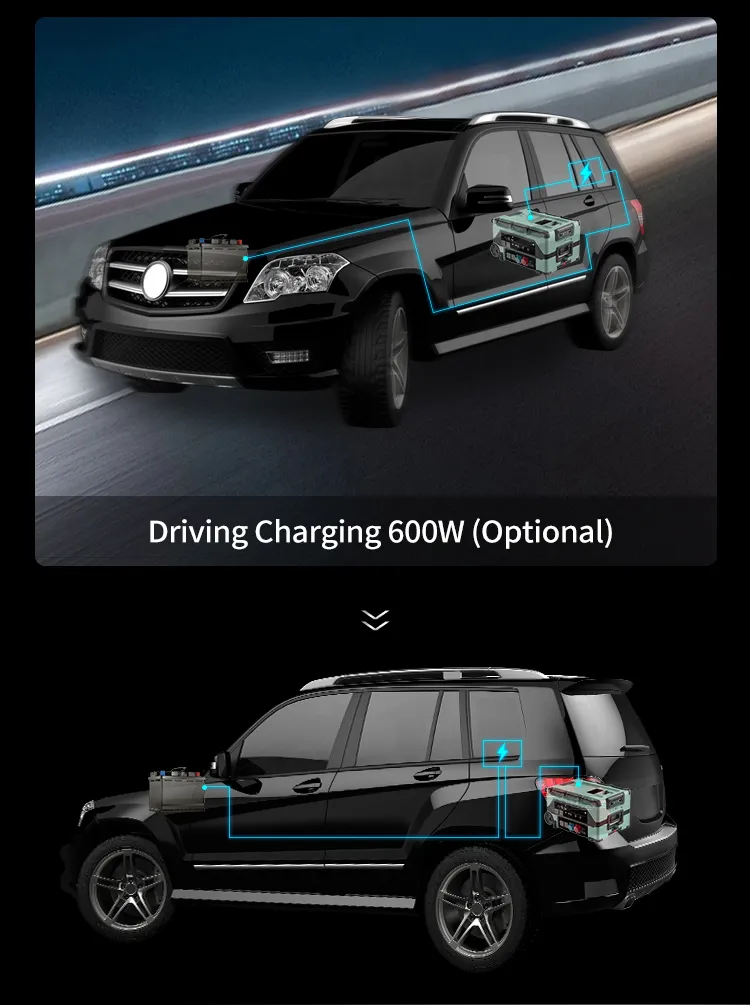

Detailed View 7

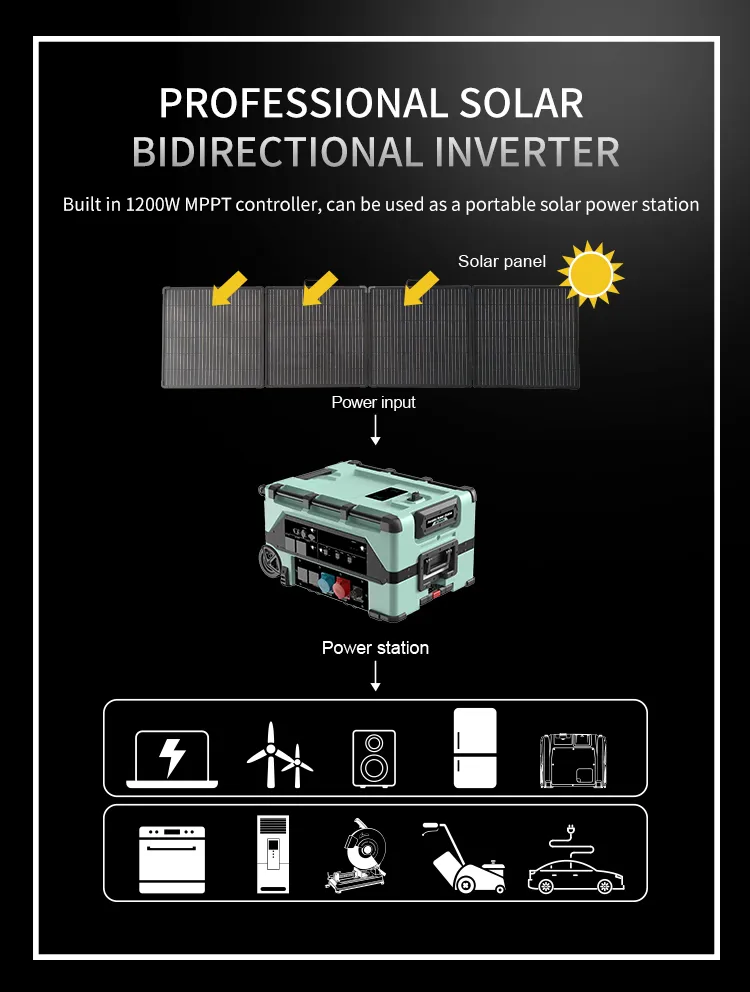

Detailed View 8

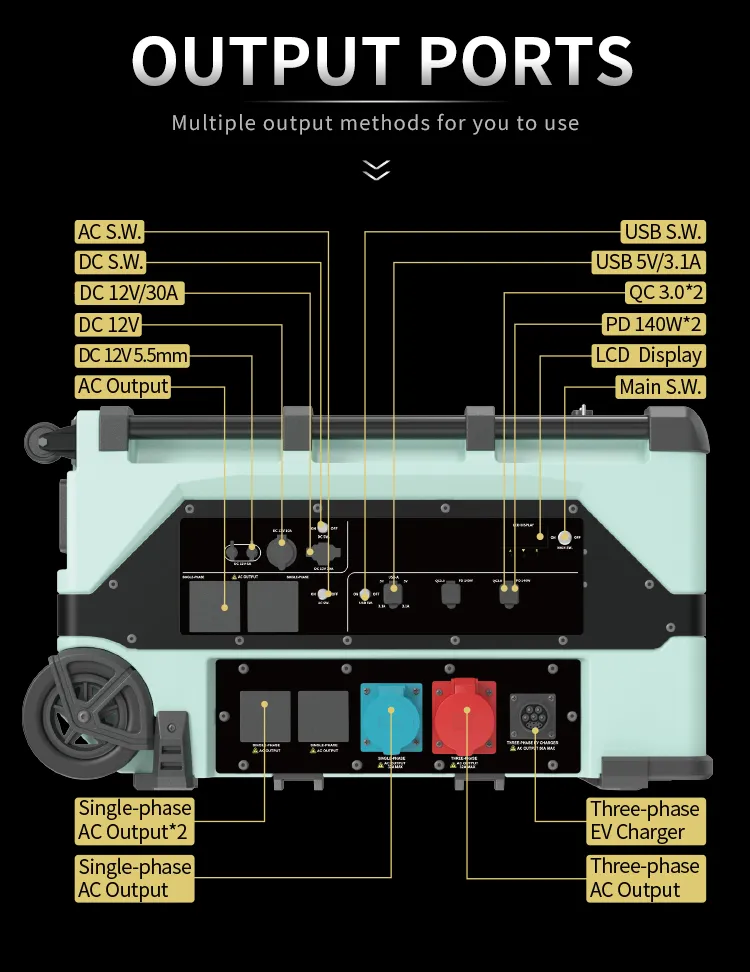

Detailed View 9

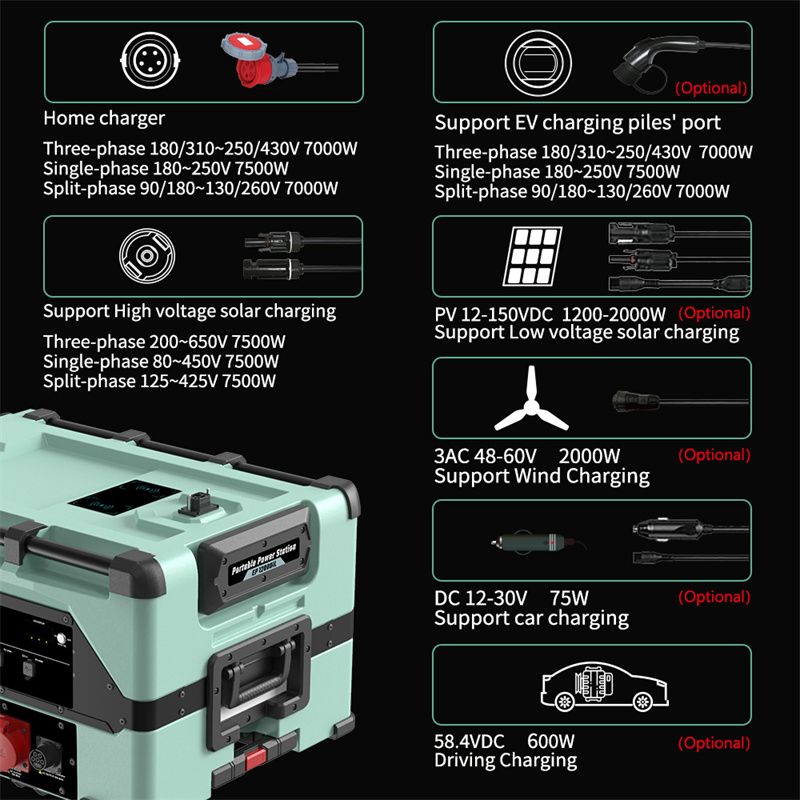

Charging Info
System Setup
Application
Frequently Asked Questions
Q: What is the maximum expansion capacity of the EP12000iL system? A: The system supports stacking up to 31 extra battery packs, allowing for a total maximum capacity of 245kWh.
Q: How fast can the system be fully charged? A: Using super-fast charging methods via AC or high-voltage solar, the system can be fully charged in approximately 70 minutes.
Q: Can I use this system to charge my Electric Vehicle (EV)? A: Yes, it features a built-in EV charger that supports charging up to 22kW, compatible with Type 1, Type 2, and GB/T standards.
Q: What is the lifespan and battery type of this unit? A: It uses high-power LiFePO4 battery technology with a cycle life of over 3000 cycles to 80%+ capacity.
Q: Is the system suitable for outdoor use? A: Yes, the main unit is rated IP53 and the battery packs are rated IP66, providing excellent protection against dust and water.
Q: Does the system support remote monitoring? A: Absolutely. The unit can be intelligently controlled and monitored in real-time using a dedicated smartphone application.
