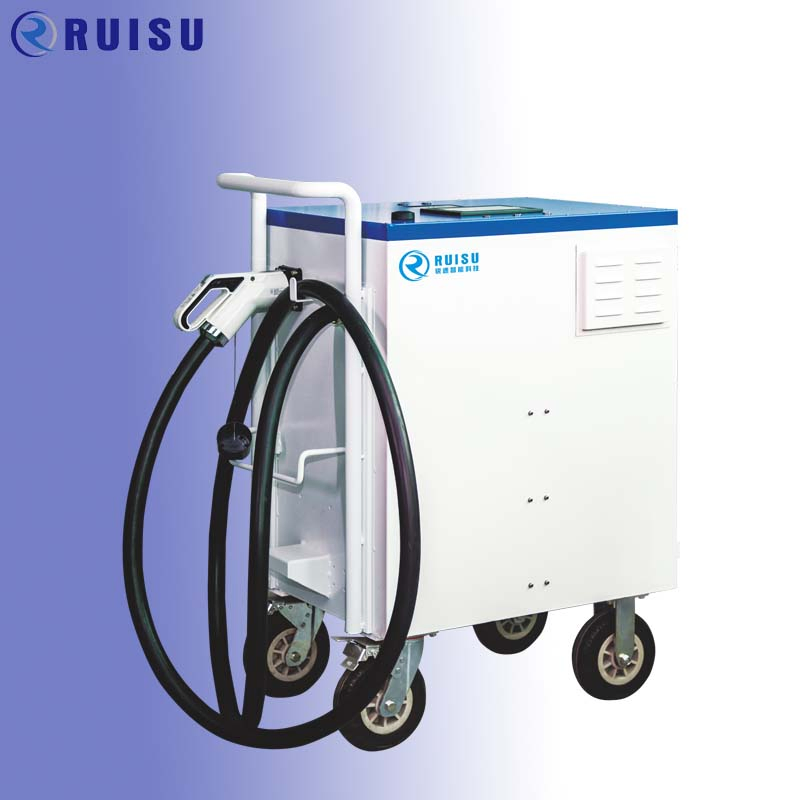

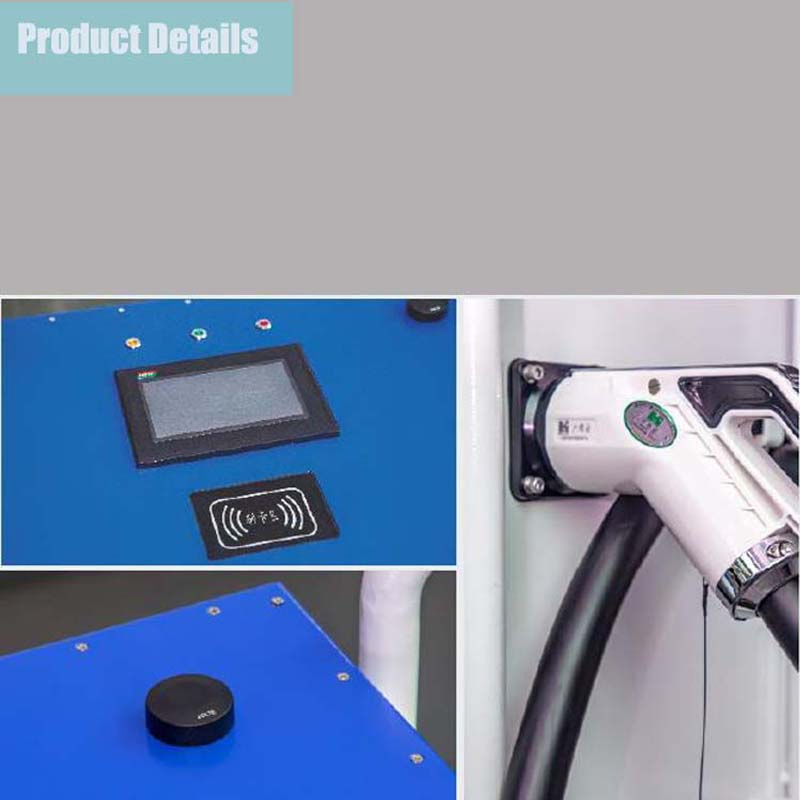

EV Charger CCS Movable DC Fast Charger EV 20kw Portable E-Car Charger
EV Charger CCS Movable DC Fast Charger EV 20kw Portable E-Car Charger
EV Charger CCS Movable DC Fast Charger EV 20kw Portable E-Car Charger
EV Charger CCS Movable DC Fast Charger EV 20kw Portable E-Car Charger
EV Charger CCS Movable DC Fast Charger EV 20kw Portable E-Car Charger
1 / 5
EV Charger CCS Movable DC Fast Charger EV 20kw Portable E-Car Charger
EV Charger CCS Movable DC Fast Charger EV 20kw Portable E-Car Charger
EV Charger CCS Movable DC Fast Charger EV 20kw Portable E-Car Charger
EV Charger CCS Movable DC Fast Charger EV 20kw Portable E-Car Charger
EV Charger CCS Movable DC Fast Charger EV 20kw Portable E-Car Charger

EV Charger CCS Movable DC Fast Charger EV 20kw Portable E-Car Charger

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
RSDC95-20KW
Type
Fast EV Charging Station
AC Input Frequency
50 / 60 Hz
Power Factor
≥0.99
Efficiency
≥95% (Full Load)
DC Output Range
200-750VDC
Output Power
20kw
DC Output Current
50A
Cable Length
5m (CCS), 5m(GB/T)
Operation
Swiping Card / Scanning Code
Protection Grade
Outdoor IP54
Certification
CCC, CE, ISO, TUV
Warranty
24 Months
Cooling System
Air Cooling
20kw Portable DC Fast Charger
Detailed Technical Parameters
Product Type20KW Forklift DC Charger
Dimension (H*W*D)1095.5*860*538.5 mm
Display Mode7" Color Touch Screen
AC Input Voltage Range380Vac±10%, 3P + N +PE, Wye connection
Current Harmonics (THDI)≤5%
Efficiency≥96% (full load)
BMS Auxiliary Power12/24V
Working Temperature-20ºC ~ 50ºC
Altitude≤2000m
Shell MaterialSheet metal shell
Product Gallery

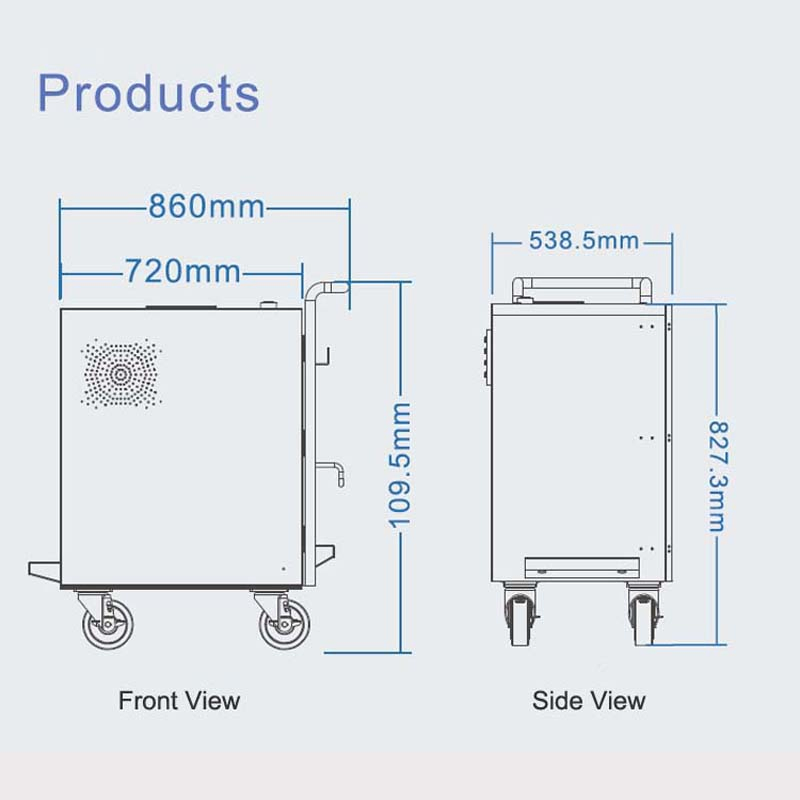

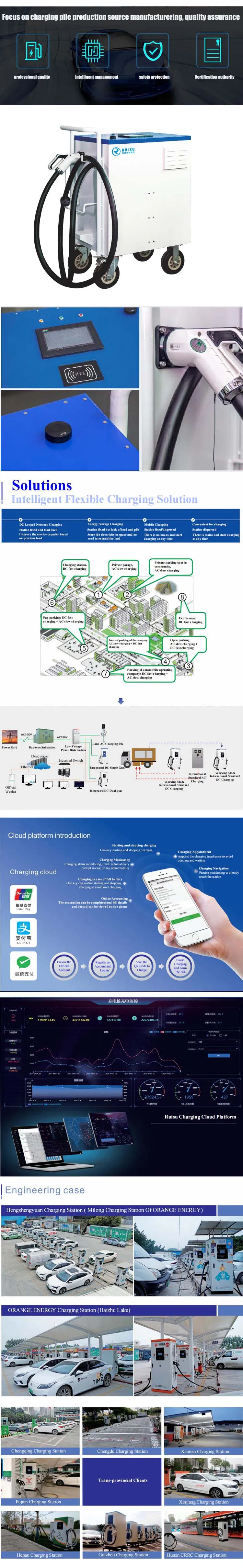

Detailed Dimensions
EV Charger Detail 1
EV Charger Detail 2
EV Charger Detail 3
EV Charger Detail 4
EV Charger Detail 5
Frequently Asked Questions
What is the charging capacity of this model?
The RSDC95-20KW provides a steady output power of 20kW with a DC output current of 50A, suitable for fast charging applications.

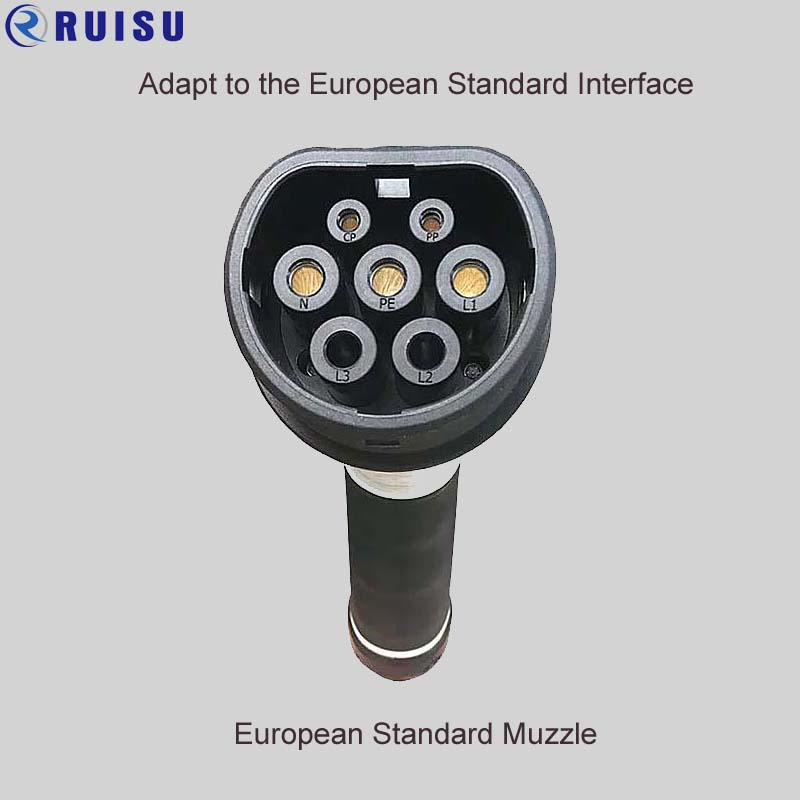

Which charging standards are compatible?
It supports both CCS and GB/T standards with a standard cable length of 5 meters. Customized cable lengths are also available.
Can this charger be used outdoors?
Yes, the device features an IP54 protection grade and a robust sheet metal shell, making it suitable for outdoor installation.
What is the efficiency level of the system?
The charger is highly efficient, achieving ≥96% efficiency at full load, which helps in reducing energy loss during operation.
How is the charging process operated?
The unit features a 7-inch color touch screen and supports easy operation through card swiping or scanning QR codes.
What kind of safety certifications does it hold?
This charging station is fully certified with CCC, CE, ISO, and TUV standards, ensuring high safety and reliability.
