Product Description

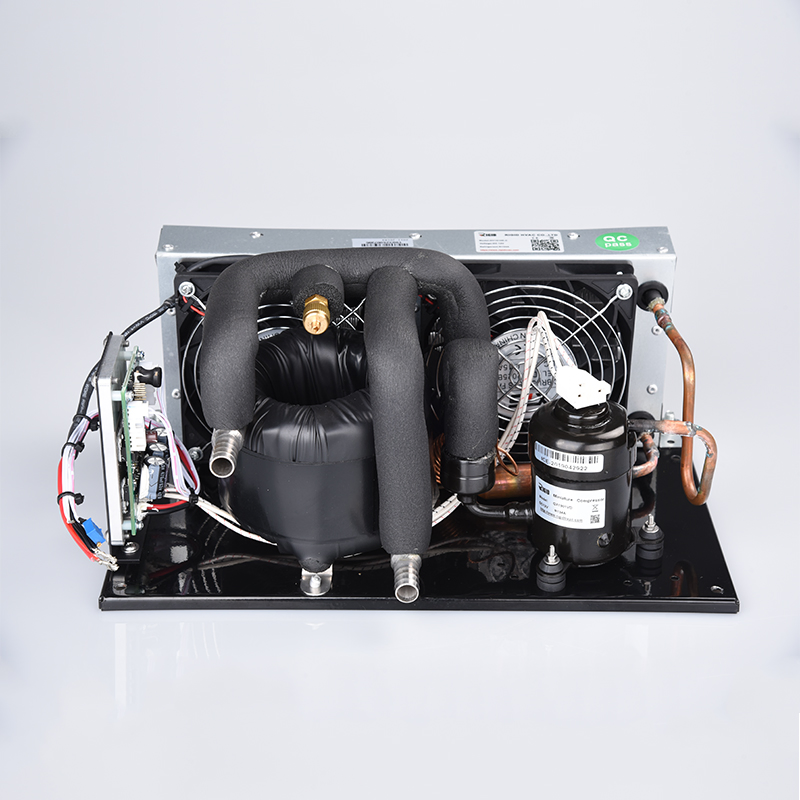

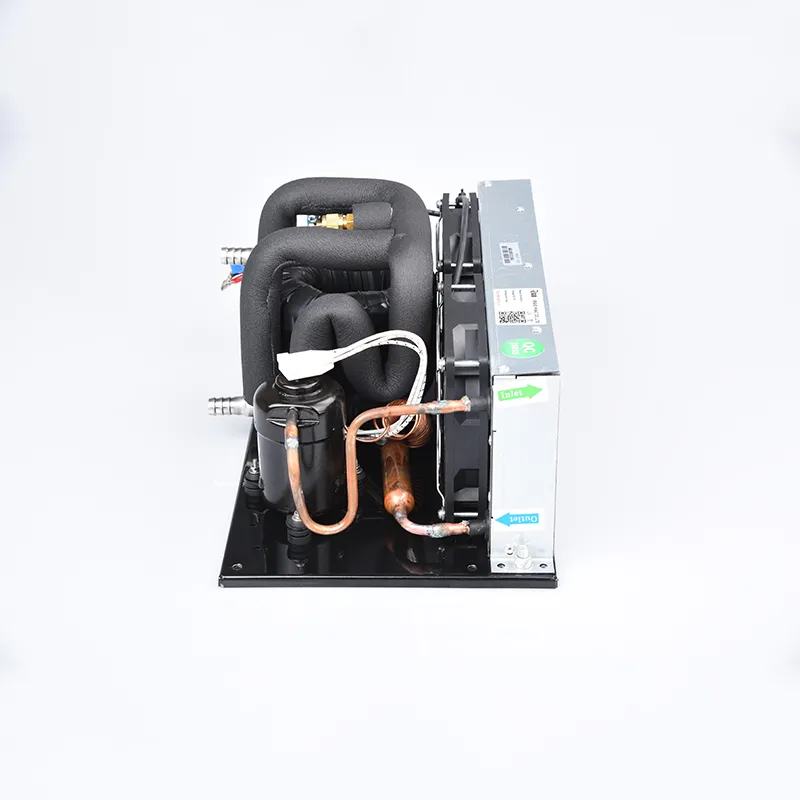

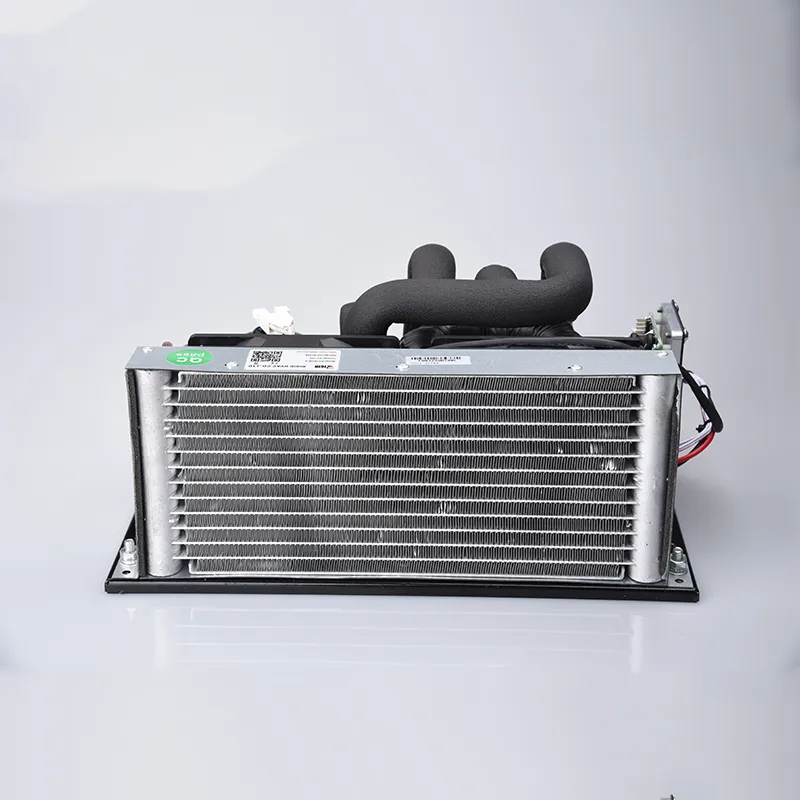

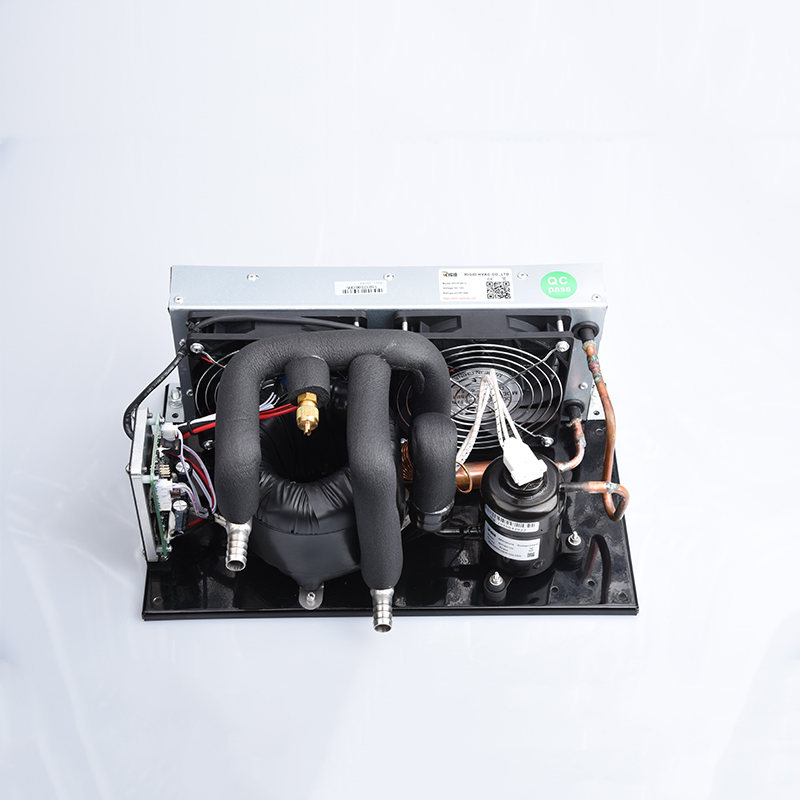

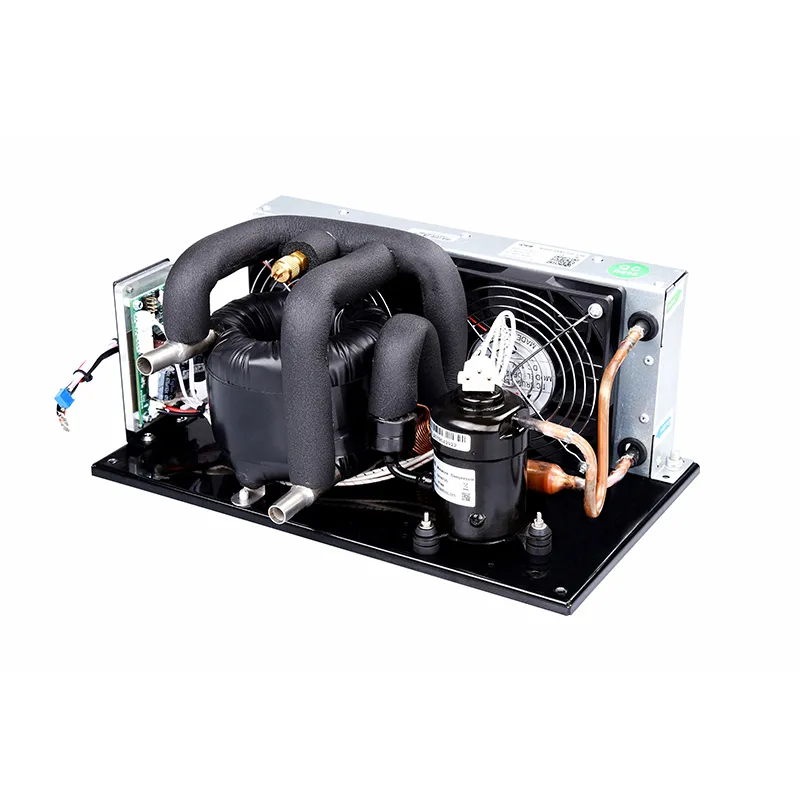

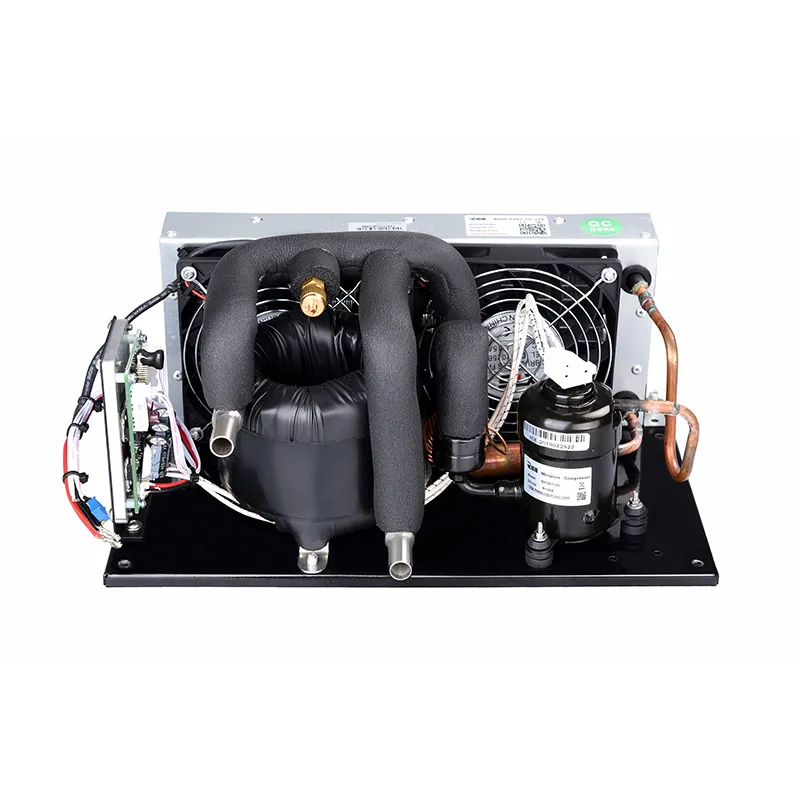

Discover the compact DC coaxial liquid chiller, a revolutionary solution tailored for superior thermal management with outstanding energy efficiency. Its state-of-the-art design and cutting-edge technology make it the perfect choice for a wide array of high-performance systems, such as laser devices, battery charging stations, rapid charging solutions, cold caps, and hair removal devices.
This chiller epitomizes compactness and energy efficiency, making it ideal for environments where space is a premium and energy conservation is paramount. The coaxial configuration excels in heat exchange with an elegant, streamlined design, ensuring top-notch cooling performance while maintaining a minimal footprint.

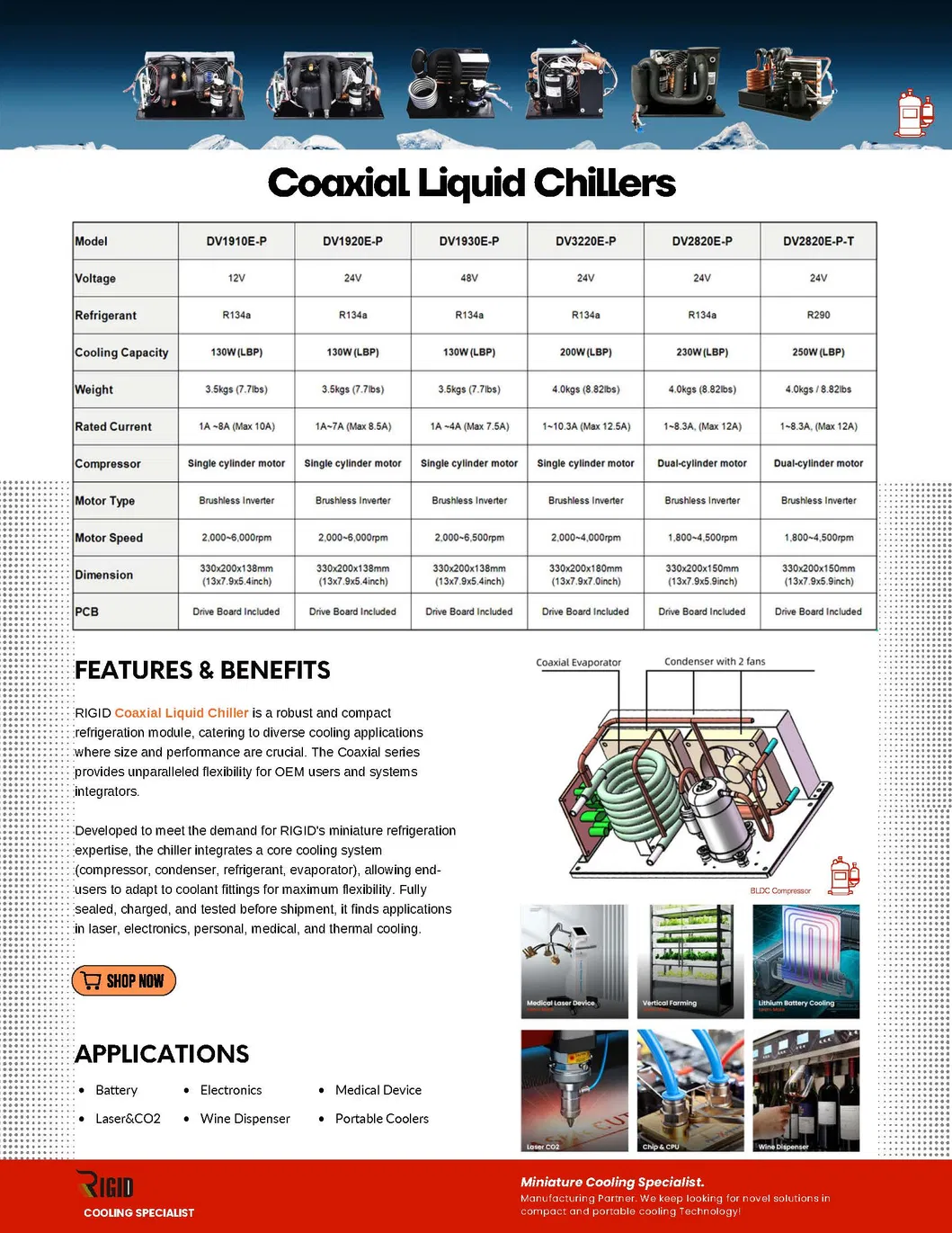

| Technical Data | Details |
| Cooling Capacity | 100W~500W Adjustable |
| Heat Exchangers Material | Coaxial Type Evaporator |
| Coolant Temperature | 0°C to 50°C (32°F to 122°F) |
| Maximum Power Draw | 500 Watts |
| Voltage | 12V & 24V & 48V DC |
| Compressor | Brushless Inverter Compressor |
| Noise | <40 dBA |
| Weight | 5.1 lbs / 2.3kgs |

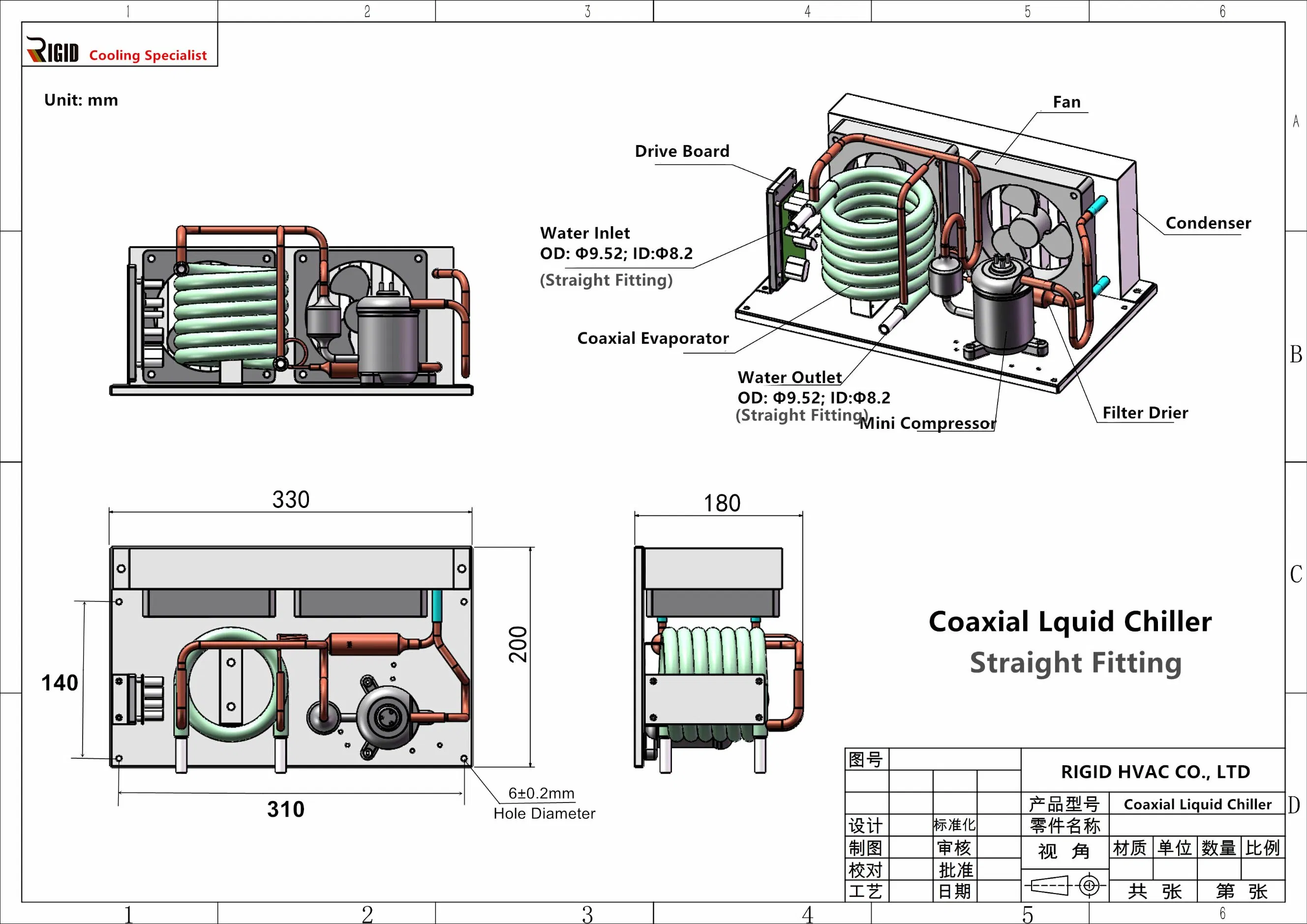

| Dimensions (L x W x H) | 330 X 200 X 180mm |
Applications
Ideal for fluid chillers, water dispensers, portable cooling systems, water cycling applications, and mini-chilled water systems.
Frequently Asked Questions
1. What is the cooling capacity range of this liquid chiller?
The system offers an adjustable cooling capacity ranging from 100W to 500W (500Btu to 1,600Btu), catering to various thermal management needs.
2. Which power sources can be used with this device?
It is designed for DC power input and is compatible with 12V, 24V, and 48V DC systems, making it suitable for battery, solar, and car power sources.
3. What kind of compressor does the system use?
The chiller utilizes a high-efficiency inverter brushless rotary compressor for optimal performance and energy conservation.
4. Is the system suitable for portable applications?
Yes, weighing only 5.1 lbs (2.3kg) and featuring a compact design, it is perfect for mobile and portable cooling requirements.
5. What is the noise level during operation?
The system is ultra-quiet, with a noise rating of less than 40 dBA, making it ideal for medical and indoor environments.
6. What refrigerant is used in this chiller?
The system uses R134A refrigerant, which is standard for micro refrigeration systems.
