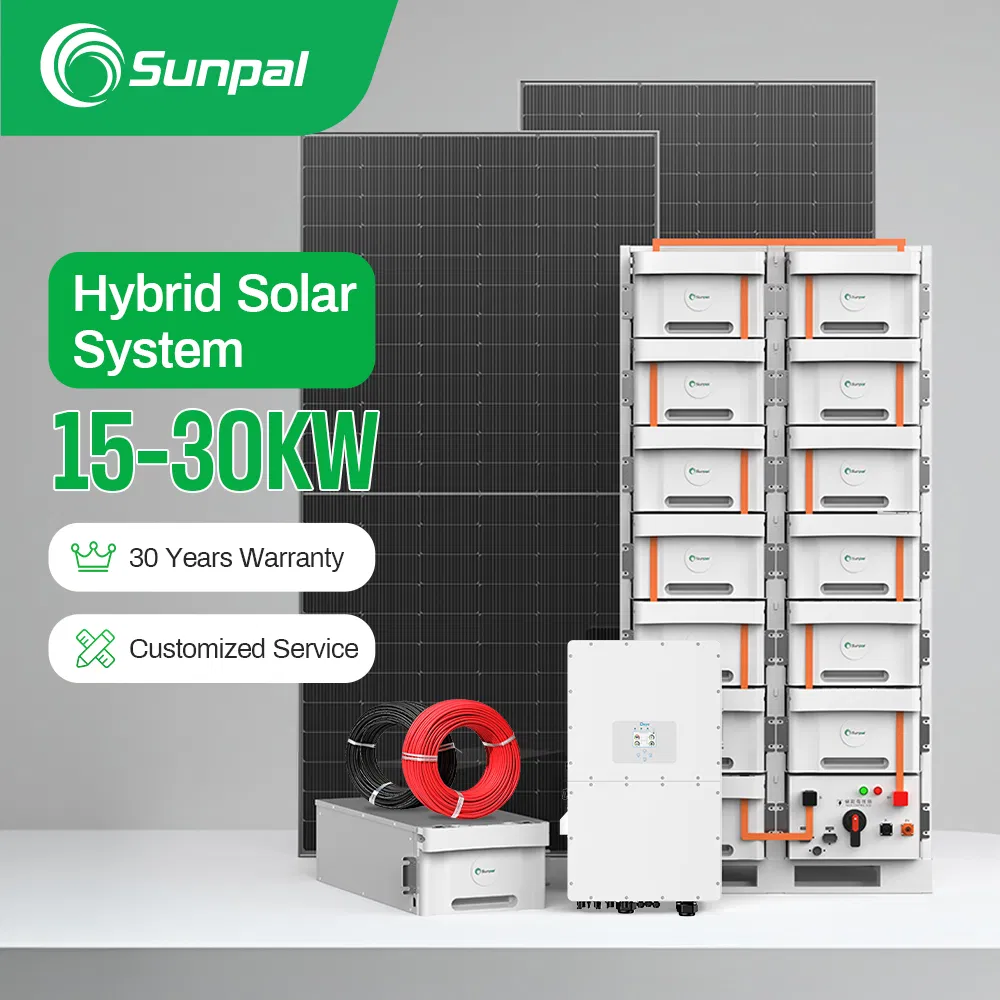

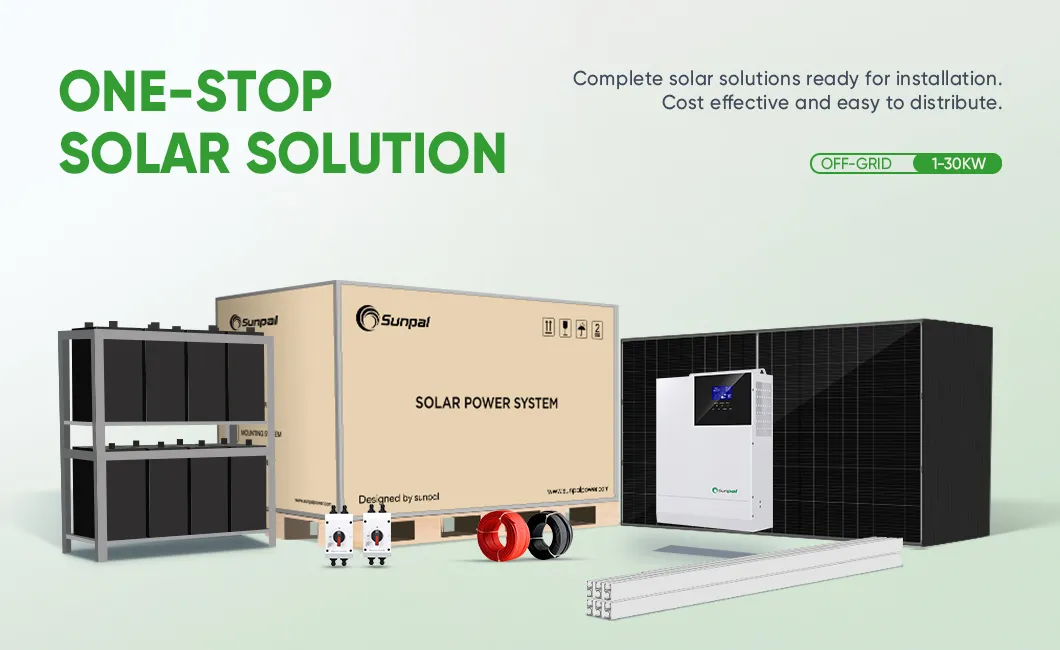

Sunpal All In One Off Grid Solar Hybrid System 15 Kw 20Kw 25Kw 30Kw Solar Power Panel System Kit For Home

1 / 5

Sunpal All In One Off Grid Solar Hybrid System 15 Kw 20Kw 25Kw 30Kw Solar Power Panel System Kit For Home

Customization:	Available
After-sales Service:	10 Years
Warranty:	30 Years

Send Inquiry

Product Description

⚡ Overview

Complete Off-Grid Hybrid Solar Photovoltaic System designed for home energy generation. High-efficiency components featuring Topcon N-Type solar panels and pure sine wave output.

Model:SP-15-25KW-OFF

Certification:ISO, CB, CE, TUV, VDE, UL, RoHs

Output Voltage:380-415V

Frequency:50/60HZ

System Type:Off-grid Hybrid Solar

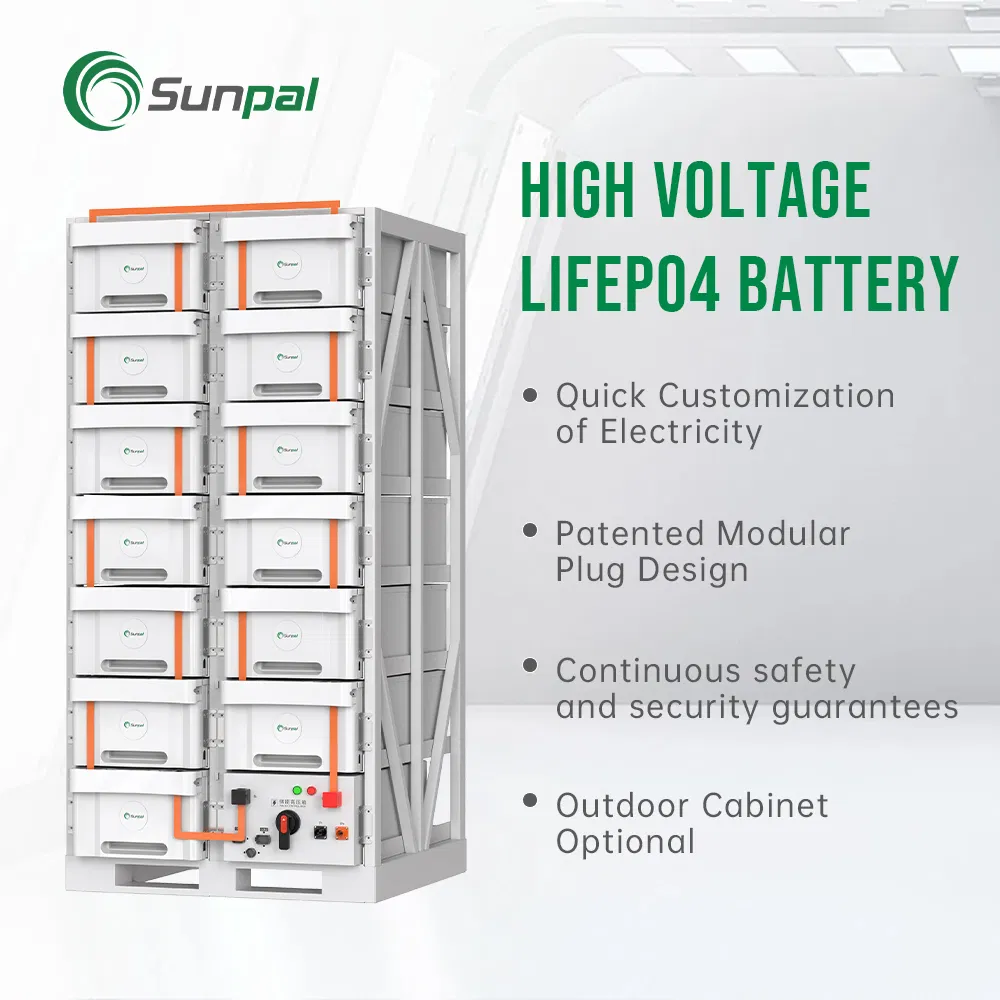

Battery Type:Lead Acid / LiFePO4 Lithium

Production:50 sets / Day

Origin:China

Product Description

Warranty & Efficiency

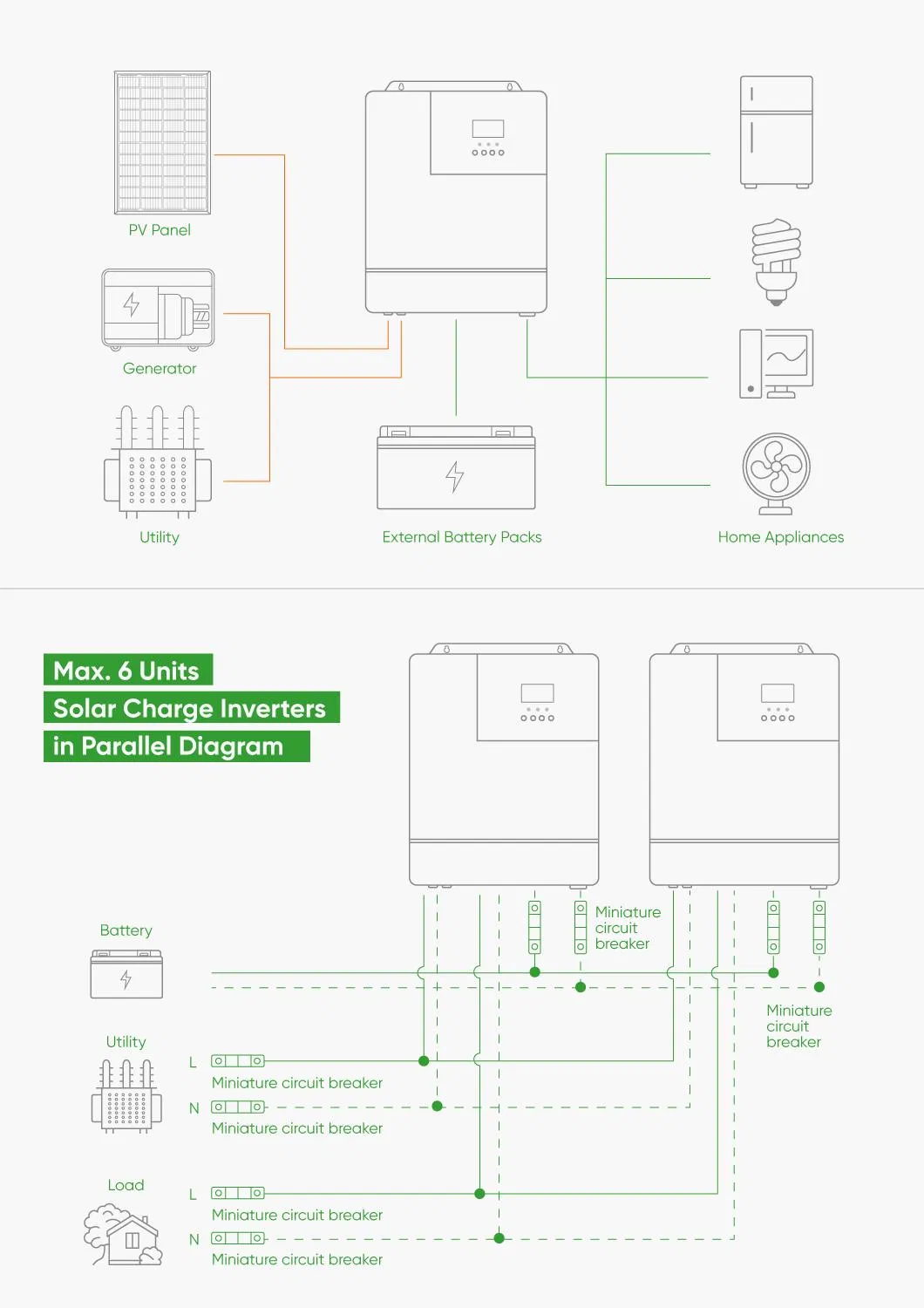

How It Works

System Components (Small to Medium)

Model	SP-3KW-OFF	SP-5KW-OFF	SP-10KW-OFF
Mono 550W Solar Panel	6 Pieces	8 Pieces	20 Pieces
PV Combiner Box	1 Piece	1 Piece	2 Pieces
Off-Grid Hybrid Inverter	HF4830S60	HF4850S80	HFP4850S80/2PCS
GEL Battery (12V 200AH)	4 PCS	4 PCS	8 PCS
DC Cable 4mm2	100 meter	200 meter	400 meter

System Components (Large Scale)

Model	SP-15KW-OFF	SP-20KW-OFF	SP-30KW-OFF
Mono 550W Solar Panel	24 Pieces	32 Pieces	48 Pieces
PV Combiner Box	3 Piece	4 Piece	5 Piece
Off-Grid Hybrid Inverter	HFP4850S80/3PCS	HFP4850S80/4PCS	HFP4850S80/6PCS
GEL Battery (12V 200AH)	12 PCS	16 PCS	20 PCS
DC Cable 4mm2	600 meter	800 meter	1000 meter

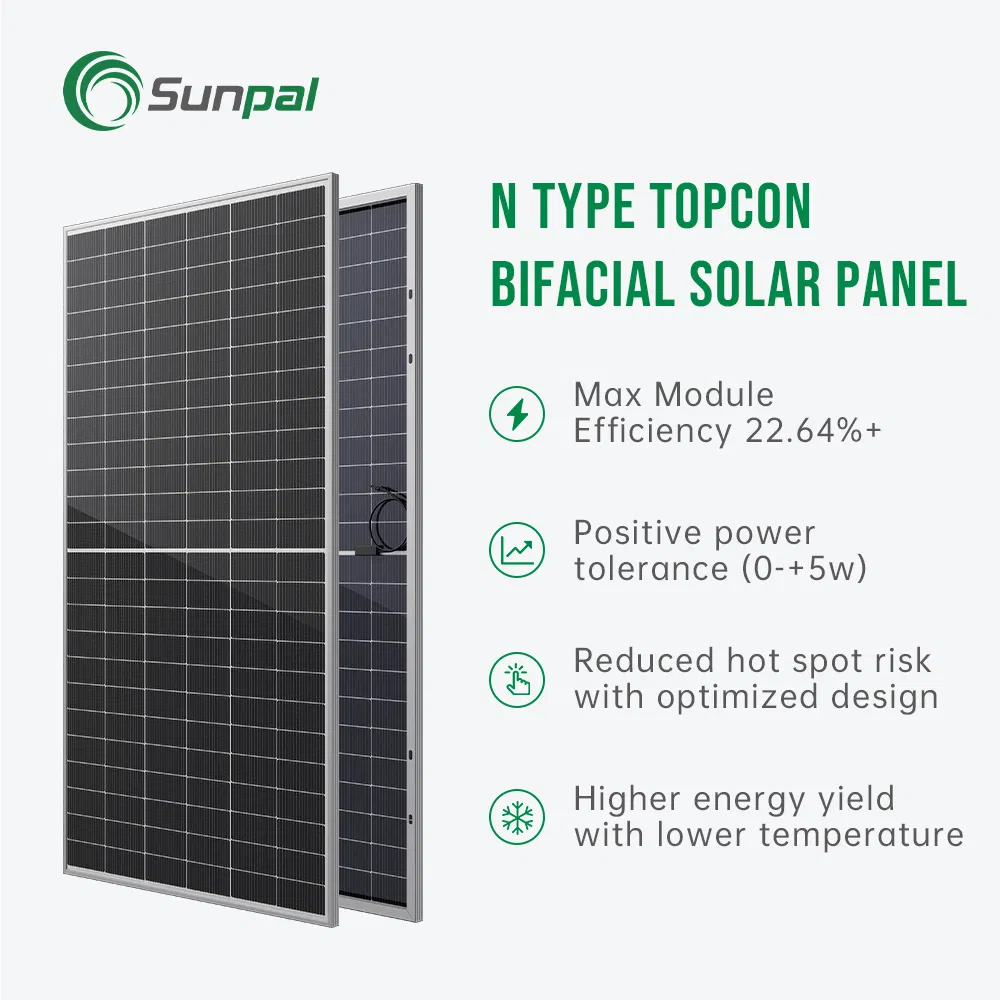

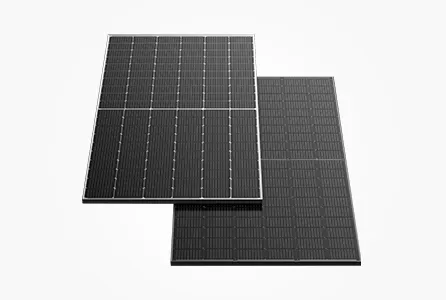

Half Cut Mono Solar Panel

Peak Power: 550W | Size: 2279x1134x35mm | Weight: 26.9 kg

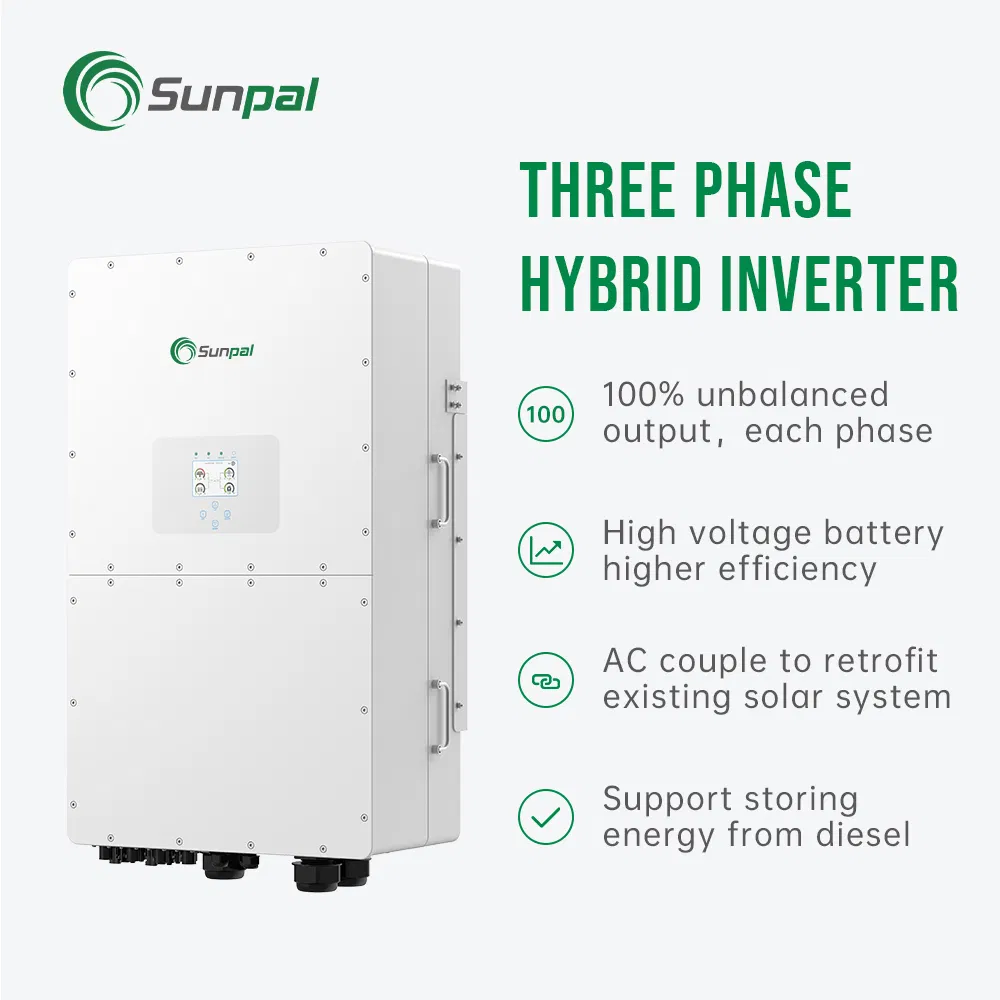

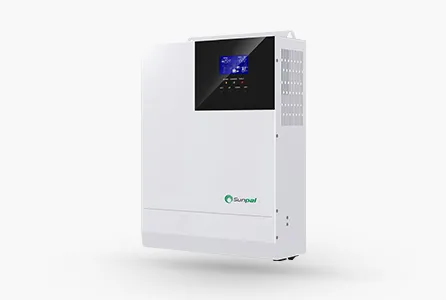

Hybrid Solar Inverter

All-in-one solar charge inverter integrating storage and pure sine wave output. Advanced MPPT technology with 99.9% efficiency.

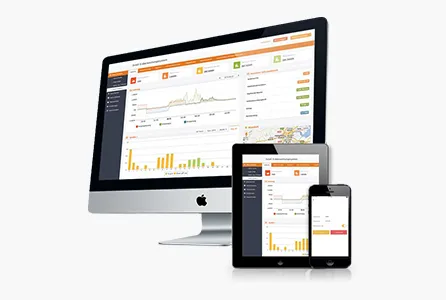

Monitoring System

One-click installation, safe operation, and traceable logs for full lifecycle data security.

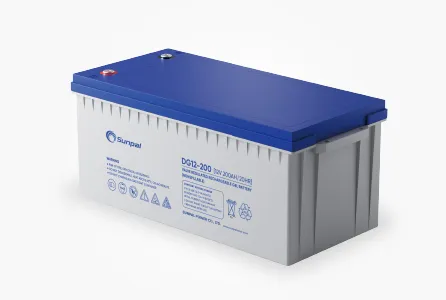

Deep Cycle GEL Battery

20 years design life. Ideal for standby or frequent cyclic discharge under extreme environments.

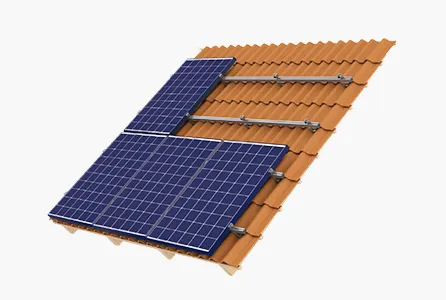

PV Mounting System

AI6005 & SUS304 components. Compatible with Asphalt Shingle, Tile Roof, or Ground installation.

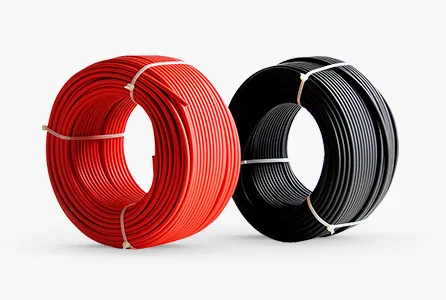

DC Cable & Connectors

TUV rated 1000VDC. Lifetime up to 25 years. Black and Red cables available.

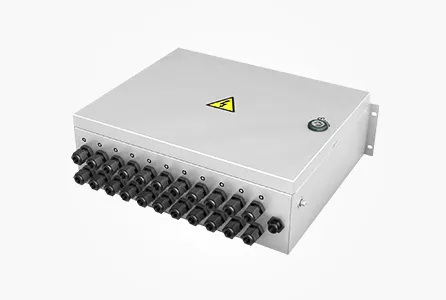

PV Combiner Box

IP65 Rated, 1000VDC protection for safe input management.

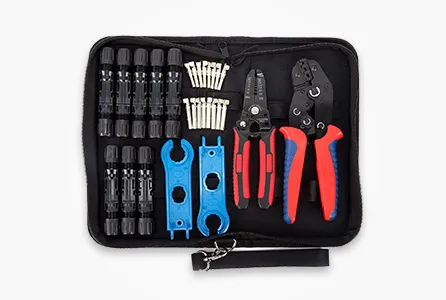

Professional Tools

Includes cable cutters, strippers, and MC4 assembly/disassembly tools.

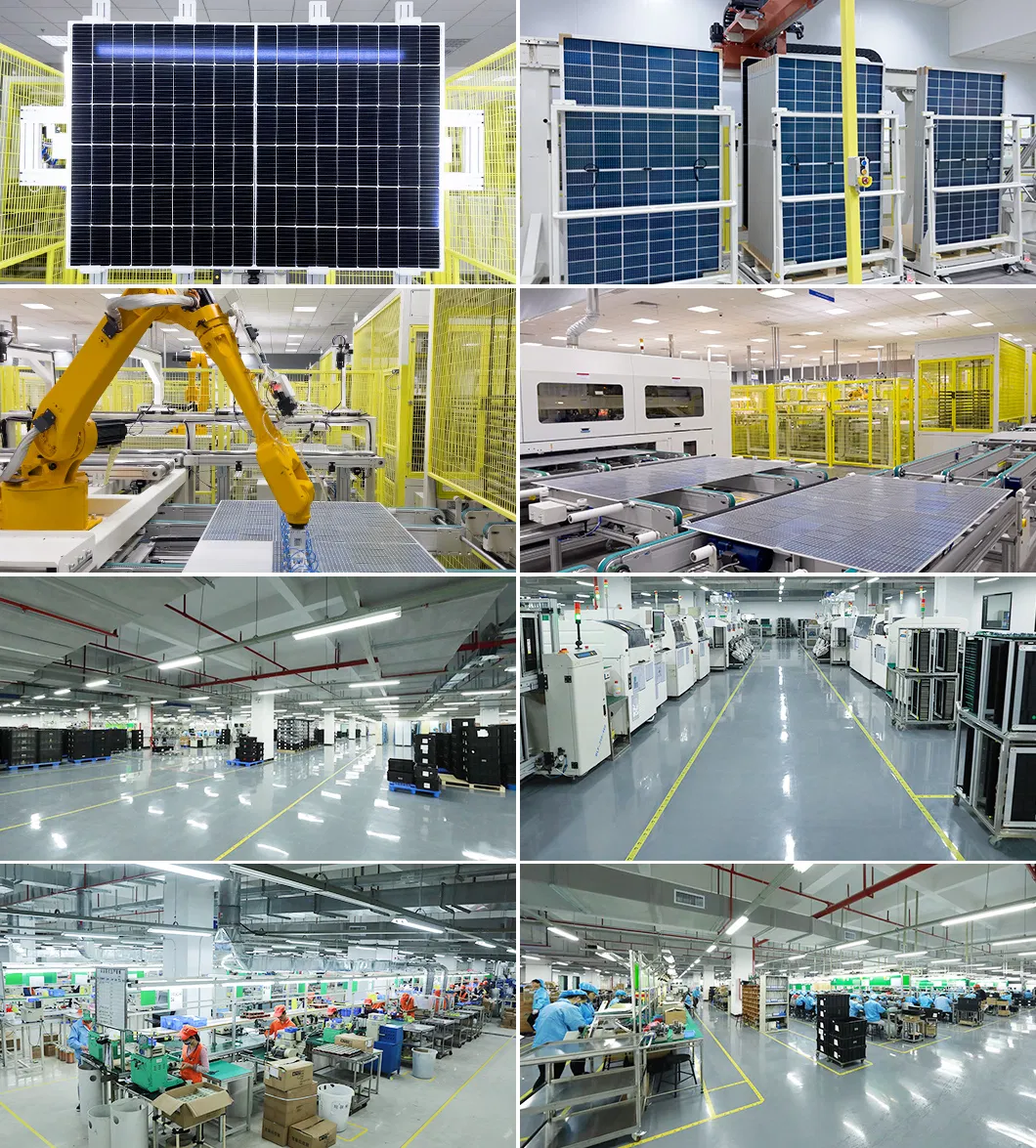

Factory & Production

As a world-class manufacturer, the facility covers 150,000 square meters with over 600 experienced employees. Specialized in high-quality solar PV development and research for over a decade.

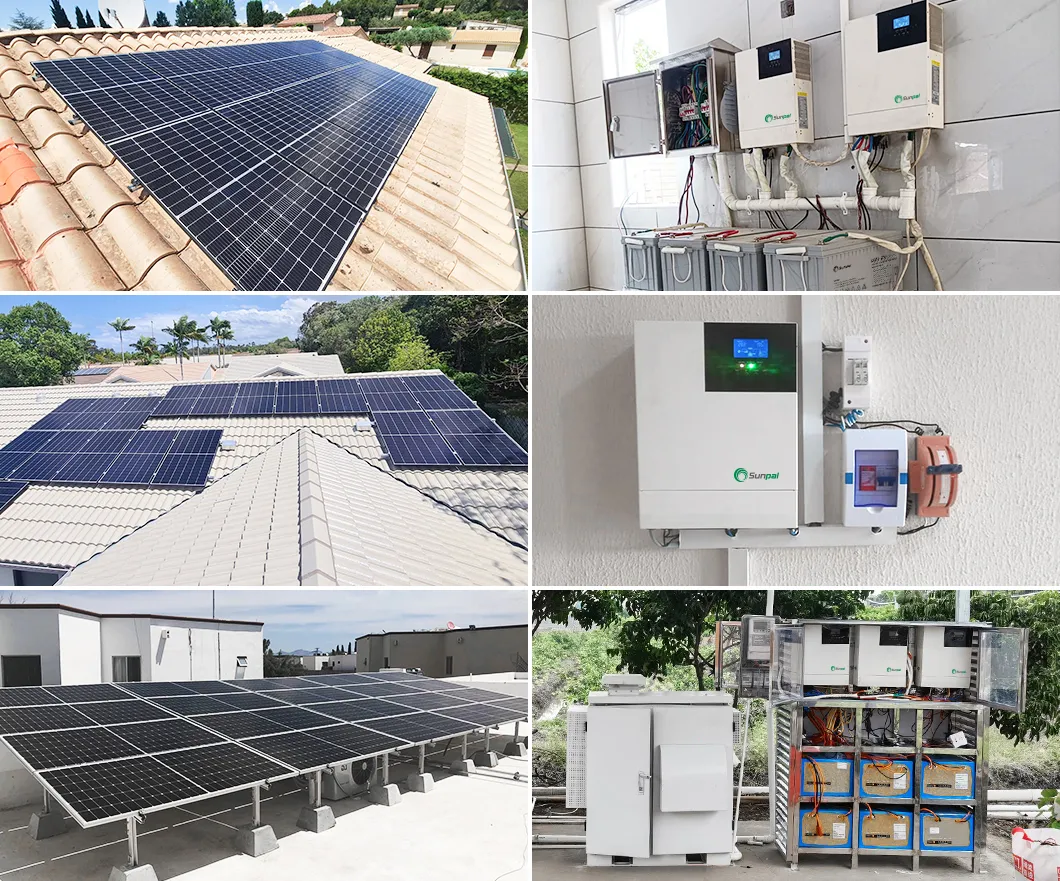

Packing & Project Cases

Frequently Asked Questions

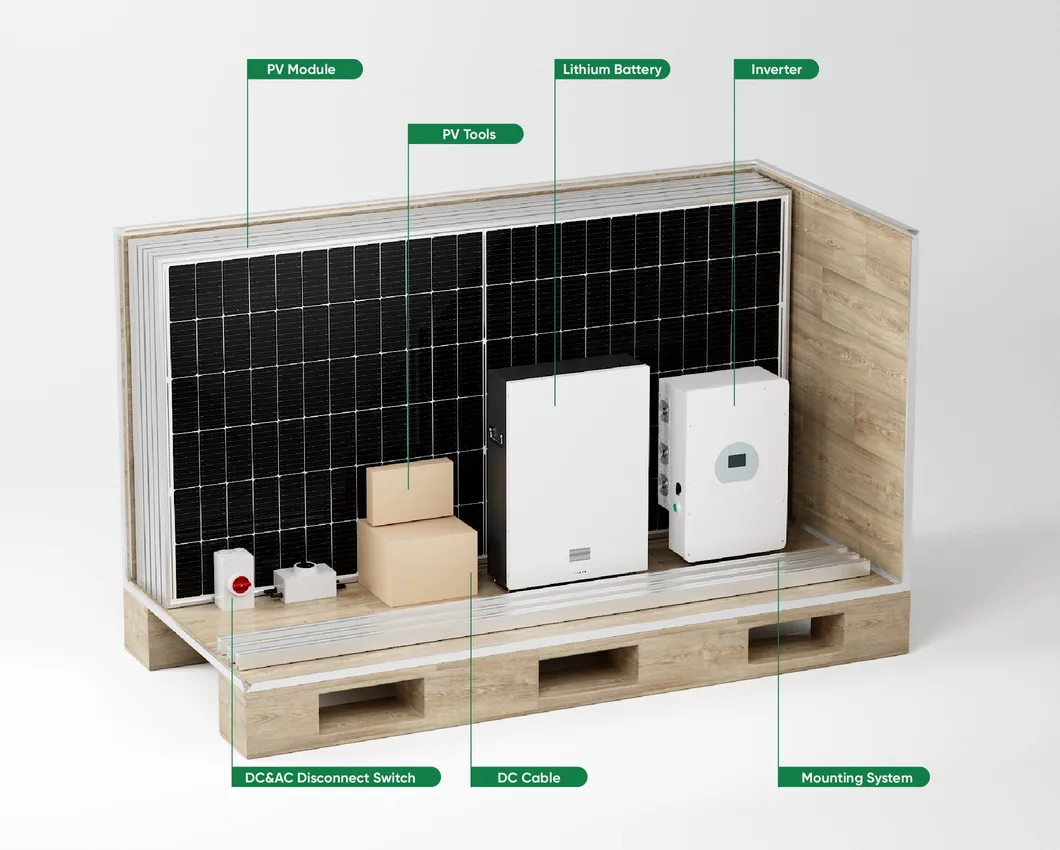

Q1: What components are included in the complete solar system kit?

A typical kit includes high-efficiency solar panels, an off-grid hybrid inverter, deep cycle GEL or Lithium batteries, a PV combiner box, mounting structures, and professional installation tools/cables.

Q2: Can the mounting system be used on different types of roofs?

Yes, the mounting structure is customized based on your specific requirements, whether you are installing on an asphalt shingle roof, tile roof, metal roof, or the ground.

Q3: What is the efficiency of the hybrid inverter?

The inverter utilizes advanced MPPT technology with a tracking efficiency of up to 99.9%, ensuring maximum energy conversion from your solar panels.

Q4: How long is the lifespan of the GEL batteries?

The Deep Cycle GEL VRLA batteries are designed with a 20-year floating life and are optimized for frequent cyclic discharge even in extreme environments.

Q5: Is the system capable of 24-hour operation?

Yes, the system is designed to work 24 hours a day. It uses solar energy during the day and stored battery power at night to ensure continuous electricity supply.

Q6: Does the system support remote monitoring?

Yes, it includes a professional monitoring system that supports one-click registration, traceable logs, and real-time data storage to ensure system security and reliability.
