Sunpal Hybrid Full Solar Power System Set 48V 5Kw 10Kw 20Kw 30Kw 40Kw Solar Pv Energy Home Battery Storage System Complete Kit

1 / 5

Sunpal Hybrid Full Solar Power System Set 48V 5Kw 10Kw 20Kw 30Kw 40Kw Solar Pv Energy Home Battery Storage System Complete Kit

Customization:	Available
After-sales Service:	Free Warranty
Warranty:	10 Years

Send Inquiry

Product Description

Basic Information

Model NO.	SP3-30KW3-HY
Product Name	Household Hybrid Solar Power System
System Type	Off-Grid / Hybrid Solar Photovoltaic System
Power Range	3KW - 30KW
Solar Panel	Mono Crystalline Perc Solar Panel
Battery Type	Lead Acid / LiFePO4 Lithium Battery
Controller Type	MPPT
Certification	ISO, CE, RoHS

Product Description

Warranty & Quality Assurance

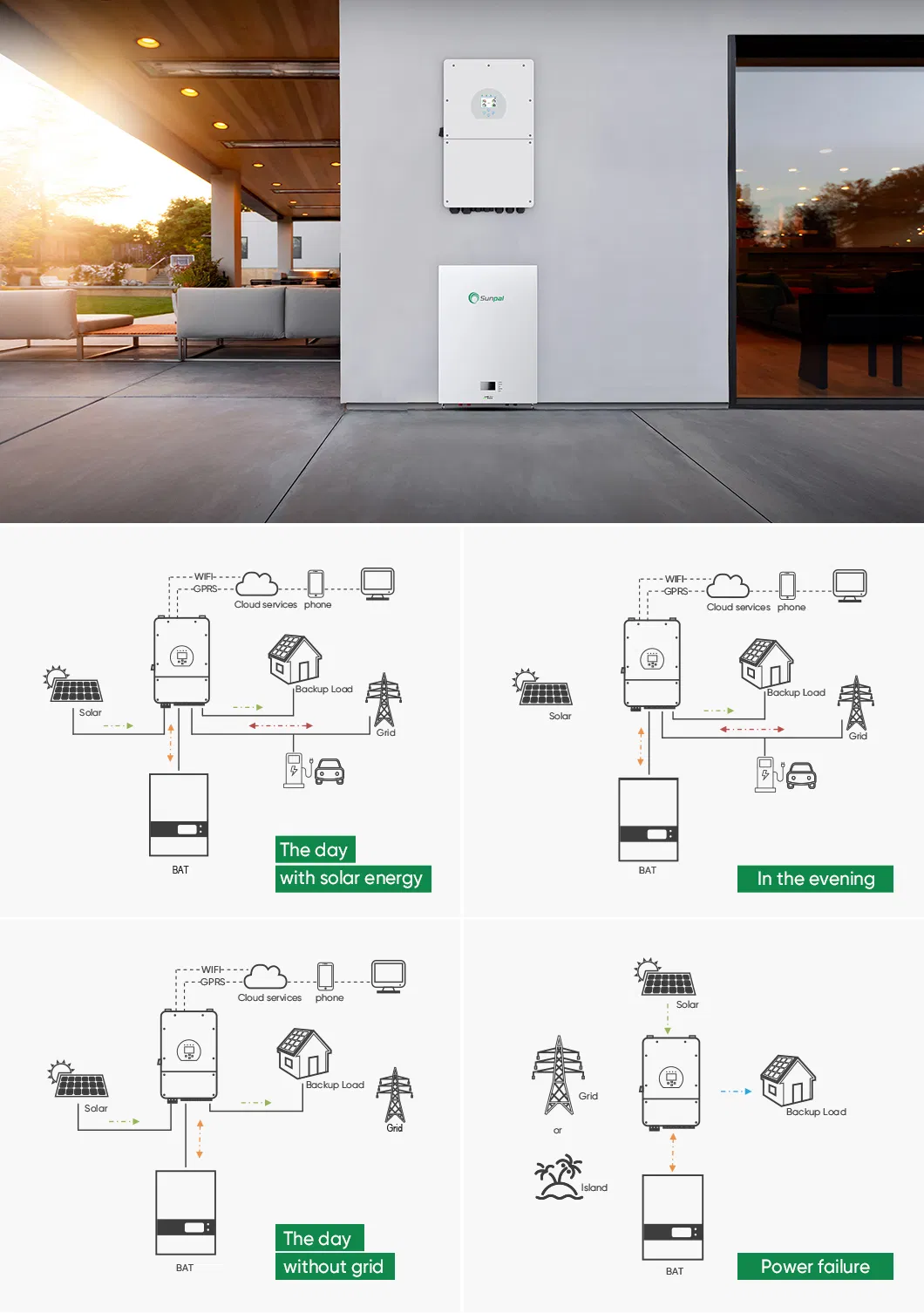

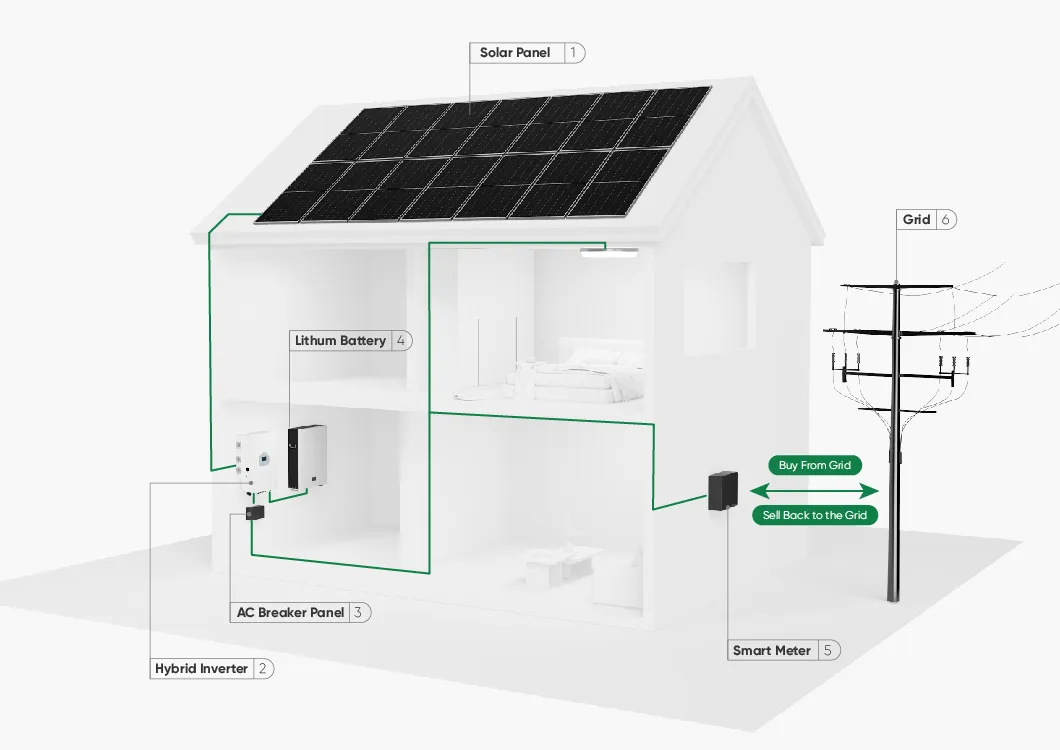

Operational Workflow

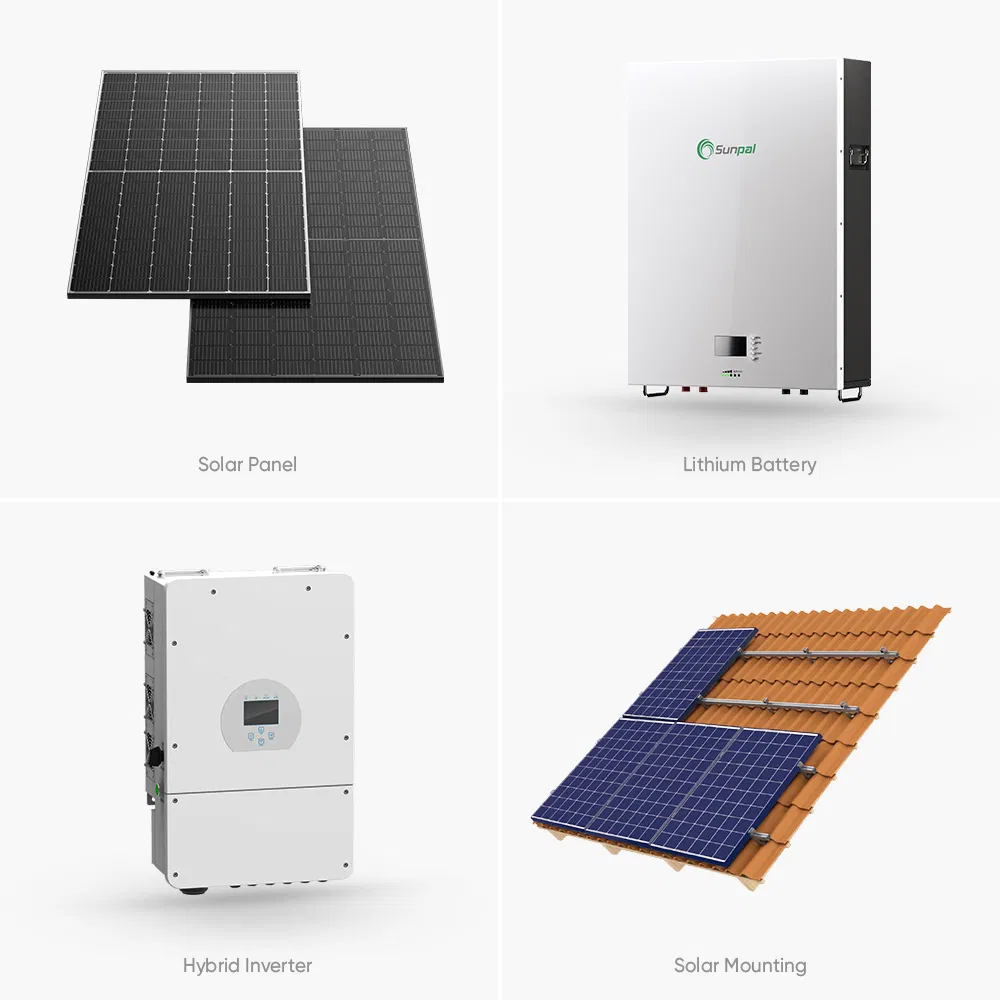

System Components

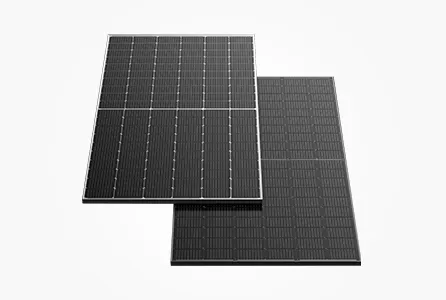

Half Cut Mono 550W Solar Panel

Peak Power Watts: 550W
Max Power Voltage: 42.06V
Max Power Current: 12.84A
Dimensions: 2279x1134x35mm

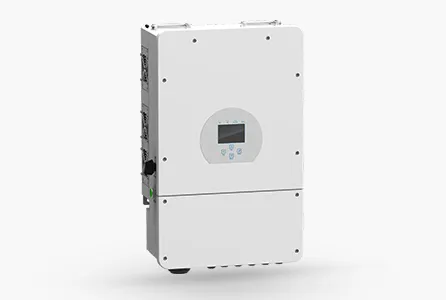

Hybrid Solar Inverter

48V low voltage battery support
Transformer isolation design
Max charging/discharging current: 240A
Supports up to 10pcs in parallel

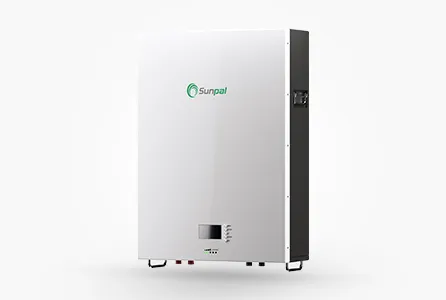

Wall Mounted LiFePo4 Battery

15-20 years design life
Up to 6000+ cycle life
Scalable battery module design
Integrated high-quality BMS protection

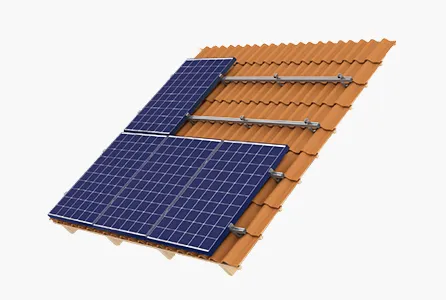

PV Mounting System

Material: AI6005 & SUS304 Bolt
Adjustable Mid & End Clamps (35-50mm)
Optional Ground/Roof mounting kits

System Configuration Options

Model	3KW-HY	5KW-HY	10KW-HY
Solar Panel (550W)	6 Pieces	10 Pieces	20 Pieces
LiFePo4 Battery	5Kwh	5Kwh	10Kwh

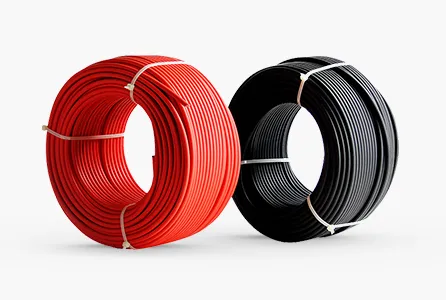

DC Cable	100m	200m	400m

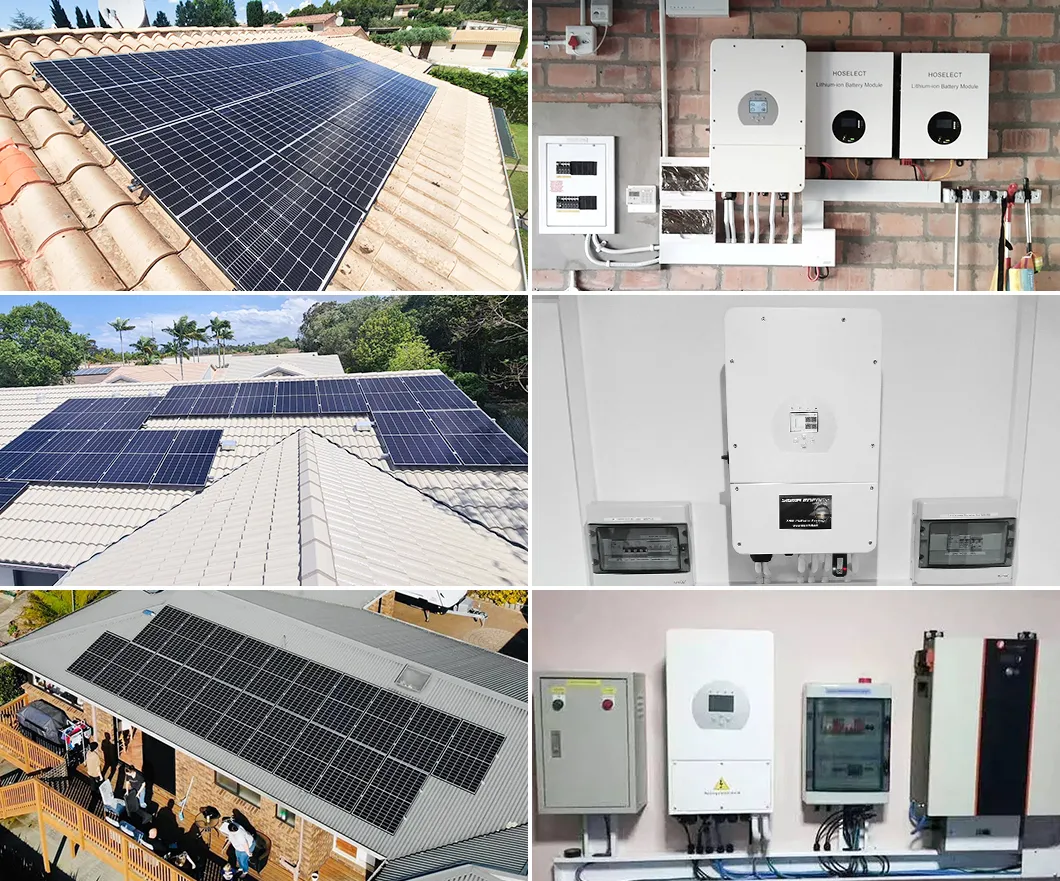

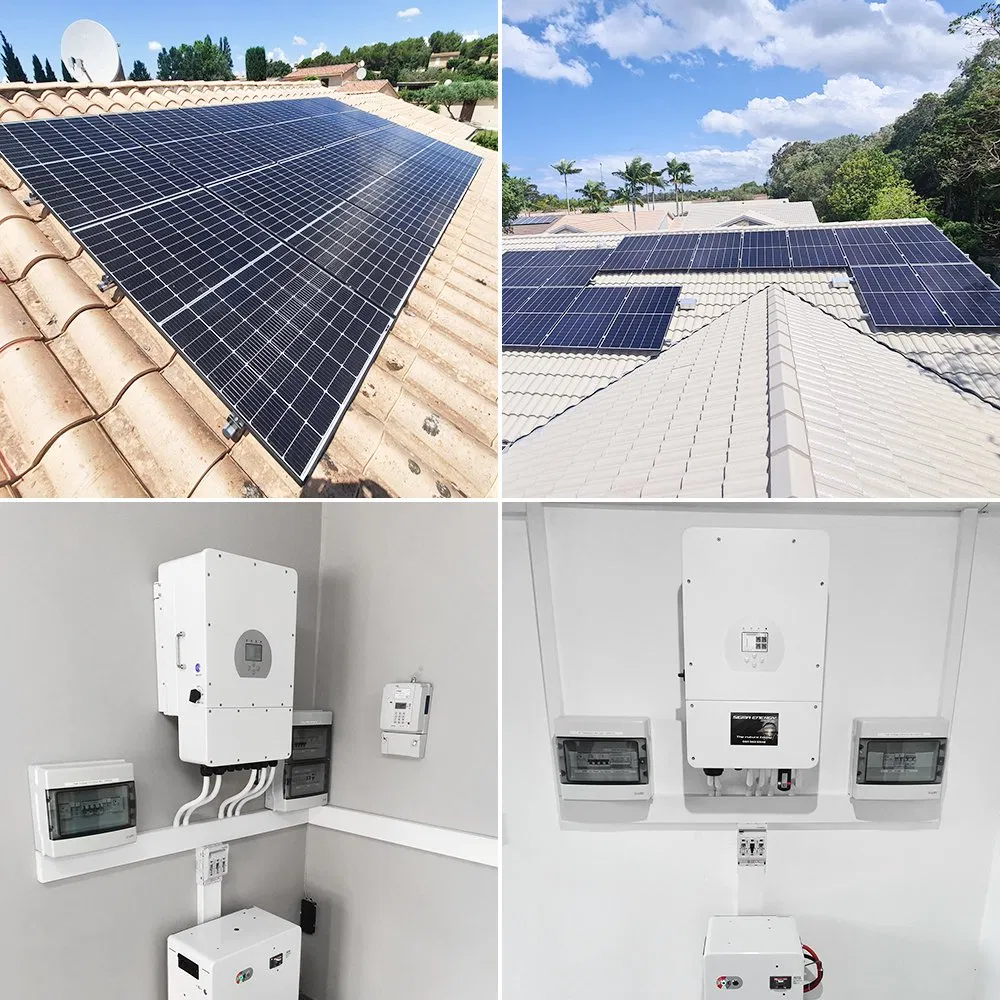

Overview & Projects

Specializing in the research, development, and production of world-class solar PV products. Focused on solar innovation since 1998, exporting high-quality solutions to over 80 countries. Our facilities cover 150,000 square meters with a dedicated professional workforce.

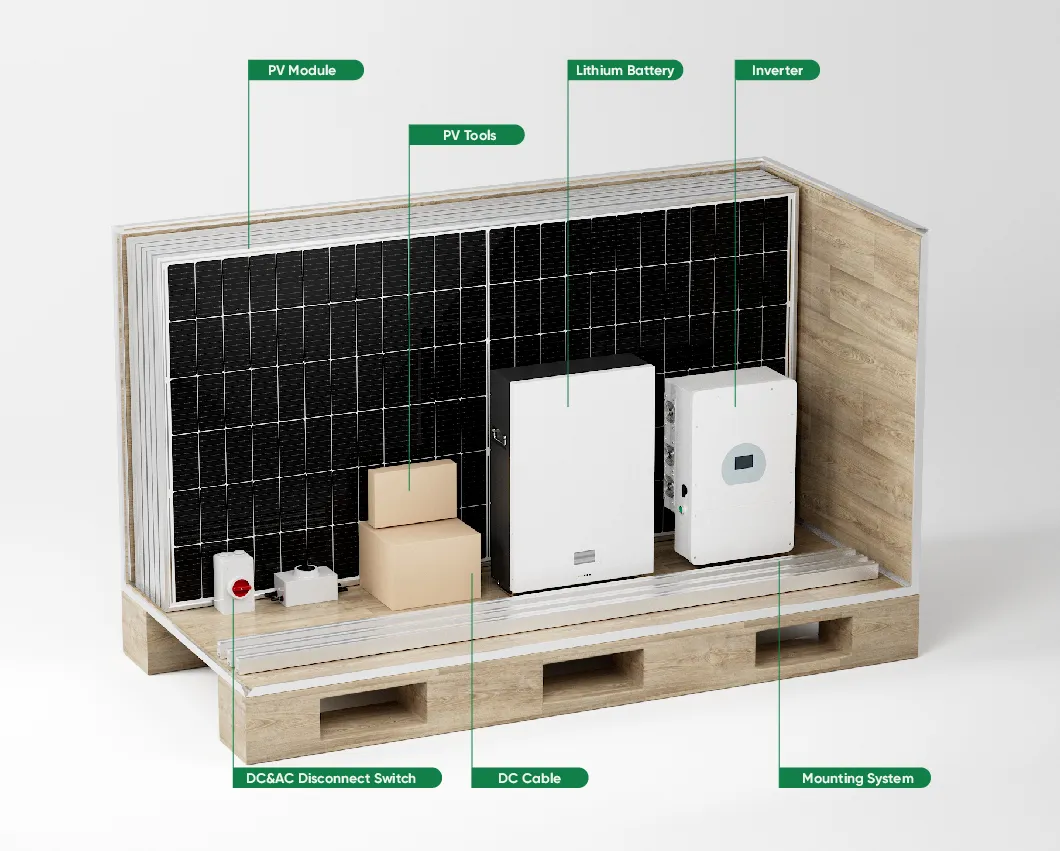

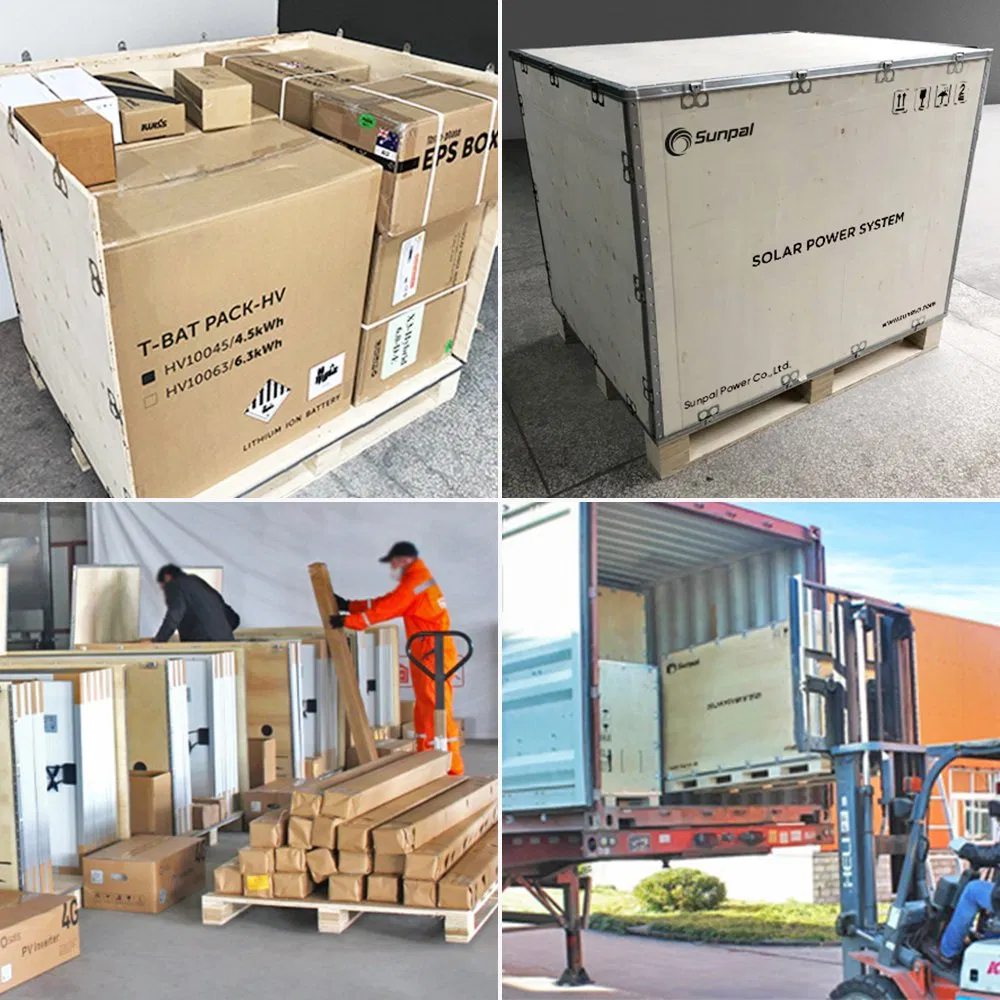

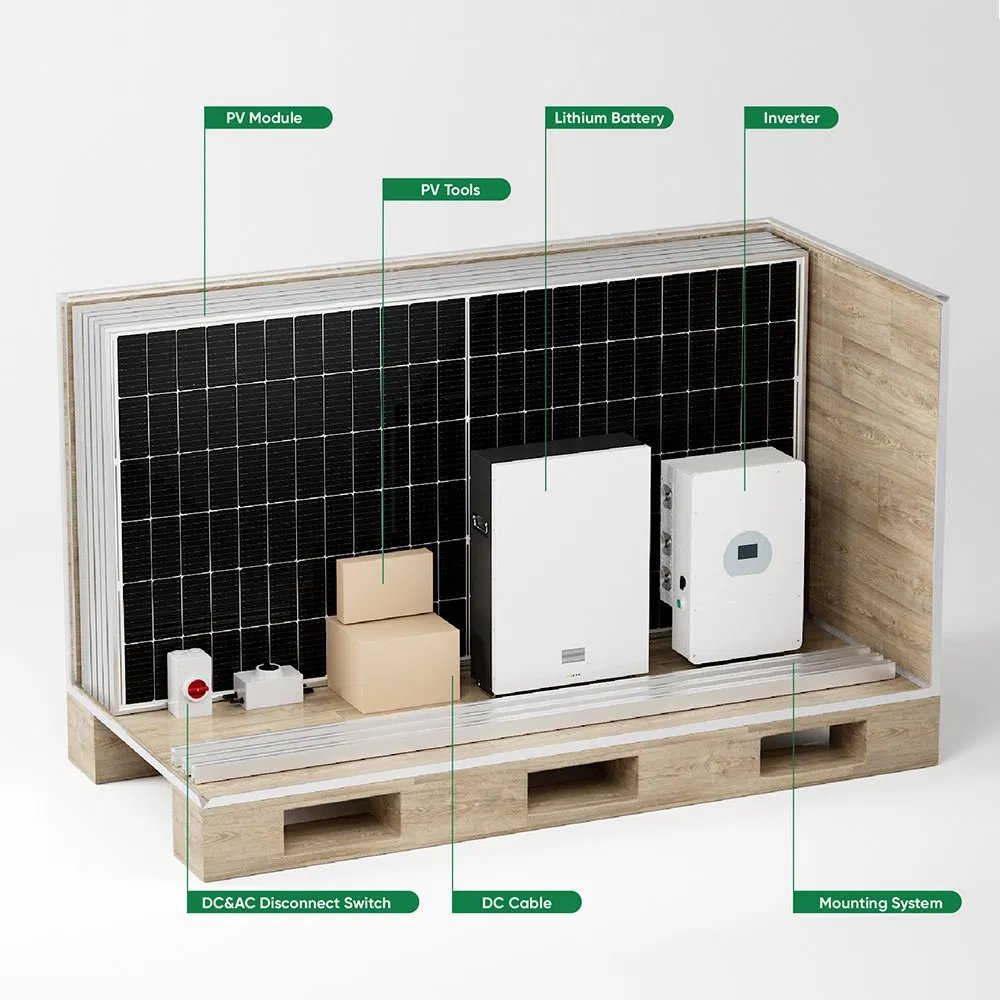

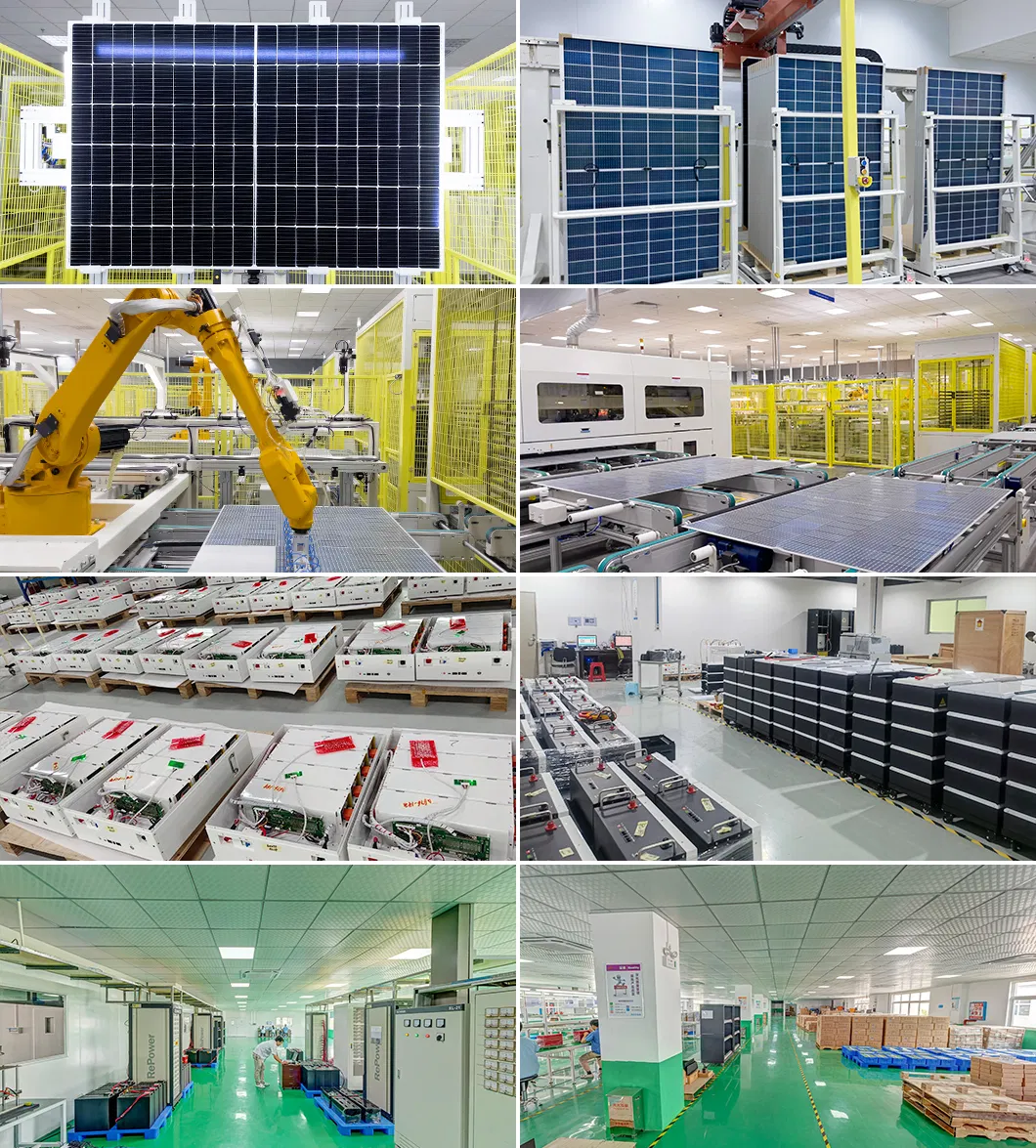

Packaging & Factory View

Frequently Asked Questions

1. What is the difference between a hybrid and an off-grid solar system? A hybrid system is connected to the grid but uses batteries to store excess energy. An off-grid system is entirely independent of the utility grid, relying solely on solar and battery storage.

2. How long do the LiFePO4 batteries last? Our LiFePO4 batteries are designed for 15-20 years of service life, offering over 6000 cycles at standard discharge depths.

3. Can I expand the system capacity later? Yes, the system is scalable. Both the inverter parallel capability and the modular battery design allow for easy capacity upgrades as your energy needs grow.

4. Is the system compatible with different roof types? Absolutely. Our PV mounting systems are customized based on your specific installation requirements, whether it is a flat roof, pitched tile, or ground-mount setup.

5. What kind of maintenance does the system require? Solar systems require very little maintenance. Periodic cleaning of the panels to remove dust and checking the monitoring app for system alerts is generally sufficient.

6. Is remote monitoring available? Yes, our systems include a monitoring module that allows you to track energy production and battery status in real-time via a smartphone app or web portal.
