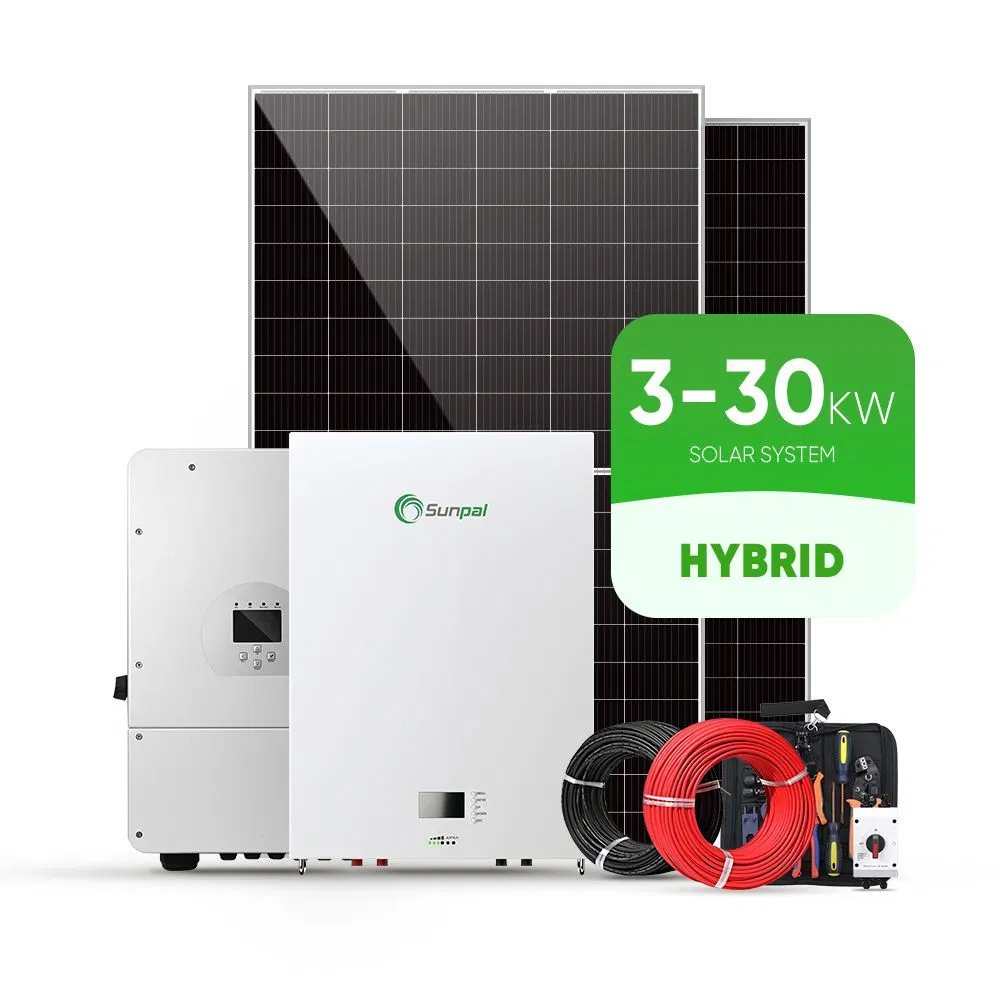

Sunpal Solar Battery Storage Systems 3Kw 5Kw 10Kw 12Kw 30Kw 3 Phase Complete Inverter Residential Hybrid Solar System Kit

1 / 5

Sunpal Solar Battery Storage Systems 3Kw 5Kw 10Kw 12Kw 30Kw 3 Phase Complete Inverter Residential Hybrid Solar System Kit

Customization:	Available
After-sales Service:	Free Warranty
Warranty:	10 Years

Send Inquiry

Product Description

Basic Specifications

Model NO.

SP3-30KW3-HY

Condition

New

Certification

ISO, CE

Application

Home

Specification

Normal, 3KW-30KW

Product Name

Household Hybrid Solar Power System

Controller Type

MPPT

System Type

off-Grid Solar Photovoltaic System

Solar Panel

Mono Crystalline Perc Solar Panel

Inverter

Single Phase/Split Phase/3phase

Battery

Lead Acid/LiFePO4 Lithium Battery

Capacity

50000kits/Year

Packaging & Delivery

Package Size

231.50cm * 112.50cm * 127.50cm

Gross Weight

1228.000kg

Packing Type

Wooden Box

Product Description

Warranty

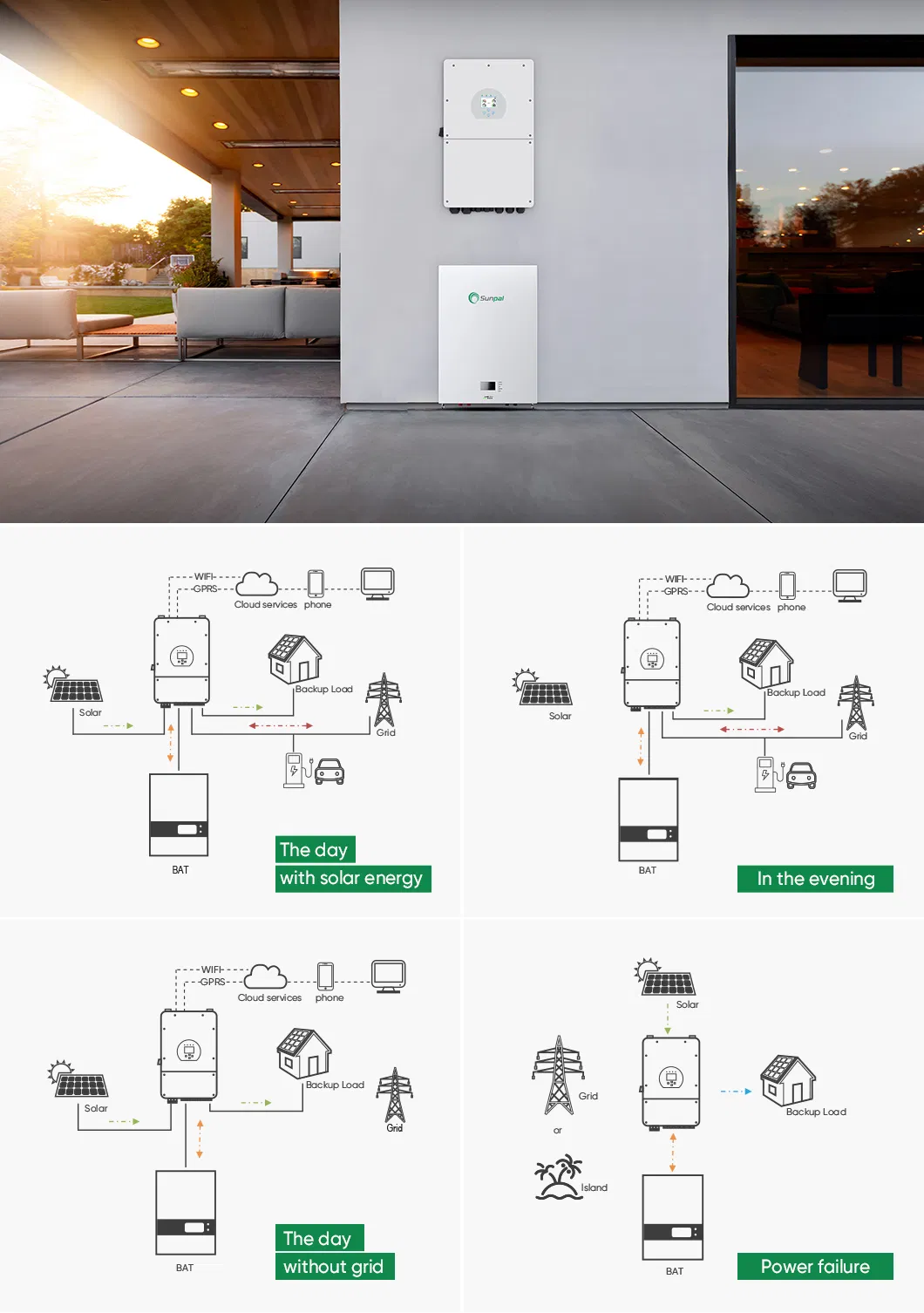

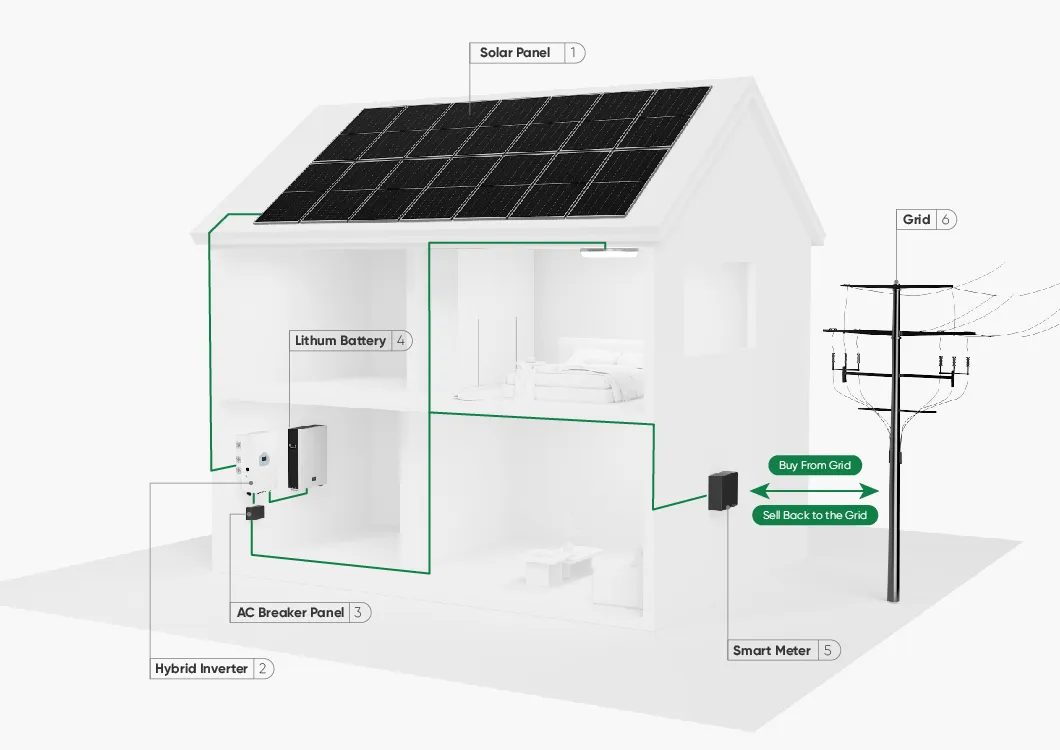

How it works

What's Included (3KW - 10KW)

Model	SP-3KW-HY	SP-5KW-HY	SP-10KW-HY
Mono 550W Solar Panel	6 Pieces	10 Pieces	20 Pieces
DC Disconnect Switch	1 Piece	2 Pieces	3 Pieces
Hybrid Inverter	SUN-3K-SG04LP1-EU	SUN-5K-SG03LP1-EU	SUN-10K-SG04LP3-EU
LiFePo4 Battery	5Kwh	5Kwh	10Kwh

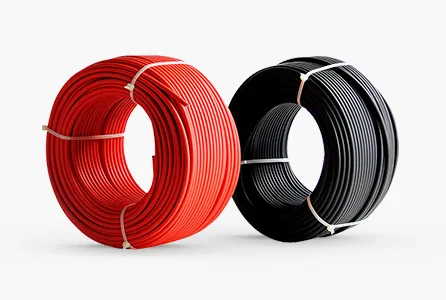

DC Cable 4mm2	100 meter	200 meter	400 meter

What's Included (15KW - 30KW)

Model	SP-15KW-HY	SP-20KW-HY	SP-30KW-HY
Mono 550W Solar Panel	30 Pieces	40 Pieces	60 Pieces
DC Disconnect Switch	4 Pieces	6 Pieces	9 Pieces
Hybrid Inverter	SUN-5K (3 Pcs)	SUN-10K (2 Pcs)	SUN-10K (3 Pcs)
LiFePo4 Battery	15Kwh	20Kwh	30Kwh
DC Cable 4mm2	600 meter	800 meter	1000 meter

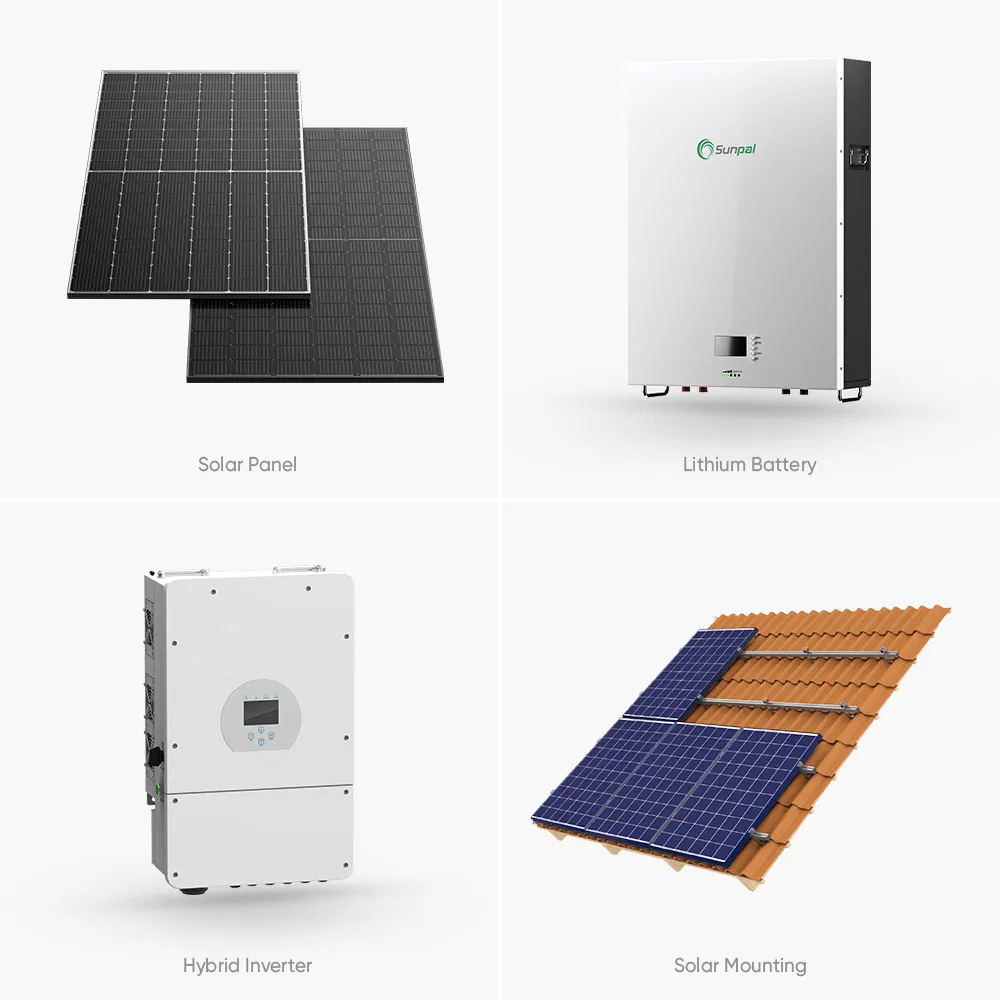

System Components

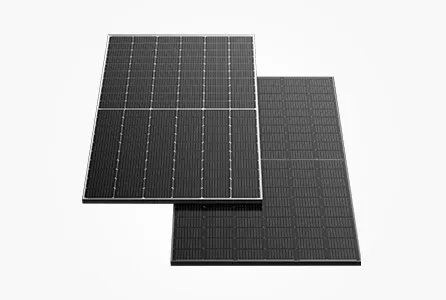

Half Cut Mono 550W Solar Panel

Peak Power Watts: 550W
Max Voltage: 42.06V | Max Current: 12.84A
Dimensions: 2279x1134x35mm | Weight: 26.9 kg

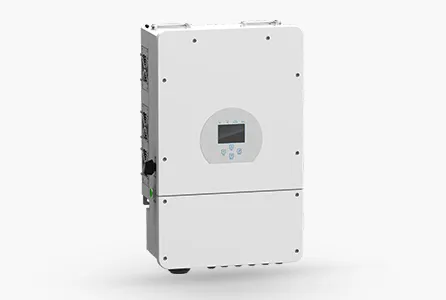

Hybrid Solar Inverter

48V low voltage battery support. 6 time periods for charging/discharging. Max charging current 240A. Supports up to 10pcs in parallel.

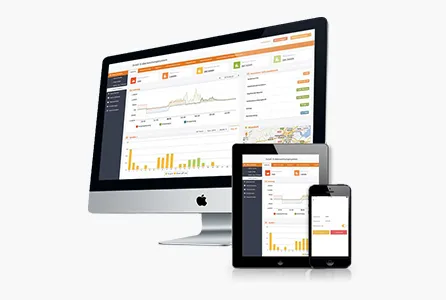

Smart Monitoring System

Supports one-click installation. Safe operation with traceable logs. Full lifecycle data storage for security and reliability.

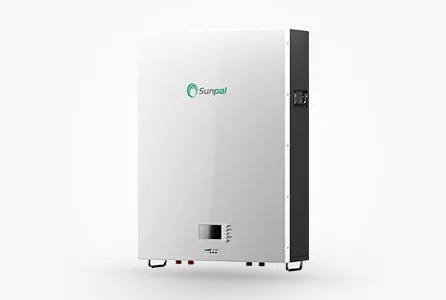

Wall Mounted LiFePo4 Battery

15-20 years design life. Up to 6000+ cycles. Scalable modular design with high-quality built-in BMS for safety.

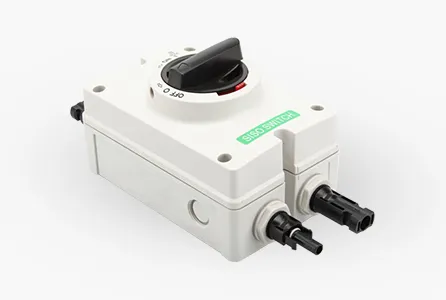

DC & AC Disconnect Switch

IP66 Rating. Rated Voltage: 1000VDC. Connection Types: M20, M25, MC4. Rated Current: 16A/20A.

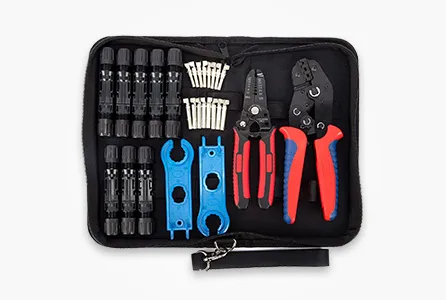

Professional PV Tools

Includes Wire Cable Cutter, Stripper, MC4 Crimper, and Assembly/Disassembly tools for efficient installation.

Factory & Project Cases

World-Class Solar Manufacturing

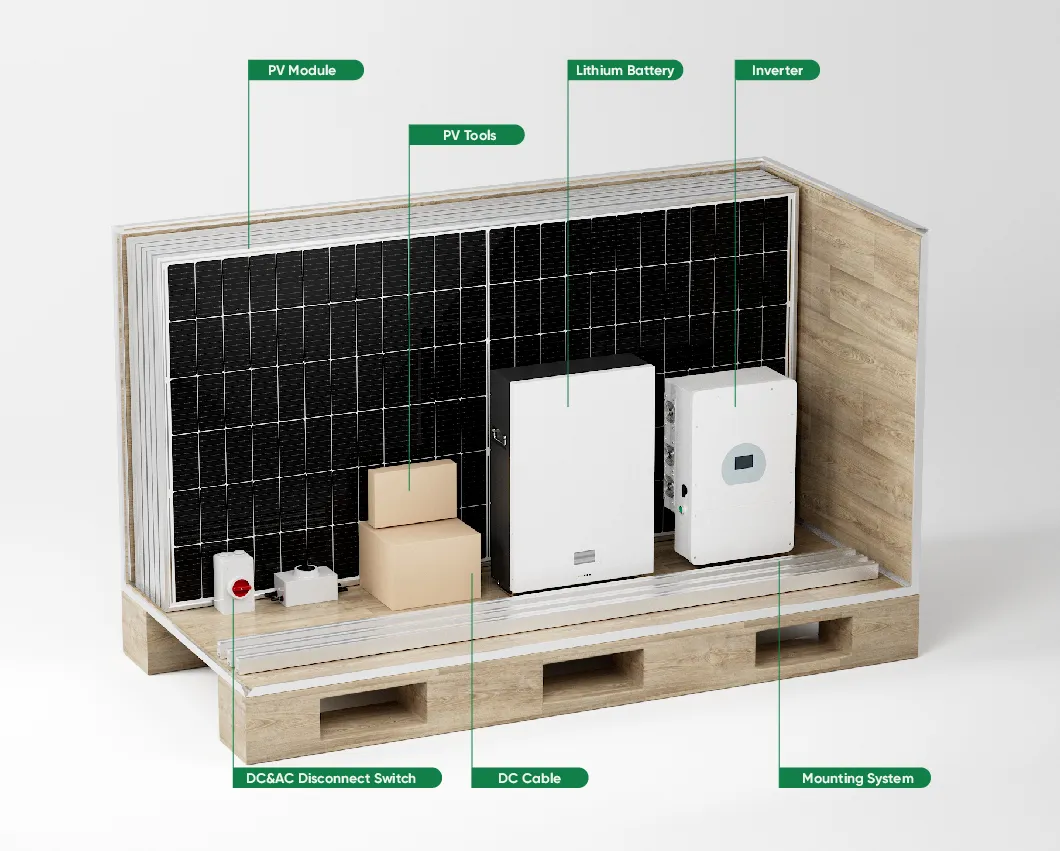

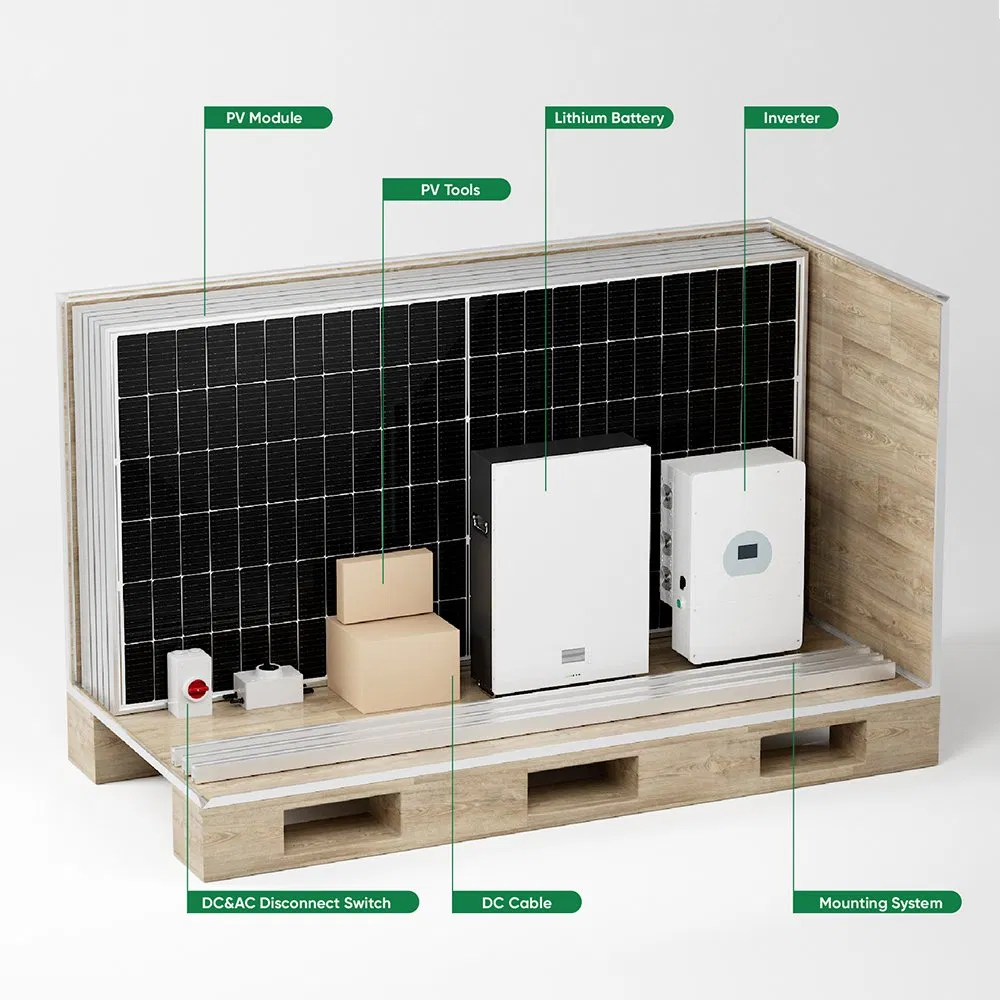

Product Packaging

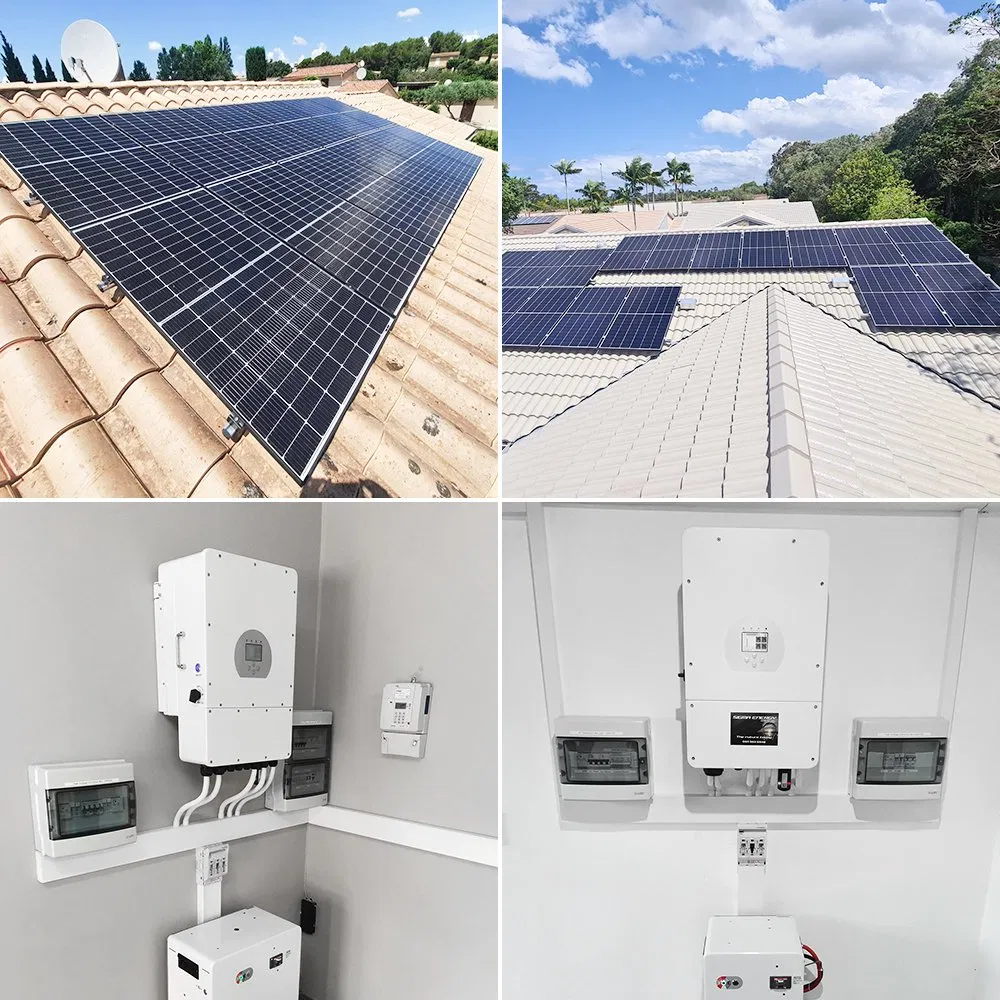

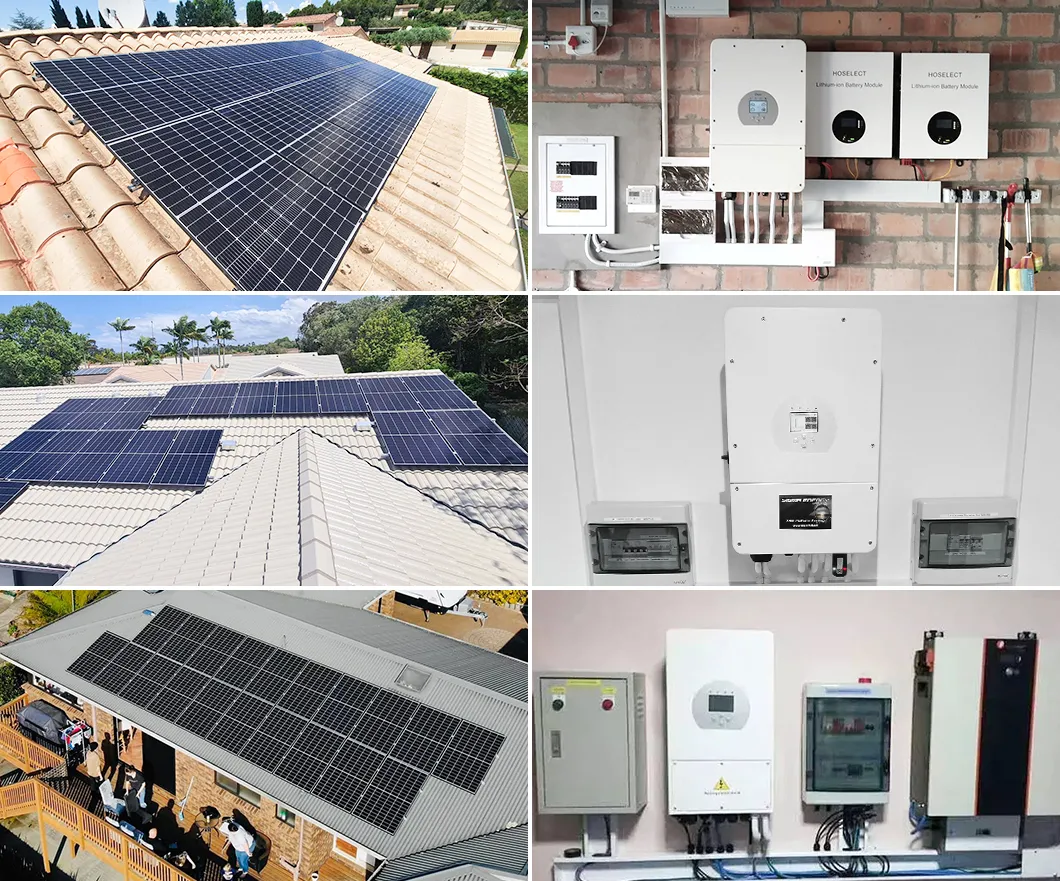

Global Project Cases

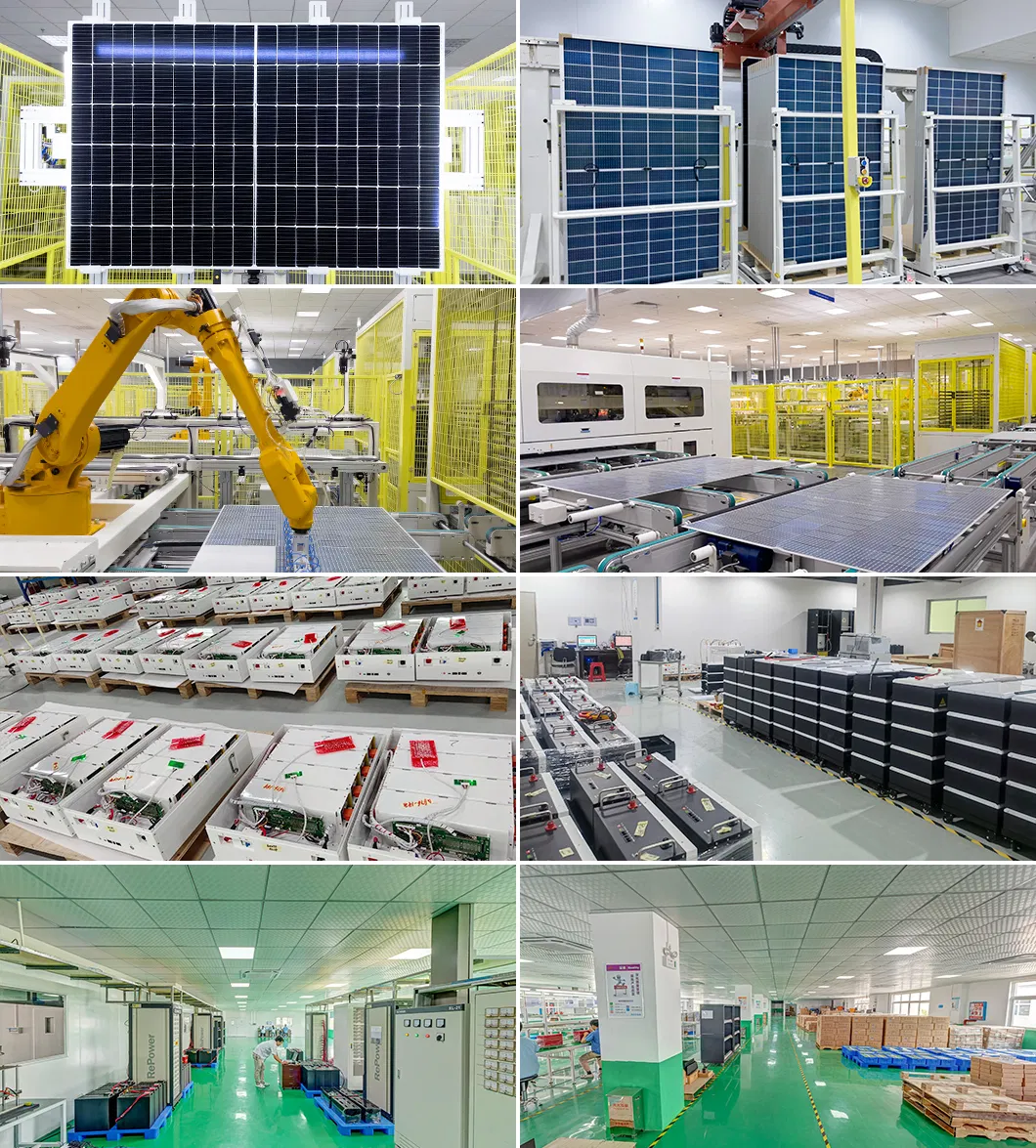

Production Facility

Frequently Asked Questions

What is the main advantage of a hybrid solar system?

A hybrid system combines the benefits of on-grid and off-grid systems, allowing you to store excess solar energy in batteries for use at night or during power outages while still being connected to the utility grid.

How long does the LiFePO4 battery last?

The LiFePO4 batteries are designed for a 15-20 year lifespan with over 6000 cycles, providing a much higher safety profile and longer life compared to standard lead-acid batteries.

Can I expand my system capacity in the future?

Yes, the system is modular. You can add more solar panels or parallel additional battery modules and inverters (up to 10 units) to meet increasing energy demands.

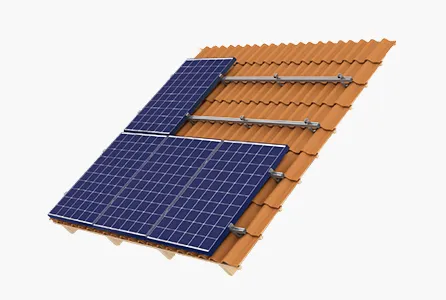

Is the mounting system compatible with my roof type?

We provide customized mounting structures for both rooftop (tile, metal, flat) and ground installations to ensure a secure and durable setup.

How can I monitor the energy production?

The system includes a smart monitoring gateway that allows you to track real-time energy production, battery status, and consumption via a mobile app or web portal.

Does the kit include all necessary installation components?

Yes, the kit is complete with solar panels, hybrid inverter, batteries, DC/AC switches, cables, connectors, and professional PV installation tools.
