1500kw Mega Charging System with Fast EV Charging System for Bus Truck

Basic Specifications

Model NO.

MS08A-12

Location

Public Use

Charging Interfaces

One Pile with Multiple Charges

Start Mode

RFID, Credit Card, Mobile Remote

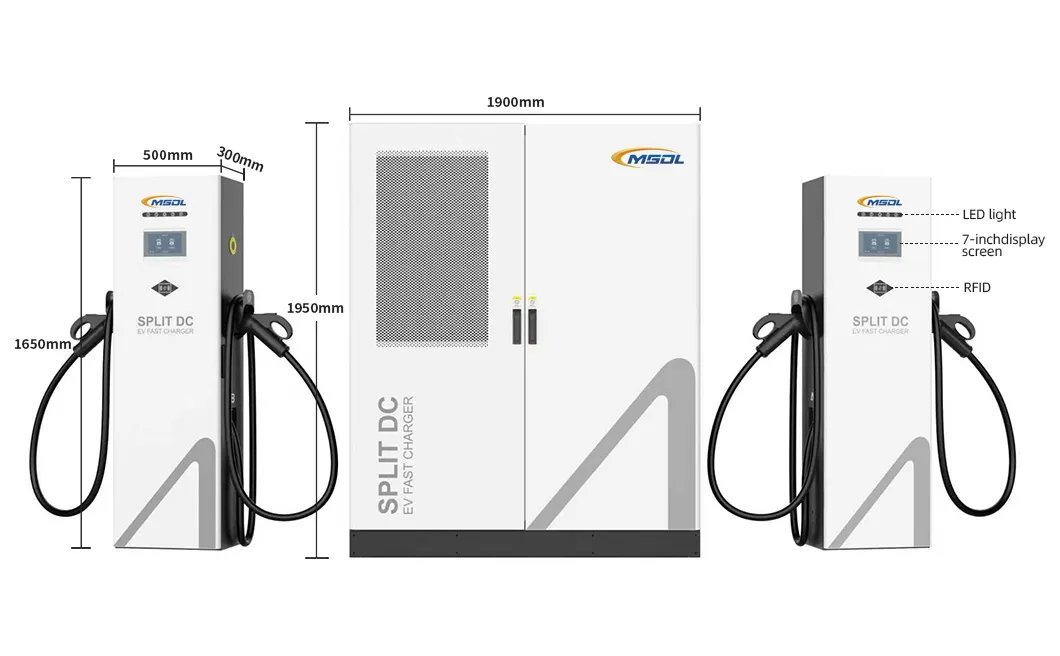

Dimensions

900mm X 700mm X 1900mm

Weight

440kg

Cable Length

5m-7m

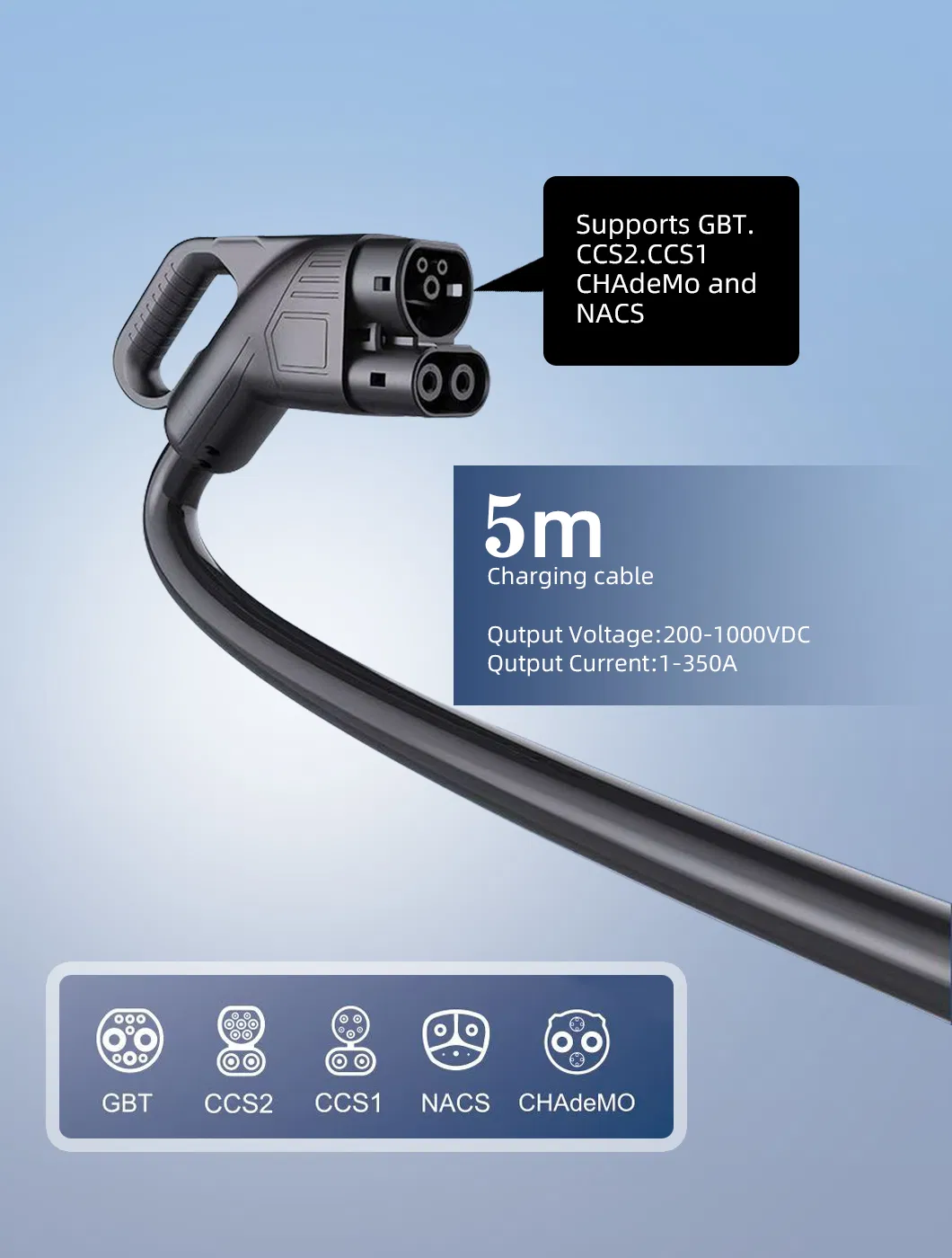

Connectors

Gbt, CCS2, CCS1, Chademo, Nacs

Input Voltage

400VAC / 480VAC (3p+N+PE)

Output Voltage

200 - 1000VDC

Rated Power

240-480kw

Protection

IP54 IK10

Product Description

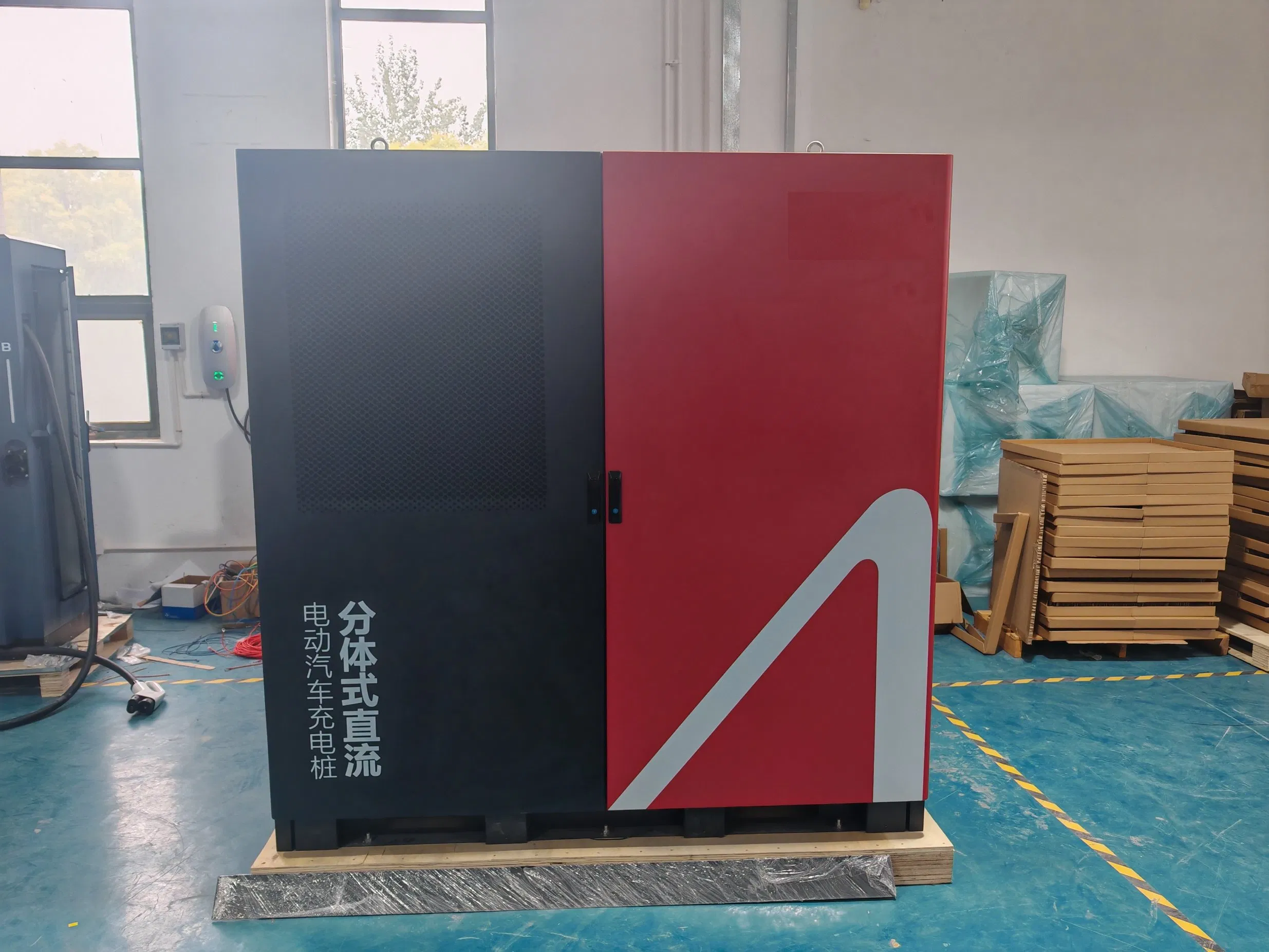

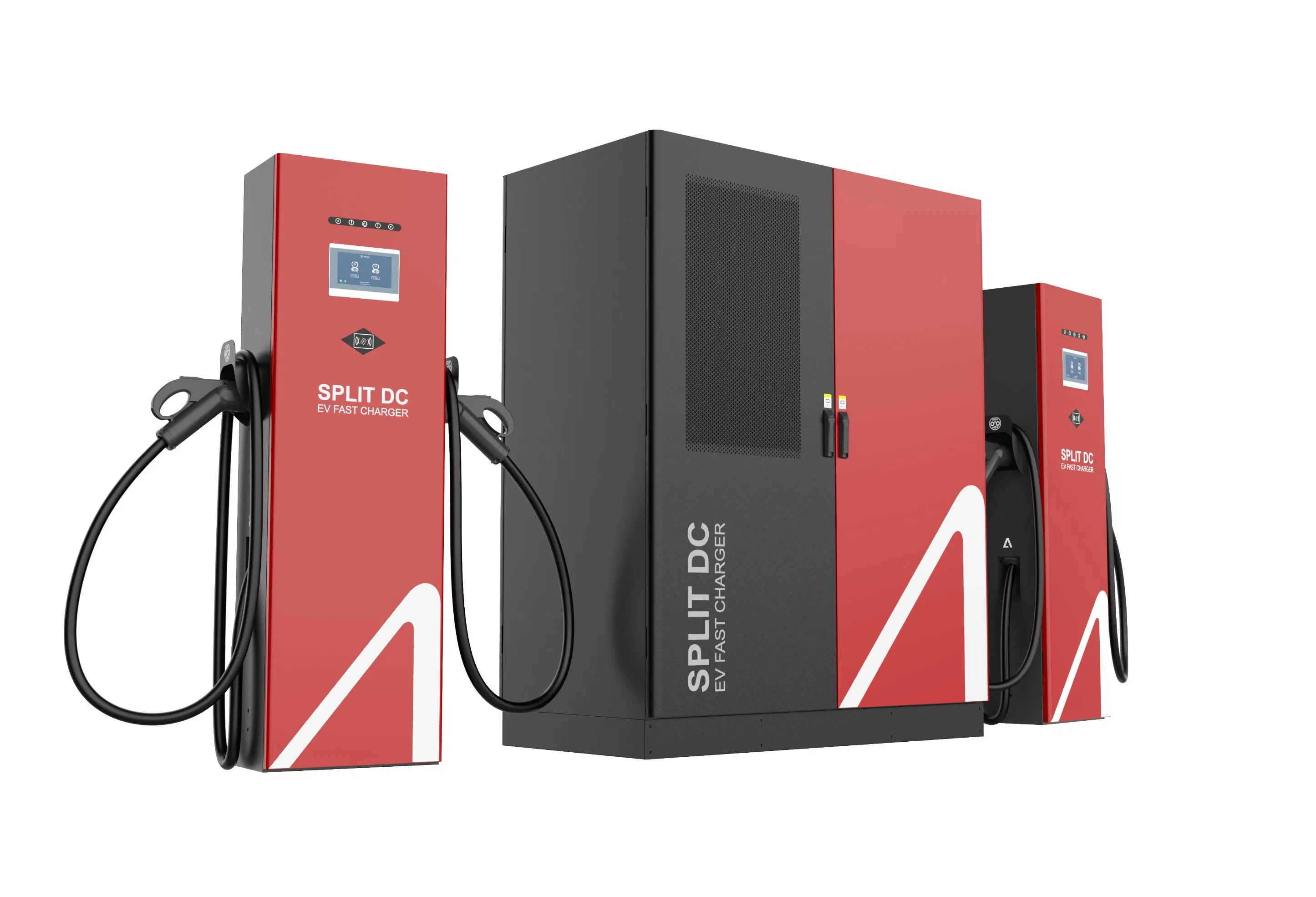

240kW-480kW High-Power Commercial/Heavy-Duty Truck Charging Station

Our newly launched next-generation ultra-high-performance DC charging station is a milestone product born to meet the urgent demands of the commercial electric vehicle sector. It is not merely a charging device but a core power engine driving green transformation in logistics, engineering, and specialized operations.

The design philosophy embraces "functional aesthetics," featuring a rugged and resolute industrial style. With 12 high-efficiency power module slots, the architecture allows for exceptional scalability, smoothly expanding up to 480kW to protect infrastructure investments.

Technical Specification

Physical	Dimensions (L x D x H)	900mm x 700mm x 1900mm
	Weight	440kg
	Connectors	GBT, CCS2, CCS1, CHAdeMO, NACS
Electrical	Input Voltage	400VAC / 480VAC (3P+N+PE)
	Output Voltage	200 - 1000VDC
	Rated Power	240-480kW
	Peak Efficiency	≥96%
Environment	Operating Temp	-30°C to 75°C
Environment	Ingress Protection	IP54 \|\| IK10

Frequently Asked Questions

Q1. What is the standard warranty for the charging station?

A: We offer a warranty period of 12-60 months. During this time, we provide full technical support and free replacement parts for any manufacturing issues.

Q2. What are the available power output options?

A: We can produce a wide range of power outputs from 20kW up to 1.5MW to meet various commercial and industrial needs.

Q3. How is the quality of the goods ensured before delivery?

A: We perform 100% testing on all goods before they leave the factory to ensure reliability and safety.

Q4. What is the typical delivery timeframe?

A: Generally, delivery takes between 5 to 25 working days after receiving advance payment, depending on the order quantity and specific items.

Q5. What is the difference between a Movable Charger and a Wallbox?

A: The primary difference is the application scenario. Portable/Movable chargers are designed for flexibility and temporary power top-ups, while wall-mounted chargers are fixed installations for permanent locations.

Q6. What are the standard terms of packing?

A: We use standard wooden box packaging or standard carton packaging to ensure the safety of the equipment during transit.
