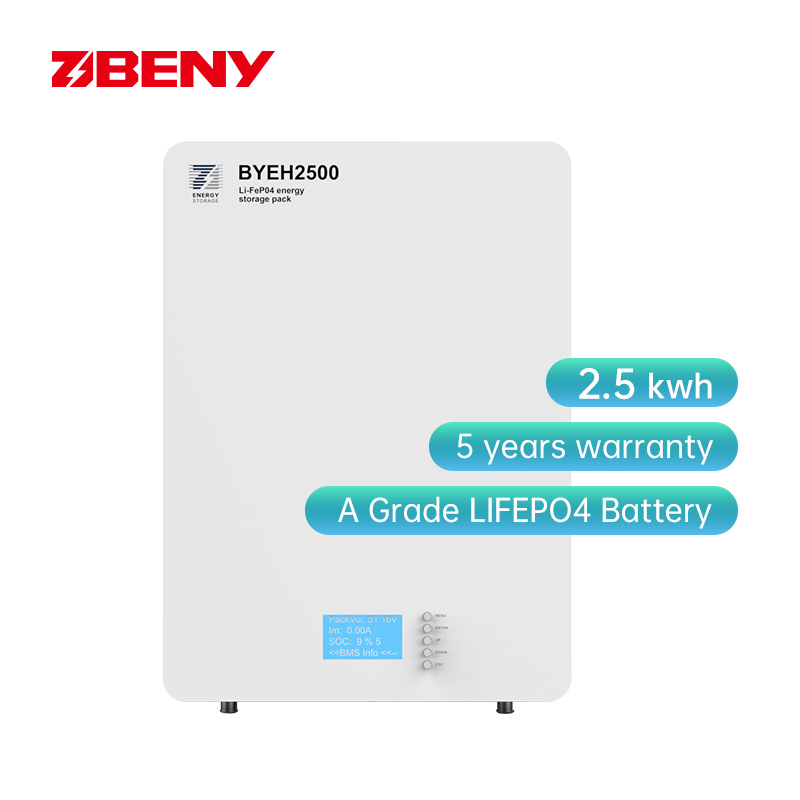

Beny 48V 2.5 Kwh 51.2V 50ah Wall-Mounted Lithium Ion Battery System

1 / 5

Beny 48V 2.5 Kwh 51.2V 50ah Wall-Mounted Lithium Ion Battery System

Customization:	Available
Weight:	29 Kg
Warranty:	5 Years

Send Inquiry

Product Description

Product Overview

Basic Info.
Model NO.	BYEH-2500
Cycle Life	5000
Nominal Capacity	52 Ah
Nominal Energy	2.66 Kwh
Nominal Voltage	51.2 V
Internal Impedance	≤20 MΩ
Operating Voltage	44.8 V ~ 57.6 V
Protection Class	IP54
Communication Function	RS232/RS485/Can
Charging Temperature	0°c ~ 50°c
Discharging Temperature	-20°c ~ 50°c

Why Choose Our Battery System

Top Brand in Protection for Solar PV & Energy Storage

A leading brand producing quality DC protection products and charging stations. Certified by SAA, CB, CE, TUV, UKCA, ISO, and RoHS, providing reliable solutions like AFCI for fire protection and dynamic load balancing.

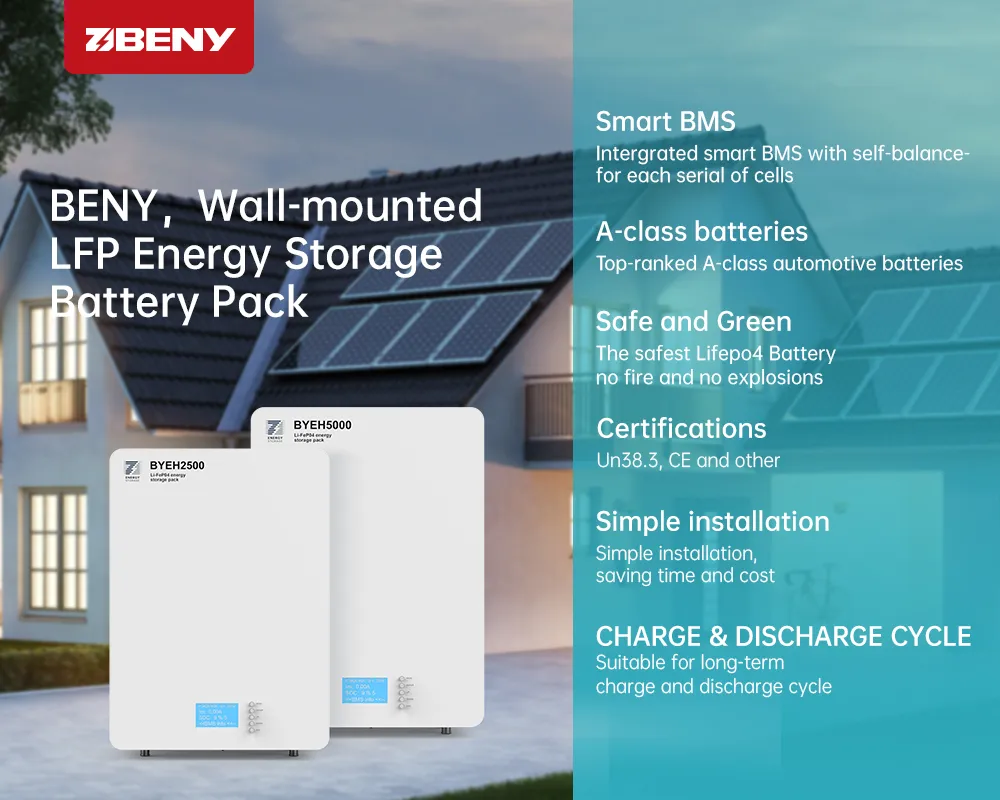

Core Advantages

Top-ranked A-class automotive LiFePO4 cells
Safe and reliable lithium iron phosphate technology
Multiple protection for software and hardware

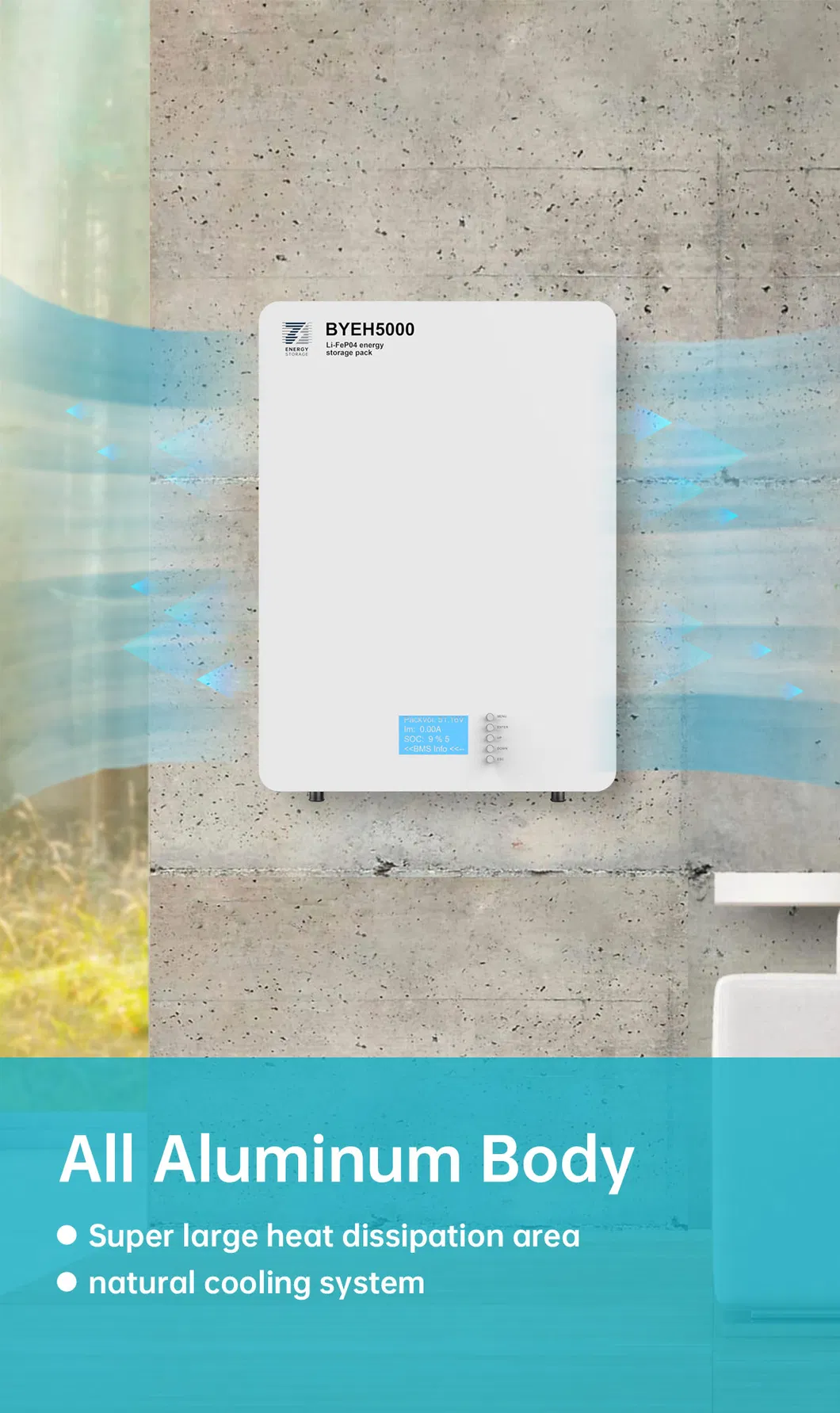

All-aluminum body for superior heat dissipation
Supports up to 15 units in parallel connection
Compatible with multi-brand and multi-model inverters

Technical Specifications

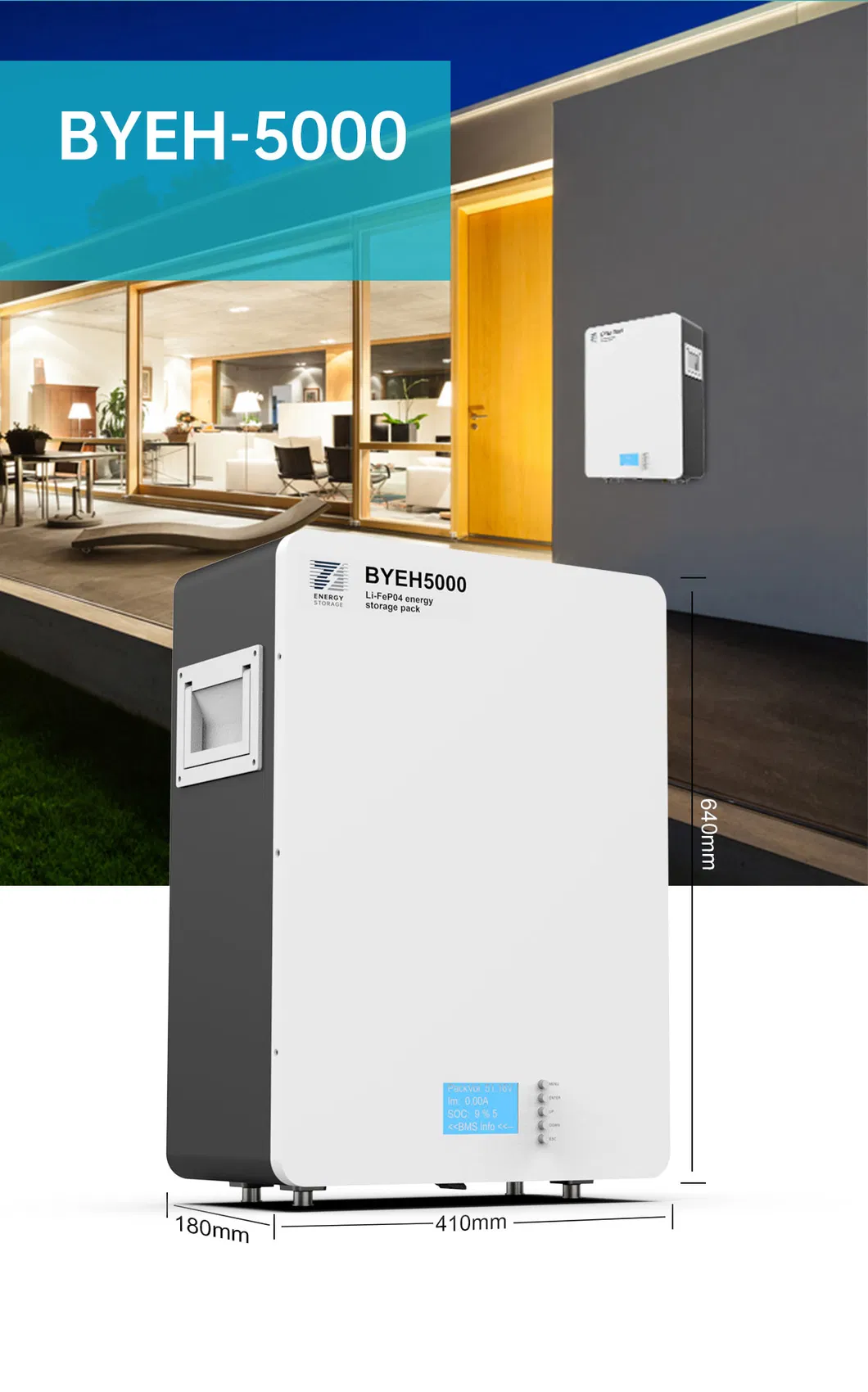

Items	BYEH-2500	BYEH-5000
Nominal energy /kWh	2.66	5.22
Nominal voltage /V	51.2	51.2
Nominal capacity/Ah	52	102
Weight /kg	29	48
Operating voltage /V	44.8-57.6
Max charging/discharging current	1C/1C
Recommended DOD	≤98%

Key Performance Features

⭐ Automotive Grade Safety

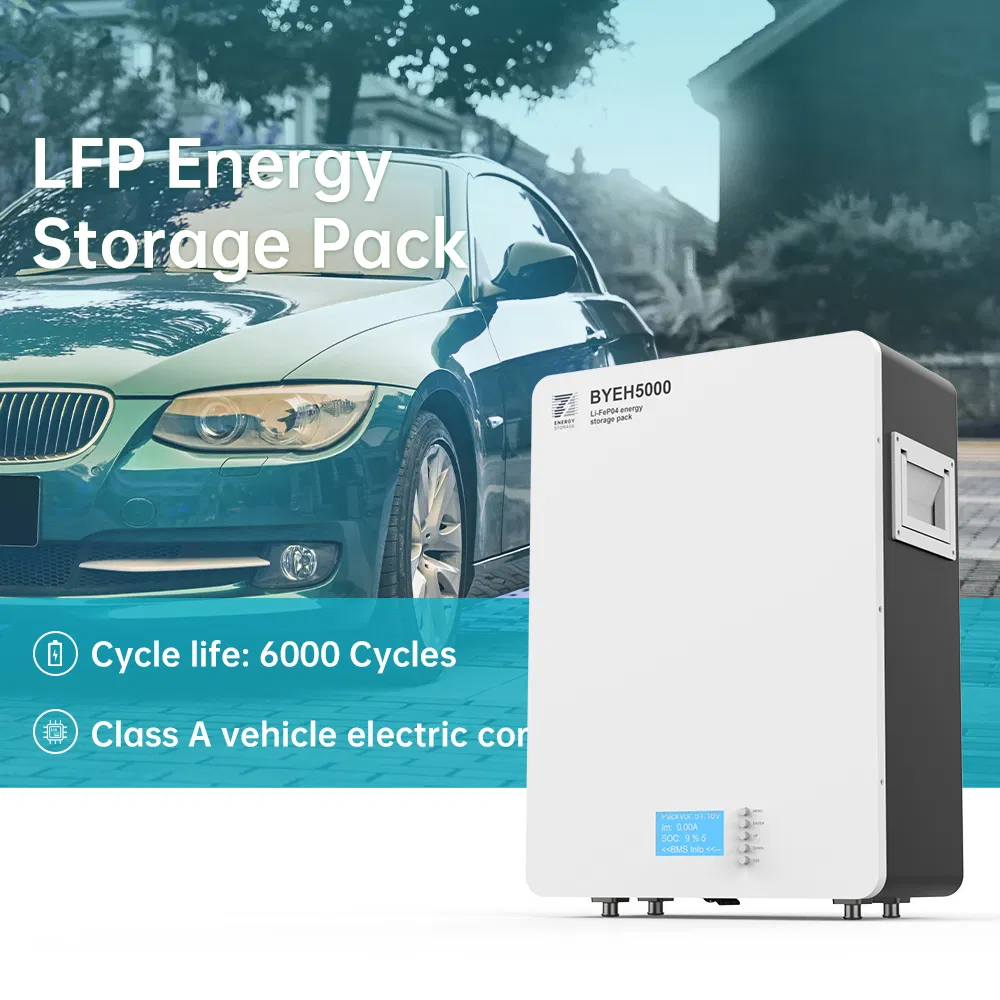

Utilizing Top-ranked A-class automotive LiFePO4 cells ensures greater safety and a longer cycle life, reaching up to 5000 cycles at 80% DOD. The all-aluminum design ensures rapid cooling.

📊 Monitor Digital Display

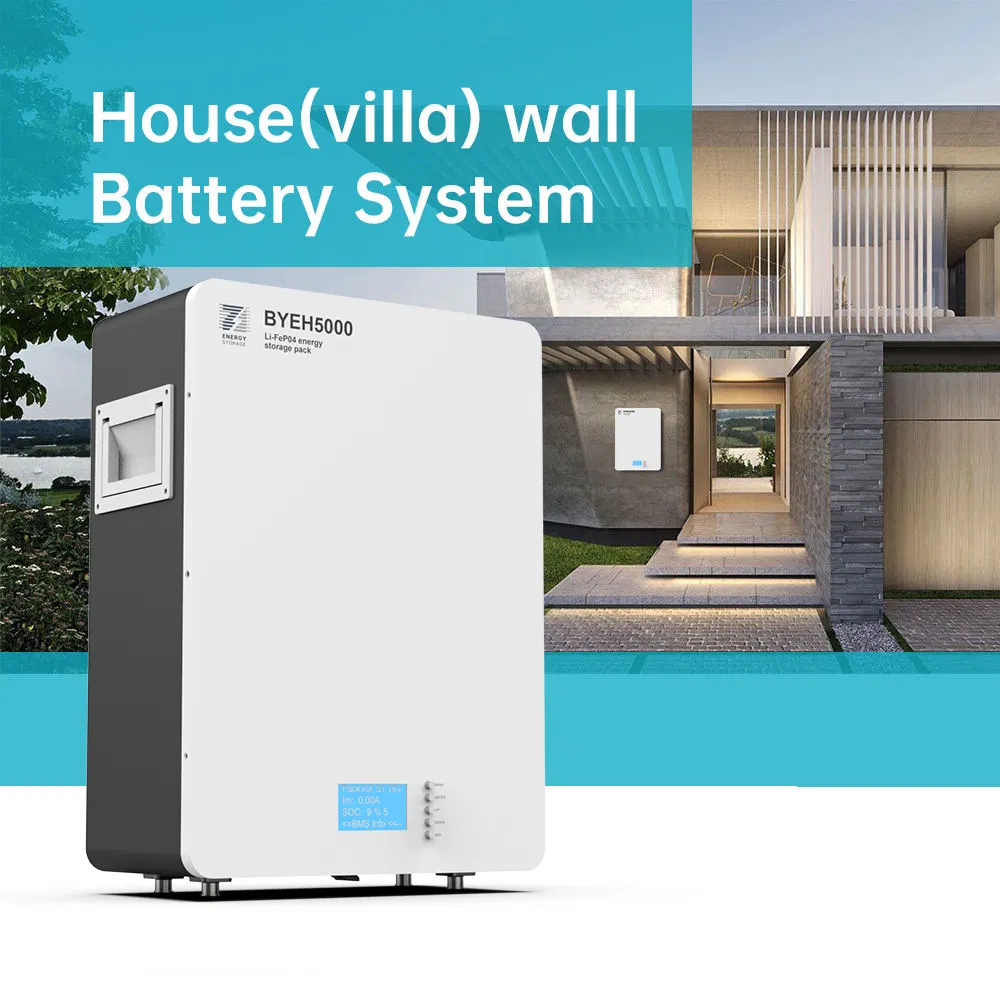

Integrated digital display allows users to monitor real-time voltage, rated capacity, temperature, and BMS parameters for each individual cell series.

⚡ Ultra-Fast Charging

Advanced module design enables ultra-fast charging, capable of reaching full capacity in just one hour while maintaining optimal condition through the intelligent BMS.

Detailed Product Gallery

Global Projects & Exhibitions

Providing instrumental success for photovoltaic, battery storage, and EV charging projects across Australia, Germany, France, Poland, UK, USA, Brazil, and more.

Frequently Asked Questions

Q1: What is the lifespan of this lithium battery? A: The system uses A-class automotive LiFePO4 cells that provide up to 5000 cycles at 80% Depth of Discharge (DOD).

Q2: Can I monitor the battery health in real-time? A: Yes, the battery features a built-in digital display that shows voltage, capacity, temperature, and BMS parameters for all cell series.

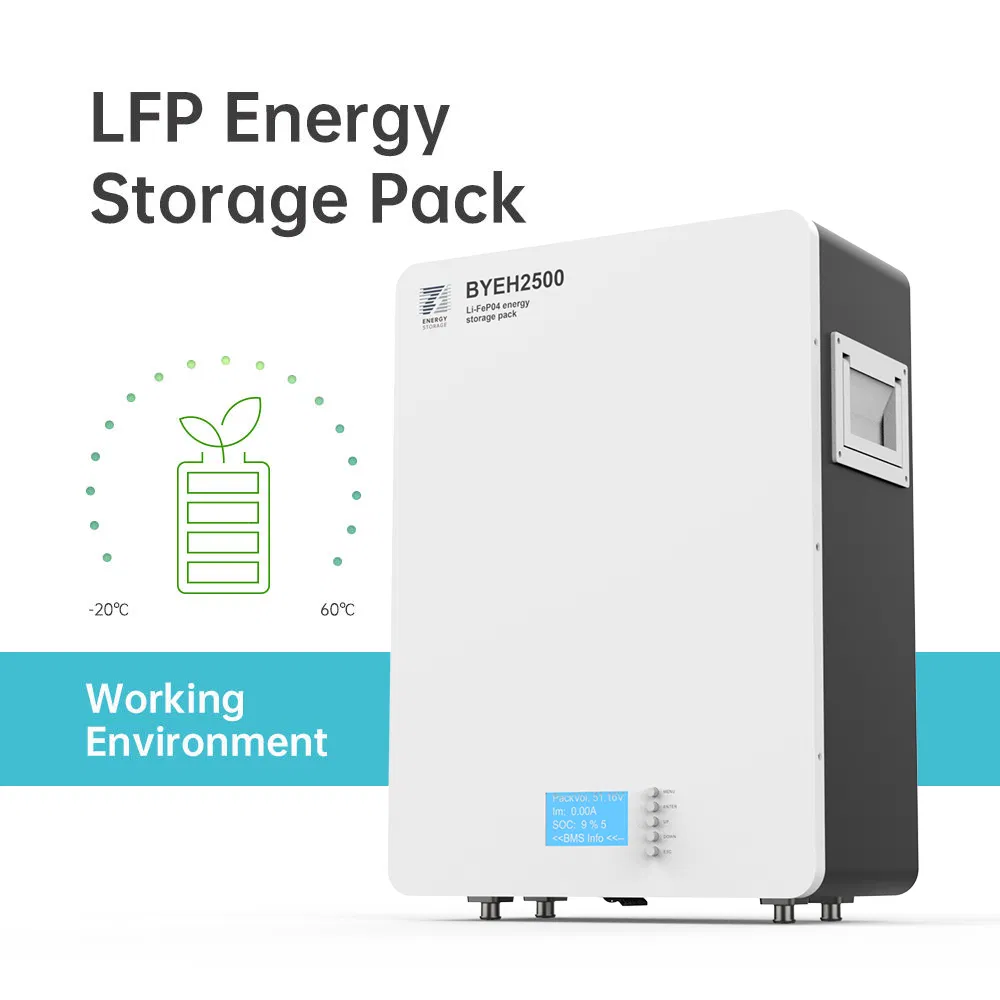

Q3: What is the operating temperature range? A: The battery is designed for wide environments, with a charging range of 0ºC to 60ºC and a discharging range of -20ºC to 60ºC.

Q4: How many units can be connected together? A: This system is highly scalable and supports up to 15 modules in parallel connection to meet larger energy storage needs.

Q5: Is this battery compatible with my existing inverter? A: The system is designed for multi-brand and multi-model inverter compatibility, utilizing standard RS232/RS485/CAN communication protocols.

Q6: What happens if a single cell becomes faulty? A: All cells are rigorously tested with precision electronic instruments. In the rare event of a defect during normal use, the high-quality modular design allows for professional assessment and replacement.
