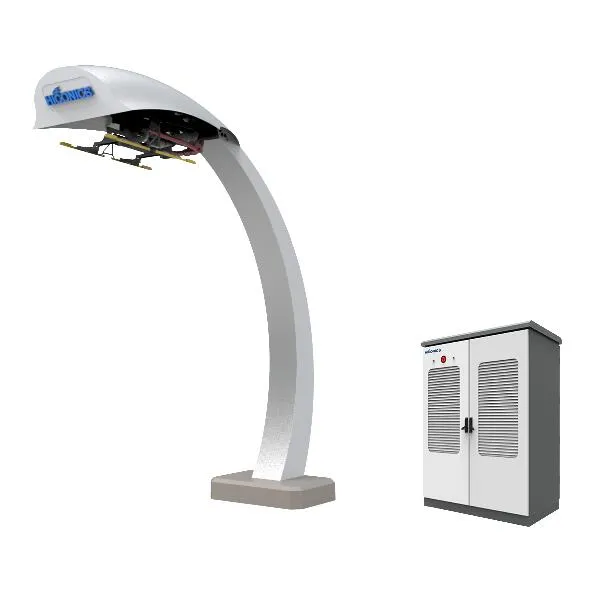

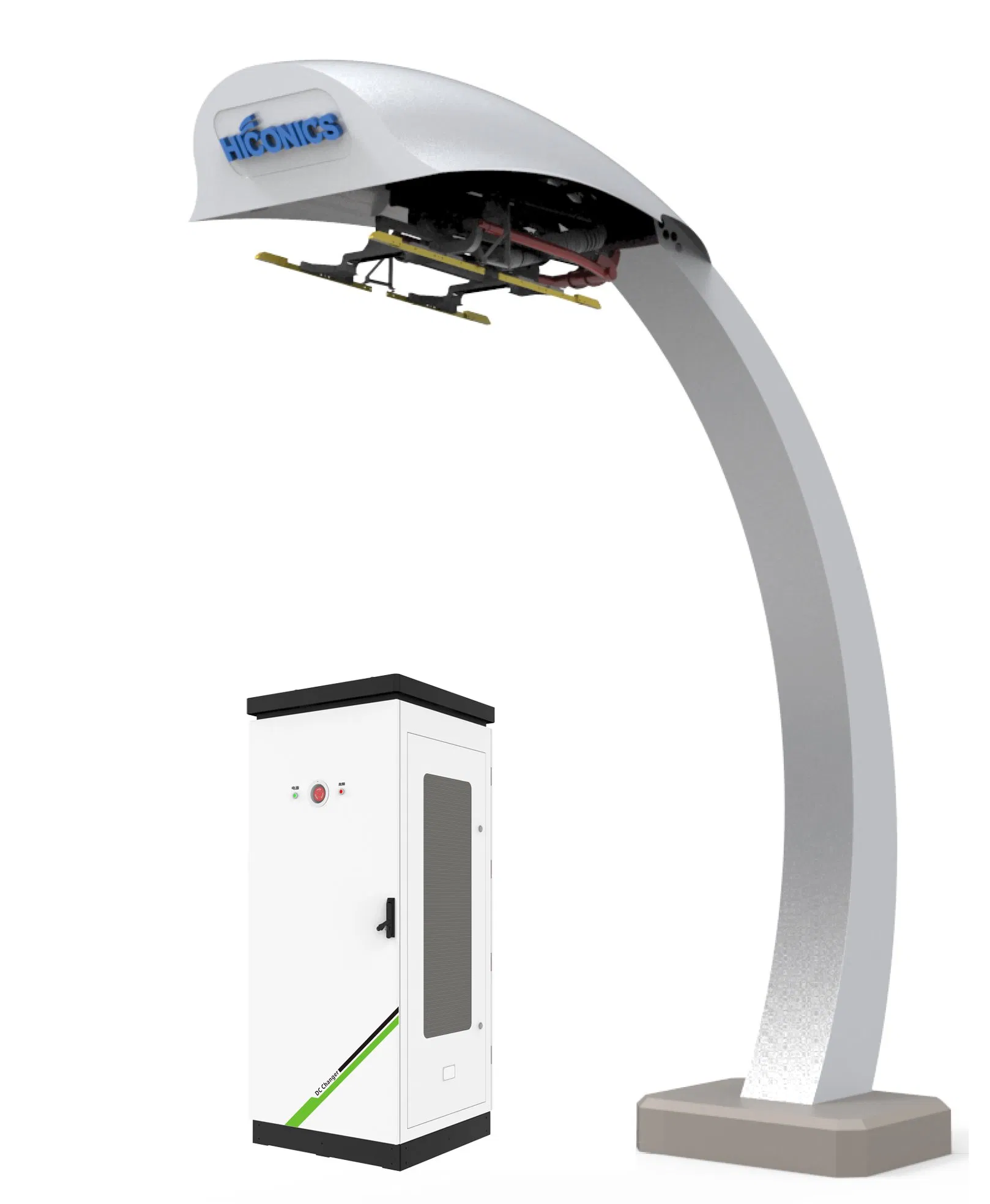

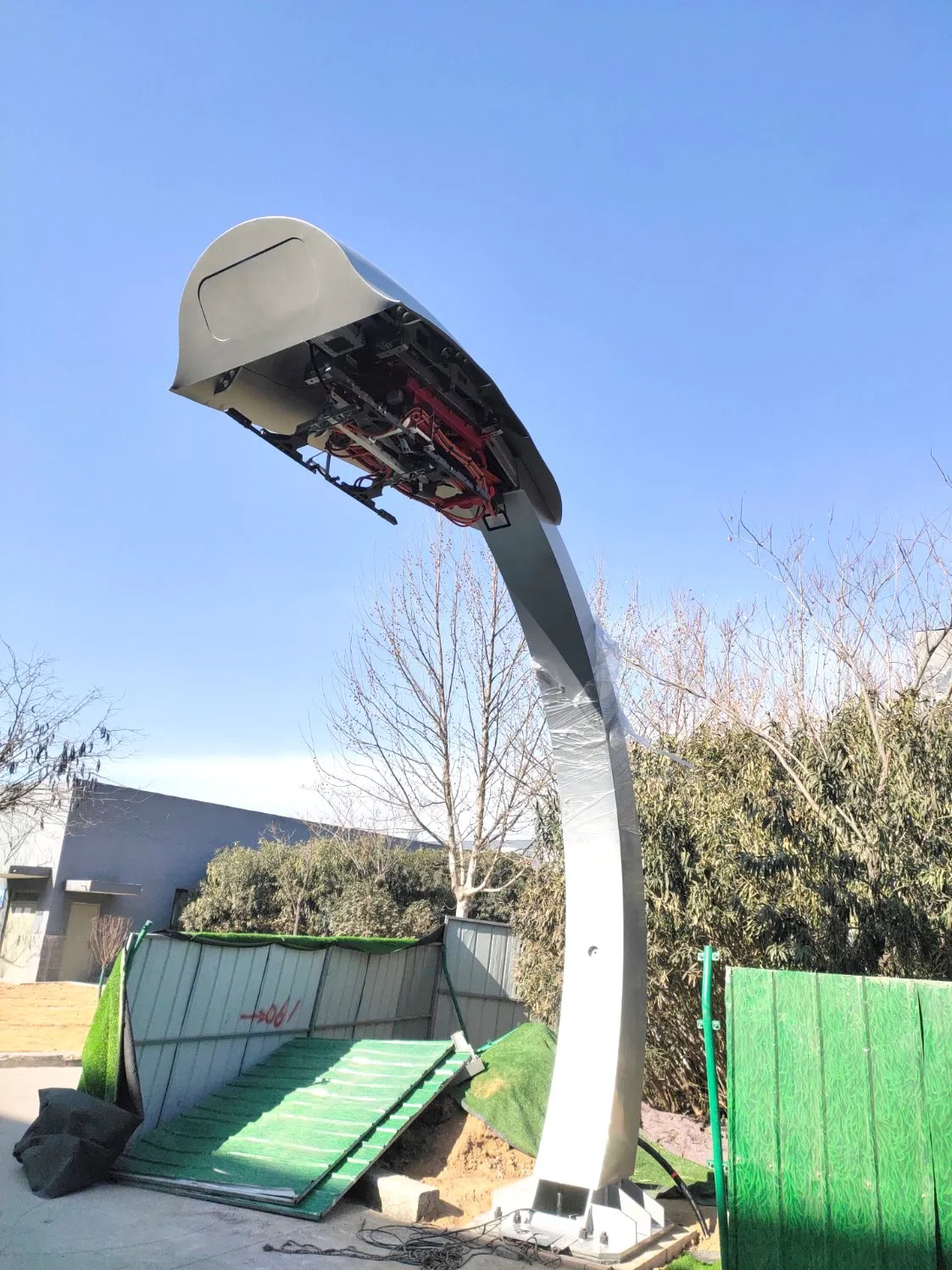

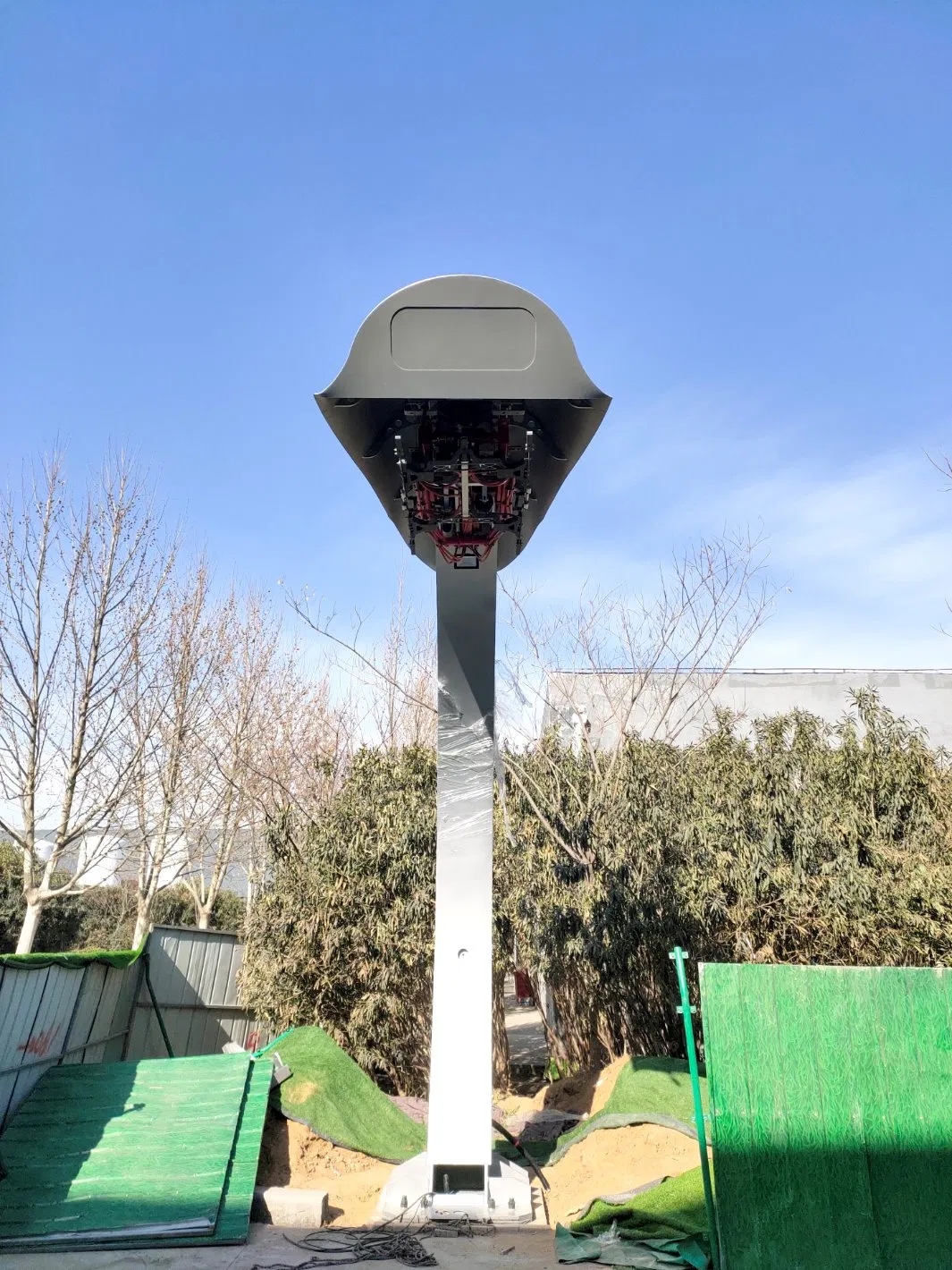

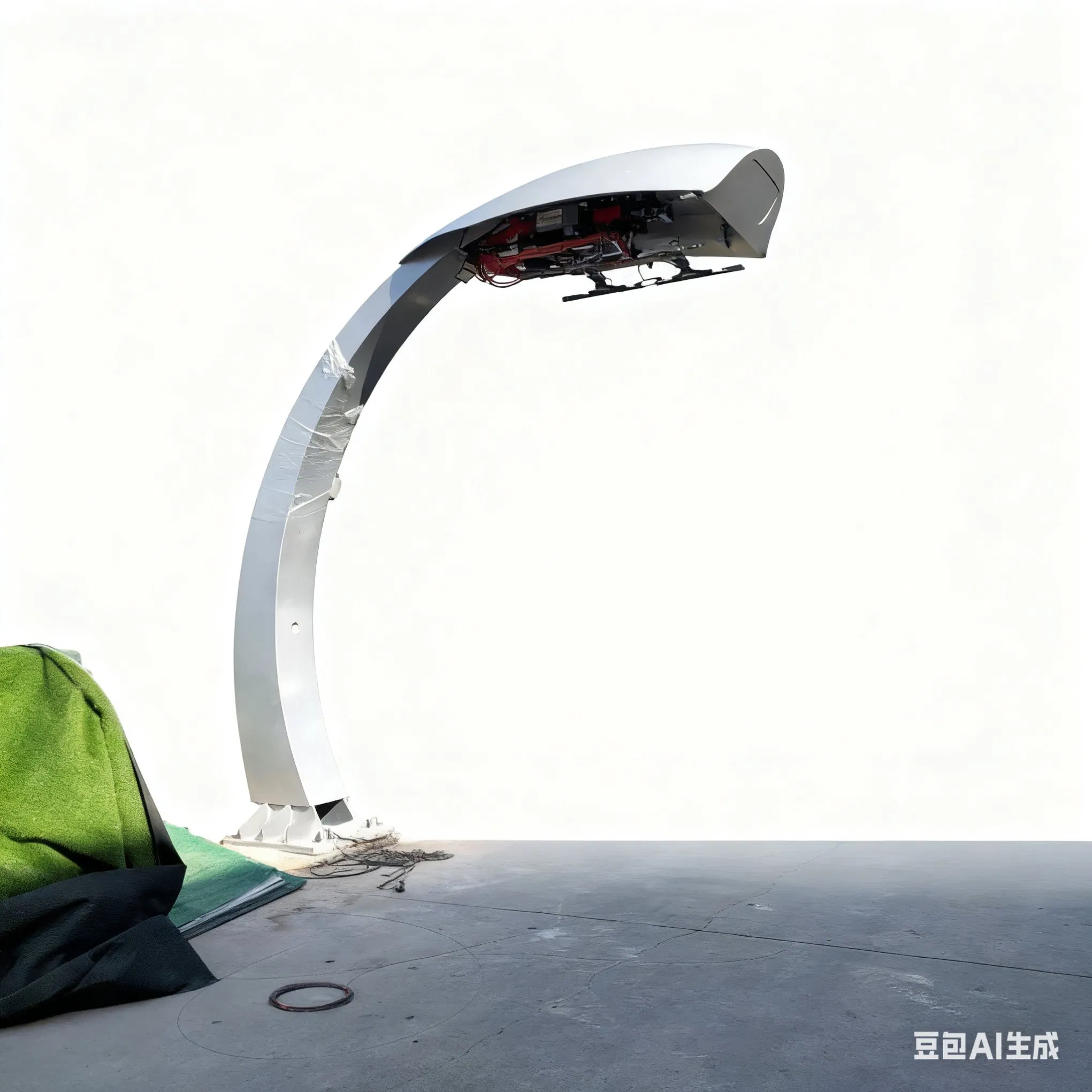

The split type pantograph system is high-power quick charging equipment designed for pure electric buses. The whole charging system is composed of a "charging module cabinet + charging interface," ensuring maintenance convenience and a superior user experience.
Featuring a streamline design and protection class of IP54, the module cabinet handles environment demands with IK10 mechanical strength. It integrates charging interface, HMI, battery charger, communication, and billing systems into a single modular solution perfect for large parking lots and bus stations.
Utilizes PLC carrier communication (ISO15118) for accurate positioning. Maximum output current can reach 800A to satisfy fast charging for commuter bus systems.
Separates power parts from the charging interface. Uses high-quality imported German components for electrical stability and steel frame design for reliability.
Comprehensive protection including overvoltage, undervoltage, short circuit, emergency stop, leakage current, and lightning surge protection.
| Item | Technical Requirements |
|---|---|
| Nominal Voltage | 400VAC±15% |
| Input Current (MAX) | 1100A |
| Rated Output Voltage | 150~1000VDC |
| Rated Output Current | 0~800A |
| Efficiency | ≥0.95 (50% load or above) |
| Power Factor | >0.99 |
| Cooling Method | Force Air Cooling |
| Operating Temperature | -30ºC~+55ºC |
| Communication Protocol | OCPP 1.6 (JSON) Optional |
| Internet/Network | 4G, Ethernet/LAN/WIFI |

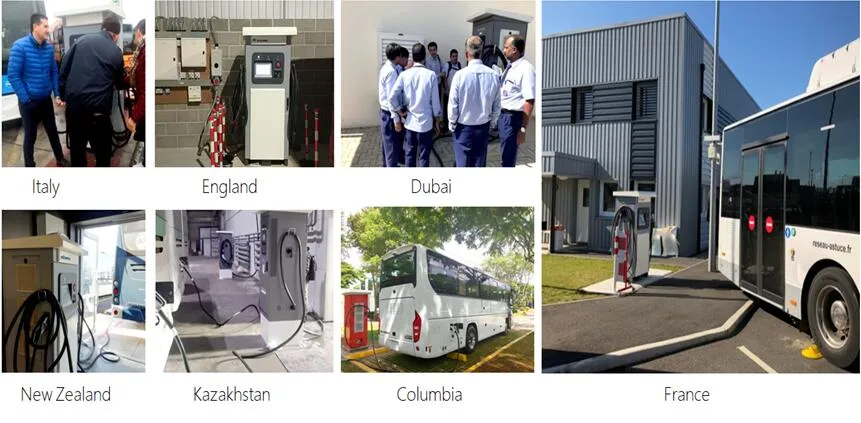

The chargers have been widely applied in over 200 cities across China and approximately 27 countries overseas, including England, France, Australia, and Singapore. The system is backed by abundant experience in actual application and high-quality service.

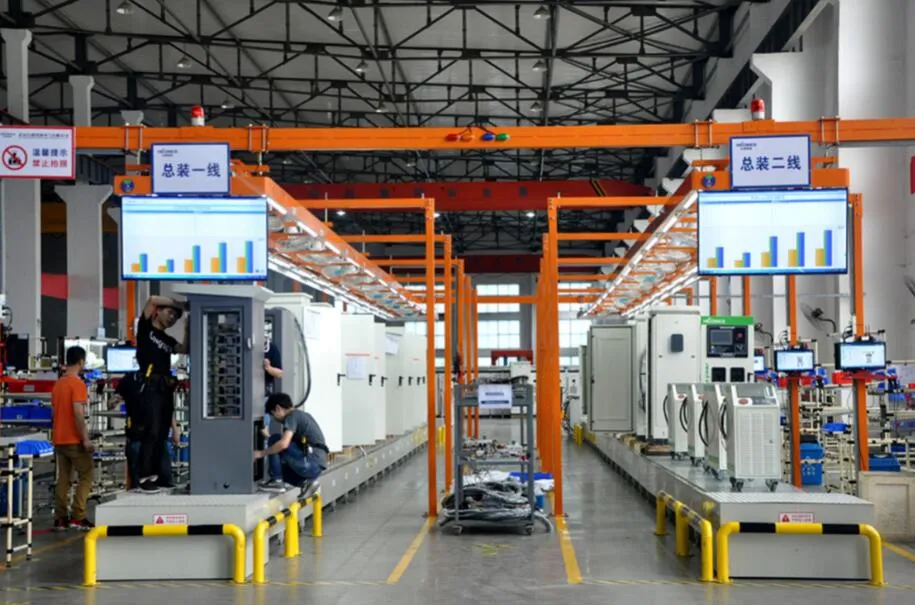

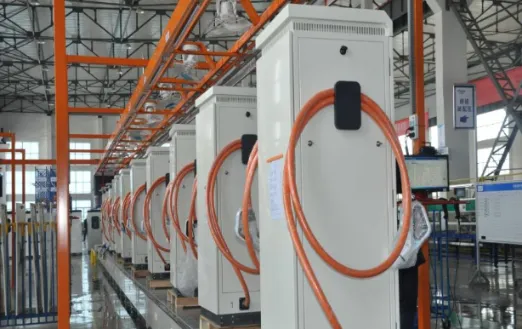

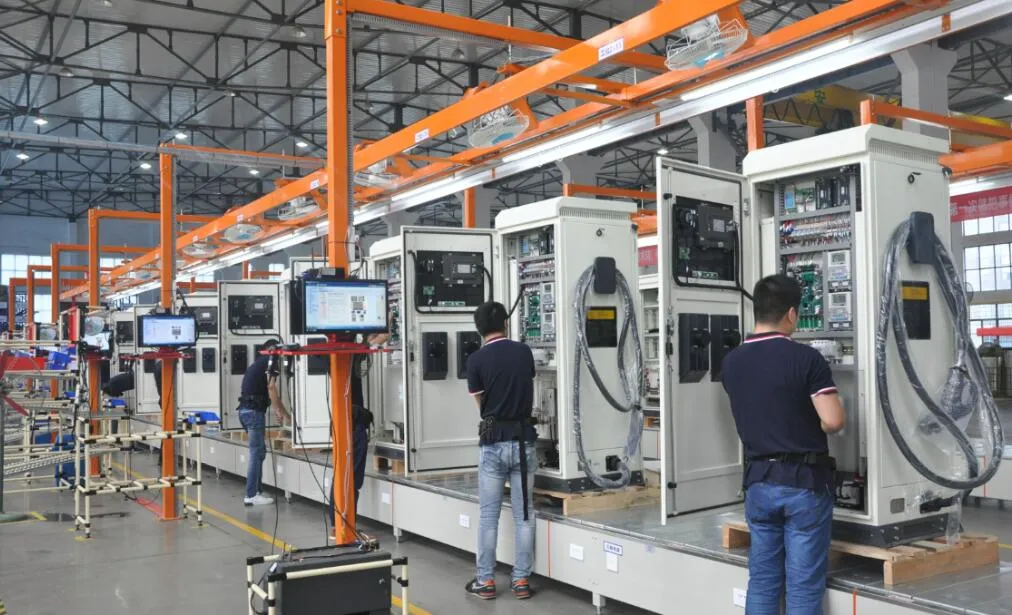

The production facility features advanced automatic assembly lines with real-time data self-collection and diagnosis. Each production line has a capacity of 13 sets per day, with one charging pile finished every 35 minutes.
IEC61851-1, IEC 61851-23, IEC 61851-24, IEC 62196-1, IEC 62196-3, IEC 60364-4-41, IEC 60990, IEC 61439-1, IEC 60664-1, ISO15118-2018.
