Quantum Charge
1 / 5

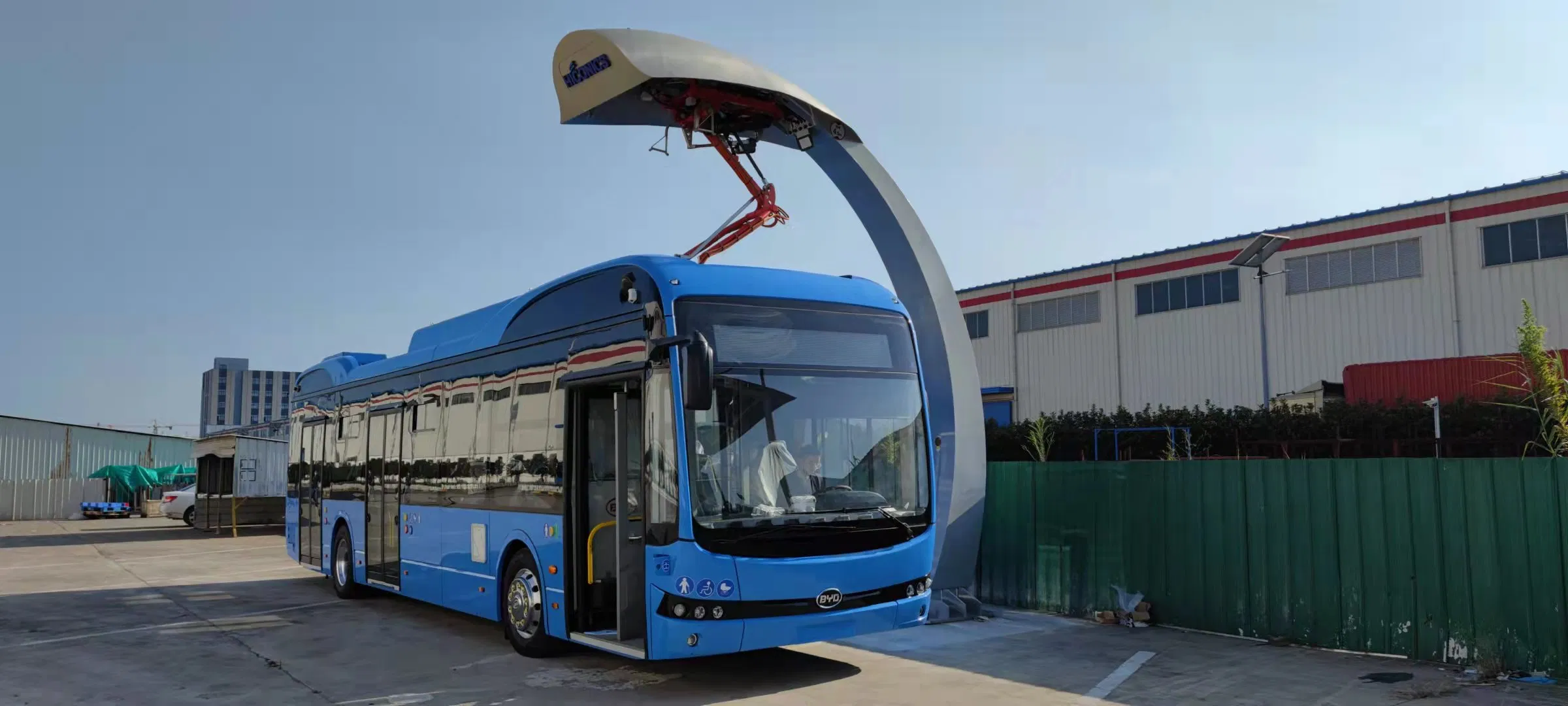

PLC carrier communication is adopted to realize accurate positioning and data interaction during charging between the bus and pantograph, which has greatly improved the charging security and charging connection errors have been prevented also.

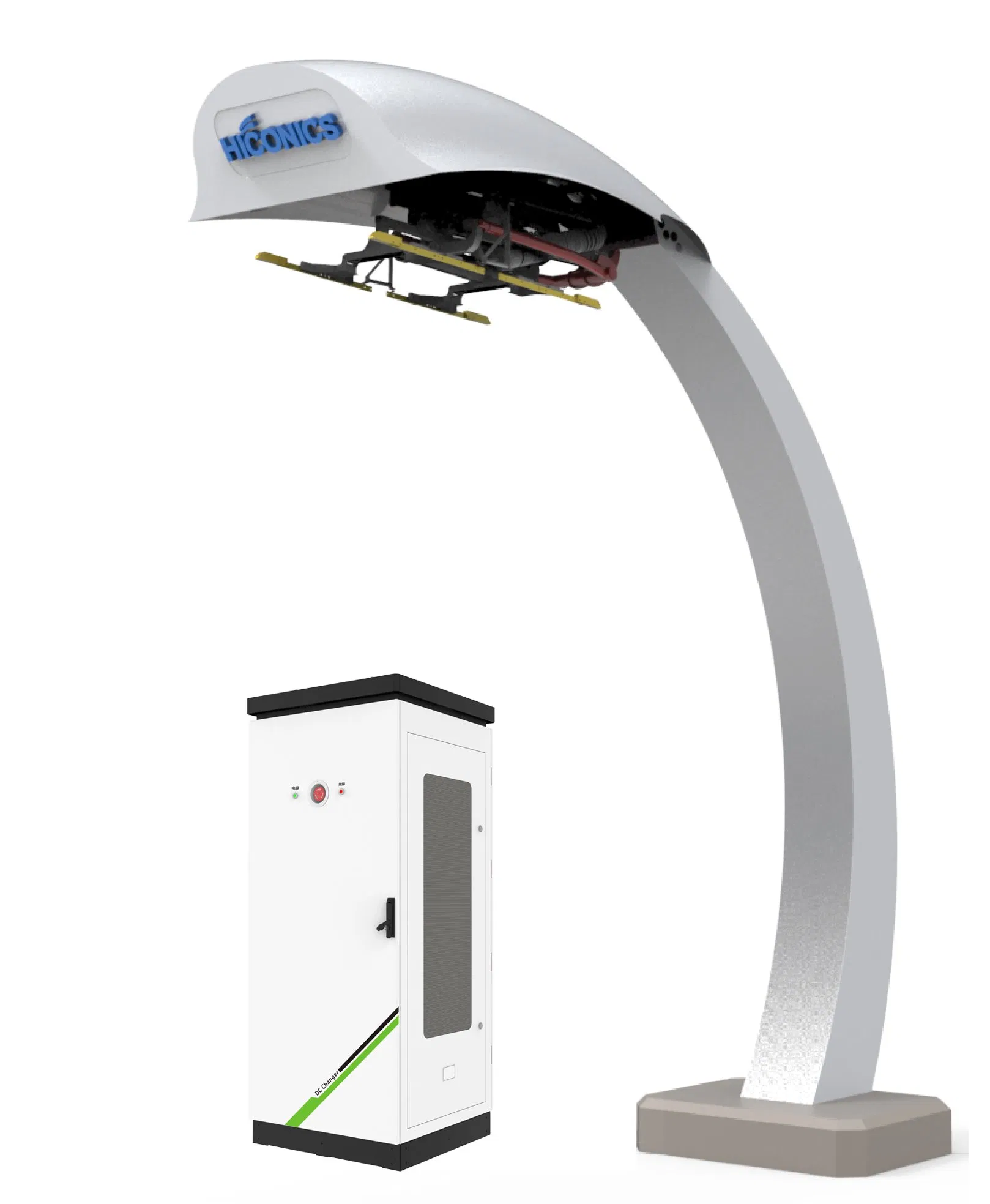

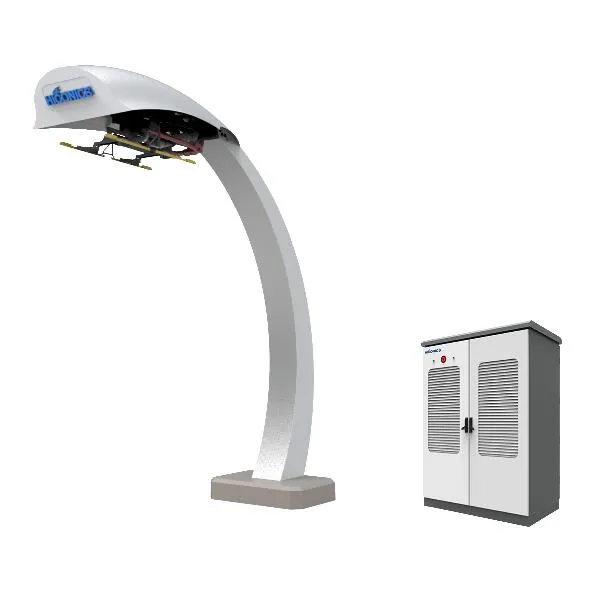

Split structure design separates the power part and the charging interface, convenient for installation and maintenance.
Comprehensive protection: Output/input overvoltage, undervoltage, overcurrent, abnormal frequency, short circuit, emergency stop, leakage current, and lightning surge protection.
| Item | Technical Requirements |
|---|---|
| Nominal Voltage | 400VAC±15% |
| Input Current (MAX) | 1100A |
| AC Input Mode | 3P+N+PE |
| Rated Output Voltage | 150~1000VDC |
| Rated Output Current | 0~800A |
| Cooling Method | Force Air Cooling |
| Power Factor / Efficiency | >0.99 / ≥0.95 |
| Protection Class | IP54 |
| Operation Temperature | -30ºC~+55ºC |
| Communication Protocol | OCPP 1.6 (JSON) |
| Network | 4G, Ethernet, WIFI |

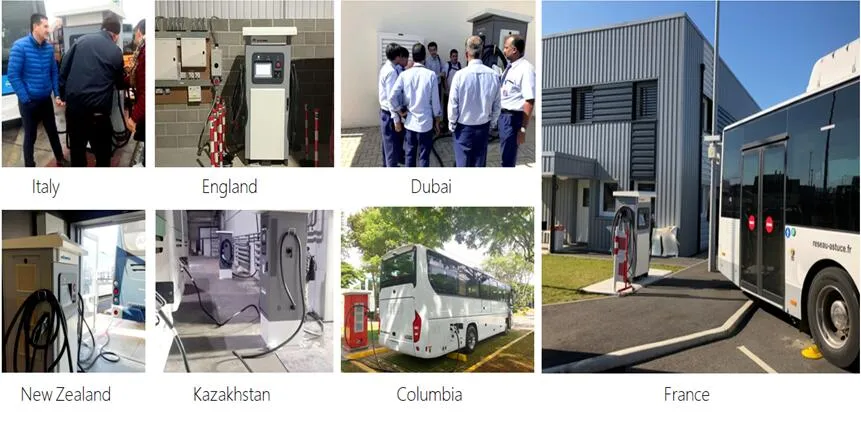

The charging systems have been widely applied in over 200 cities and across 27 countries including England, France, Bulgaria, Australia, and Singapore. With abundant experience in actual application, product performance is constantly refined to meet market demands.
1. Documentation: English user manuals, construction manuals, and maintenance guides provided.
2. Online Support: 24-hour remote guidance for installation and troubleshooting.
3. Training: Free operation and maintenance training for customers.
4. Spare Parts: Fast delivery within 5 working days for warranty confirmations.

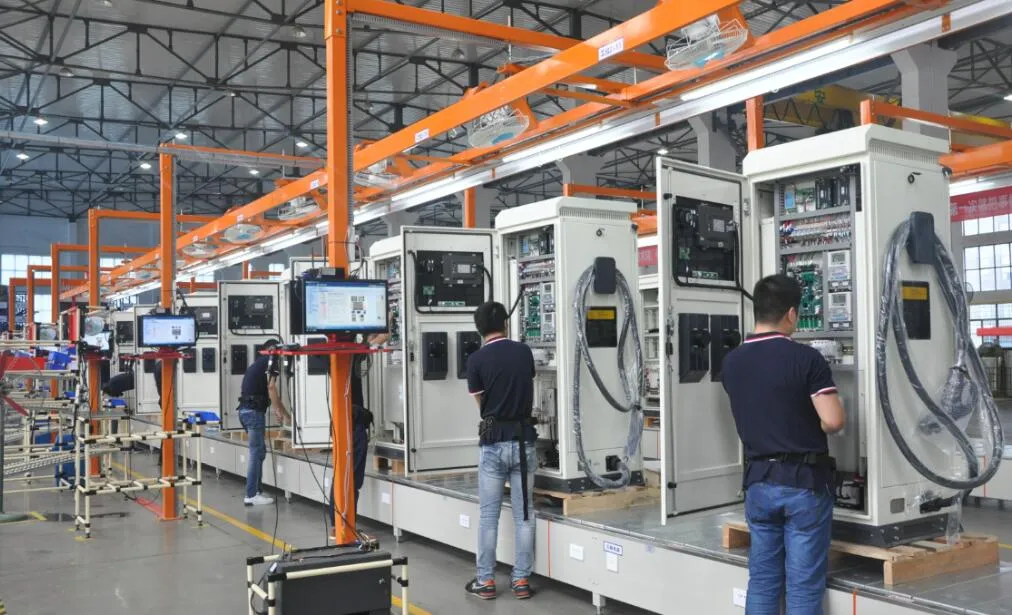

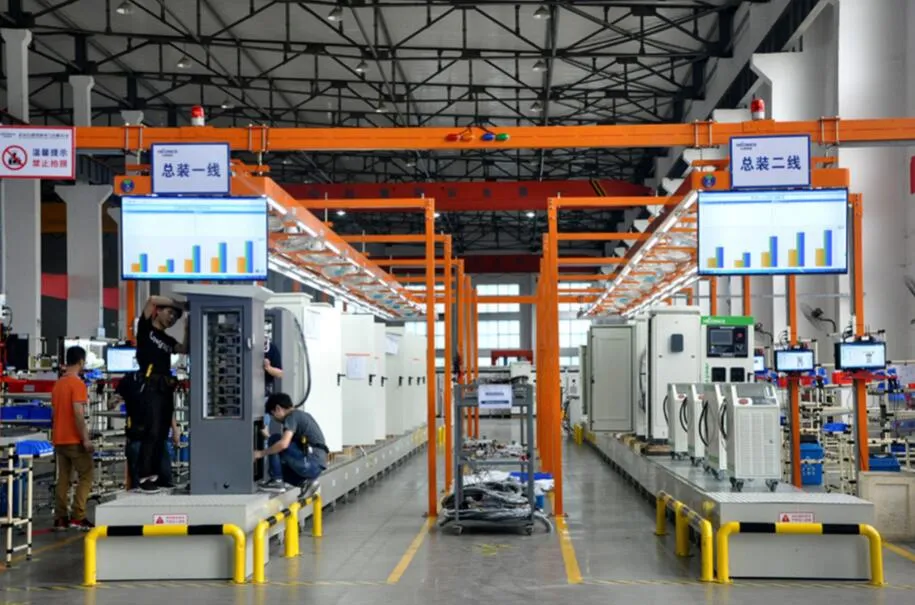

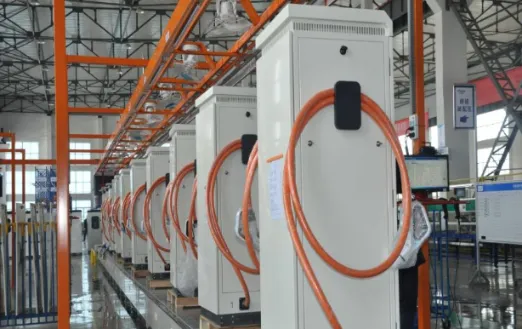

Utilizing advanced automatic assembly production lines with automated rhythm settings and self-diagnostic equipment, a single charging unit can be finished within 35 minutes, ensuring high daily production capacity.
