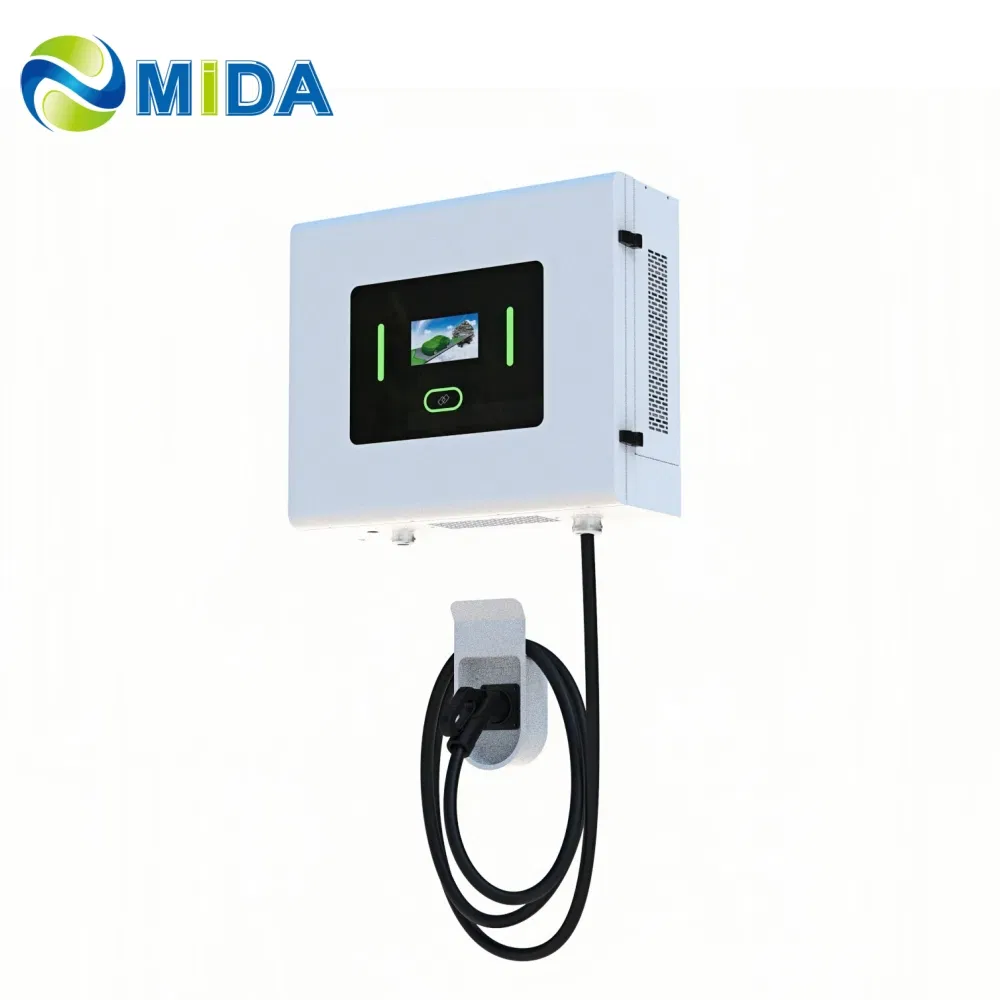

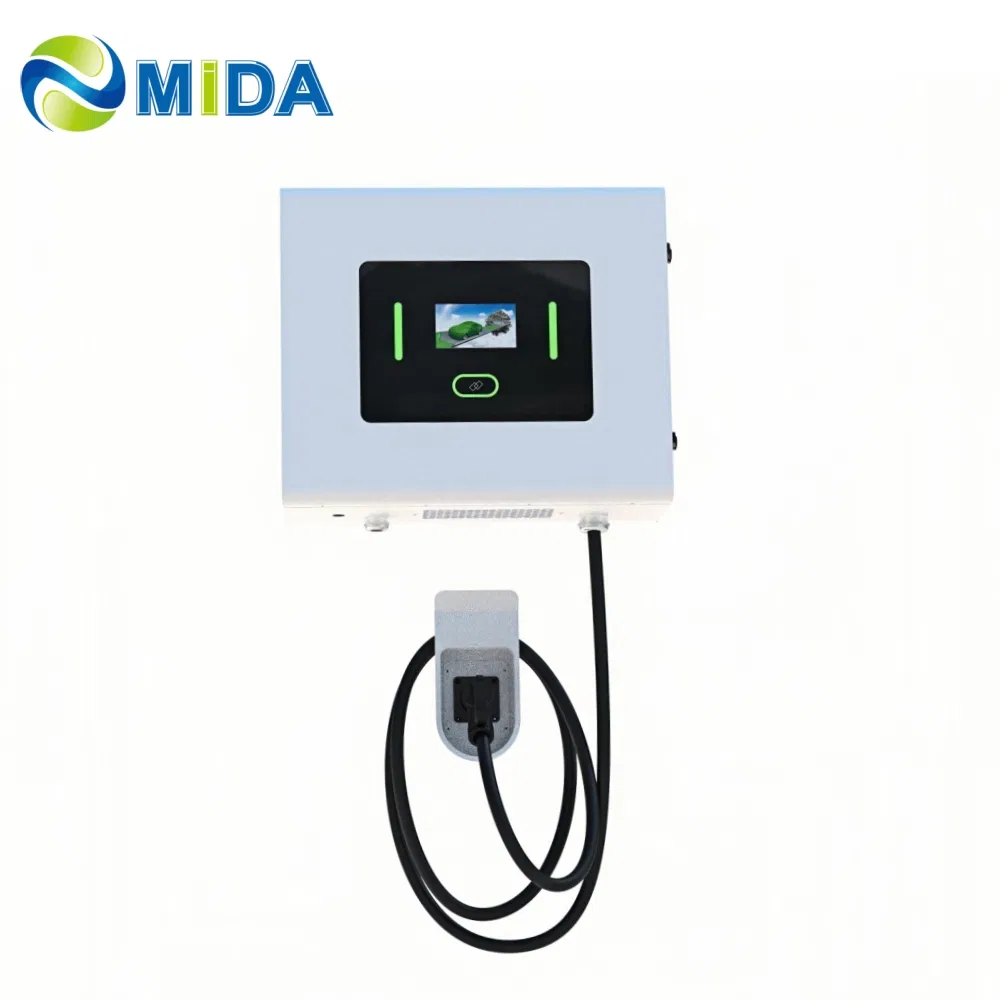

The 40KW Wall-mounted DC Fast Charger is a high-speed charging station engineered to support all compatible electric vehicles. It represents the most advanced EV charging technology currently available for residential and commercial use.

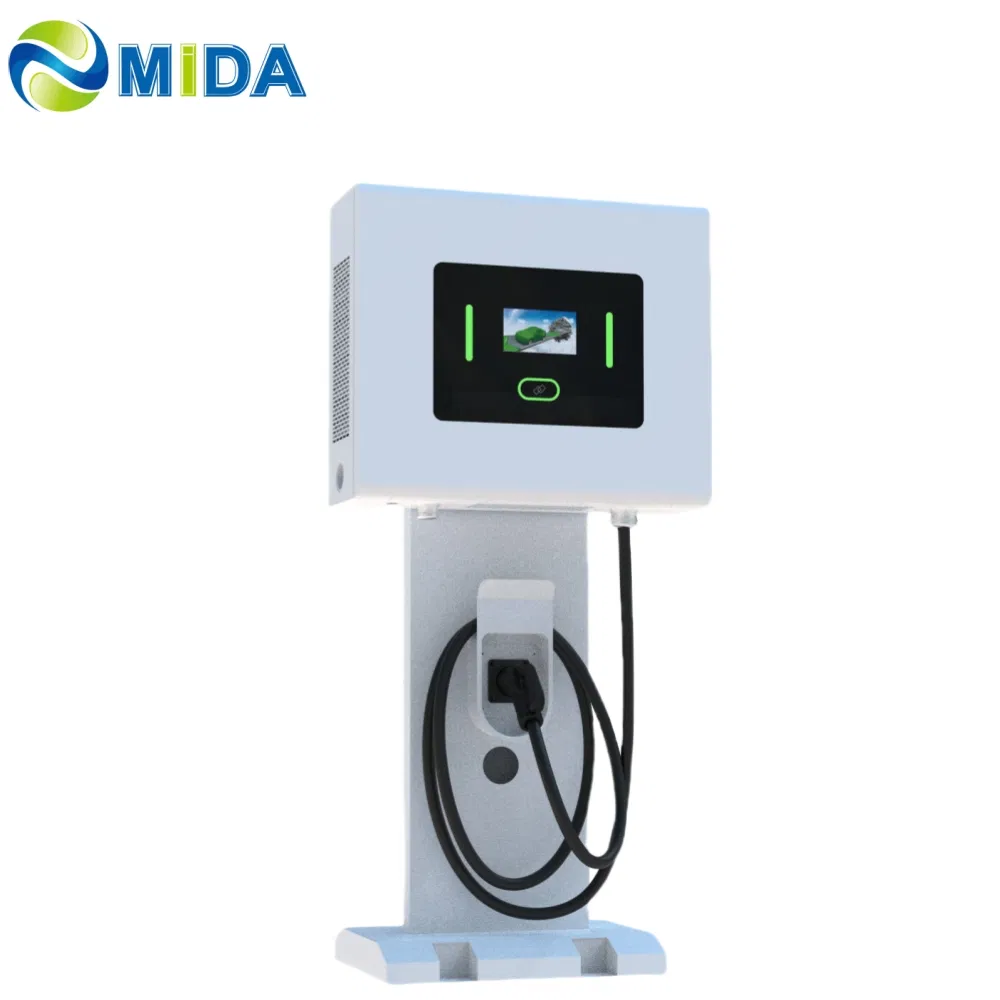

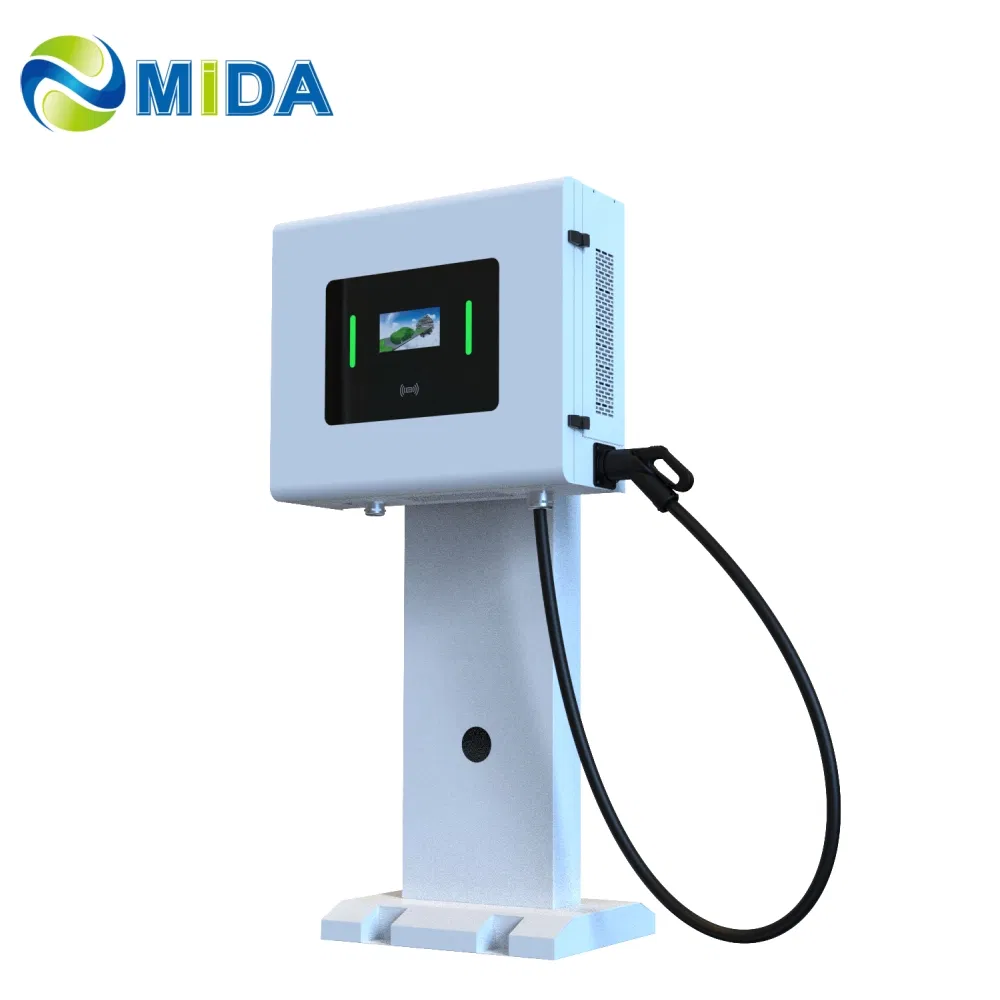

Designed for semi-mobile or fixed wall-mount use, the system features a modular construction allowing for flexible power configurations. It is equipped with OCPP 1.6 integration, ensuring seamless communication via Ethernet, WiFi, or 4G. Whether in extreme cold or high-temperature environments, this series maintains stable performance.
| Category | Item | Specifications |
|---|---|---|
| AC Input | Input Type | Three Phases Five Wires: 3P+N+PE |
| Voltage Range | 380 Vac±15% | |
| Efficiency | 96% | |
| DC Output | Voltage Range | 150V - 750V |
| Max Current | 120A@350V, 53A@750V | |
| Interface | Display | 4.3" TFT-LCD Touch Panel |
| Communication | WiFi, RJ45, 3/4G, Modbus TCP, PLC | |
| Environment | Temperature | -25ºC to +50ºC |
| IP Rating | IP54 / IP55 |
Warranty Period: 2 years comprehensive coverage.
Pre-Sales Service: Professional technical advice on configuration, installation, and investment planning.
After-Sales Support: Free installation instructions, troubleshooting assistance, and free replacement parts within the warranty period.
A: This wall-mounted charger provides a maximum output power of 40kW, suitable for fast charging various electric vehicle models.
A: The system supports CHAdeMO 2.0, DIN 70121, ISO15118, and OCPP 1.6 (JSON or SOAP) protocols.
A: Yes, it features an IP54/IP55 protection rating, making it suitable for both indoor and outdoor environments with a working temperature range of -25ºC to +50ºC.
A: Users can initiate charging via RFID cards, credit card payments, or through a mobile remote operation system.
A: The charger is highly efficient, boasting an efficiency rating of approximately 96%.
A: All products are manufactured to meet high international standards and come with CE, ROHS, TUV, CSA, and UL certifications.
