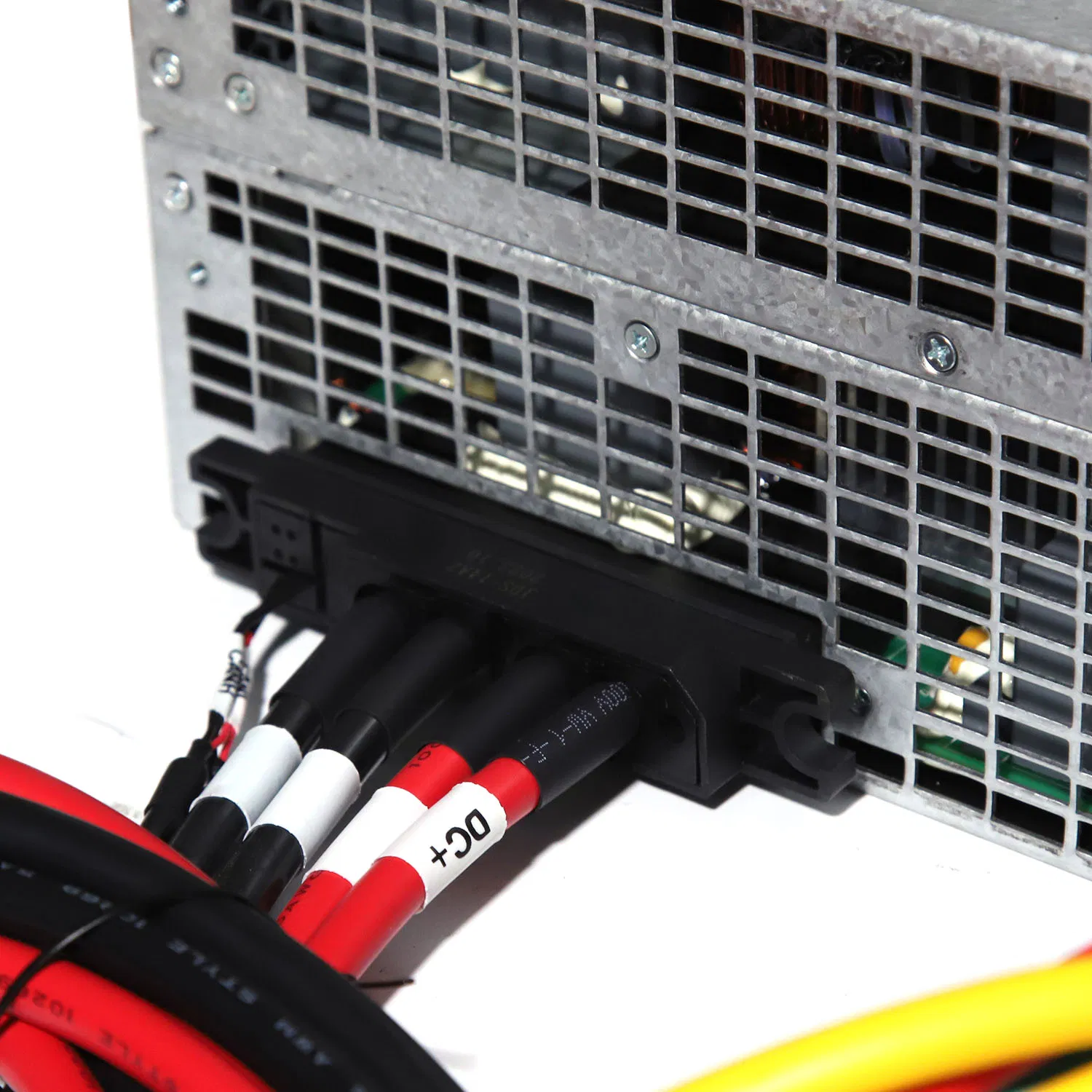

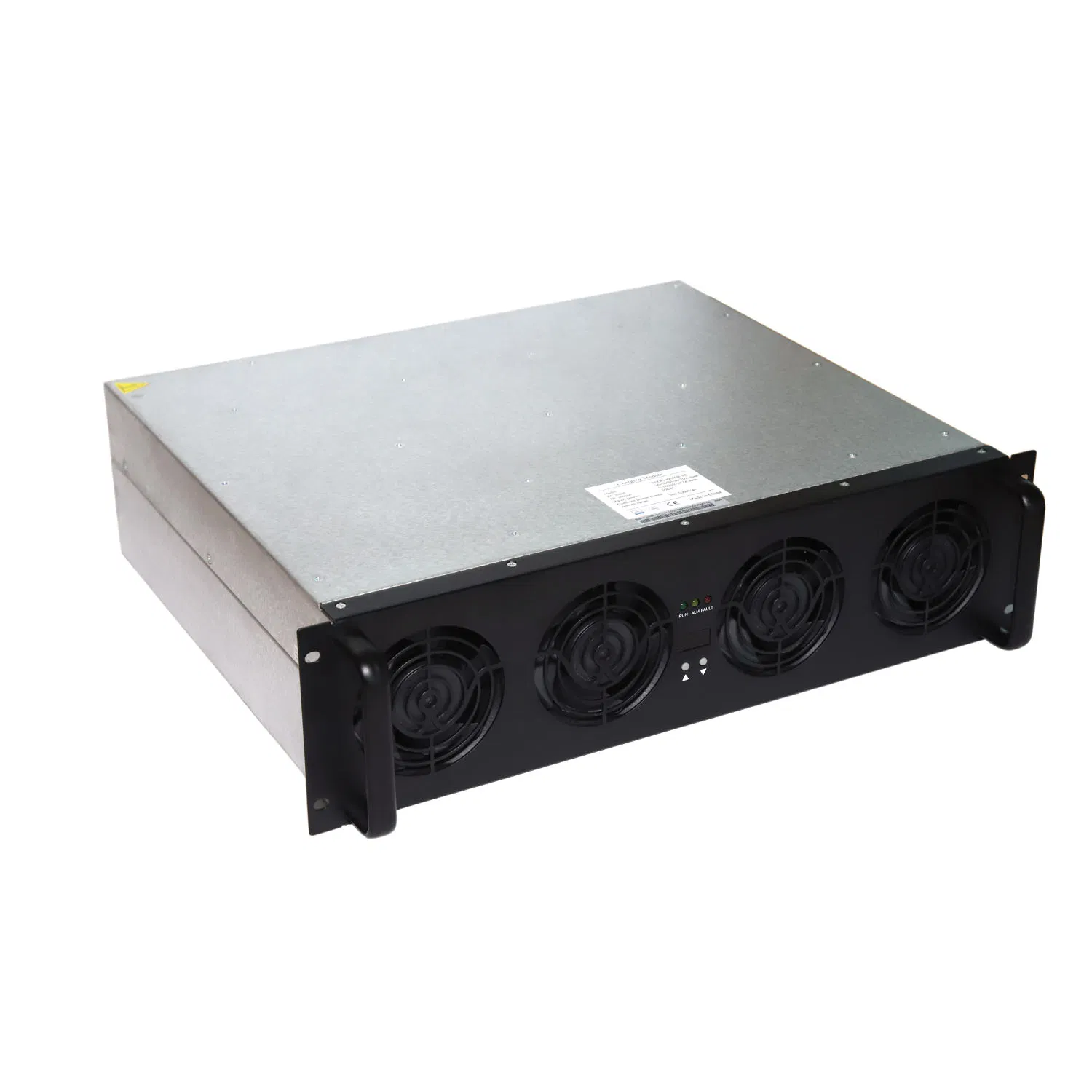

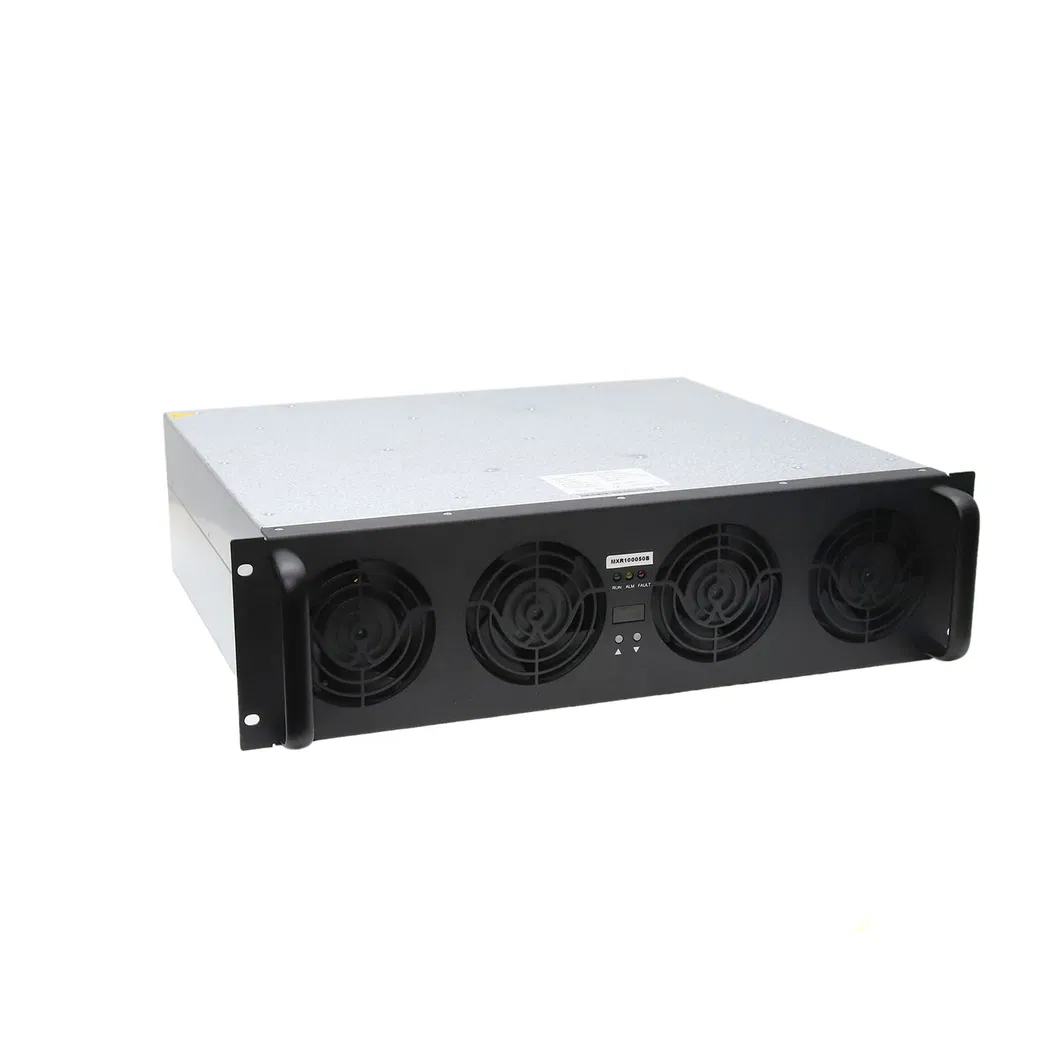

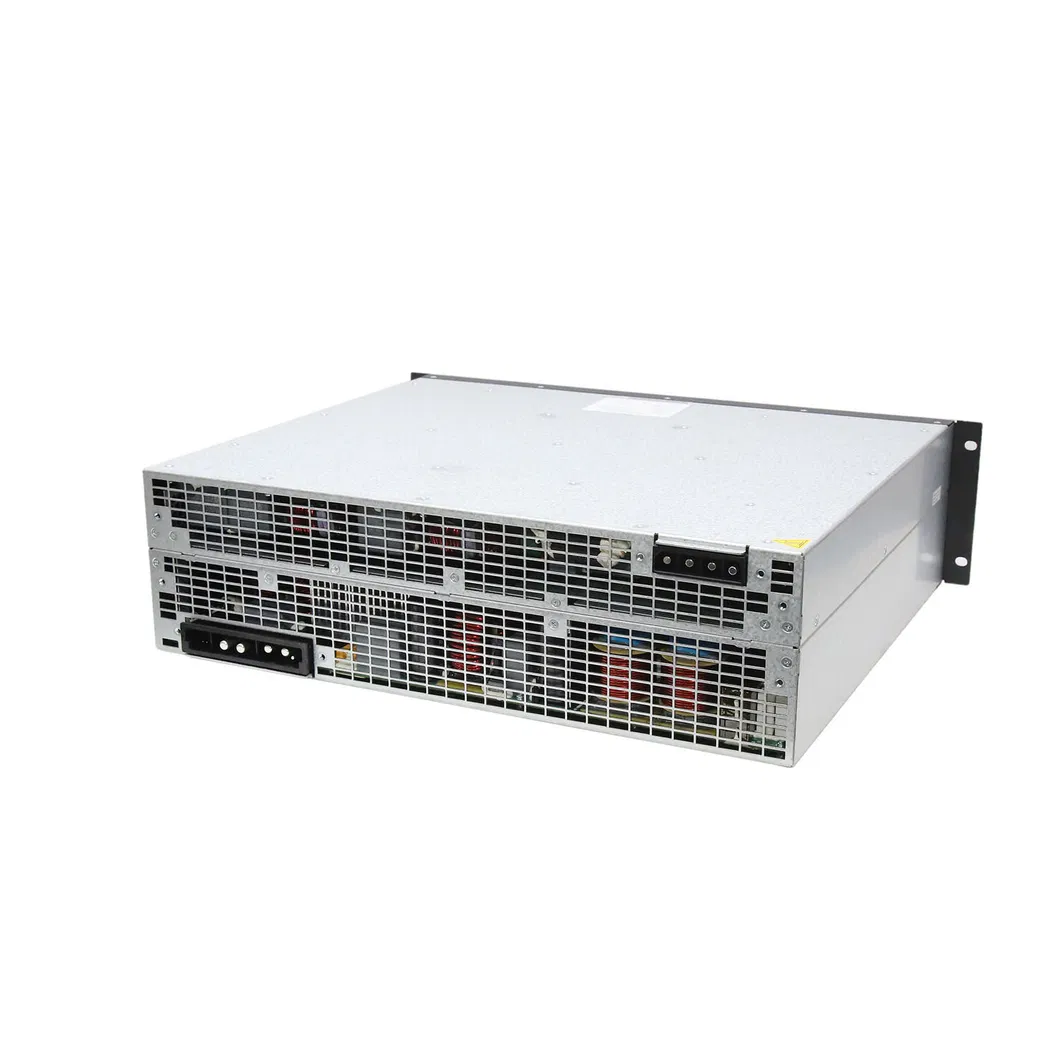

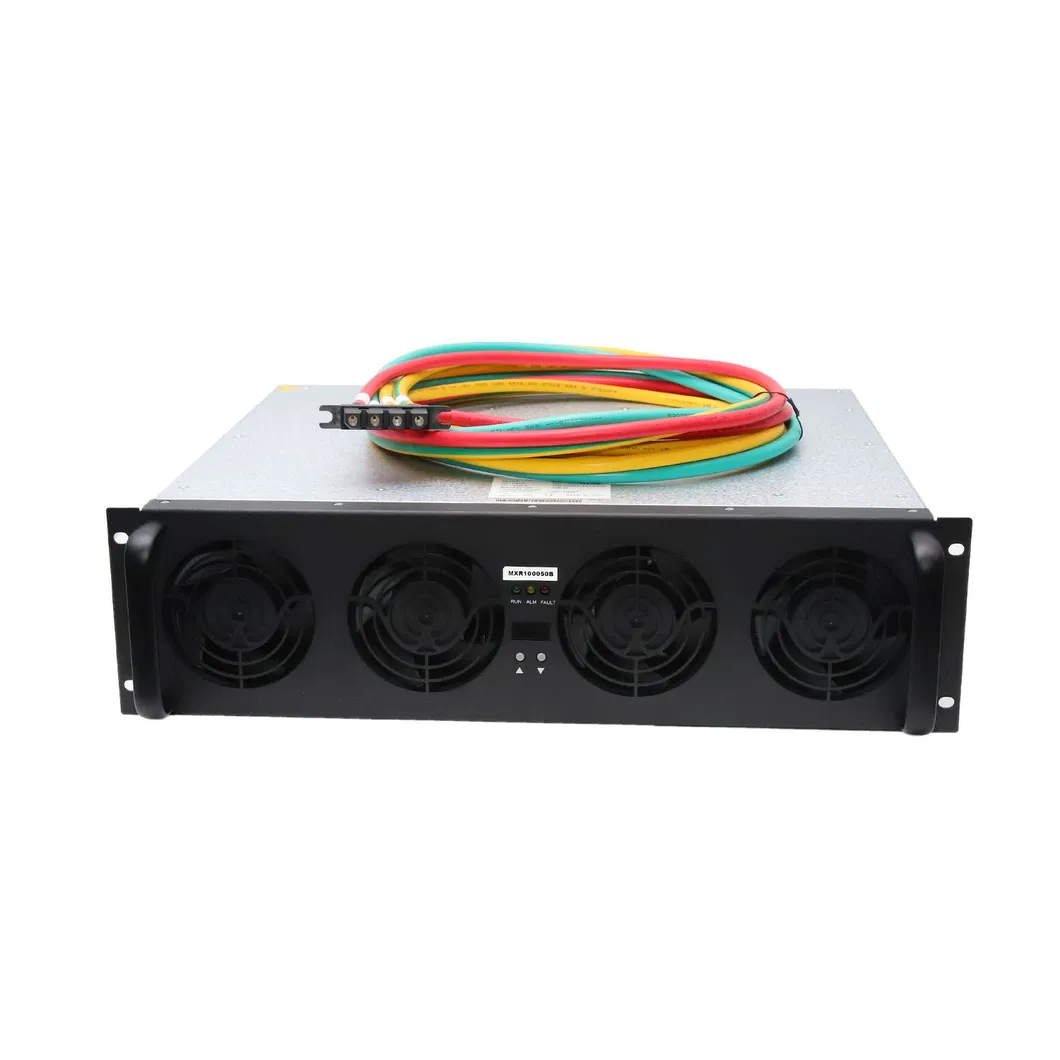

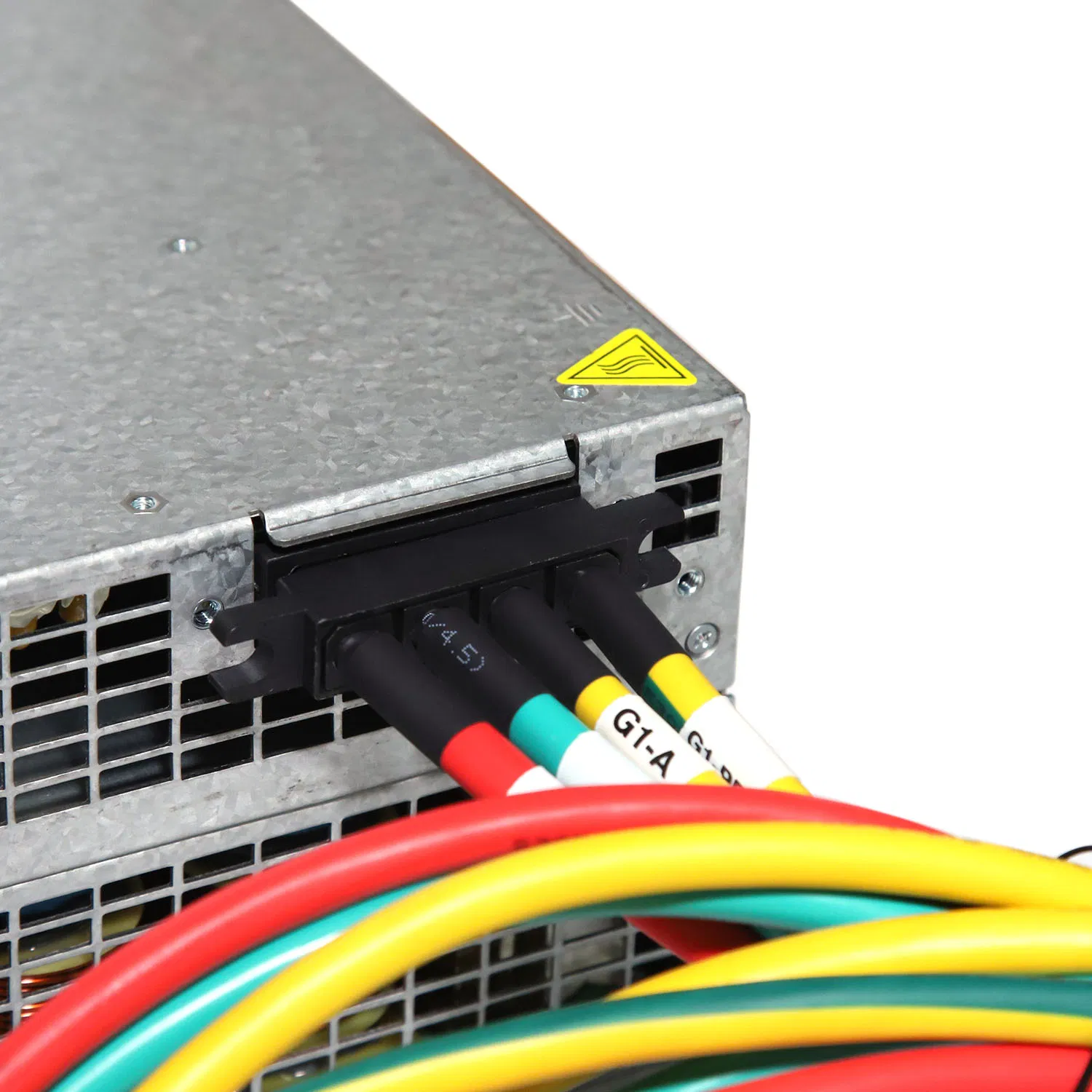

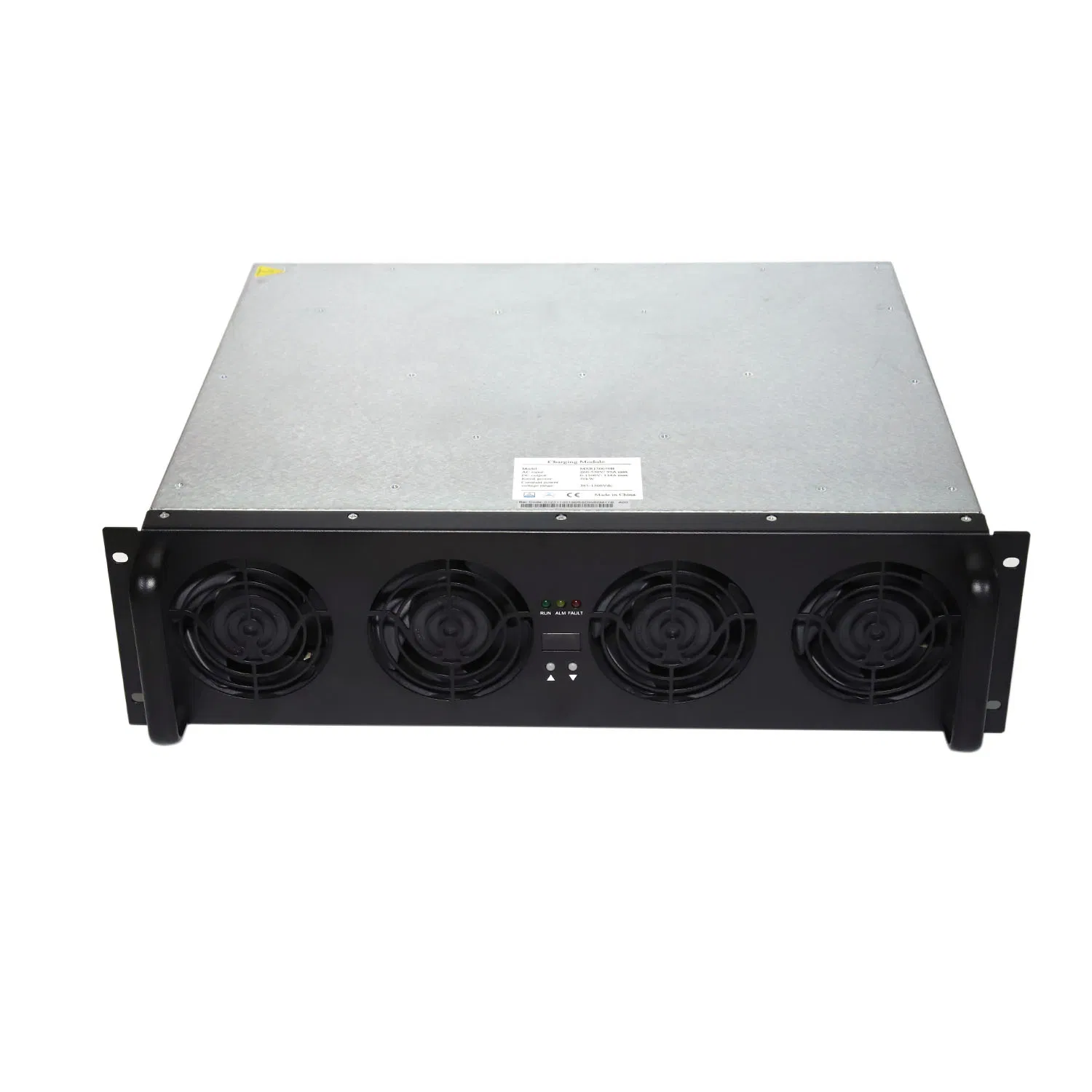

MXR150050B is a charging power module developed for the charger industry. It features prominent advantages in ultra-high full-load operating temperature and an ultra-wide constant power range.

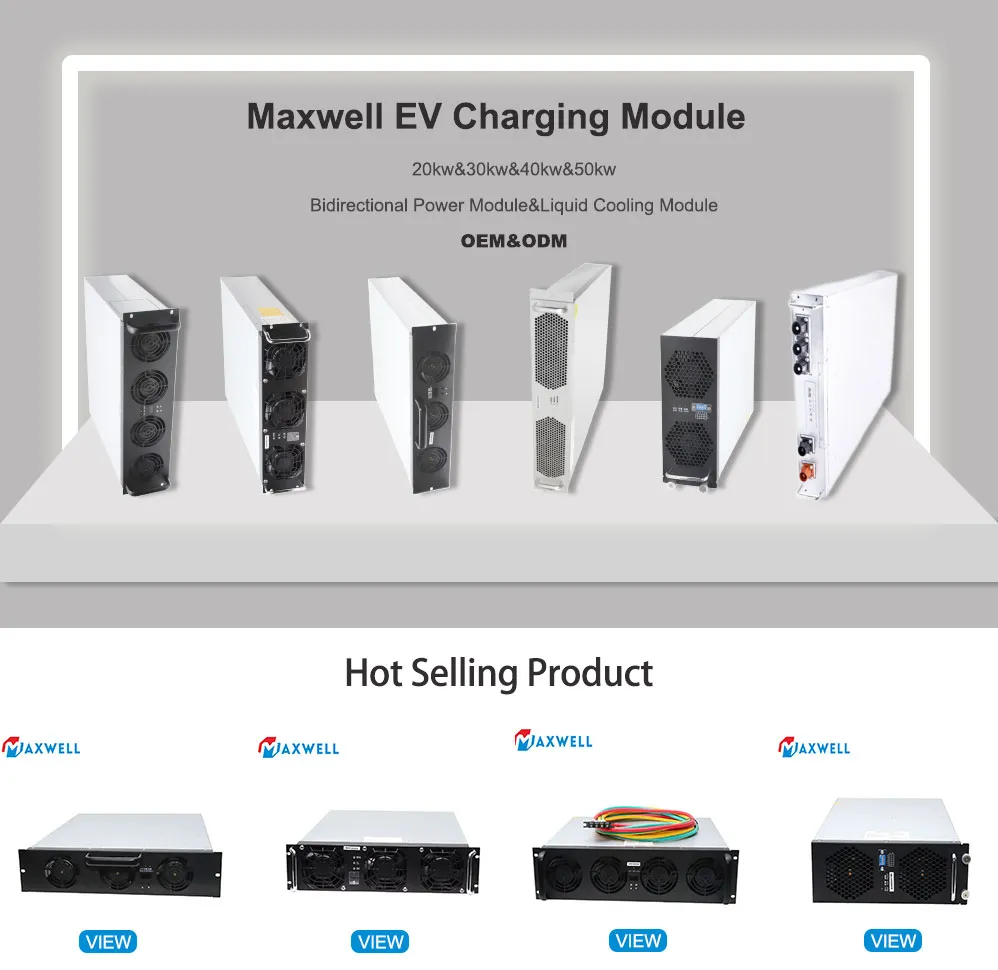

| Output Power | 15KW | 20KW | 30KW | 40KW | 50KW |
| Product Type | AC-DC, DC-DC, Bidirectional Power Module, Liquid Cooling Module | ||||
| Item | Parameters |
| Input Voltage | 260Vac-530Vac, three-phase+PE |
| Input Current | <95A |
| Grid frequency | 45Hz-65Hz |
| Power Factor | >0.99 (Load>50%) |
| ITHD | <3% (Load>50%) |
| Item | Parameters |
| Output Power | 50kw |
| Voltage Range | 0-1500Vdc |
| Current Range | 0-130A continuously adjustable |
| Voltage Accuracy | ≤±0.3% |
| Stabilized Current | ≤±0.3% |
| Ripple Peak-to-Peak | <0.3% |
Generally, goods are packed in kraft cartons with or without pallets. Branded packaging is available upon authorization for registered patent holders.
We focus on the research, development, and sales of power electronic products, positioning services for mid-to-high-end DC power supply system manufacturers. Based on independent intellectual property rights, we provide equipment supporting and technological innovation in the power supply industry.
Our products are widely used in automotive, electric power, railway, metallurgy, and communications fields globally. Since 2011, we have developed more than 20 models of DC charging modules, including 15kW, 20kW, 30kW, and 40kW series, serving large-scale charging centers and international transit hubs.
