Product Description

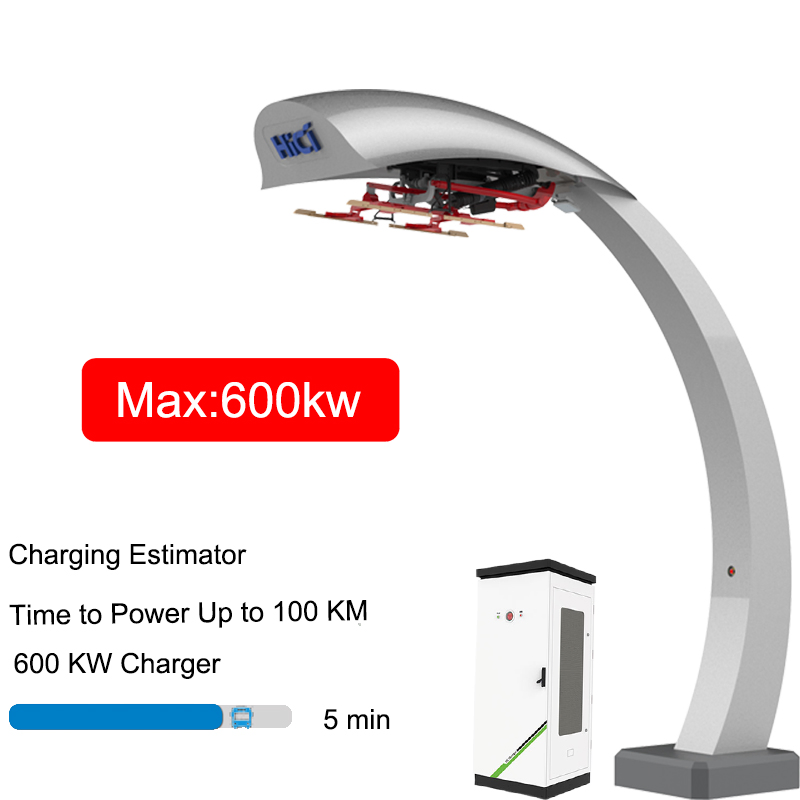

⚡ 600 KW Split Type Fast Charging Solution Pantograph System

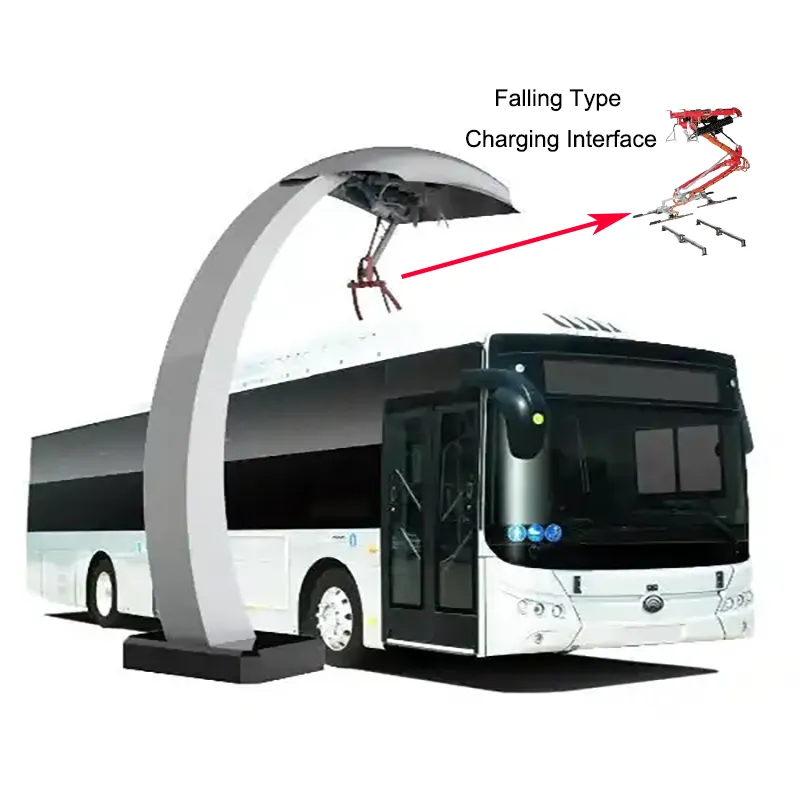

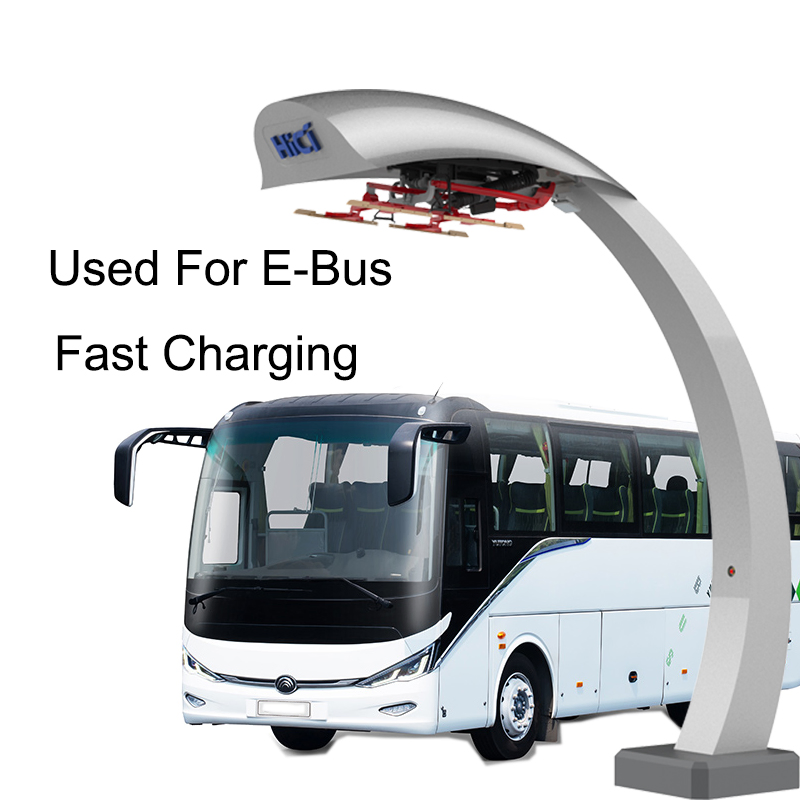

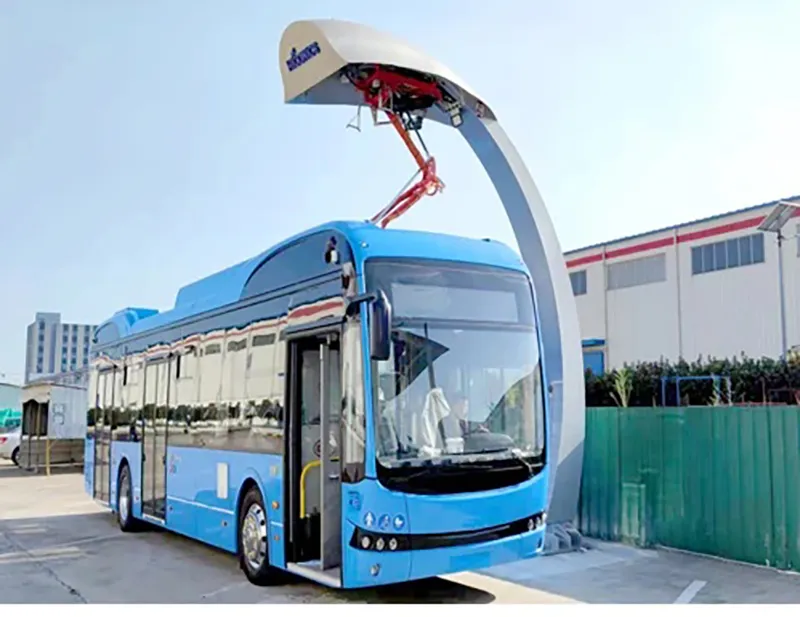

This cutting-edge fast charge solution for electric buses features an innovative pantograph system. The high-speed EV charging station provides efficient and powerful charging for E buses, offering an advanced and reliable quick charge solution. This system is designed for ultra-fast E bus charging requirements with industry-leading technology.

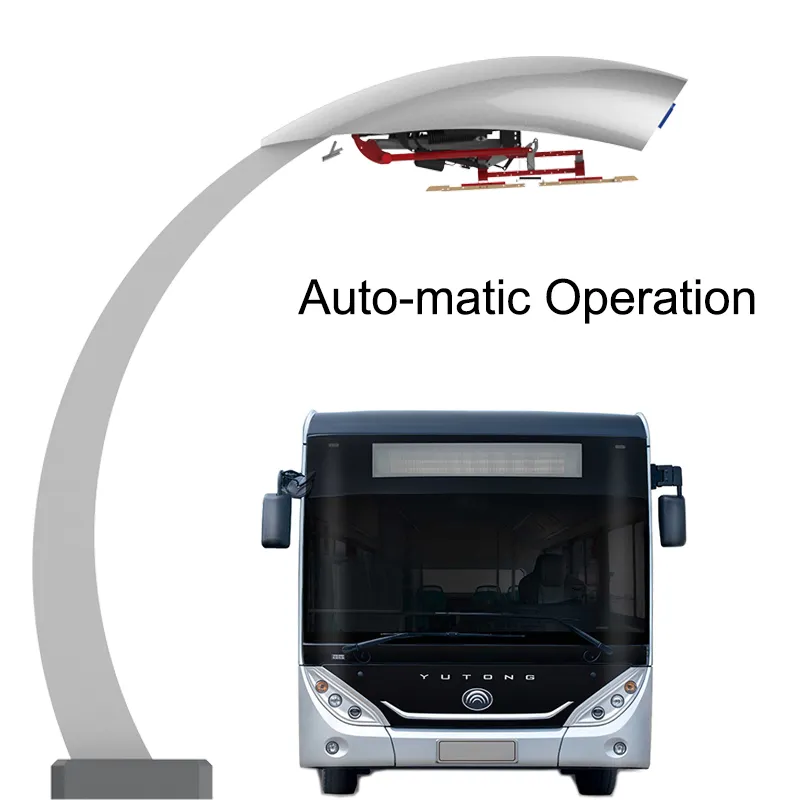

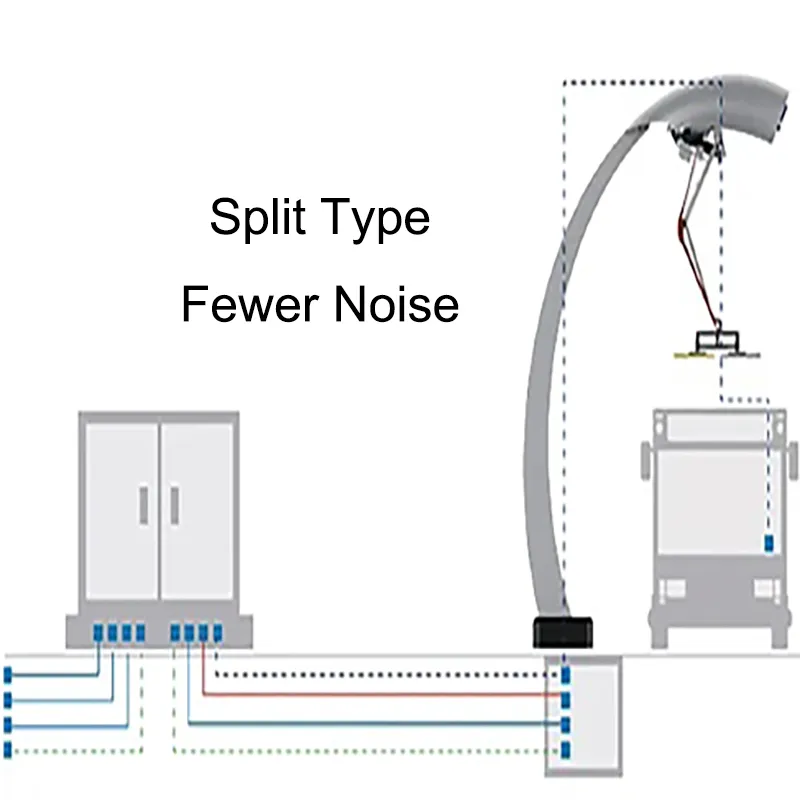

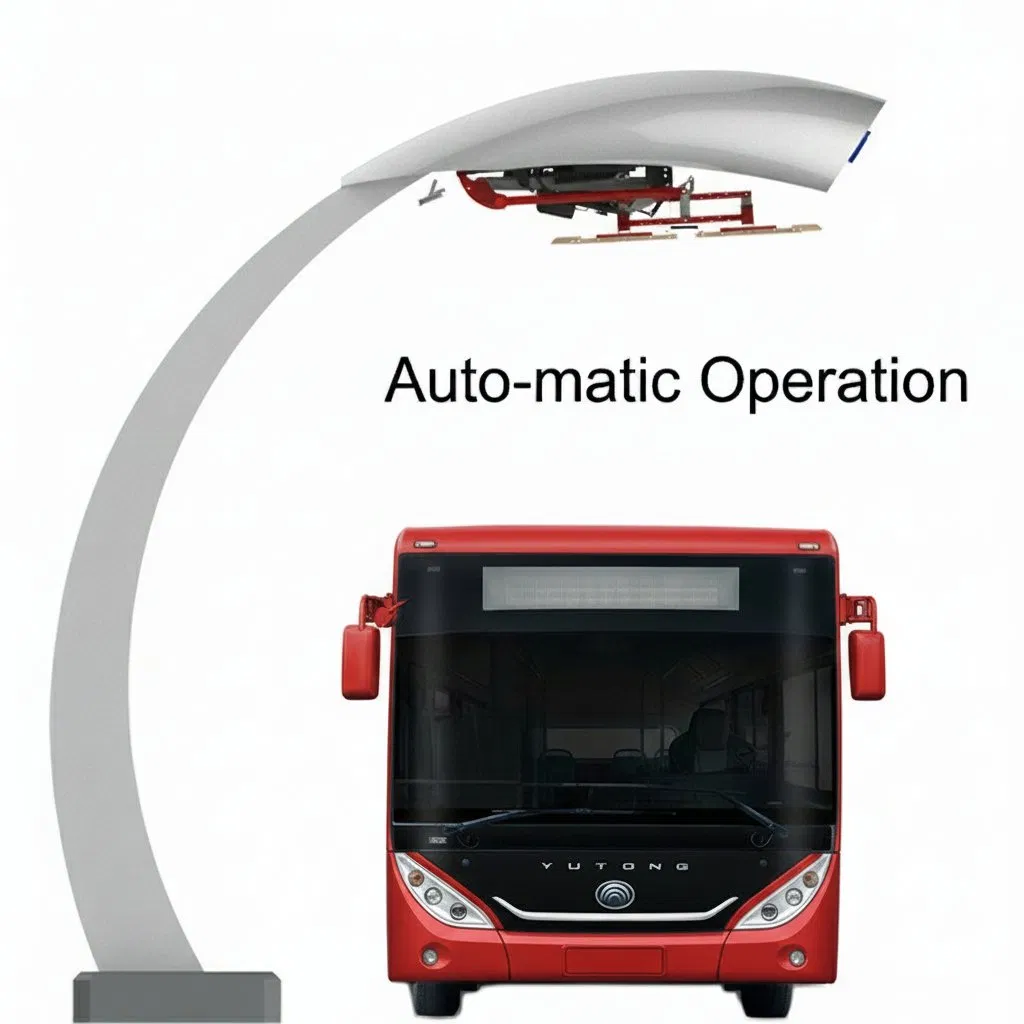

This innovative split type charging solution supports a maximum of 600 kW/h, ensuring efficient and powerful charging for electric buses. With automatic operation, IP55 and IK10 ratings, and low noise levels, this fast charging station is perfect for modern EV bus fleets.

📋 Basic Info

InstallationFloor Mounted

HousingMetal

Input Voltage400VAC ±15%

Input Frequency45-65Hz

Thdi≤ 5%

Efficiency> 95%

IP ClassIP55

Communication2G, 3G, 4G, 10/100Base-T Ethernet

Outlet Current500A/850A

Specification3174*1681*4866mm

Production Capacity30 Set/Month

HS Code8504409999

⚙️ Production Parameters

Category	Feature	300KW Specification	600KW Specification
AC Input	Input Rating	400Vac±15%	400Vac±15%
	Connection	L1+L2+L3+N+PE	L1+L2+L3+N+PE
	Max. Input Current	550A - 1100A
	Power Factor	>0.99 @ full load
	THDi	<5%
DC Output	Voltage Range	150-1000VDC	150-1000VDC
DC Output	Max. Output Current	500A	850A
User Interface	Connectivity	Ethernet/4G
	Software Update	Remote Upgrade
	Protocol	OCPP 1.6 JSON
Environment	Operating Temp	-30 ~ 55ºC
	Humidity	5%-95% RH, non-condensing
	Altitude	Up to 2500m
	Protection	IP55 / CE, TR25 Certified
