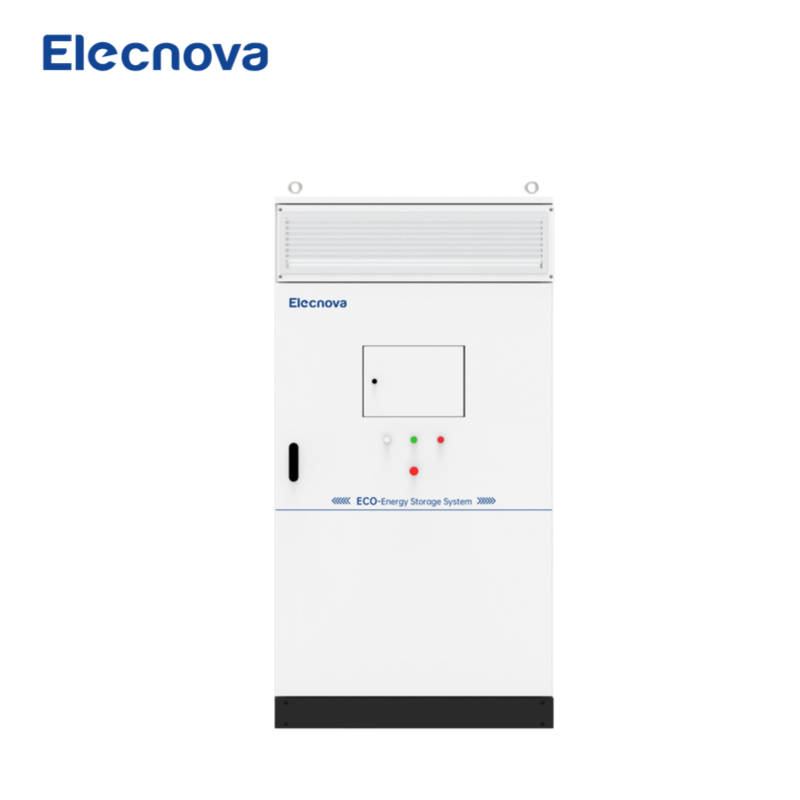

Model: ECO-E101WX

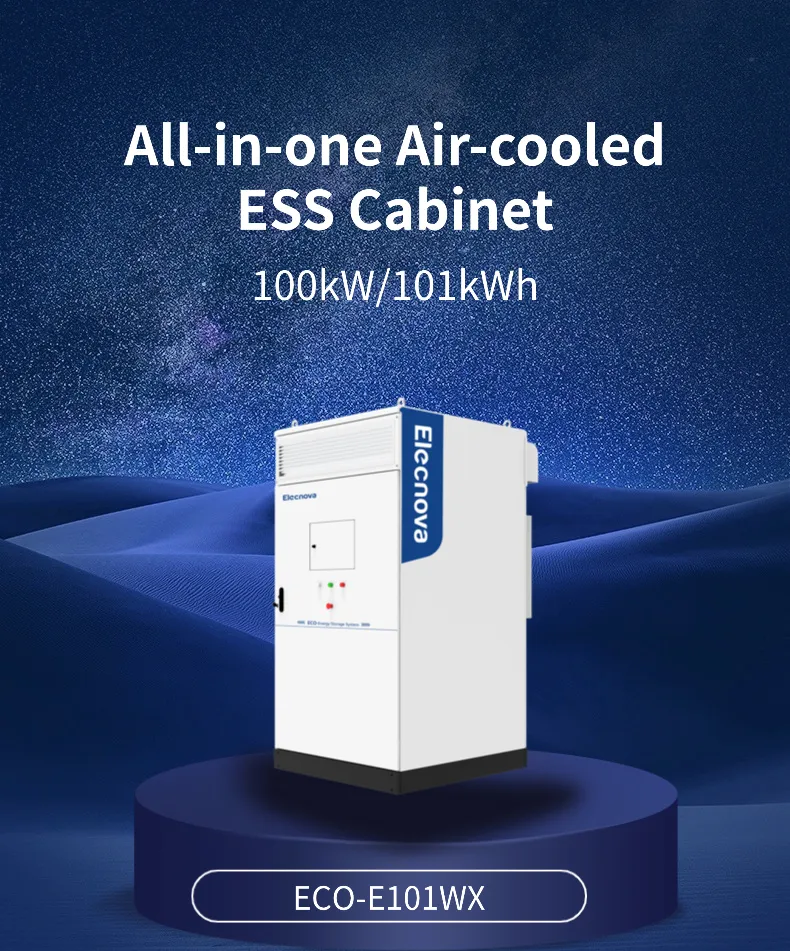

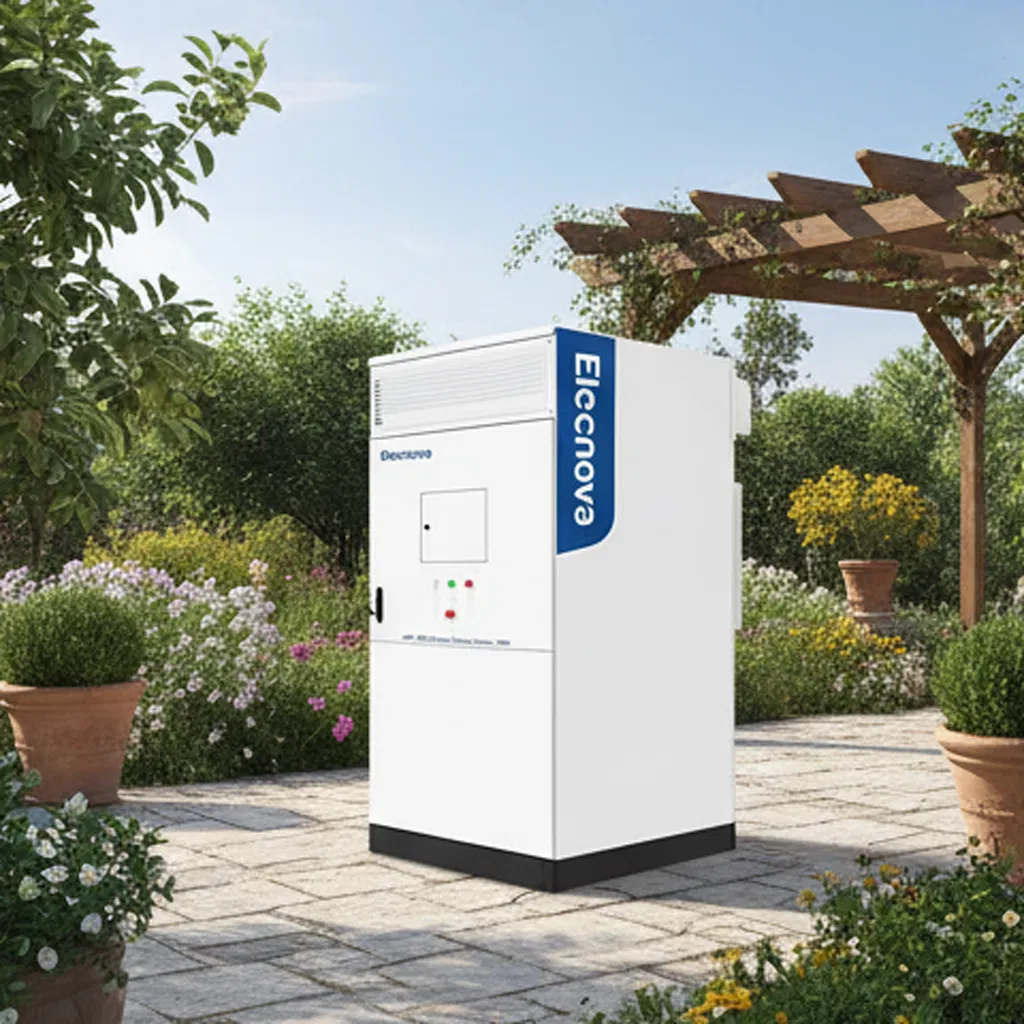

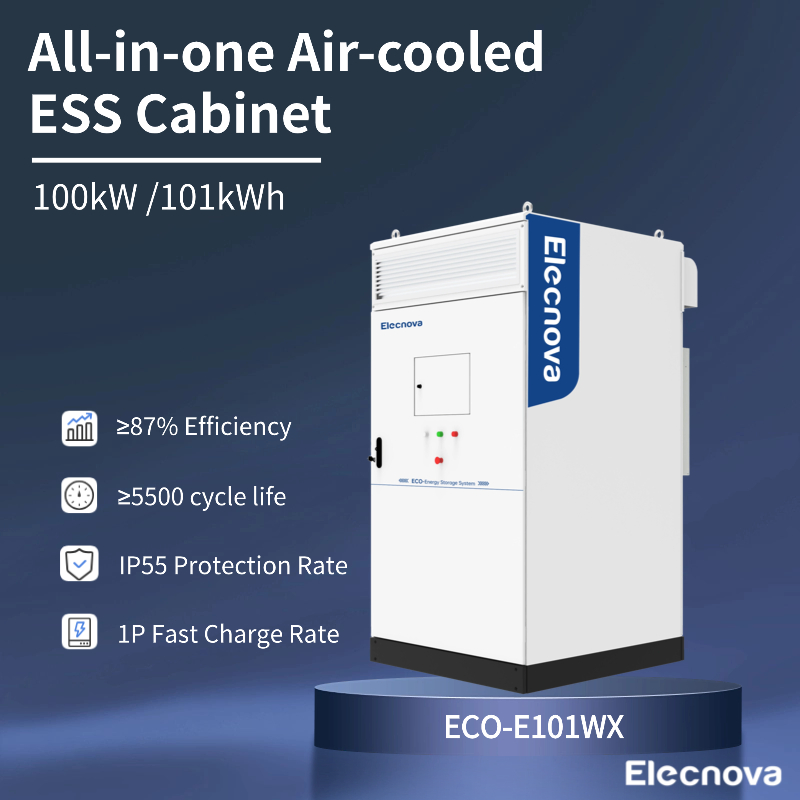

The all-in-one air-cooled ESS cabinet integrates long-life battery, efficient balancing BMS, high-performance PCS, active safety system, smart distribution, and HVAC into one unified cabinet. It enables long-term operation with maximum safety, stability, and reliability. Through AC side parallel connection, it achieves agile deployment for ESS power stations with flexible capacity expansion.

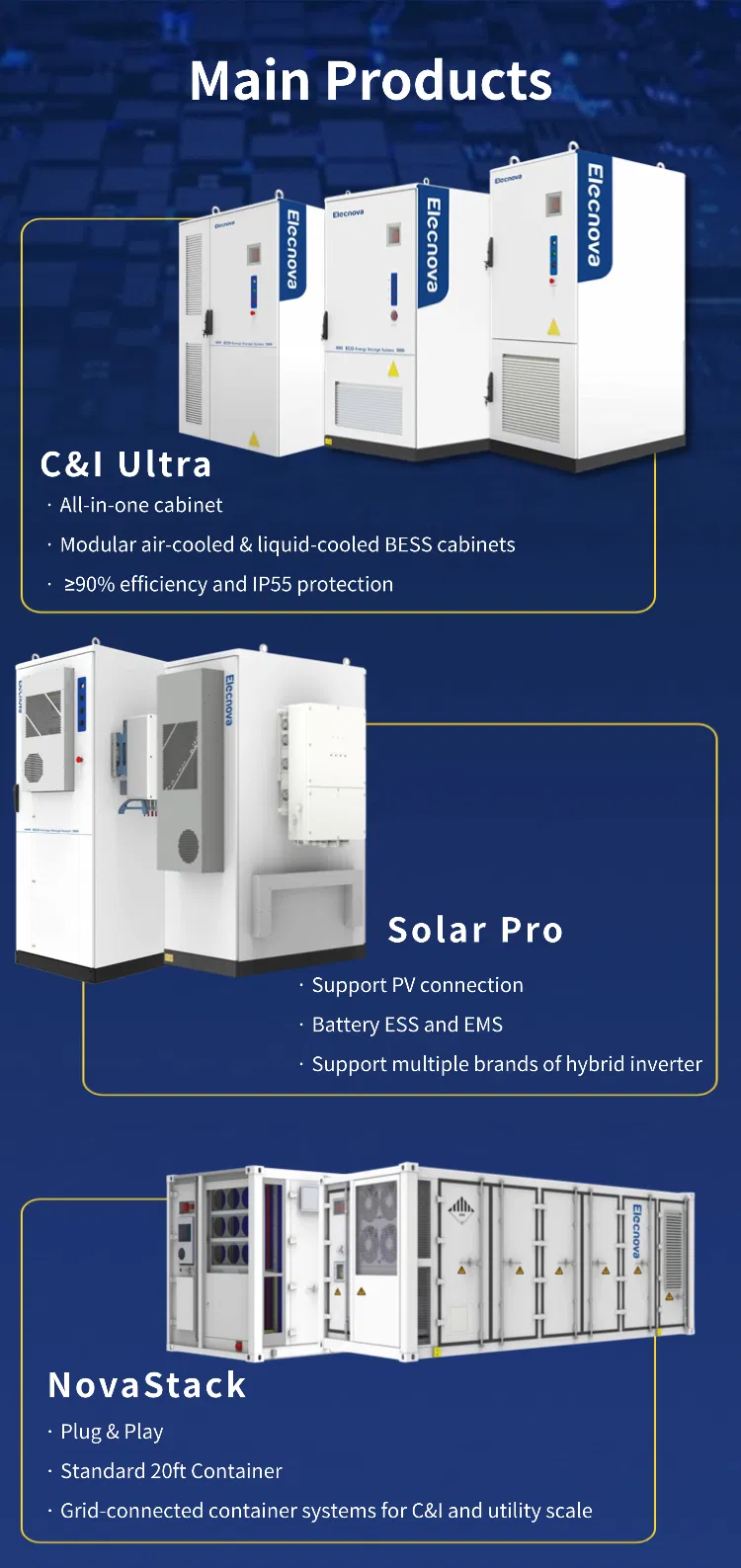

All-in-one modular BESS cabinets with ≥90% efficiency and IP55 protection, ideal for commercial & industrial scenarios.
Seamlessly integrates with PV systems, featuring battery ESS, EMS, and compatibility with multiple hybrid inverter brands.
Plug-and-play 20ft container systems, designed for grid-connected C&I and utility-scale projects.
| DC SIDE PARAMETERS | |
|---|---|
| Cell Type | LFP / 120 Ah |
| Nominal Capacity | 101 kWh |
| System Configuration | 1P264S |
| Rated DC Voltage | 844.8 V |
| Max. Depth of Discharge | 100% (25 ± 2 ºC) |
| AC SIDE PARAMETERS | |
| Rated Output Power | 100kW |
| Max. Apparent Power | 110 kVA |
| Rated AC Voltage | 230 / 400 V |
| Grid Type | 3W+PE / 3W+N+PE |
| Rated Frequency | 50 Hz / 60 Hz |

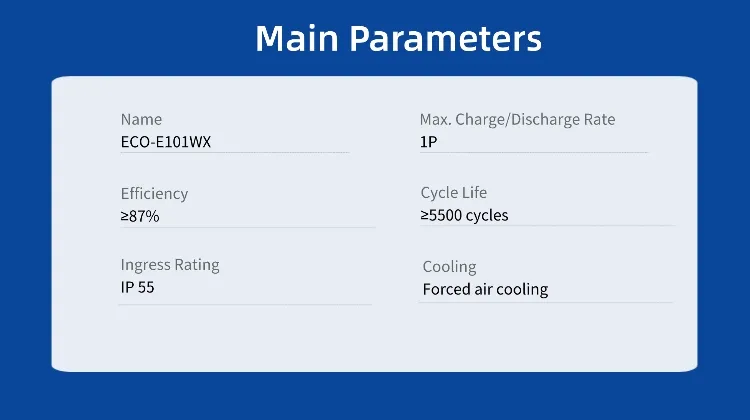

| GENERAL DATA | |
| Round Trip Efficiency | ≥ 87% |
| Cycle Life | ≥ 5,500 cycles |
| Ingress Rating | IP55 |
| Cooling Method | Forced air cooling |
| Dimensions (W*D*H) | 1,250*1,200*2,150 mm |
Professional facilities in China and Europe ensure standard management and dispatch.

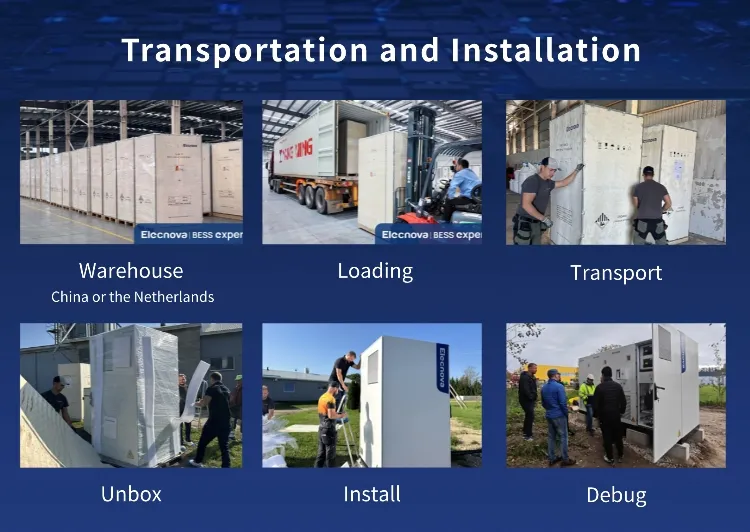

Global logistics network with full visibility and damage-control protocols.
Rigorous on-site guidelines aligning with industry best practices.

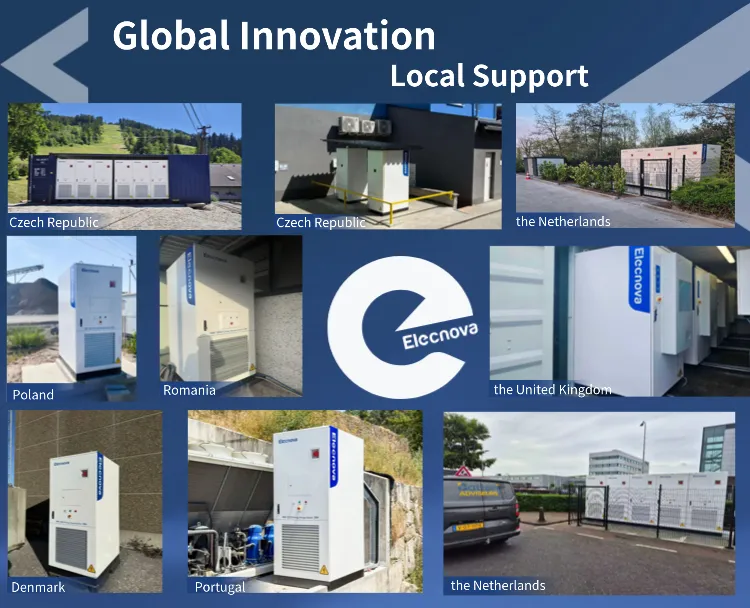

Trusted across Italy, Netherlands, Belgium, Ukraine, Southeast Asia, and the Middle East. We provide a robust after-sales ecosystem including localized support, spare parts availability, and comprehensive technical training.
Our solutions comply with: UN38.3, MSDS, IEC 62619, IEC 63056, IEC 62477, IEC 61000, UL 9540A, and RoHS.
With nearly 30 years of experience, our facility boasts a 2GWh production capacity across automated module and pack production lines. We dedicate 10% of revenue to R&D to lead the global energy transition.
A: We are a professional manufacturer with over 600 employees, established since 1998.
A: Yes, we provide full OEM and ODM services, subject to minimum order quantity requirements.
A: Our standard warranty ranges from 5 to 10 years, depending on the project requirements.
A: Yes, we work with specialized professional forwarders who are experts in hazardous material and battery shipments.
A: We have overseas branches and service partners capable of providing localized repair, replacement, and technical support.
A: Yes, samples can be arranged. Please reach out to our team to discuss your specific technical requirements.
