Energy Storage System with Hybrid Inverter 22kw Mxb100022

1 / 5

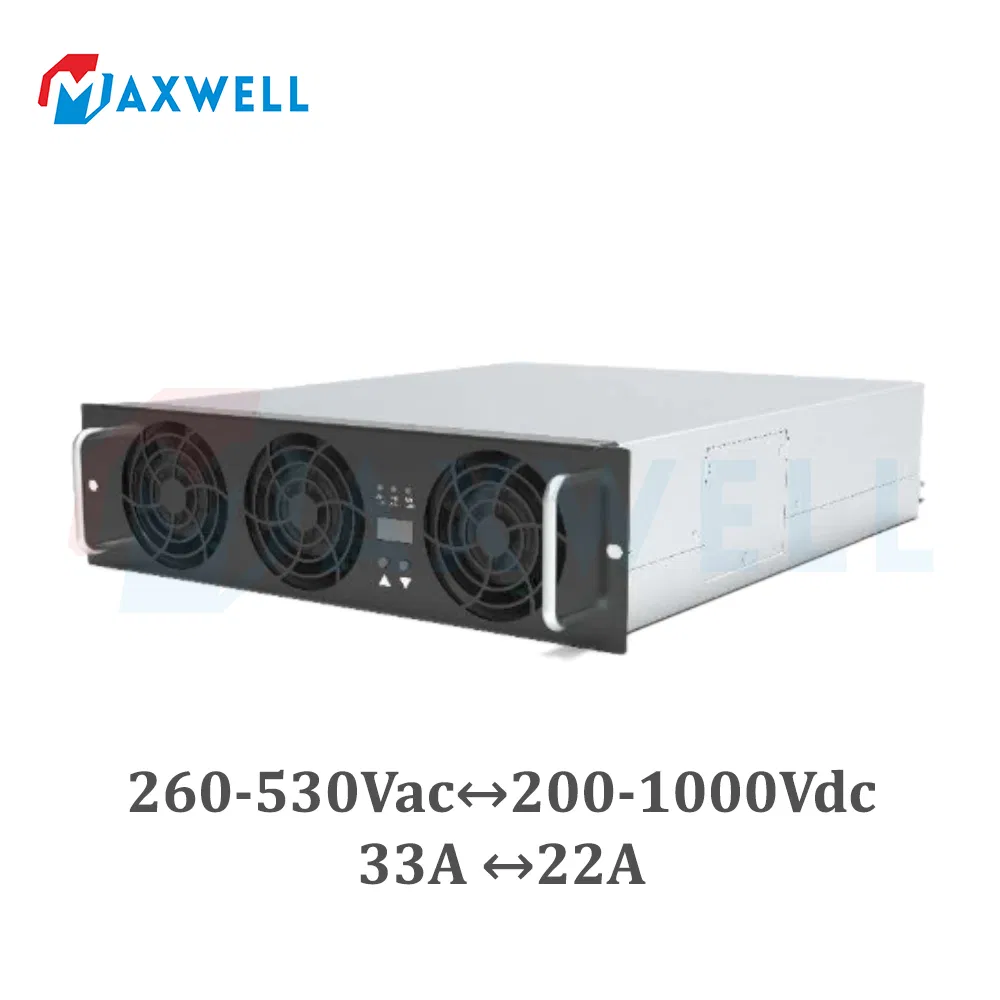

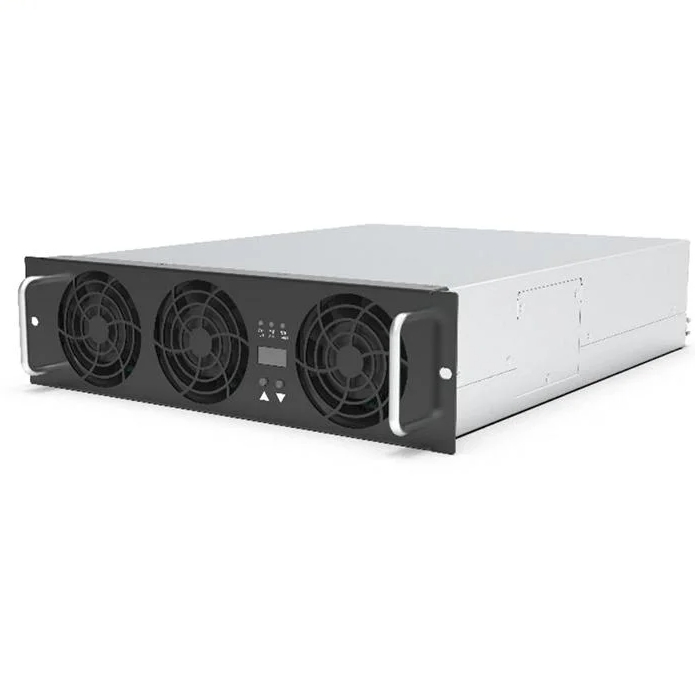

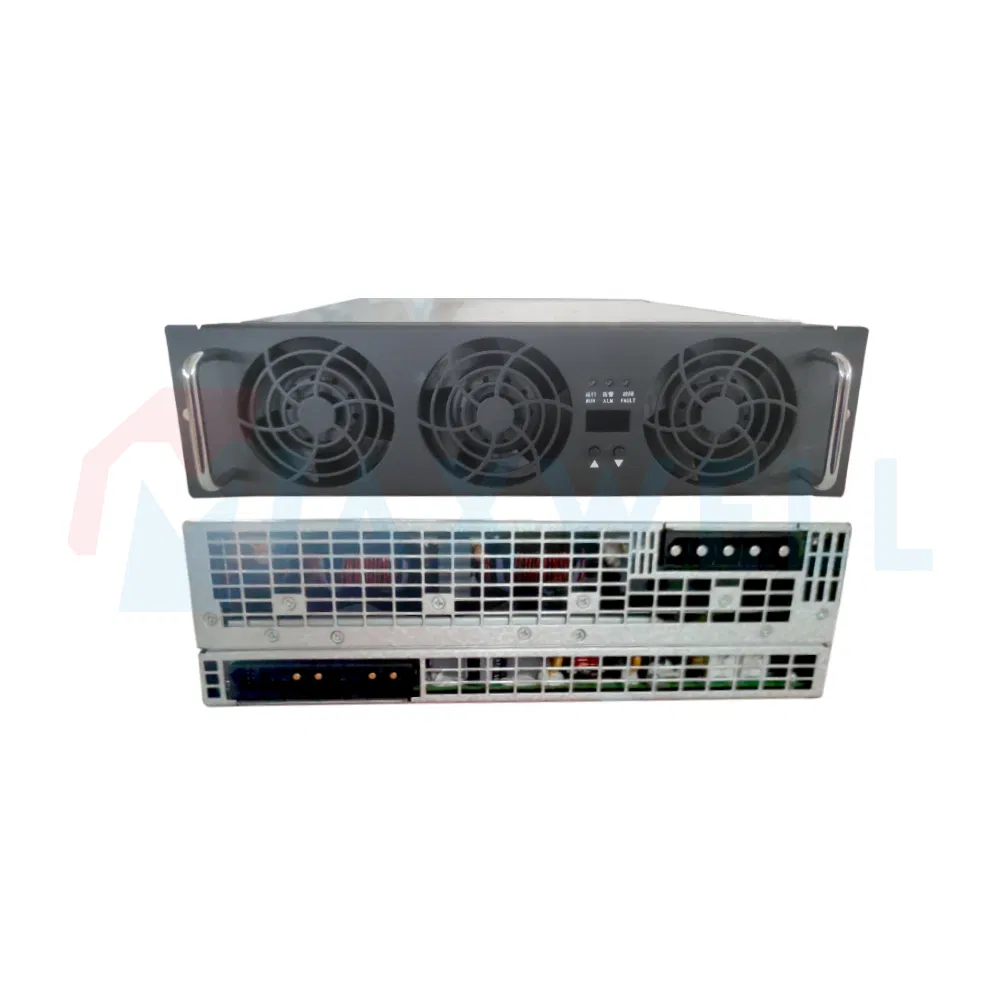

Energy Storage System with Hybrid Inverter 22kw Mxb100022

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Overview & Basic Info

Model NO.

MXB100022

Power Supply

3W+PE

Communication

Can Bus or Modbus

Input Voltage

260-530VAC

Input Current

<33.3A

Output Voltage

200-1000VDC

Output Current

0-73.3A

Protection Level

IP20

Warranty

12 Months

HS Code

8504409999

🔍 Product Description

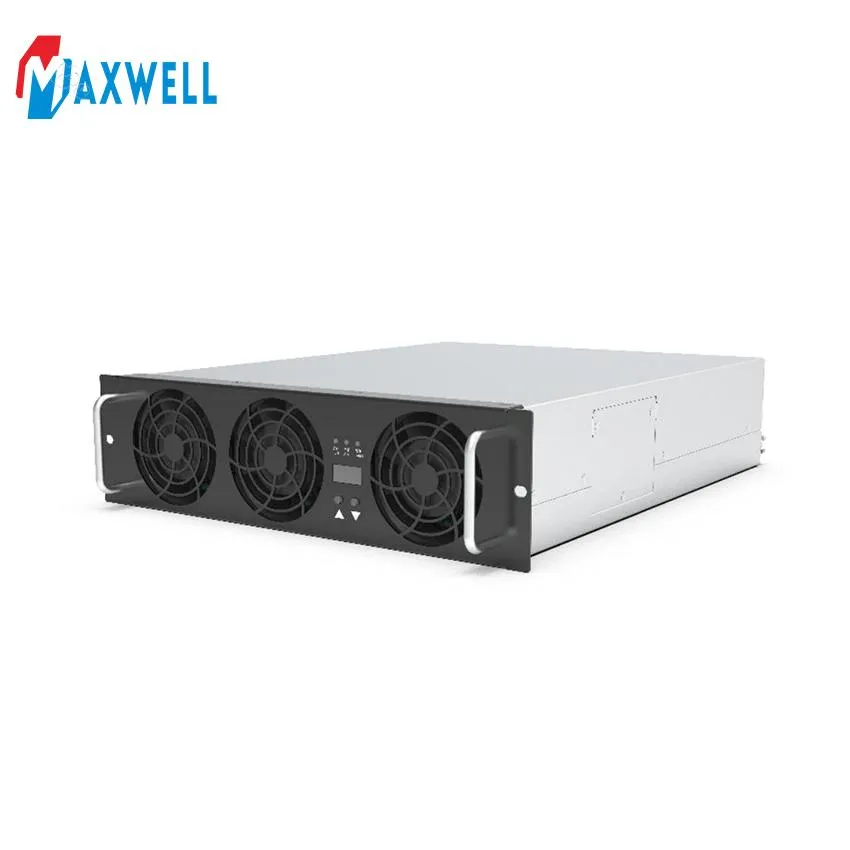

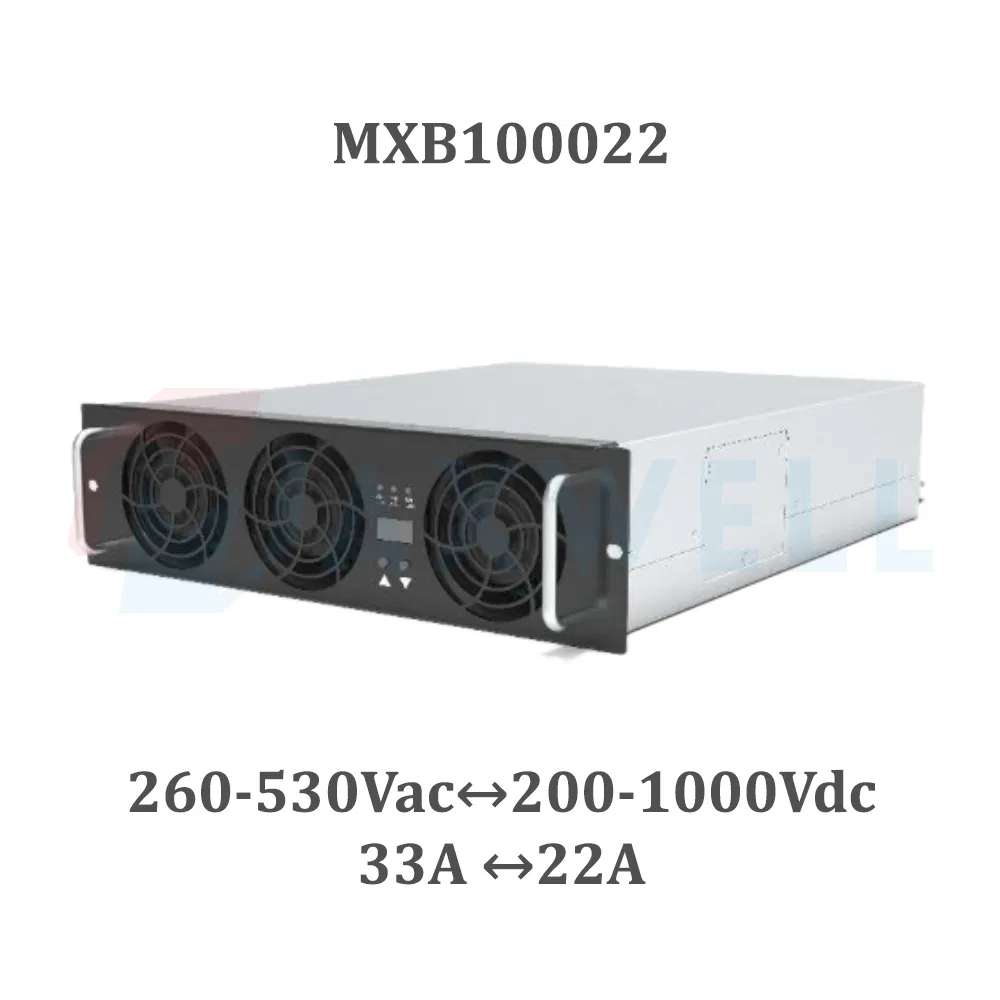

MXB100022 is a bidirectional power module developed for the Energy storage industry. It features ultra-high full-load operating temperature and an ultra-wide constant power range. High reliability, high efficiency, high power factor, and low standby power consumption are its core characteristics.

⚙️ Technical Parameters

Dimensions	85mm(H)300mm(W)395mm(D)
Communication Mode	CAN bus or Modbus
Input Voltage	260Vac-530Vac, Three-phase four-wire (3W+PE)
Power Factor	≥0.99
Output Power	22kw @ output voltage ≤1000Vdc
Voltage Range	200Vdc-1000Vdc
Operating Temperature	-40°C to +75°C

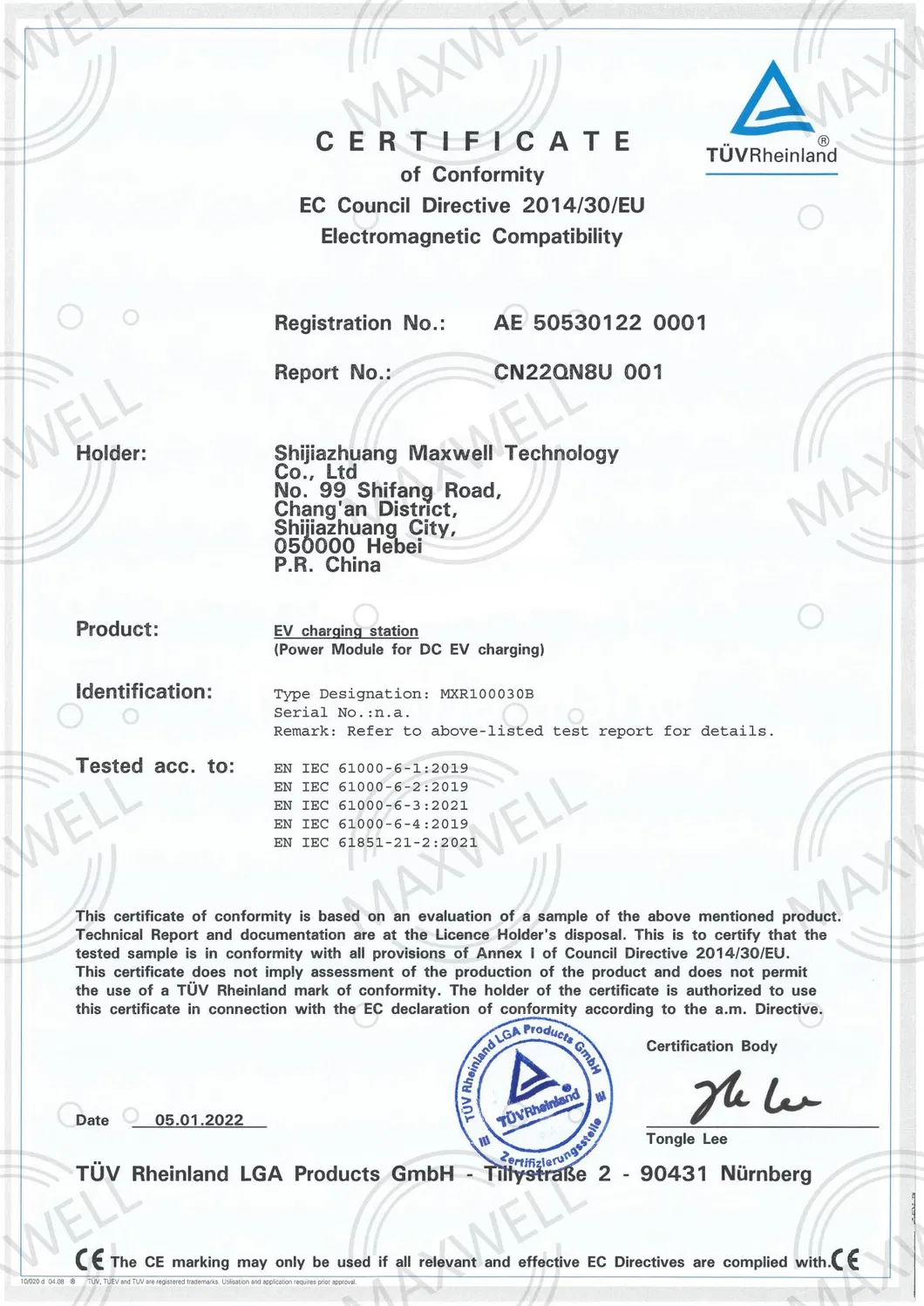

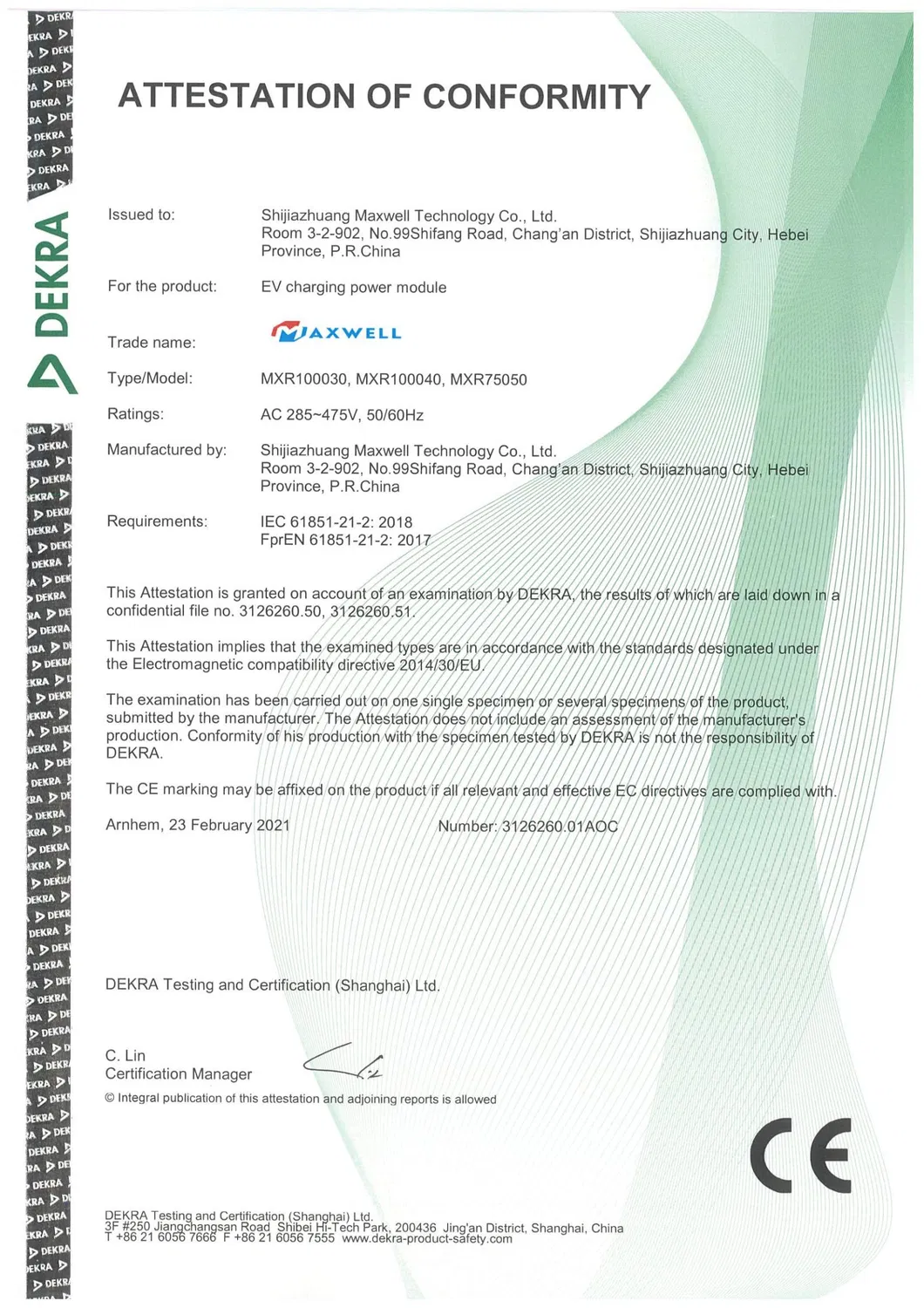

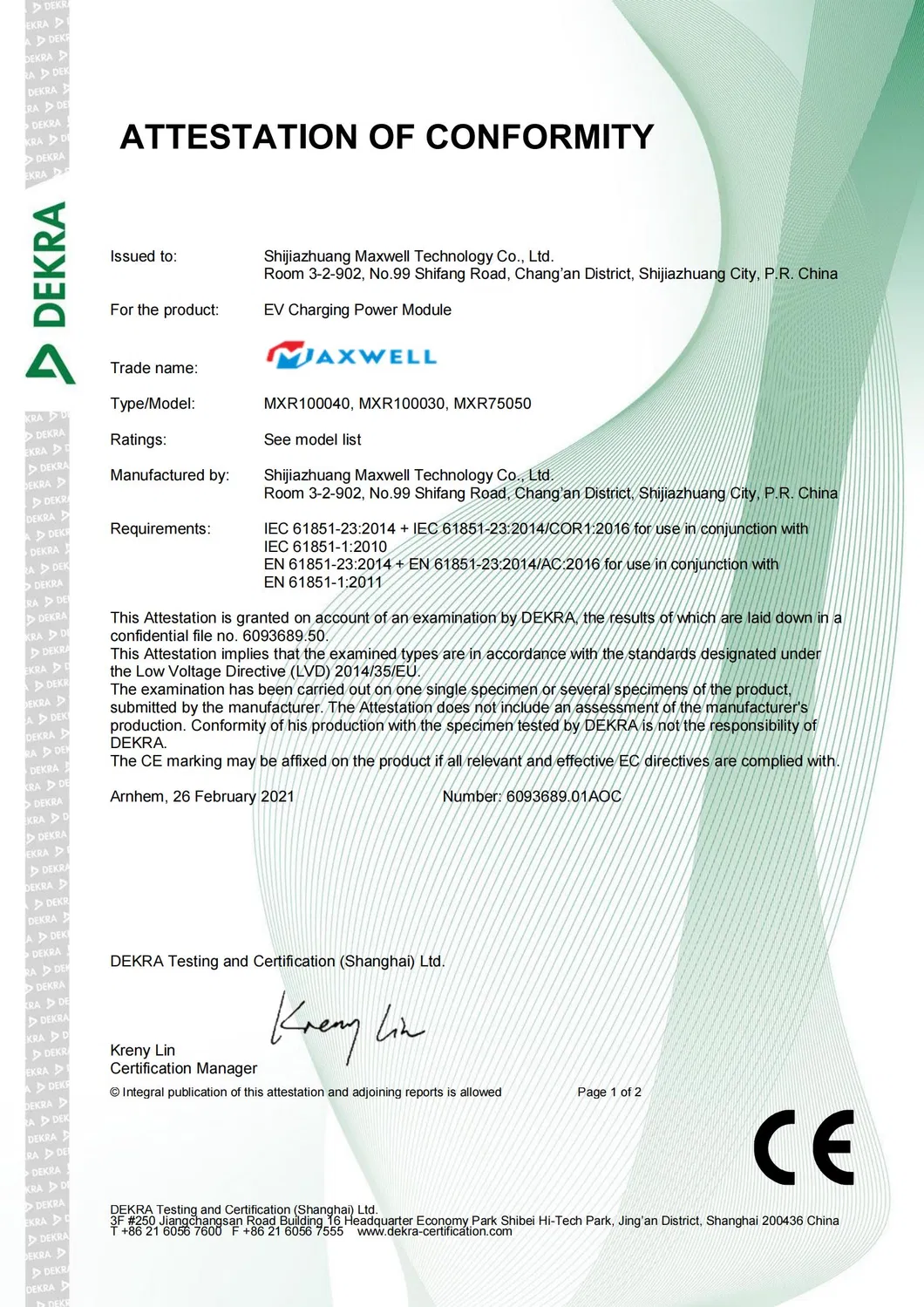

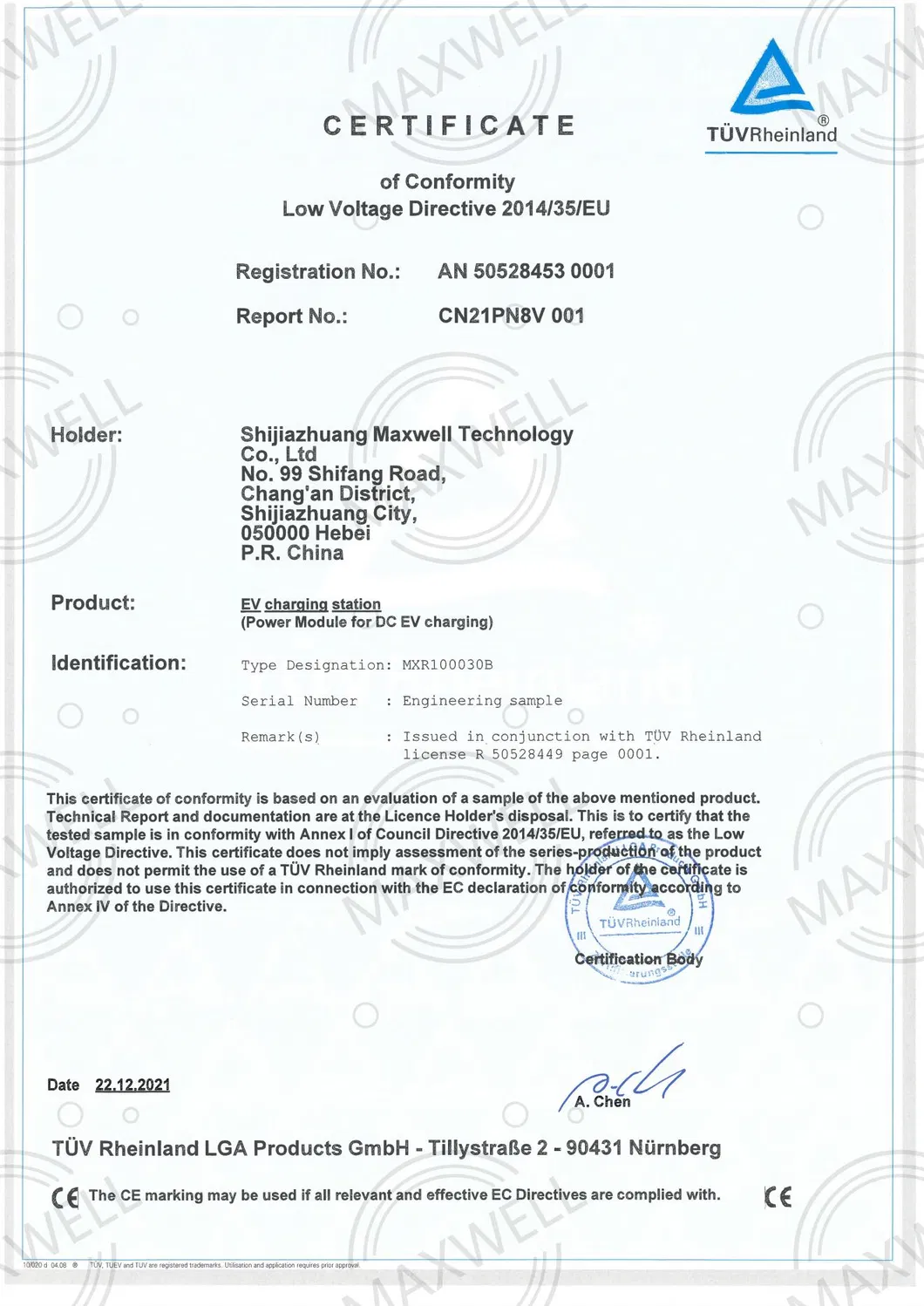

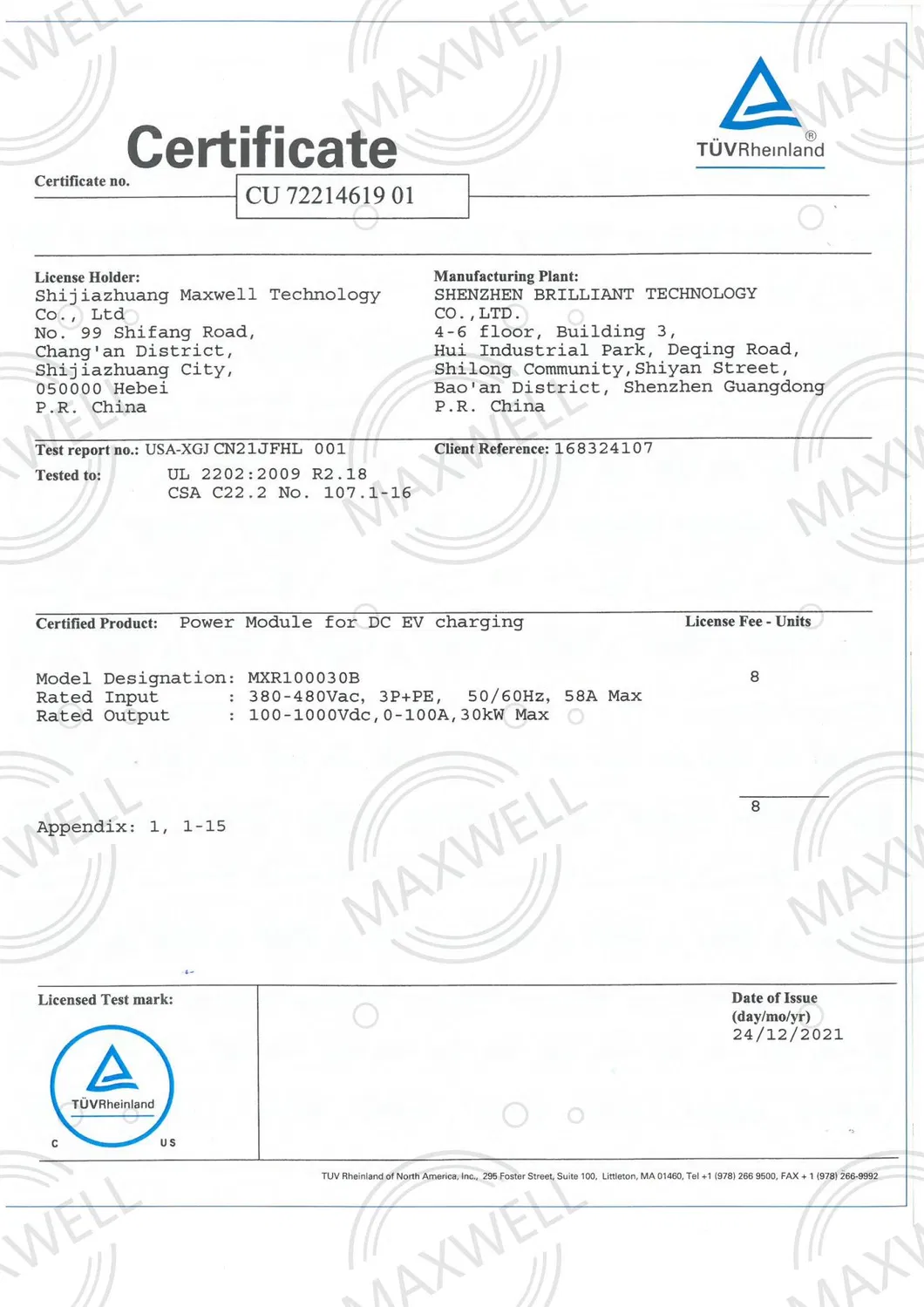

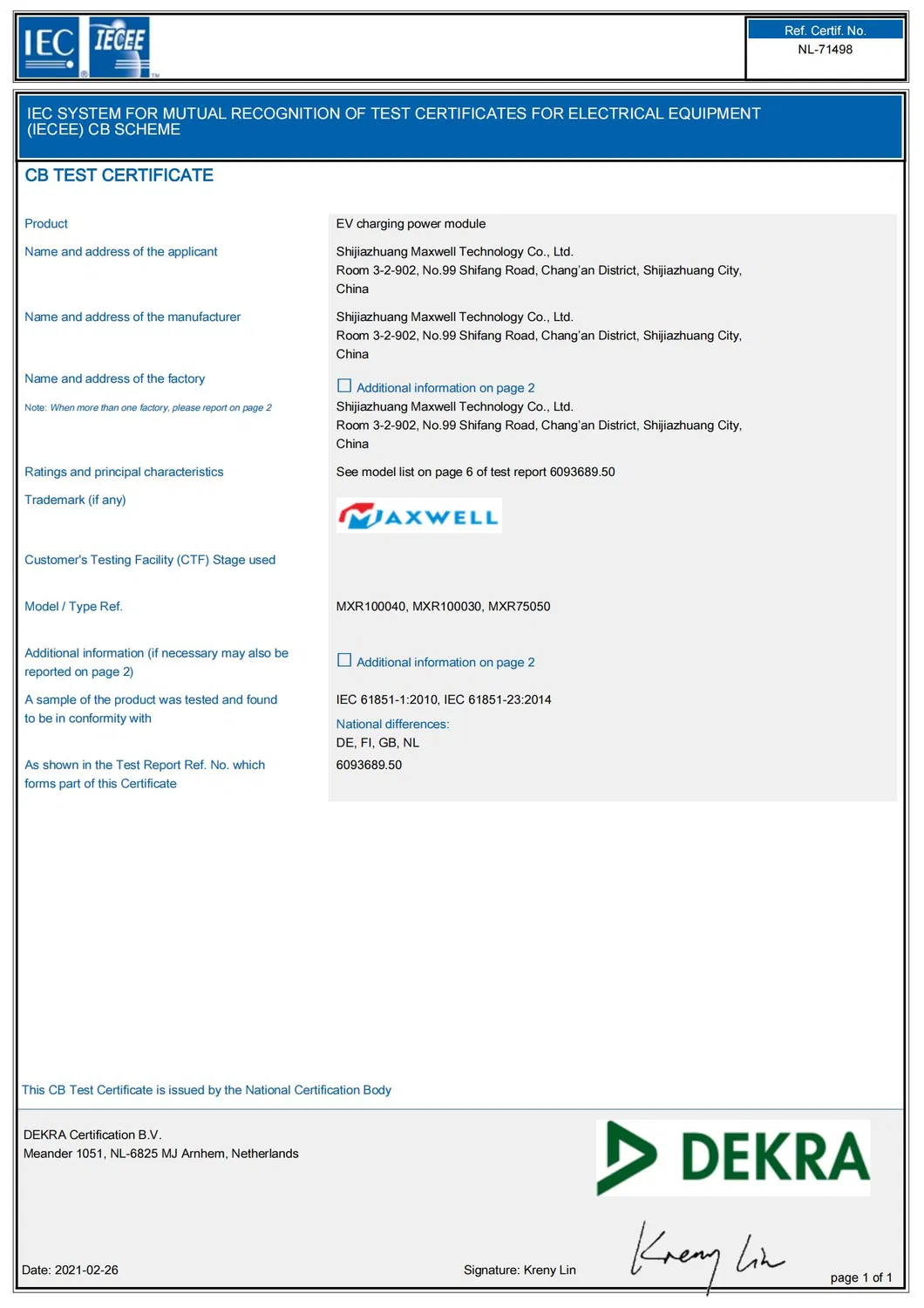

🏆 Certifications

📦 Packaging & Shipping

Package Size

70.00cm * 57.00cm * 29.00cm

Gross Weight

40.000kg

🏢 Professional Expertise

As a state-level high-tech enterprise, we focus on the research, development, and production of power electronic products. We provide mid-to-high-end DC power supply systems based on independent intellectual property rights and technological innovation.

Our products are widely used in automotive, electric power, railway, metallurgy, and communications fields. Since 2011, we have pioneered automotive DC charging modules, offering a full series of 15kW, 20kW, 30kW, 40kW, and 50kW models, used in large-scale charging centers and exhibition hubs.

❓ Frequently Asked Questions

Who is the manufacturer of these modules?

We are a professional manufacturer and supplier of EV charger power modules and DC charging stations with over 12 years of industry experience.

What are the main advantages of your DC charging solutions?

Digital controlled power with Active PFC (0.99 power factor).
Models available for 50~750V or 100V~1000V charging.
Full protection: over/under voltage, surge, over-current, and short-circuit.
Compliance with CCS, CHAdeMO, and GB/T standards.

What global DC fast charging standards do you support?

Our modules support all major standards: CCS-1 (North America), CCS-2 (Europe), CHAdeMO (Japan), and GB/T (China).

How do you handle after-sales support?

We provide comprehensive technical training, including written materials and videos. In urgent situations, professional technicians can be dispatched for on-site support and maintenance.

What are your terms of payment and delivery?

We accept T/T in advance or Irrevocable L/C at sight. Delivery is typically completed within 2-3 weeks after order confirmation.

How are the products packed for international shipping?

Goods are generally packed in high-quality kraft cartons with pallets, or branded boxes upon authorization, ensuring safety during sea or air transport.
