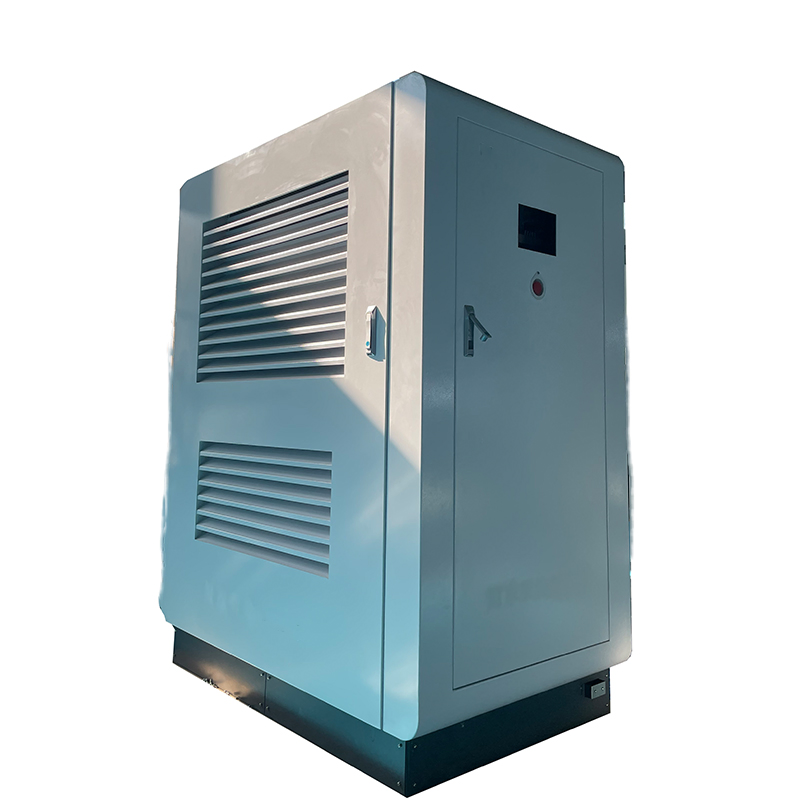

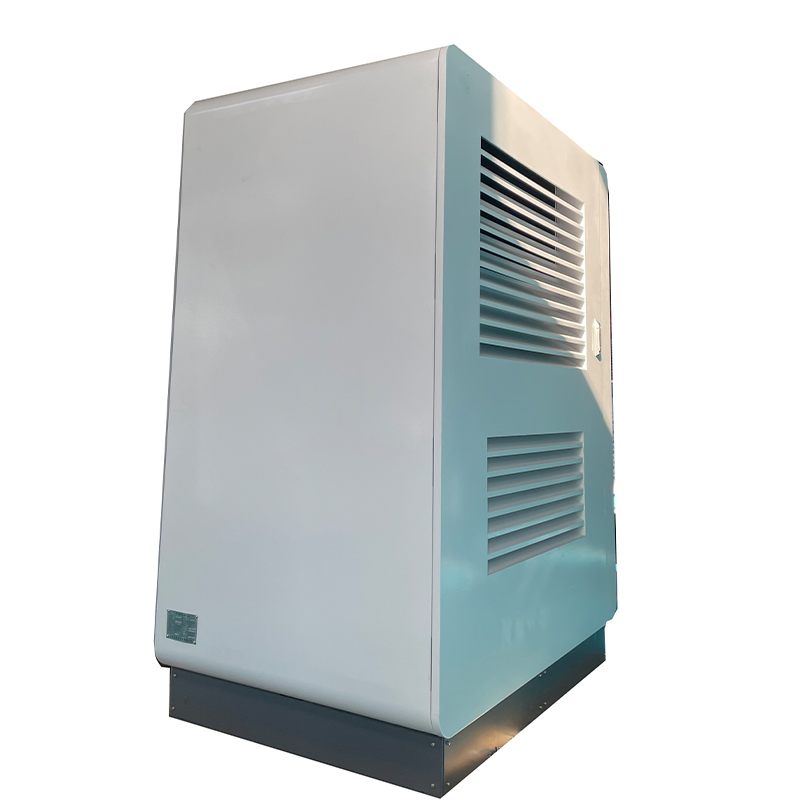

EV Charging Pile System for Parking & Transport Hubs

1 / 5

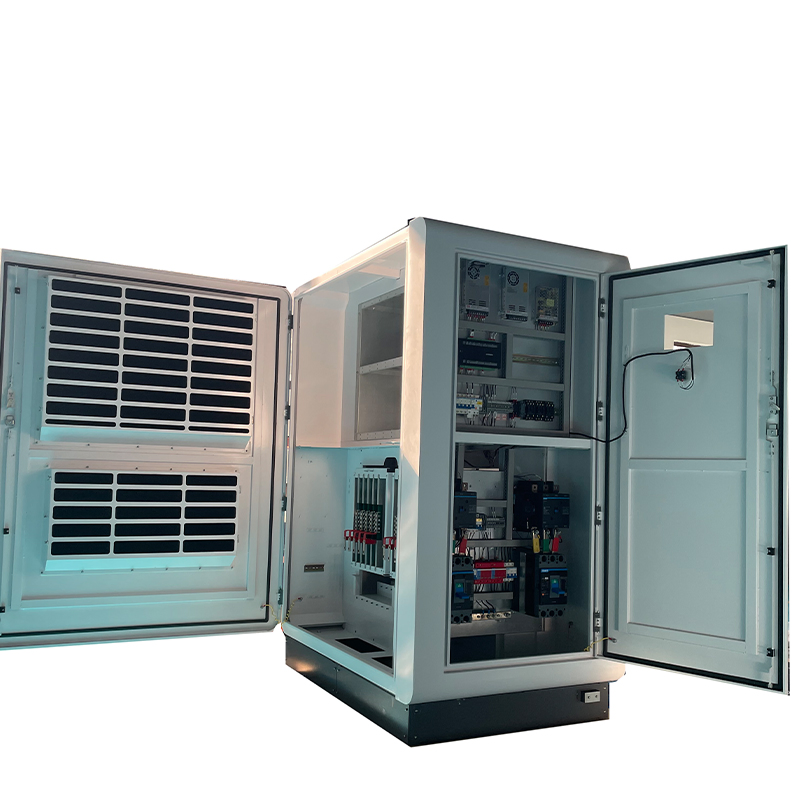

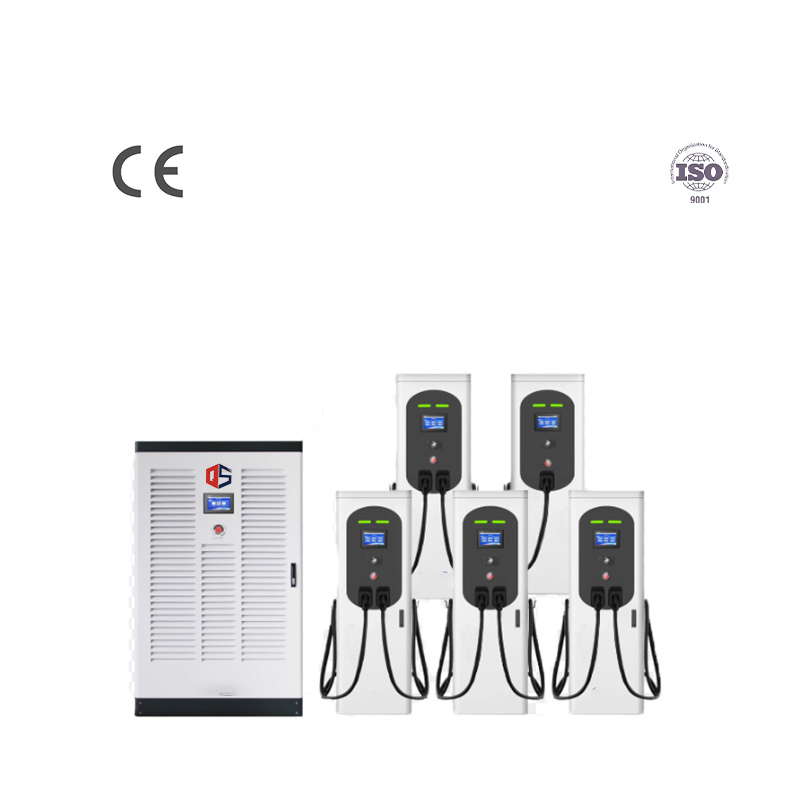

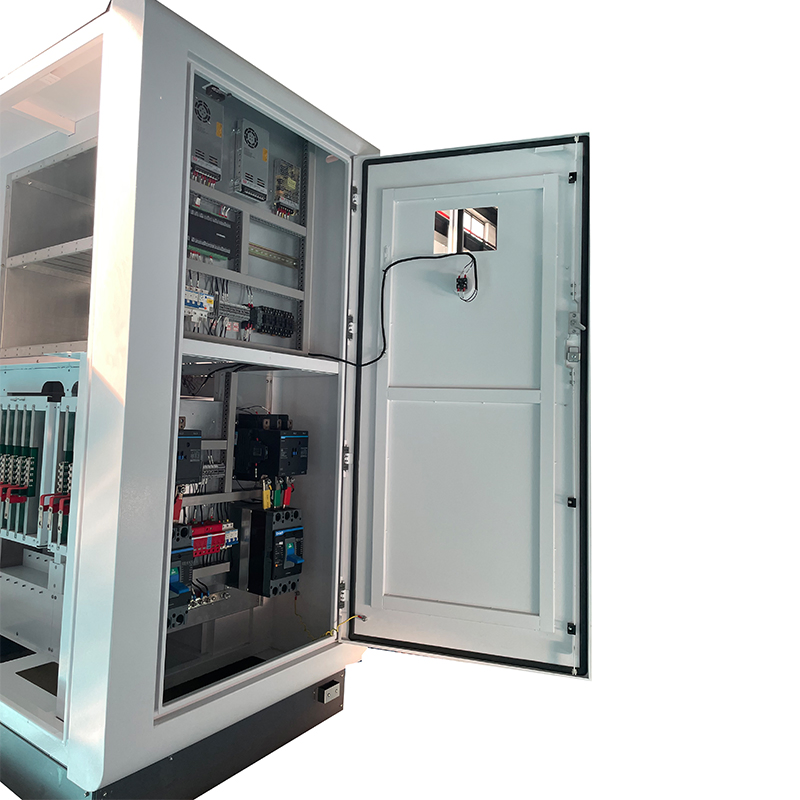

EV Charging Pile System for Parking & Transport Hubs

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview & Basic Info

Model NO.	QSCDD
Rated Current	2A; 63A; 100A; 200A; 300A
Rated Power	7kw; 11kw; 22kw; 60kw; 120kw; 180kw; 240kw

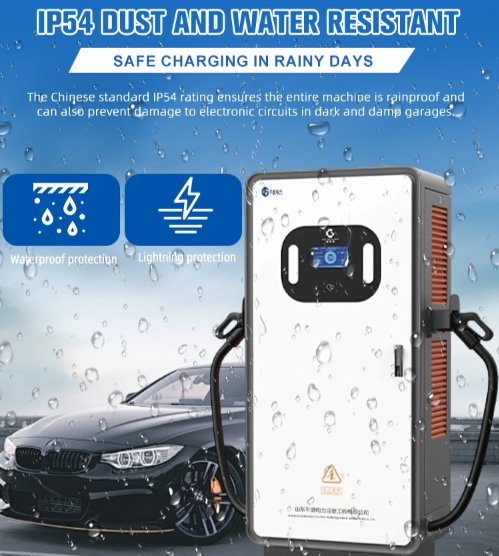

Protection Grade	IP54 / IP65 Universal Outdoor
Charging Type	AC Charging; DC Charging; AC&DC Integrated
Charging Efficiency	≥93% (AC); ≥95% (DC)
Power Factor	≥0.95 (Rated Load)
Service Life	8 - 10 Years
HS Code	8504409999

Product Description

EV Charging Pile System:

Flexible Expansion & Wide Compatibility
Certified Safety & Rock-Solid Reliability
Effortless Operation & Low-Maintenance Design
Consistently Stable Performance for Efficient Charging

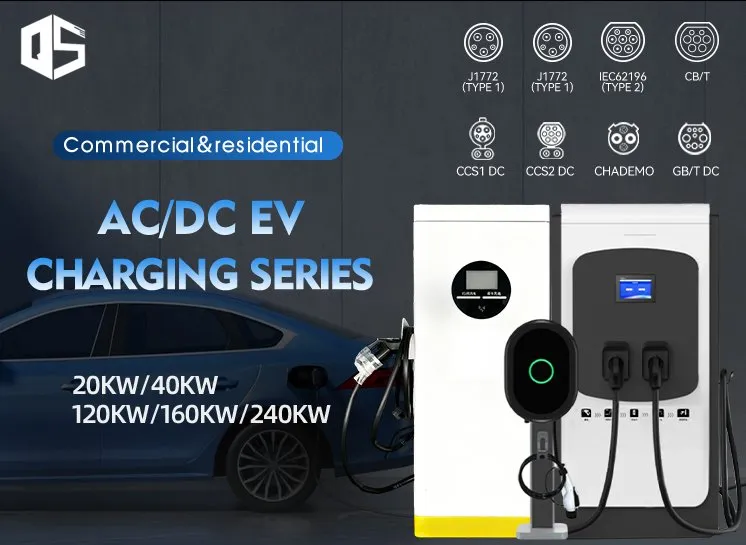

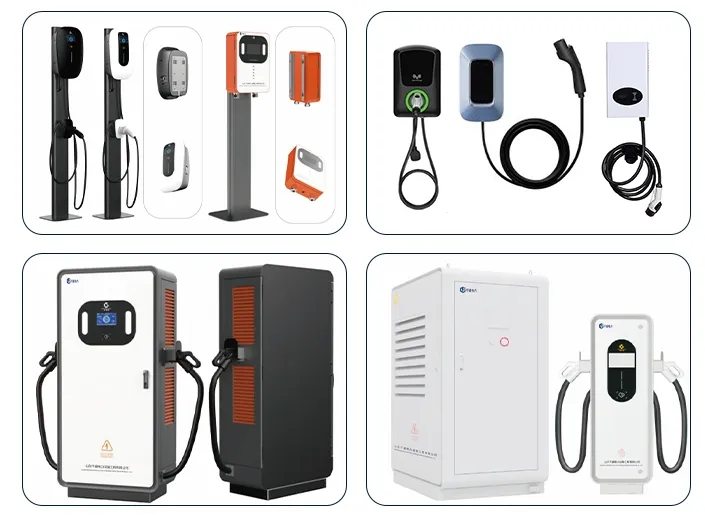

Our charging pile series includes multiple models with wall-mounted and floor-standing options to meet different installation needs. Stylish designs, stable frameworks, and modular power configurations make them easy to maintain and suitable for residential and commercial use.

Technical Specification

Feature	Technical Data
Power Output	20KW / 40KW / 120KW / 160KW / 240Kw
Input Rating	110V/220V/380V±15%
Output Voltage	200~1000V
Connectors	CCS1, CCS2, GB/T, J1772, IEC62196, CHADEMO
Display	7" LCD Touch Screen
Network	4G / Ethernet / OCPP1.6J
Protection	IP55
Temp Range	-20℃ to +50℃ (Operating)

Best Sellers

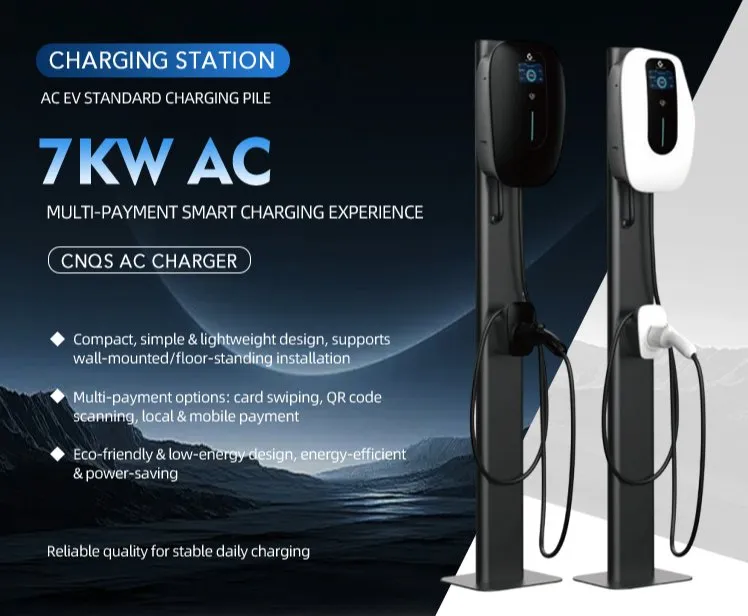

7KW AC Charger

CE/UL/PSE/KC Certified. 100% compliance. PNC Plug & Charge supported.

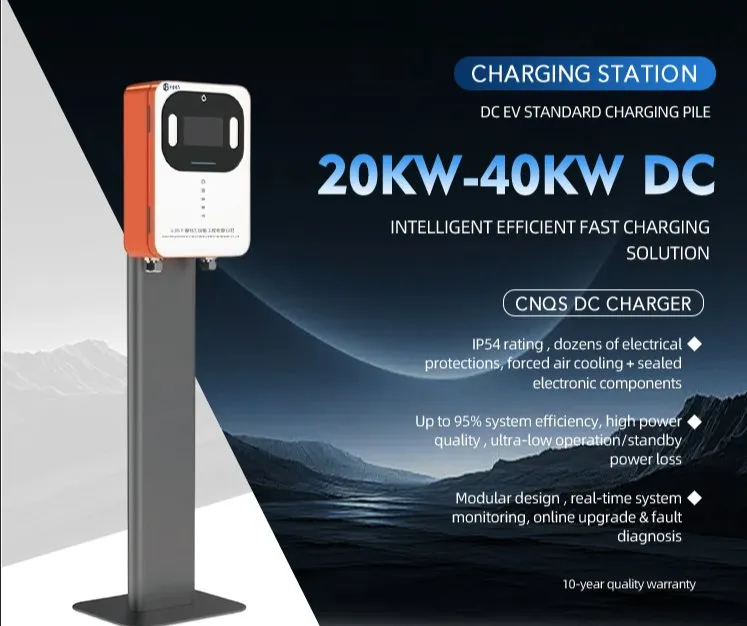

20KW-40KW DC Charger

Fast charging (80% in 30 mins). IP65 rated. Supports Apple/Google Pay.

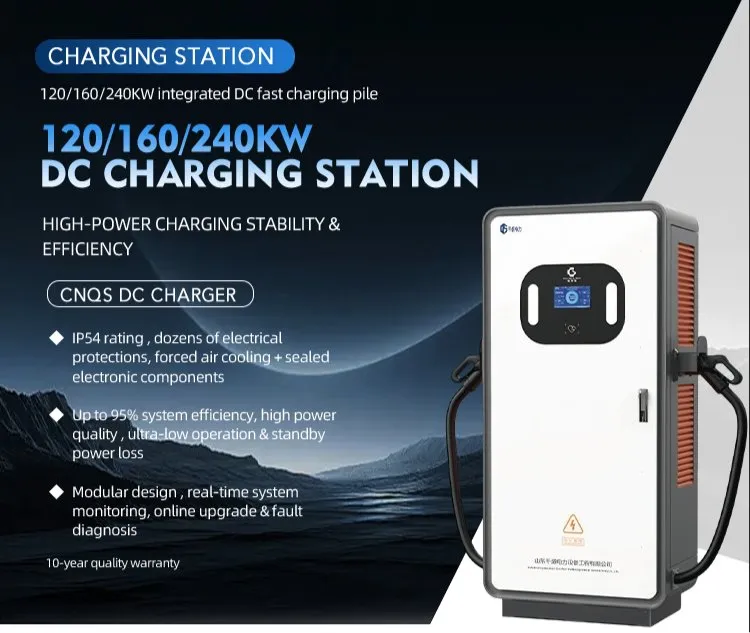

120/160/240KW Ultra-Fast DC Station

Dual-gun simultaneous charging. 300+km range replenished in 30 mins. Dynamic power allocation.

Product's Details

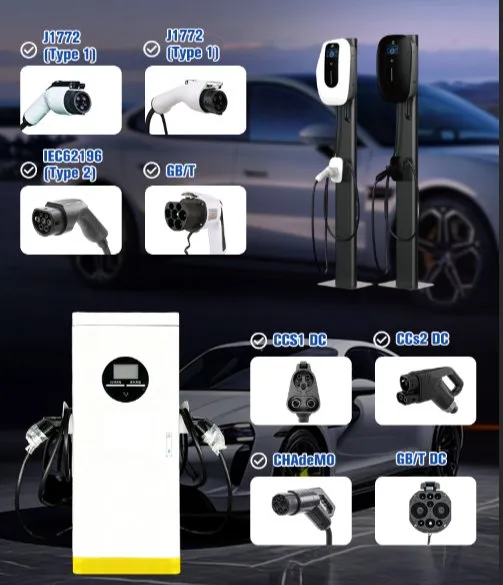

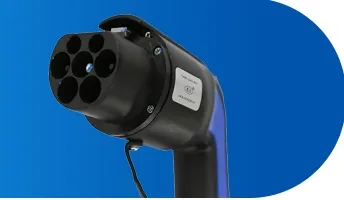

Multi-standard fast charging connectors (CCS2/Type2/CHAdeMO).
Thickened high-temperature resistant special cables, anti-aging.
Customizable cable length with self-locking anti-drop connectors.

Features & Production

Professional Profile

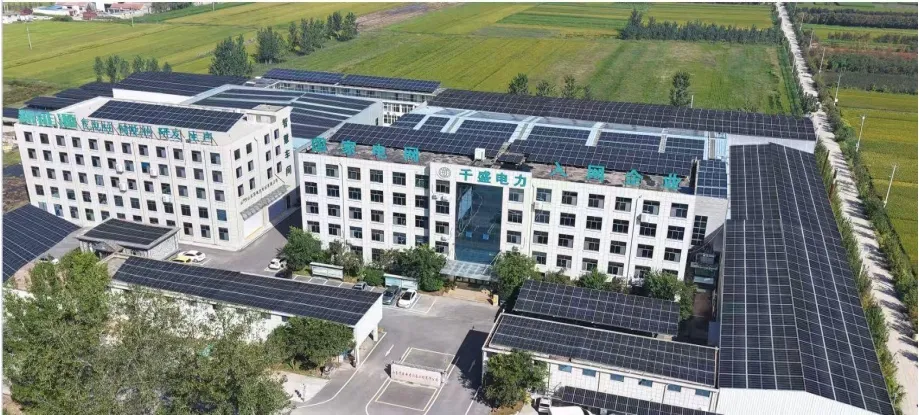

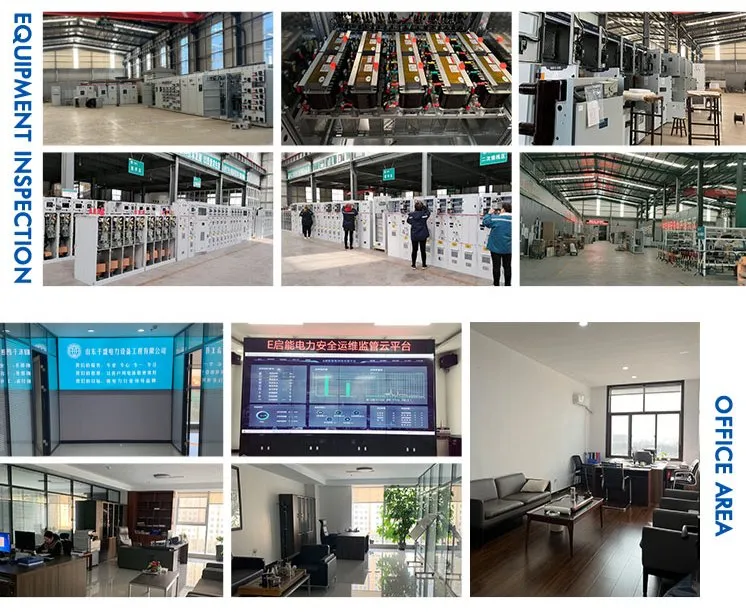

With over 20 years of expertise, we provide reliable power distribution and new energy solutions. Our facility covers over 16,000 m² and is supported by a team of professional managers and senior technicians.

Certifications: ISO9001:2000, Environmental Management System, CCC, CQC, and CE/UL/PSE compliance.

Frequently Asked Questions

What situations are not covered by the warranty?

Includes human damage, unauthorized disassembly, use of non-genuine parts, improper installation, and force majeure events such as fire or earthquakes.

Is regular maintenance service provided?

Yes, we provide free annual inspections including electrical safety testing, mechanical tightening, and software updates. Quarterly packages are also available.

Does the after-sales service comply with local data regulations?

Fully compliant with EU GDPR and local safety certifications (CE/UL/PSE). Maintenance data is encrypted and stored to protect privacy.

Can the warranty period be extended?

Paid extensions are available: 2 years for residential and up to 3 years for commercial chargers, covering main units and core components.

Is after-sales service universal across regions?

Our global warranty system covers Europe, America, Asia-Pacific, and the Middle East. Services are available locally with the equipment serial number.

How long is the typical production lead time?

Standard configurations typically follow a set production schedule ensuring on-time delivery. Please contact our sales representatives for specific timelines based on order volume.
