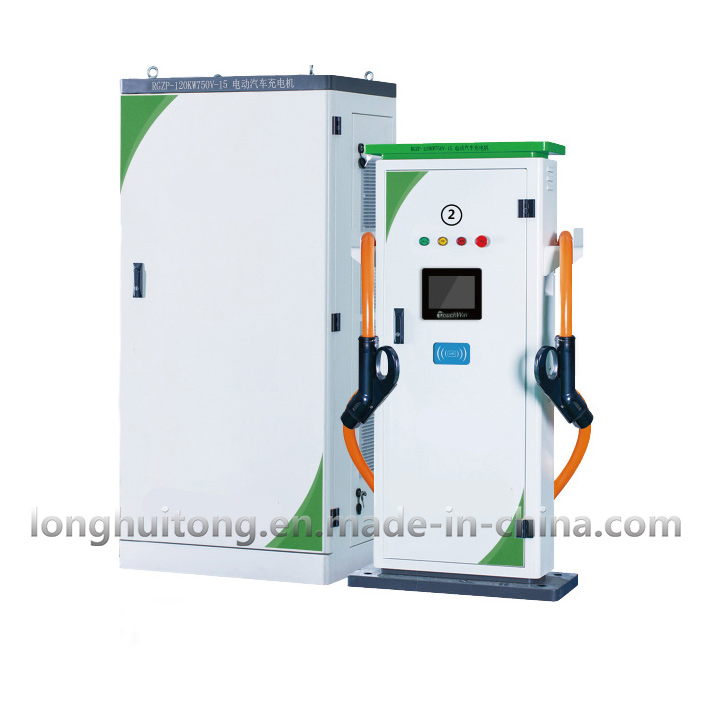

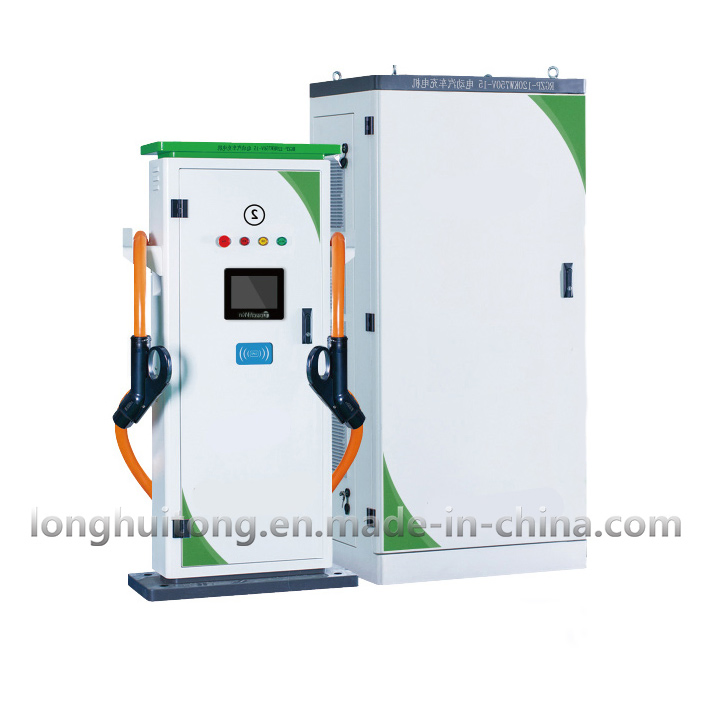

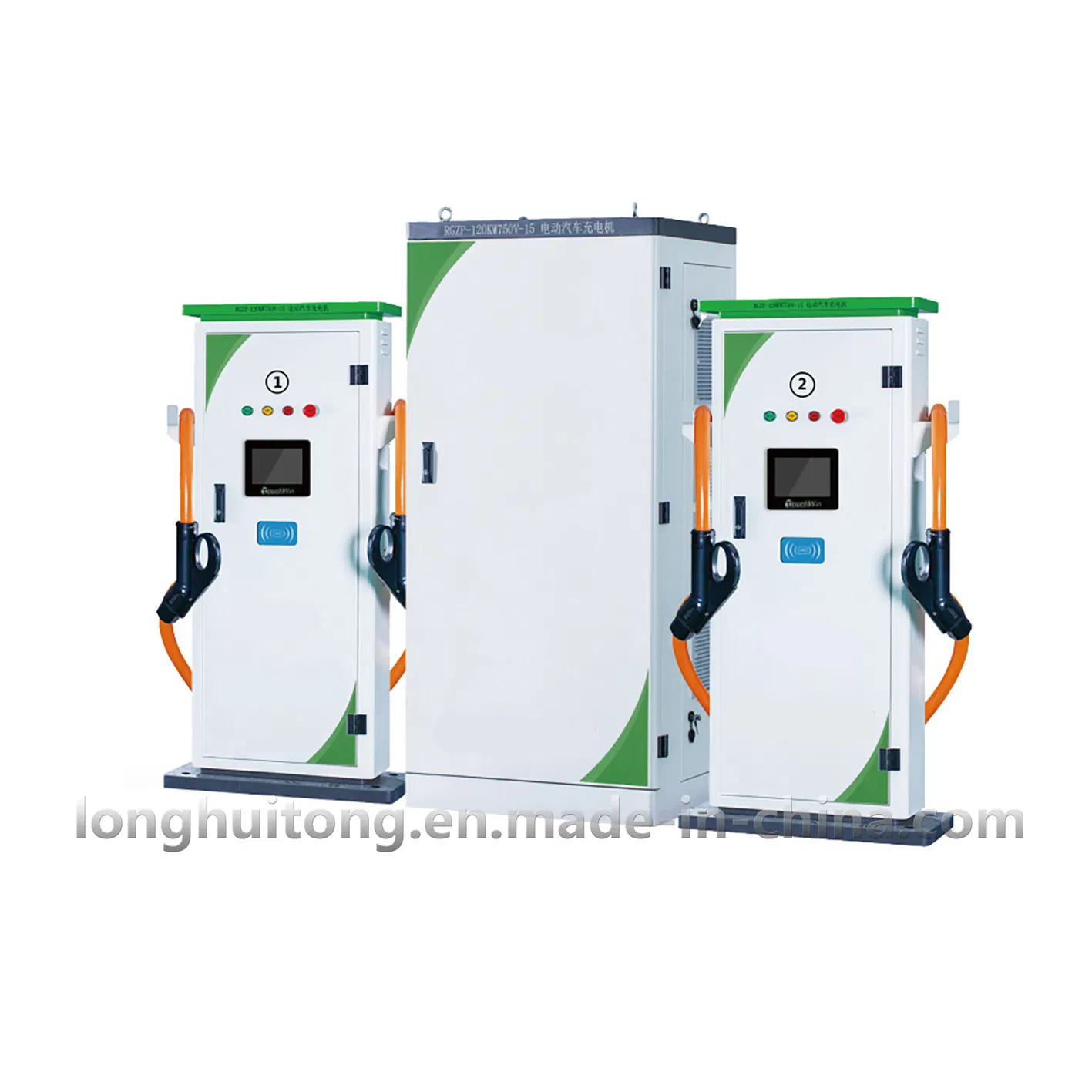

The Smart Charging Stack (Dual-Charge) System is designed specifically for high-efficiency, high-compatibility electric vehicle charging scenarios. Its core architecture utilizes a "one-unit, multiple-charger" architecture. A single host can flexibly support scalable configurations of two to six dual-charger terminals. This can be customized based on actual site traffic conditions, significantly improving equipment utilization and site investment returns.
Intelligent Power Management: The system automatically identifies charging needs and dynamically allocates up to 360kW of total power across all connected terminals, providing fast and stable service for multiple models (from passenger cars to buses).
Its wide output voltage range (DC 250V-750V) and compatibility with multiple BMS protocols ensure seamless operation with a wide range of vehicles. This product integrates intelligent operation and maintenance features such as fault location and network transmission, supporting Ethernet and 4G networking solutions.
| Parameter Category | Parameter Details |
|---|---|
| Charger power | 120kW, 150kW, 180kW, 300kW, 360kW |
| Output voltage range | DC 250V ~ 750V |
| Input voltage range | AC 380V ± 15% |
| Constant power range | DC 400V ~ DC 750V (optional) |
| Charging gun output | Multi-power intelligent switching, 2~6 terminals customizable |
| Cabinet size (Main) | 800×600×1700 mm |

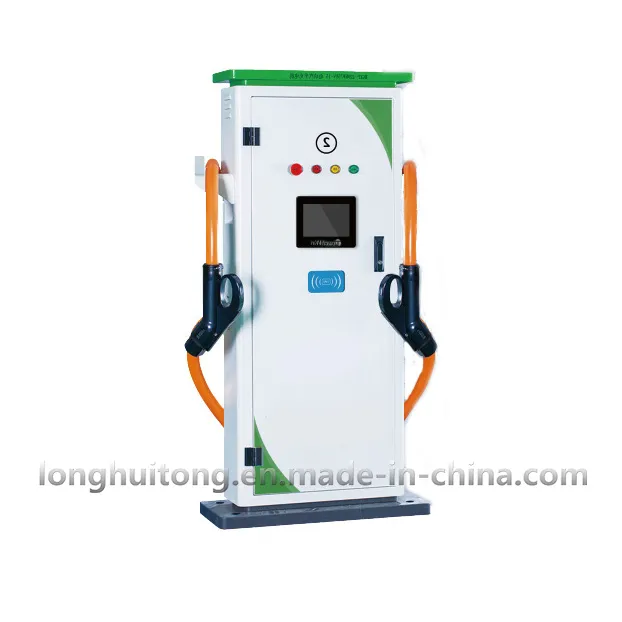

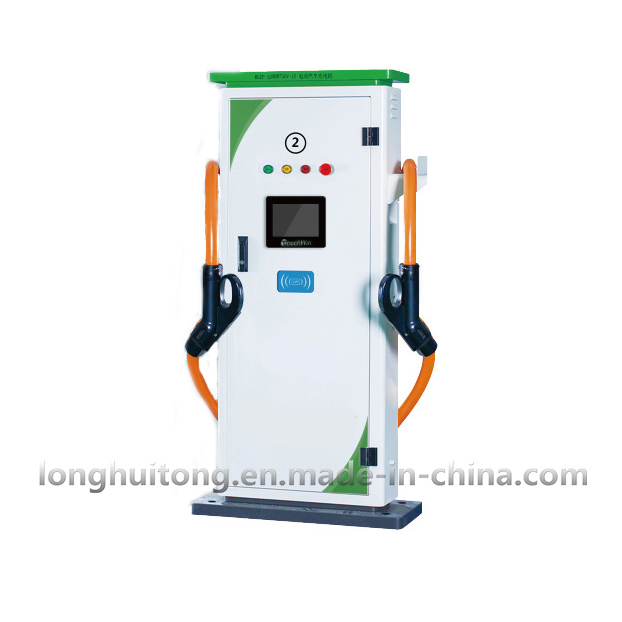

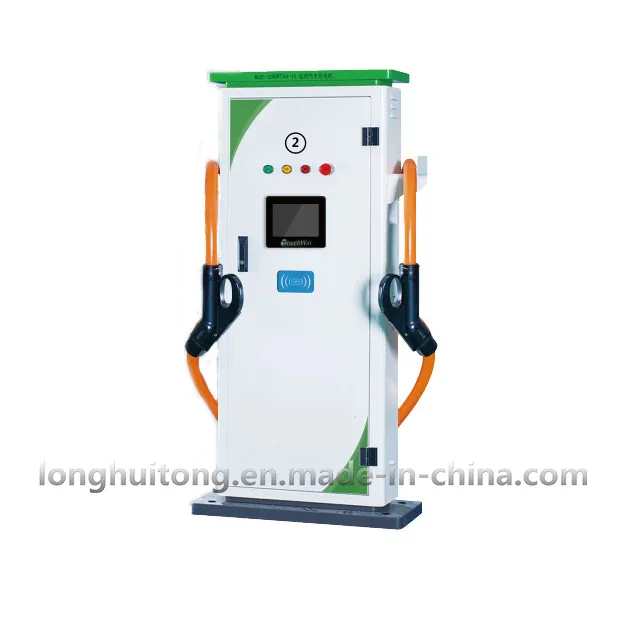

| Cabinet size (Terminal) | 750×400×1500 mm |
| Weight (Main) | 285kg ± 10kg |
| Weight (Terminal) | 112kg ± 10kg |
| Startup method | Manual, Card, WeChat, APP |
| Host interface | RS485, Expandable Ethernet |
| Communication | CAN interface, BMS compatible protocols |
| Networking | Support Ethernet, 4G network |
