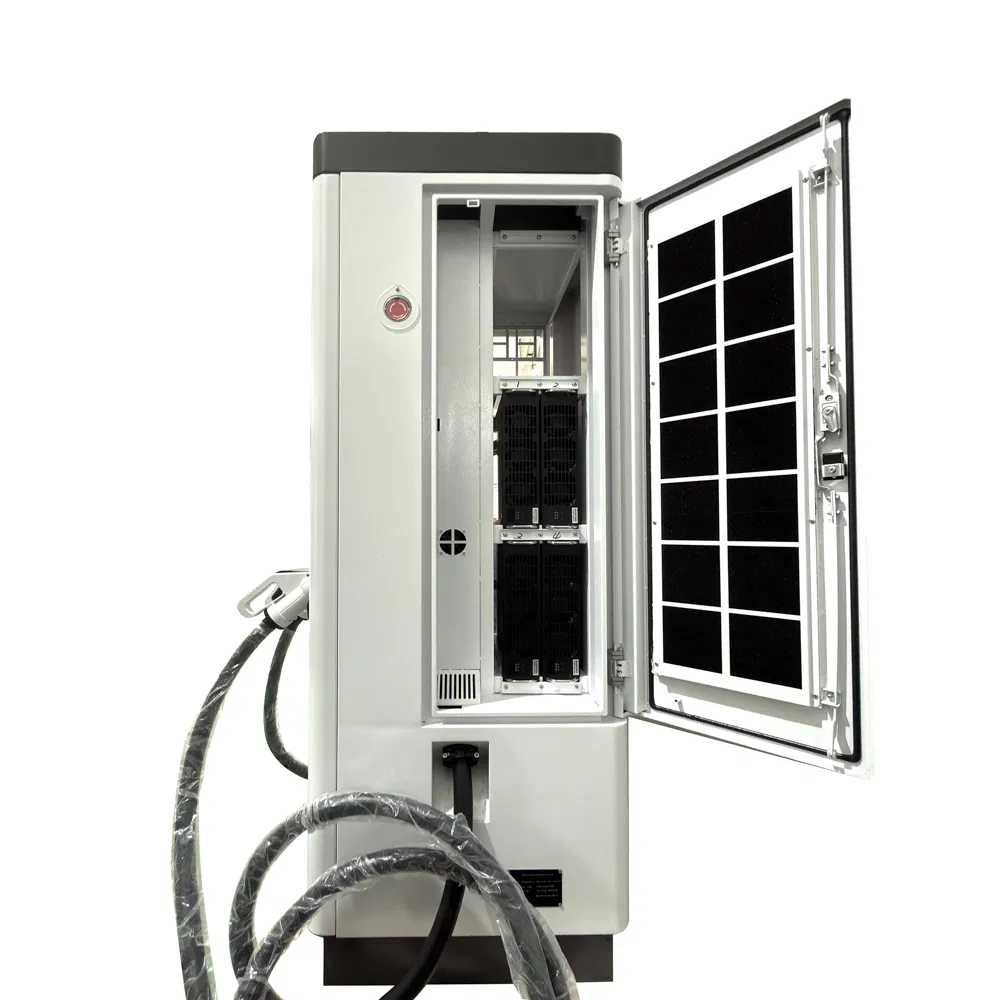

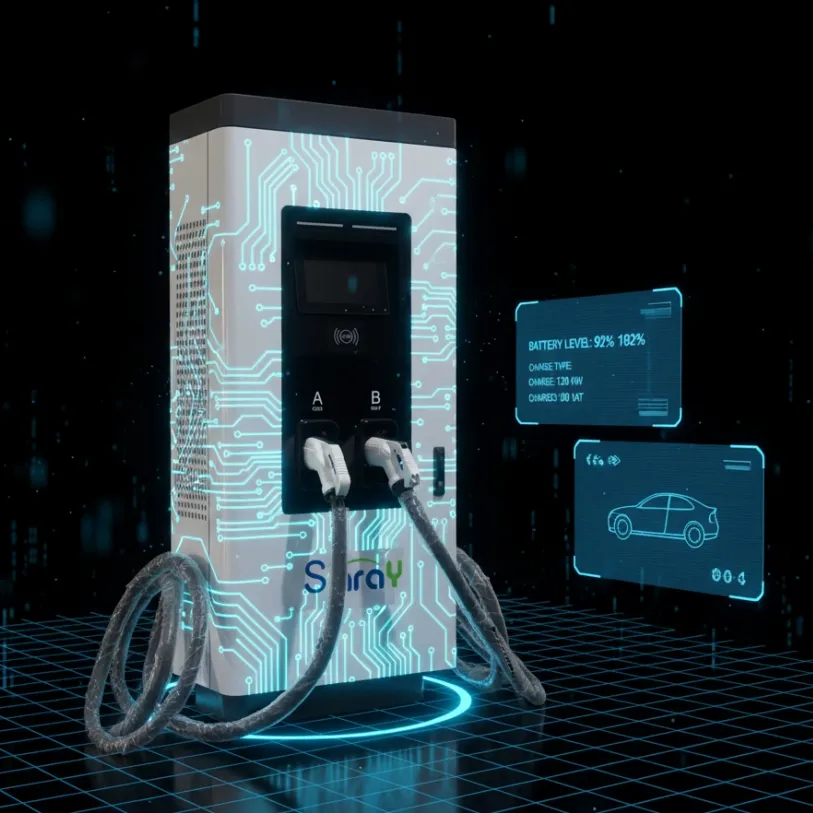

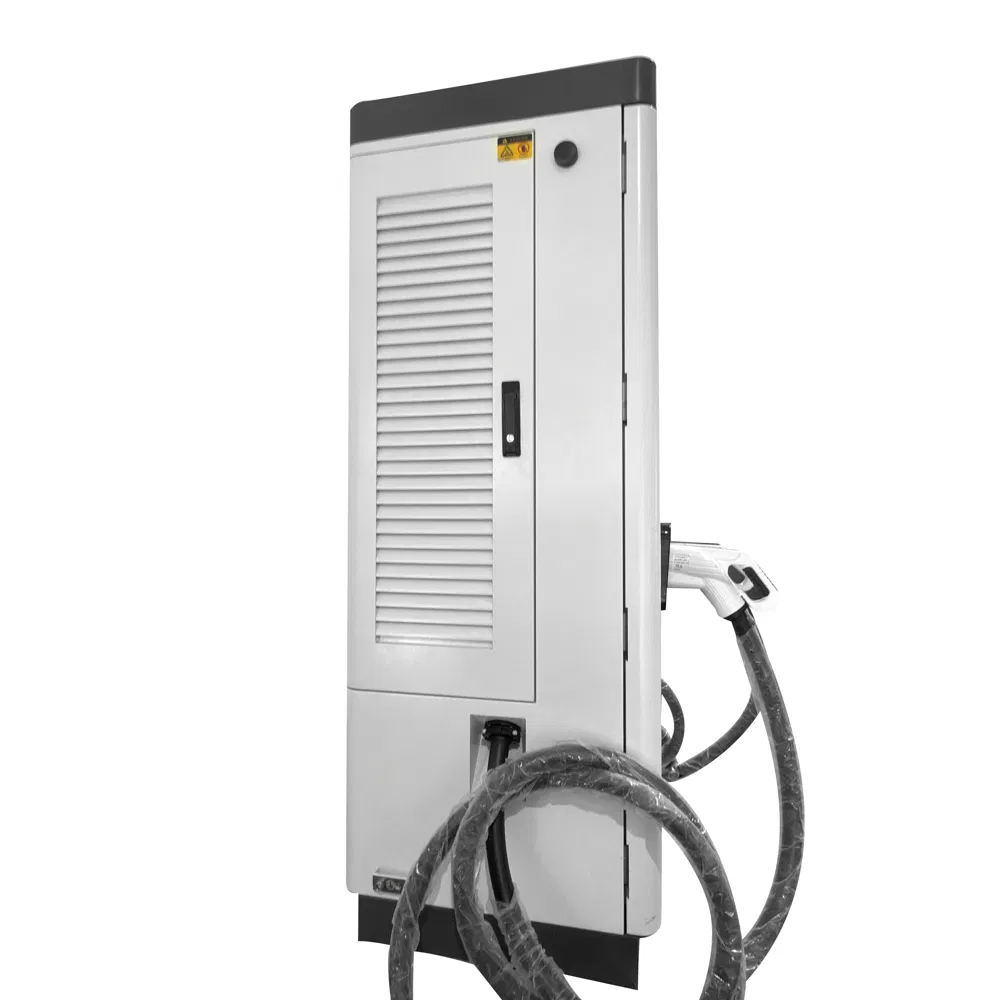

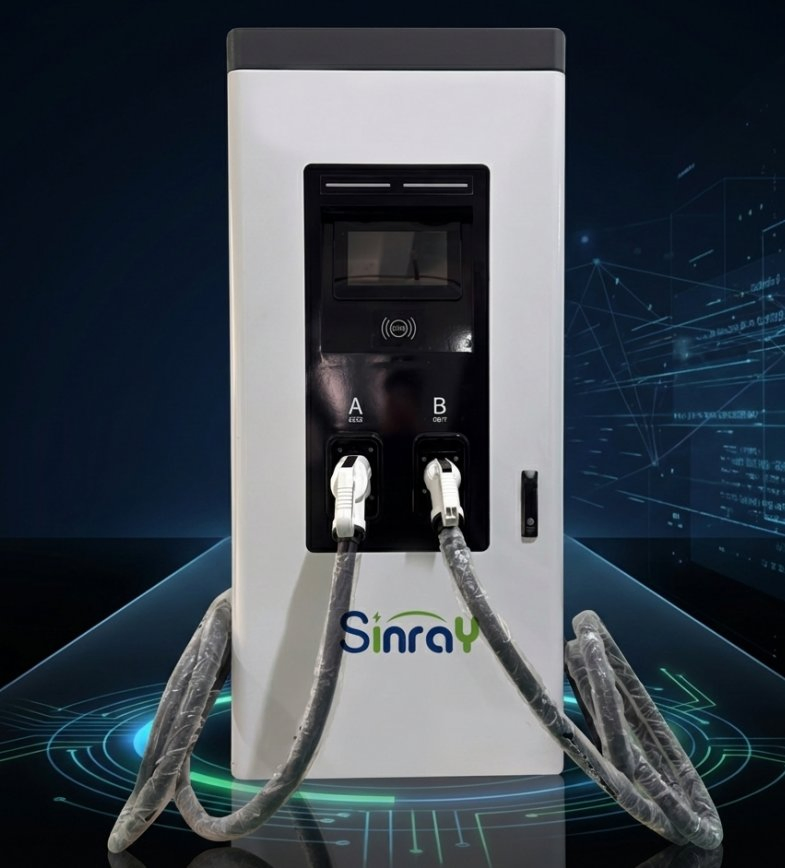

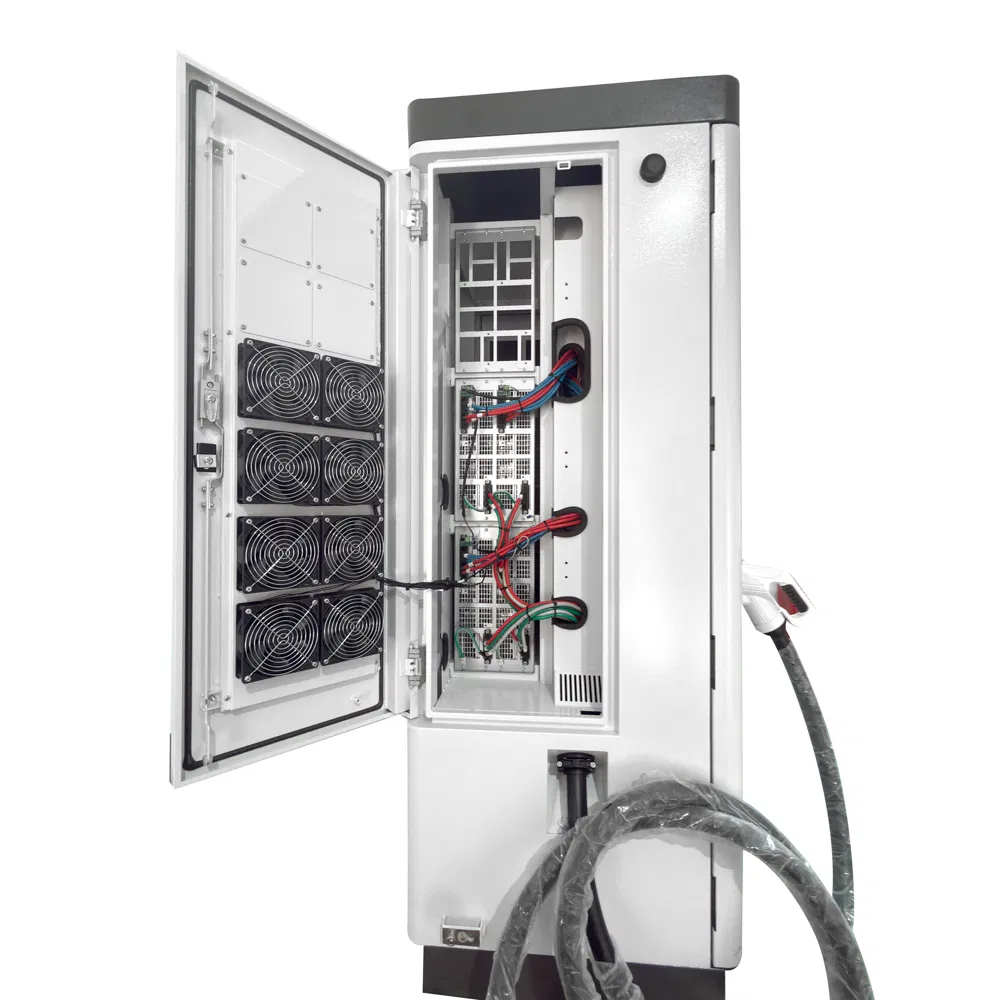

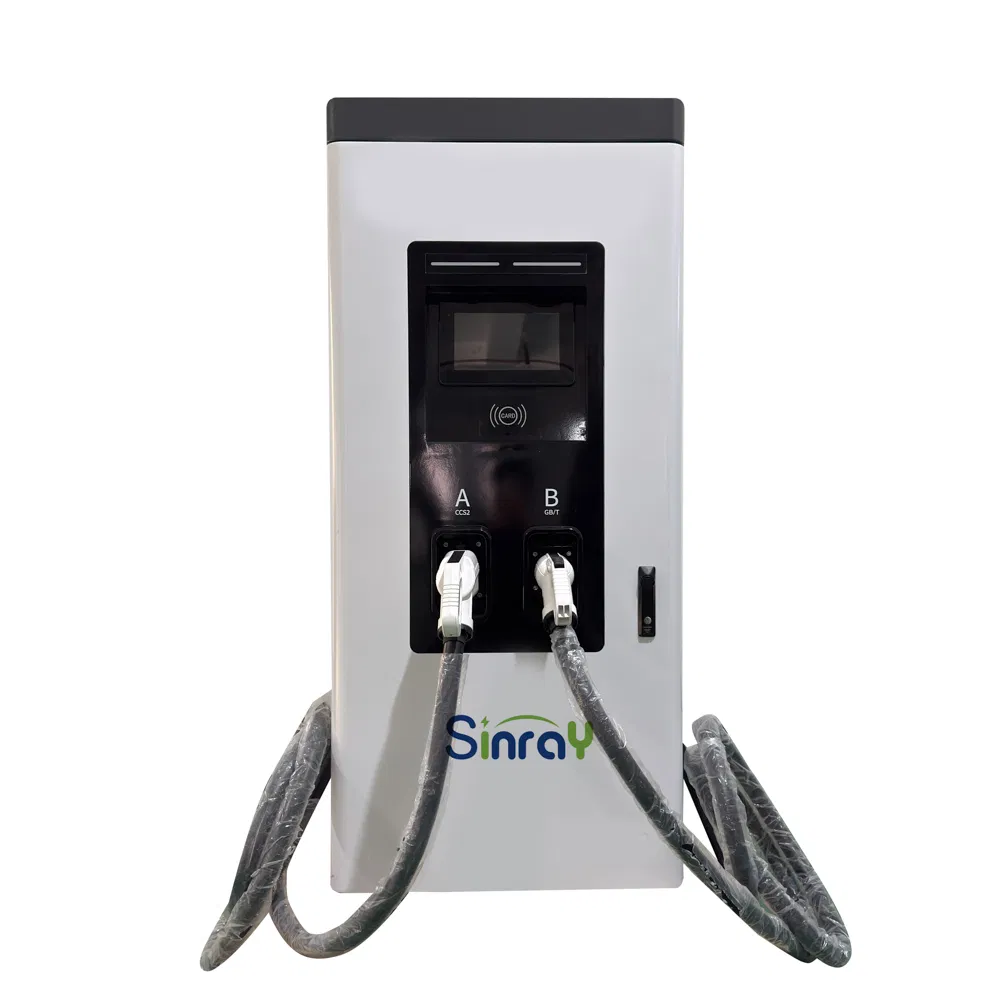

| Model NO. | K072 DC-120kw Double Guns |
| Location | Public Use |
| Charging Interfaces | One Pile with Multiple Charges |
| Start Mode | Credit Card Payment, RFID Authentic, Scanning Codes |
| Input Voltage | AC 380V±20% 3 Phase |
| Protection Level | IP54 |
| Type | Fast EV Charging Station |
| Certifications | CCC, CE, ISO, TUV |
Power Flexibility: Charging most EVs to 80% in 30 minutes or less—4x faster than standard Level 2 chargers. Optimized energy conversion with three-phase PFC topology.
Features a 7-inch touchscreen display with real-time monitoring. Supports multi-payment options (RFID, Mobile) and OCPP protocol for remote management.

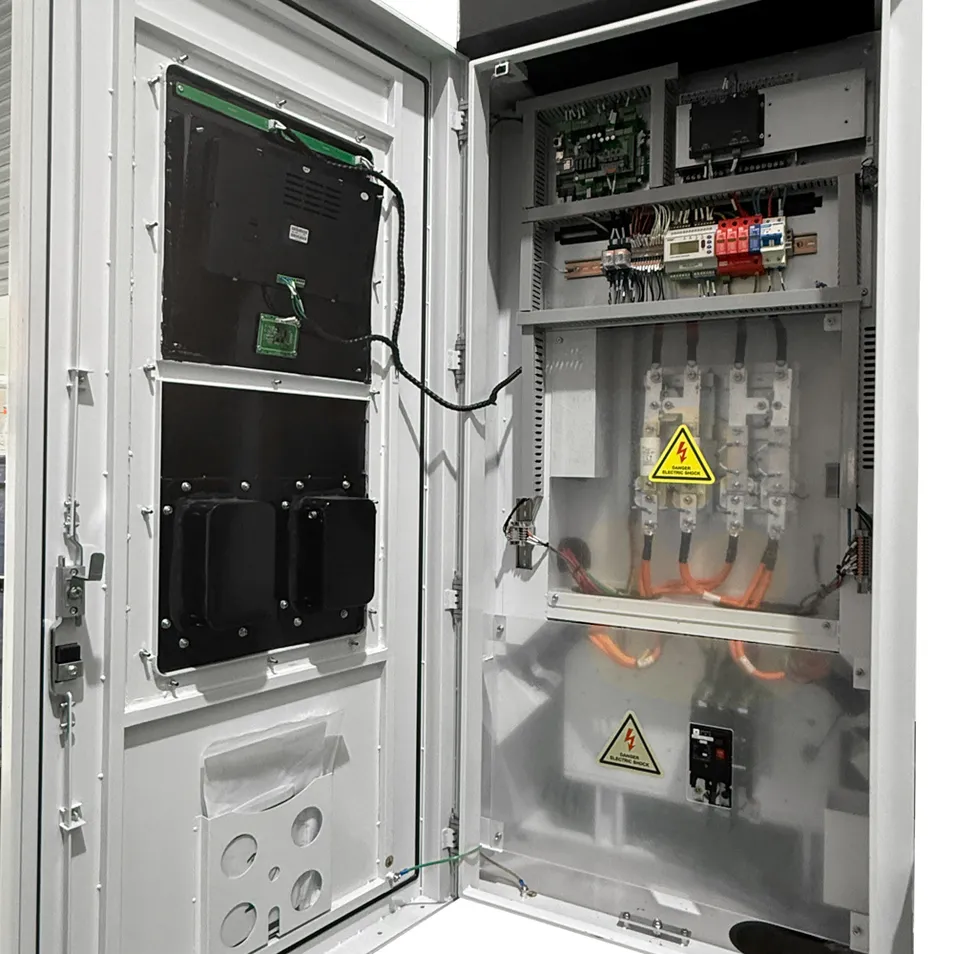

Built-in safeguards for over-voltage, current, and heat protection. IP54 rating ensures stable operation in harsh environments (-30°C to +60°C).
| Power Range | DC 60-320KW |
| Rated Output Voltage | DC 150-1000V |
| Frequency | 50-60Hz |
| Communication Protocol | OCPP 1.6J |
| HMI | 10-Inch Touch Screen |
| Connector Type | CCS1 / CCS2 / CHADEMO / GBT |
| Net Weight | 320KG |
| Gross Weight | 400KG |
| Product Dimensions | 1000 × 925 × 1950 mm |
We are an intelligent EV charging station manufacturing technology center demonstration enterprise. With over 5 years of specialized experience, our product range spans from 7kw to 360KW. Our solutions are widely adopted in international markets including Russia, Mexico, Iran, the Middle East, and Southeast Asia. We provide comprehensive OEM and ODM services to meet diverse global requirements.
