Customization: Available
After-sales Service: Warranty Certificate
Warranty: 12 Months
Send Inquiry

Product Description

Basic Info
Model NO. XHZS506S
Power Electricity
Certification CE, ISO
Customized Customized
Color Black
Transport Package Exported Wooden Case
Specification 479X387X210mm
Trademark XZH TEST
Origin China
Production Capacity 2000PCS/Year

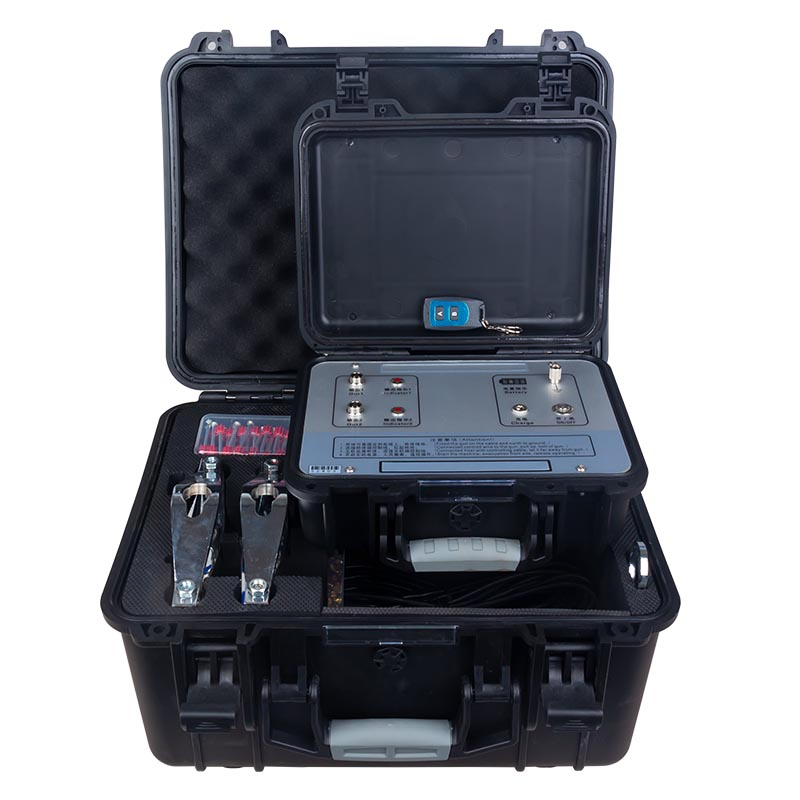

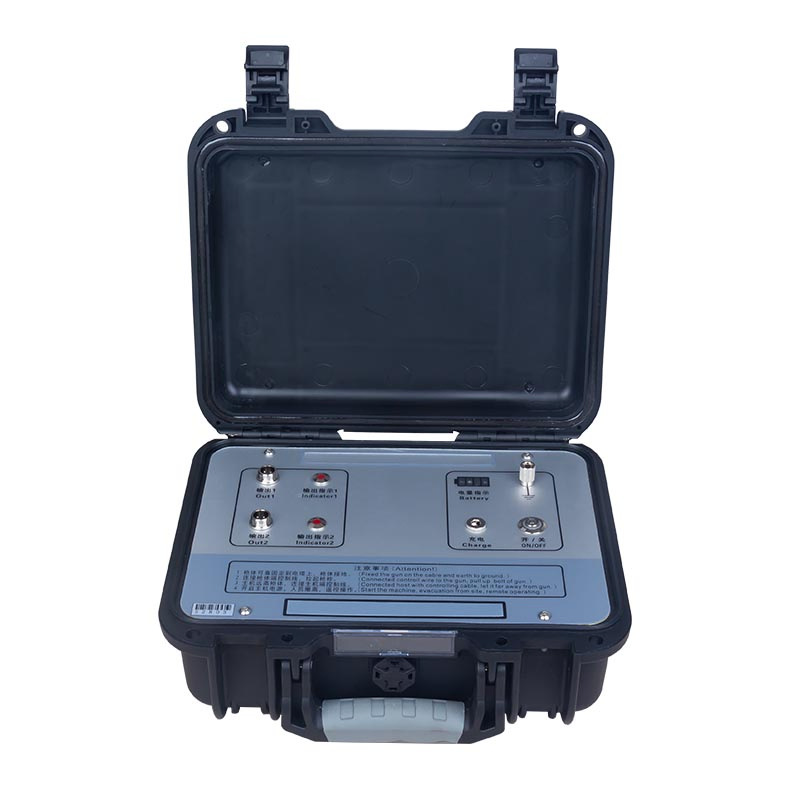

Cable Spiker XHZS506S

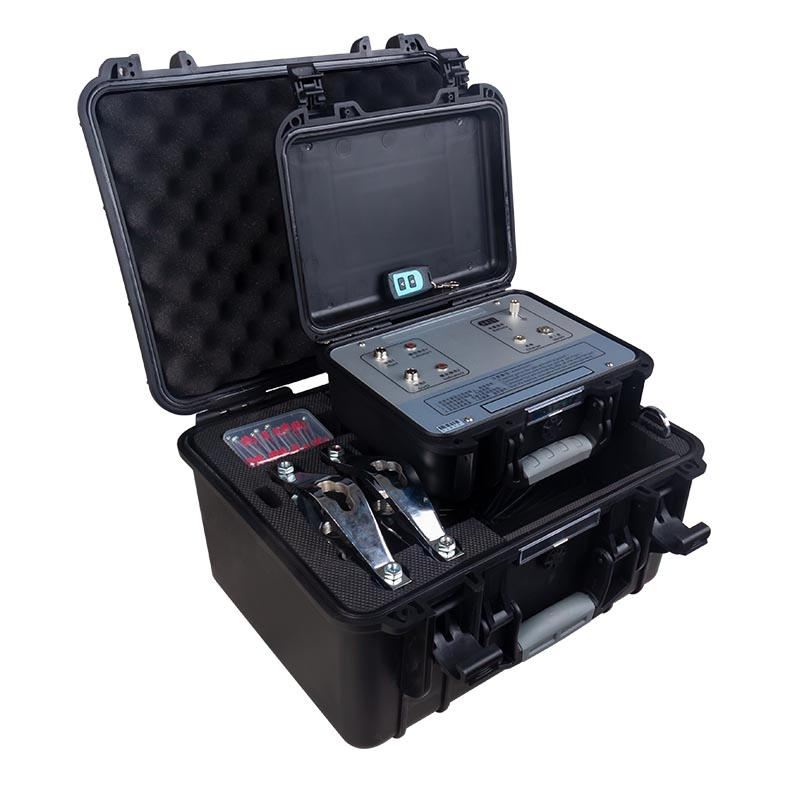

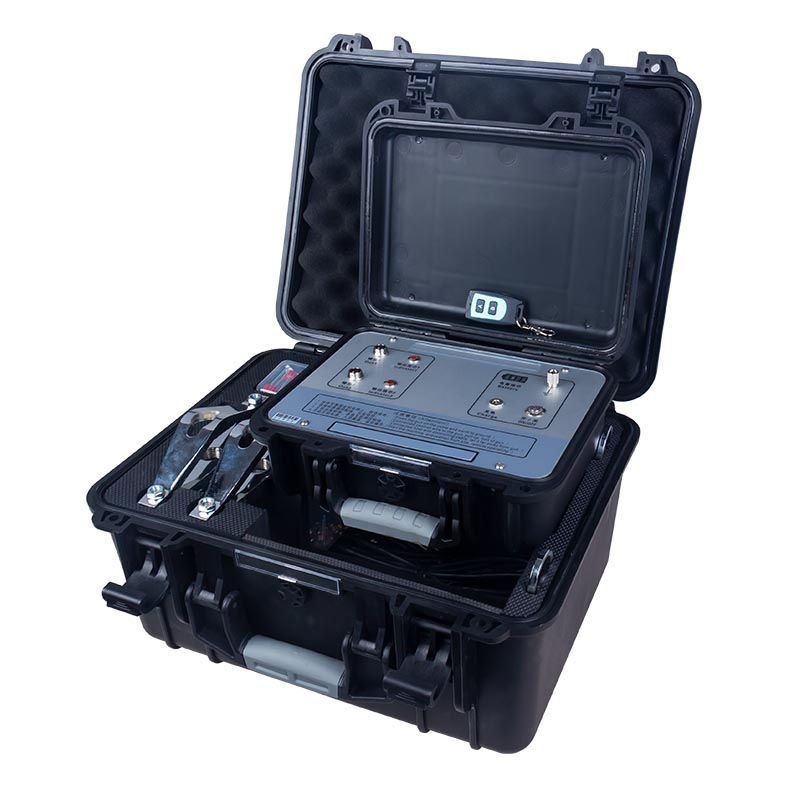

Cable Spiker XHZS506S Side View
Cable Spiker XHZS506S Device

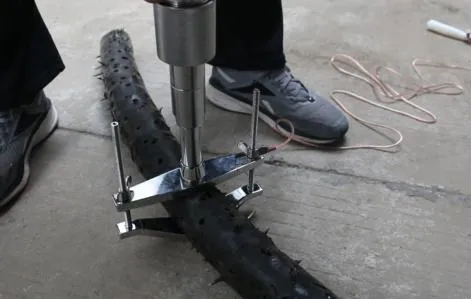

Cable Spiking Testing Equipment
The panel can be made all in English version.

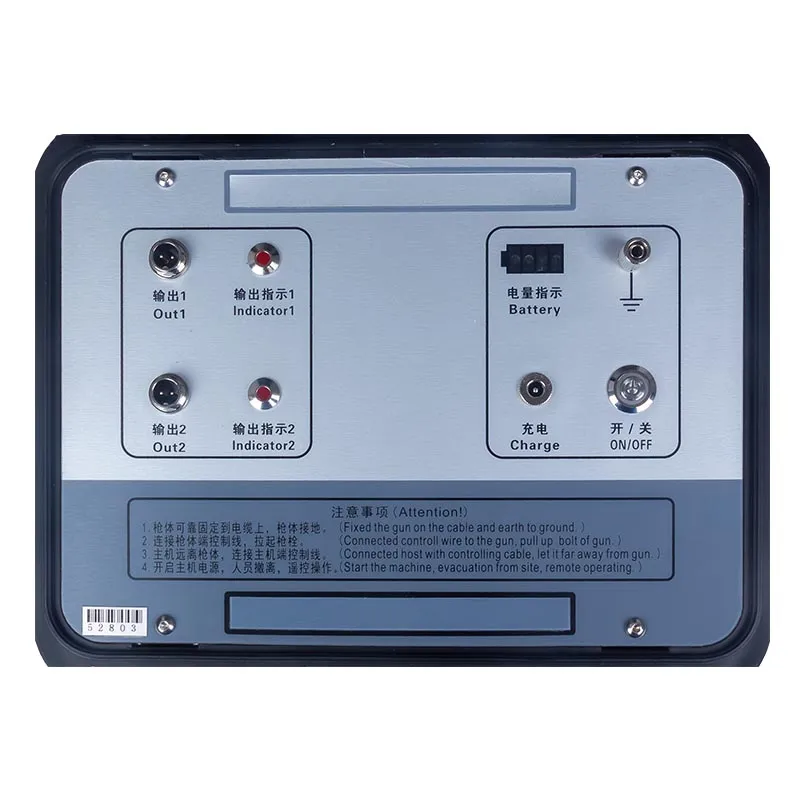

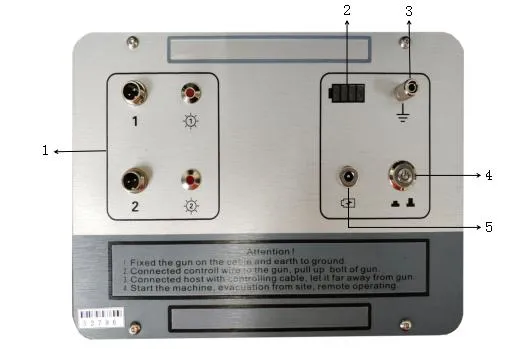

English Version Panel
01
Output 1/Output 2: Used to connect with the gun body, when there is an output, the corresponding indicator light is on.
02
Battery Indicator: When the built-in battery is working, it indicates the battery level in real time.
03
Grounding: Instrument grounding point for safety protection.
04
ON/OFF: Turn on/off the working power.
05
Charging (Charge): DC12V charging port, connect the 12V charger to start charging.
Product Description

After the cable is identified, before sawing, it is a special instrument for further destructive judgment of the cable. It 100% confirms whether the cable is live, absolutely guaranteeing the personal safety of the staff. Wireless and wired operation makes it safer and more reliable.

Main Features
Operating distance 5m with wire + wireless >10m
Caliber of fixture 30-160mm
Nail Spec. 25-60mm
Bullet power Black, blue, yellow, red
Power supply DC12V± 5%
Charger AC220V(1±10%) 50Hz(1±5%)
✓ When the angle between the two guns is not 120°, at least one gun body can achieve the purpose of spiking and form a short circuit point.
✓ Controlled by wired + wireless remote control, operable through walls.
✓ AC and DC dual use, built-in lithium battery pack and large-capacity energy storage.
✓ Small size and light weight, ideal for field use.
Technical Parameter
  • 1. Shooter: 2 pcs
  • 2. Remote control distance: > 10 meters, works through walls
  • 3. Control line length: 5 meters
  • 4. Fixture diameter: φ30-150mm
  • 5. Working power supply: charging AC 220V/50Hz, battery works continuously > 10 hours
  • 6. Controller: 270×230×120mm 2.5kg
  • 7. Whole set: 470×380×210mm 15.5kg
Tie Nail Specification Table
Diameter of cable (mm) 30405060708090100
Spec. of tie nail PS27C8 PS37C8 PS47C8 PS52C8

Note: We provide PS52C8

Product Overview
Packaging & Shipping
Packaging: Wooden case filled with foam
Shipping: By Air, Sea, Express, etc.
Shipping time: 7-15 days if it's in stock.
Packaging Detail
Equipment Case
Testing Tools
Accessories
Frequently Asked Questions
Q: Are you a trading company or a manufacturer?
A: We are a professional factory manufacturing cable testing equipment.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. If not in stock, it takes 15-20 days depending on the quantity.
Q: What are your terms of payment?
A: For payments ≤ 1000USD, 100% in advance. For larger orders, please contact us for terms.
Q: What is the effective range of the remote control?
A: The wireless remote control distance is more than 10 meters, and it is capable of operating through walls for safety.
Q: What size cables can the XHZS506S fixture accommodate?
A: The fixture diameter supports cables ranging from φ30mm to 150mm.
Q: Is the device portable for field work?
A: Yes, it features a built-in battery that can work for over 10 hours and is designed to be lightweight and compact for field use.
