Product Description

Basic Specifications
ModelEP12000iL
Cycle Life3000 Cycles
Nominal Capacity7680Wh
Max ExpansionUp to 245kWh
Fast Charging70 mins Fully Charged
Output TypeThree-Phase Supported
InverterBi-Directional
CertificatesCE, RoHS, IEC62619, UN38.8
Product Advantages
  • 1
    Built-in 7680Wh LiFePO4 battery with professional solar bidirectional inverter, supporting 12kW output and 8.5kW charging.
  • 2
    Supports continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.
  • 3

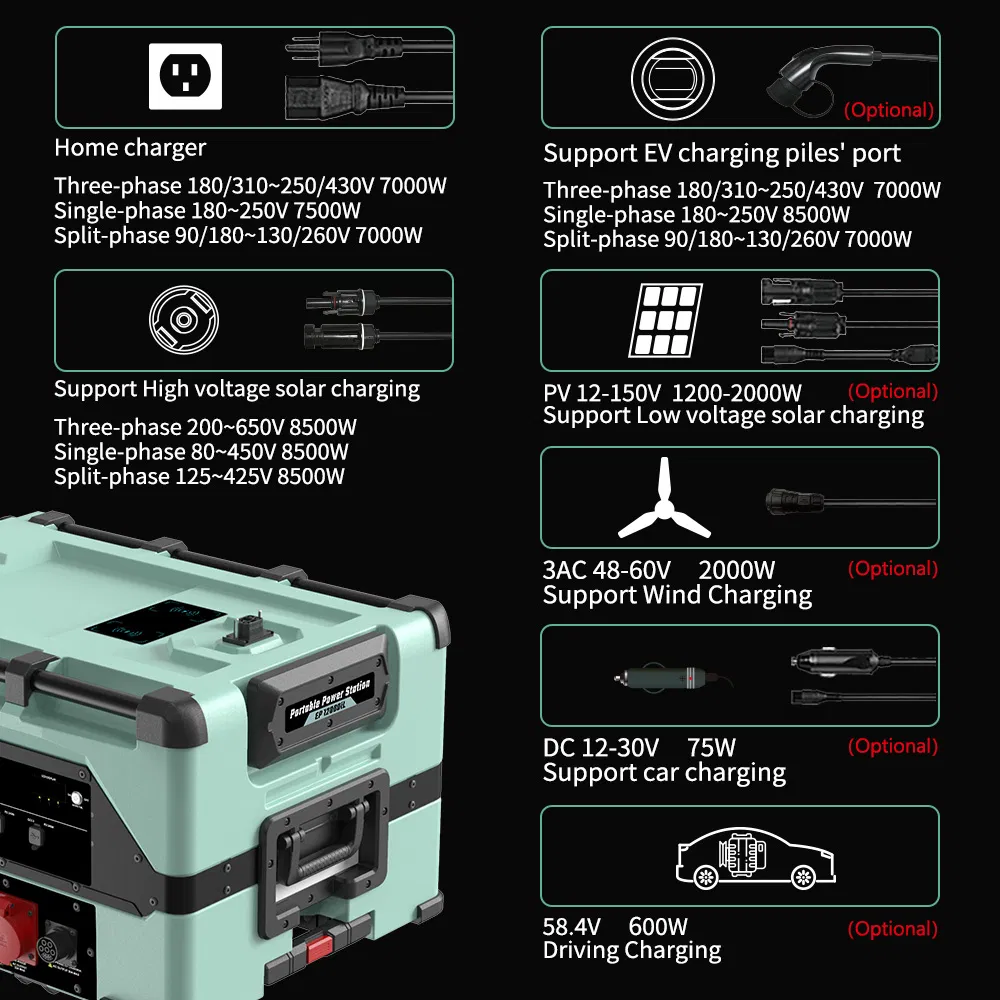

    Versatile fast charging: Utility, high/low-voltage solar, EV charger, driving, AC generator, and wind turbine.
  • 4
    Scalable capacity: Up to 31 extra batteries can be connected for a massive 245kWh total capacity.
  • 5

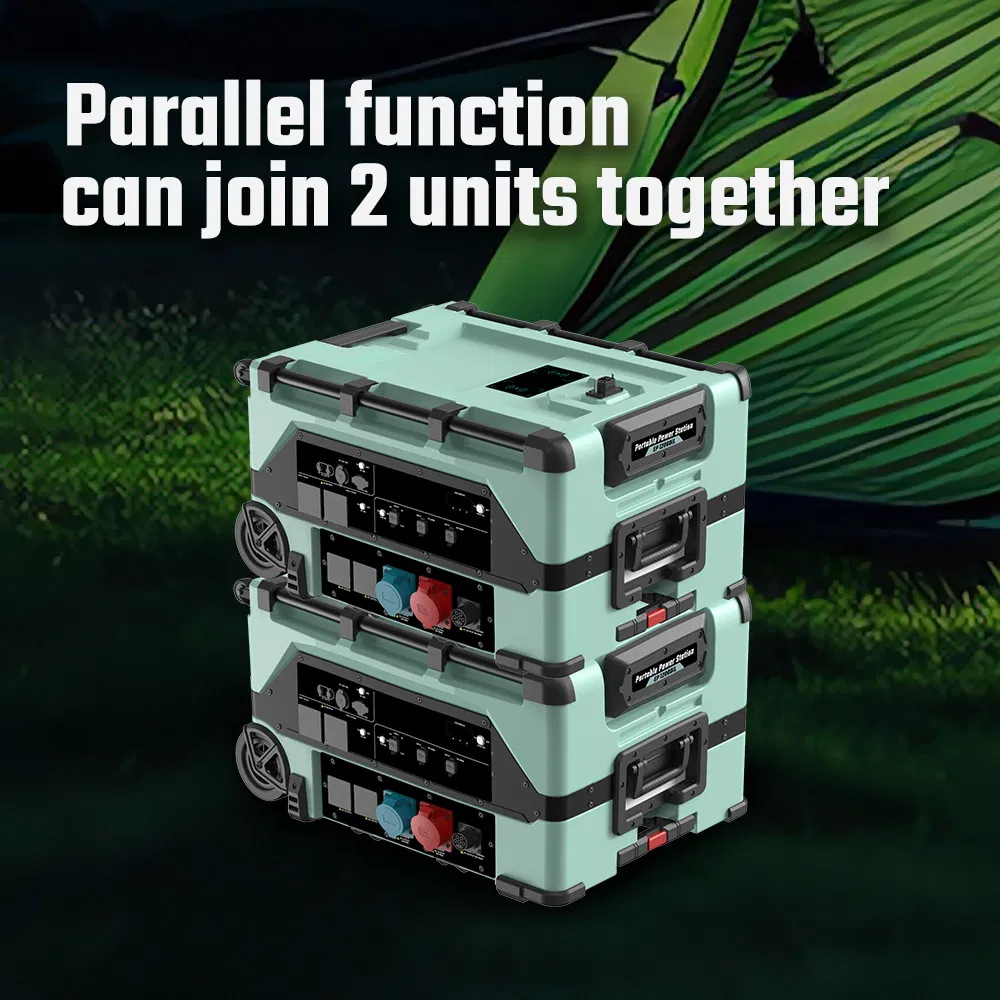

    Parallel technology: Join 2 units for a continuous output of 24kW.
  • 6
    Integrated EV charging: Capable of charging electric vehicles at up to 22kW.
  • 7
    Mobility: Four-wheel chassis with large-diameter wheels for easy transport.
  • 8
    Protection: Main unit IP53 and Battery Pack IP66 rated.
  • 9
    Smart Control: Intelligent monitoring and operation via smartphone APP.
  • 10
    Safety: V-0 level flame-retardant casing and anti-collision rubber padding.
Technical Parameters
Feature EP12000iL (Main Unit) EP12000B (Extra Battery)
Dimensions/Weight 840x670x490mm, 100kg 840x610x345mm, 70kg
Battery Chemistry LiFePO4, 7680Wh, 150Ah LiFePO4, 7680Wh, 150Ah
Cycle Life 3000+ Cycles (to 80%) 3000+ Cycles (to 80%)
Transfer Time ≤ 10ms (Typical) N/A
Operating Temp -20ºC to 50ºC (Discharging) / 0ºC to 45ºC (Charging)
Output Specifications
Output Type Rated Power Peak Power
Three-phase (220-415V) 12000VA 24000VA
Single-phase (220-240V) 11000VA 22000VA
Split-phase (100-240V) 10000VA 20000VA
USB Ports PD 140W (Type-C), QC3.0, Wireless 15W x2
DC Ports 12V/30A (XT90), 12V/10A (Cigarette Lighter)
Detailed Photos

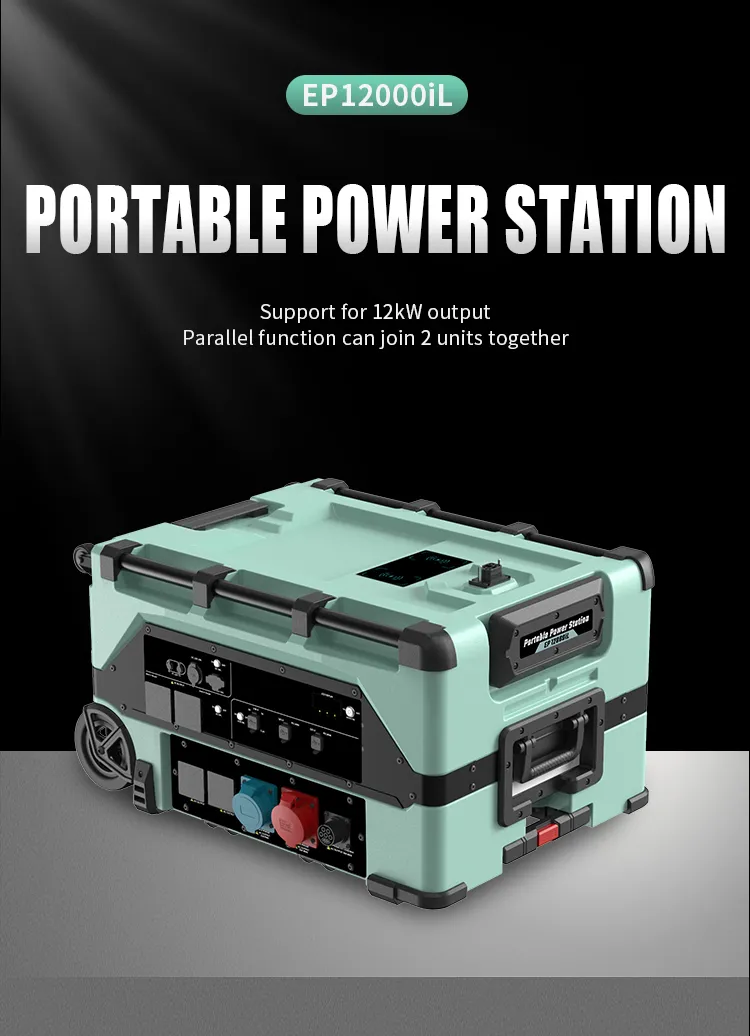

Power Station View 1

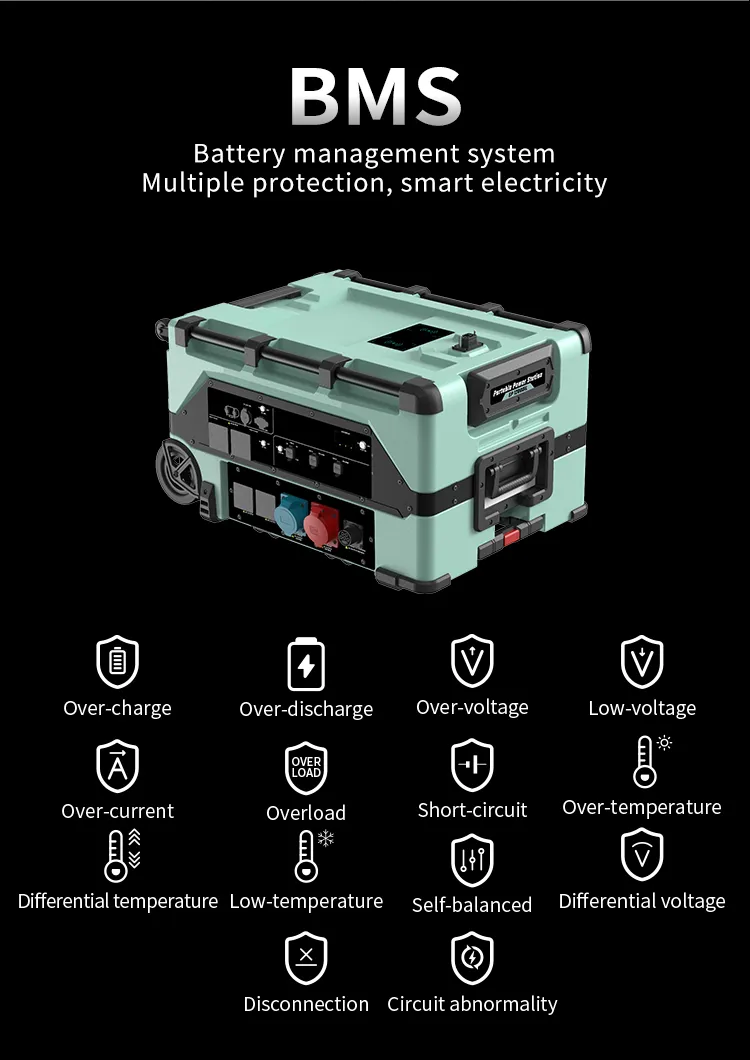

Power Station View 2

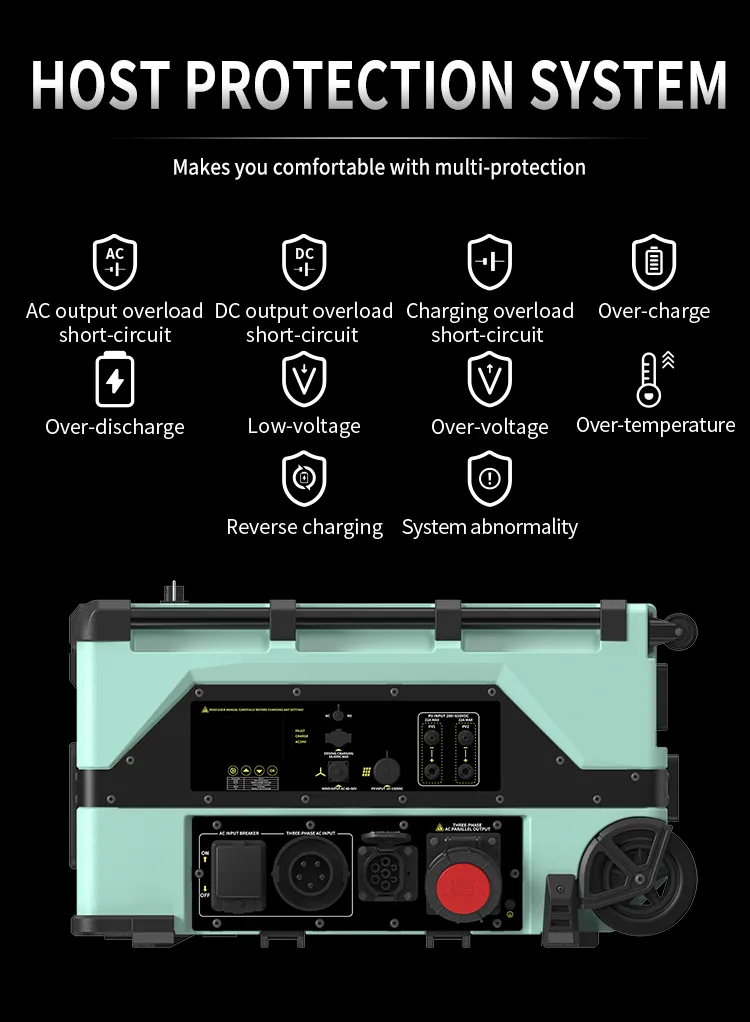

Power Station View 3

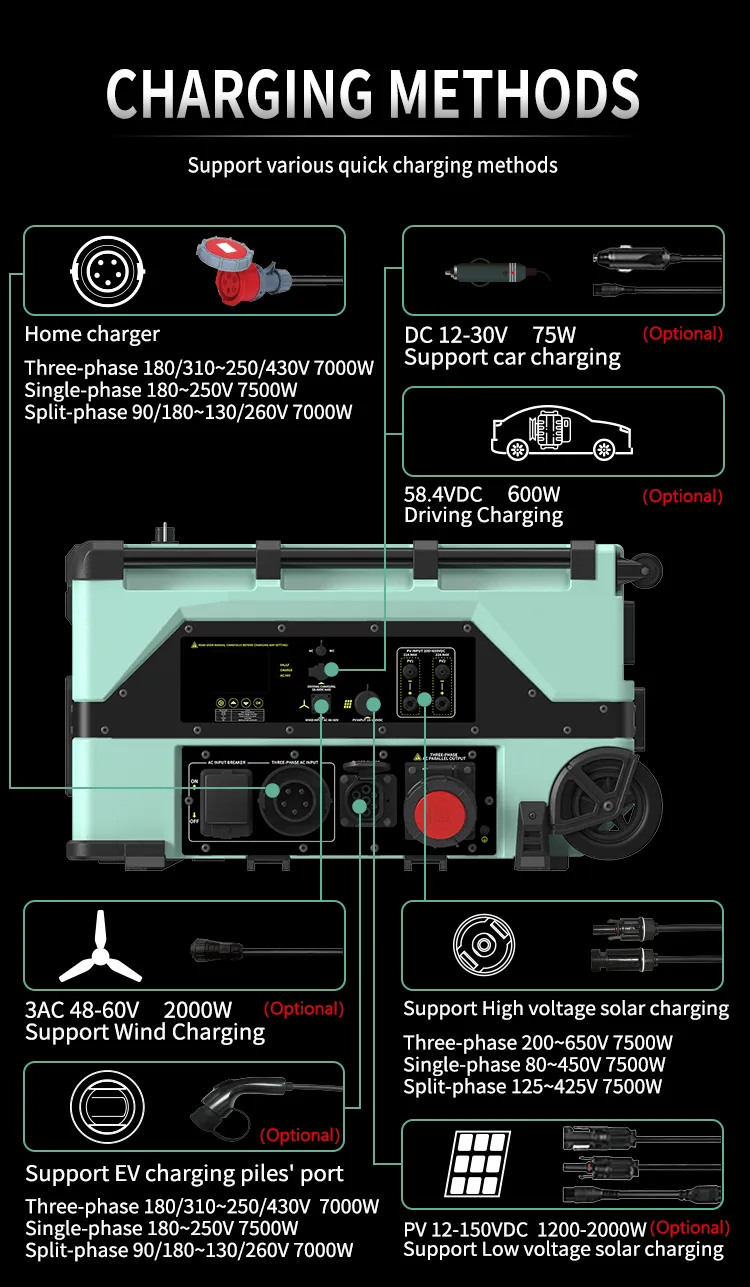

Power Station View 4

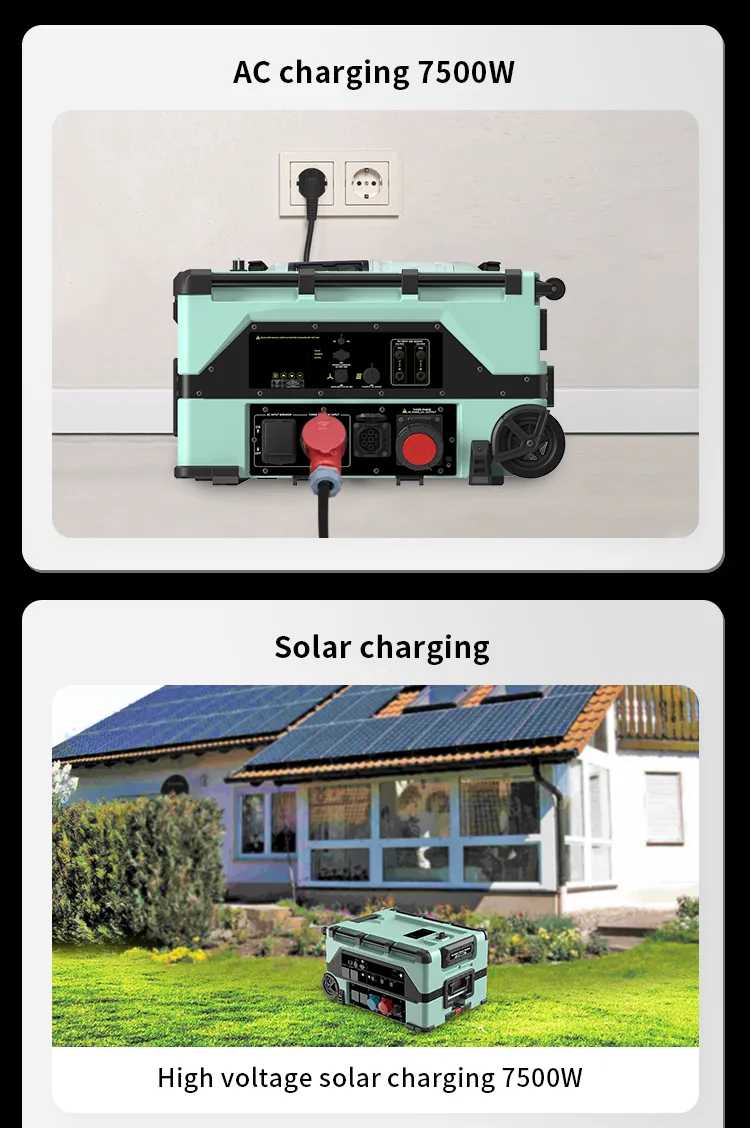

Power Station View 5

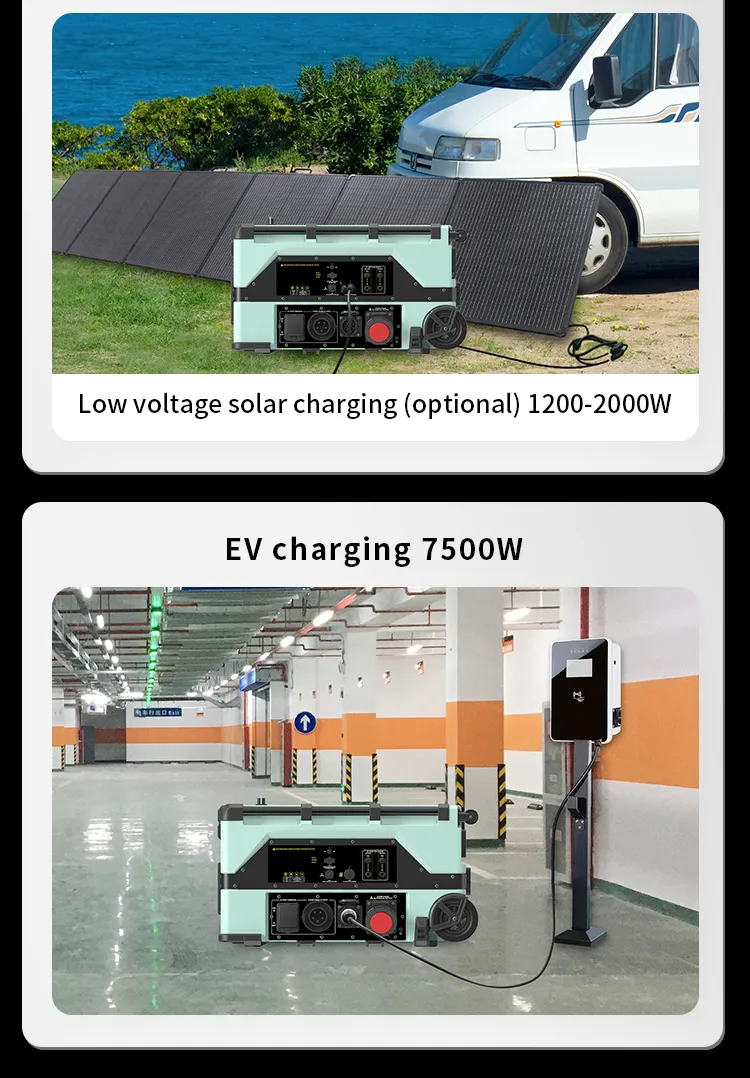

Power Station View 6

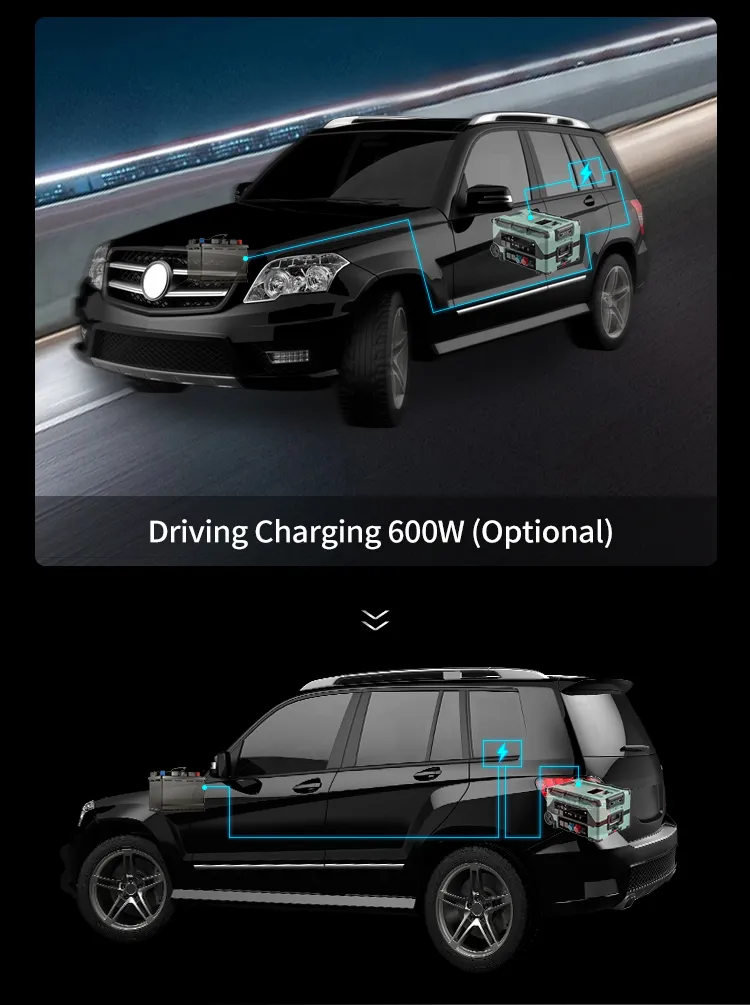

Power Station View 7

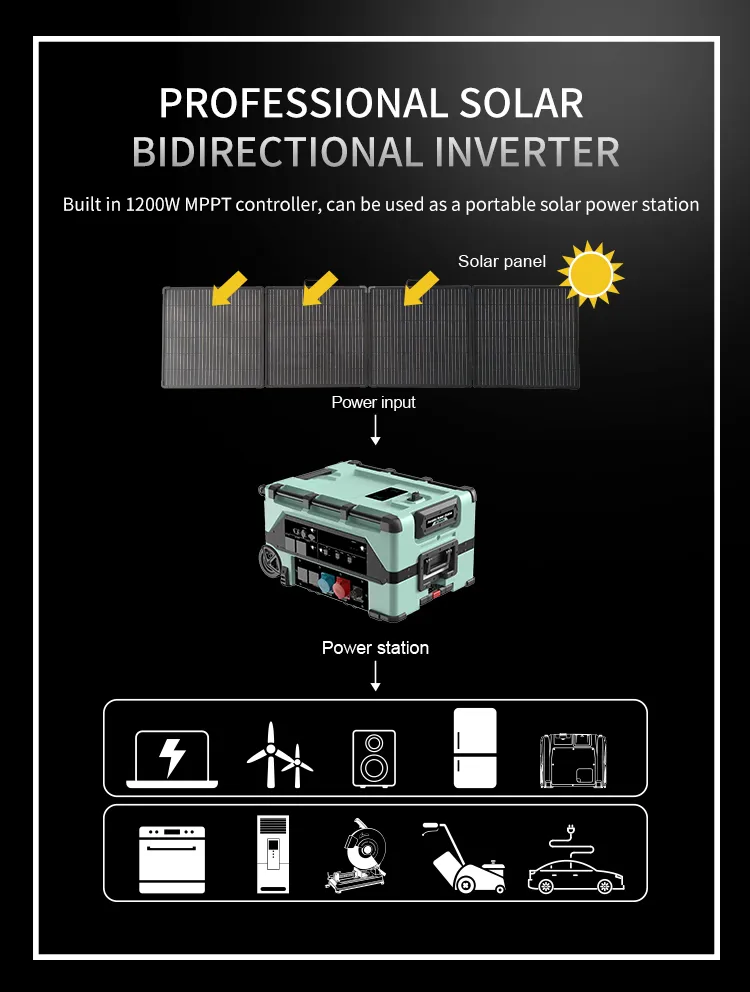

Power Station View 8

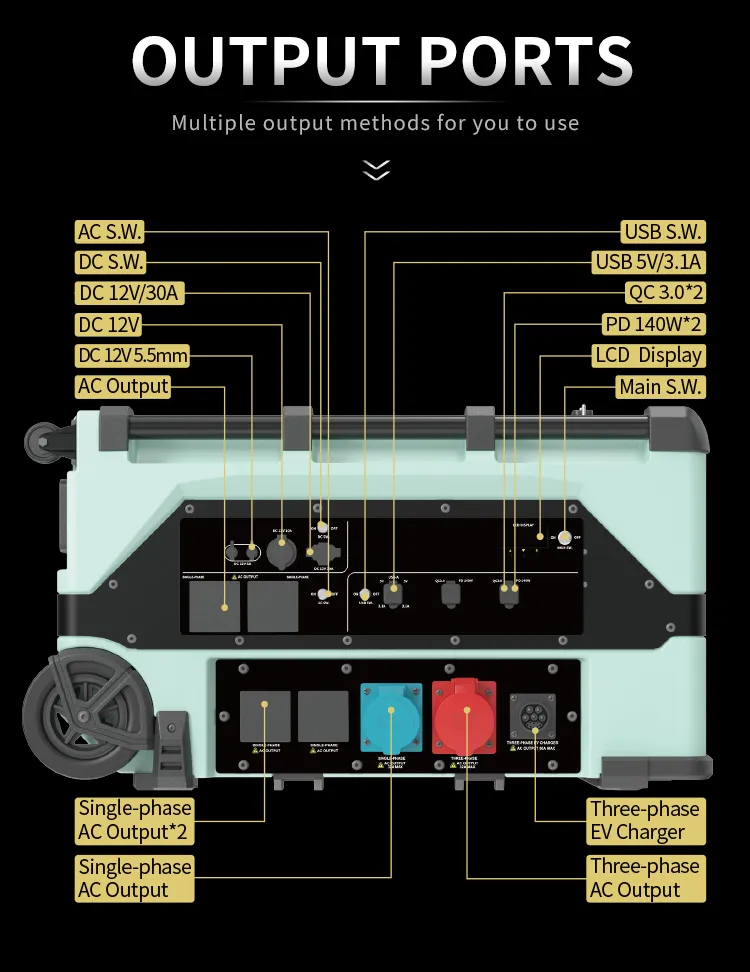

Power Station View 9
Core Competencies

Founded in 2015, our team is integrated with research, manufacture, and sales of high-tech energy solutions. We provide advanced inverter generators, power equipment, and intelligent electrical products. Our focus is on independent research and development, holding over 70 critical patents in power equipment and intelligent controllers. Our products have established a strong reputation across European and North American markets for their quality and innovative design.

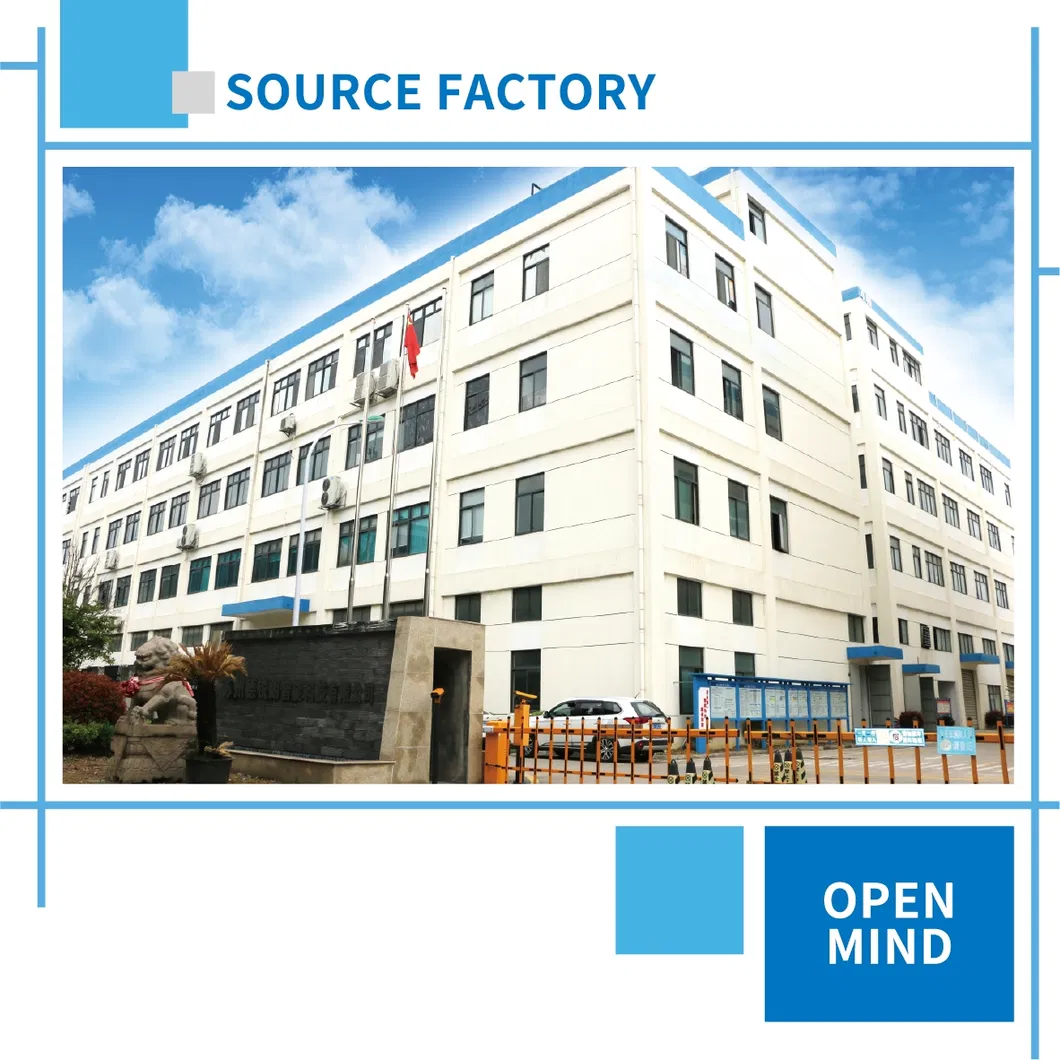

Manufacturing Plant

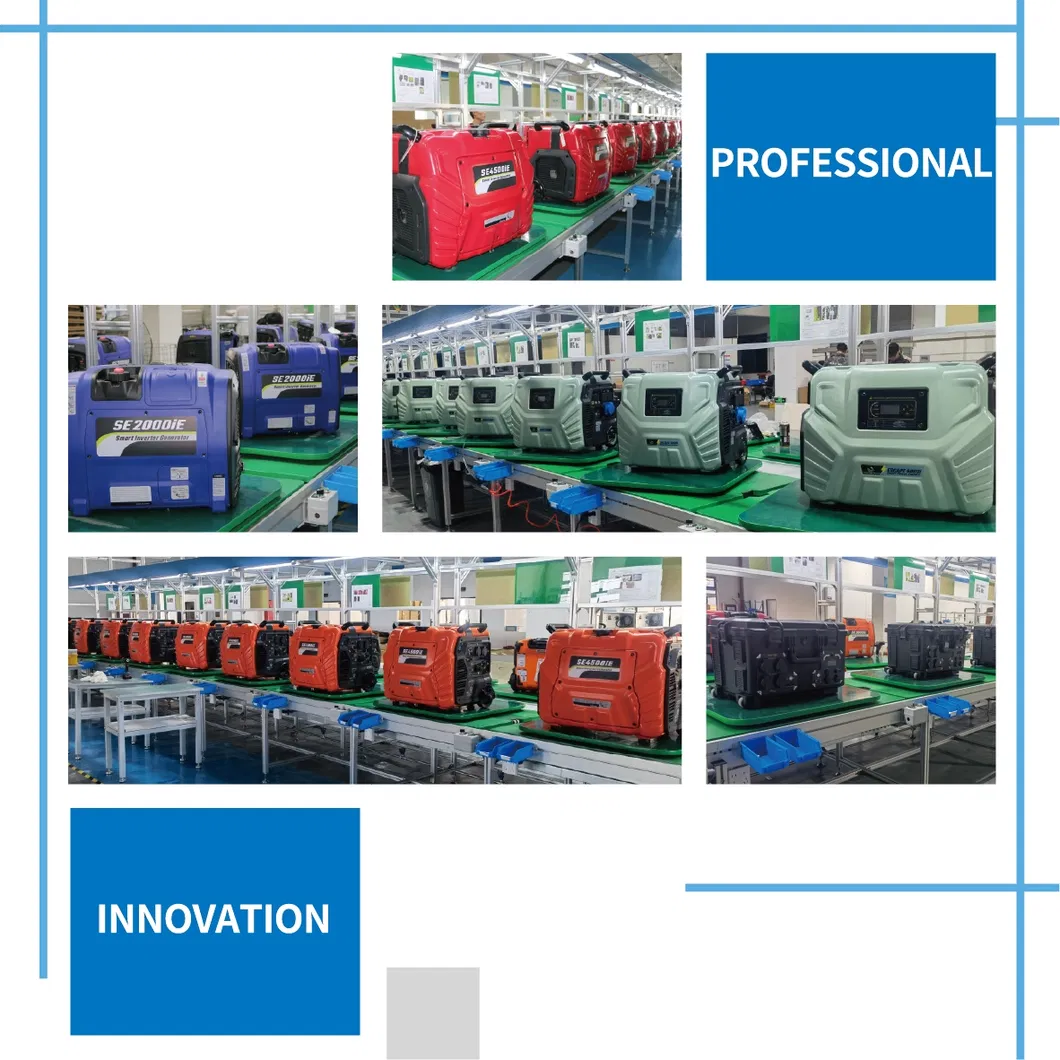

Testing Center
Frequently Asked Questions
What is the total expandable capacity?
The system supports stacking up to 31 extra battery packs, reaching a maximum total capacity of 245kWh.
How fast can the unit be charged?
The EP12000iL supports super-fast charging, achieving a full charge in as little as 70 minutes using AC or high-voltage solar inputs.
Does it support EV charging?
Yes, it has a built-in electric vehicle charger capable of charging cars at up to 22kW, making it a portable alternative to charging stations.
What is the inverter type?
The unit features a high-power Bi-Directional Inverter supporting three-phase, single-phase, and split-phase outputs.
Is the power station waterproof?
The main unit has an IP53 protection grade, while the battery packs are rated IP66 for superior dust and water resistance.
What is the warranty period?
The product comes with a 5-year warranty, ensuring reliable performance and long-term support.
