Advanced Integrated Liquid Cooling System for Electric Vehicles

📊

Basic Specifications

Model NO.

RSDC1000-240KW-YL

Warranty

24 Months

Package

Standard Exporting Package

Specification

860*824*1966mm

HS Code

8504409999

Capacity

2000 PCS / Month

⚙️

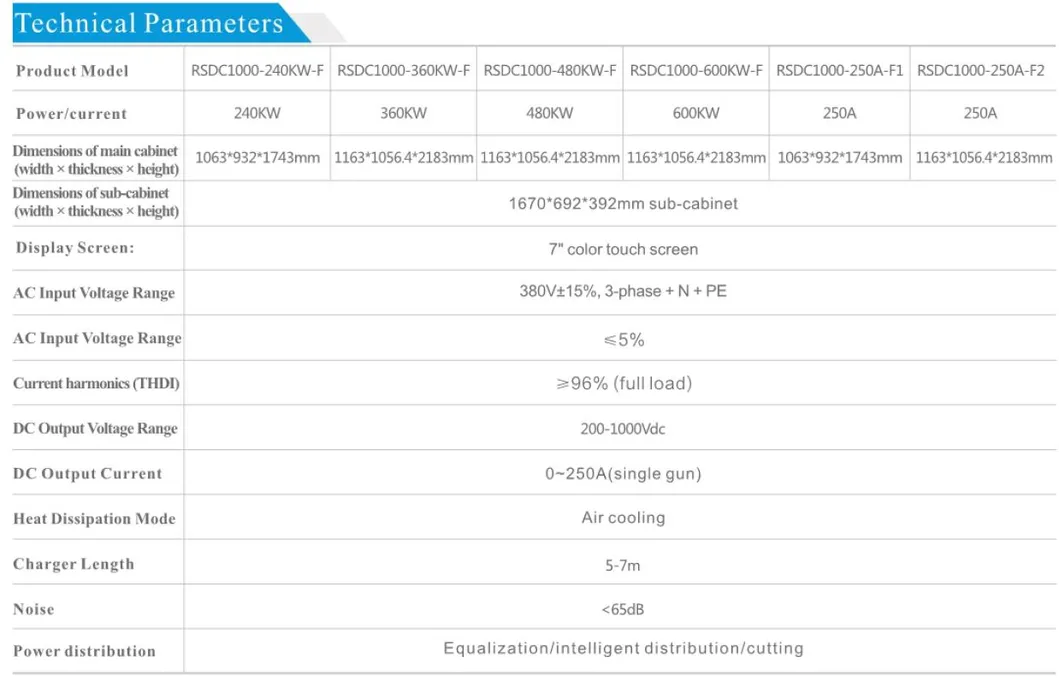

Technical Parameters

Feature	Details

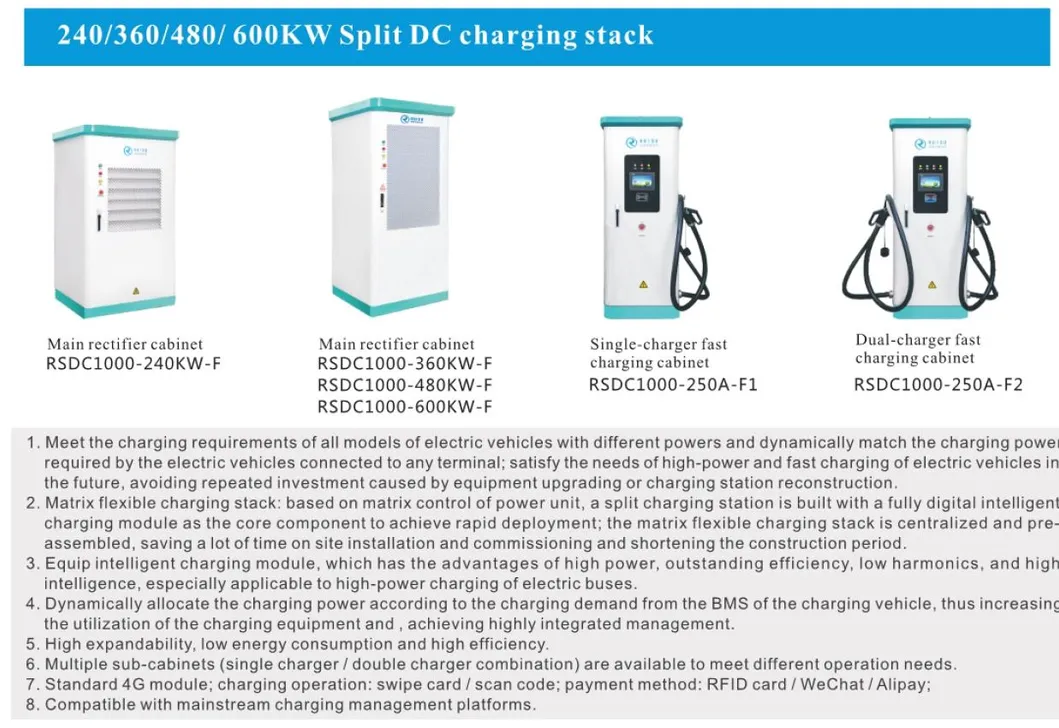

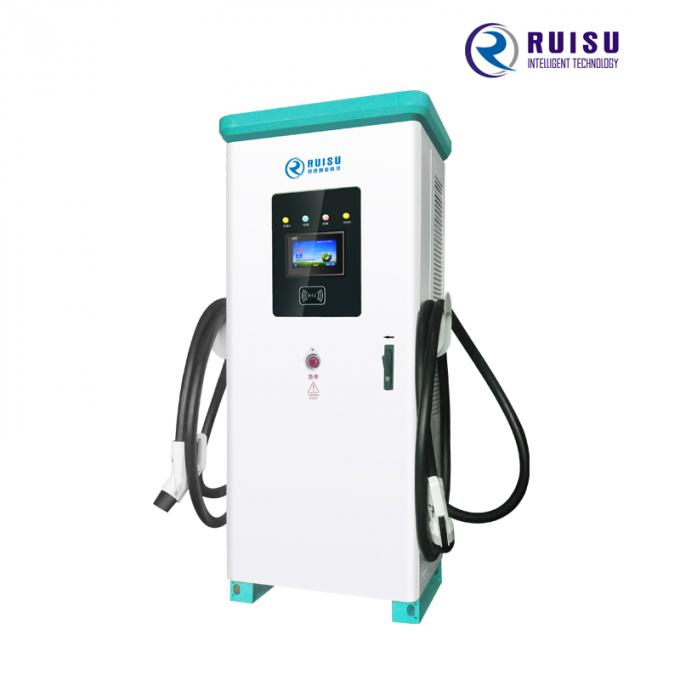

Product Name	240KW split DC charging stack
Product Model	RSDC1000-240KW-F
Dimension (HWD)	Rectifier cabinet: 10639321743MM
Display Mode	7" Color Touch Screen
Input Voltage	380VAC, 1 phase + N+PE
Output Power	240KW
Efficiency	≥95%
Output Voltage	200-1000Vdc
Max. Output Current	0~250A (single gun)
Heat Dissipation	Air cooling
Protection Grade	Outdoor IP54 / Sheet metal shell
Communication	4G, RS485, CAN, ETHERNET
Operating Temp.	-20~50ºC

🏆

Core Competitiveness

⚡

Wide Range Charging: Supports 200-1000V ultra-wide range charging and BMS power supply 12/24V switching.

📱

Multiple Payments: Full support for recharge cards, specialized APPs, and major mobile payment platforms.

🔋

High Efficiency: Adopting efficient modules with high-power factor, reaching efficiency levels above 96%.

🏢

Manufacturing Capability

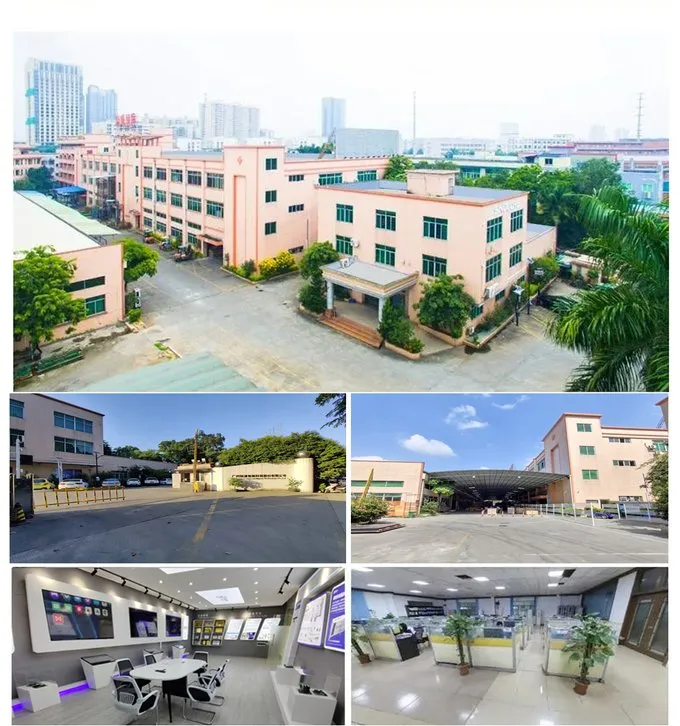

The manufacturing facility covers an area of over 30 acres with a dedicated team of over 400 employees, including 58 specialized research staff. Holding more than 40 patents and inventions, the production process controls the entire industrial chain technology. The facility has an annual production capacity exceeding ten thousand sets, catering to OEM, ODM, bus, and municipal service markets.

❓

Frequently Asked Questions

1. What is the maximum output power of this charging stack?

The system provides a high-power output of 240KW, suitable for rapid DC charging of electric vehicles.

2. Is the charging system suitable for outdoor use?

Yes, it features an IP54 protection grade with a durable sheet metal shell, designed specifically for outdoor environments.

3. What is the efficiency rating of the power modules?

The system utilizes high-efficiency modules achieving an energy conversion efficiency of ≥95%, with peak performance above 96%.

4. What voltage range does the charger support?

It supports an ultra-wide output voltage range from 200Vdc to 1000Vdc, making it compatible with various EV battery architectures.

5. What safety protections are integrated into the system?

The charger includes comprehensive safety features such as lightning protection, overload protection, short-circuit protection, over-temperature control, leakage protection, and an emergency stop function.

6. How can users initiate and pay for charging sessions?

The system is highly flexible, supporting RFID recharge cards, mobile applications (APP), and multiple integrated digital payment platforms.
