Pantograph EV Charging System for Electric Bus & Depot Charging

Basic Info

Model NO.

QSCDZ

Rated Current

2A; 63A; 100A; 200A; 300A

Rated Power

7kw; 11kw; 22kw; 60kw; 120kw; 180kw; 240kw

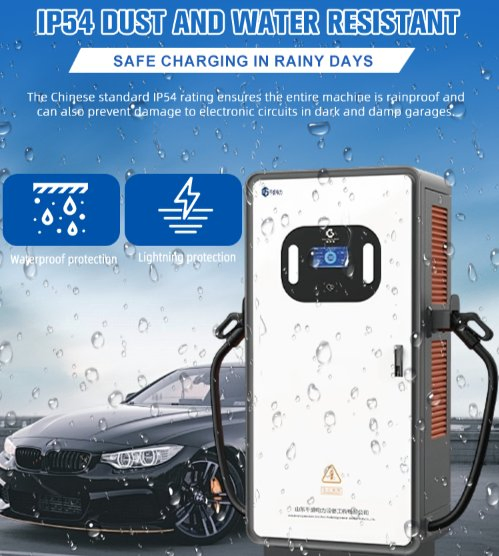

IP Rating

IP54 / IP65

Service Life

8 - 10 Years

Charging Type

AC / DC / Integrated

Efficiency

≥93% (AC); ≥95% (DC)

Harmonic Distortion

≤5% (THD); ≤3%

Package

Wooden Box

HS Code

8504409999

Product Description

Charging Pile Solutions

Flexible Expansion & Wide Compatibility | Certified Safety & Rock-Solid Reliability | Effortless Operation & Low-Maintenance Design

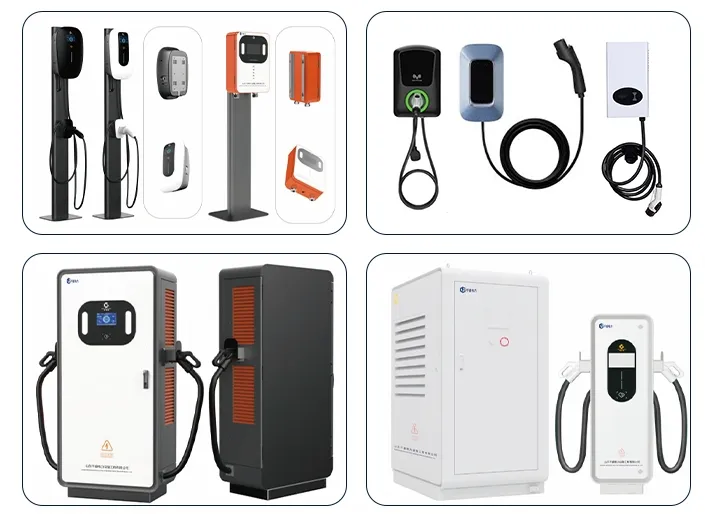

Our charging pile series includes multiple models, with wall-mounted and floor-standing options to meet different installation needs. Stylish designs, stable frameworks, and complete functionality make them ideal for residential and commercial use. Modular power configuration ensures easy maintenance and efficient charging.

Technical Specification

Type	EV charging station
Power	20KW / 40KW / 120KW / 160KW / 240Kw
Input Rating	110V / 220V / 380V ±15%
Output Voltage	200 ~ 1000V
Connectors	CCS1, CCS2, GB/T, J1772, IEC62196, CHADEMO
Display	7" LCD Touch Screen
Network	4G / Ethernet / OCPP 1.6J
Protection	IP55

Best Sellers

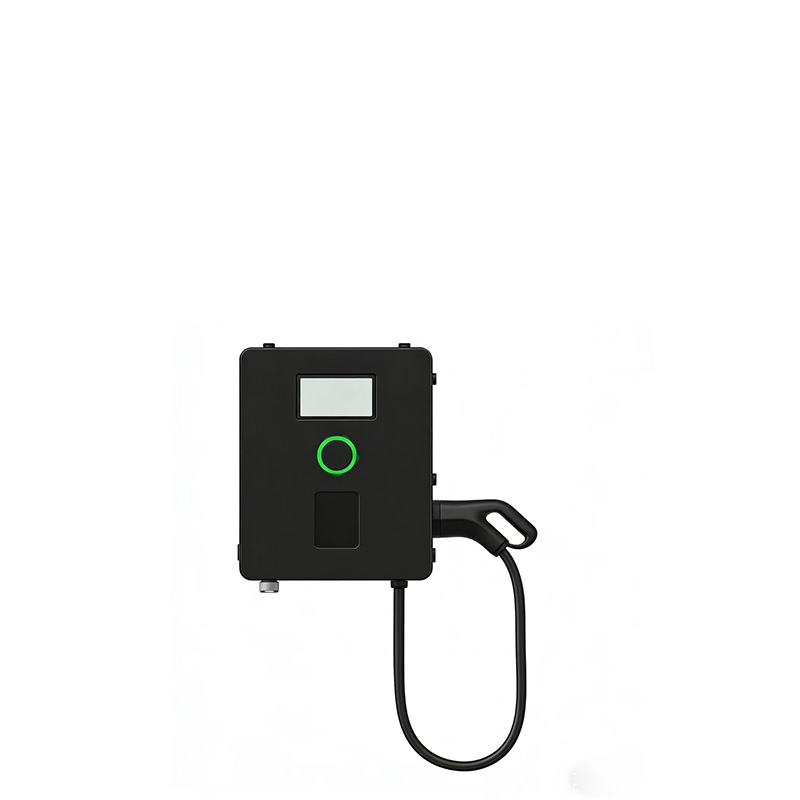

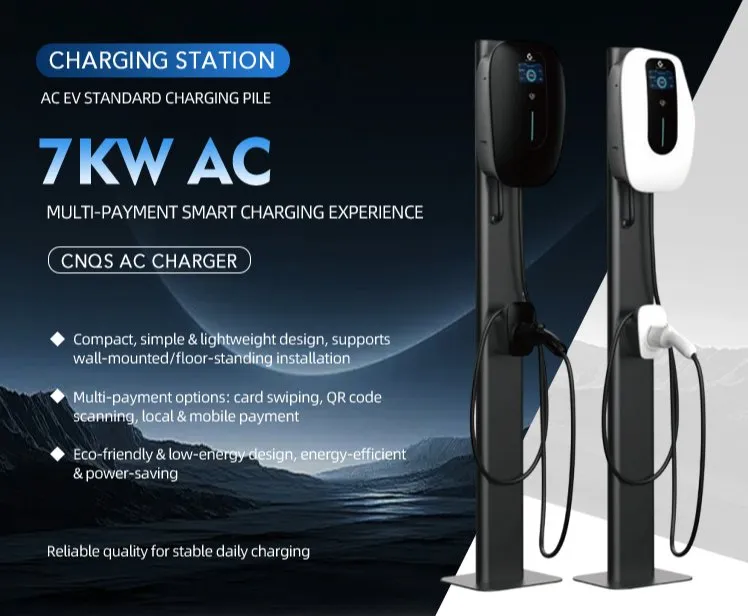

7KW AC Charger

✓Global certifications (CE/UL/PSE/KC), 100% compliance rate.

✓Supports ISO 15118-20 & PNC Plug & Charge.

✓V2G vehicle-to-grid protocol support, 35% revenue increase.

20KW-40KW DC Fast Charger

✓80% power in 30 mins, perfect for household and commercial use.

✓IP65 waterproof & wide temp range (-30℃ to 60℃).

✓Supports Apple Pay/Google Pay/Credit Cards.

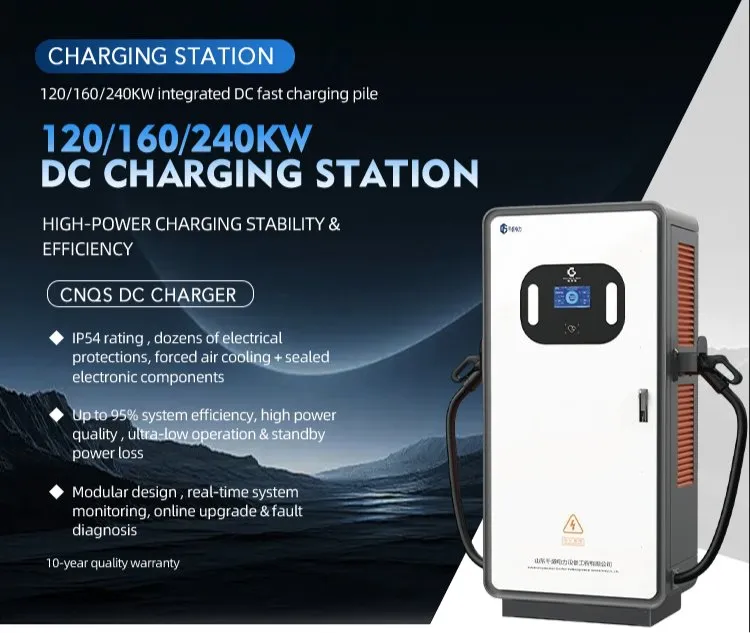

120/160/240KW DC Charging Station

✓Dual-gun simultaneous charging + modular design.

✓300+km range in 15-30 mins.

✓Dynamic power allocation & industrial-grade protection.

Product Details

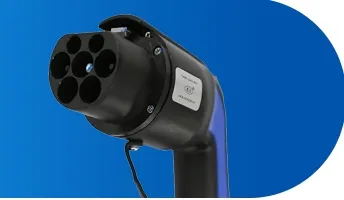

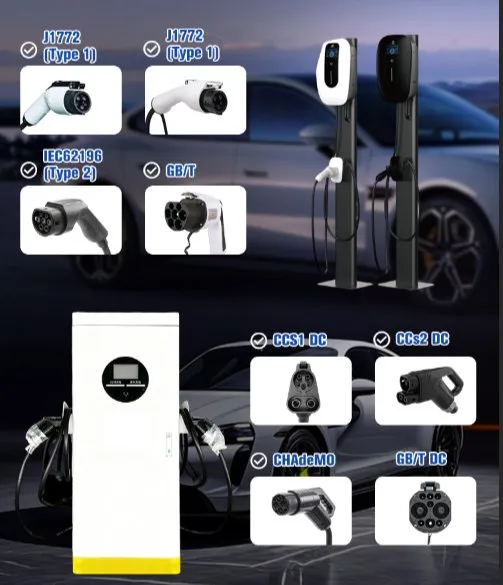

• Multi-standard fast charging connectors (CCS2/Type2/CHAdeMO).

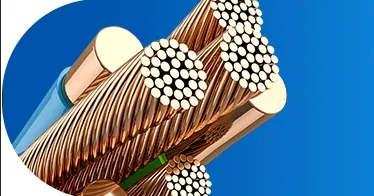

• Thickened high-temperature resistant special cables, anti-aging & anti-stretching.

• Customizable cable length with self-locking anti-drop connectors.

Product Features & Packaging

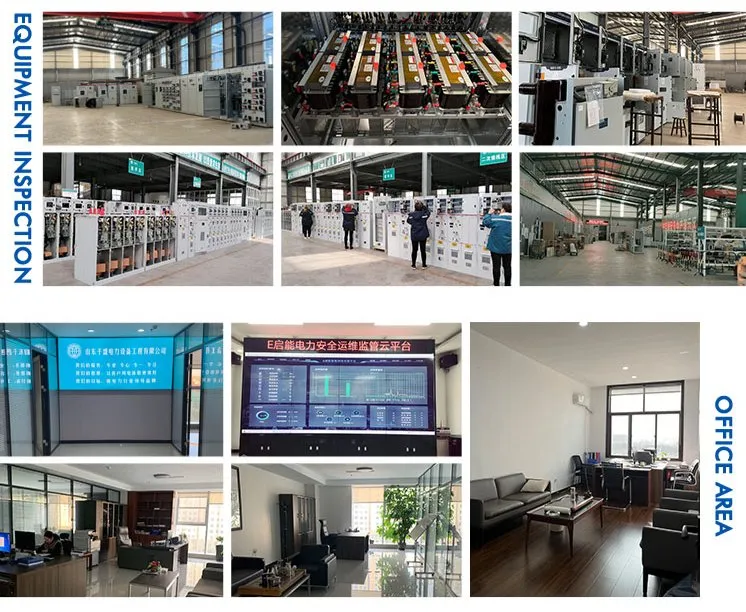

Manufacturing Profile

An experienced power equipment manufacturer with over 20 years of industry expertise, serving global markets with reliable power distribution and new energy solutions.

Covers over 16,000 sqm with professional managers and senior technicians. Holds ISO9001:2000, Environmental Management, and Occupational Health certifications.

Certifications: CCC, CQC, CE, UL, PSE. Class II General Contracting for Electric Power Construction.

Frequently Asked Questions

1. What situations are not covered by the warranty?

Includes human damage, unauthorized disassembly, use of non-genuine parts, improper installation, external voltage abnormalities, and force majeure events (fire, earthquake, etc.).

2. Is regular maintenance service provided?

We provide free annual inspections including electrical safety testing, mechanical part tightening, and software updates. Quarterly packages are also available for commercial units.

3. Does the after-sales service comply with local regulations?

Fully compliant with EU GDPR and local safety certifications (CE/UL/PSE). Maintenance data is encrypted to protect user privacy.

4. Can the warranty period be extended?

Yes, paid extensions are available: 2-year extension for residential chargers and 1-3 years for commercial models, covering the main unit and core parts.

5. Is after-sales service universal across regions?

Our global warranty system covers Europe, America, Asia-Pacific, and the Middle East. Standard services are available locally with equipment serial numbers.

6. What is the typical charging speed?

Depending on the model, 80% power can be replenished in as little as 15 minutes for 240kW ultra-fast chargers or 30 minutes for mainstream 120kW units.
