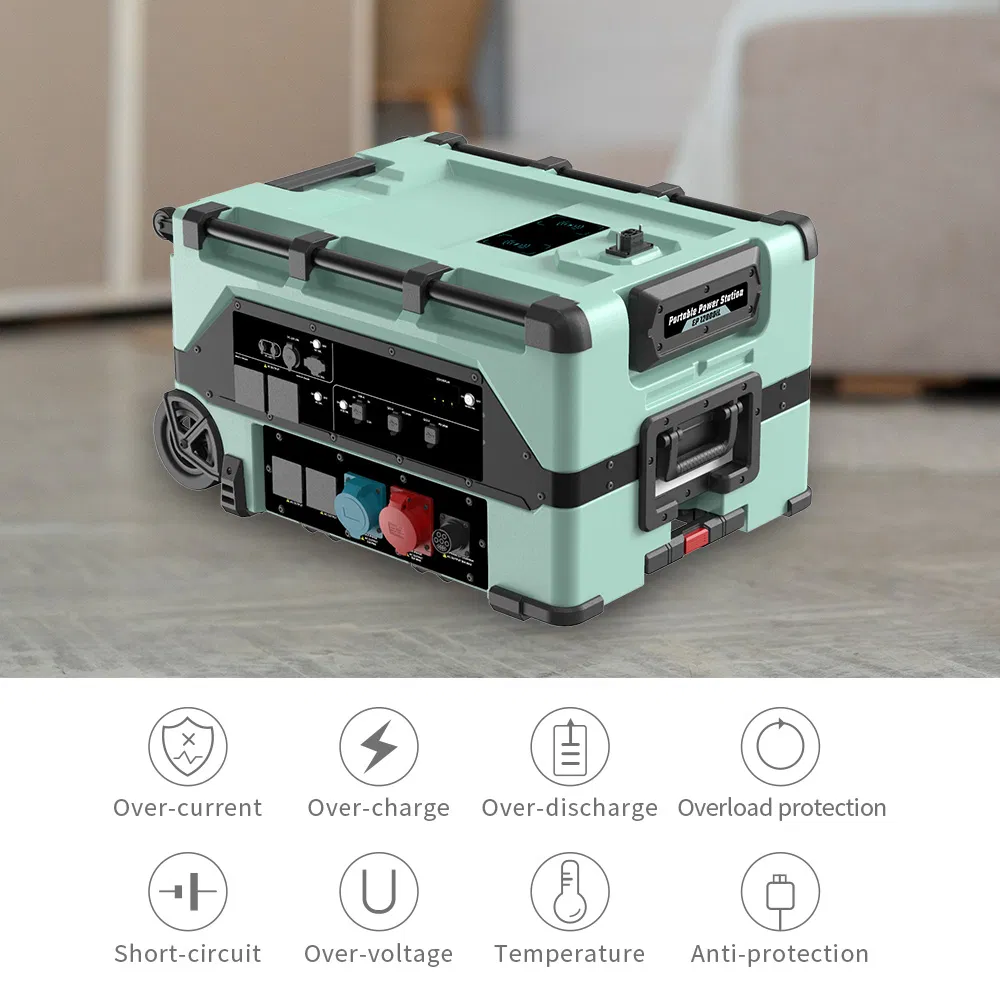

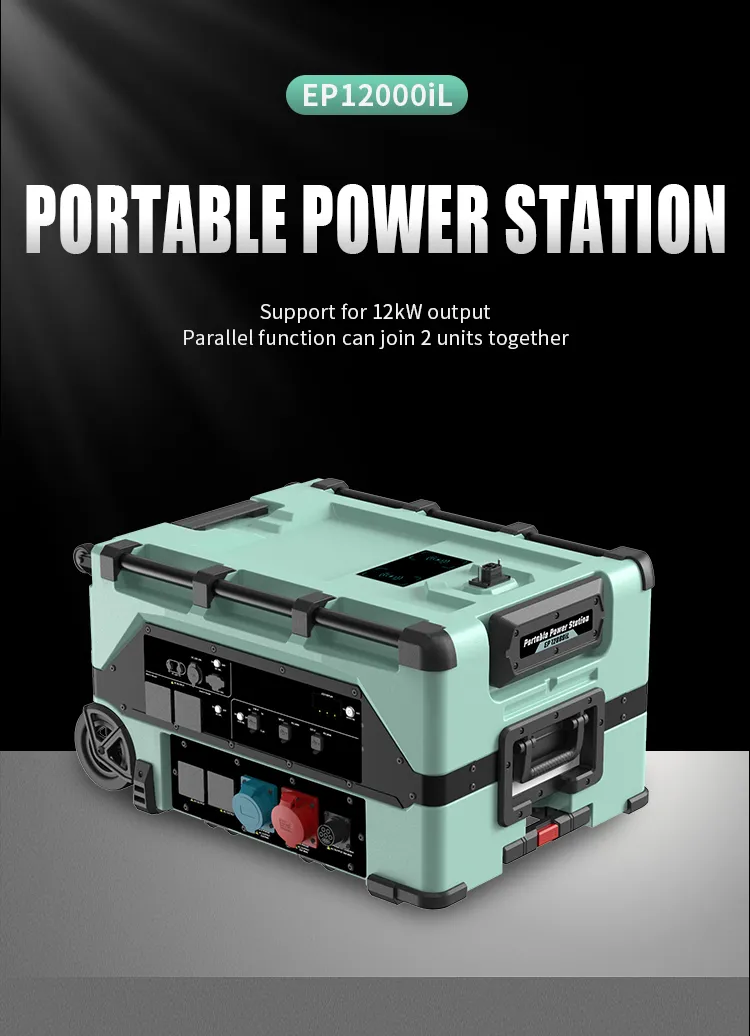

Ultra-Responsive 12000W Solar Generator Eco-Friendly Mobilebattery Solar Power System

Still deciding? Get samples of $ !
Order Sample

Product Description

⚡ Basic Information
Model NO.
EP12000iL
Cycle Life
3000
Nominal Capacity
7680wh
Charging Methods
AC, Solar, EV Charger, Driving Charging, DC, Wind
Battery Expansion
Yes, Max 245kwh
Fast Charging
70mins Fully Charged
Inverter Type
Bi-Directional Inverter
Three-Phase
Yes
Portability
Drawbar & Wheels
Certificates
CE RoHS IEC62619 Un38.8 MSDS
💎 Product Advantages

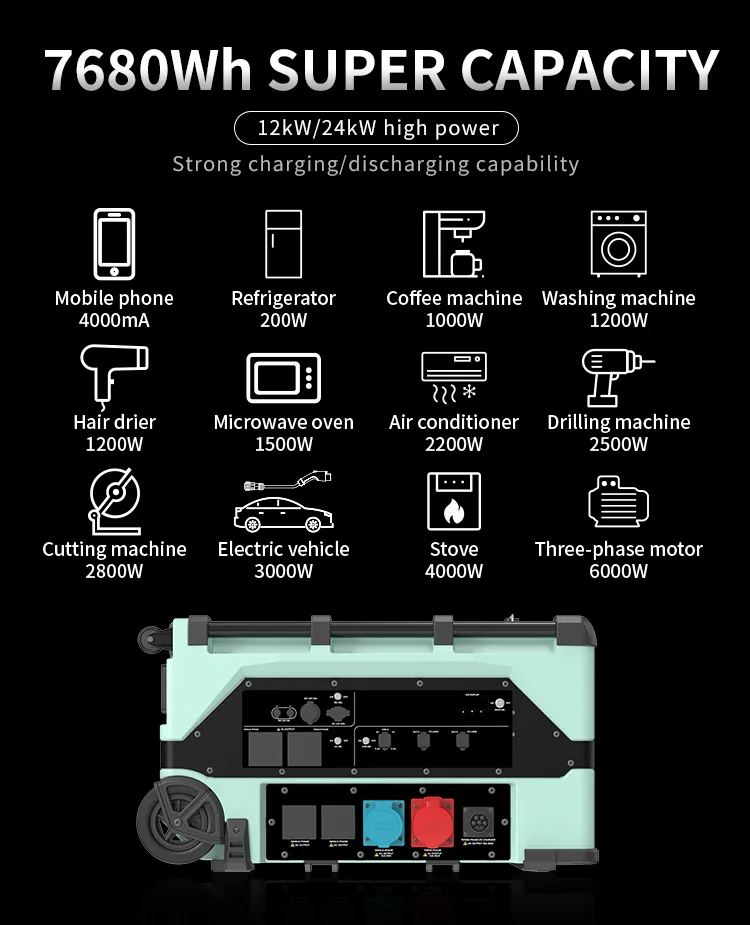

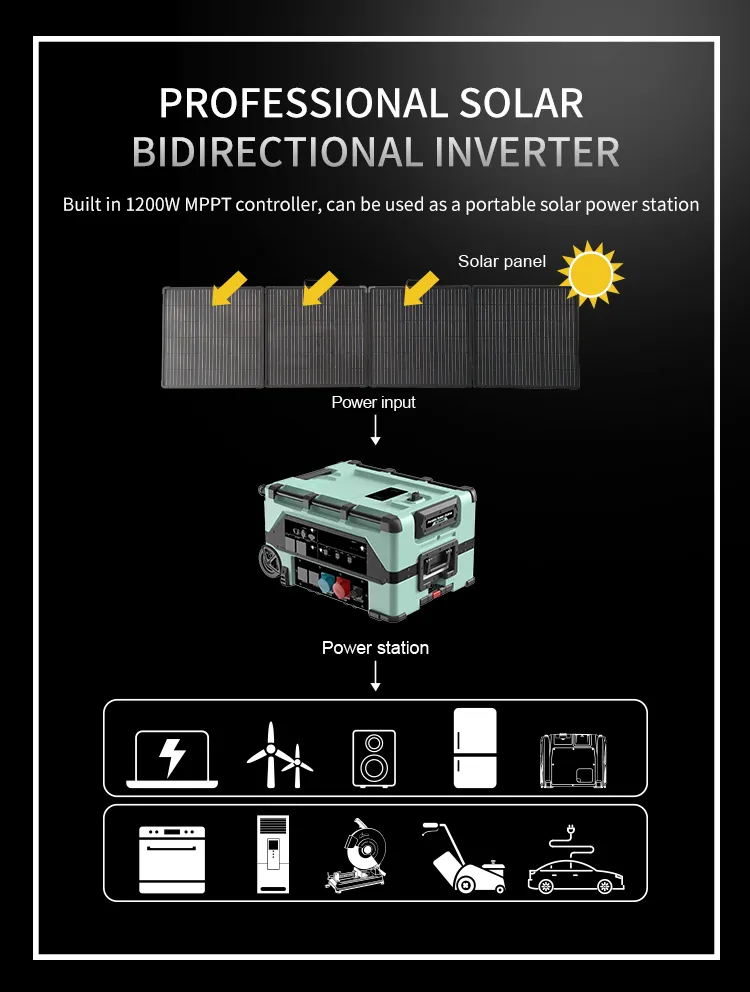

Built in 7680Wh high-power LiFePO4 battery with professional solar bidirectional inverter, supports 12kW output and 8.5kW charging.
Support continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.
Versatile fast charging: utility, high-voltage/low-voltage solar, EV charger, car charging, AC generator and wind turbine.

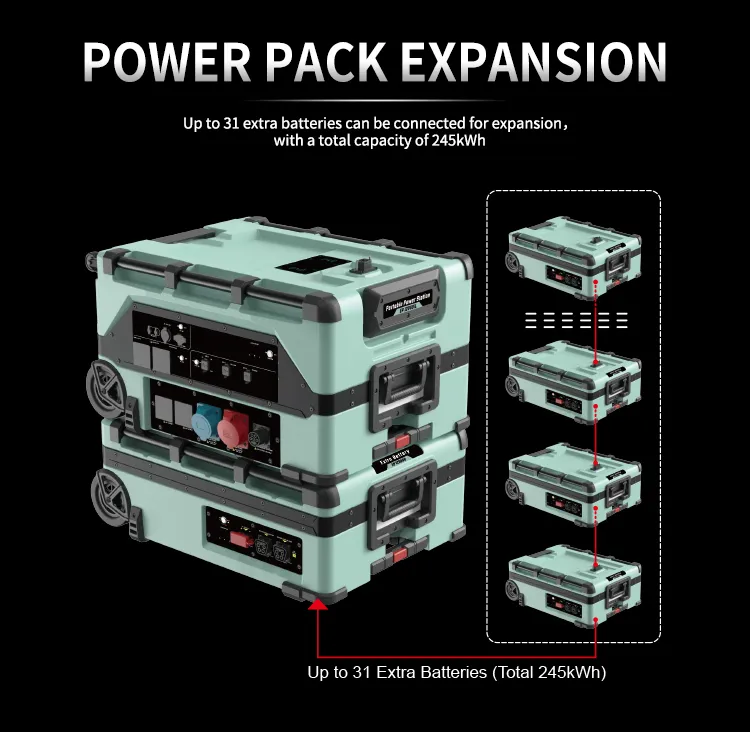

Extreme scalability: Up to 31 extra batteries can be connected for a total capacity of 245kWh.

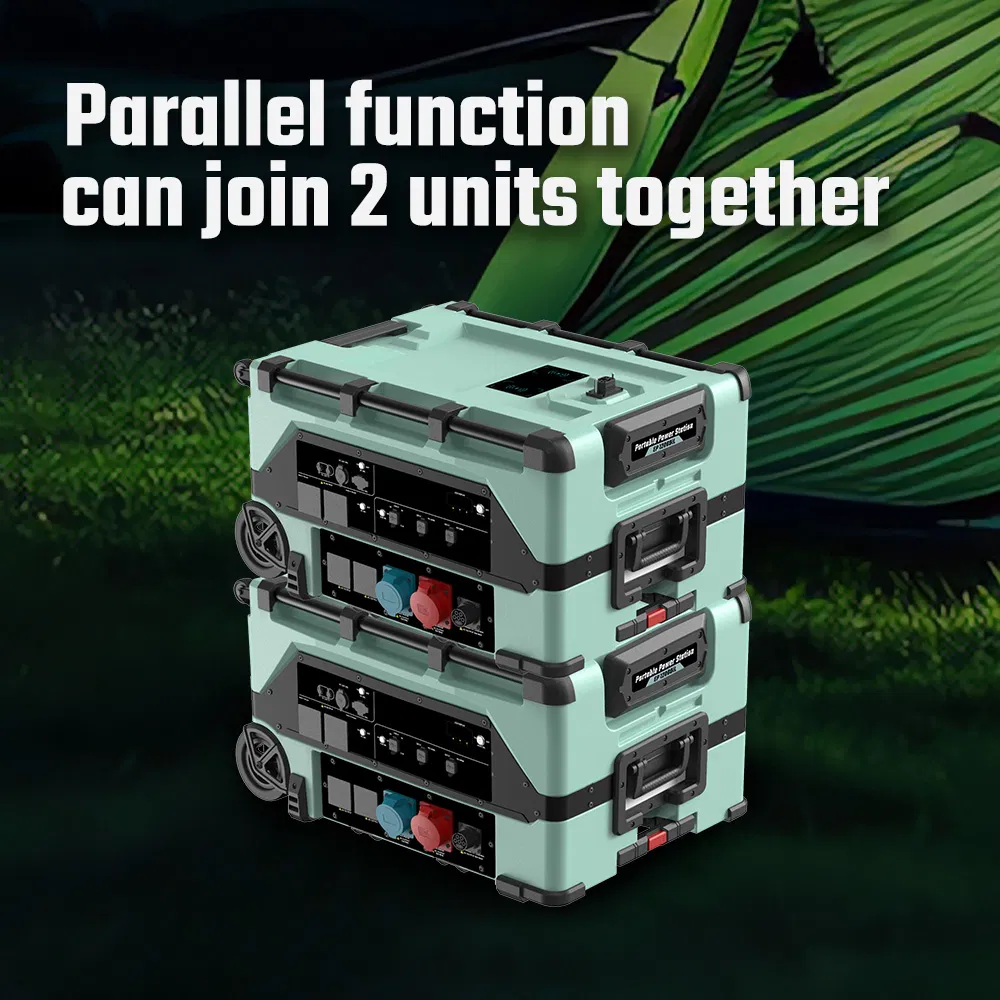

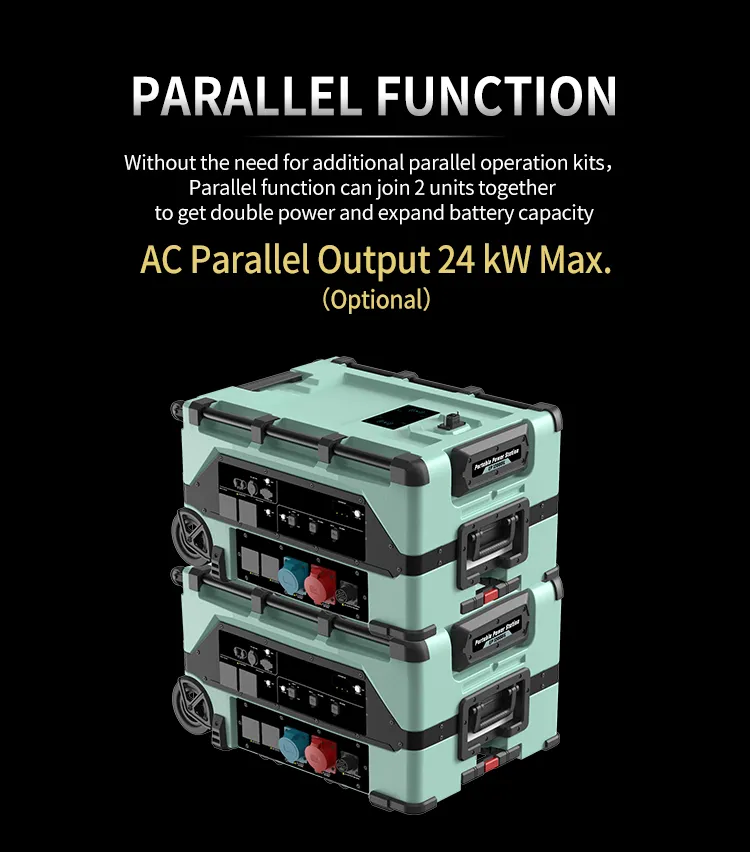

Patented stacked parallel technology: Join 2 units for 24kW continuous output.
Built-in EV charger: Replace charging stations to charge cars up to 22kW.
Durable design: IP53 unit and IP66 battery pack protection grade.

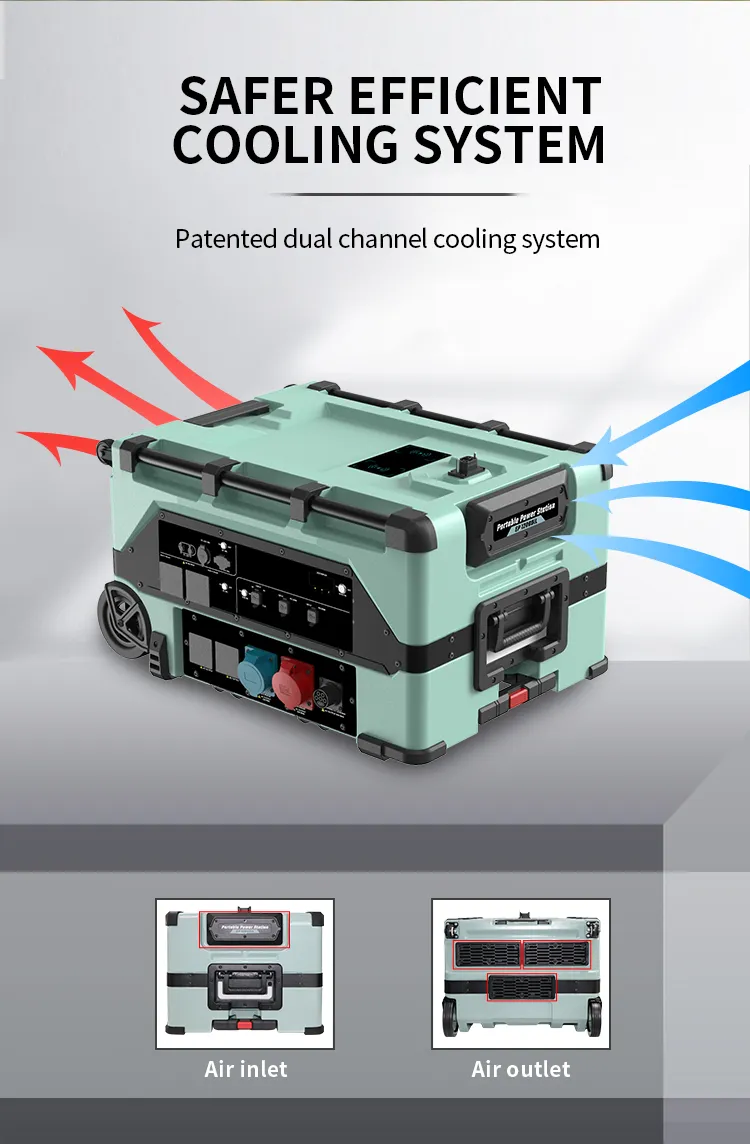

Advanced cooling: Patented dual channel cooling system with fire-resistant V-0 casing.

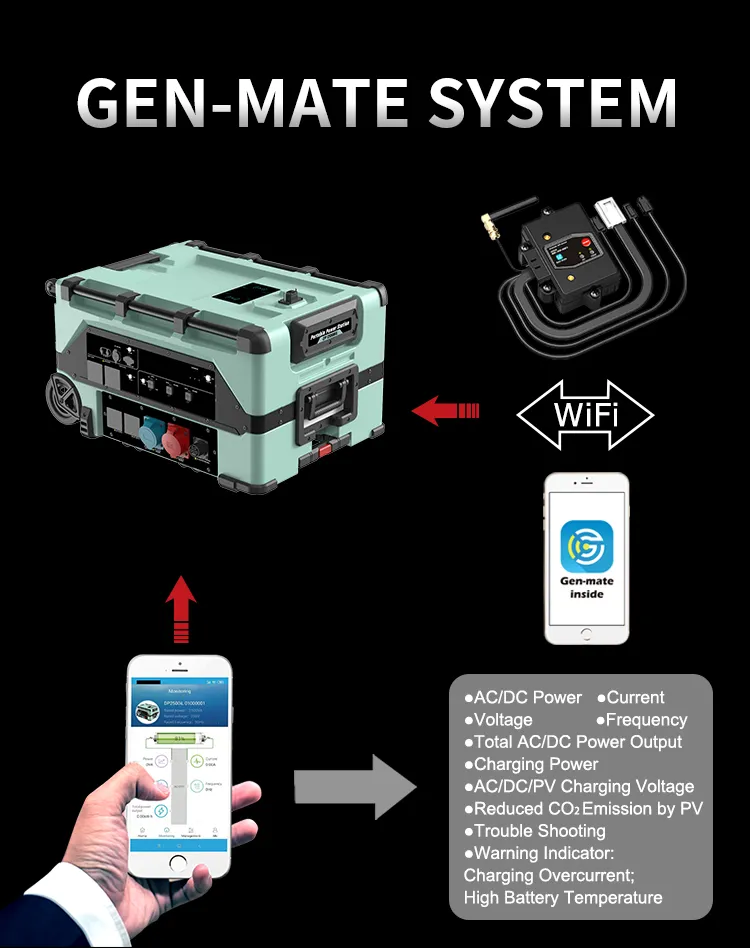

Smart Control: Monitor and manage via smartphone APP.

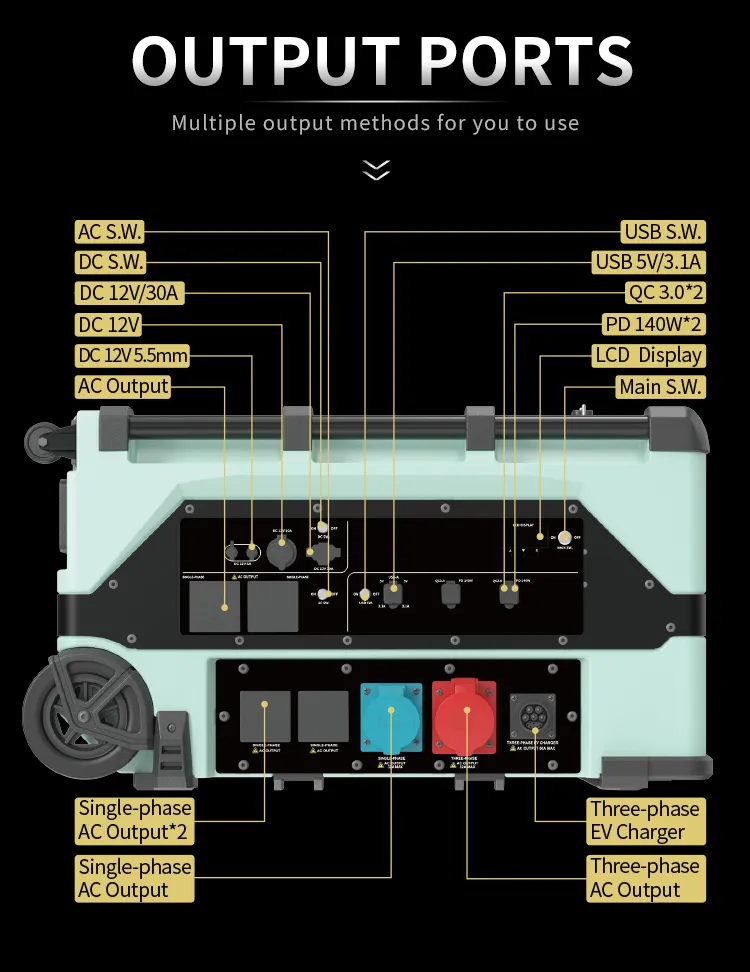

📊 Product Parameters (Output)
Output Type Feature Specification
AC Output Rated Power 12000VA (3-Phase) / 11000VA (1-Phase) / 10000VA (Split-Phase)
Peak Power 24000VA (3-Phase) / 22000VA (1-Phase) / 20000VA (Split-Phase)

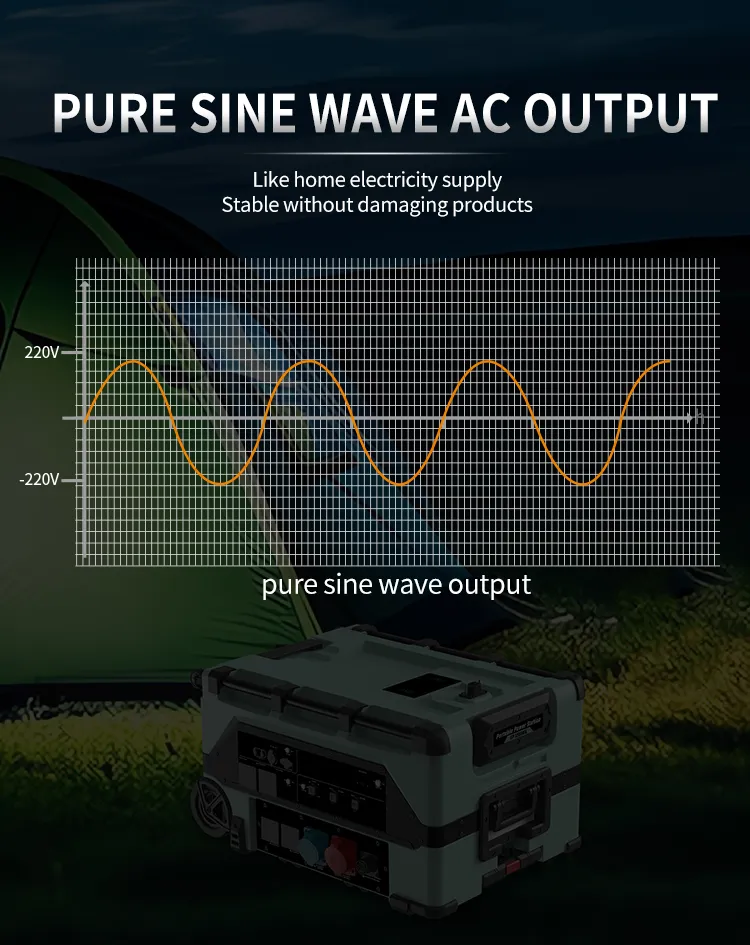

Waveform Pure-Sine Wave, THD < 3%
Frequency 50/60Hz
DC Output XT90 Port 12V/30A
Cigarette Lighter 12V/10A
5521 Port 12V/6A
USB Output USB-A 5V/3.1A
QC3.0 18W Max (5V/9V/12V)
Type-C PD 140W (Up to 28V/5A)

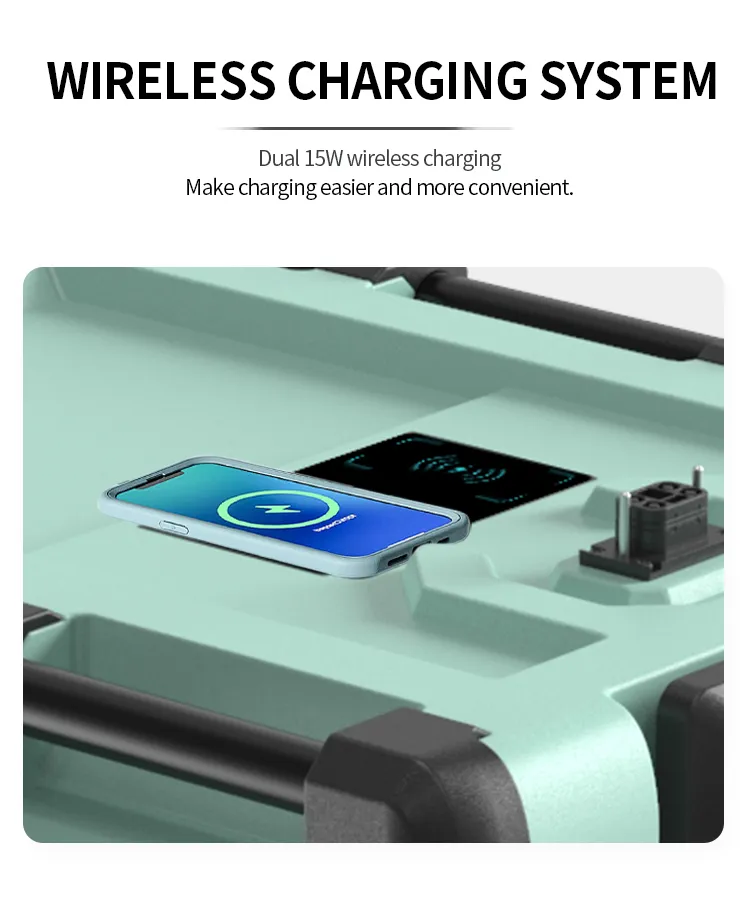

Wireless Wireless Charging 2 × 15W

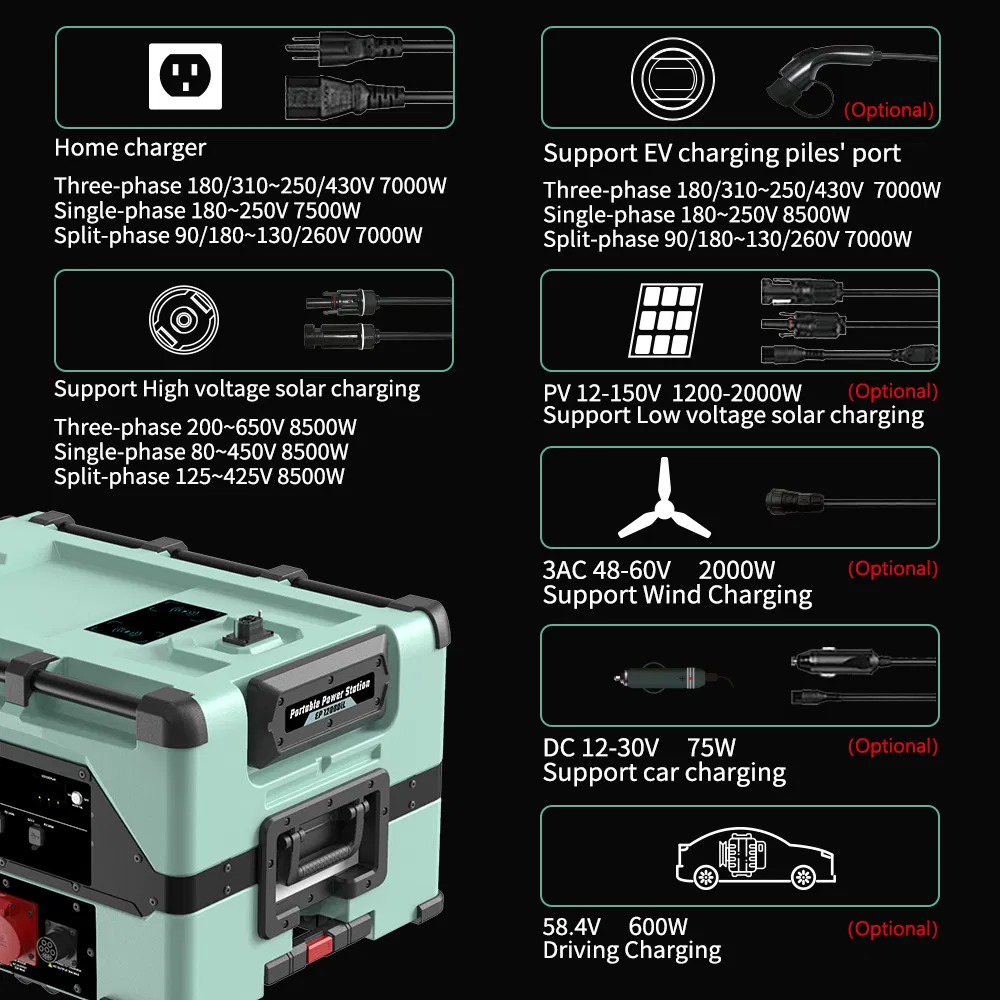

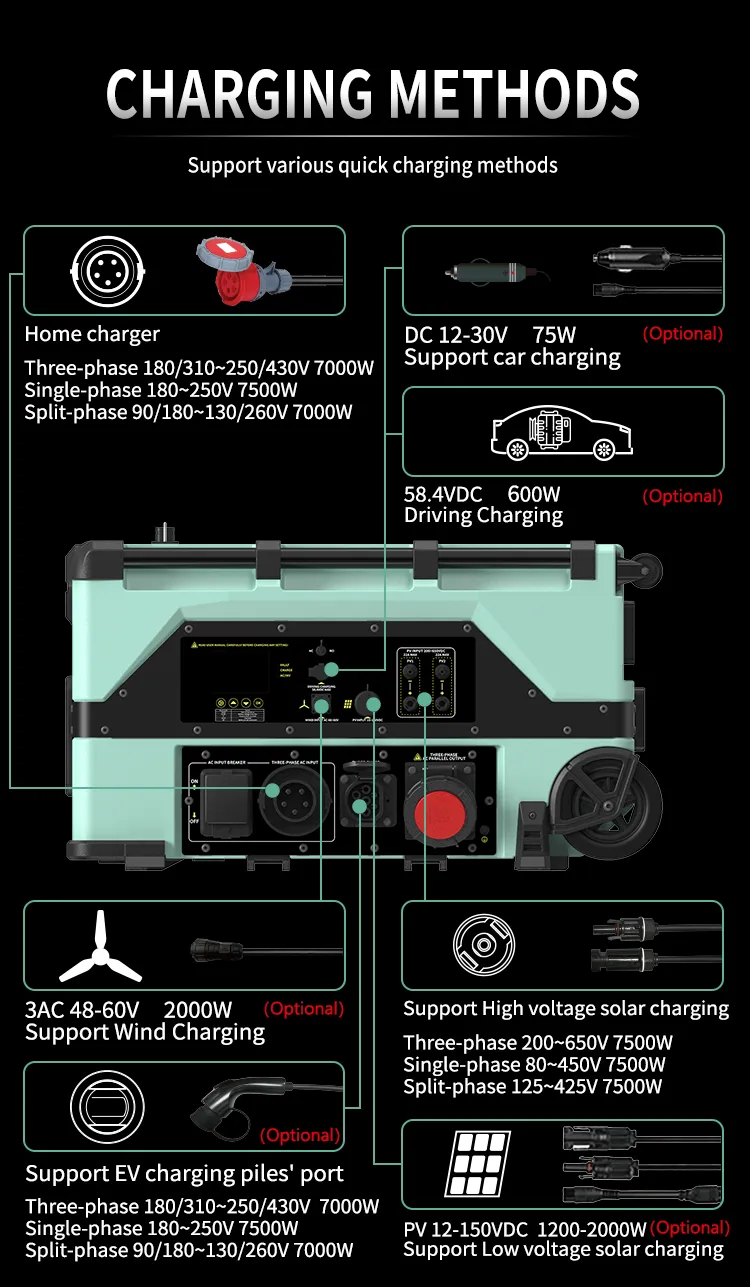

🔌 Charging Input
Source Mode Specification Charging Time

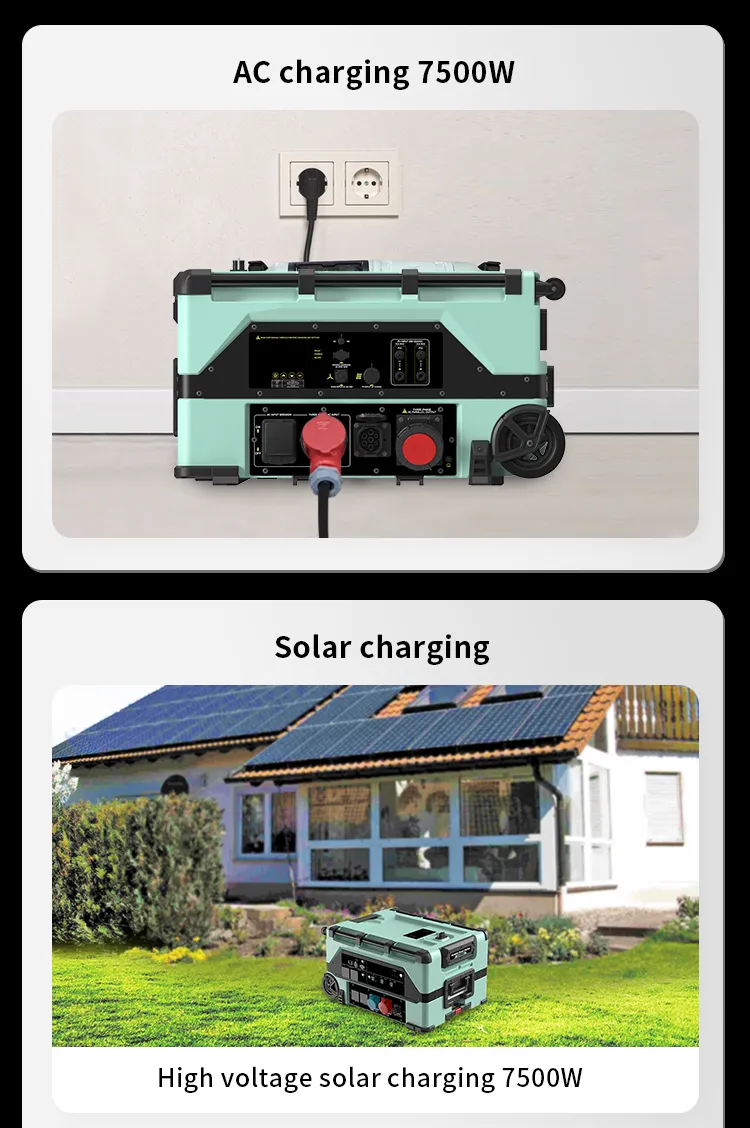

AC Wall/Generator Three-phase 180-430VAC, Max 7000W 70 mins

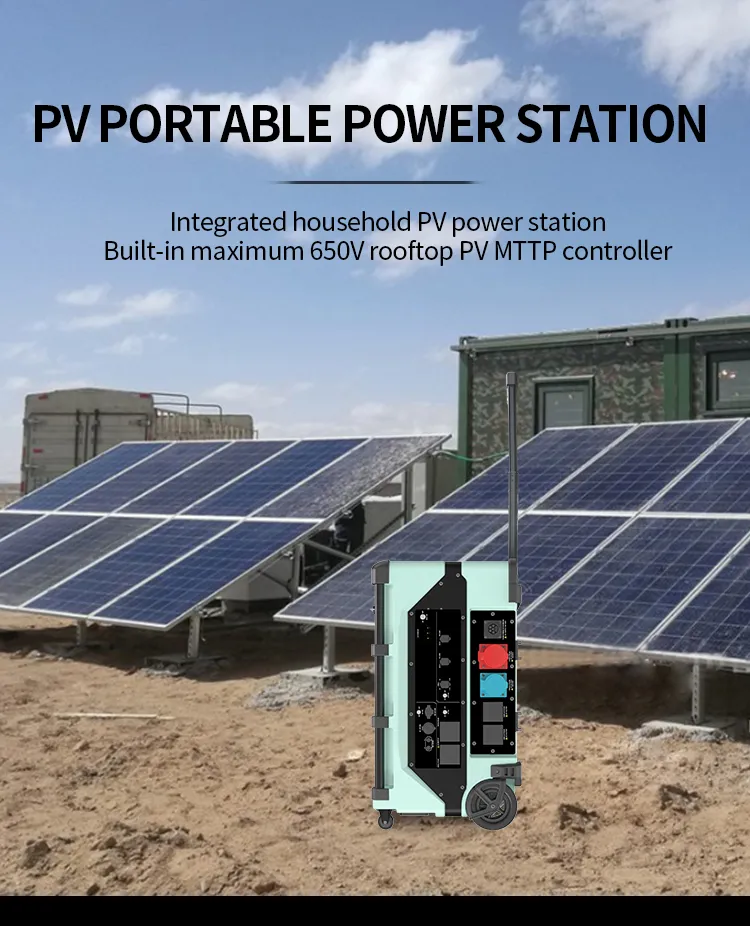

High-Voltage Solar MPPT 200~650VDC, Max 7500W 70 mins

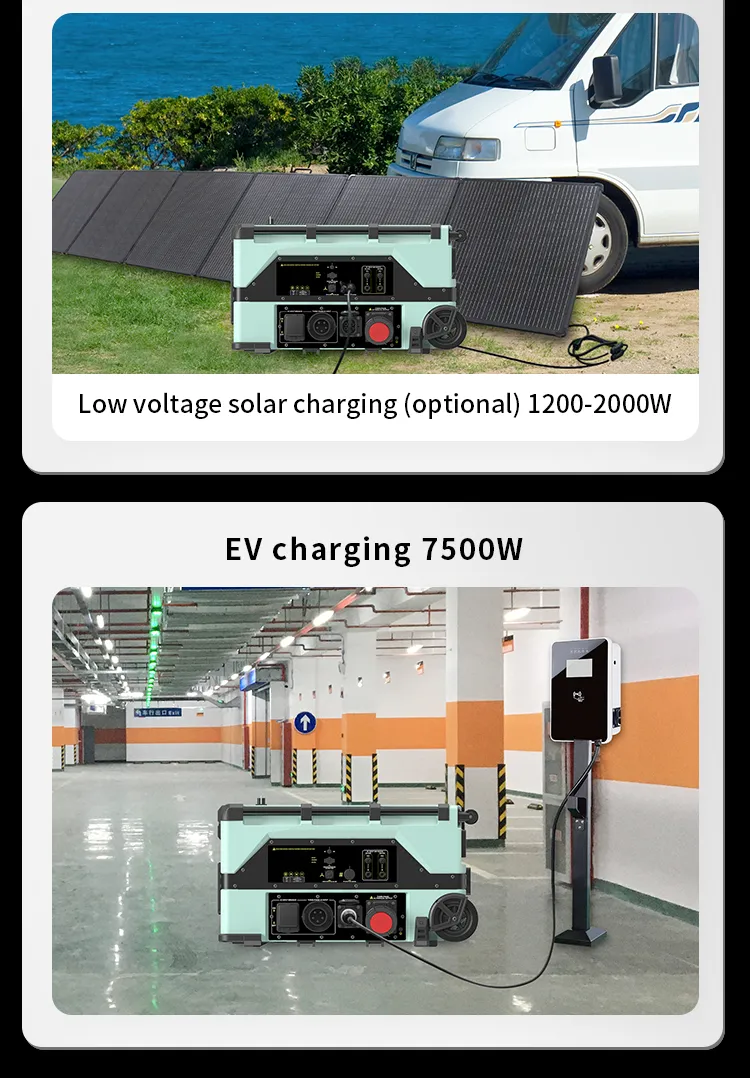

EV Charger Type 1/2/GBT Max 7000W-7500W 70 mins
Wind Charging Wind Charger 48~60V, Max 2000W 4 hours

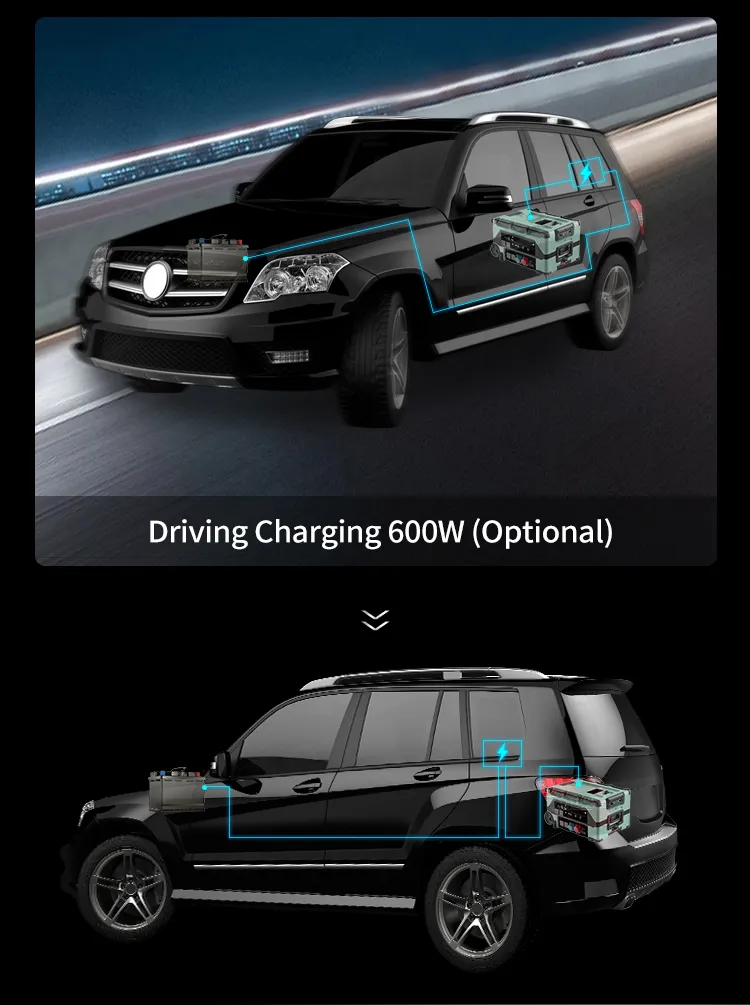

Driving Charging XT60 Port 58.4VDC, Max 600W 13 hours

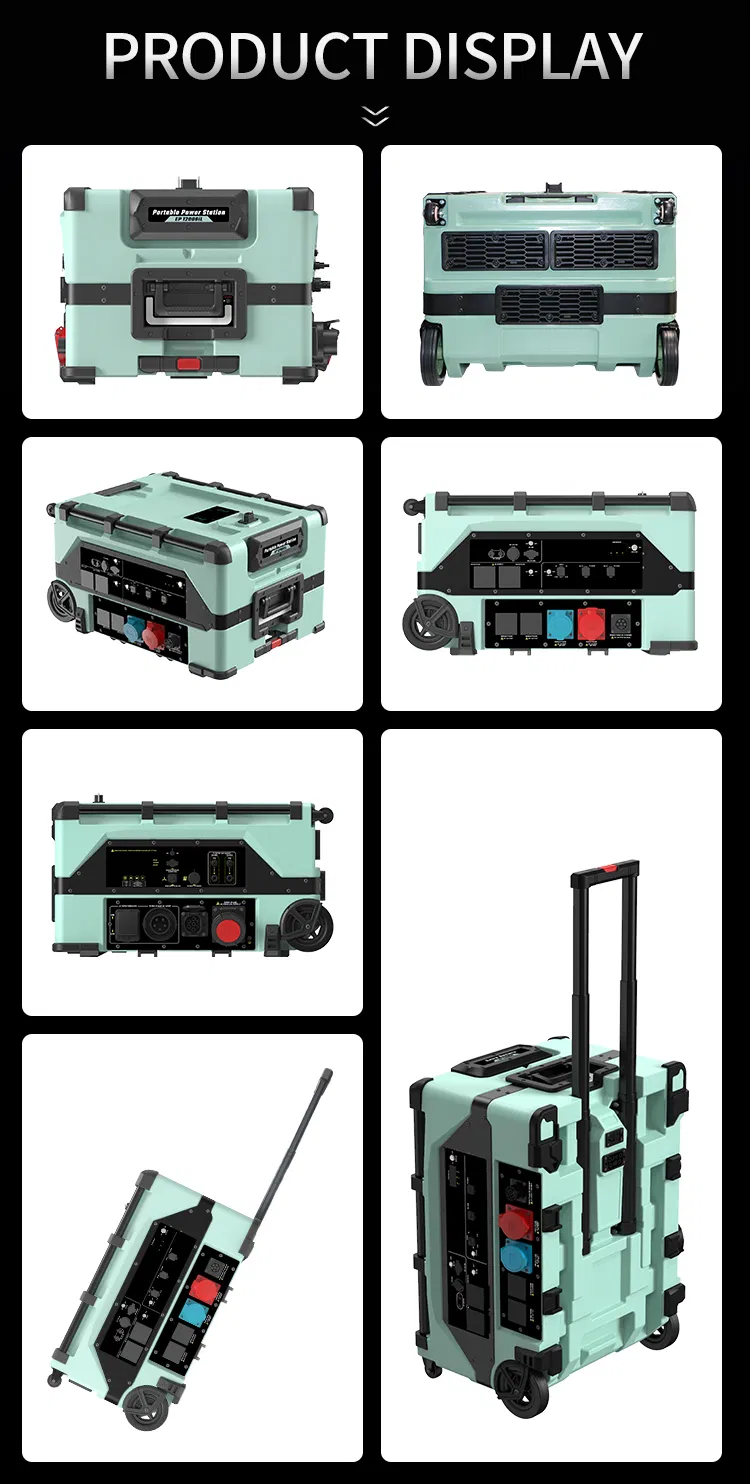

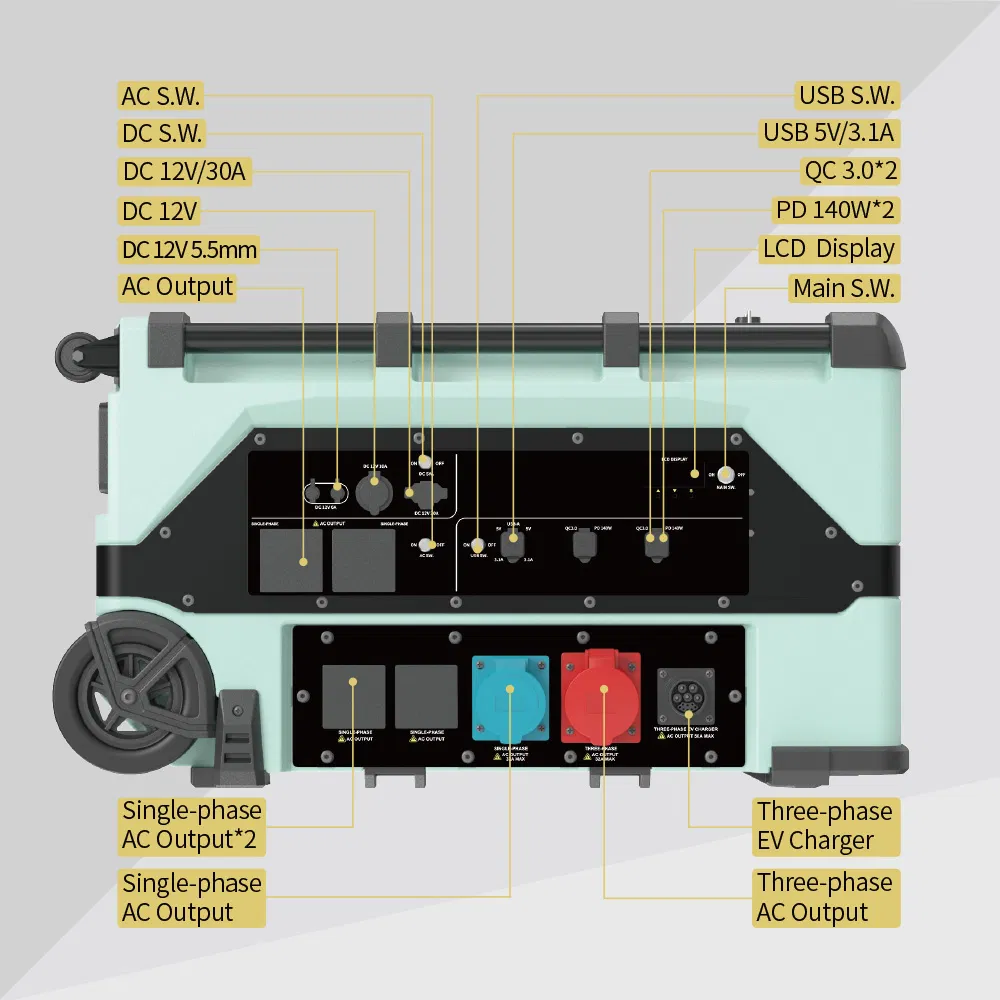

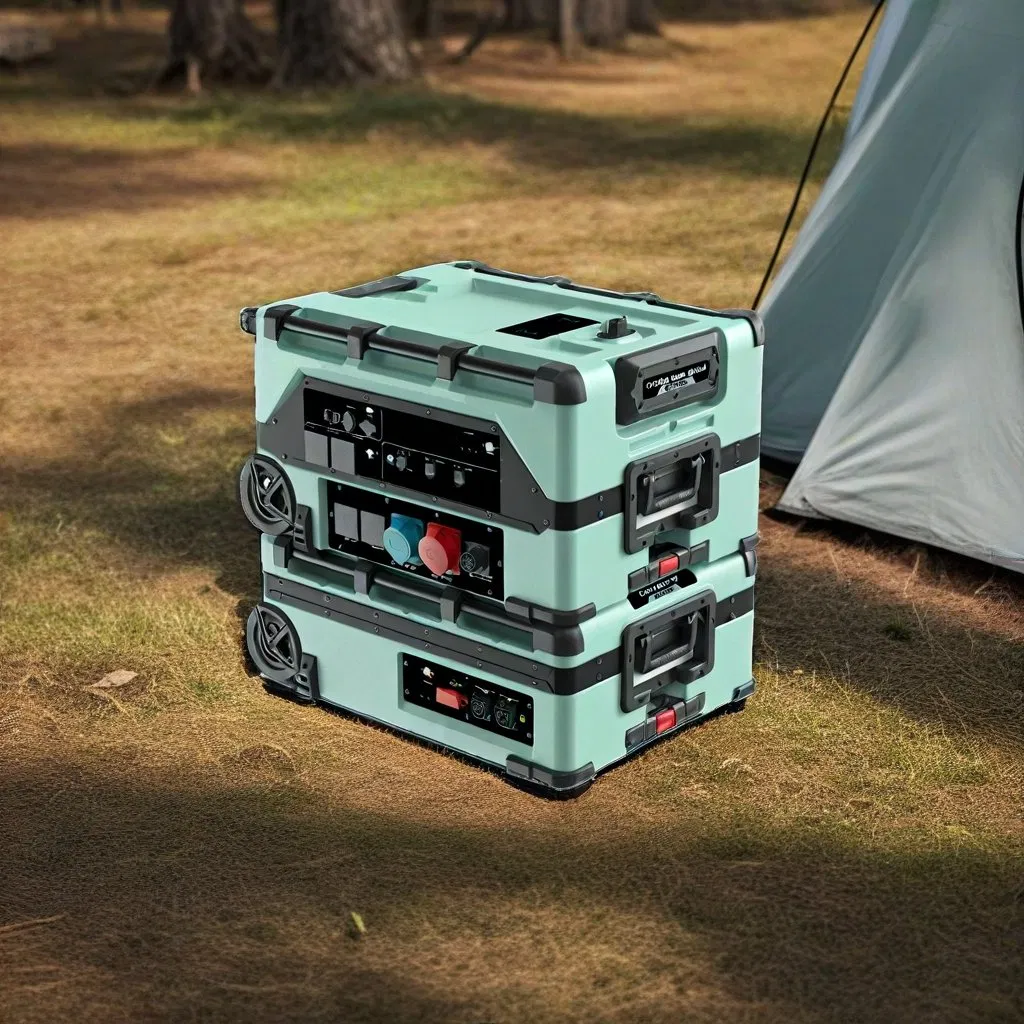

📸 Detailed Photos

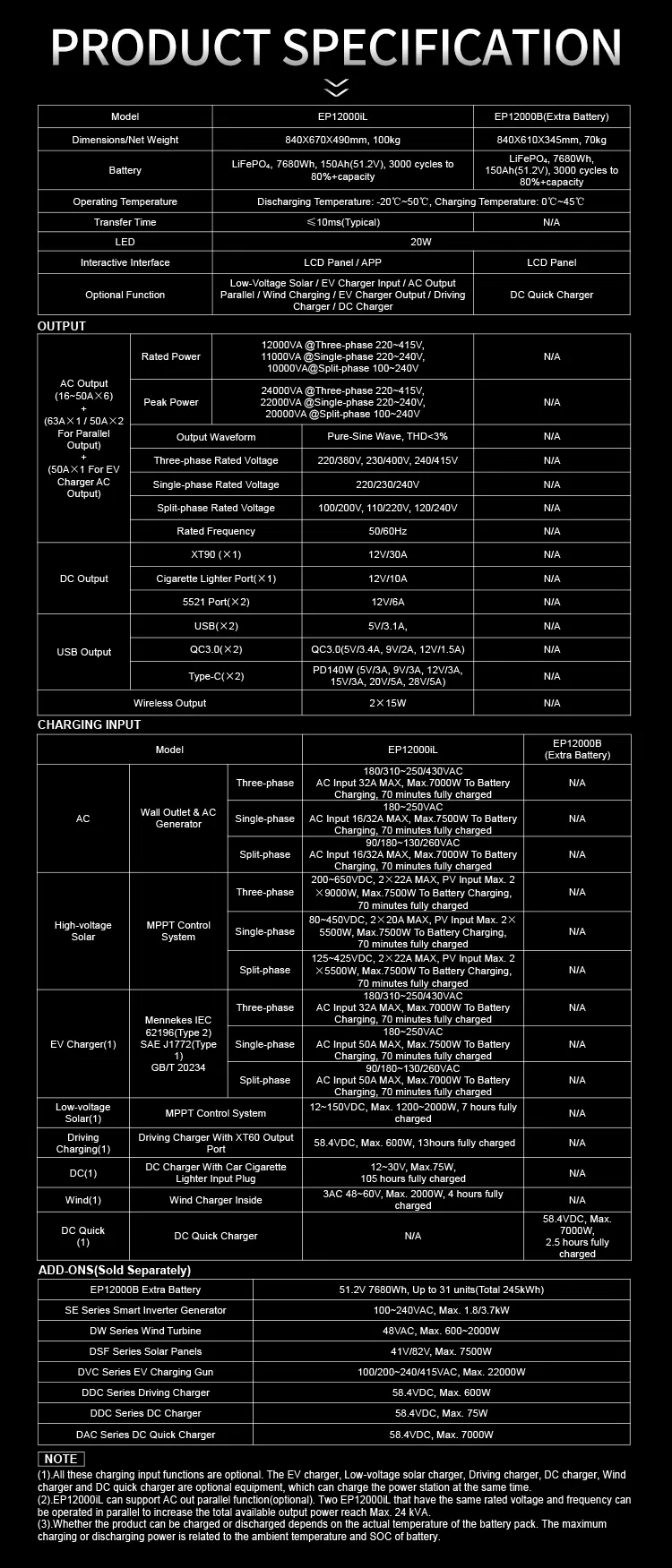

📑 General Specifications
Dimensions 840 x 670 x 490 mm Net Weight 100 kg
Battery Type LiFePO4 Capacity 7680Wh (150Ah / 51.2V)
Cycle Life 3000 cycles to 80%+ Transfer Time ≤ 10ms
Operating Temp Discharging: -20ºC~50ºC | Charging: 0ºC~45ºC
❓ Frequently Asked Questions
1. How long does it take to fully charge the EP12000iL?
Under optimal conditions using AC wall outlets or high-voltage solar input, the system can be fully charged in approximately 70 minutes.
2. Can I expand the battery capacity later?
Yes, the system is highly scalable. You can stack and connect up to 31 extra battery packs (EP12000B) for a massive total capacity of 245kWh.
3. Does it support industrial or heavy-duty machinery?
Absolutely. It supports continuous 12kW AC three-phase output, making it suitable for high-power tools, industrial equipment, and whole-home backup.
4. Is the unit portable despite its high power?
Yes, it is designed with a four-wheel chassis and drawbar system, allowing you to move the 100kg unit with ease across various surfaces.
5. Can this solar generator charge my Electric Vehicle (EV)?
Yes, it features a built-in electric vehicle charger capable of charging cars at up to 22kW, serving as a mobile charging station.
6. What is the protection rating for outdoor use?
The main unit is rated IP53, and the battery packs are rated IP66, providing excellent protection against dust and water during outdoor operation.
