Wall Mounted DC EV Charger High Efficiency Output Smart Ocpp DC Charging Stations for Commercial Electric Cars
Wall Mounted DC EV Charger High Efficiency Output Smart Ocpp DC Charging Stations for Commercial Electric Cars
Wall Mounted DC EV Charger High Efficiency Output Smart Ocpp DC Charging Stations for Commercial Electric Cars
Wall Mounted DC EV Charger High Efficiency Output Smart Ocpp DC Charging Stations for Commercial Electric Cars
Wall Mounted DC EV Charger High Efficiency Output Smart Ocpp DC Charging Stations for Commercial Electric Cars
1 / 5
Wall Mounted DC EV Charger High Efficiency Output Smart Ocpp DC Charging Stations for Commercial Electric Cars
Wall Mounted DC EV Charger High Efficiency Output Smart Ocpp DC Charging Stations for Commercial Electric Cars
Wall Mounted DC EV Charger High Efficiency Output Smart Ocpp DC Charging Stations for Commercial Electric Cars
Wall Mounted DC EV Charger High Efficiency Output Smart Ocpp DC Charging Stations for Commercial Electric Cars
Wall Mounted DC EV Charger High Efficiency Output Smart Ocpp DC Charging Stations for Commercial Electric Cars

Wall Mounted DC EV Charger High Efficiency Output Smart Ocpp DC Charging Stations for Commercial Electric Cars

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
42
Location
Public Use
Interfaces
One Pile with Multiple Charges
Start Mode
Credit Card, Mobile Remote, RFID
Package
Wooden Case
Origin
China
Product Description
DC EV Charger Overview

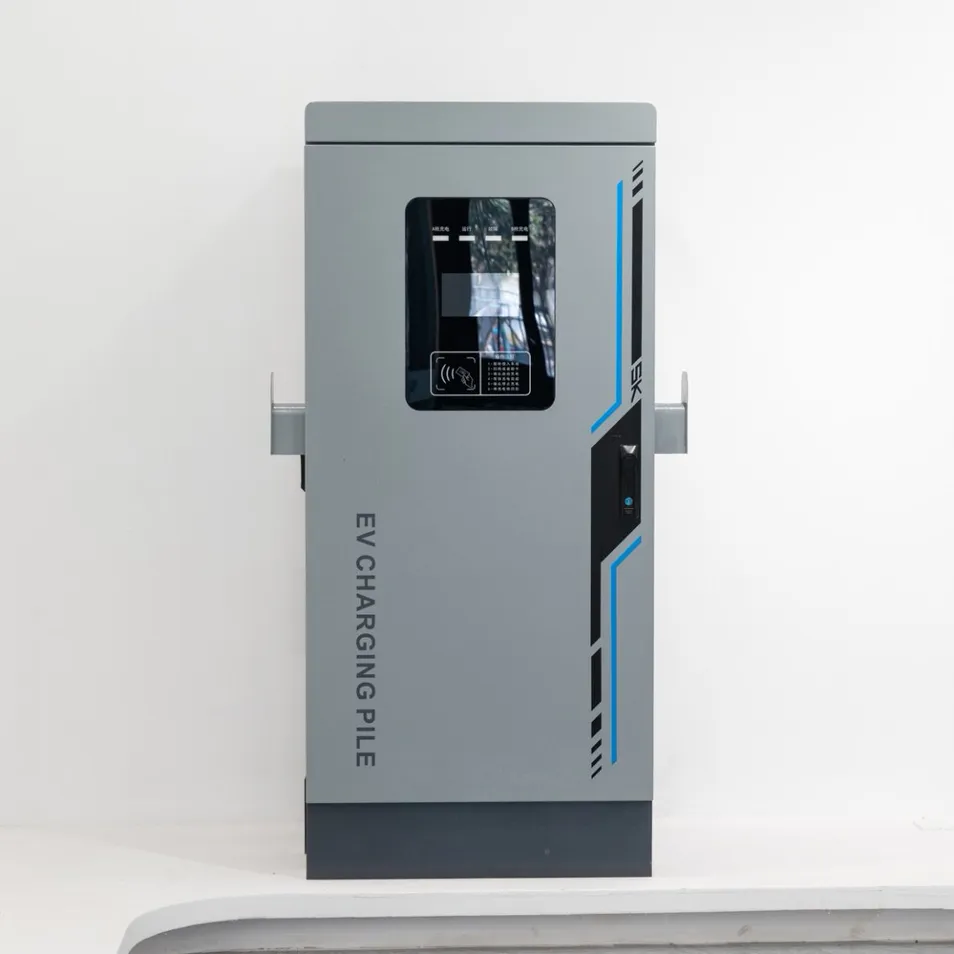

EV Charger Detail 1

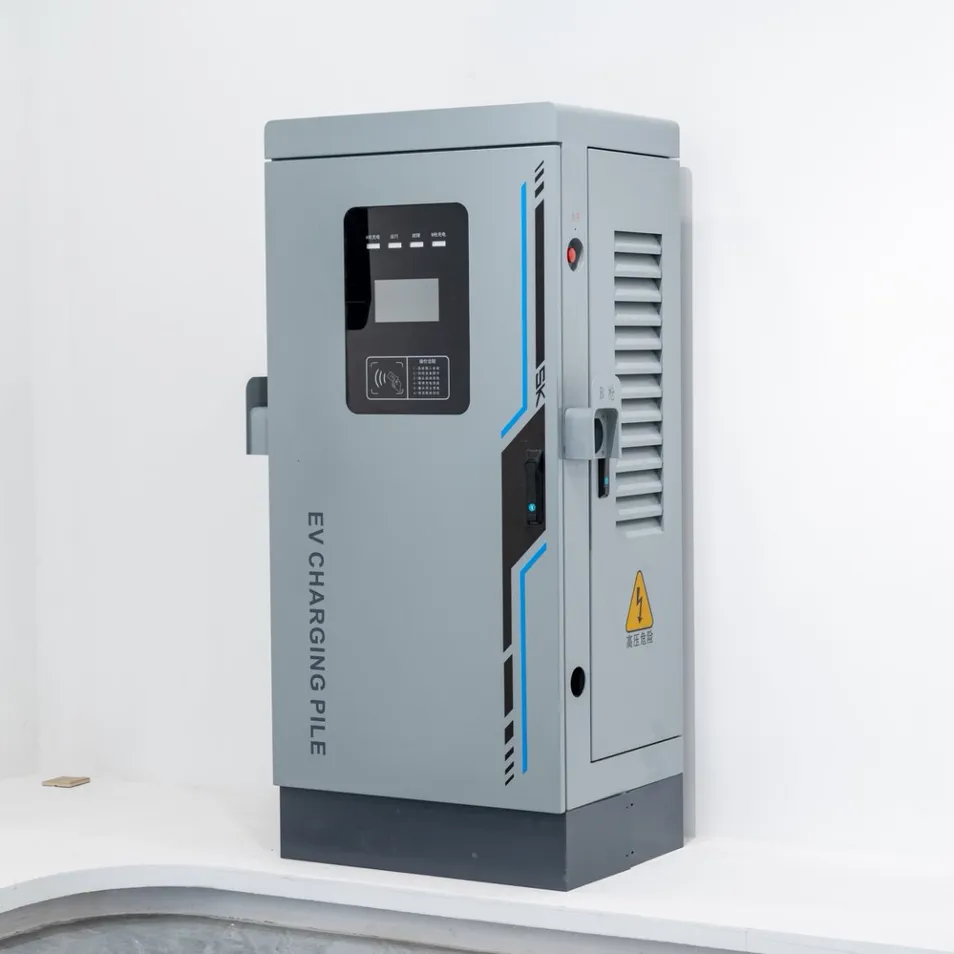

EV Charger Detail 2

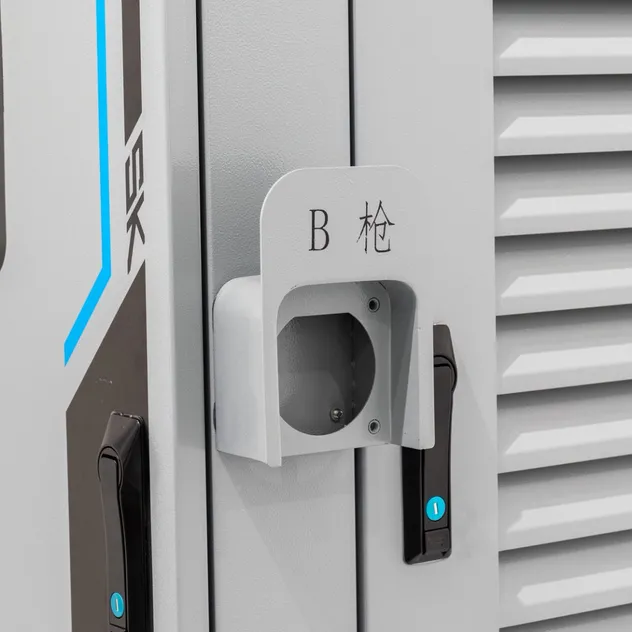

Component 1

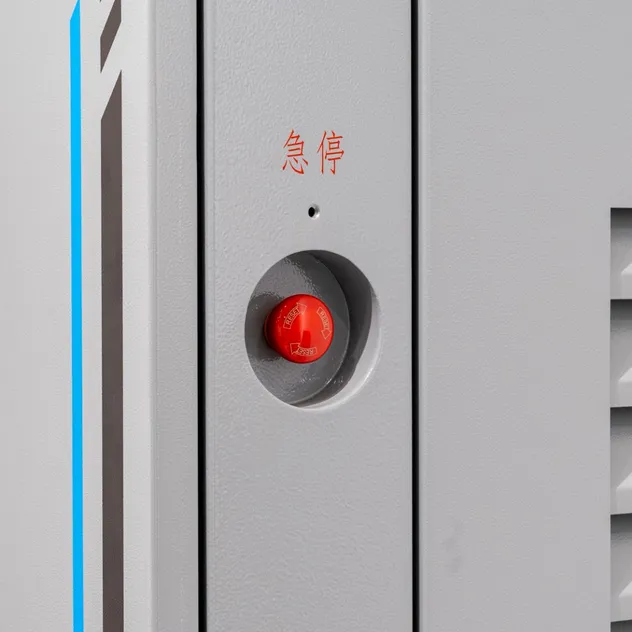

Component 2

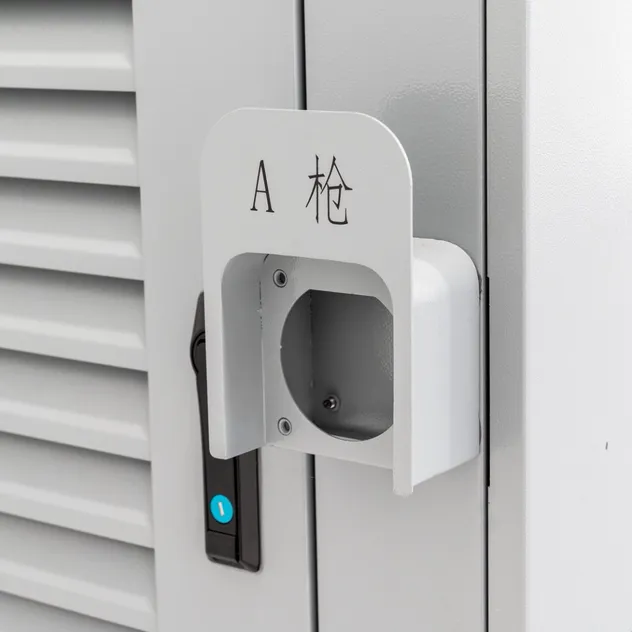

Component 3
Specifications 60kW 80kW 120kW 160kW
Charging TypeDC-Fast Charging
AC Input voltageAC380V±20%
Input Current96A128A192A256A
Output Voltage200-750/1000V
Efficiency≥95%
Protection RatingIP54
Connectivity4G/3G/Ethernet (RJ45)
User Interface7" LCD touchscreen
ProtocolsOCPP 1.6J
Operating Temp-25℃ ~ 55℃
Dimensions (mm)700 × 530 × 1500
Weight (kg)115115145145
Charging Station Setup
Interface Display
Internal Structure
Production Line
Frequently Asked Questions
Q1: What should I do if the charging fails to start?
First, ensure the charging gun is fully inserted until you hear a "click". Check if there are foreign objects or oxidation on the connector. Re-plugging usually resolves most physical connection issues.
Q2: How do I identify the cause of a "Communication Timeout"?
This usually occurs when the vehicle's BMS and the charger fail to handshake. Check the screen for specific error codes. Ensure the vehicle is compatible with the CCS2 protocol and that authentication (RFID or App) is completed.
Q3: Is the DC Fast Charger suitable for outdoor installations?
Yes, the unit features an IP54 protection rating and is made from SGCC housing material, making it resistant to dust and water splashes, suitable for public outdoor use.
Q4: What power options are available for this model?
We offer a range of power ratings to suit different needs: 60kW, 80kW, 120kW, and 160kW, with maximum output currents up to 250A.
Q5: Does the charger support remote management?
Yes, it supports OCPP 1.6J protocols and can connect via 4G, 3G, or Ethernet (RJ45) for mobile remote operation and monitoring.
Q6: What safety protections are built into the system?
The system includes an emergency stop button, insulation test monitoring, leakage current protection (≤10mA), and power frequency withstand voltage up to 2500Vac.
