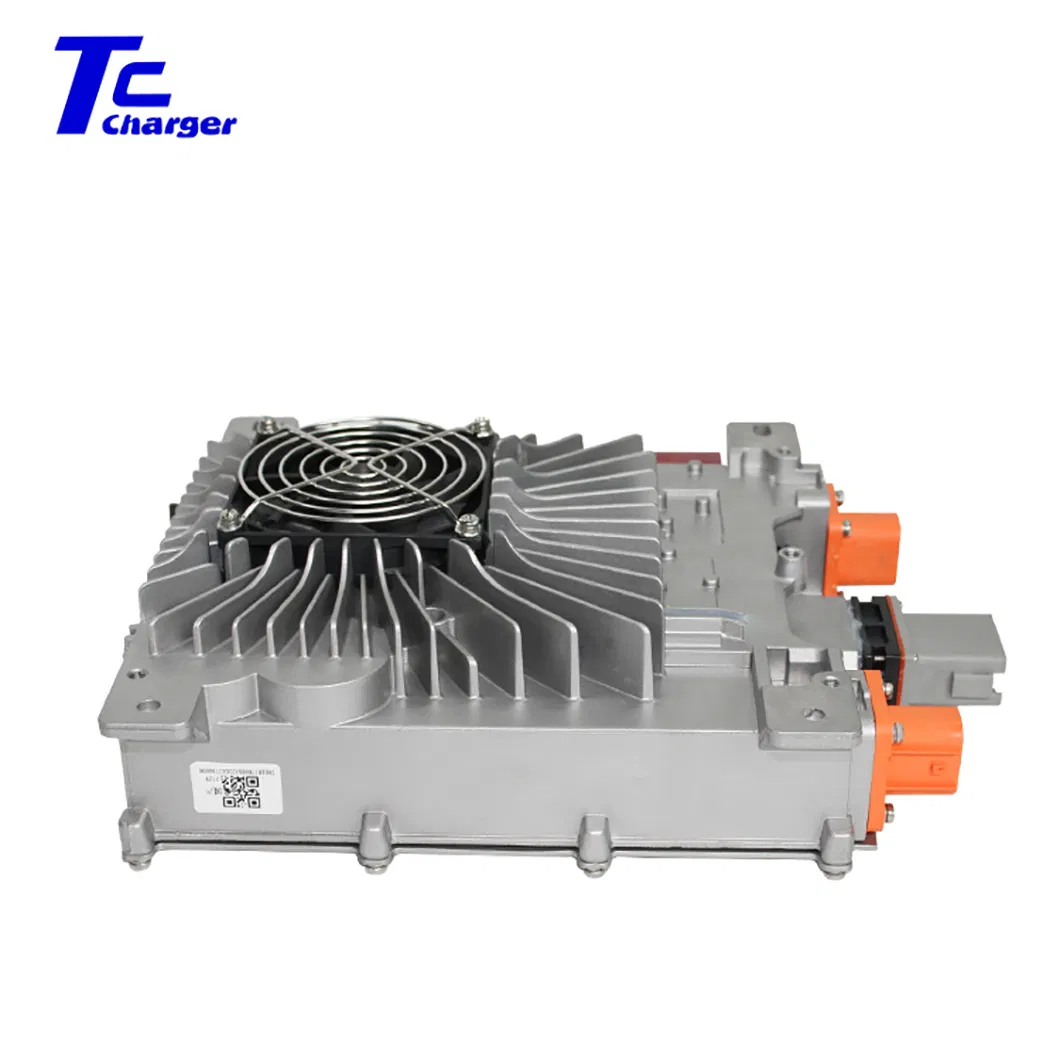

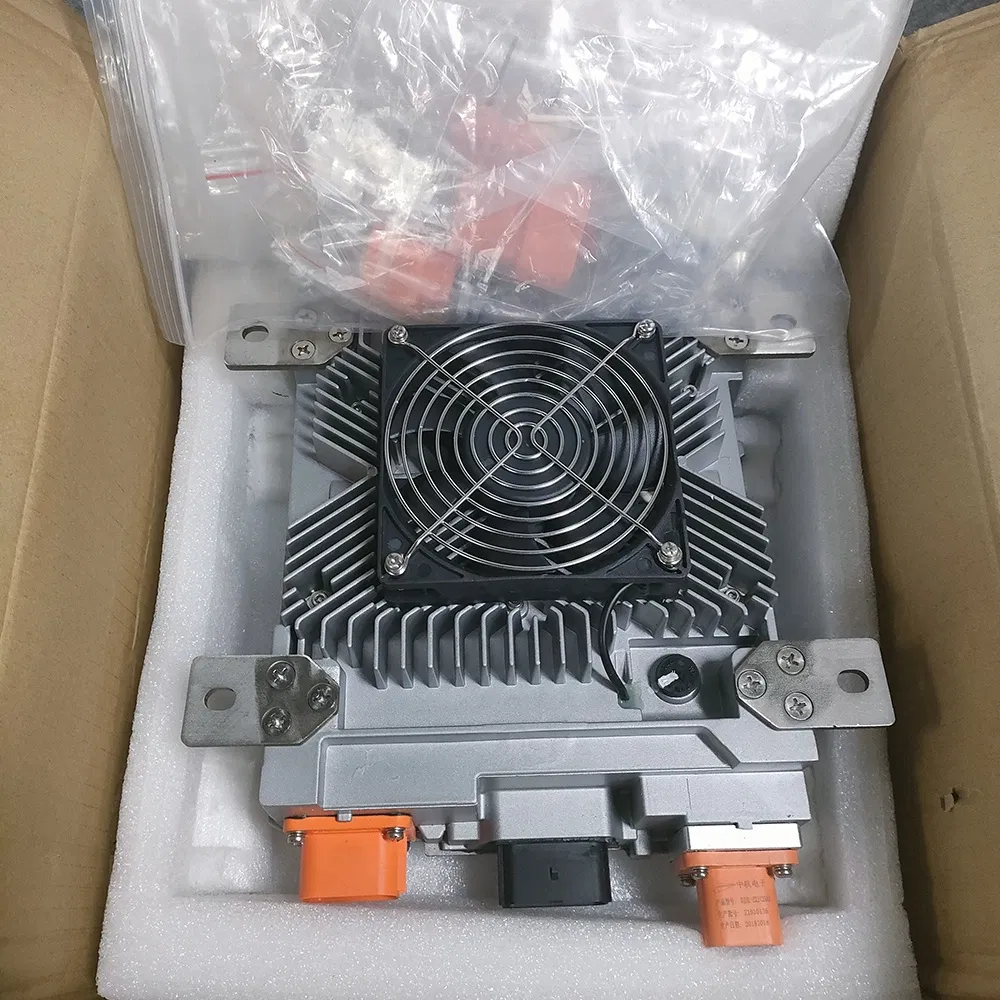

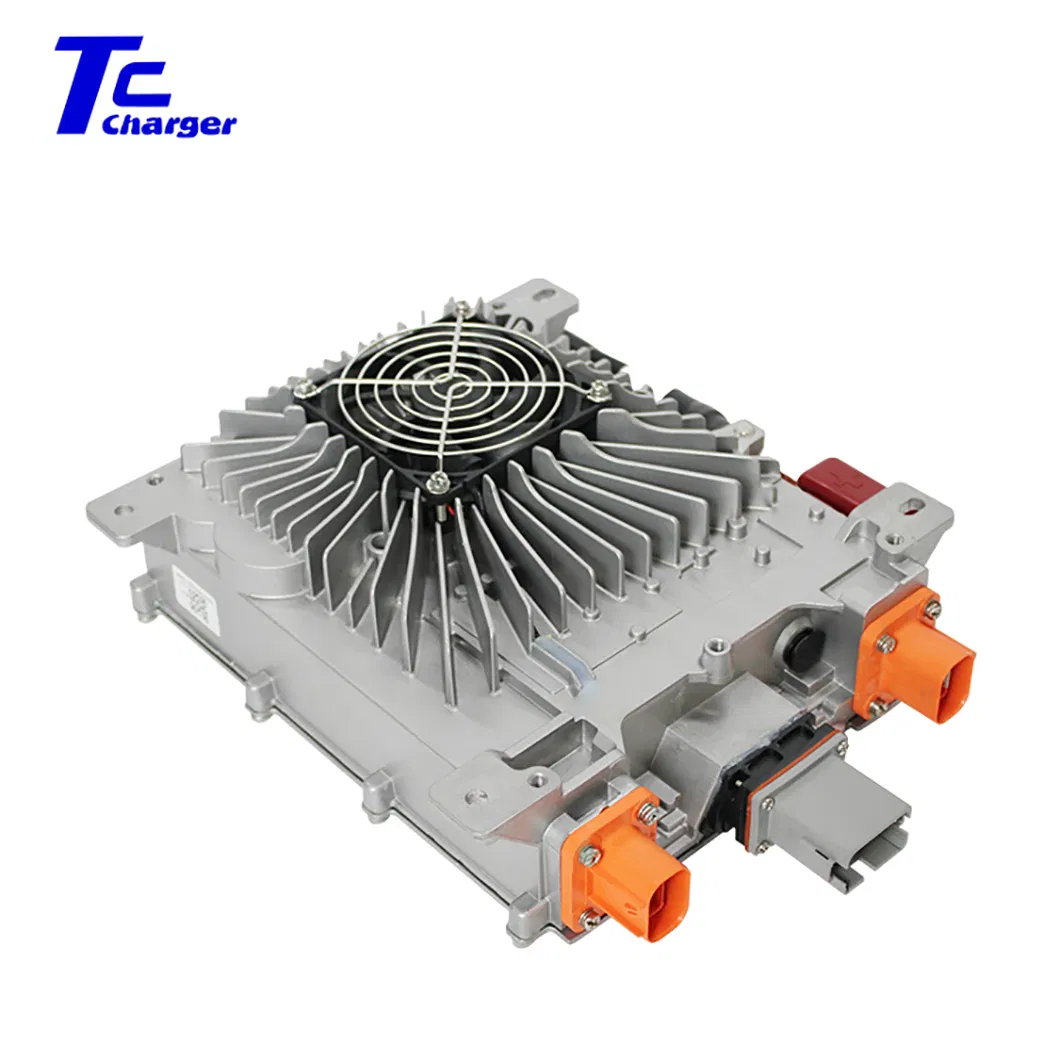

2 in 1 Integrated 3.3kw on Board Charger+1kw DC DC Converter for Electric Vehicles Can-Bus Communication
2 in 1 Integrated 3.3kw on Board Charger+1kw DC DC Converter for Electric Vehicles Can-Bus Communication
2 in 1 Integrated 3.3kw on Board Charger+1kw DC DC Converter for Electric Vehicles Can-Bus Communication
2 in 1 Integrated 3.3kw on Board Charger+1kw DC DC Converter for Electric Vehicles Can-Bus Communication
2 in 1 Integrated 3.3kw on Board Charger+1kw DC DC Converter for Electric Vehicles Can-Bus Communication
1 / 5
2 in 1 Integrated 3.3kw on Board Charger+1kw DC DC Converter for Electric Vehicles Can-Bus Communication
2 in 1 Integrated 3.3kw on Board Charger+1kw DC DC Converter for Electric Vehicles Can-Bus Communication
2 in 1 Integrated 3.3kw on Board Charger+1kw DC DC Converter for Electric Vehicles Can-Bus Communication
2 in 1 Integrated 3.3kw on Board Charger+1kw DC DC Converter for Electric Vehicles Can-Bus Communication
2 in 1 Integrated 3.3kw on Board Charger+1kw DC DC Converter for Electric Vehicles Can-Bus Communication

2 in 1 Integrated 3.3kw on Board Charger+1kw DC DC Converter for Electric Vehicles Can-Bus Communication

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specification
Model NO.
CD-MF01
Usage
Electric Vehicle
Input Voltage
AC90V~264V
Product Name
2 in 1 Obc+DC
Charger/DC Power
3.3kw/1kw
VAC-DC Output Votage
72V
Output Voltage Range
50-107V
VAC-DC Output Current
35A
DC-DC Output Votage
14V
DC-DC Output Current
72A
Protection Grade
IP67
Cooling Way
Enforce Air/Liquid-cooling
Product Overview
Integrated Charger Banner

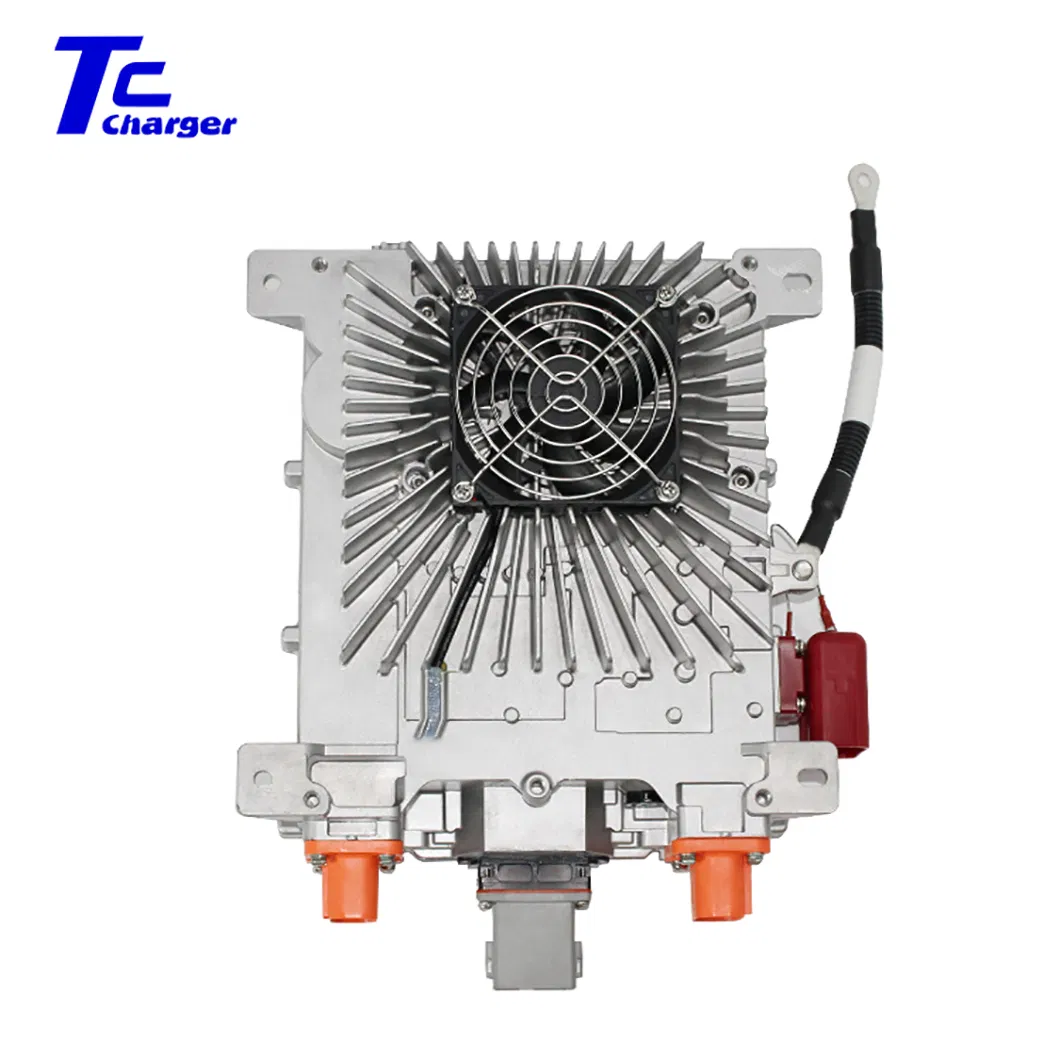

Integrated Charger View 1 Integrated Charger View 2 Integrated Charger View 3

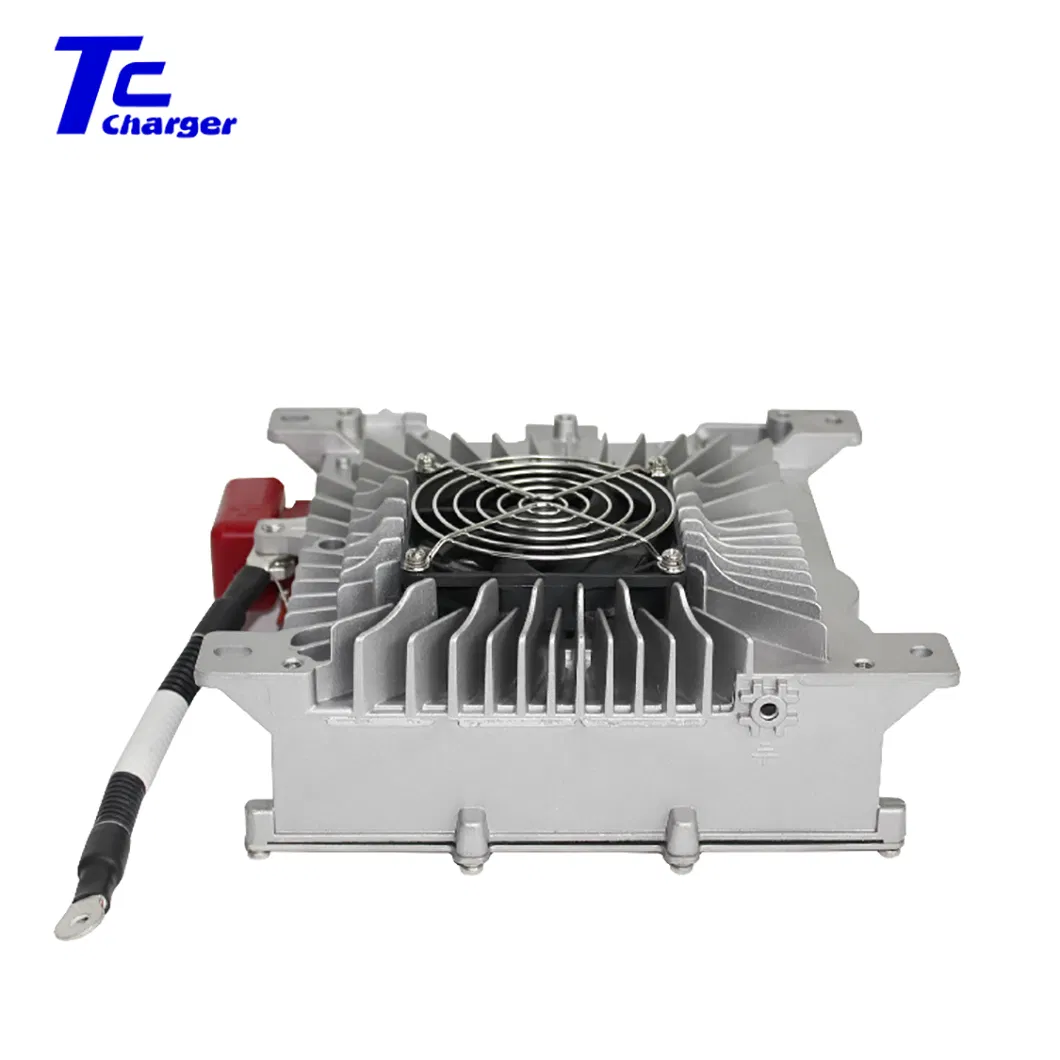

Integrated Charger Detail 1 Integrated Charger Detail 2
Technical Parameters
Model Output Voltage VAC-DC Model Power VAC-DC Range VAC-DC Current DC-DC Model DC-DC Power
CD-MF01 72V HK-MF-72-40 3.3KW 50-107V 35A TDC-IY-72-12 1KW
CD-MF03 108V HK-MF-108-32 3.3KW 80-161V 32A TDC-IY-108-12 1KW
CD-MF04 144V HK-MF-144-23 3.3KW 95-202V 23A TDC-IY-144-12 1KW
CD-MF05 312V HK-MF-312-10 3.3KW 200-450V 10A TDC-IY-320-12 1KW
Accessories & Certifications

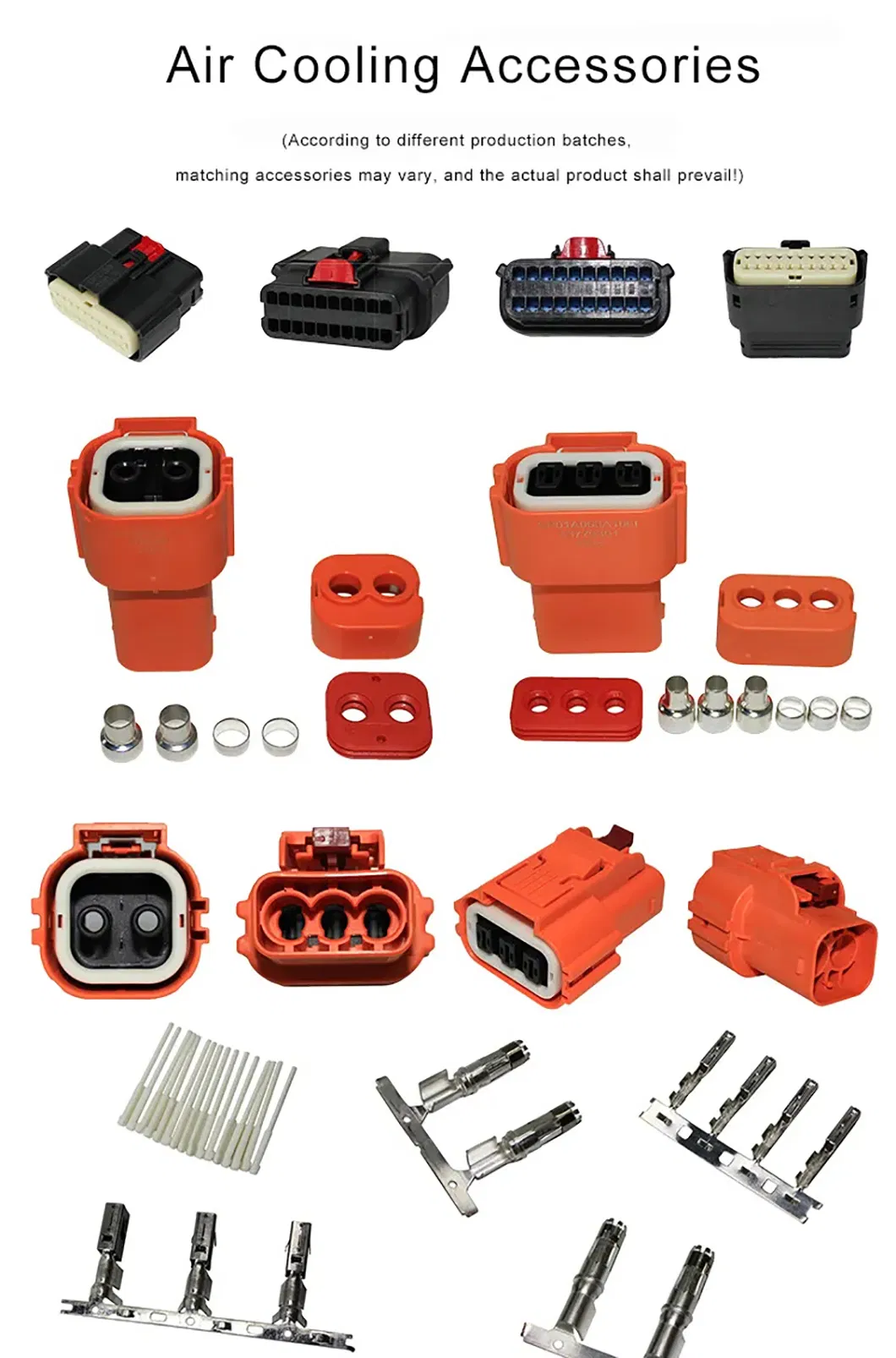

Accessories Connection Diagram
Product Certifications
Production Environment
Production Facility 1
Production Facility 2 Production Facility 3
Frequently Asked Questions
What is the "2 in 1" feature of the CD-MF01?
It integrates a 3.3KW On-Board Charger (OBC) and a 1KW DC-DC Converter into a single compact unit to save space and simplify vehicle electrical architecture.
What is the protection rating of this device?
The device is rated at IP67, making it highly resistant to water and dust, suitable for various electric vehicle environments.
Does it support communication with the vehicle's battery system?
Yes, it supports CAN-Bus communication with baud rates of 250K or 500K for seamless integration with the BMS.
What are the input voltage requirements?
It supports a wide input voltage range of AC90V to 264V, compatible with global standard power grids.
Can it operate in extreme temperature conditions?
Yes, the operation temperature range is from -40ºC to 85ºC, ensuring reliability in both extreme cold and hot climates.
What cooling options are available?
The unit is designed for versatility, supporting both Enforce Air Cooling and Liquid-cooling systems.
