| Basic Info | |
|---|---|
| Model NO. | BDESC-8040 |
| Location | Public Use |
| Charging Interfaces | One Pile with One Charge |
| Start Mode | Mobile Remote Operation, RFID Authentic |
| Interface Standard | CCS1, CCS2, GB/T, Chademo |
| Output Power | 60kw / 80kw |
| AC Input Voltage | 3-phase 400VAC +/- 15% |
| Output Voltage Range | 150VDC-1000VDC |
| Battery Capacity | 42.5kw-H |
| Mounting | Floor-Stand |
| Network Connection | 4G / Ethernet |
| Certificate | CE, CB, UKCA, TUV, RCM |
| OCPP Version | OCPP 1.6j |
| Waterproof Rating | IP54 |
| Operating Temperature | -30°C to +50°C |
| Warranty | 2 Years |
Leading brand producing hundreds of thousands of quality DC protection products and EV charging stations. Certified by UL, SAA, CB, CE, TUV, UKCA, ISO, and RoHS. Innovations include patented DC switches, AFCI solutions for rooftop fire protection, and dynamic load balancing.
| Detailed Specifications | ||
|---|---|---|
| Energy Storage System | ||
| Battery Capacity | 42.5kW-h | |
| Usable Energy | 40.4kW-h (95% DOD) | |
| Max Recharge Power | 20kw | |
| Cycle Life | >6000 @ 25°C, 60% EOL | |
| Charging System | ||
| Charging Power | DC Max 60kW / 80kW | |
| Charging Voltage | 300V - 1000V | |
| Efficiency | ≥ 96.5% | |

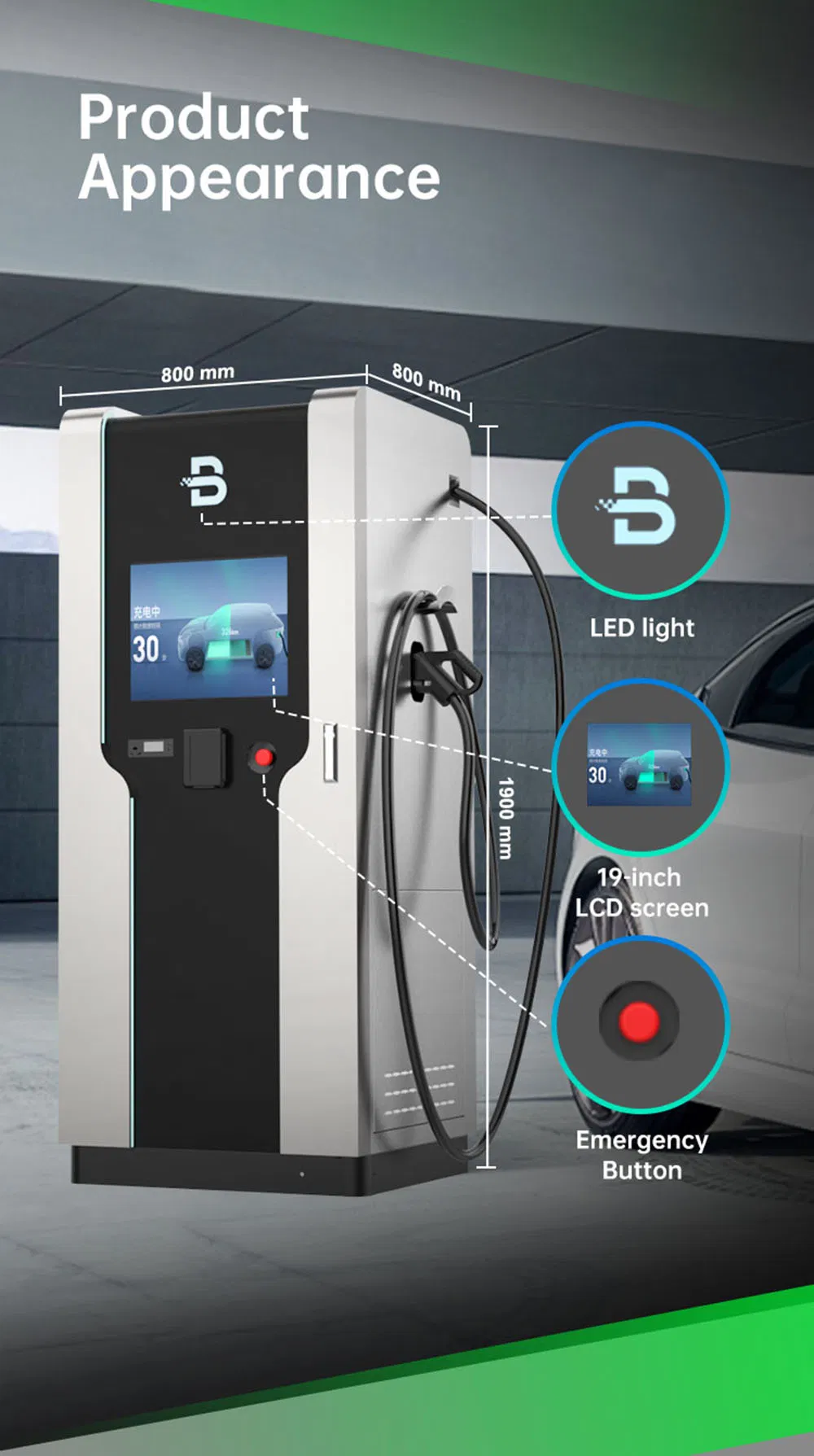

| User Interface | 19-inch Digital Display | |
| Payment System | RFID, Credit Card | |
| Safety & Standards | ||
| Safety Protection | Overcurrent, Lightning, Over-temp, Short circuit, Emergency button, Flood, Ground, Smoke, Fire protection | |
| Compliance | IEC 61851-1, IEC 61851-23, IEC 61851-24, IEC 62619 | |

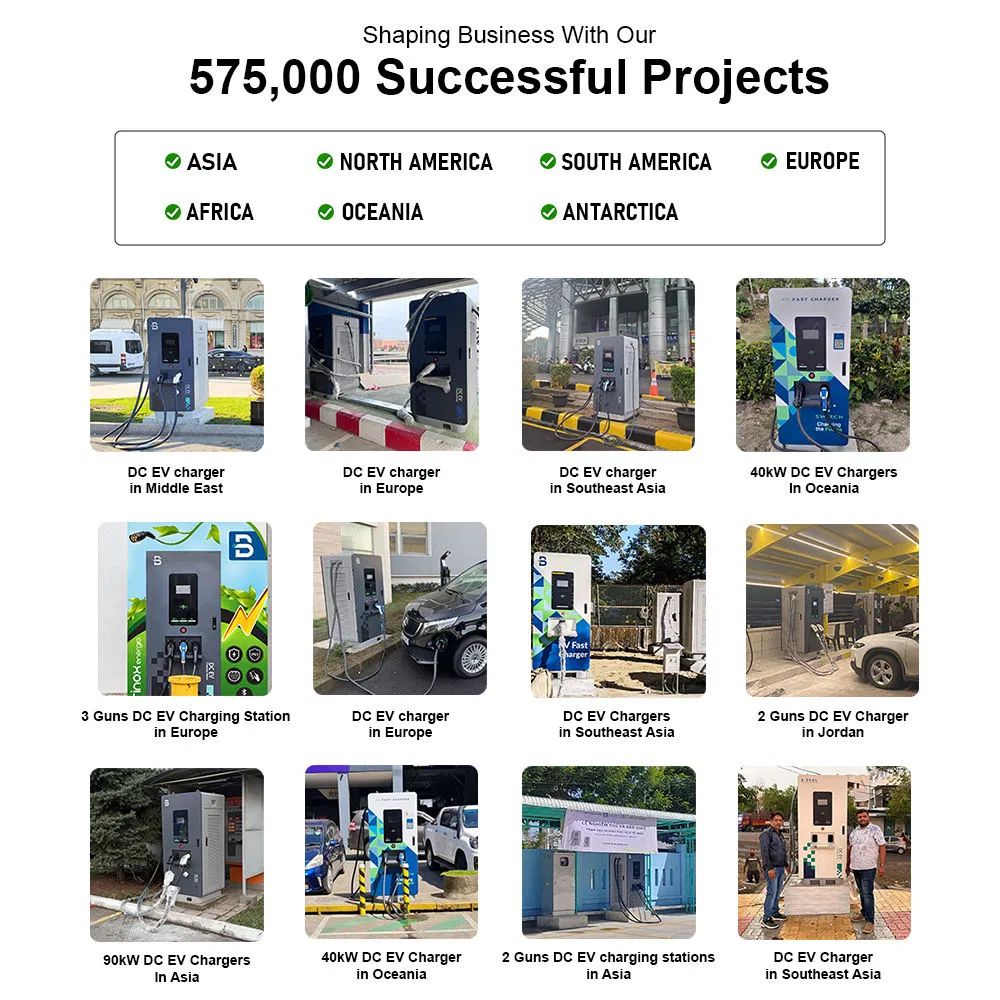

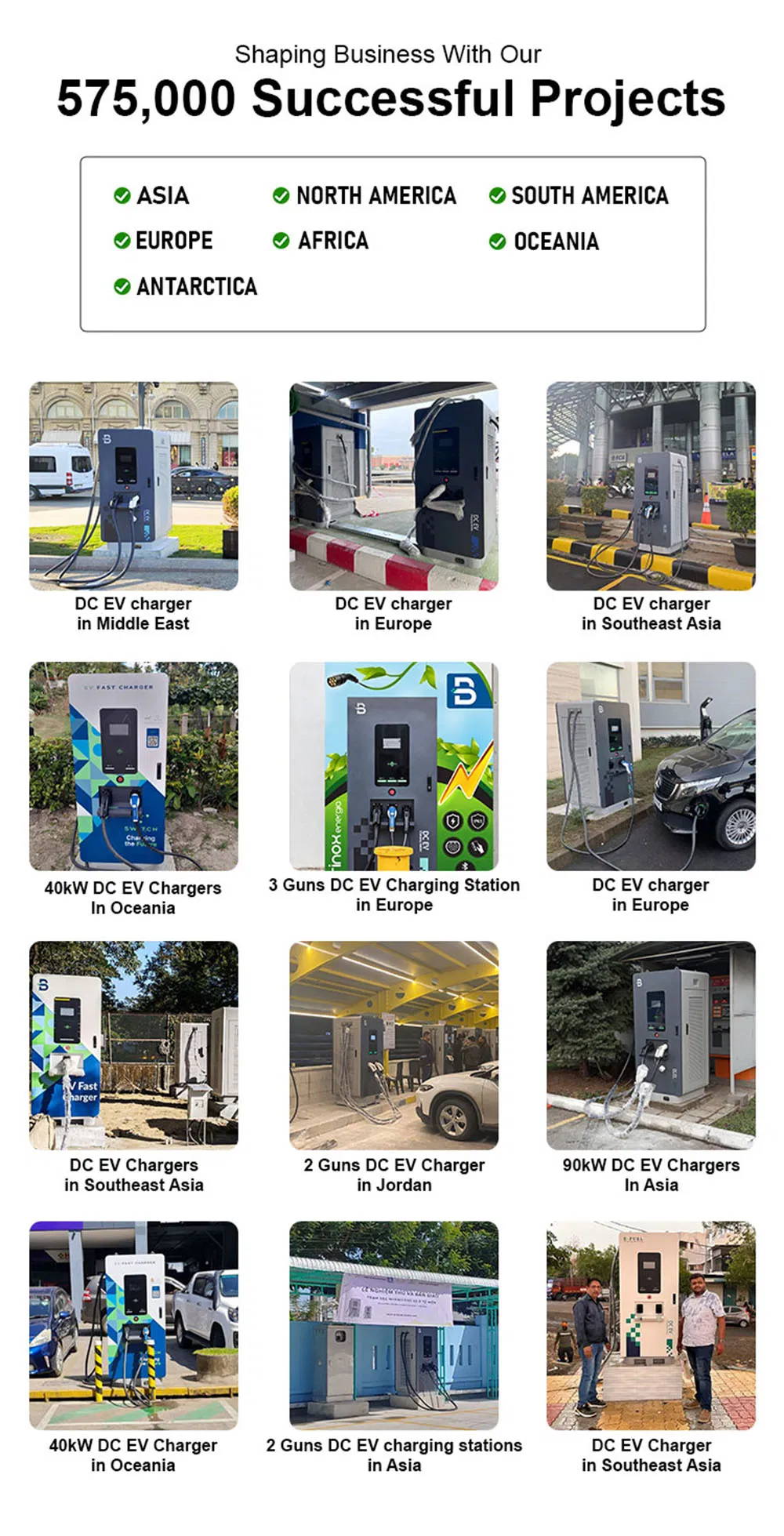

We provide comprehensive, cost-effective, and instant charging solutions for vehicles globally. Our expertise in EV charging projects empowers individuals and businesses to start global EV charging station development across diverse environments.

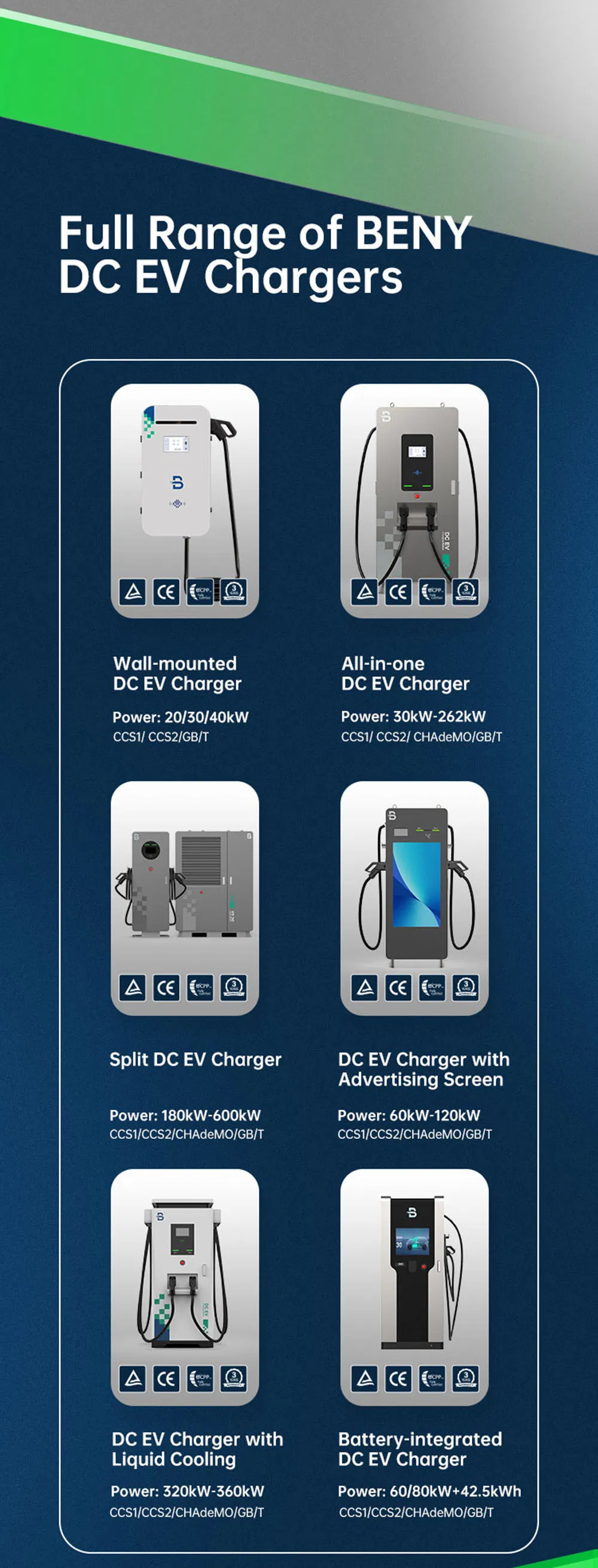

Our chargers supply power to any electrical vehicle. Wall-mounted and floor-mounted designs with IP65/IP54 housing make them suitable for both indoor and outdoor spaces. AC charging ranges from 16A to 32A, while DC fast charging output reaches up to 600kW.
Participating in global exhibitions allows us to maintain close contact with international partnerships, keeping pace with market trends and demand to improve our cutting-edge technology.

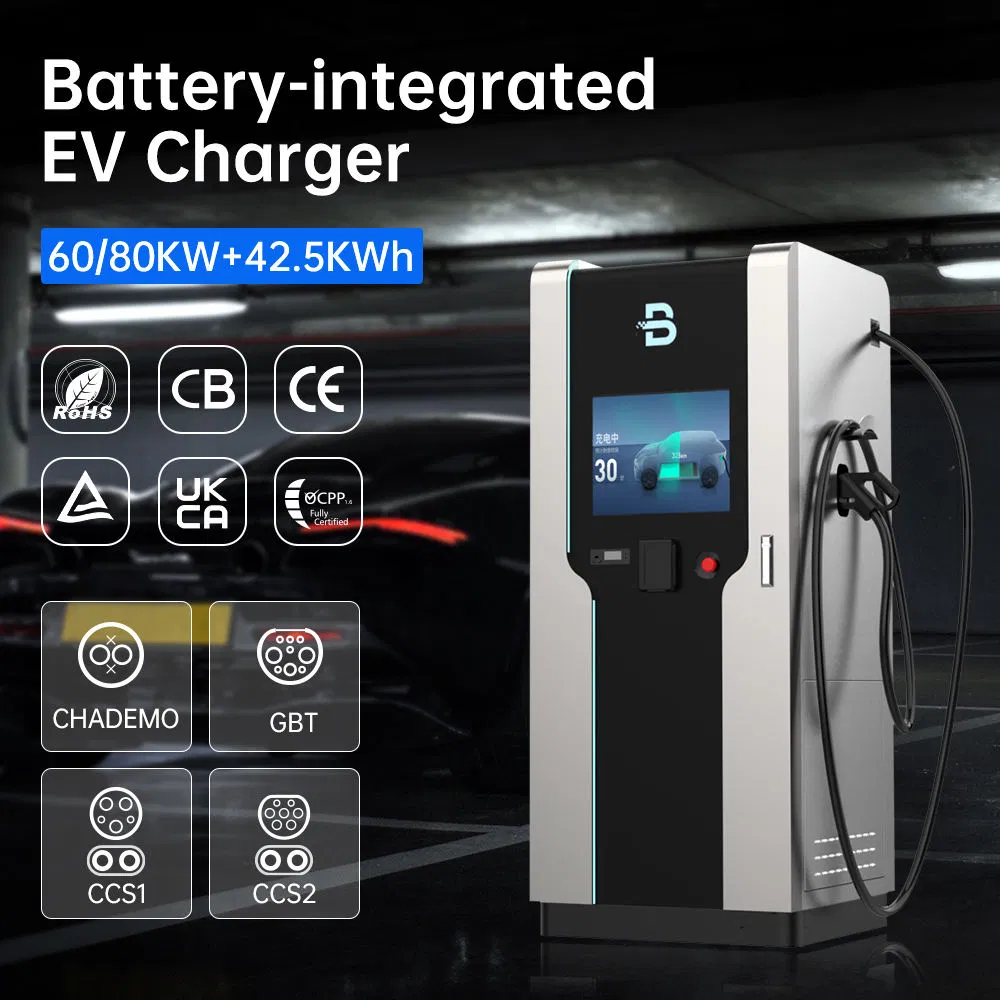

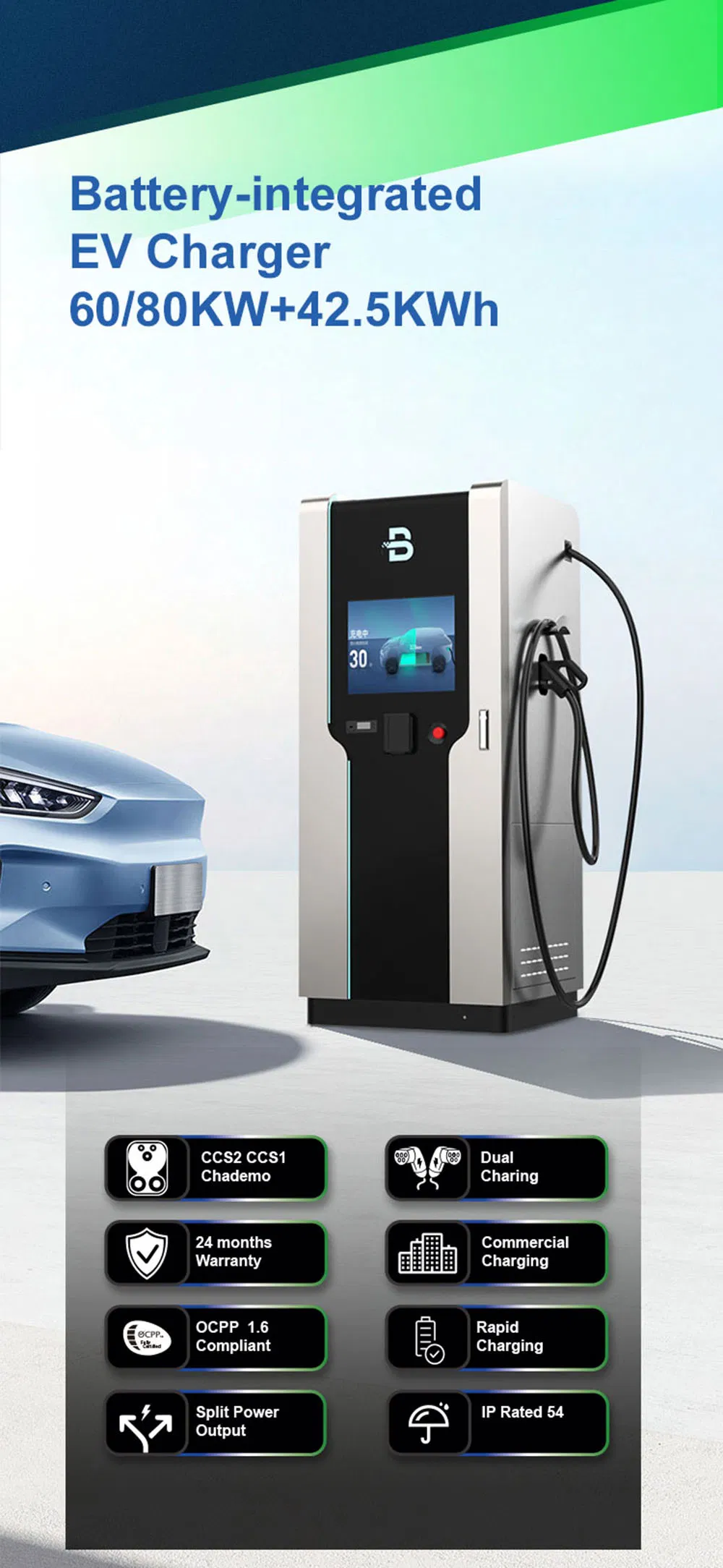

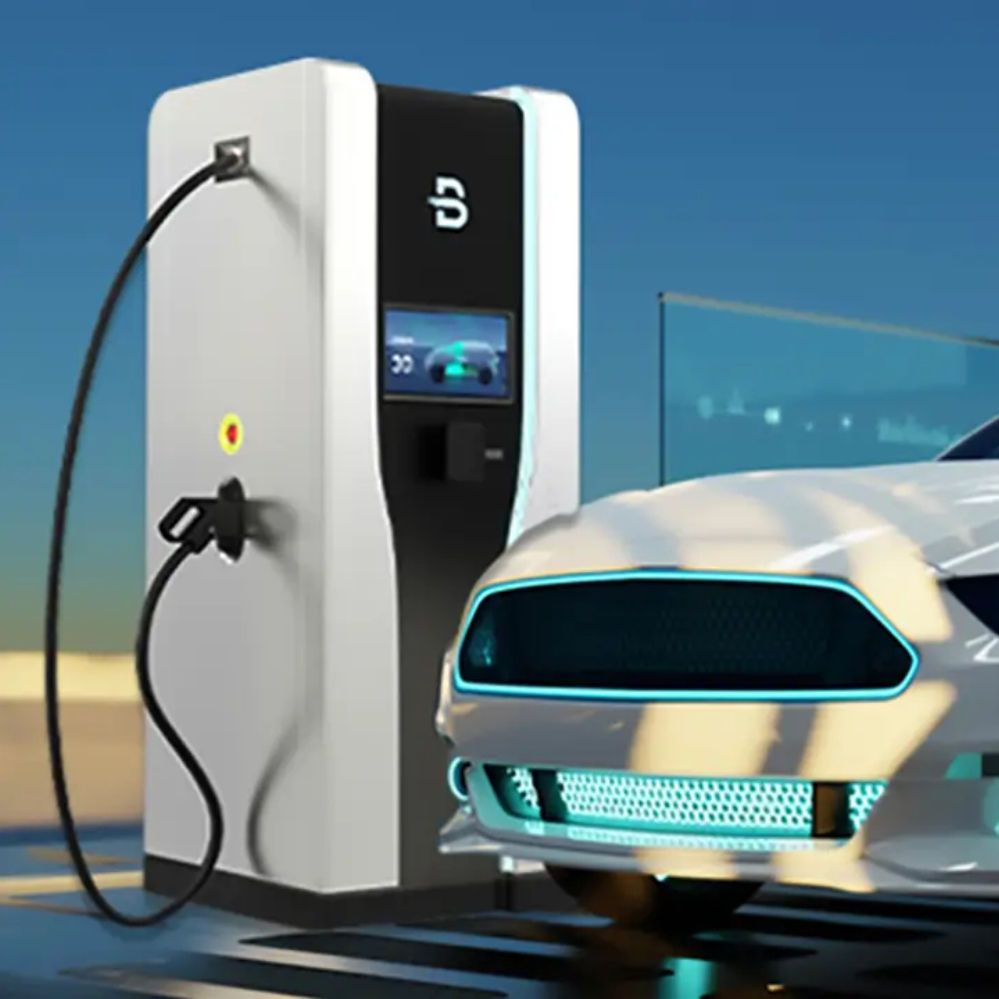

The system offers optional output power of 60kW or 80kW, making it suitable for fast charging in commercial and public environments.

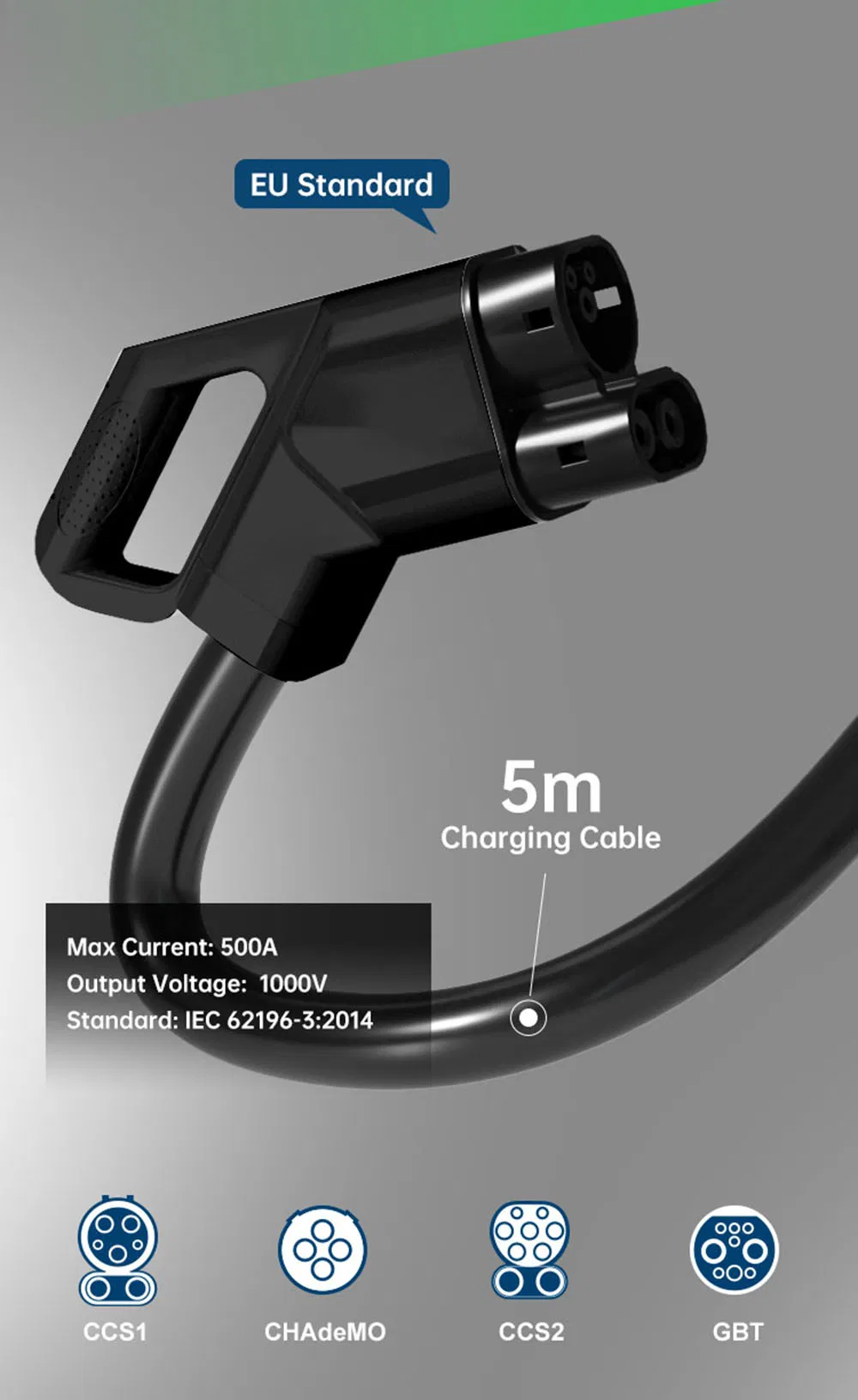

It is compatible with all major global standards, including CCS1, CCS2, GB/T, and CHAdeMO, ensuring it can charge almost any electric vehicle.
With a 42.5kWh integrated battery, the system allows for high-power output even in locations where grid capacity is insufficient, reducing infrastructure investment costs.

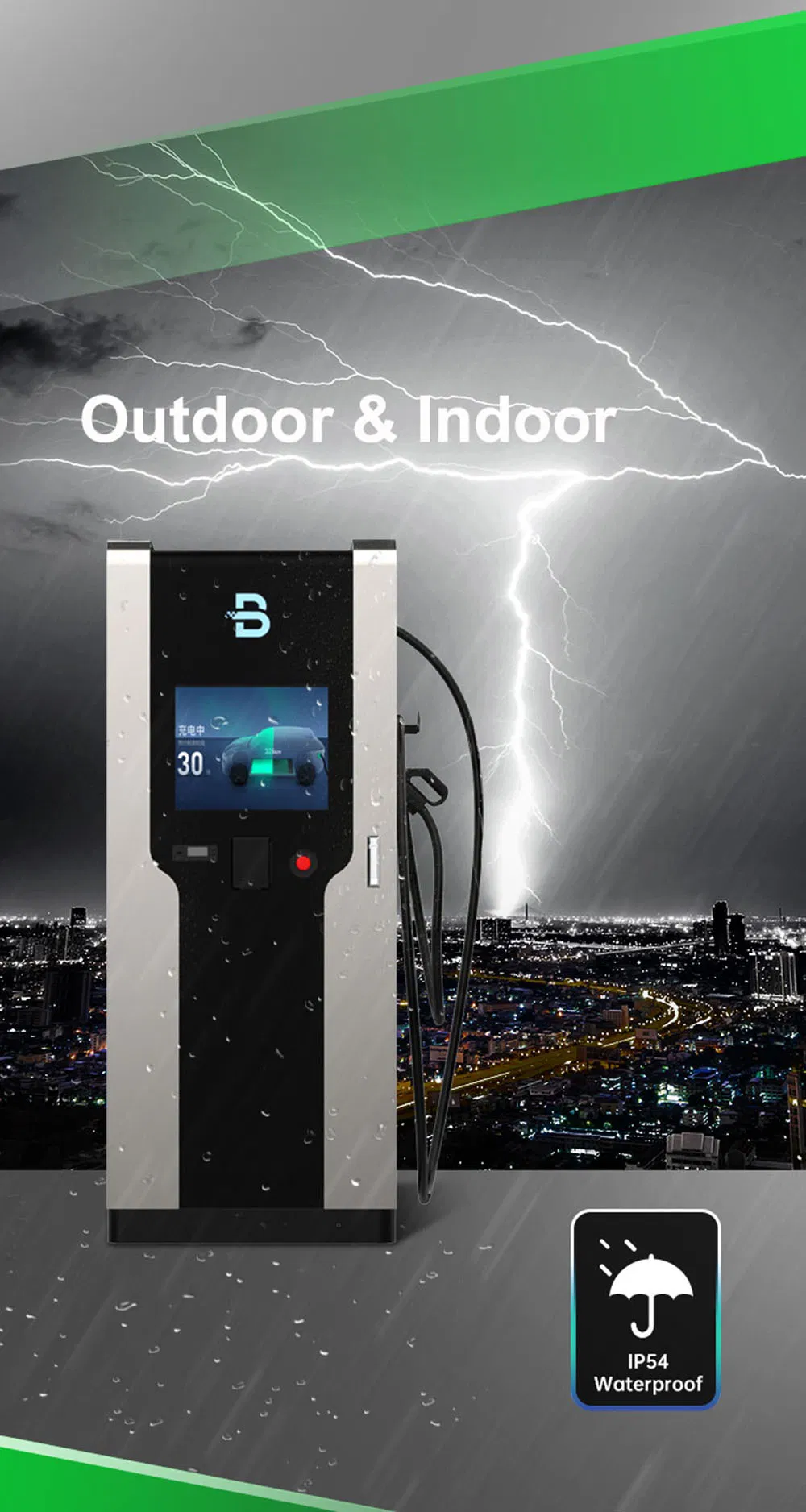

Yes, the unit is IP54 rated, providing protection against dust and water. It also includes comprehensive safety features like flood, fire, and lightning protection.

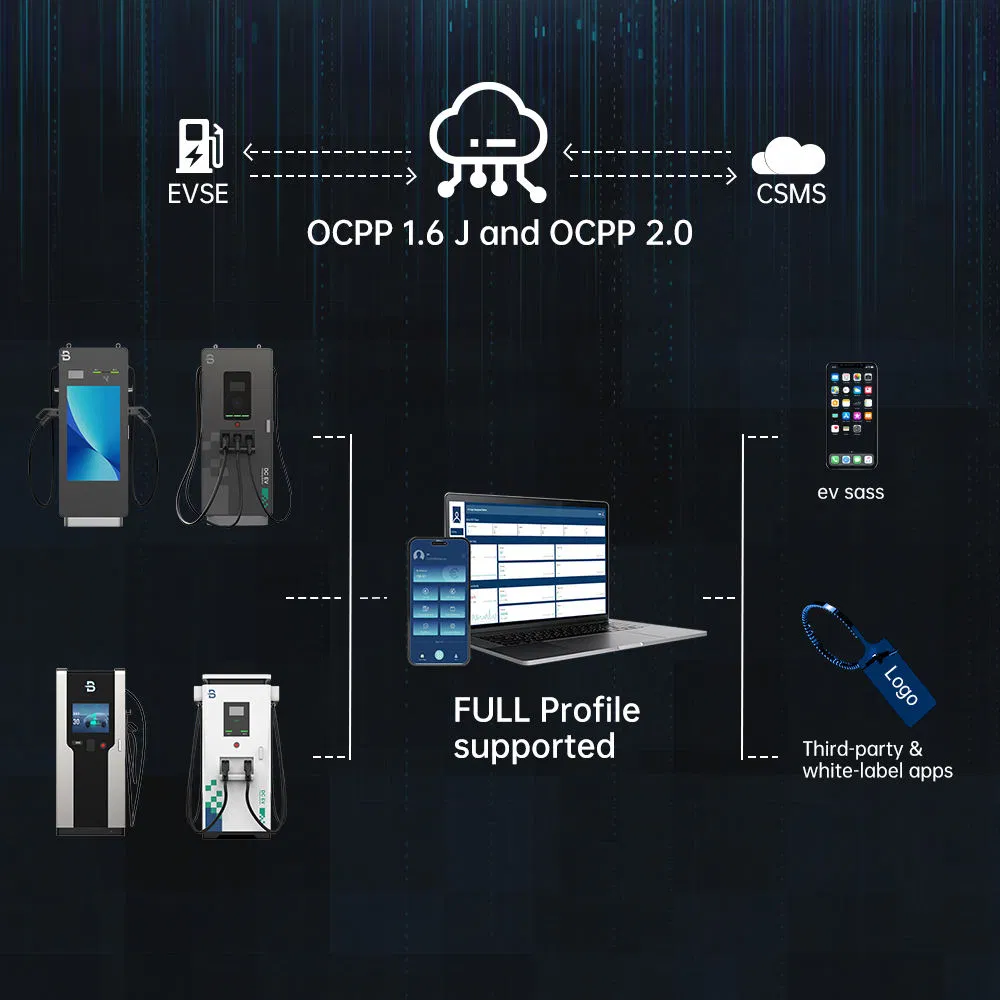

The charger supports OCPP 1.6J for network connectivity via 4G, Ethernet, or WLAN. It also features an RFID and credit card payment system for public use.
The product comes with a 2-year warranty and is designed for long-term industrial use with a battery cycle life of over 6,000 cycles at 25°C.
