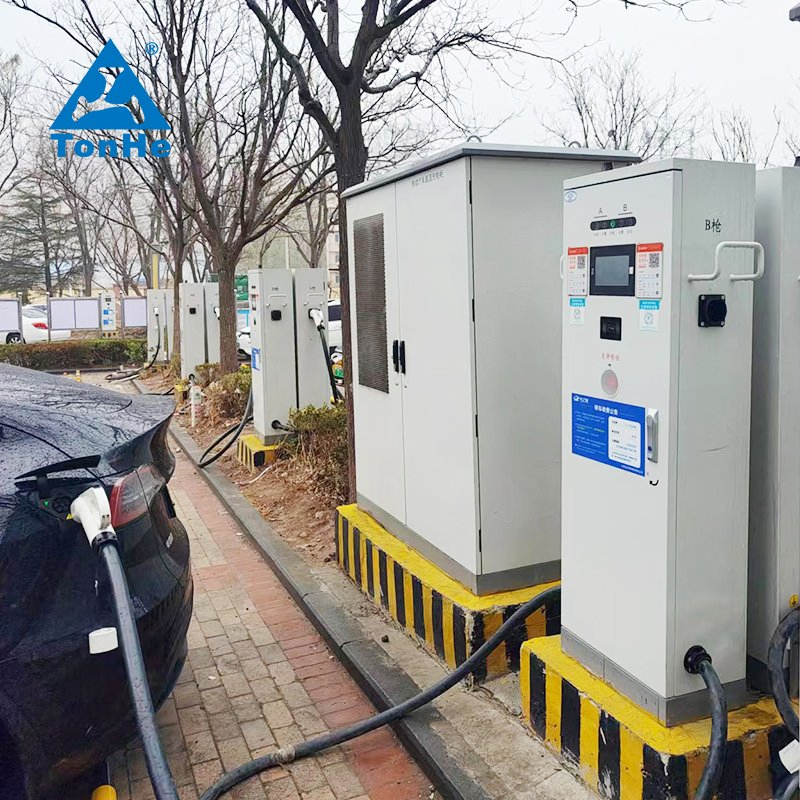

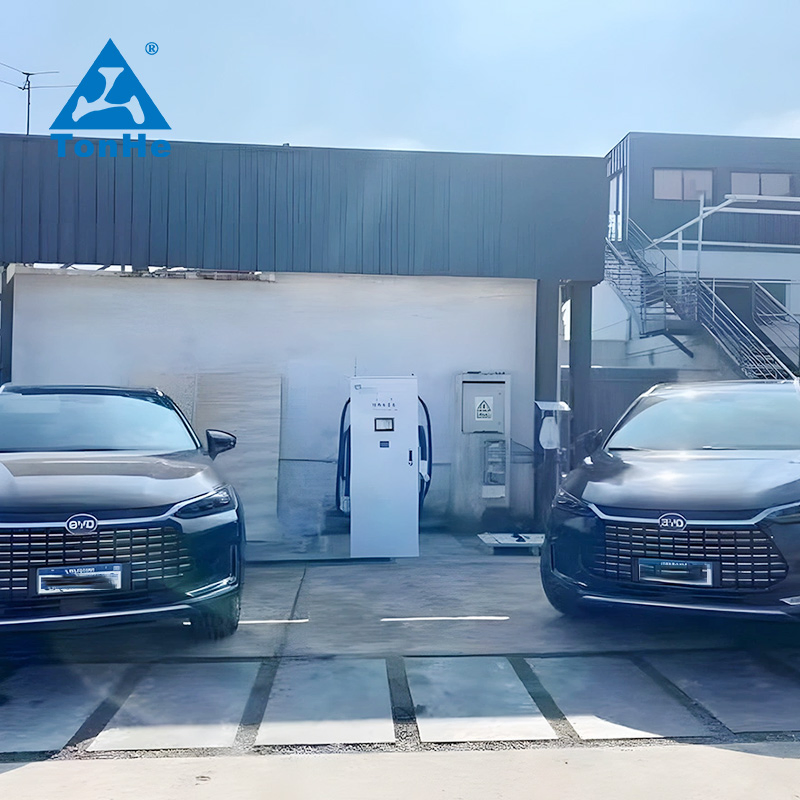

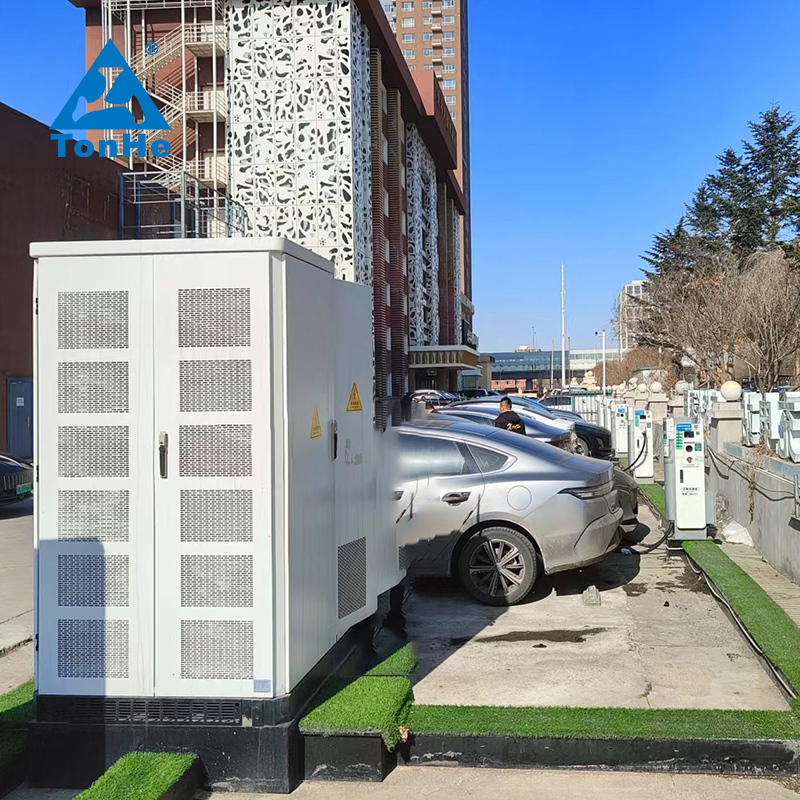

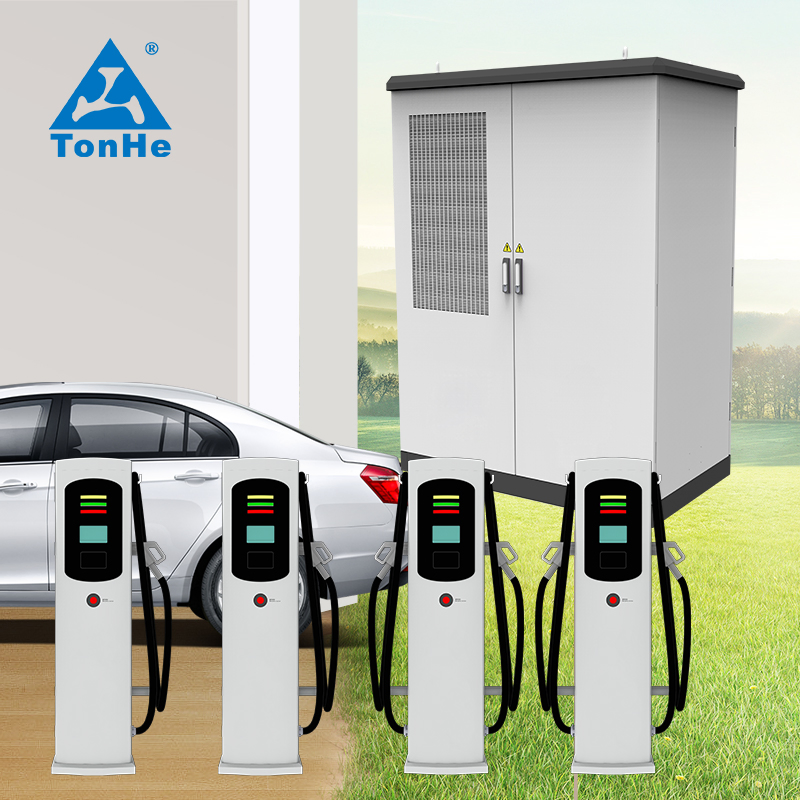

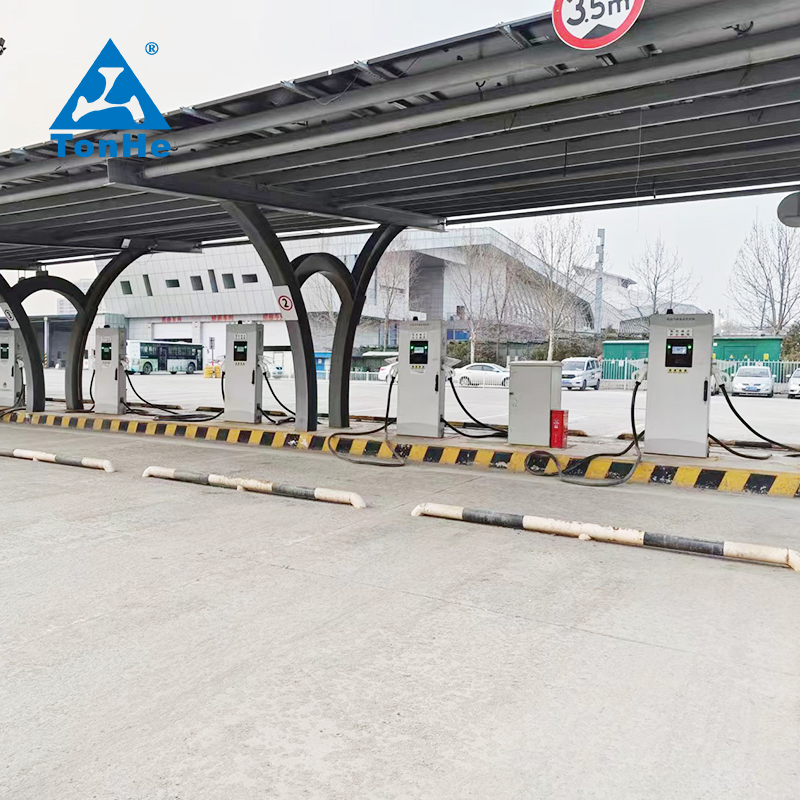

480kw Electric Vehicle EV DC Fast Charger 480kw Charging Station for Electric Vehicles Cars 480kw Integrated DC Charger Solution

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
EV Charger Solution
Location
Public Use
Interfaces
One Pile with Multiple Charges
Start Mode
RFID Authentic
Charge Method
Quick Charging
Power Range
60kw - 200kw
Output Voltage
200-1000VDC
Origin
China
Capacity
100 Sets / Month
Product Features

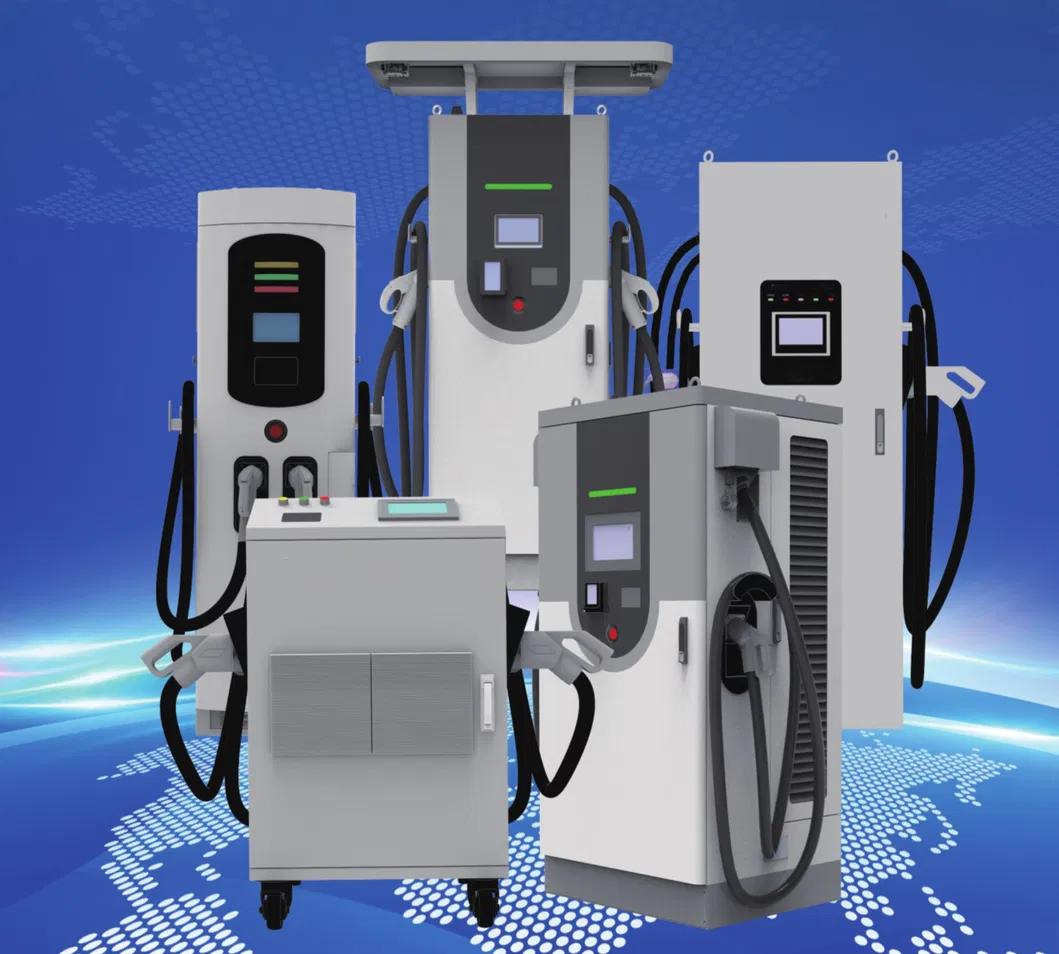

EV DC Fast Charger Solution
  • Constant power from 200-1000VDC
  • Average efficiency ≥94% at nominal output power
  • One charger with two outputs, simultaneously charging
  • Ethernet/3G/4G communication
  • High protection grade as IP54
  • APP operation or RFID authentication
  • CE certificate NB 1282
  • LOGO customized available
Technical Specifications
Specification Item Details
AC Input Phases/Lines 3 phases + neutral + PE
Voltage 380VAC ± 20%
Frequency 50Hz ± 10%
DC Output Power Options 60 / 80 / 100 / 120 / 140 / 160 / 180 / 200 kW
Voltage 200 - 1000VDC
Max Current CCS 2: 200A, CHAdeMO: 125A, GB/T: 250A
Connectivity Connector CCS 2 / CHAdeMO / GB/T (Up to 2 guns)
Interface Indicator 7-inch LED Touch Screen
Environment Temperature -30ºC to +55ºC
Auxiliary Products

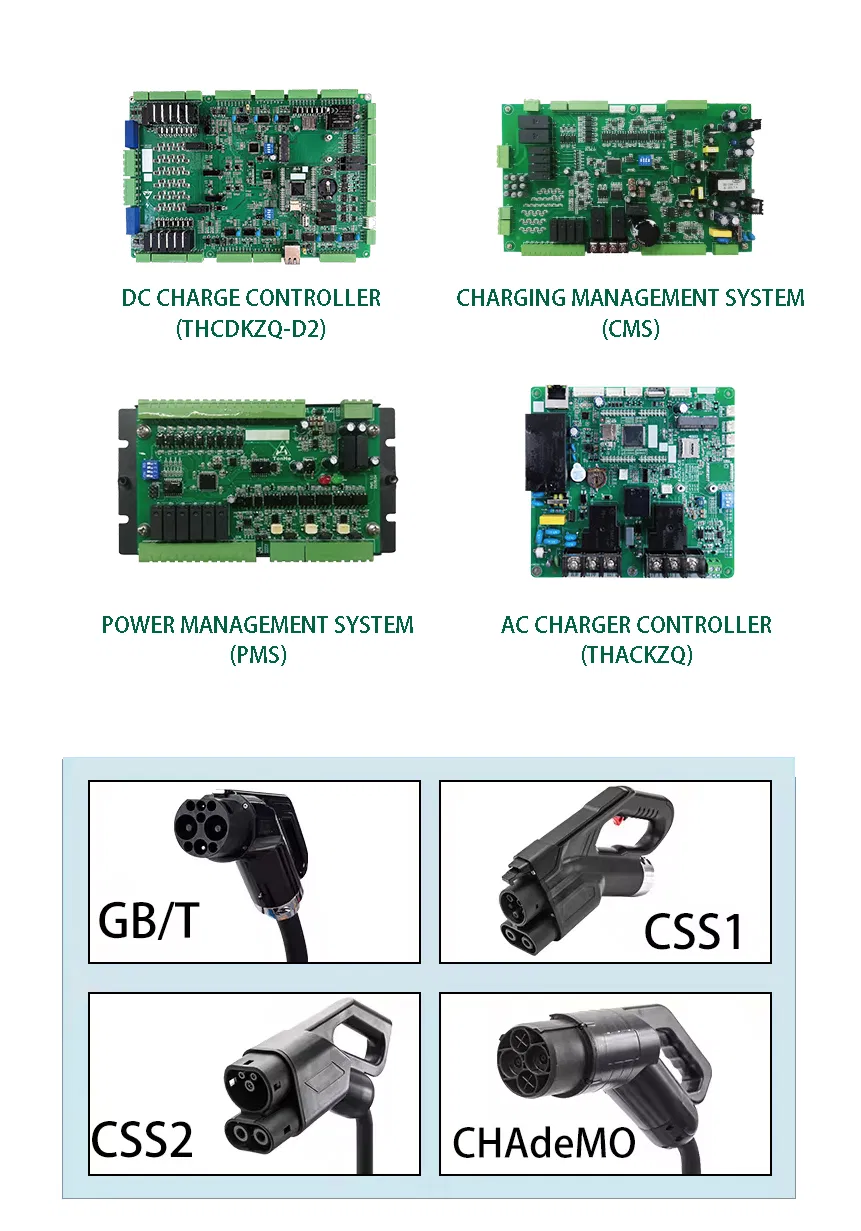

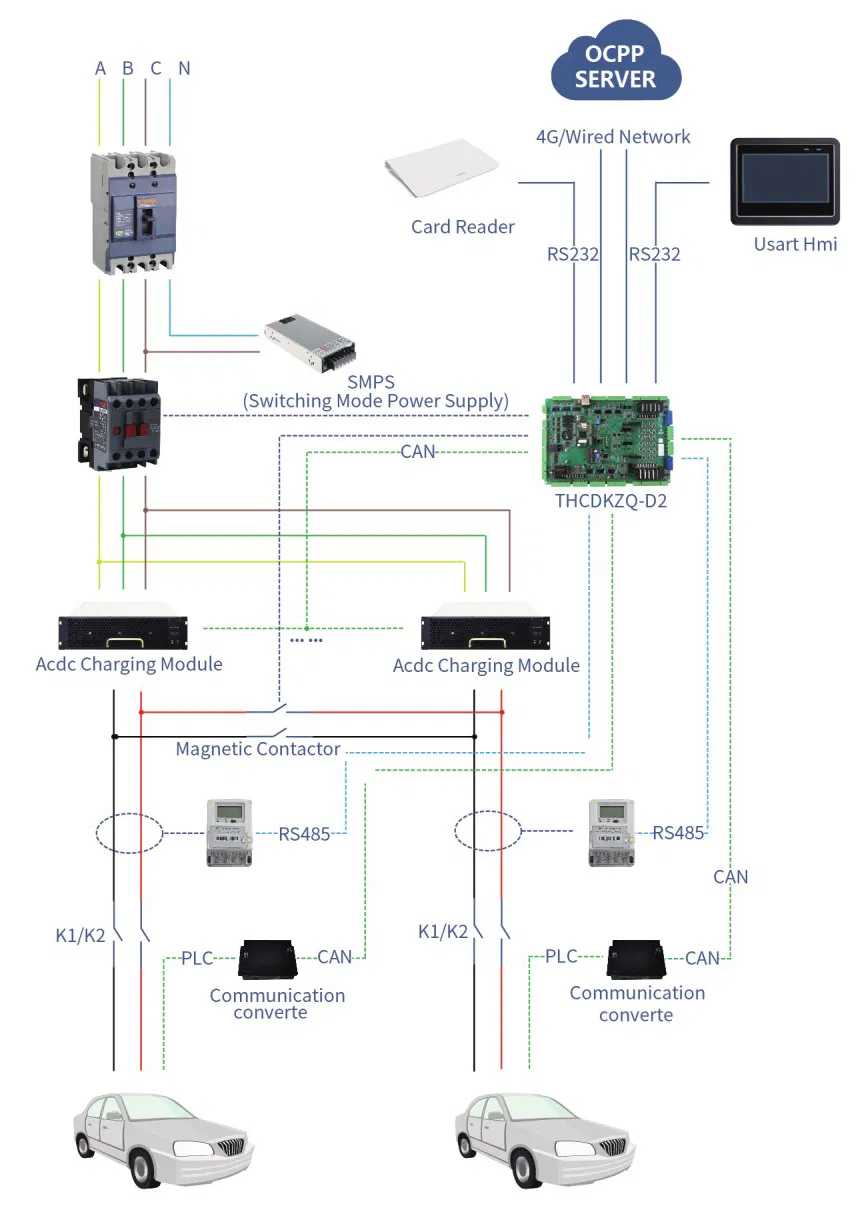

Auxiliary Product 1 Auxiliary Product 2

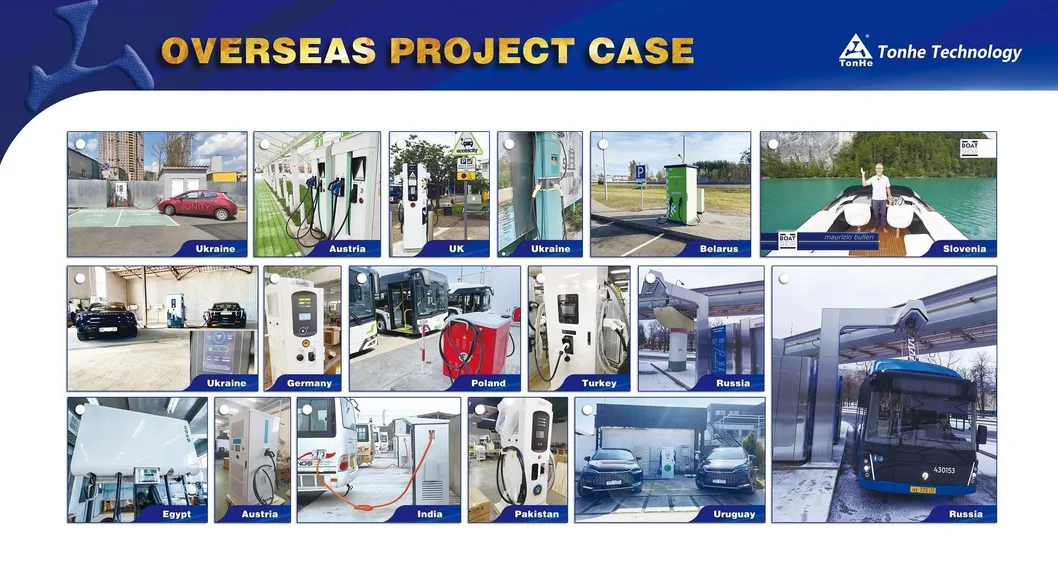

Component Details
Packaging & Shipping
Standard Export Packaging
About the Technology

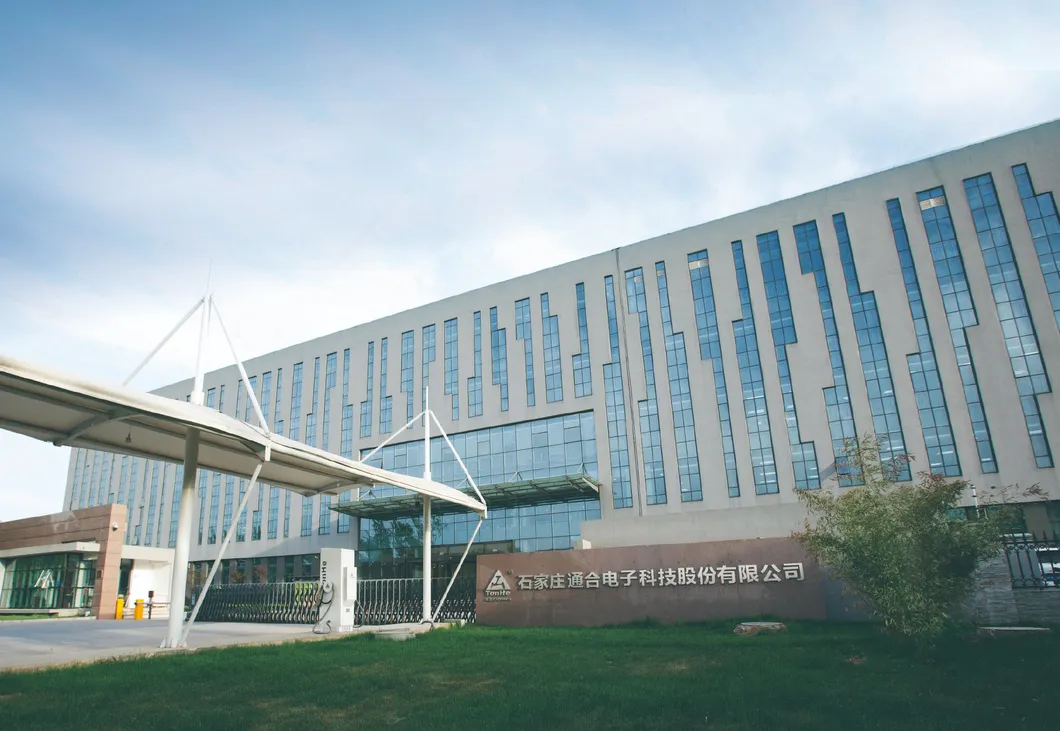

Technology Overview

Focusing on the field of high-frequency power conversion technology, the company sticks to technological innovation. It is among the first power electronic enterprises to realize soft switching technology for the whole process of power conversion. With numerous internationally advanced core technologies, the commitment remains on innovation in technology, products, and management.

In the EV charging and swapping industry, the focus remains on EV charging power modules and integrated charging system solutions. Customers are provided with comprehensive "One-Stop Service" including technical guidance, system solutions, and professional after-sales support.

Manufacturing & Testing

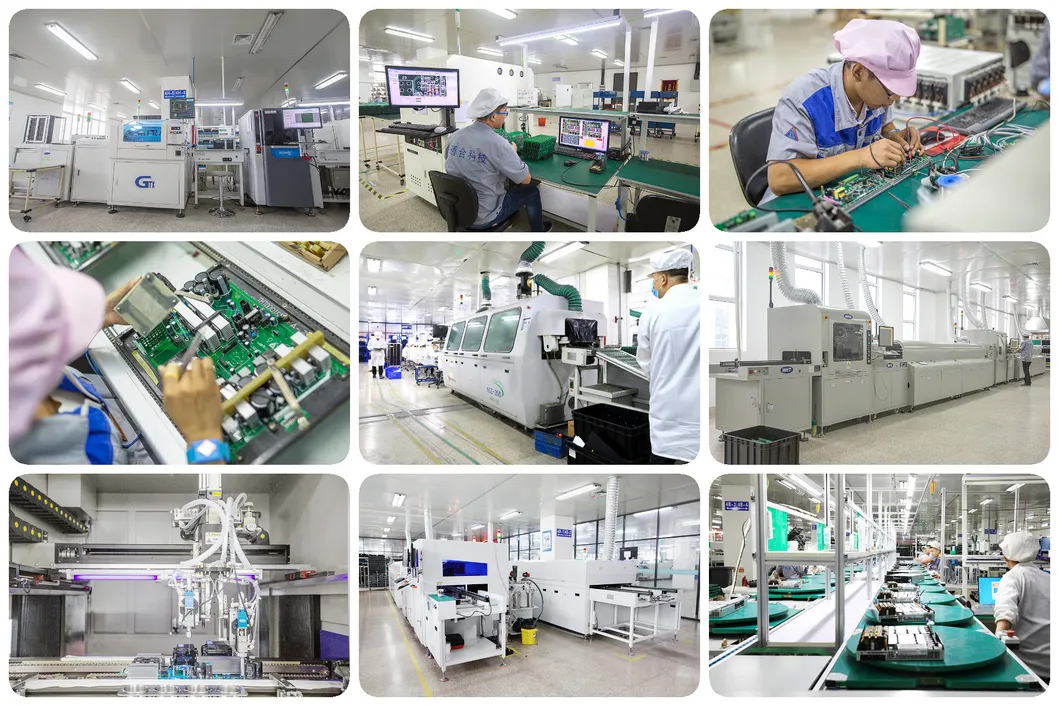

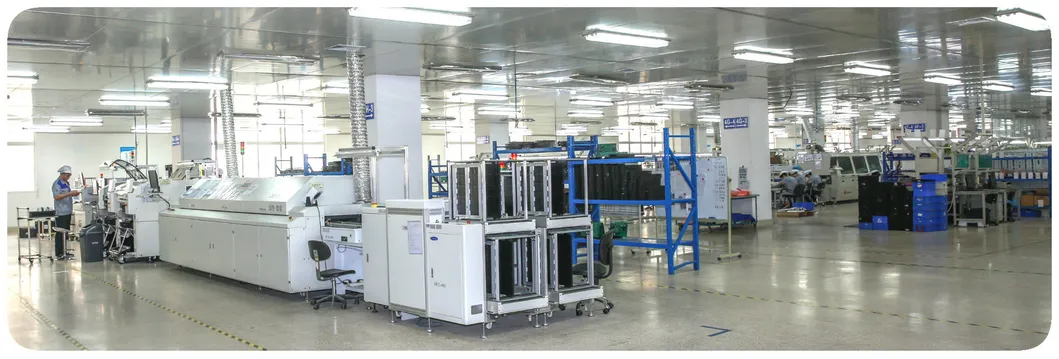

Manufacturing Workshop 1 Manufacturing Workshop 2

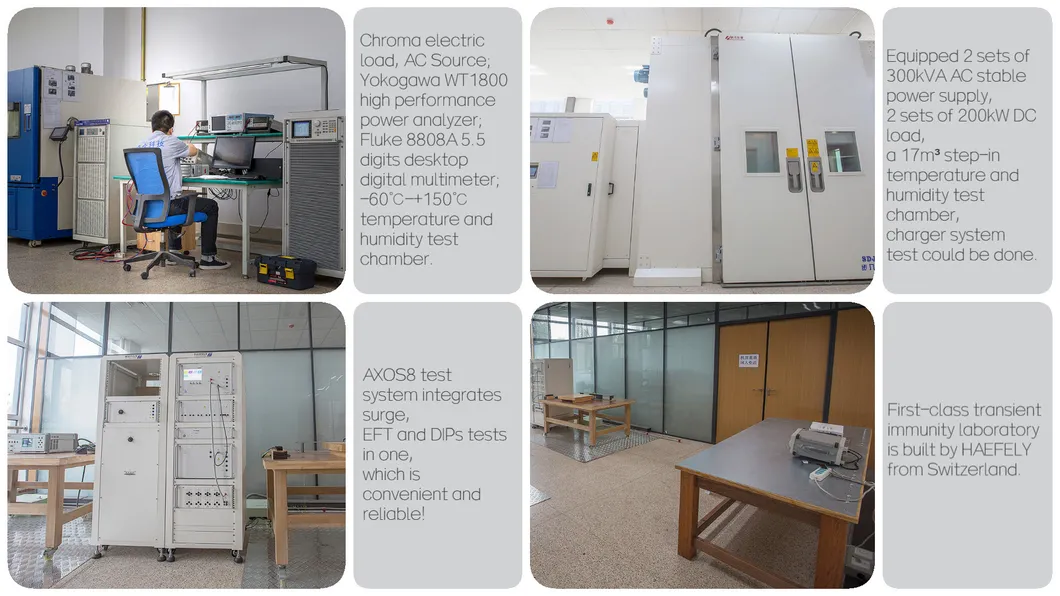

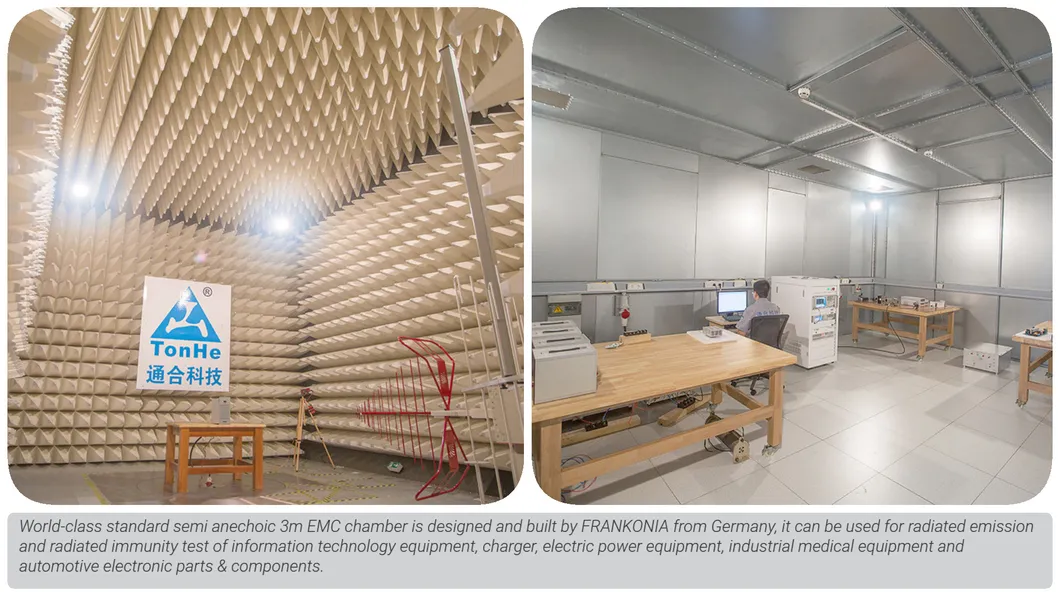

Testing Lab 1 Testing Lab 2
Quality Assurance
Product Certifications
Customer Negotiations
Frequently Asked Questions
1. What are the module CAN baud rate and CAN voltage levels?
The modules operate at 125Kbs with a 5V CAN voltage level.
2. Do the modules support glue filling for extra protection?
Yes, all series modules can support glue filling to enhance environmental resistance.
3. What are the installation requirements for the charging module?
The charging module can be installed horizontally, side-standing, or upside down. For upside-down installations, custom front panels without handles are available.
4. What is the typical delivery time for orders?
Standard charging modules typically require about 7 days, while standard charging piles take approximately 35 days. Large or customized orders are coordinated based on workshop capacity.
5. What is the warranty period for your products?
The standard warranty period is 12 months from the date of receipt of the shipment.
6. What certifications have your products obtained?
Our products are TUV and CE qualified. The management system follows ISO standards, IATF16949 for automotive quality, and CNAS systems.
