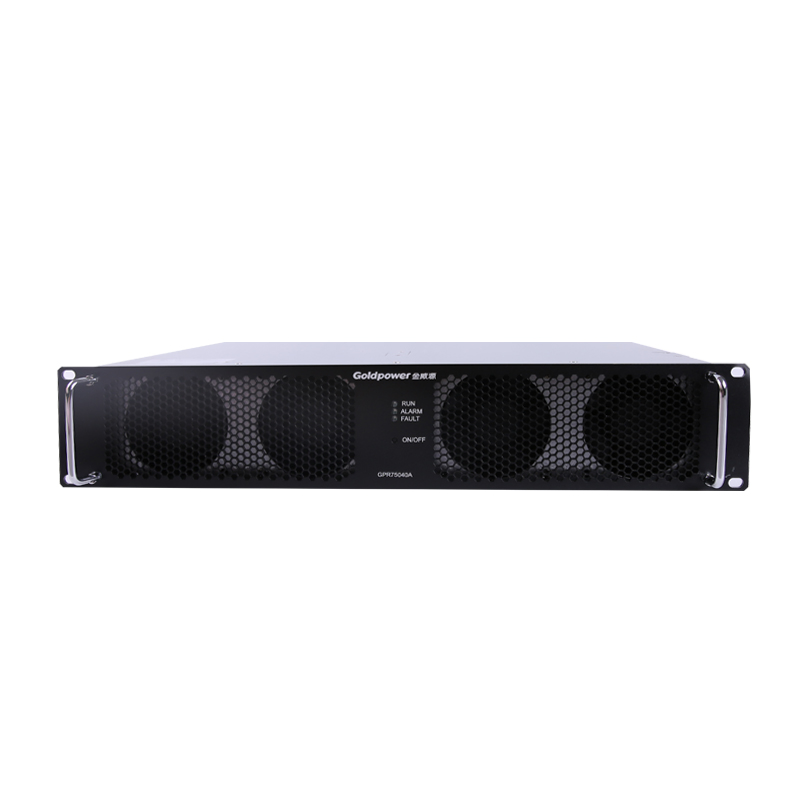

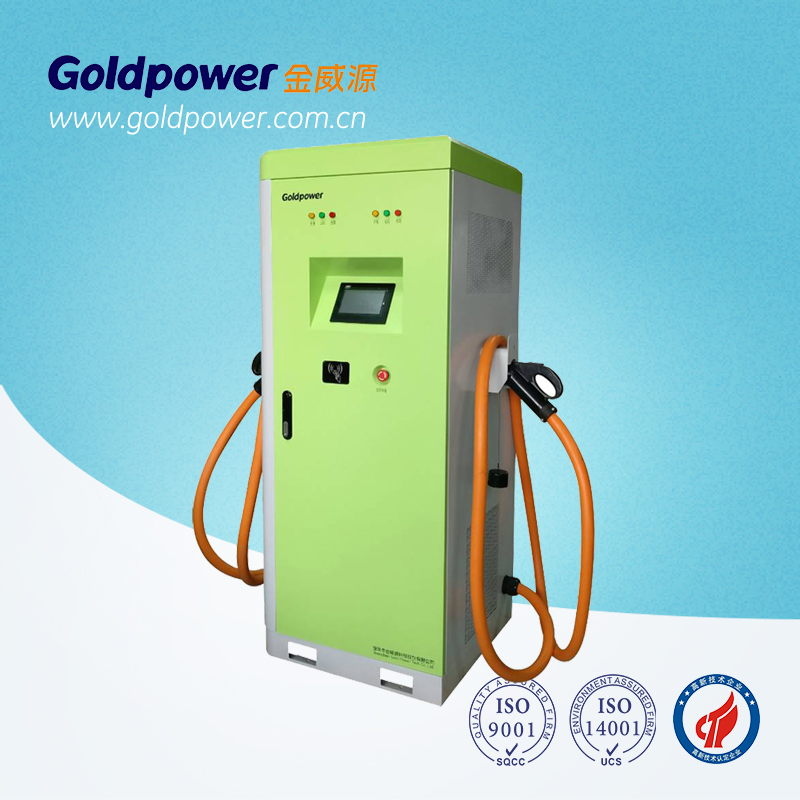

Custom Power Supply 150kw Single Cabinet Two Guns Output Integrated EV Charger
Custom Power Supply 150kw Single Cabinet Two Guns Output Integrated EV Charger
Custom Power Supply 150kw Single Cabinet Two Guns Output Integrated EV Charger
1 / 3
Custom Power Supply 150kw Single Cabinet Two Guns Output Integrated EV Charger
Custom Power Supply 150kw Single Cabinet Two Guns Output Integrated EV Charger
Custom Power Supply 150kw Single Cabinet Two Guns Output Integrated EV Charger

Custom Power Supply 150kw Single Cabinet Two Guns Output Integrated EV Charger

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO. GPDC750V160-HV/GPDC750V80-HV
Output Power 150kw
Input Voltage 260~530VAC
Certification ISO
Power Factor ≥0.99
Efficiency ≥96%
Protection Class IP55
Output Voltage 200~750VDC
Operating Temp -40~+65℃
Acoustic Noise ≤65dB
Communication Can/RS485/WLAN/Bluetooth
Specification 750×1800×800mm, 2 guns

Product Overview

The 150KW Single Cabinet Two Guns Output Integrated EV Charger is a high-performance HVDC fast charger designed for modern electric vehicle infrastructure.

Key Features

  • Compatible design supporting 15kW and 30kW modules.
  • Single cabinet 150KW output with dual gun configuration.
  • Faultless thermal design with IP55 protection level for outdoor reliability.
  • Dynamic power distribution technology for optimized efficiency and reduced operational costs.
  • Proven performance based on extensive long-term operation experience.
  • Full support for large-scale grid and individual charging service operators.
  • Equipped with uplink communication ports for centralized management of charging pile groups.

Applications

  • New energy vehicle manufacturers and charging service operators.
  • Office buildings, shopping centers, and residential communities.
  • Commercial property management and industrial park operators.
  • Highway rest areas and public parking facility managers.
  • Electric bus fleets, logistics companies, and EV service points.

Technical Specifications

Parameter GPDC750V160-HV GPDC750V80-HV
Power120KW60KW
Input Voltage260~530Vac260~530Vac
Input Frequency45~65Hz45~65Hz
Output Voltage200~750Vdc200~750Vdc
Low Voltage Aux Power12V/24Vdc12V/24Vdc
Power Factor≥0.99≥0.99
THD≤3%≤3%
Full Load Efficiency≥96%≥96%
MTBF>400,000 hours>400,000 hours
Operating Temp-40~+65ºC-40~+65ºC
Protection ClassIP55IP55
Lightning Protection20kA20kA
Weight215kg165kg

Product Gallery

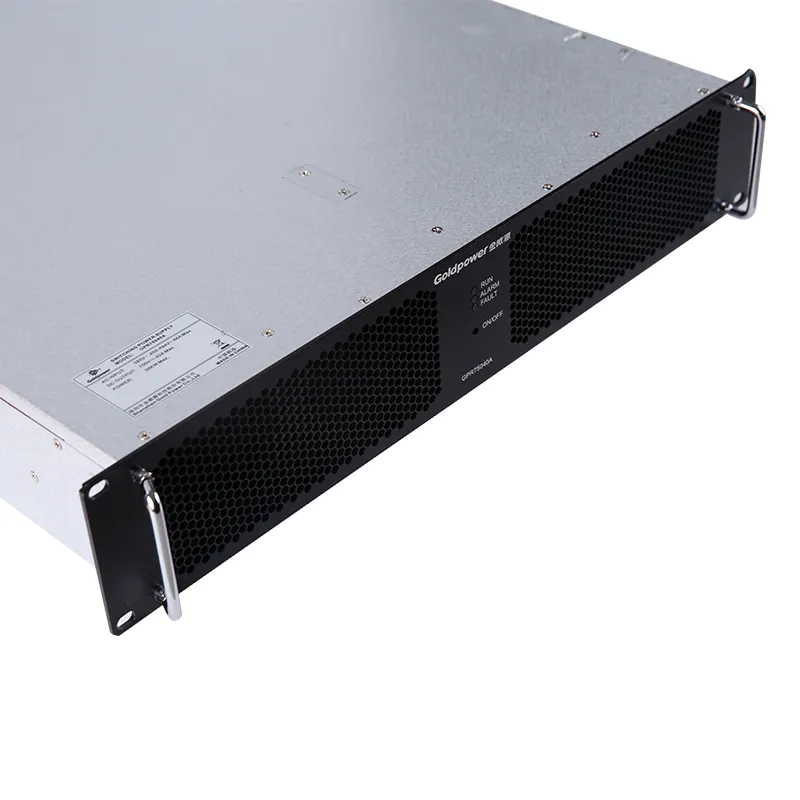

Integrated EV Charger View 1

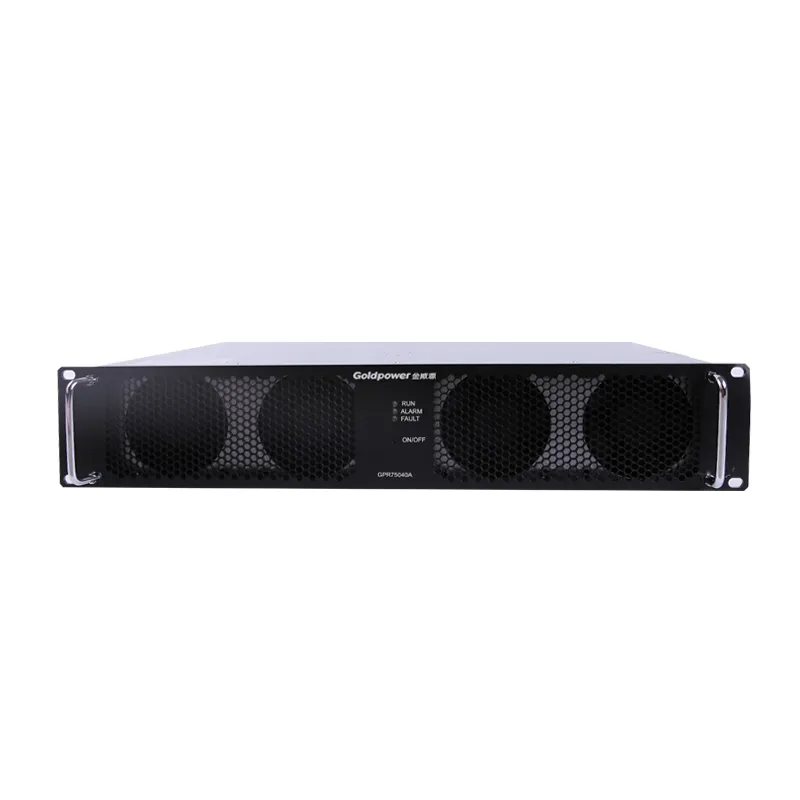

Integrated EV Charger View 2

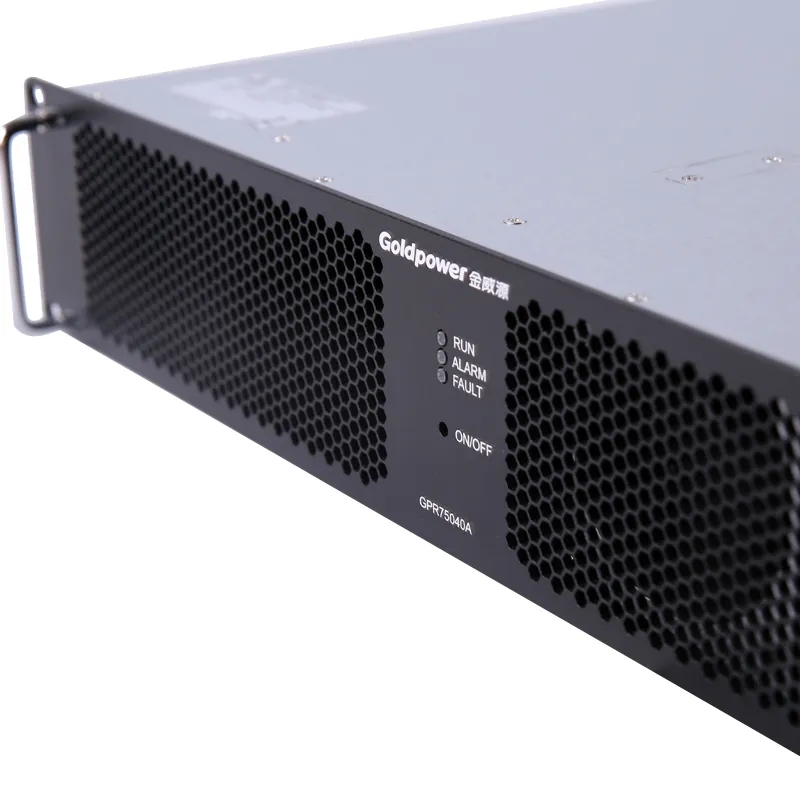

Integrated EV Charger View 3

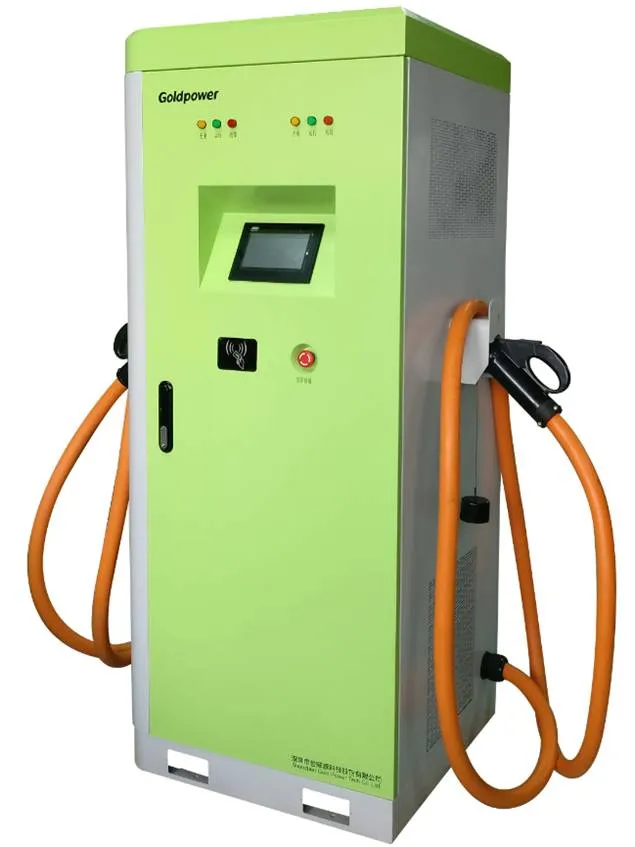

Integrated EV Charger Structure
Integrated EV Charger Full Profile

Frequently Asked Questions

Q: What is the maximum output power of this integrated EV charger?
A: The charger provides a high-capacity output of up to 150KW from a single cabinet, specifically designed for fast charging requirements.
Q: Does the charger support charging two vehicles simultaneously?
A: Yes, it is equipped with two output guns and utilizes dynamic power distribution technology to efficiently manage charging for multiple vehicles.
Q: What are the protection capabilities for outdoor installation?
A: It features an IP55 protection rating, lightning protection (20kA), and can operate in extreme temperatures ranging from -40 to +65℃.
Q: What types of communication interfaces are supported?
A: The system supports CAN, RS485, WLAN, and Bluetooth for comprehensive monitoring and background management.
Q: What is the efficiency rating of this charging system?
A: The charger achieves a full load efficiency of ≥96% and a power factor of ≥0.99, ensuring minimal energy loss.
Q: Is it compatible with different charging module sizes?
A: Yes, the cabinet design is compatible with both 15kW and 30kW modules, allowing for flexible power configurations.
