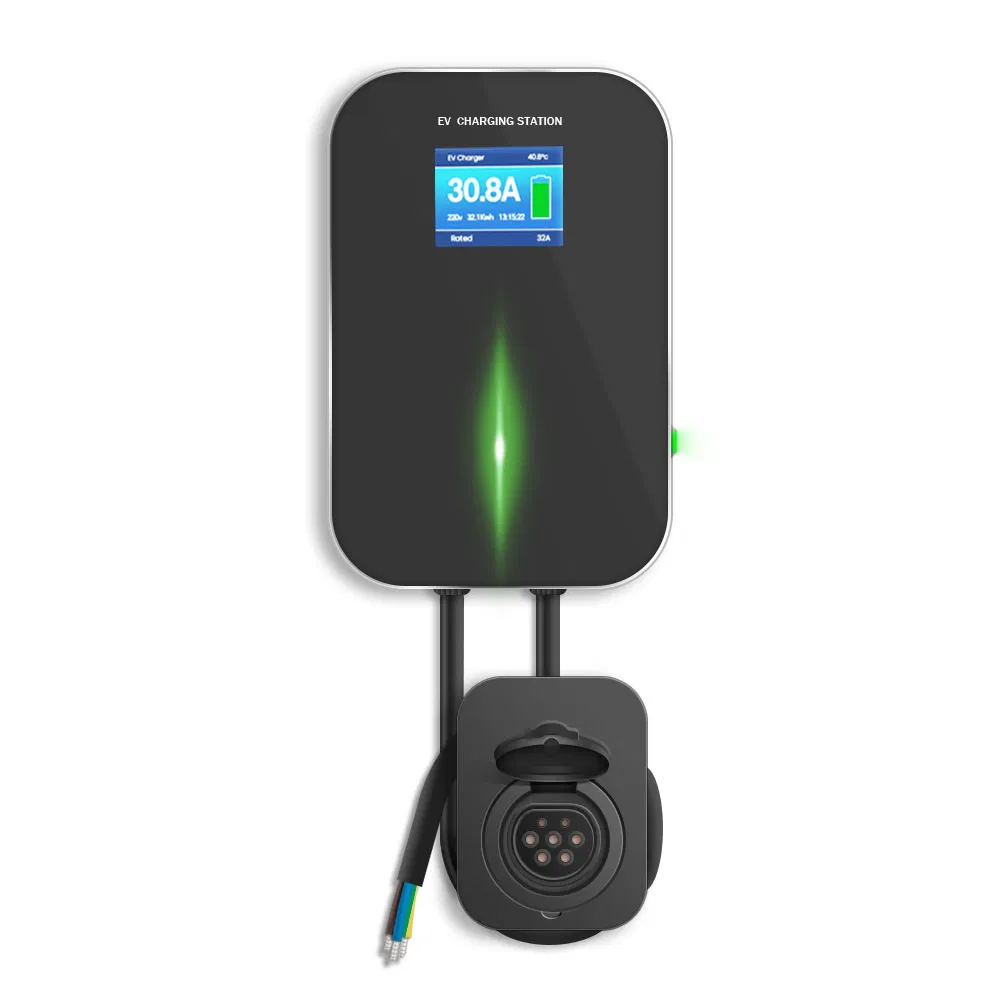

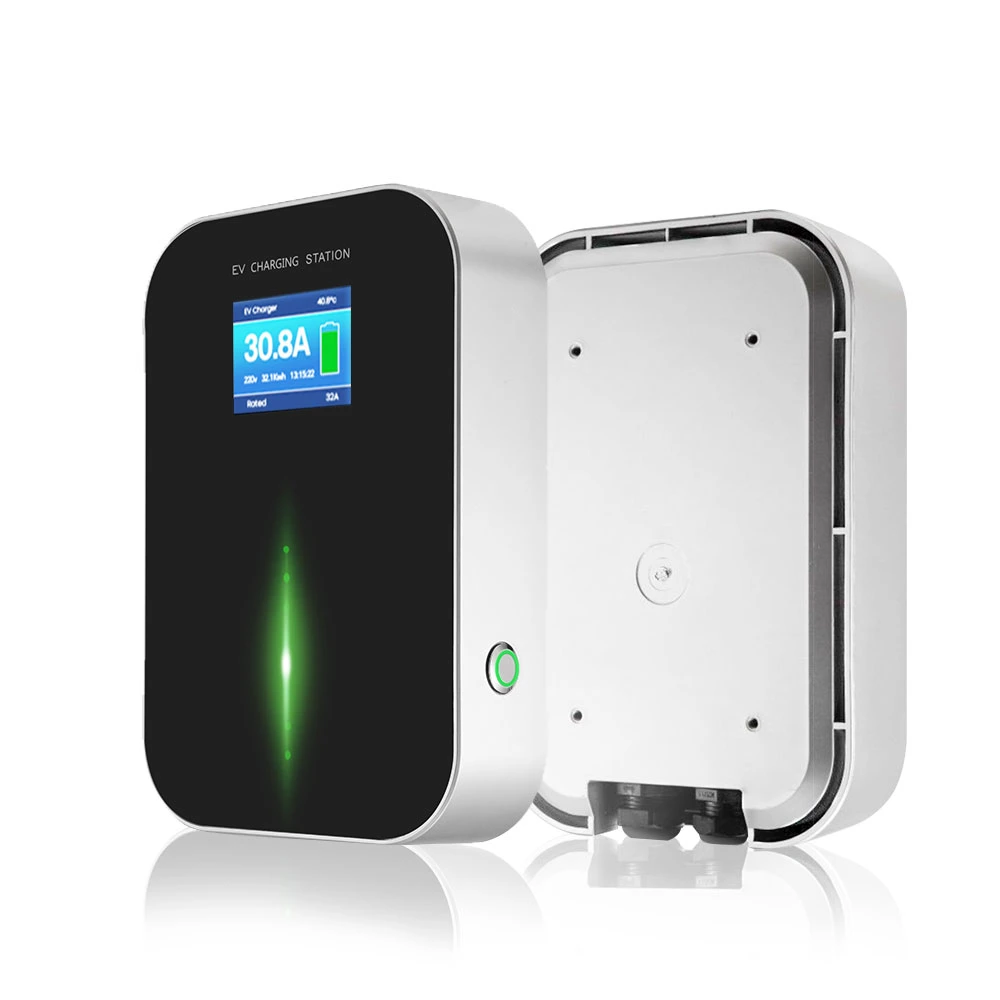

The BS20 series is a classic wallbox product designed for global compatibility, complying with North American standard SAE J1772 (Type 1), European standard IEC 62196-2 (Type 2), and Chinese standard GB/T. It offers a maximum output power of 22kW, making it a versatile choice for residential and commercial needs.
Equipped with an LED charging status indicator and a 3.5-inch LCD display, users can monitor real-time data easily. Safety is paramount, featuring a built-in Type A 30mA AC + 6mA DC leakage protector. Its durable IP66-rated housing ensures reliable performance in both indoor and outdoor environments.
| Parameter | Mode A Details | Mode C Details |
|---|---|---|
| AC Power Output | Max 22kW | |
| Current Output | Max 40A Single Phase / 32A Three Phase | |
| Connector Type | TYPE 2 / GB/T | TYPE 1 / TYPE 2 / GB/T |
| Cable Material | TPU | TPU 6.1m (20ft) |
| Ingress Protection | IP66, IK10 | |
| Electrical Protection | Over current, Short circuit, Under voltage, Leakage, Over temperature, Lightning | |
| Operating Temp | -25ºC ~ +55ºC | |

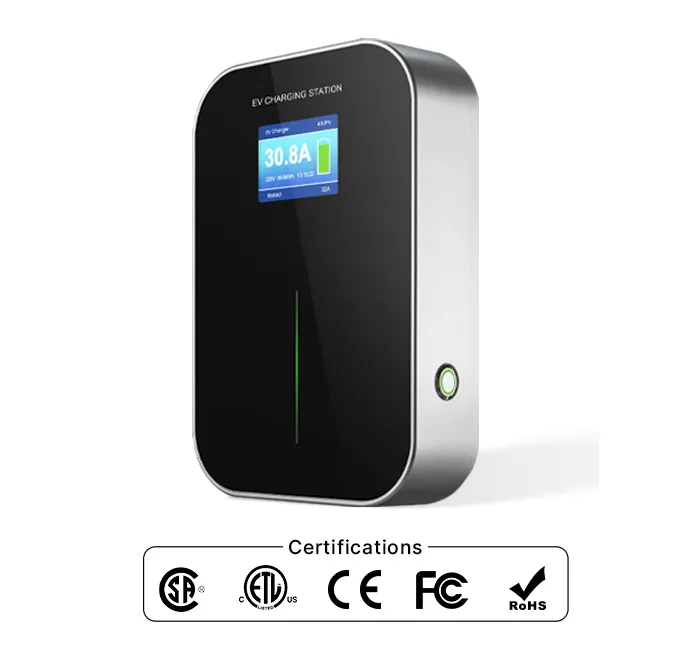

| Certifications | CE / FCC / CSA / RoHS / ETL | |

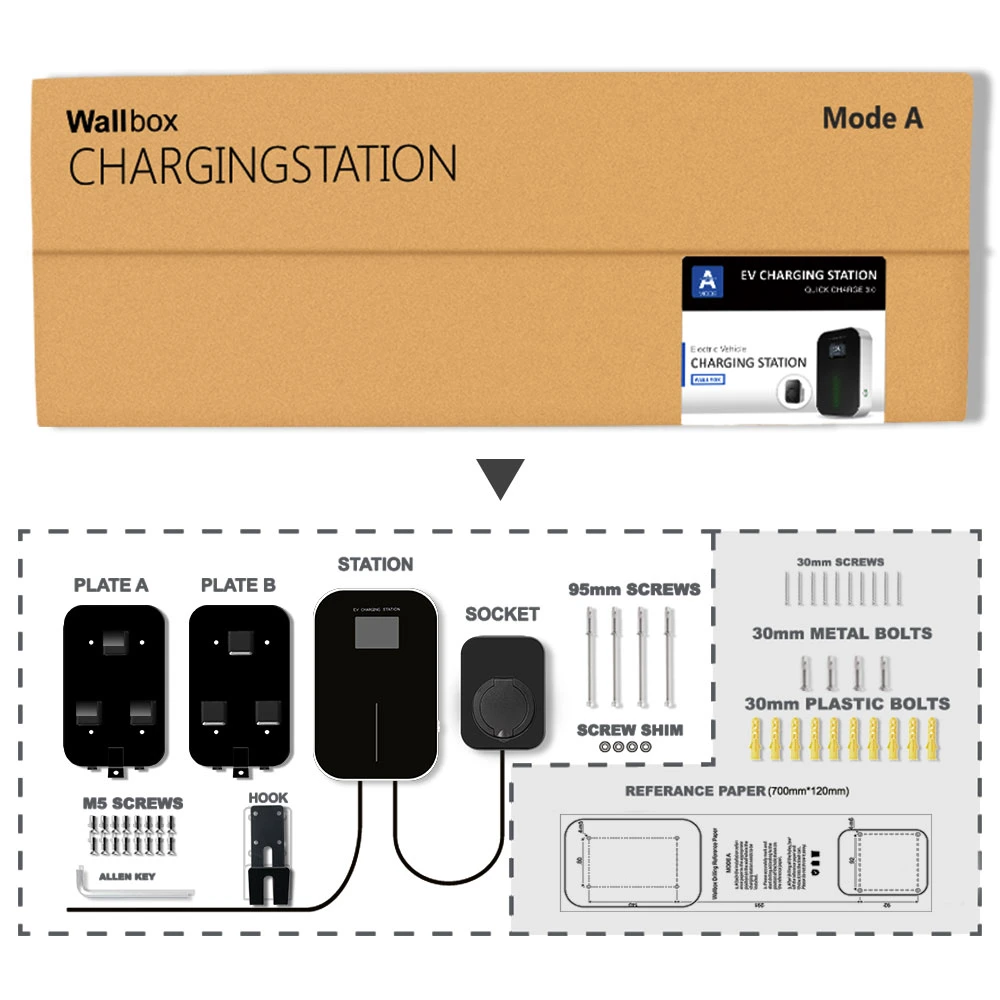

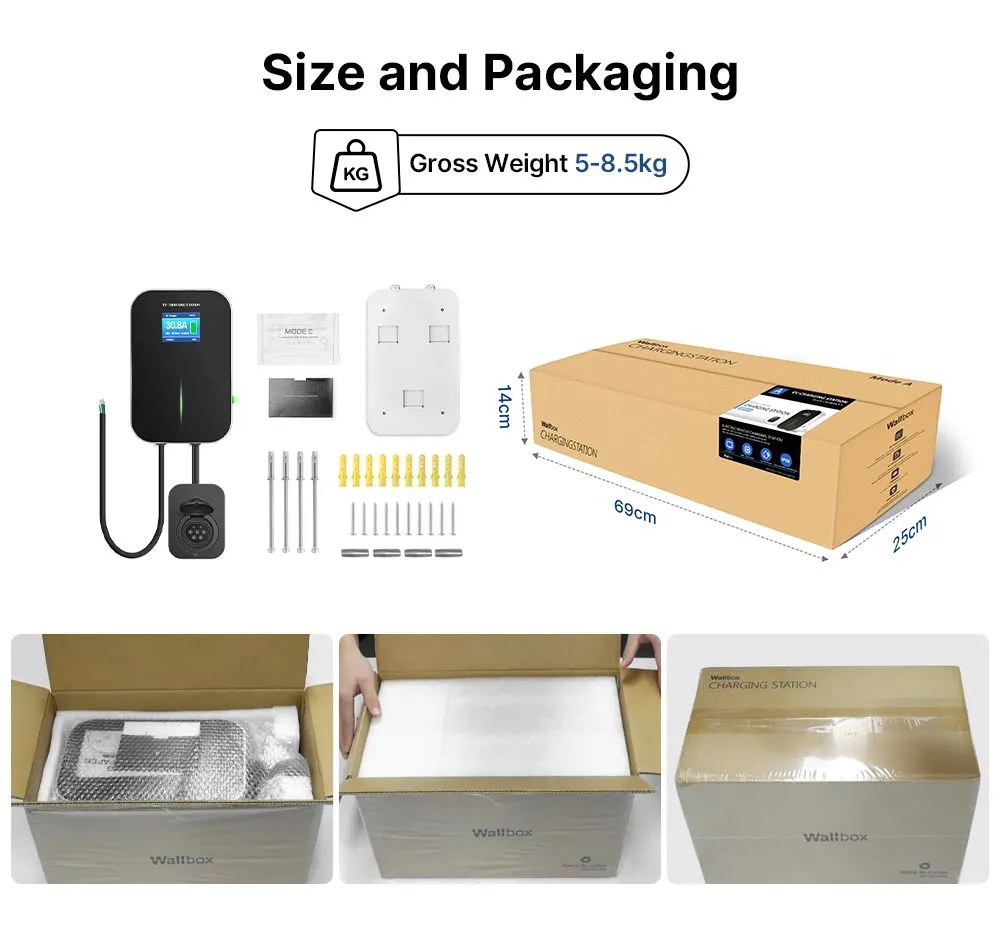

Our packaging is designed to be compact and robust, protecting the unit during long-distance transit. We offer extensive customization options to align with your brand requirements.
With over 14 years of professional experience, we focus on providing high-quality smart charging solutions. Our products are recognized for their stability, compatibility, and safety.
