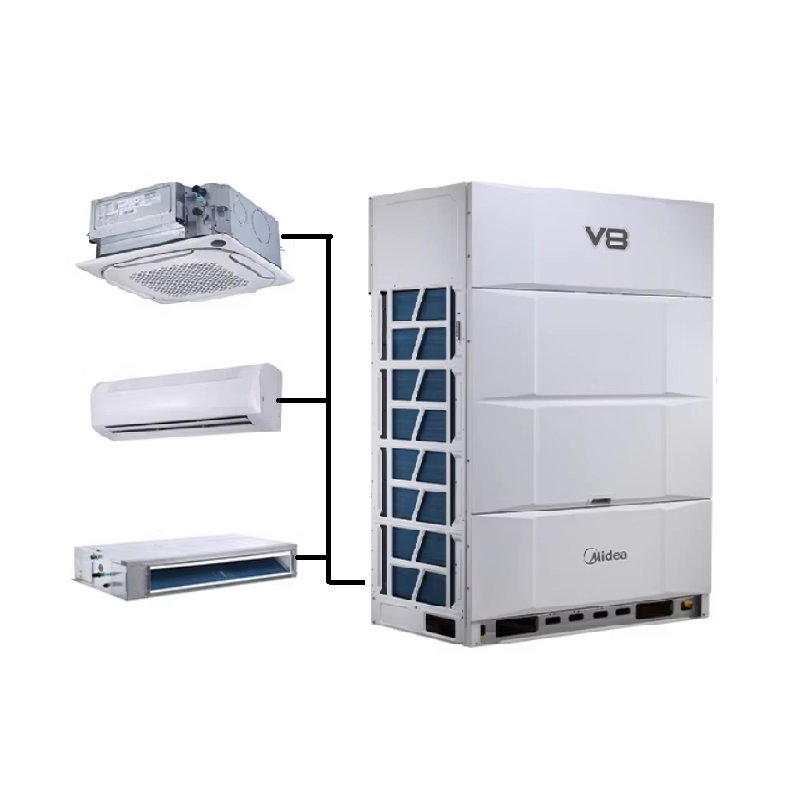

Midea Pompa Panas R410 DC Menara Condensing Unit Untuk Dijual

1 / 5

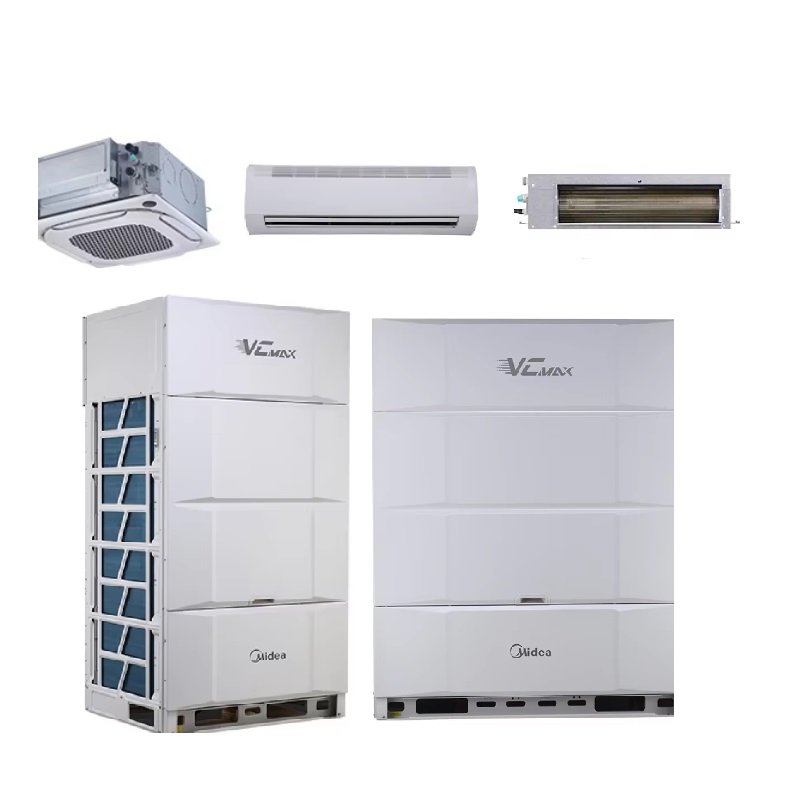

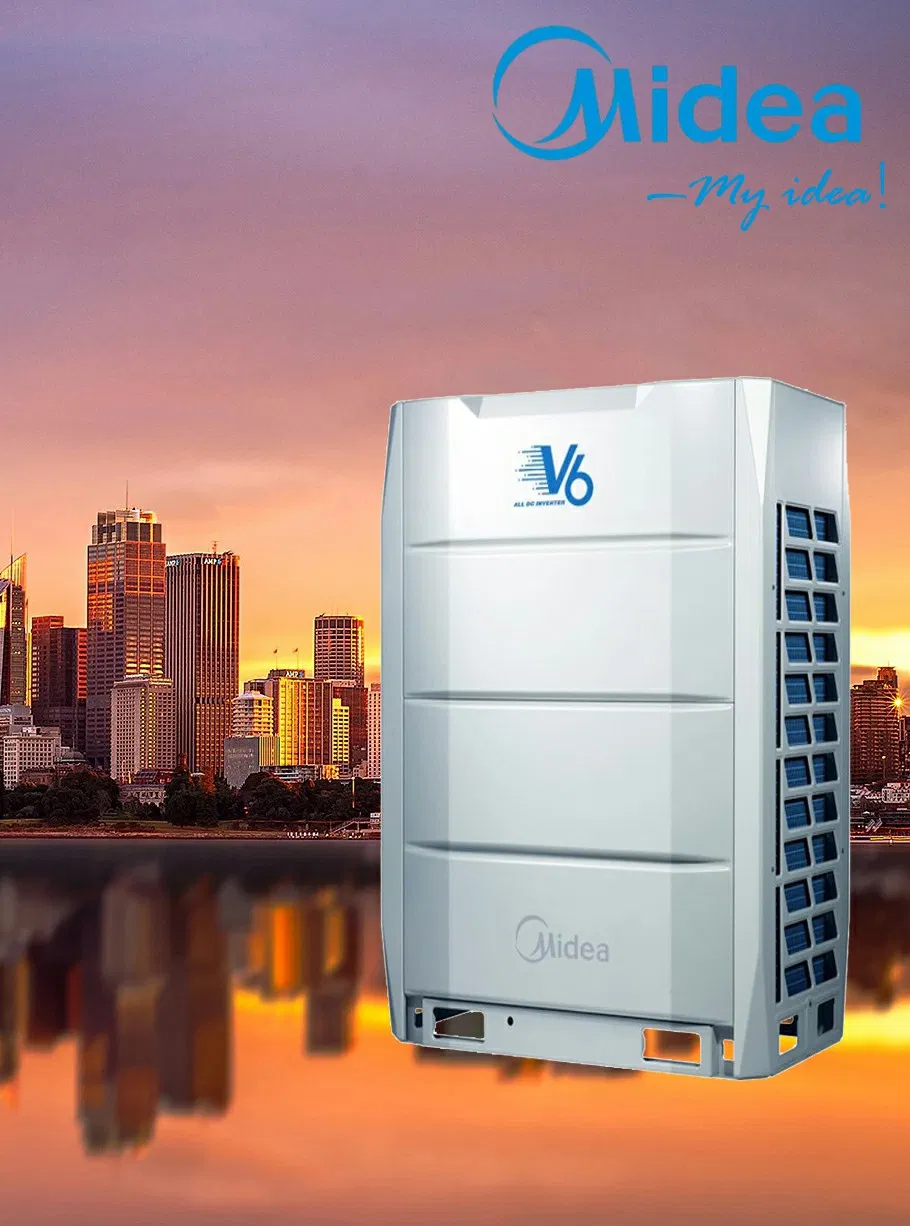

Midea Pompa Panas R410 DC Menara Condensing Unit Untuk Dijual

Customization:	Available
After-sales Service:	5 Years
Warranty:	5 Years, 5 Years

Send Inquiry

Product Description

■

Basic Specifications

Model NO.

MV6-500WV2GN1

Type

VRF System

Material

Galvanized Sheet

Corrosion Durability

Ultrahigh

Operating Voltage

380/400 VAC

Noise Level

Low

Mounting

Floor Standing

Lifetime

> 20 Years

Certification

RoHS, ISO, CE, CCC

After-Sales Service

5 Years

Capacity

48000-60000 BTU

Energy Standard

China Level 1

Refrigerant

R410A

HS Code

8415102100

■

Technical Performance

Parameter		Unit	Value
Capacity (HP)		Hp	18
Model Number		MV6-500WV2GN1
Power Supply		V/Ph/Hz	380-415/3/50
Cooling	Capacity	kW	50.0
Cooling	Power Input	kW	12.5
Heating	Capacity	kW	50.0
Heating	Power Input	kW	10.6
Sound Level		dB(A)	58
Packed Size (W×H×D)		mm	1405×1805×910
Gross Weight		kg	368

■

Unique Innovations & High Efficiency

3 Unique Innovations

·Energy Management System (EMS)

·Enhanced Vapor Injection (EVI) Compressor

·Triple Configurations

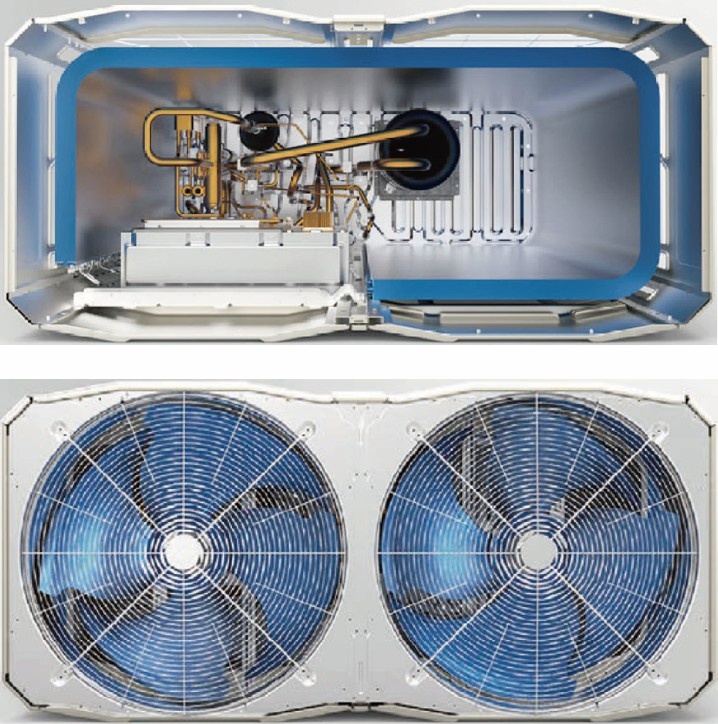

High Efficiency

·Plate Heat Exchanger (PHE) Subcooling

·High Efficiency G-Type Heat Exchanger

·Super Big Size Fan

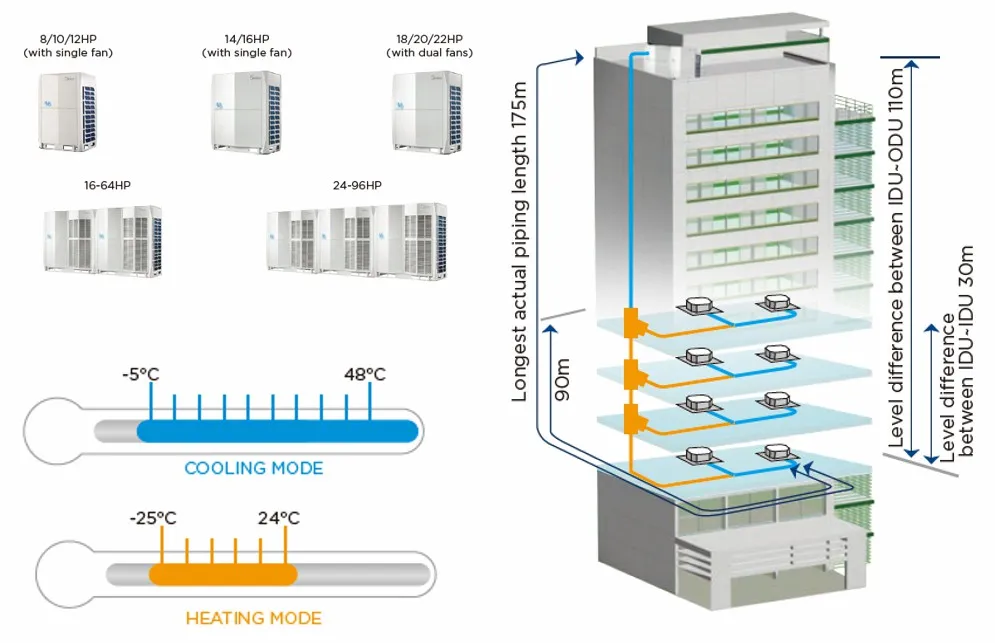

Wide Operating Range

·Capacity Range: 8-96 Hp

·Operation Temp: -25°C to 48°C

·Total Piping Length: 1000m

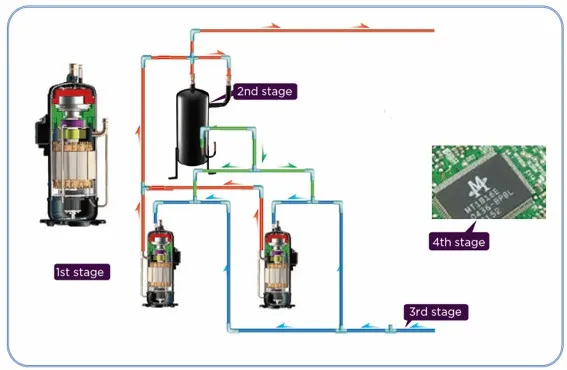

High Reliability

·Duty Cycling & Precise Oil Control

·Backup Operation & Refrigerant Cooling PCB

·Anti-Corrosion Certificate (27 Years)

Intelligent Functions

·Night Silent Mode

·Intelligent Defrosting Technology

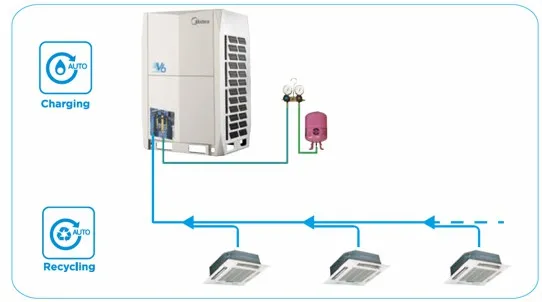

·Automatic Refrigerant Charging

■

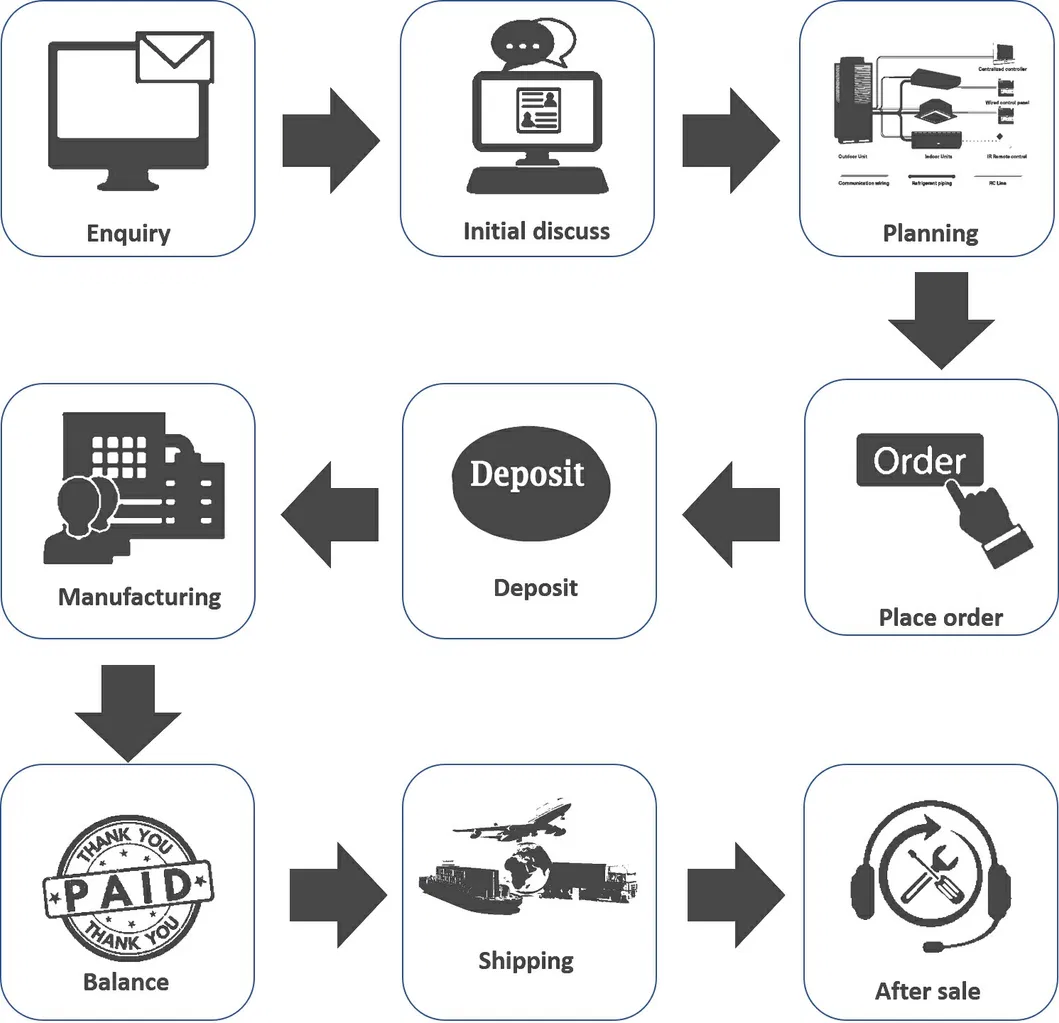

Professional Turnkey Service

Authorized Supply	One-Stop Solution	Expert Support
Direct Brand Distribution Designated Agent Full System Import/Export	Indoor & Outdoor Units Full Control Systems 50+ Installation Accessories	Skilled Engineering Team 20+ Years Experience 400+ Global Projects

■

Wide Application Range

Hotels • Restaurants • Office Buildings • CBD • CBD Apartments • Gyms • Libraries • Theaters • Supermarkets • Hospitals • Schools • Villas • Airports • Stations

■

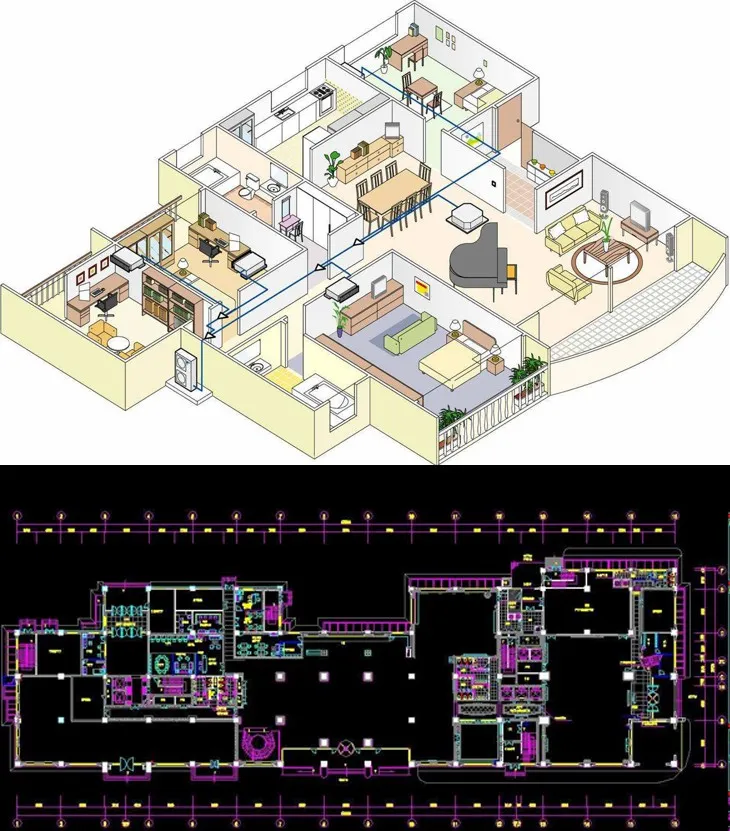

Building Requirements for Design

·Accurate building address
·Building application/usage
·Floor height and total size
·Professional building drawings

·Environmental condition (Max Temp)
·Indoor unit preferences
·Local power supply specs
·Room-by-room function analysis

Frequently Asked Questions

Q: What is the most important factor for a VRF supplier?

A: Professional technology and deep industry experience are the most critical factors.

Q: Why should I choose a professional company for VRF design?

A: VRF systems do not allow for a trial-and-error process. Incorrect design or installation leads to significantly higher costs to rectify later.

Q: Are there flexible payment options available?

A: Yes, we accommodate various payment terms, including LC (Letter of Credit).

Q: Why is the project address required for a quote?

A: Pricing can influence local market rules and brand regulations; providing the address ensures compliance and accurate localized pricing.

Q: Do I need to purchase all accessories and materials from you?

A: No. We provide a detailed list of required accessories and materials. You can compare our prices with your local market and decide what to source from us.

Q: Do you provide professional installation services?

A: Yes, we provide skilled installation teams and project managers. This service is available for a fee covering salary, travel, and accommodation.
