Midea MBT Introduction

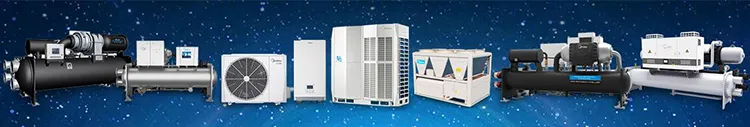

Midea Product Portfolio

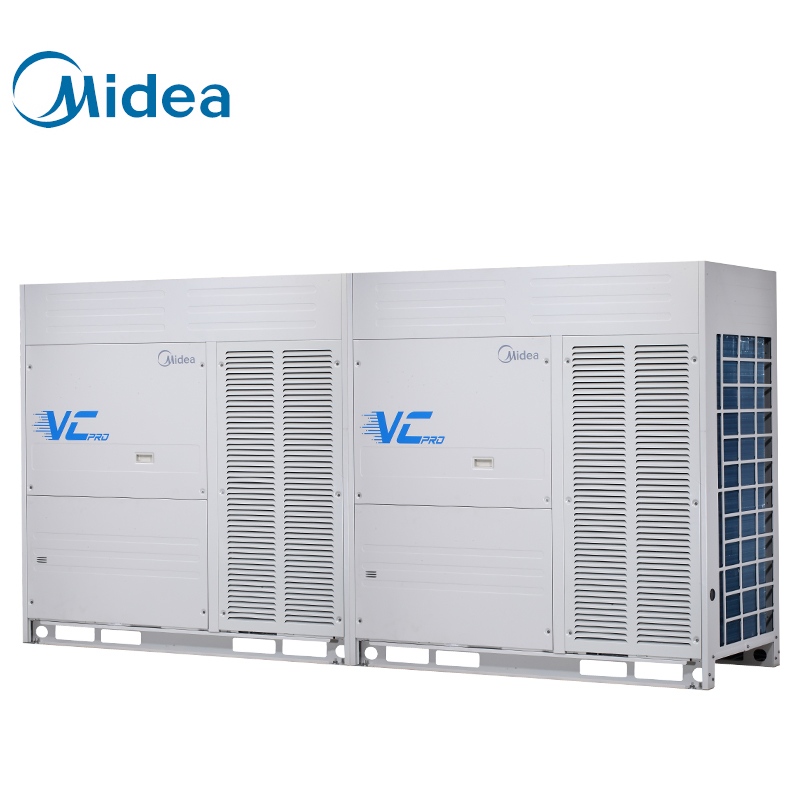

As the leading VRF product, V6 boasts substantial benefits such as the single capacity can be up to 90HP which is leading in HVAC industry; EVI compressor significantly increases heating and cooling capacity under extreme conditions, EMS realizes that evaporating temperature (in cooling) and condensing temperature (in heating) are automatically adjusted according to both indoor and outdoor temperature to maximize the comfort and energy efficiency.
| Parameter | Specification |
|---|---|
| Capacity | 8HP-90HP |
| Power supply | 220/3/50(60)V/Ph/Hz |
| Cooling Capacity | 22.4KW-255KW (76.5-870.9kBtu/h) |
| Power Input | 5.25-82.53KW |
| EER | 4.27-3.25 kW/kW |
| Compressor Type | DC Inverter |
| Fan Motor Type | DC |
| Airflow Rate | 11000-25000 m3/h |
| Ambient Temp (Cooling) | -5 to 55ºC |

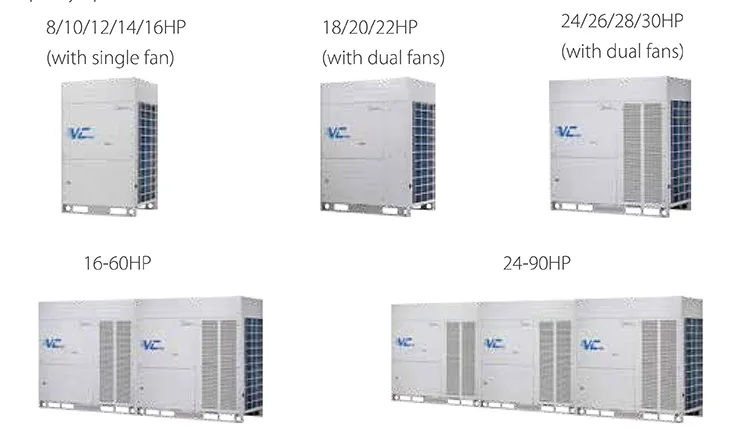

1. Wide Capacity Range: For single unit, the footprint is small and maximum capacity is up to 30HP. For combined units, capacity can reach up to 90HP.

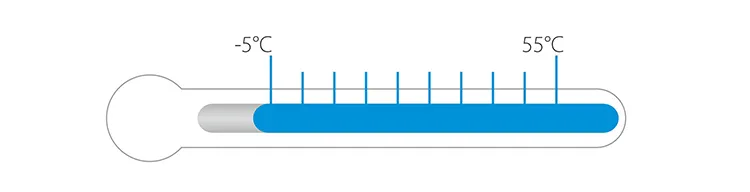

2. Wide Operation Range: Stably operates in ambient temperatures from -5ºC to 55ºC in cooling mode.

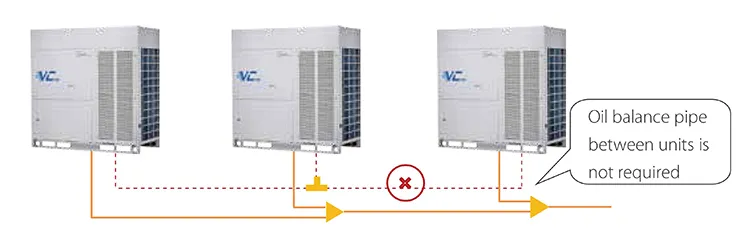

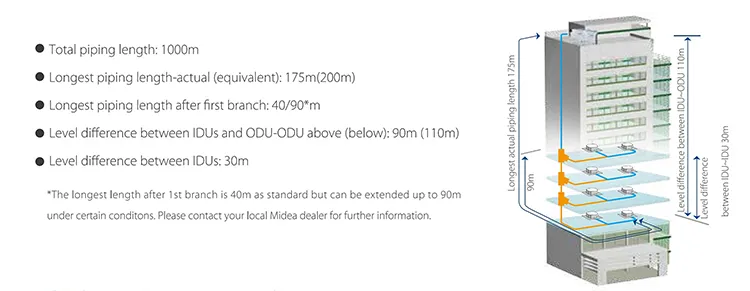

3. Advanced Piping & Oil Management: High piping capability and a new oil management system that eliminates the need for an oil balance pipe.
