As the leading VRF product, V6 boasts substantial benefits such as the single capacity can be up to 90HP which is leading in HVAC industry; EVI compressor significantly increases heating and cooling capacity under extreme conditions, EMS realizes that evaporating temperature (in cooling) and condensing temperature (in heating) are automatically adjusted according to both indoor and outdoor temperature to maximize the comfort and energy efficiency. Besides, the intelligent control system adds more value to V6 product.
| Parameter | Specification | |
|---|---|---|
| Capacity | 8HP-90HP | |
| Power supply | 220/3/50(60)V/Ph/Hz | |
| Cooling | Capacity | 22.4KW-255KW (76.5-870.9kBtu/h) |
| Power input | 5.25-82.53KW | |
| EER | 4.27-3.25kW/kW | |
| Ambient temp | -5 to 55ºC | |
| Compressors | Type | DC inverter |
| Fan motors | Type | DC |
| Refrigerant | Type | R410A |
| Airflow rate | 11000-25000 m3/h | |

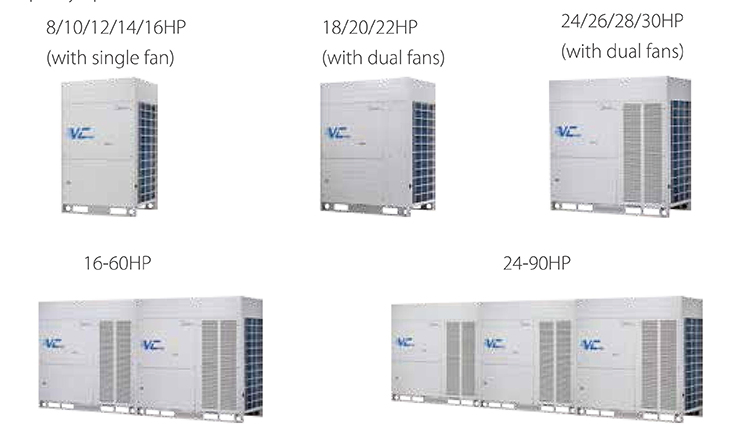

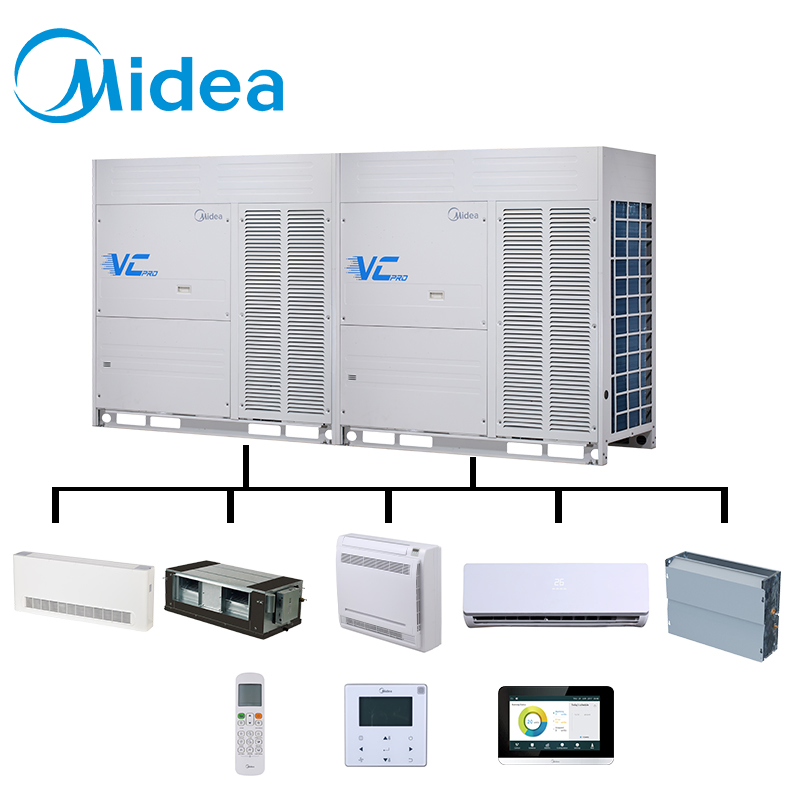

For single unit, the footprint is small and maximum capacity is up to 30HP. For combined units, maximum three 30HP units can be combined with capacity up to 90HP.

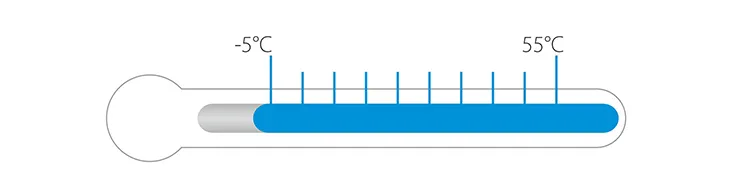

The VC Pro VRF can operate stably in a wide ambient temperature range: from -5ºC to 55ºC in cooling mode.

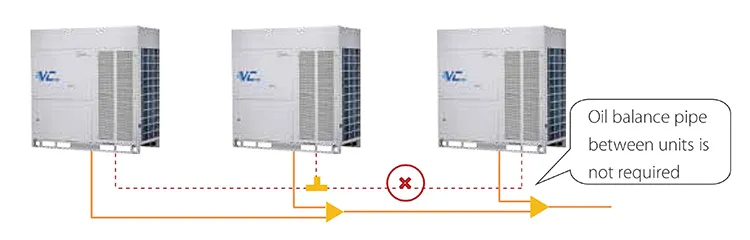

With the new oil management system, there is no need of oil balance pipe.
