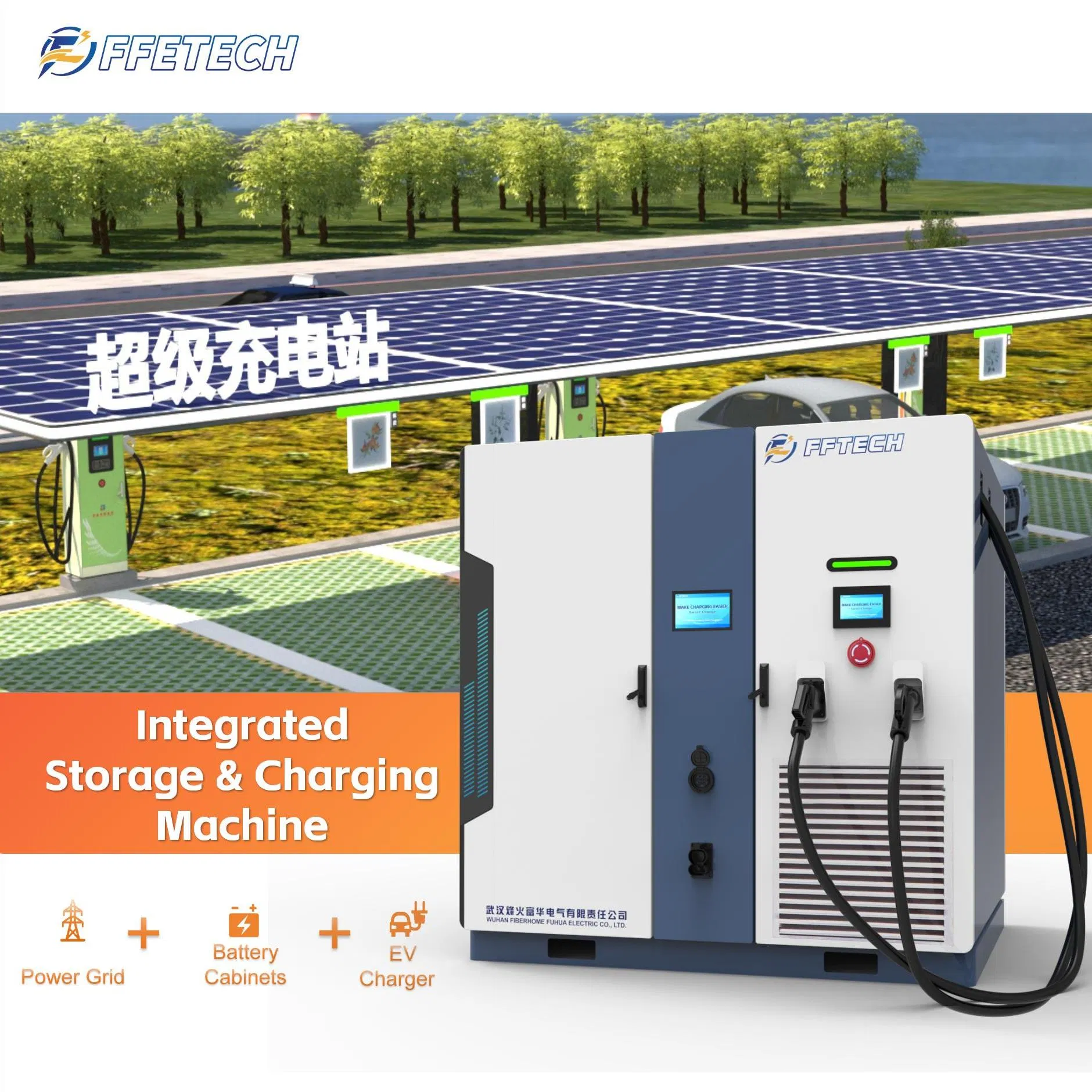

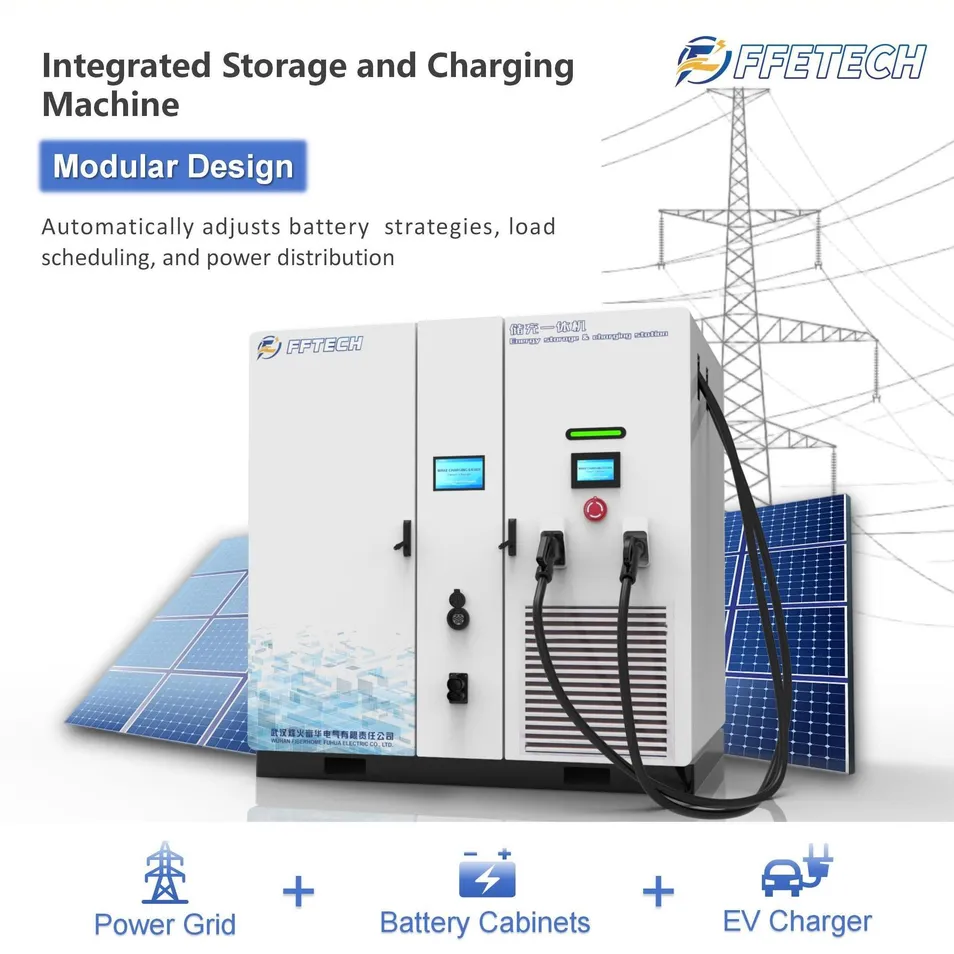

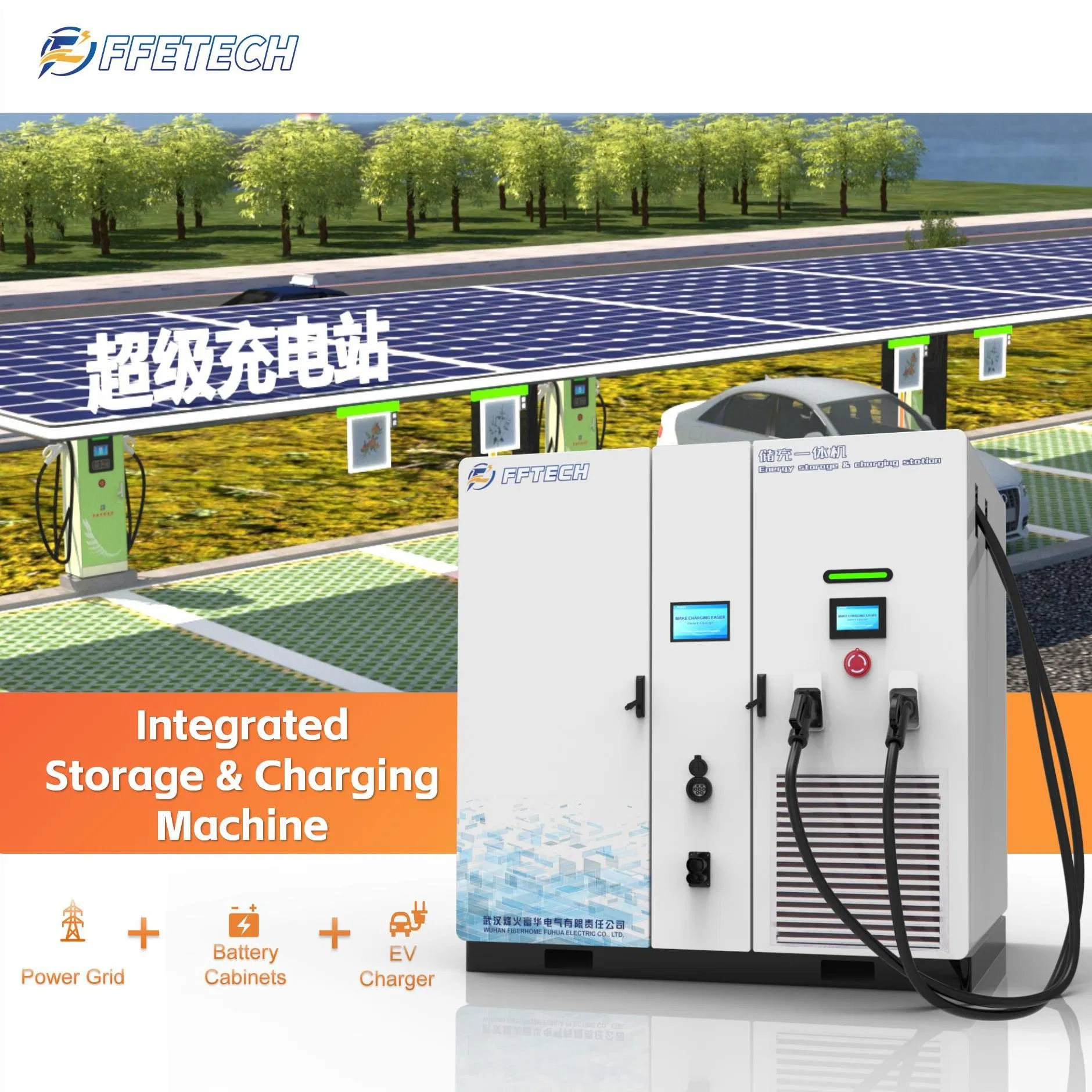

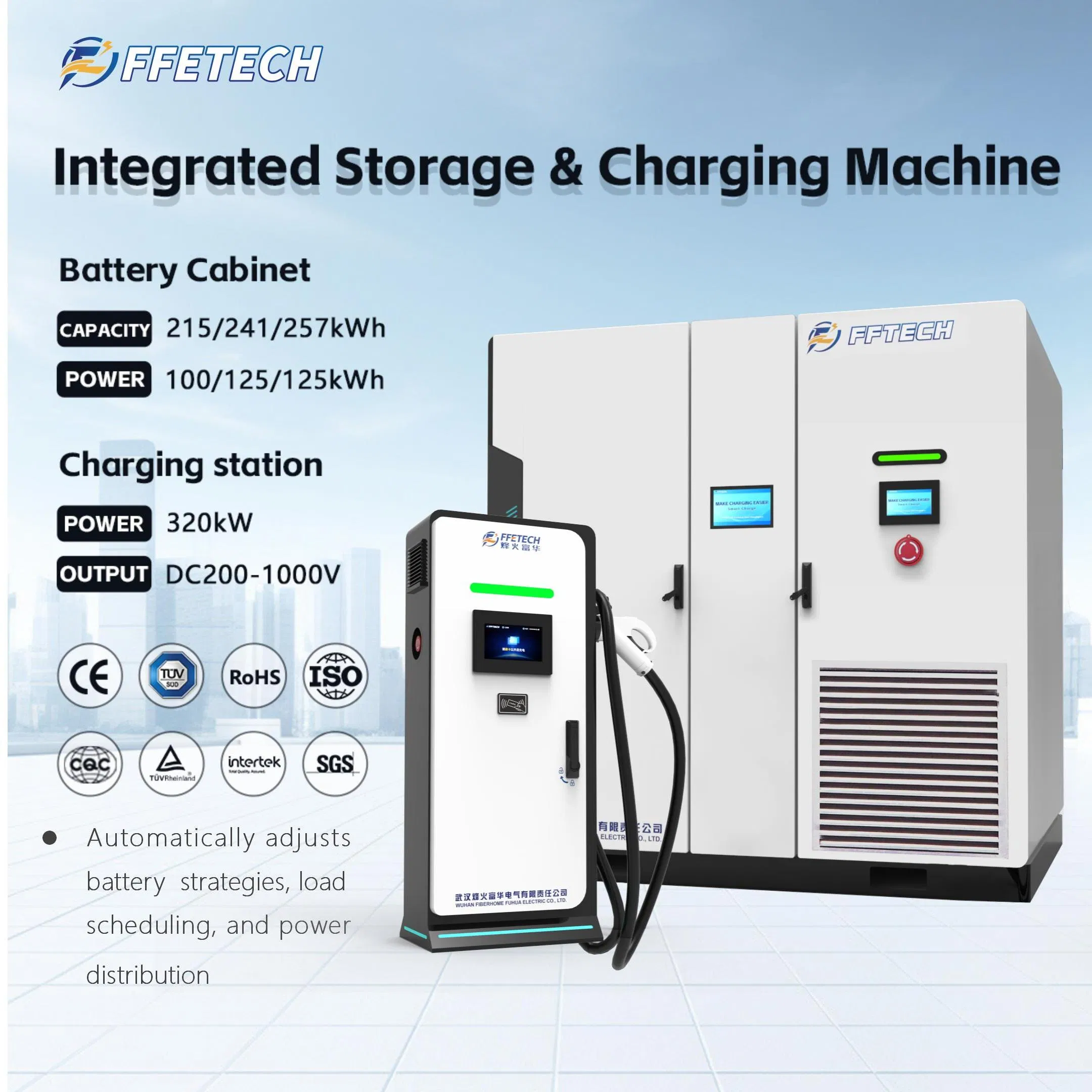

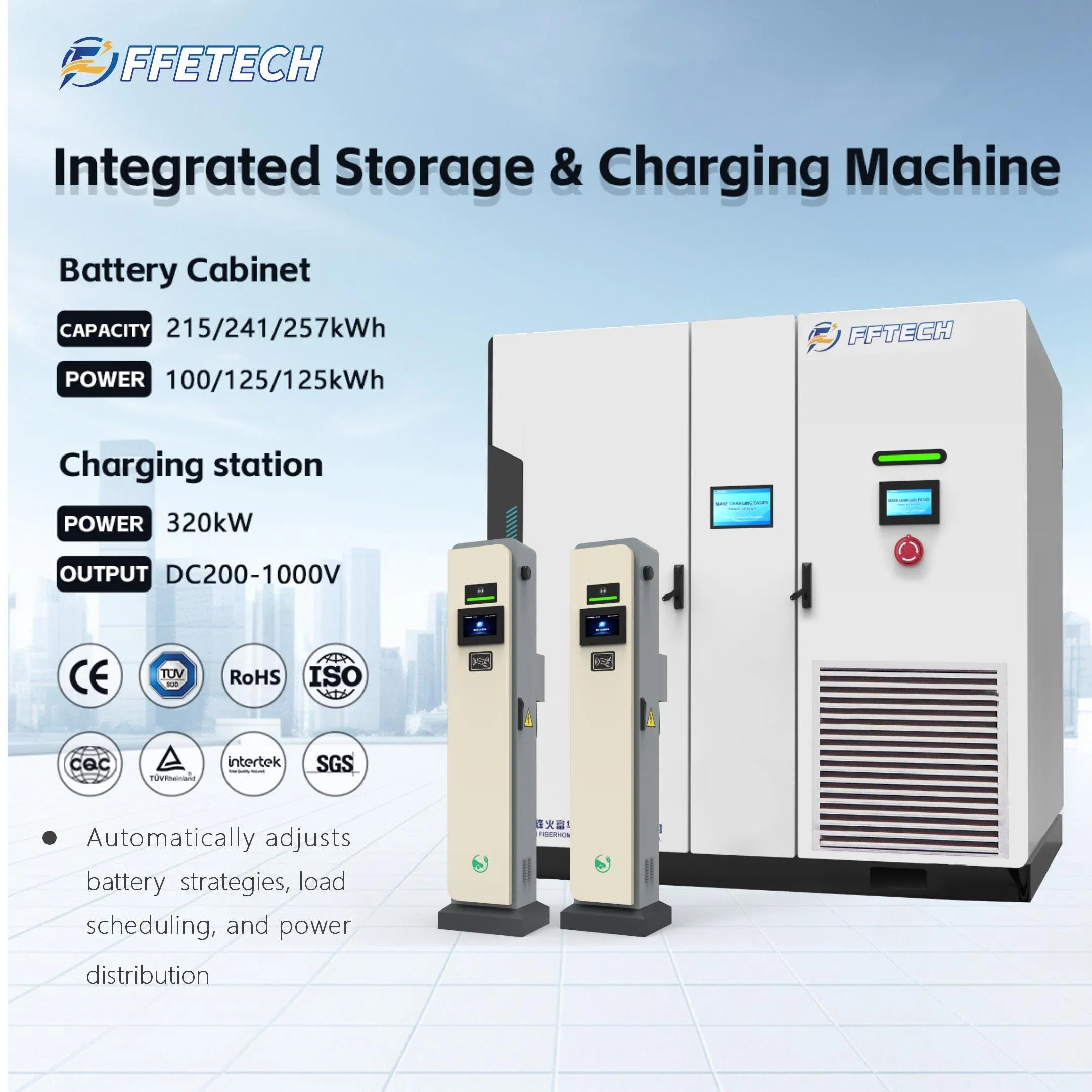

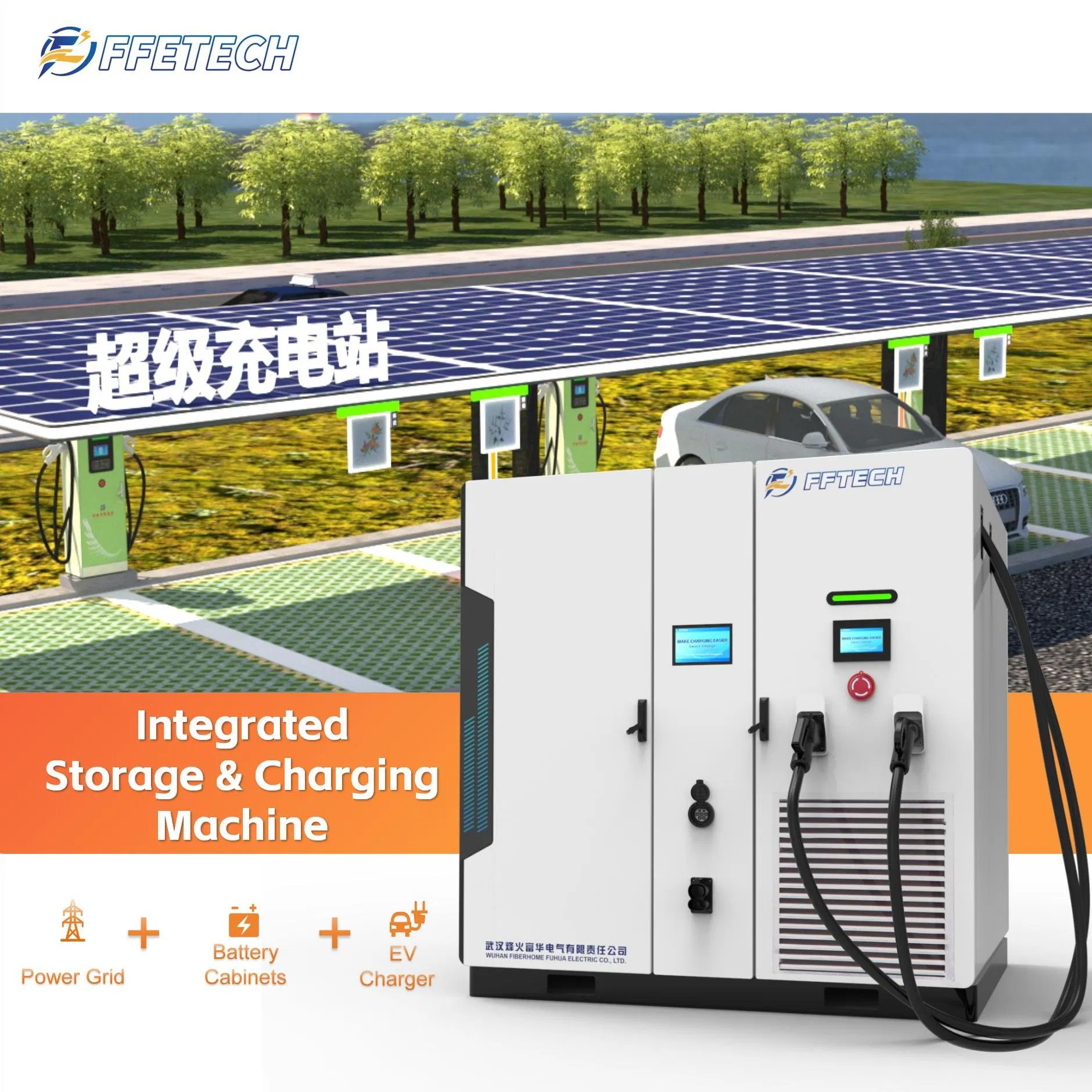

This product uses a zero-capacity-increment, flexible smart charging pile as the energy storage and charging system carrier. With modular design, it integrates lithium iron phosphate battery cabinets, battery management system (BMS), power conversion system (PCS), DC-DC charging system, local control system (EMS), air conditioning, fire protection, and other devices into one, providing a core solution for both energy storage and charging.
It aims to improve energy efficiency, lower costs, and enhance power supply reliability and stability. Suitable for EV charging stations, commercial complexes, industrial parks, residential communities, and emergency power supply sites, optimizing power resource allocation and supporting the popularity of new energy vehicles.
| Model | FH-ES-215 | FH-ES-241 | FH-ES-257 | |
| DC Side | Cell Type | LFP 280Ah | LFP 280Ah | LFP 280Ah |
| Capacity (kWh) | 215 | 241 | 257 | |
| Nominal Power | 100kW | 125kW | 125kW | |
| Voltage Range | 648~876V | 648~876V | 691.2~934.4V | |
| Battery Life | ≥6000 cycles @25℃ | |||
| AC Side Parameters | ||||
| AC Side | Output Voltage | AC380V | AC380V | AC380V |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz | |
| Efficiency | ≥90% | ≥90% | ≥90% | |
| System Parameters | ||||
| Protection | IP Rating | IP54 | IP54 | IP54 |
| Fire Safety | Method | Aerosol / FM-200 | ||

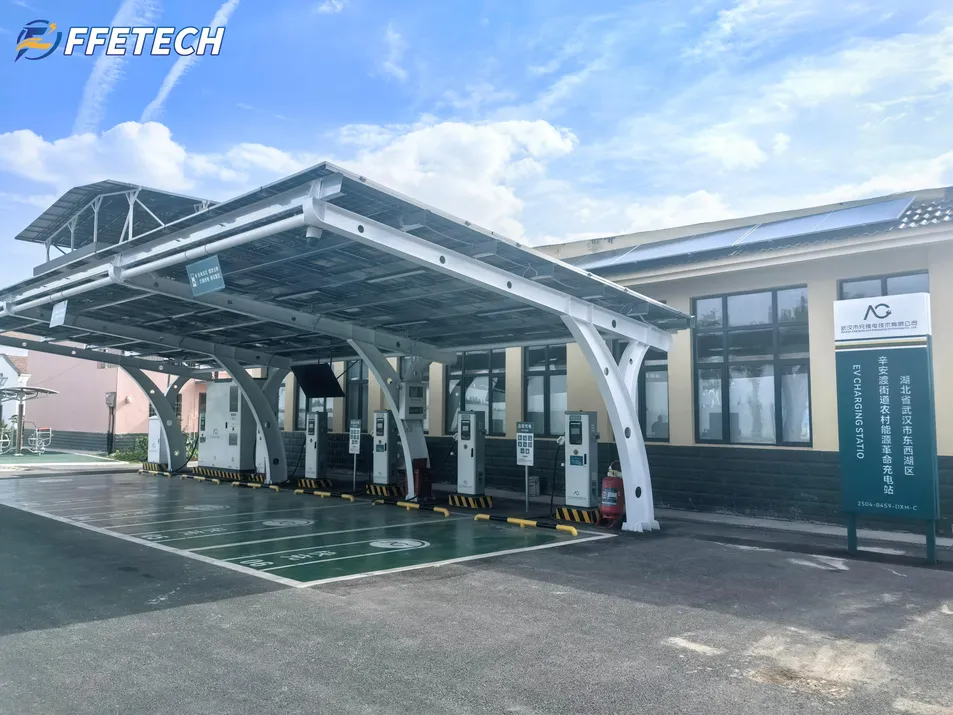

Allows for high-speed charging of electric vehicles. Ideal for commercial public applications where users require rapid energy replenishment.

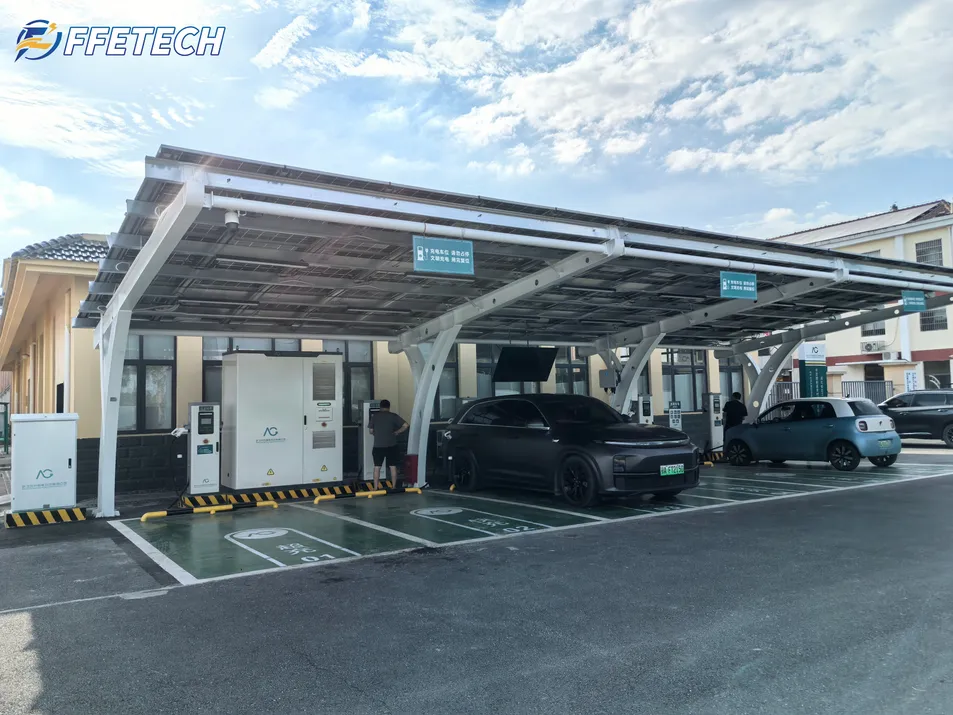

Designed to be resistant to dust and water (IP54). Provides a long-lasting and dependable charging solution for frequent outdoor use.
