| Item | Description | Qty (pcs) | Remarks |
|---|---|---|---|
| PV Solar Panel | HT560M-72H | 960 | Total of 537.6KW |
| Combiner Box | 1500V-1500A | 1 | For combination of multiple battery racks |

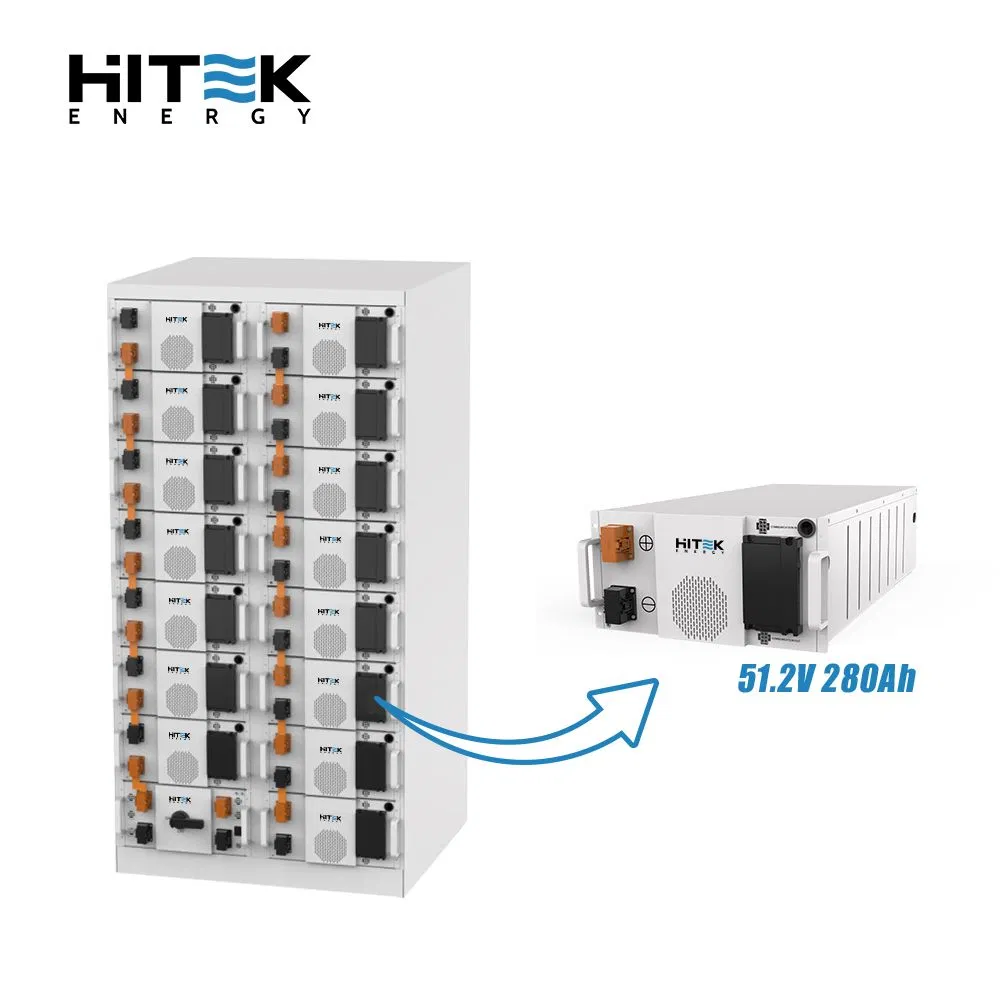

| Battery Module | 280Ah Lithium | 150 | BMU module 51.2V 280AH (14.3kWh) |
| Controller | 1500V 300A | 15 | High Voltage Controller Box |
| PCS500 | Inverter | 1 | 250kW battery inverter |

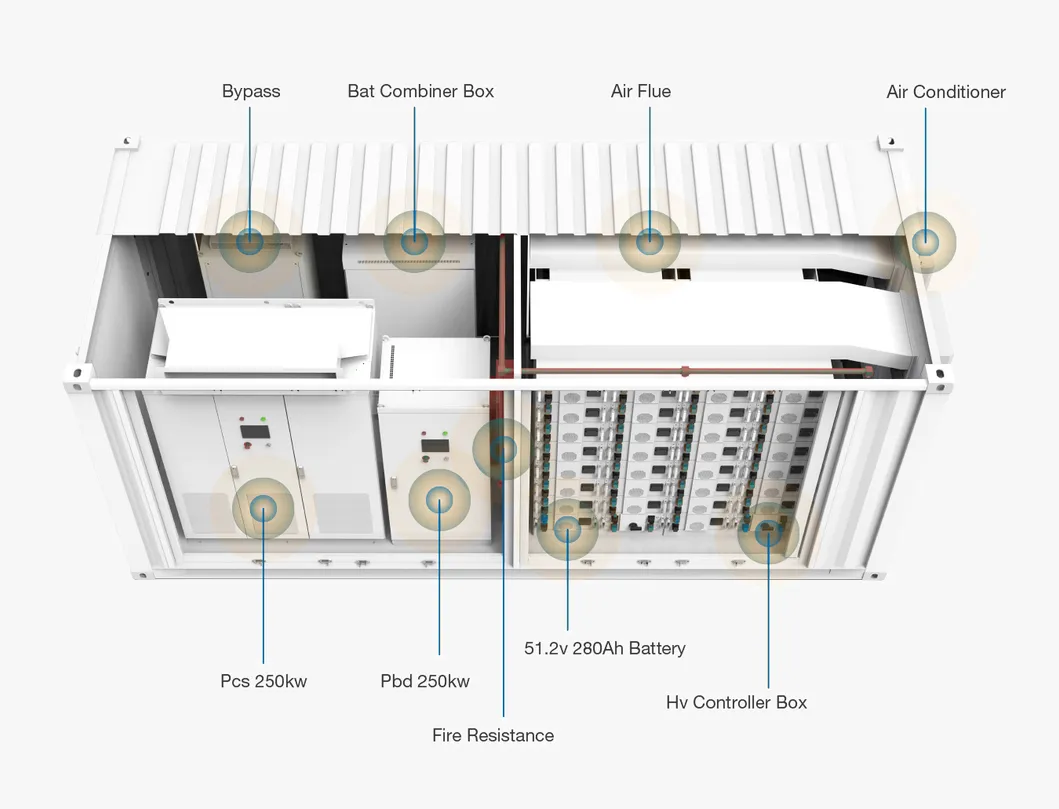

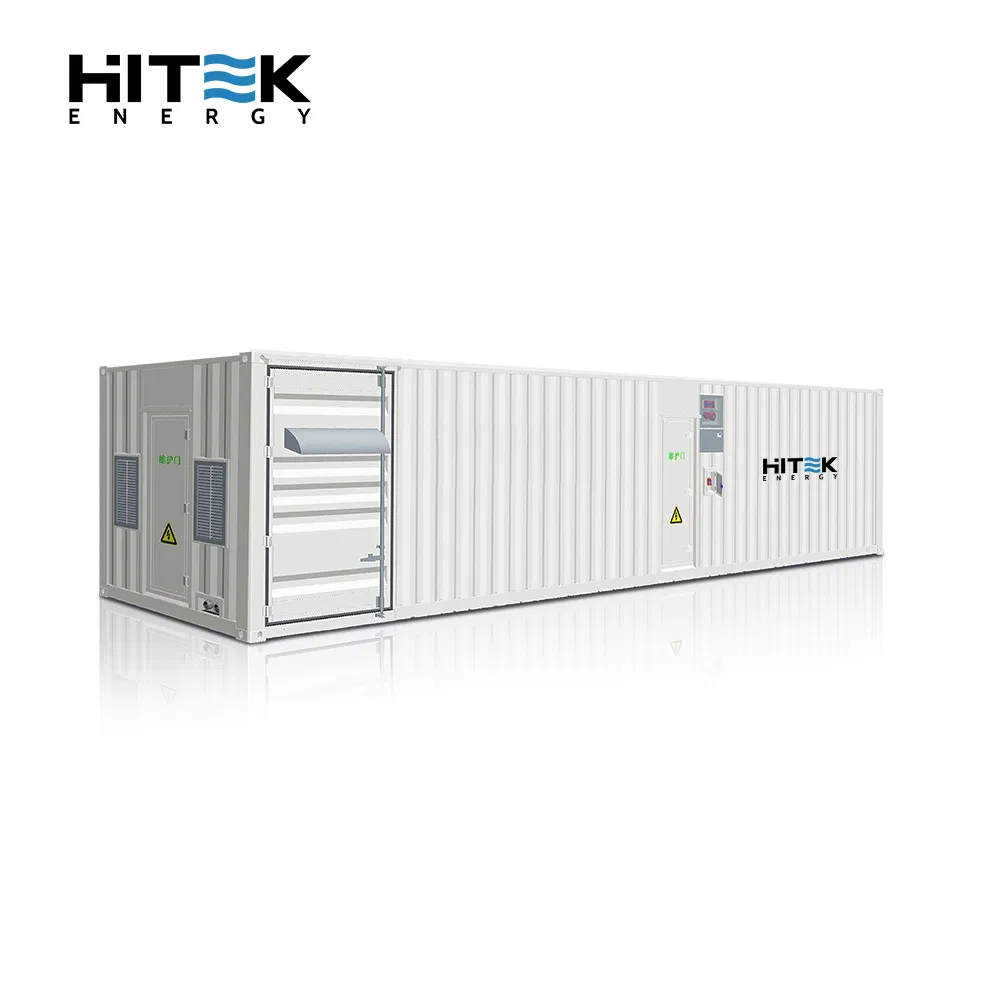

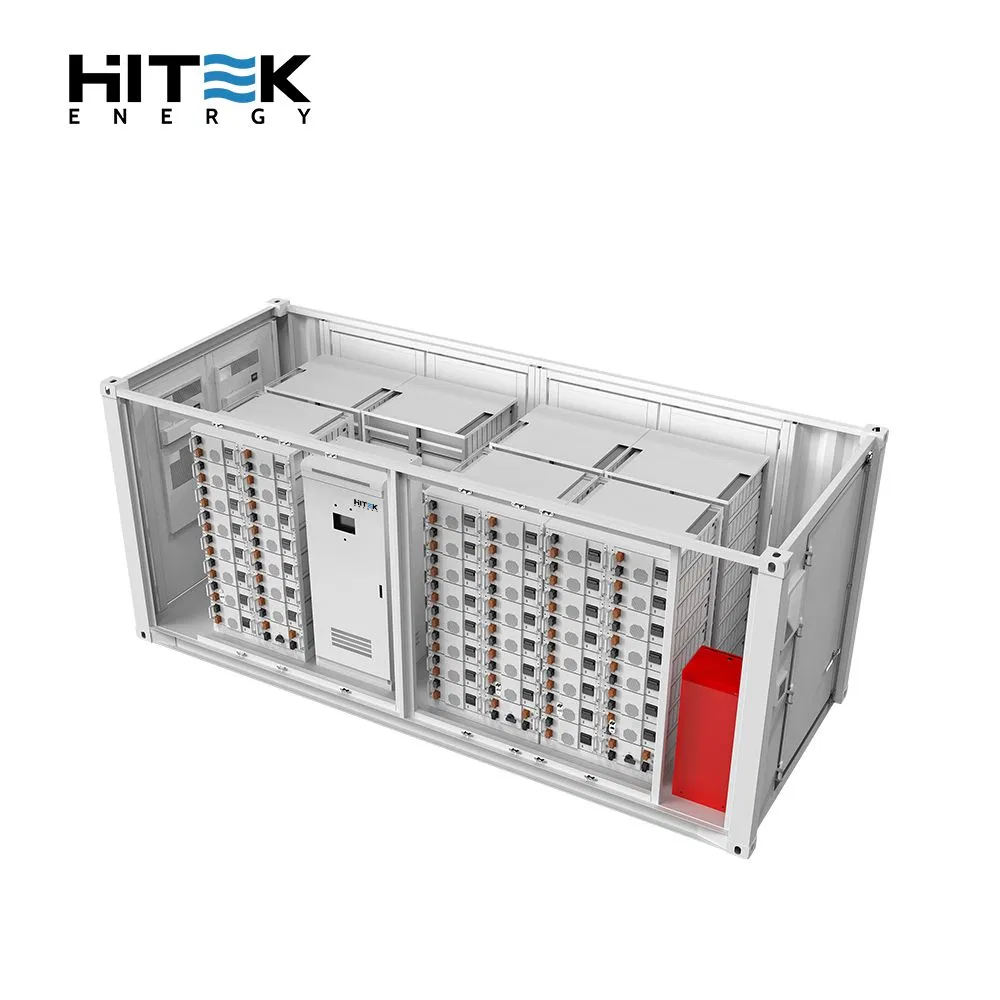

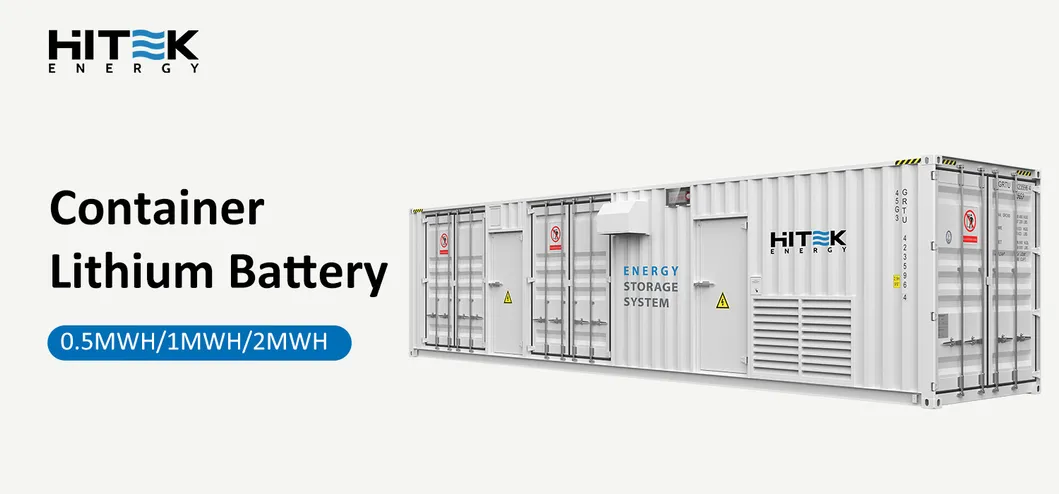

| 20FT Container | ESS Enclosure | 1 | IP54, Lighting, Fire-resistance, HVAC |

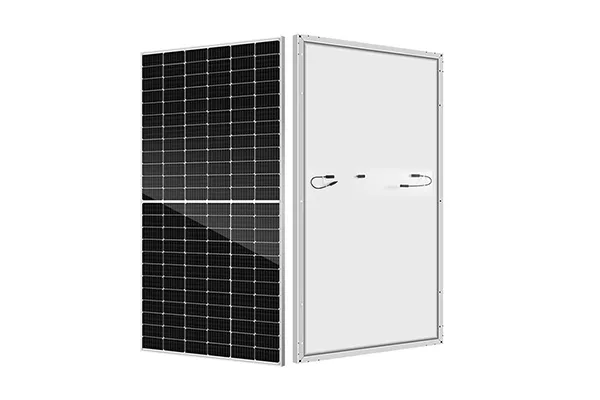

Model: HT560M-72
Peak Power Watts: 560Wp
Open Circuit voltage (Voc/v): 49.84v
Voltage at Maximum Power (Vmp/V): 41.08v
Dimensions: 2279*1134*35mm
Bidirectional battery inverter, can be used alone or with solar chargers. Features include flexible configuration, programmable working modes, and touchscreen LCD support.
1000V level DC to DC solar charge controller. Modular design with up to 5 MPPTs and transformerless architecture for large-scale solar projects.

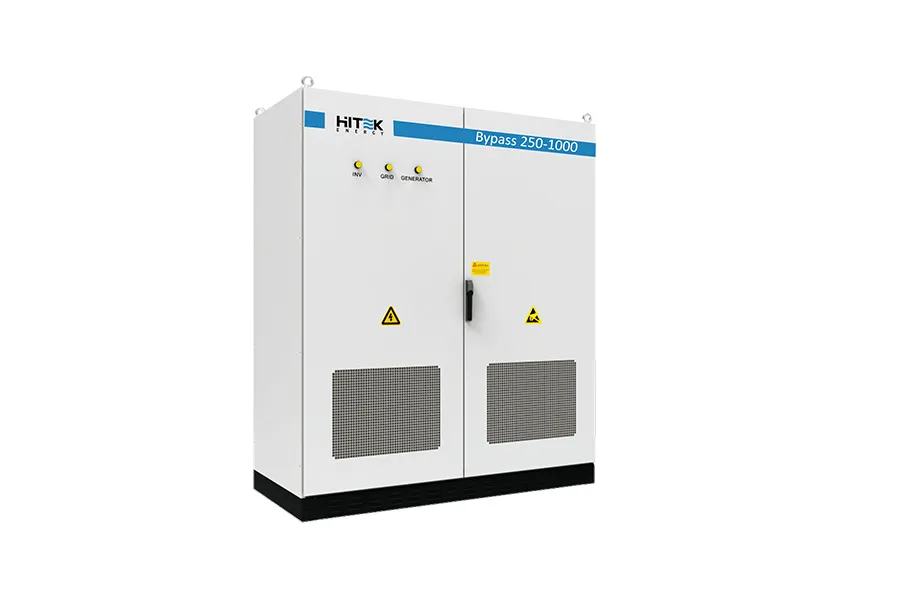

Designed for seamless transfer between on-grid and off-grid modes automatically, working in synchronization with battery and PV inverters.

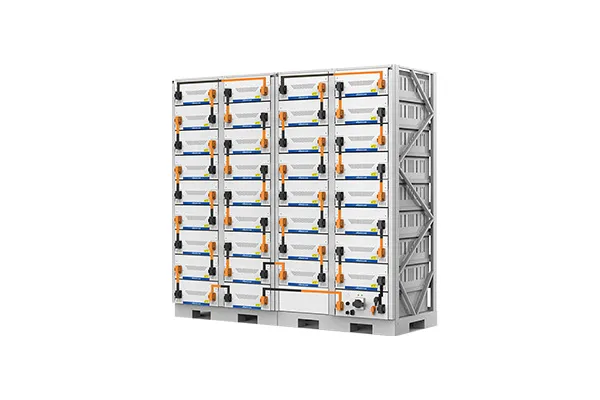

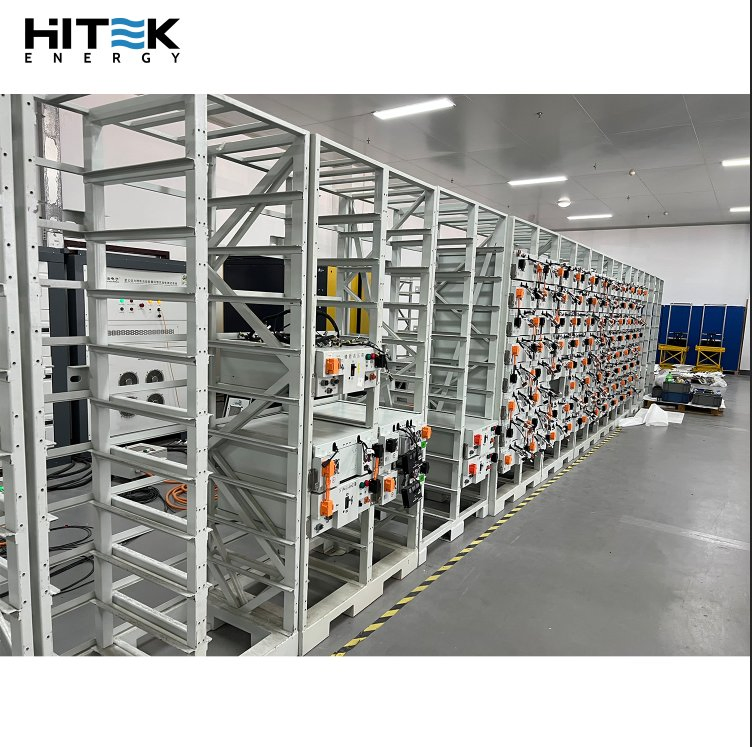

Energy storage standard module consisting of high-capacity cells. Total capacity reaches 1720kWh @ 80% DOD with integrated management systems.
Founded in 2018, we are a superior photovoltaic manufacturer dedicated to providing sustainable and renewable energy solutions for homes, businesses, and factories. We provide tailored solar energy solutions for backup, residential, and commercial needs.
Let's work together for a better, brighter and greener future.
