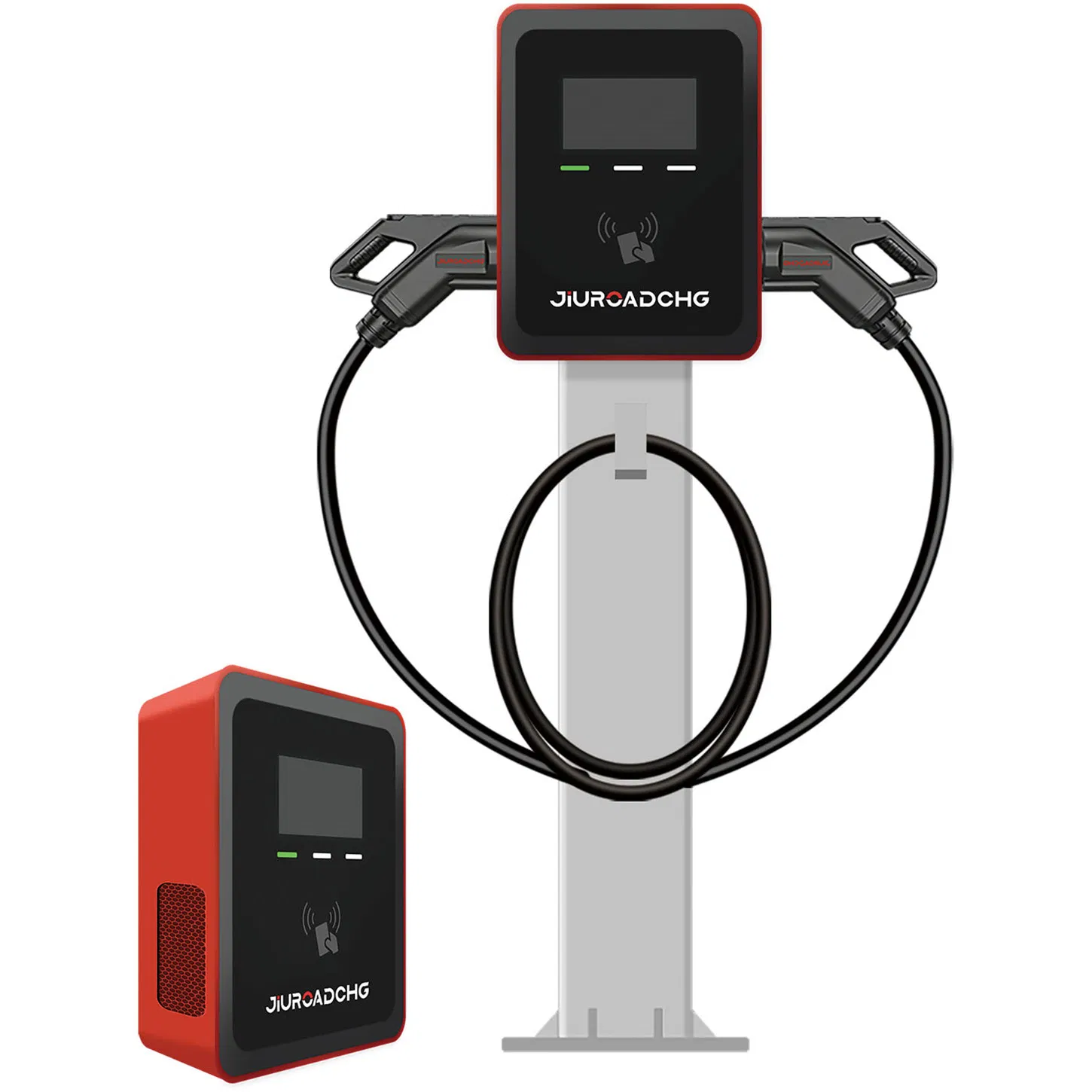

Integrated Structure Easy Installation Office EV Charging 22kw AC Charger Dual-Port

Customization: Available
Start Mode: Credit Card Payment, Mobile Remote Operation, RFID
Number of Charging Interfaces: 2

Product Description

📊 Basic Info
Model NO.JR-AC-G11
InstallationFloor Type / Wall-Mounted Type
Charge MethodQuick Charge
ServiceOEM / ODM
ProtectionIP54
Transport PackageCarton
OriginChina
Product Introduction
EV Charging Station
Product Bar
Product Details

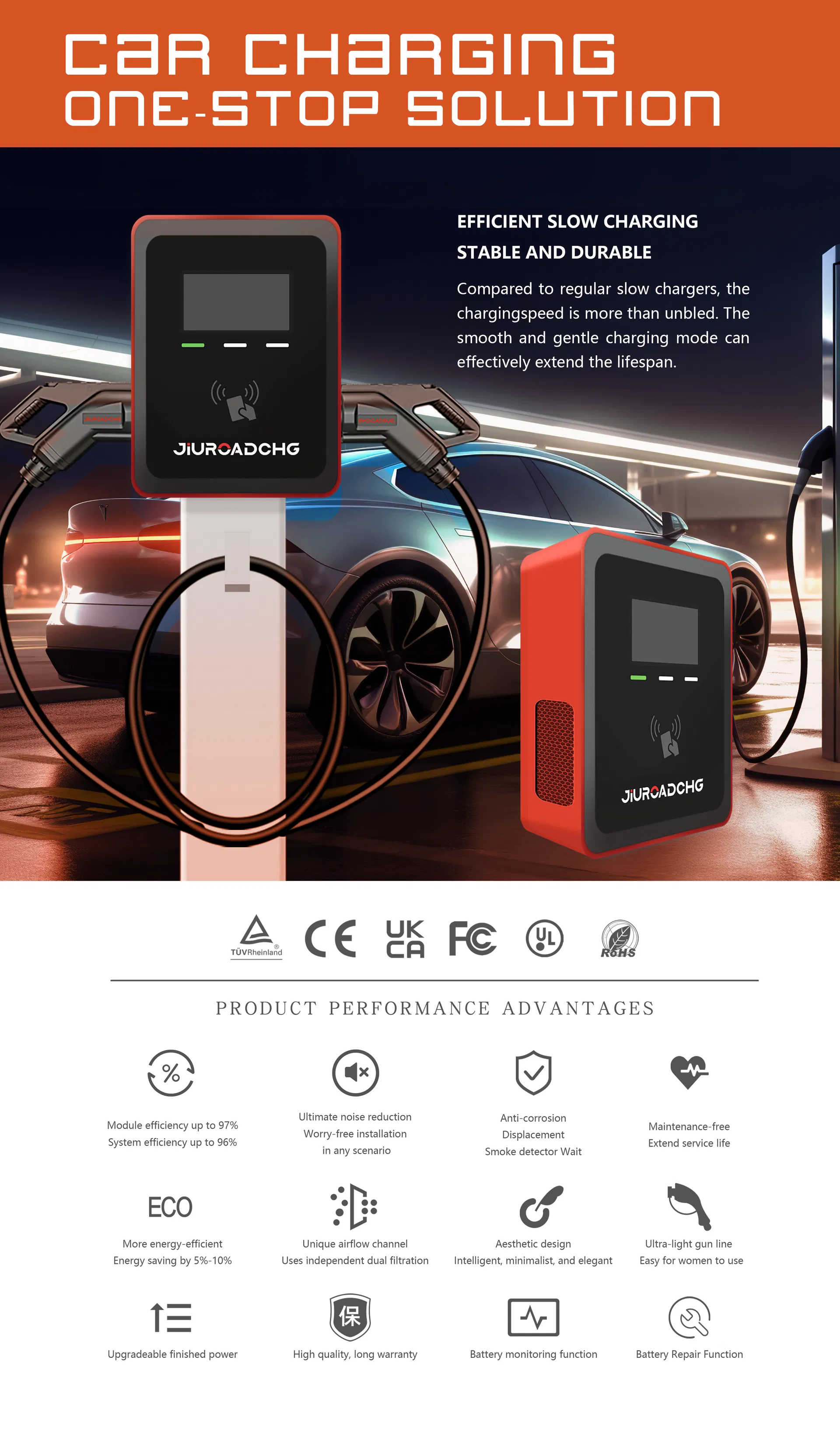

Charging Specs

Product Overview & Aesthetics: Our AC series provides a smart, sleek, and highly reliable destination charging experience. Available in 7kW, 11kW, and 22kW configurations, these units blend award-winning industrial design with advanced energy management to complement any modern architectural setting.

Aesthetics

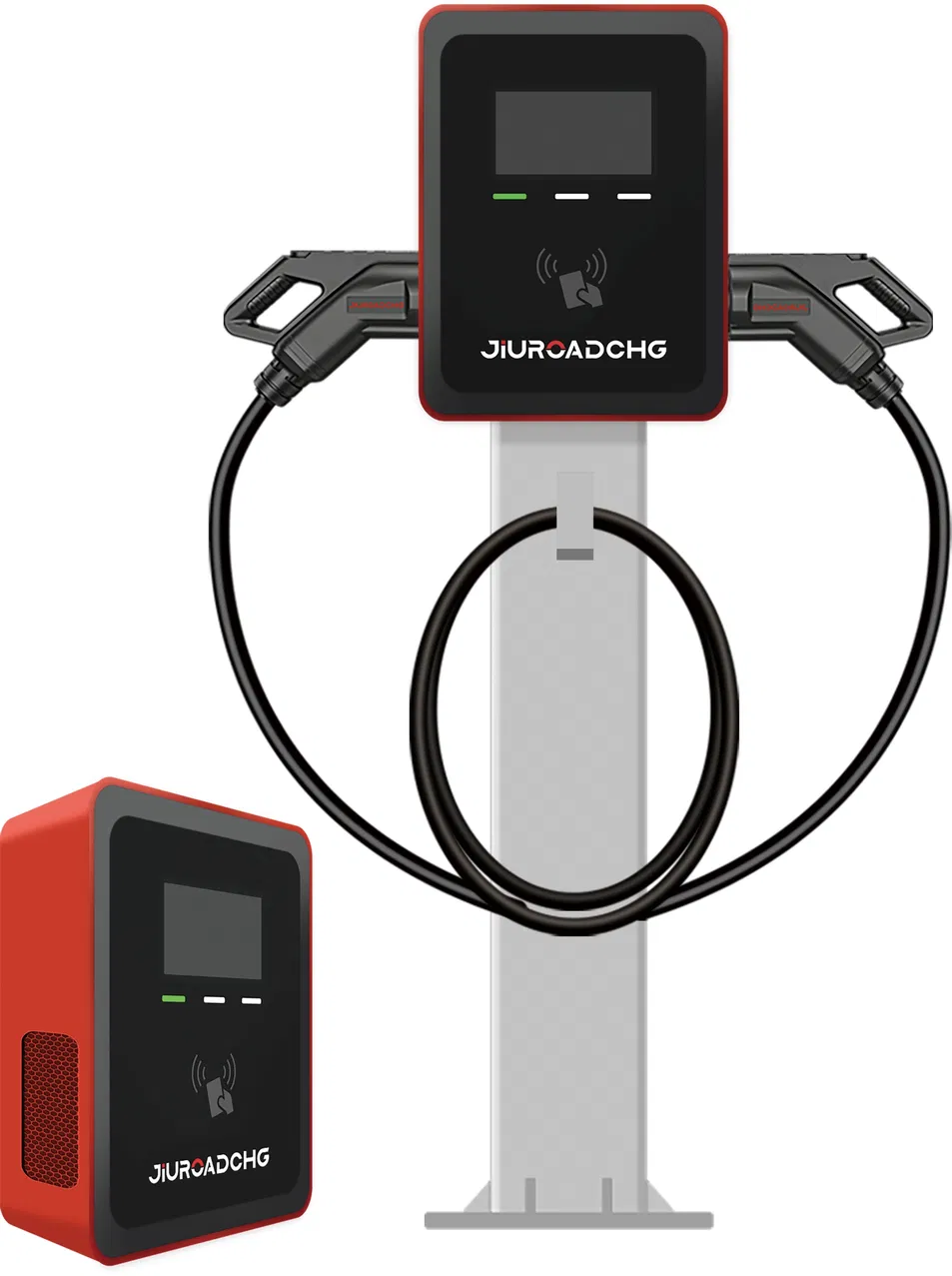

Configuration
Features & Functions: Equipped with Dynamic Load Balancing (DLB) to protect the local grid, Type B RCD for ultimate safety, and a seamless mobile app interface for scheduled charging and remote monitoring.

Applications & Scenarios: Essential for premium residential communities, luxury hotels, workplace parking, and long-stay destination charging networks.

The Advantage: Designed for mass-market reliability, our AC chargers feature a compact, easy-to-install footprint and simplified maintenance protocols, making them the preferred choice for large-scale destination deployments worldwide.

📝 Specifications (Model JR-AC-G22)
Rated Power22kW
Input Voltage380VAC 50HZ (Range: 323VAC~437VAC)
Output Voltage342VAC~418VAC
Outputs2
Peak Efficiency≥95%
Starting MethodButton, Password, QR code scan, Card swipe(optional), VIN(optional)
Interface4G full network / Ethernet
Operating Temp-25℃~50℃ (Power derating up to 70℃)
Protection LevelIP54
🏢 Company & Products

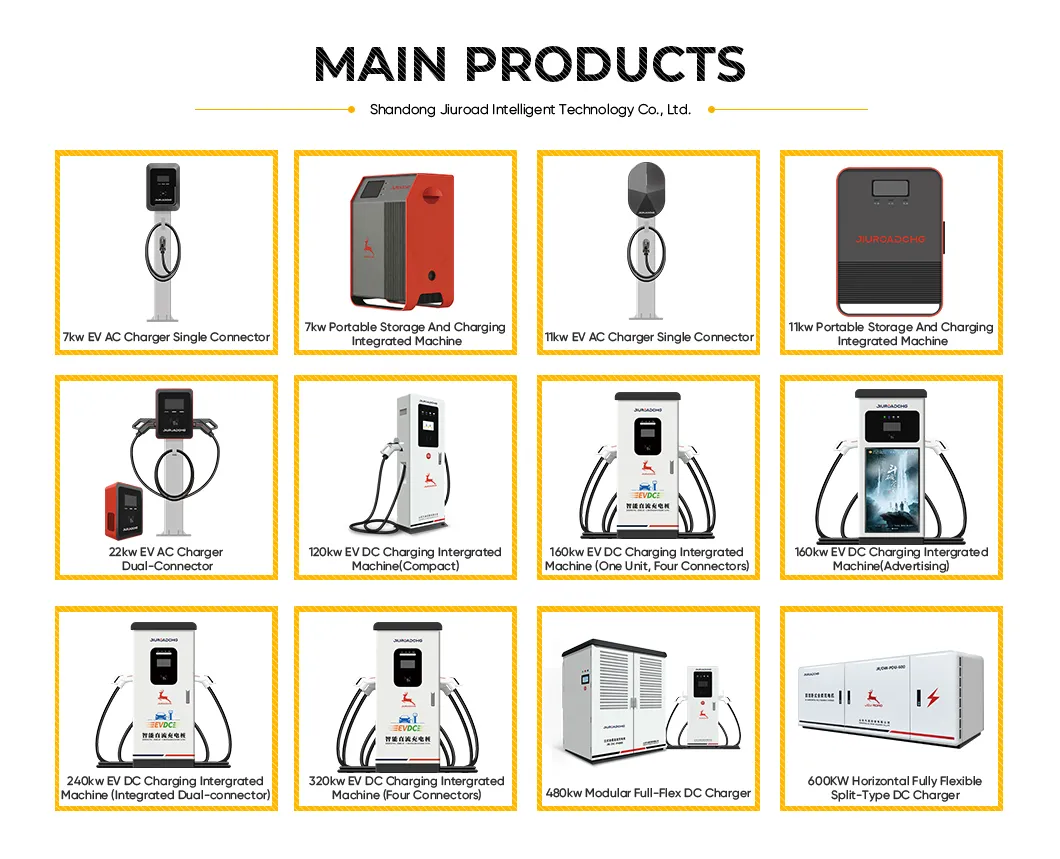

Main Products

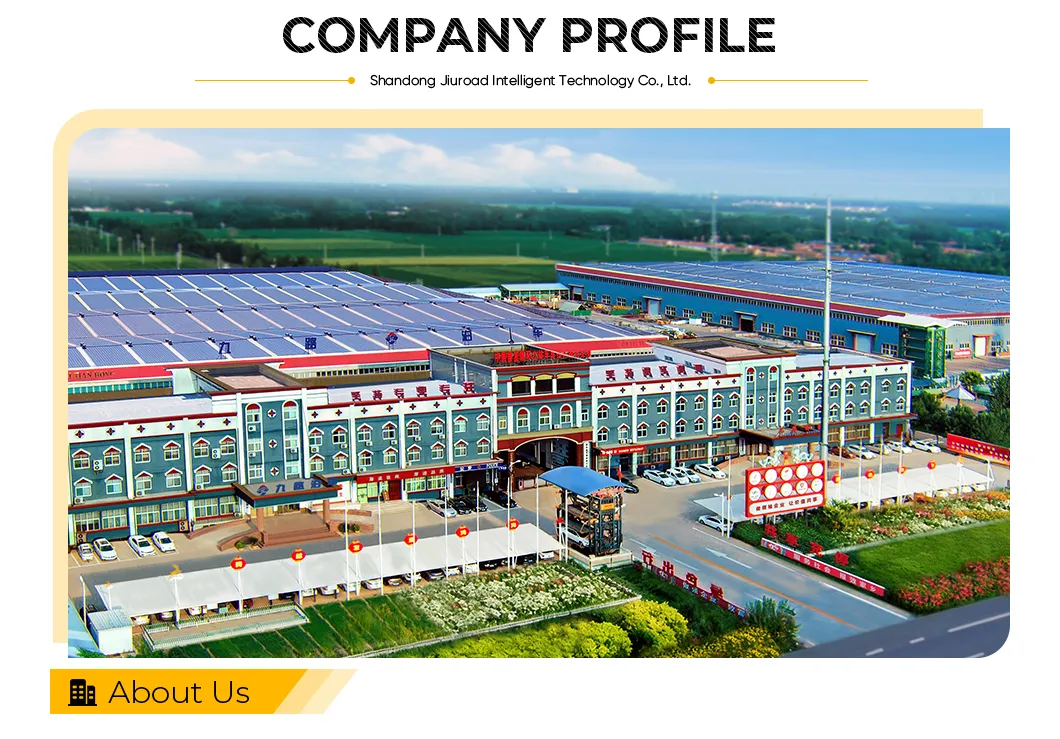

Engineering Excellence

Defining the Future of EV Infrastructure Through Innovation: As a global pioneer in high-end electric vehicle charging infrastructure, our company is recognized as an innovative technology leader. With over 15 years of deep-rooted expertise in power electronics and mechanical engineering, we engineer the vital energy veins of future smart cities.

Engineering Excellence & Reliability: At the heart of our product philosophy is "Military-Grade Reliability." Every power stack and charging unit undergoes more than 50,000 extreme condition tests, ensuring flawless operation in environments ranging from scorching desert heat to high-humidity coastal zones. Our systems are fully compliant with global standards—including GB/T, IEC, SAE, and CHAdeMO—and feature full OCPP 1.6/2.0.1 compatibility.

🛠️ Our Services & Certifications
Service 1
Service 2
Certifications
📦 Exhibition & Shipping
Exhibition
Shipping Bar
Packaging 1
Packaging 2

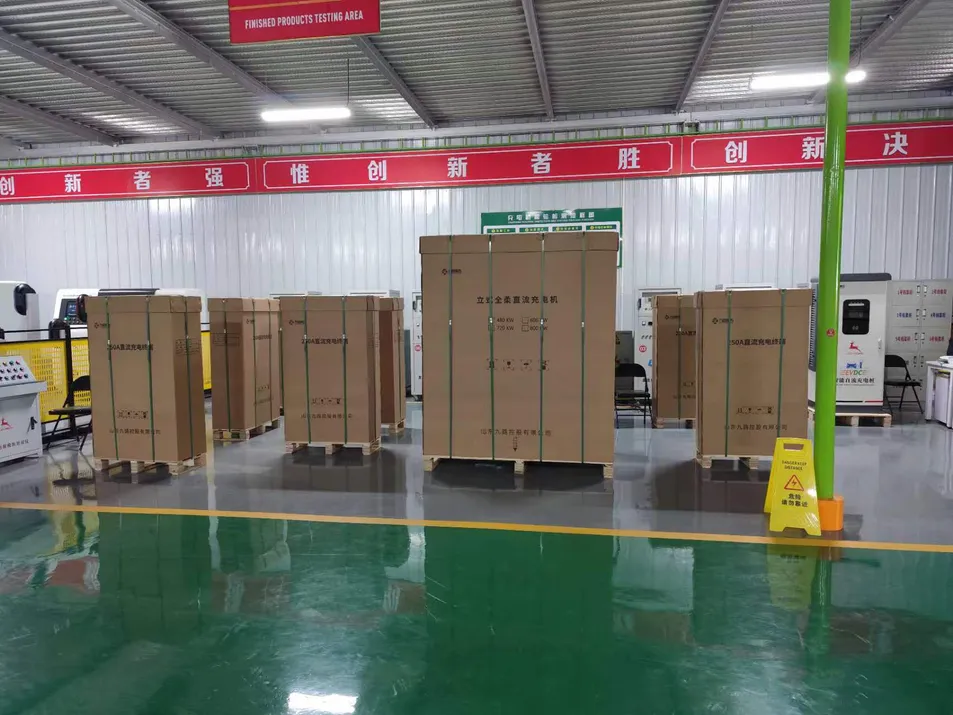

Shipping 1

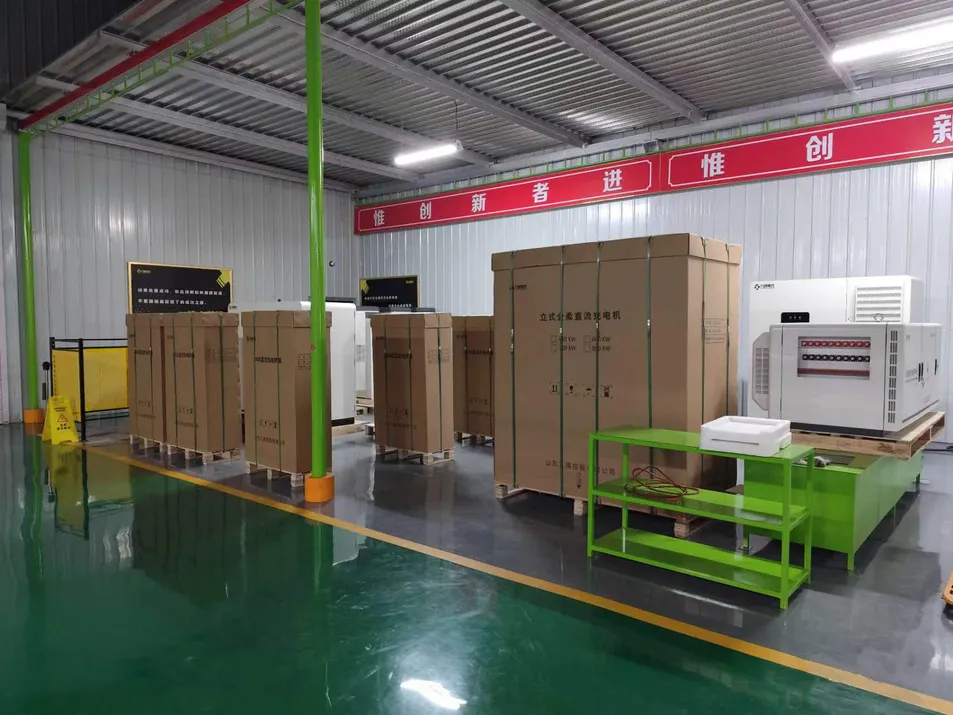

Shipping 2
Frequently Asked Questions
Are your devices fully compatible with the OCPP protocol?
All our DC and AC products natively support the OCPP 1.6J protocol and have completed the technical upgrade to OCPP 2.0.1. Our software team provides standard API interfaces and configuration services to ensure smooth integration with your cloud platform.
How does the "Full-Flex" power distribution technology enhance efficiency?
Our full-flex power stack employs dynamic matrix switching. It schedules current at the millisecond level based on vehicle BMS requirements rather than even distribution. This can increase the average daily charging volume of a single station by approximately 15% to 20%.
What solutions do you offer for high grid capacity expansion costs?
We provide an integrated "Solar-Storage-Charging" service. By using industrial-grade energy storage, the system stores energy during off-peak hours for use during peak times. Our equipment also supports Dynamic Load Balancing (DLB) to limit power based on site total load.
What are the benefits of the modular design for maintenance?
Our DC fast charging system uses a modular architecture. If a power module fails, the system isolates it while others keep working ("maintenance without downtime"). It is also highly scalable; you can add modules to upgrade power capacity without replacing the entire unit.
How do you provide remote support for overseas markets?
Through built-in intelligent gateways, engineers can remotely diagnose over 90% of faults. For hardware, we use standardized hot-swappable modules that non-technical personnel can replace under guidance. We also offer detailed video tutorials and multi-language manuals.
What is the protection level of the charging units?
The units are rated IP54, providing significant protection against dust and water splashes, making them suitable for both indoor and outdoor installations in various climate conditions.
