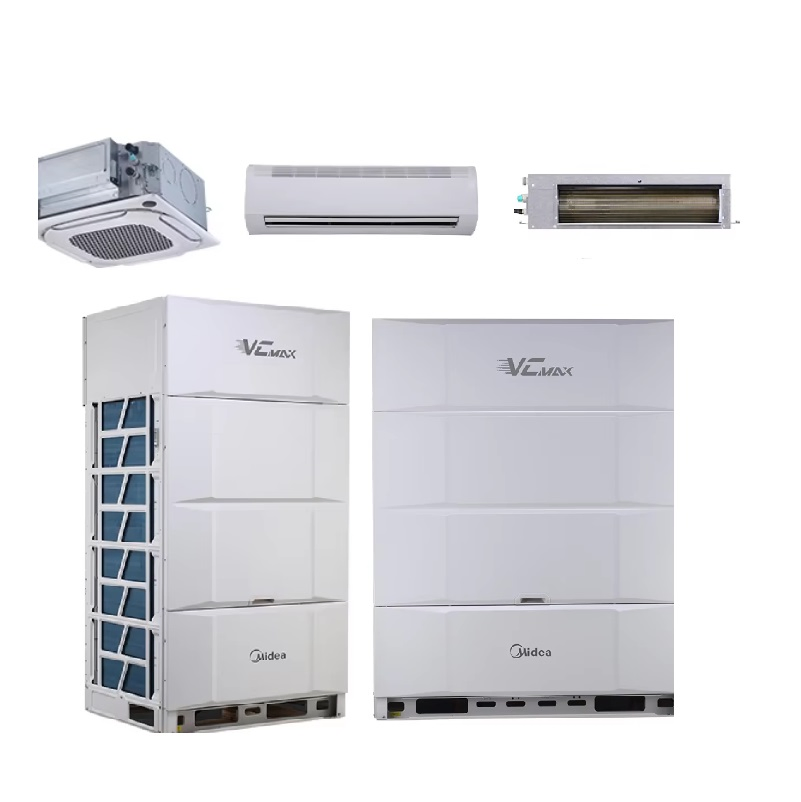

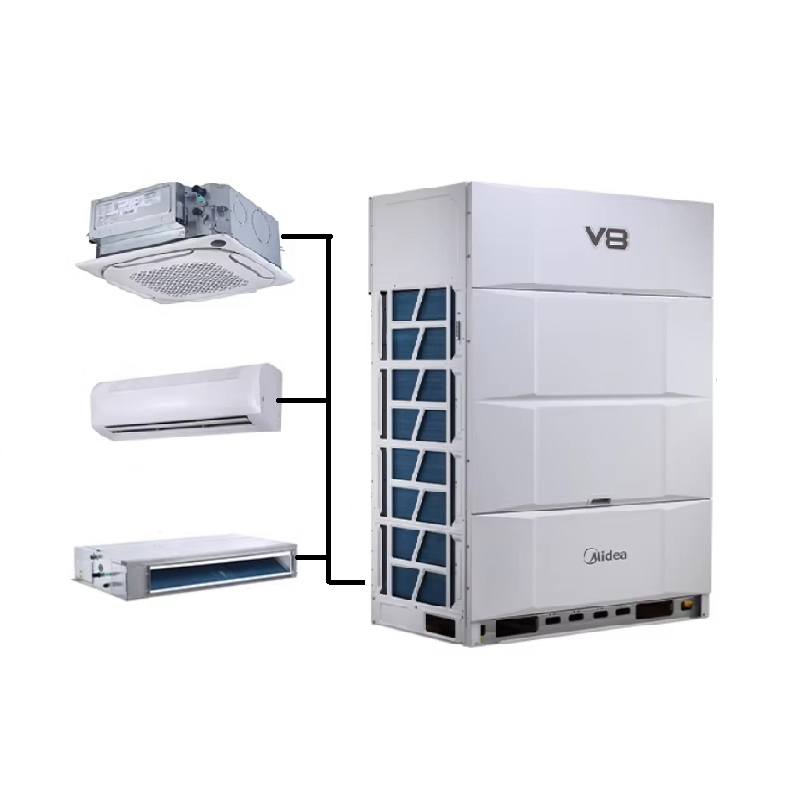

Basic Information
Type
Vrf Ststem, Central Air Conditioners
Air Tube Material
Galvanized Sheet
Corrosion Durability
Ultrahigh
Operating Voltage
220V/380V
Certification
RoHS, ISO, CE, CCC
Indoor Machine Noise
<23dB
Efficiency Standard
Level 1
Specification
1090x1805x860 mm
Product Technical Specifications
| Capacity | Hp | 12 |
| Model Number | MV6-335WV2DN1 |
| Power Supply | V/Ph/Hz | 380-415/3/50 |
| Cooling Capacity | kW | 33.5 |
| Heating Capacity | kW | 33.5 |
| Sound Level | dB(A) | 60 |
| Packed Size | mm | 1090×1805×860 |
| Gross Weight | kg | 248 |
Unique Innovations & High Efficiency
3 Unique Innovations
- Energy Management System (EMS)
- Enhanced Vapor Injection (EVI) Compressor
- Triple Configurations

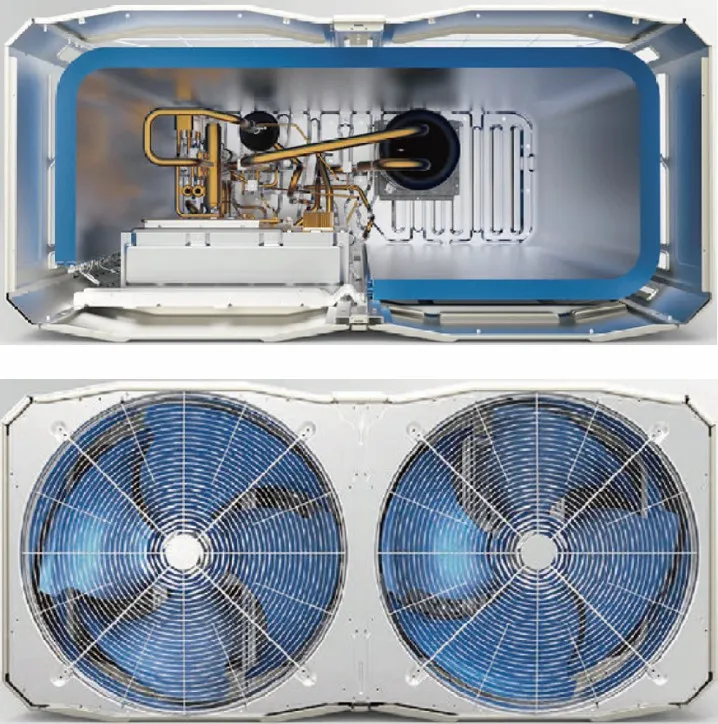

High Efficiency Performance
- Plate Heat Exchanger (PHE) Subcooling
- High Efficiency G-Type Heat Exchanger
- Super big size fan

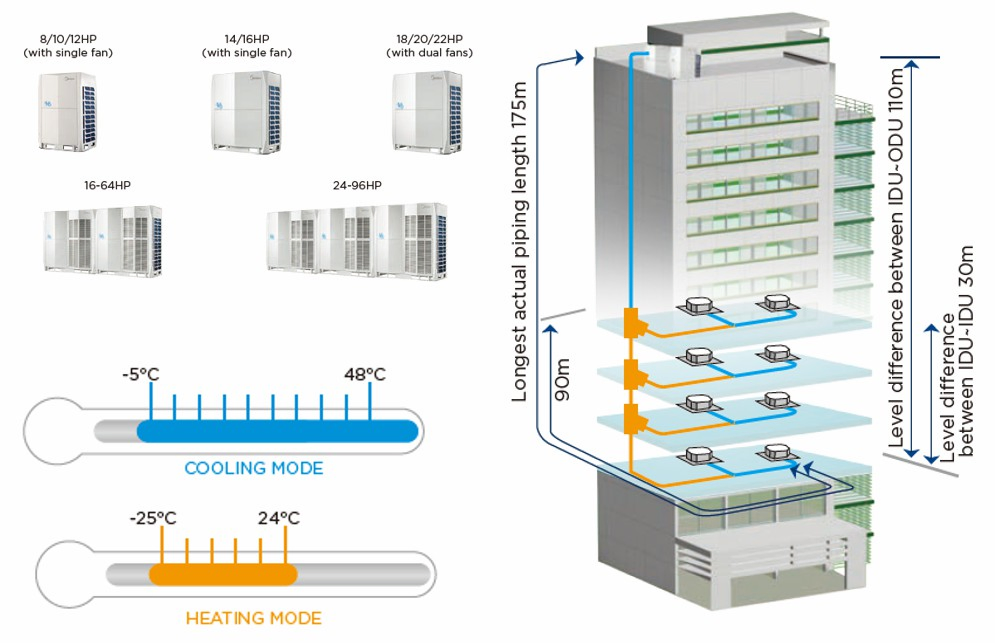

Wide Operating & Piping Capability
Capacity Range: 8-96 Hp | Operation Range: -25°C to 48°C
- Total piping length: 1000m
- Longest actual piping: 175m
- Level difference (IDU/ODU): up to 110m
- Level difference between IDUs: 30m
Reliability & Powerful Functions

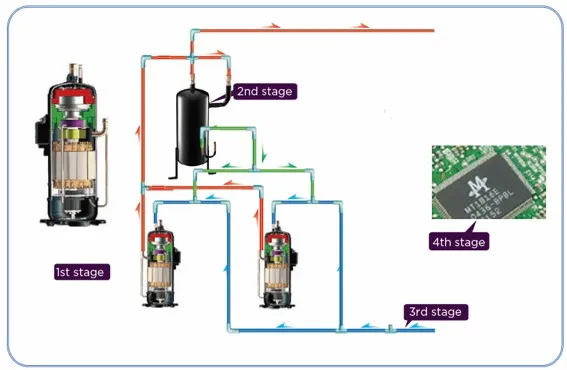

🛡️ High Reliability
- Duty Cycling
- Precise Oil Control
- Backup Operation
- Anti-Corrosion Certificate
- Refrigerant Cooling PCB
- Auto Snow-blowing
- Dust-clean function
Typical Applications
System Design Requirements
To provide an accurate design and quotation, please prepare:
- Building application & location
- Floor height & total size

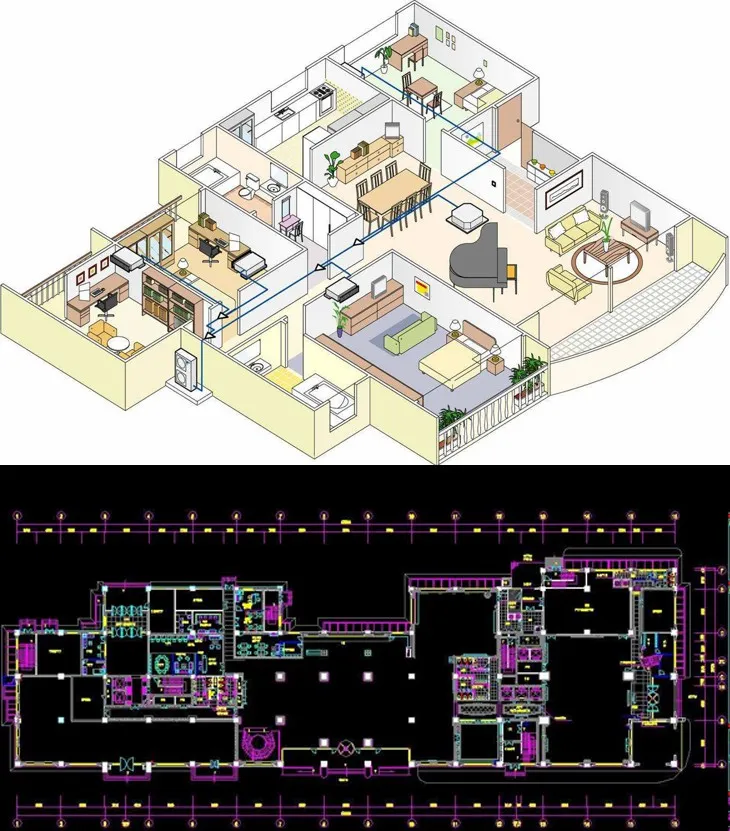

- Building drawings (CAD preferred)
- Local environmental conditions
- Specific room functions
- Preferred indoor unit types
- Local power supply specifications
Frequently Asked Questions
What is the most important factors for a VRF supplier?
Professional technology and experience are the most critical factors to ensure a successful installation and operation.
Why do I have to choose a professional company?
Because the VRF system does not allow a trial and error process. If installed based on a non-professional design, correcting errors later will be significantly more expensive.
Can I choose other payment terms?
Yes, flexible payment terms such as LC (Letter of Credit) are allowed.
Why do I have to provide the address of the project?
Providing the project address is necessary to comply with regional market regulations and group pricing policies.
Do I need to buy all accessories and materials from you?
No. We provide a complete price list of accessories and materials. You can compare prices locally and decide which items to purchase from us.
Do you provide installation services?
Yes, we have professional installation teams and project managers available. This is a paid service covering salary, fares, and accommodation.

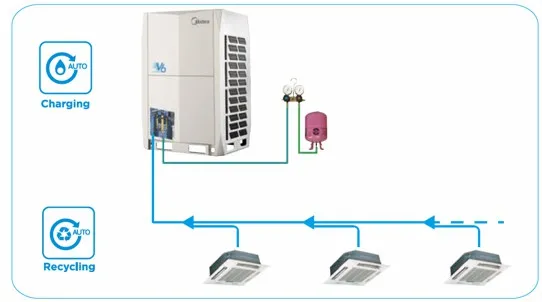

Quantum Charge
