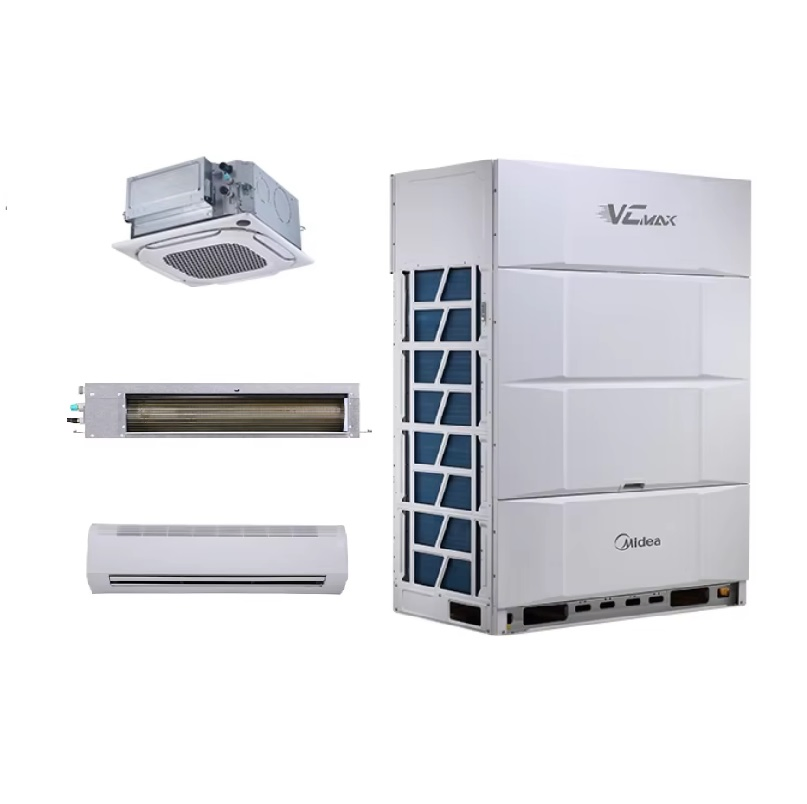

Midea Central Air Conditioning System DC Inverter Mini Vrf Room Air Conditioner Unit
Midea Central Air Conditioning System DC Inverter Mini Vrf Room Air Conditioner Unit
Midea Central Air Conditioning System DC Inverter Mini Vrf Room Air Conditioner Unit
Midea Central Air Conditioning System DC Inverter Mini Vrf Room Air Conditioner Unit
Midea Central Air Conditioning System DC Inverter Mini Vrf Room Air Conditioner Unit
1 / 5
Midea Central Air Conditioning System DC Inverter Mini Vrf Room Air Conditioner Unit
Midea Central Air Conditioning System DC Inverter Mini Vrf Room Air Conditioner Unit
Midea Central Air Conditioning System DC Inverter Mini Vrf Room Air Conditioner Unit
Midea Central Air Conditioning System DC Inverter Mini Vrf Room Air Conditioner Unit
Midea Central Air Conditioning System DC Inverter Mini Vrf Room Air Conditioner Unit

Midea Central Air Conditioning System DC Inverter Mini Vrf Room Air Conditioner Unit

Customization: Available
After-sales Service: 5 Years
Warranty: 5 Years
Send Inquiry

Product Description

i

Basic Specifications

Model NO.:MV6-615WV2GN1
Type:Vrf System, Central Air Conditioners
Operating Voltage:220V/380V
Capacity:48000-60000 BTU
Refrigerant:R410A
Lifetime:>20 years
Mounting:Floor Standing
Noise Level:Low (<23dB Indoor)

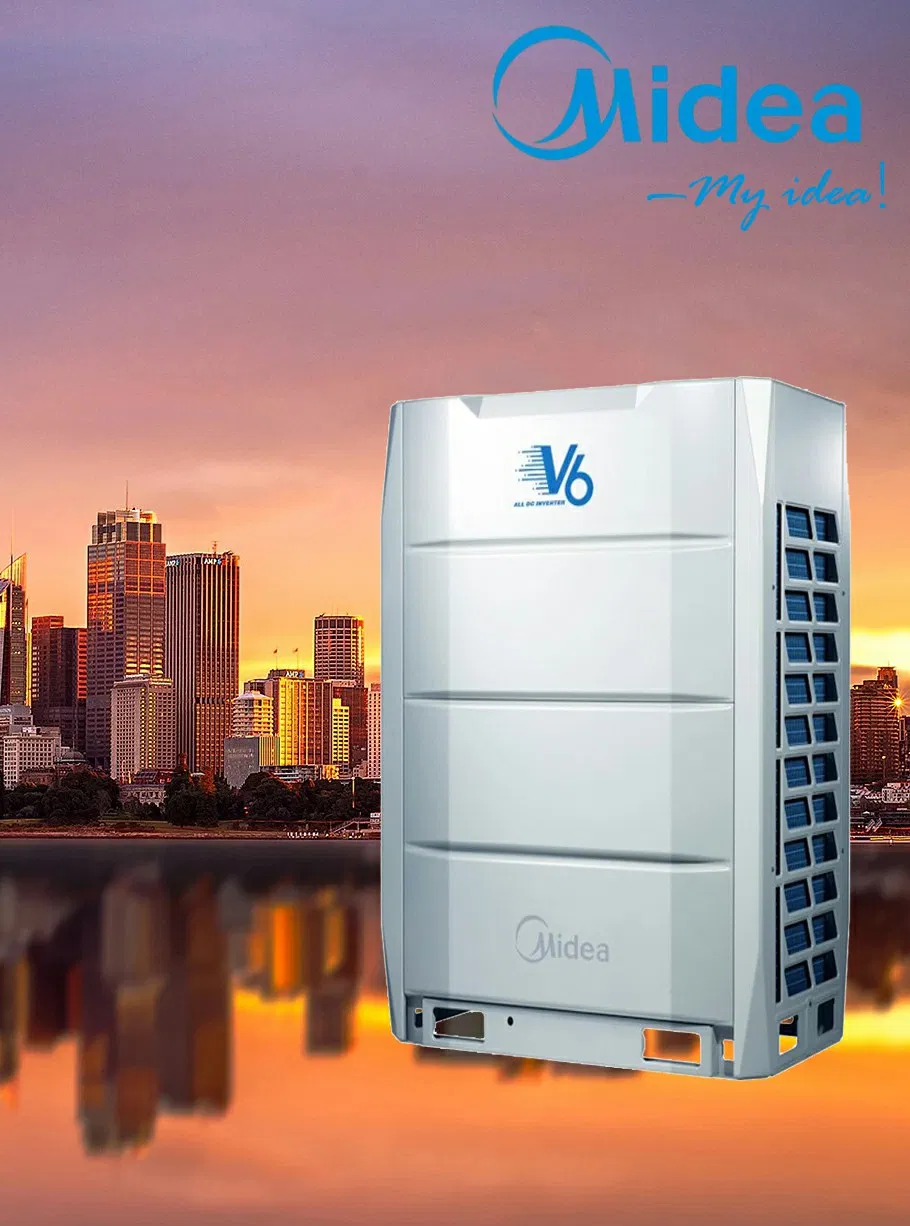

Central Air Conditioning Unit
Inverter VRF System
⚙

Technical Performance

Parameter Unit Value
Model Number - MV6-615WV2GN1
Cooling Capacity kW 61.5
Power input kW 18.4
Heating Capacity kW 61.5
Power input kW 15.0
Sound Level dB(A) 66
Packed size (W×H×D) mm 1405×1805×910
Gross Weight kg 368
★

Core Innovations & Efficiency

Unique Innovations
  • Energy Management System (EMS)
  • Enhanced Vapor Injection (EVI) Compressor
  • Triple Configurations
High Efficiency
  • Plate Heat Exchanger (PHE) Subcooling
  • G-Type Heat Exchanger
  • Super Big Size Fan

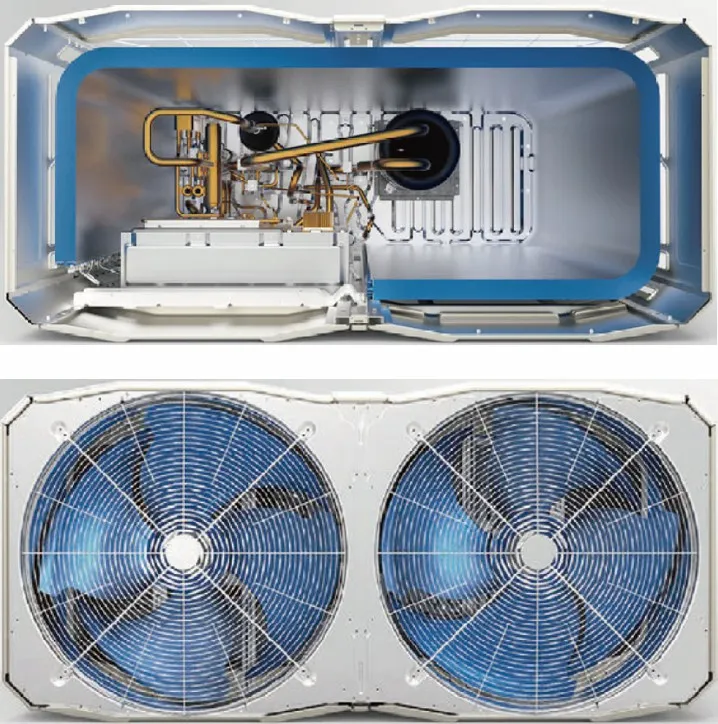

Innovation Tech
Piping Capability

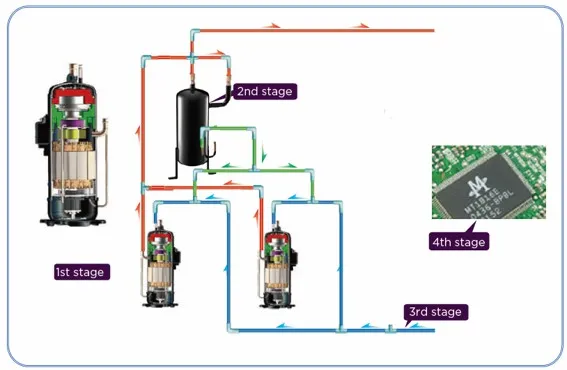

Reliability Systems

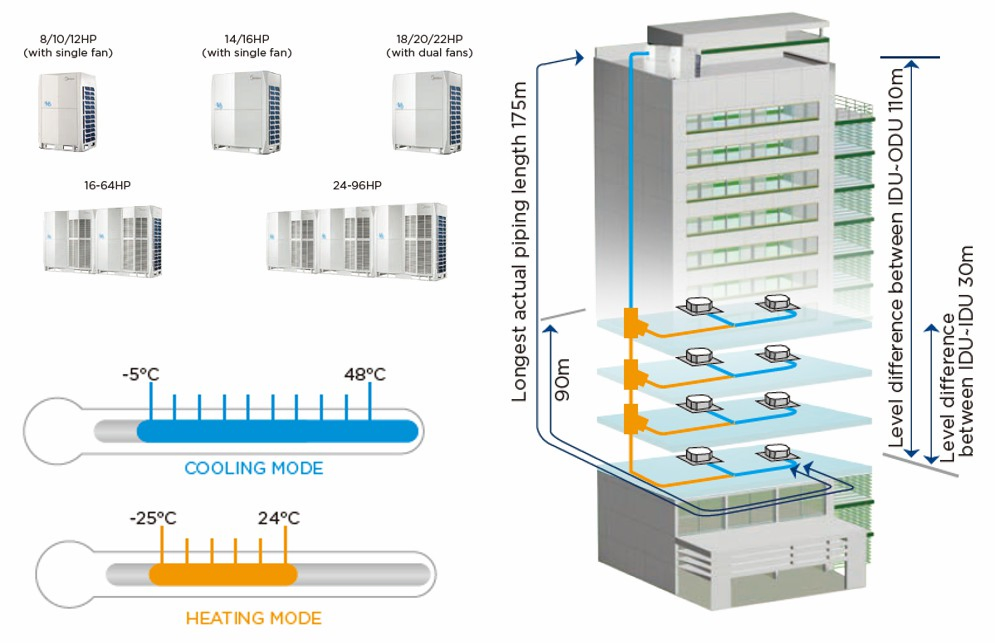

Operating Capability
  • Wide Capacity: 8-96 Hp
  • Wide Operation Range: -25ºC to 48ºC
  • Total Piping Length: 1000m
  • Level Difference IDU/ODU: Up to 110m
High Reliability
  • Duty Cycling & Backup Operation
  • Precise Oil Control Technology
  • Anti-Corrosion Certificate (27 years)
  • Refrigerant Cooling PCB
🏢

Application Fields

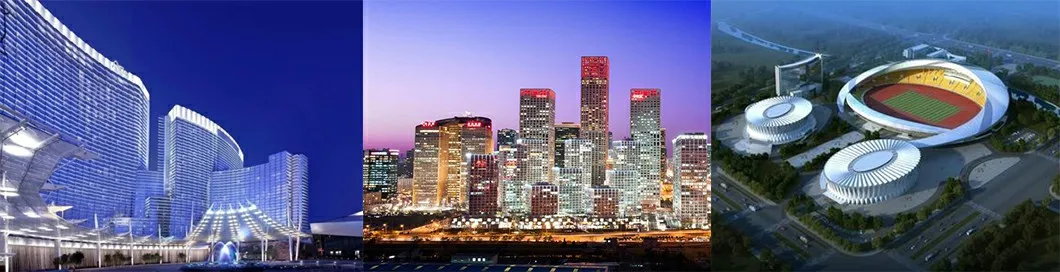

Hotel and Office Application
  • Hotel, Restaurant, Holiday Village
  • CBD, Office Building, Apartments
  • Gym, Library, Theater
  • Super Market, City Center
  • School, Hospital, Villa
  • Airport, Railway Station
Commercial Spaces
📋

Service & Project Evaluation

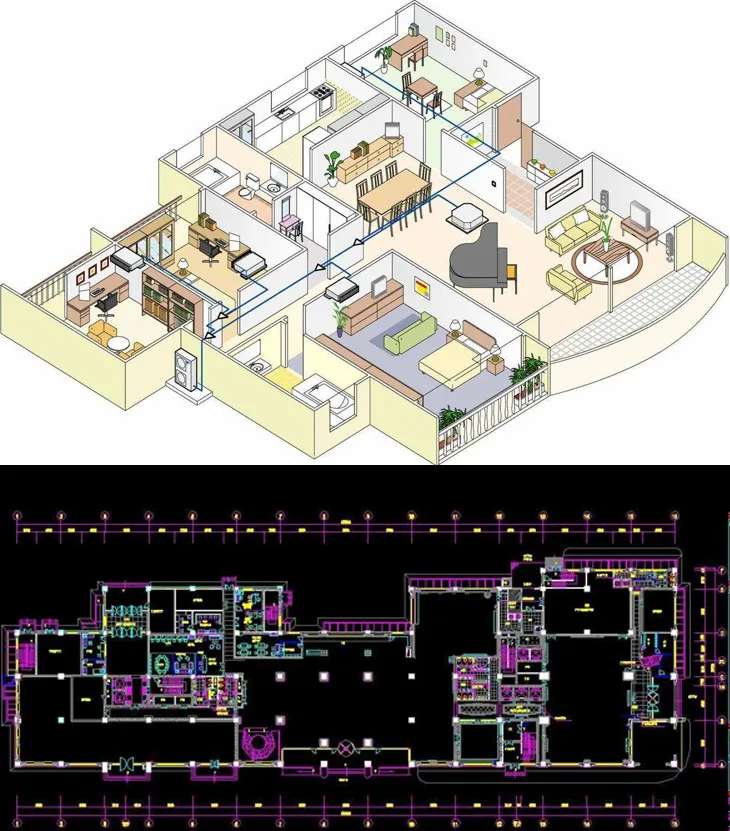

Evaluation Drawing

For an accurate system design, please provide:

  • Building application and size (floor heights)
  • Building drawings and environment conditions
  • Room functions and indoor unit preferences
  • Local power supply specifications
?

Frequently Asked Questions

What are the most important factors for a VRF supplier?
Professional technology and extensive project experience are the most critical factors to ensure system efficiency.
Why is it necessary to choose a professional company for design?
The VRF system does not allow for a trial and error process. Incorrect design installation leads to significantly higher costs for rectification later.
Are different payment terms available?
Yes, various payment terms including LC (Letter of Credit) are acceptable to accommodate project needs.
Do I need to purchase all accessories and materials from you?
No. We provide a comprehensive price list for all accessories and materials. You can decide whether to purchase them from us or locally after comparing prices.
Do you provide installation services?
Yes, we have professional installation teams and project managers. This is a paid service covering salary, travel fares, and accommodation.
What is the advantage of a turnkey service?
It saves up to 80% of procurement time and ensures that all components, from indoor units to the smallest installing accessories, are perfectly matched.
