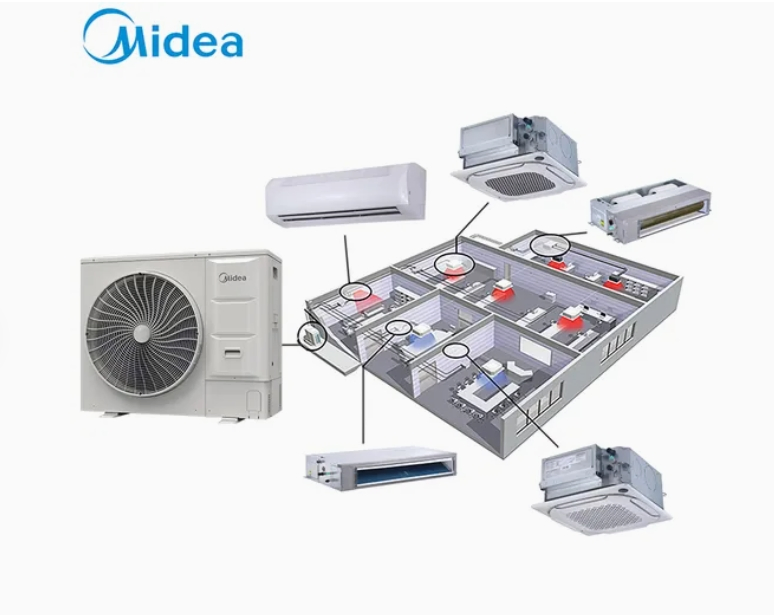

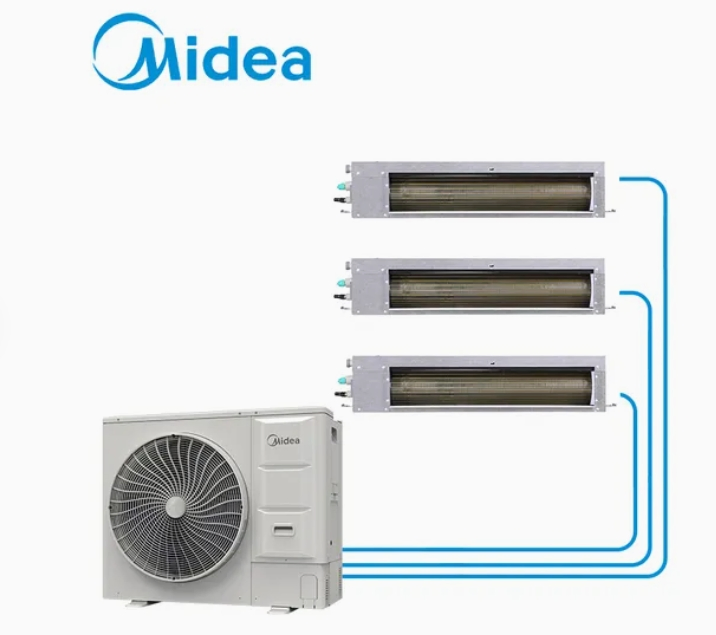

Midea Vrf DC Inverter Air-Conditioner Househole Cooling Heating Low-Energy Consumption Indoor Outdoor Unit

1 / 5

Midea Vrf DC Inverter Air-Conditioner Househole Cooling Heating Low-Energy Consumption Indoor Outdoor Unit

Customization:	Available
After-sales Service:	5 Years
Warranty:	5 Years

Send Inquiry

Product Description

Basic Info.

Model NO.MV8-335WV2DN1

TypeVrf Ststem

Air Tube MaterialGalvanized Sheet

Corrosion DurabilityUltrahigh

Operating Voltage220V/380V

Noise LevelLow

Application FieldsCentral Air Conditioning System

MountingFloor Standing

Lifetime>20 years

CertificationRoHS, ISO, CE, CCC

ConditionNew

Capacity48000-60000 BTU

UsageRoom

Indoor Machine Noise<23dB

Energy EfficiencyLevel 1

Cooling/HeatingCooling/Heating

Power SourceElectrical

Power TypeAC

Power Supply380-415/3/50

RefrigerantR410A

HS Code8415102100

OriginChina

Product Specifications

Capacity		Hp	12
Model number		MV6-335WV2DN1
Power supply		V/Ph/Hz	380-415/3/50
Cooling	Capacity	kW	33.5
Cooling	Power input	kW	7.08
Heating	Capacity	kW	33.5
Heating	Power input	kW	6.65
Refrigerant Type		-	R410A
Sound level		dB(A)	60
Packed size (W×H×D)		mm	1090×1805×860
Gross weight		kg	248

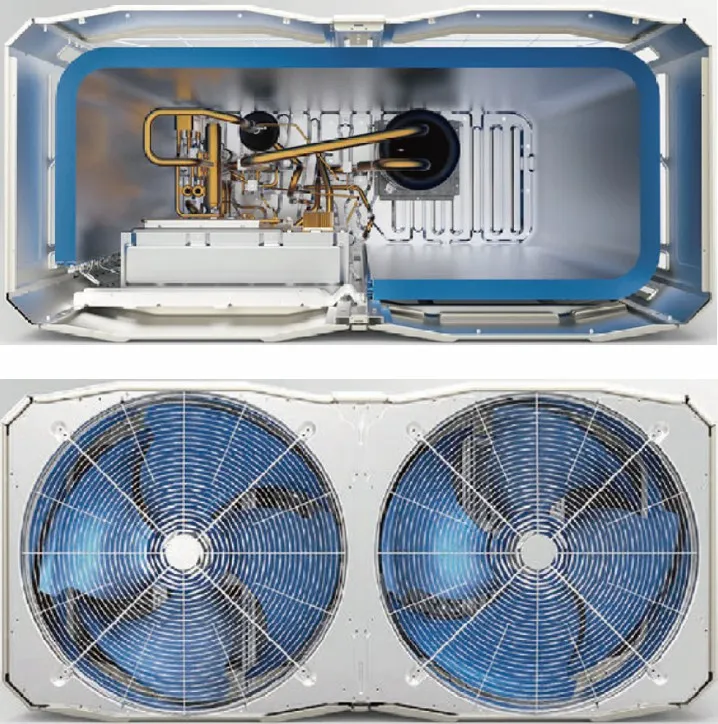

Key Innovations & Efficiency

·3 Unique Innovations

Energy Management System (EMS)
Enhanced Vapor Injection (EVI) Compressor
Triple Configurations

·High Efficiency

Plate Heat Exchanger (PHE) Subcooling
High Efficiency G-Type Heat Exchanger
Super big size fan

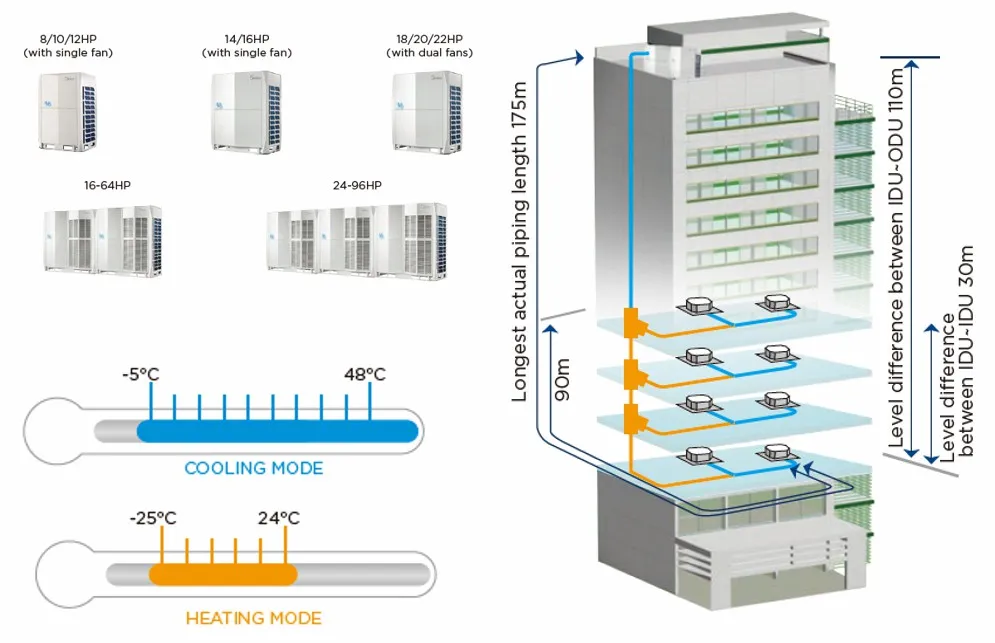

Operating Range & Piping

Capacity Range8-96 Hp

Operation Range-25 to 48ºC

Total Piping Length1000m

Actual Longest Piping175m

IDU/ODU Level Diff90m - 110m

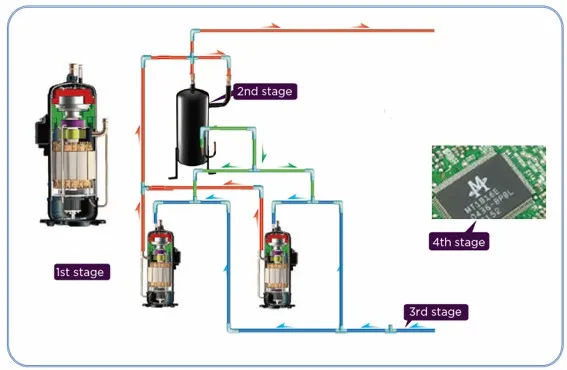

High Reliability Features

·Reliability

Duty Cycling, Precise Oil Control, Backup Operation, UL Anti-Corrosion (27 years), Real-time Refrigerant Monitoring, Auto Snow-blowing.

·Powerful Functions

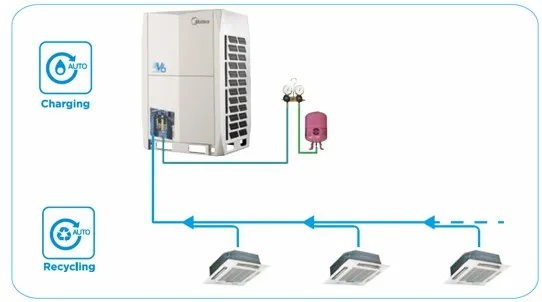

Night Silent Mode, Enhanced Heating, Intelligent Defrosting, Auto Addressing, Automatic Refrigerant Charging.

Service & Applications

1 Professional Team

Engineer and designer team, Sale engineers, Supply chain management.

2 Global Experience

20+ years in central air conditioning, 400+ projects worldwide.

3 Support

24 hours online, 365 days service, 1-to-1 customer orientation.

Hotels, Restaurants, Office Buildings, CBD, Gyms, Libraries, Schools, Hospitals, Airports.

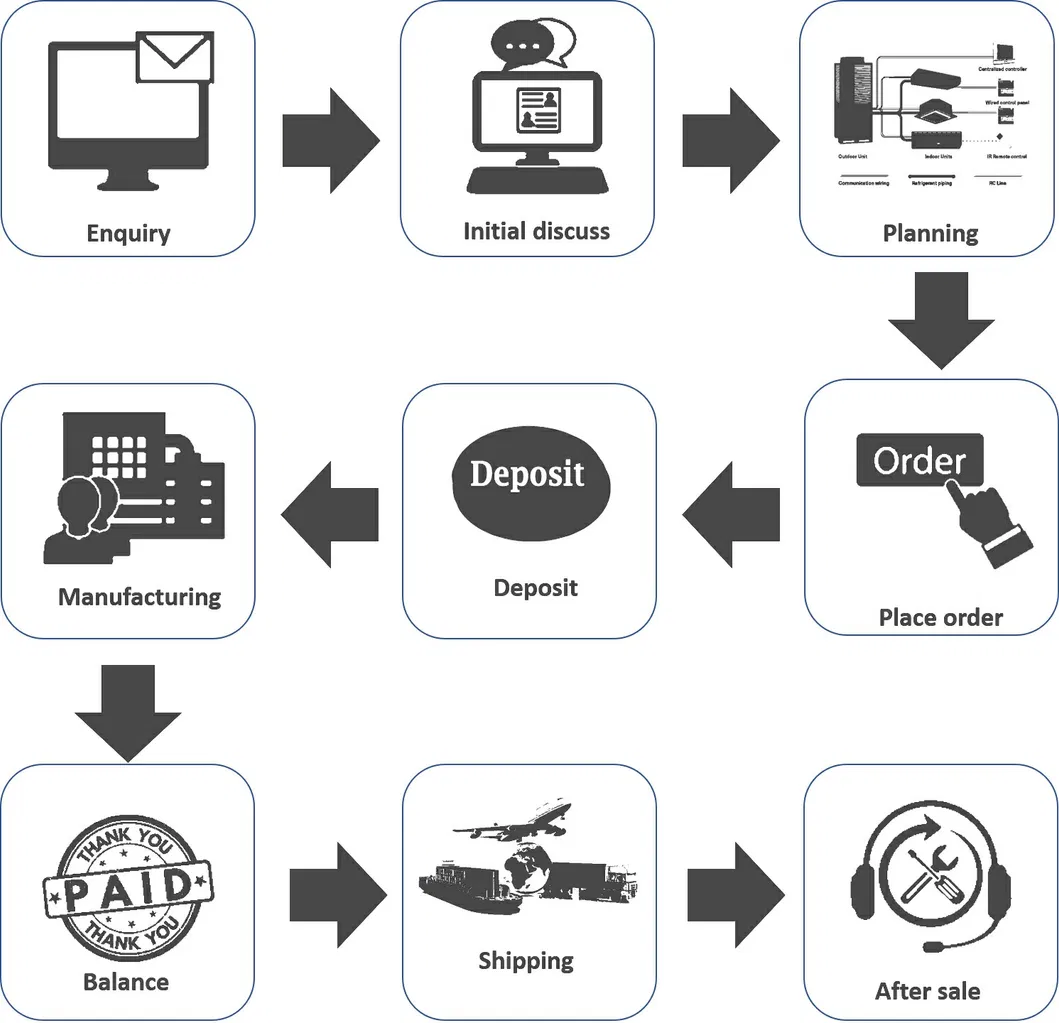

Project Requirements

To provide an accurate solution, please provide:

Building application and size
Height of each floor

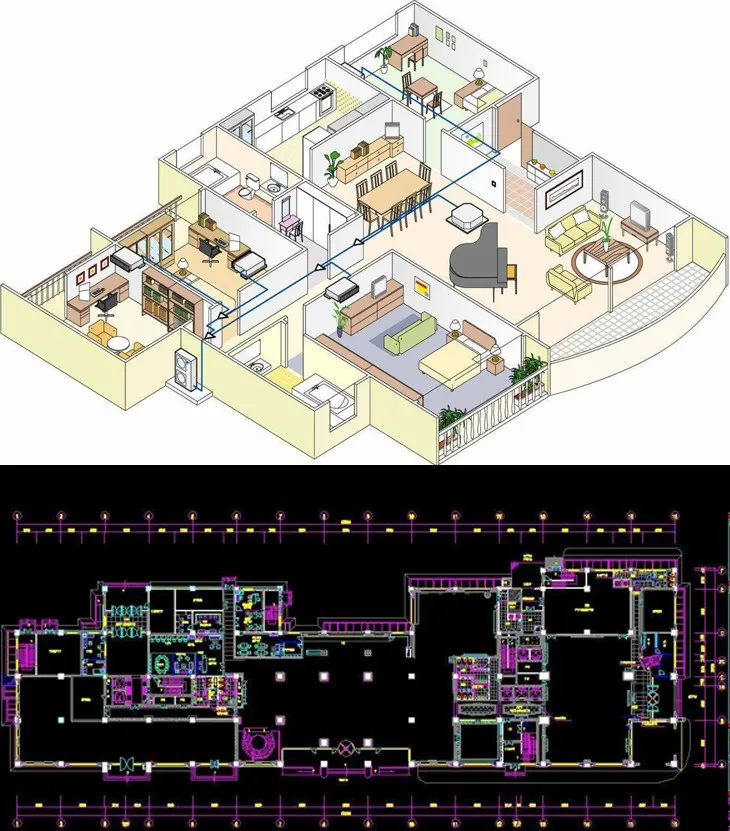

Building drawings
Max summer temperature
Room functions
Local power supply
New or old building status

Frequently Asked Questions

Q: What is the most important factors for a VRF supplier?

A: Professional technology and experience are the most vital factors for ensuring a successful installation and operation.

Q: Why do I have to choose a professional company?

A: VRF systems do not allow for trial and error. If installed based on an unprofessional design, correcting errors later will cost significantly more money and time.

Q: Can I choose other payment terms?

A: Yes, alternative terms such as Letter of Credit (LC) are allowed.

Q: Why do I have to provide the project address?

A: This is required to coordinate with regional market regulations and ensure proper brand protection and service allocation.

Q: Do I need to buy all accessories and materials from you?

A: No. We provide a full price list of accessories and materials; you can compare them with local prices and decide which items you wish to purchase from us.

Q: Do you provide installation services?

A: Yes, we have professional installation teams and project managers. Please note this is a paid service covering salary, travel, and accommodation.
